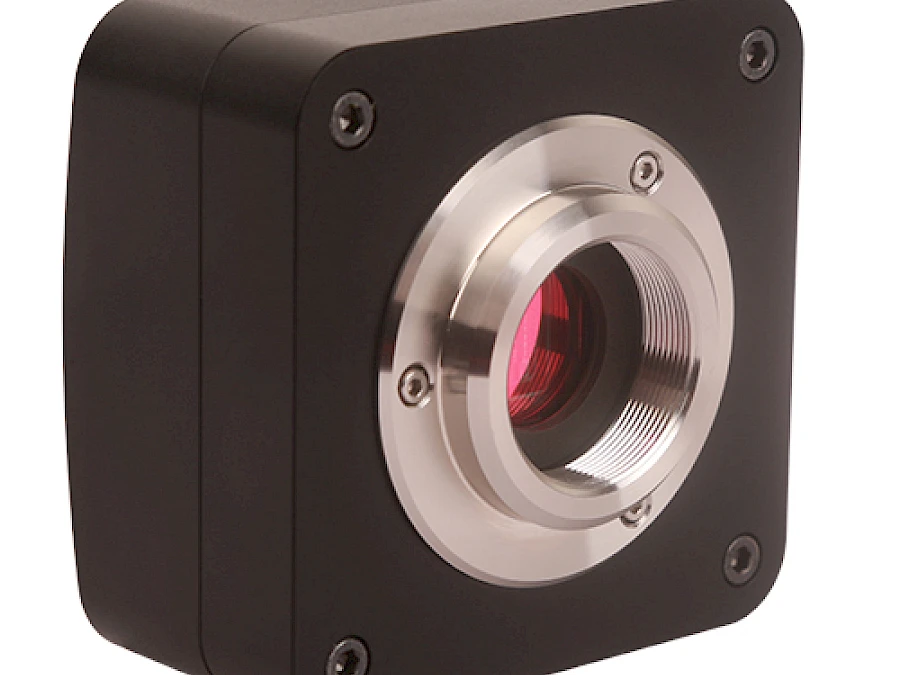

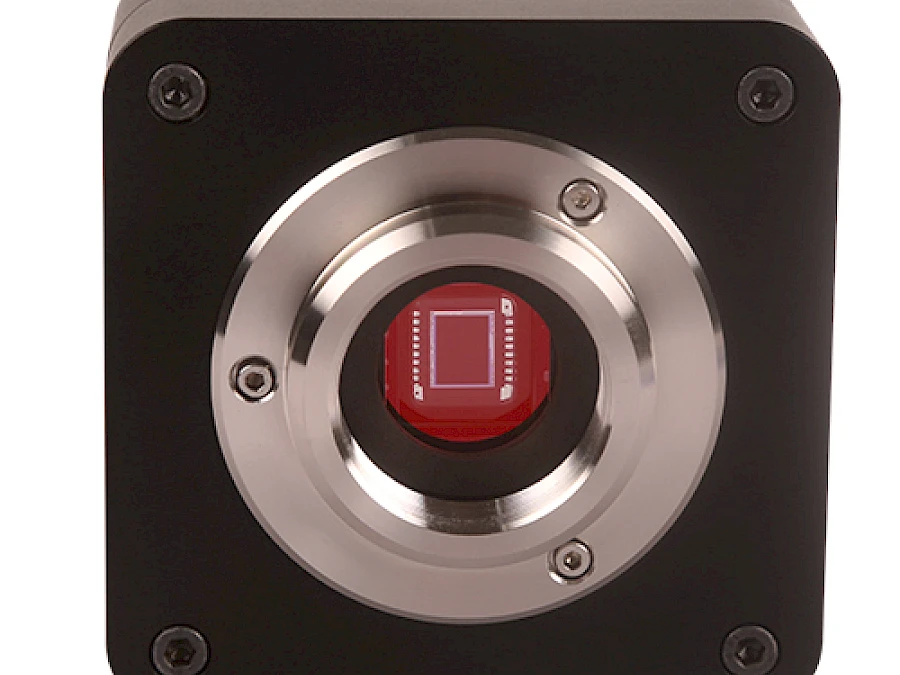

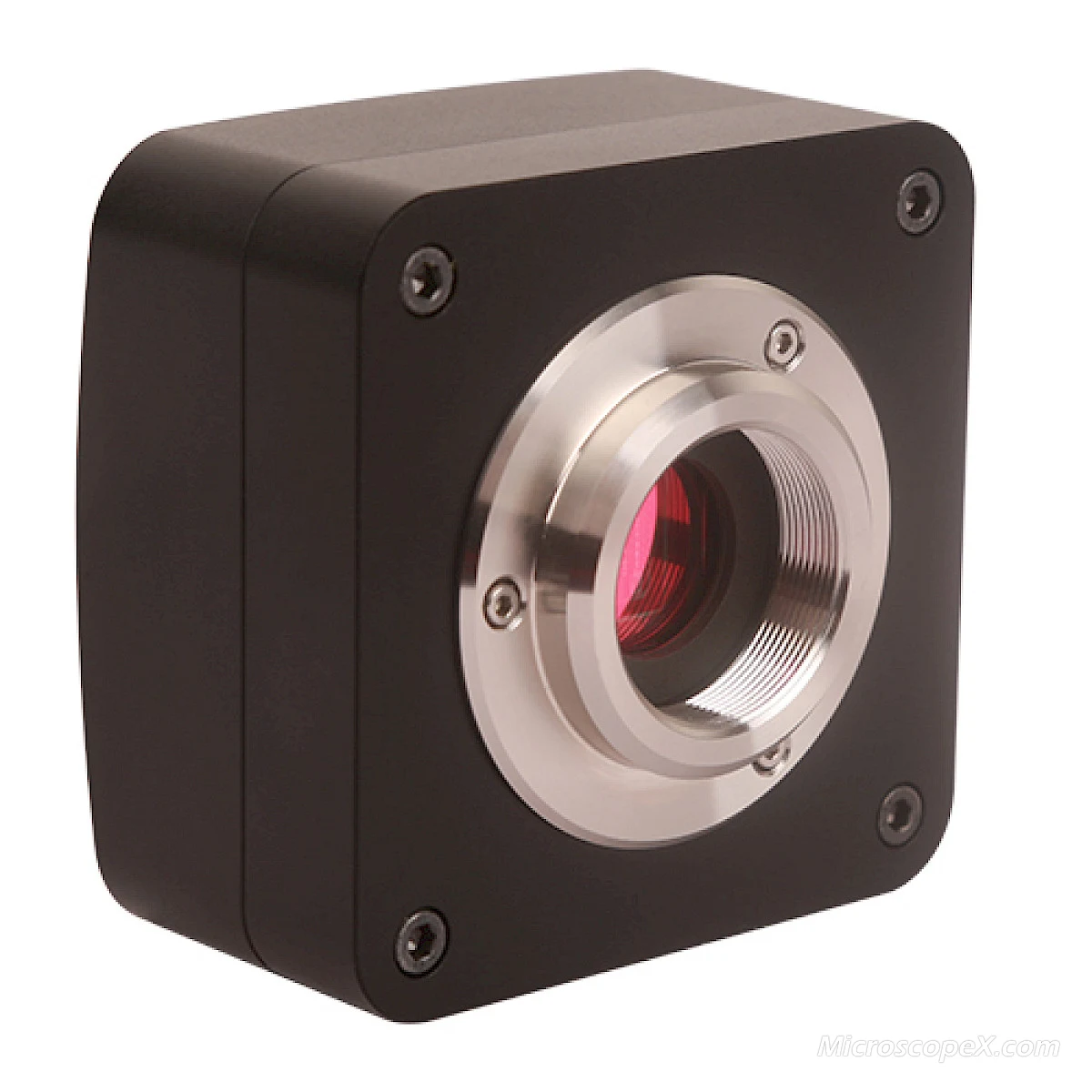

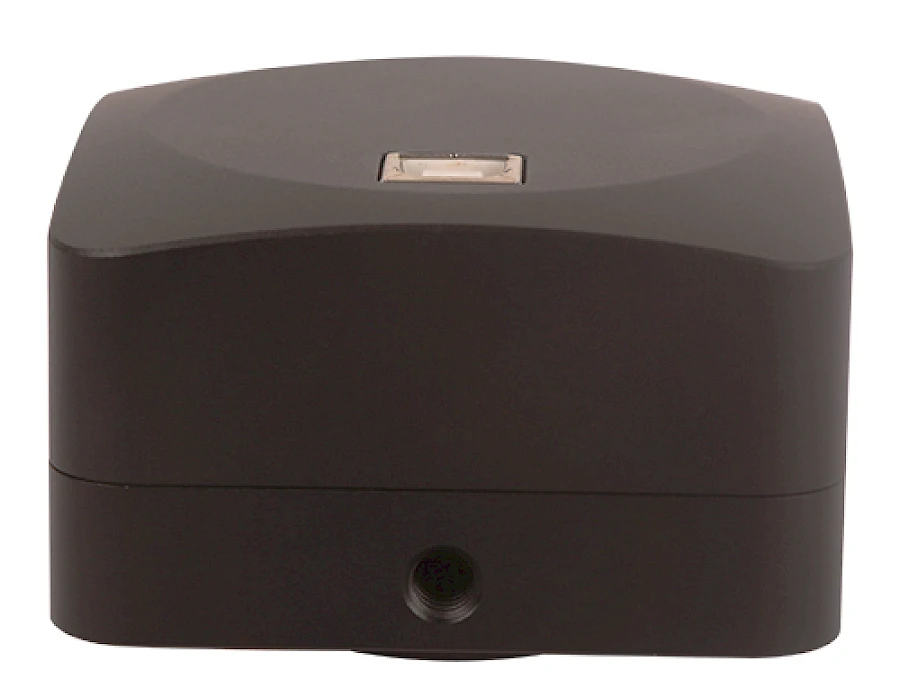

EXCCD Series C-mount USB2.0 CCD Camera

USB2.0, intelligent image processing, superior color restoration

Core Features

Standard C-Mount camera with SONY ExView 0.3M~1.4M sensors
USB2.0 interface ensuring high speed data transmission
Ultra-Fine color engine with perfect color reproduction capability
With advanced video & image processing application ToupView
Providing Windows/Linux/Mac OS multiple platforms SDK
Native C/C++, C#/VB.NET, DirectShow, Twain Control API

Configurations

Standard C-Mount

USB2.0

SONY CCD

Ultra-Fine color engine

Request Quotation Email Phone Back to Products

EXCCD is an ExView HAD CCD camera and it adopts Sony ExView HAD CCD sensor as the image-picking device. Sony ExView HAD CCD is a CCD that drastically improves light efficiency by including near infrared light region as a basic structure of HAD (Hole-Accumulation-Diode) sensor. Jingtong uses EXCCD for simplicity. USB2.0 is used as the data transfer interface.

EXCCD comes with advanced video & image processing application; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

The EXCCD can be widely used in low light environment and microscope fluorescence image capture and analysis.

EXCCD Series

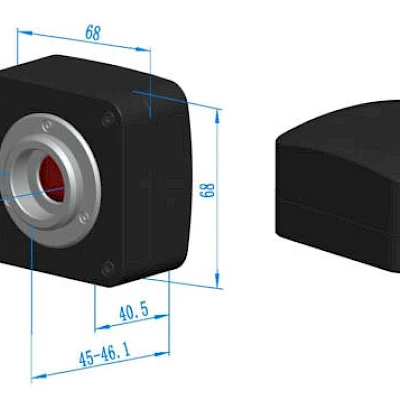

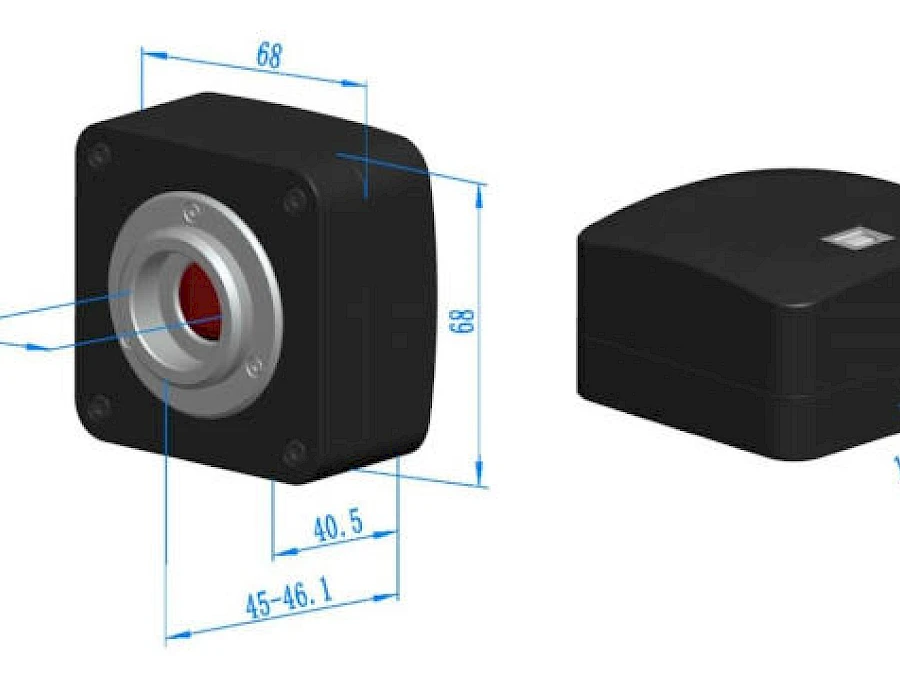

Dimension of EXCCD

The EXCCD body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

Dimension of EXCCD Series

Dimension of EXCCD

Extension of EXCCD with Microscope or Telescope Adapter

Application	Picture
C-mount Camera		Machine vision; Medical imaging; Semiconductor equipment; Test instruments; Document scanners; 2D barcode readers; Web camera and security video; Microscope imaging;
Microscope Camera
Telescope Camera

Order Code	Sensor & Size(mm)	Pixel(μm)	G Sensitivity Dark Signal	FPS/Resolution	Binning	Exposure
EXCCD01400KPA TP801400A	1.4M/ICX285AQ(C) 2/3“ (8.77x6.60)	6.45x6.45	1240mv with 1/30s 10mv with 1/30s	15@1360x1024	1x1	0.12ms~240s
EXCCD01400KMA TM801400A	1.4M/ICX285AL(M) 2/3“ (8.77x6.60)	6.45x6.45	1300mv with 1/30s 11mv with 1/30s	15@1360x1024	1x1	0.12ms~240s
EXCCD00440KMA TM800440A	0.44M/ICX829AL(M) 1/2''(6.43x4.80)	8.6X8.3	2800mv with 1/30s 2mv with 1/30s	46@748X578	1X1	0.20ms~3600s
EXCCD00300KMA TM800300A	0.3M ICX618AL(M) 1/4“ (3.58x2.69)	5.6x5.6	1200mv with 1/30s 4mv with 1/30s	72@640x480	1x1	0.06ms~40s,

C: Color; M: Monochrome;

Other Specification for EXCCD Cameras
Spectral Range	380-650nm (with IR-cut Filter)
White Balance	ROI White Balance/ Manual Temp Tint Adjustment /NA for Monochromatic Sensor
Color Technique	Ultra-FineTM Color Engine /NA for Monochromatic Sensor
Capture/Control API	Native C/C++, C#/VB.NET, DirectShow, Twain and Labview
Recording System	Still Picture and Movie
Cooling System*	Natural
Operating Environment
Operating Temperature(in Centidegree)	-10~ 50
Storage Temperature(in Centidegree)	-20~ 60
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 5V over PC USB Port
Software Environment
Operating System	Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory:2GB or More
	USB Port:USB2.0 High-speed Port
	Display:17” or Larger
	CD-ROM

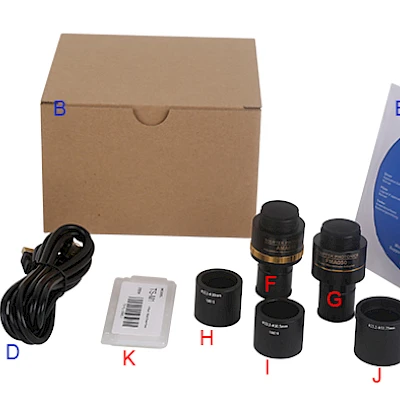

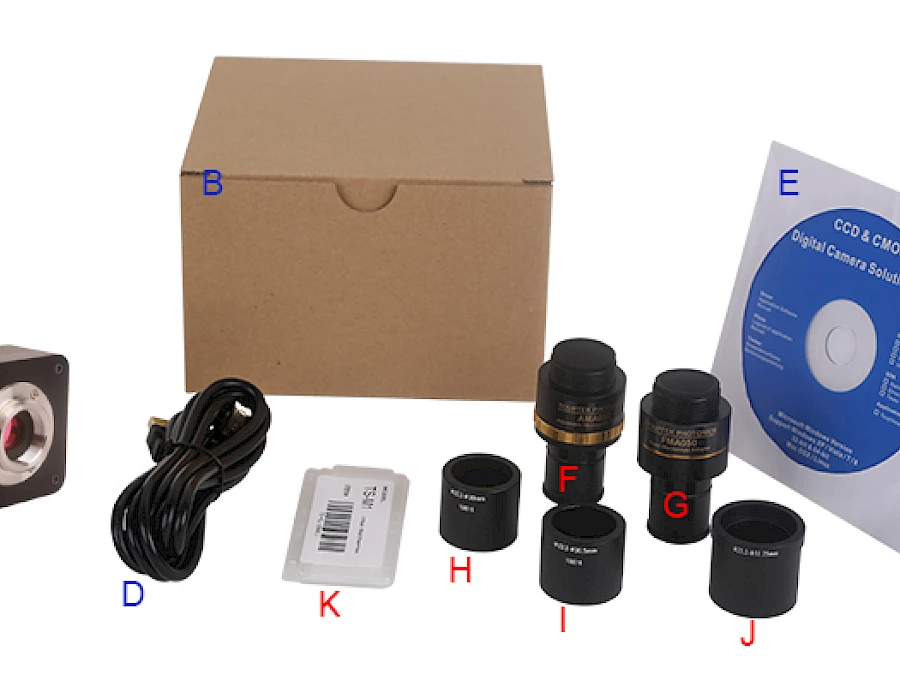

Packing Information for EXCCD

Standard Camera Packing List
A	Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo
B	Gift box L:15cm W:15cm H:10cm (0.67~0.80Kg/ box)

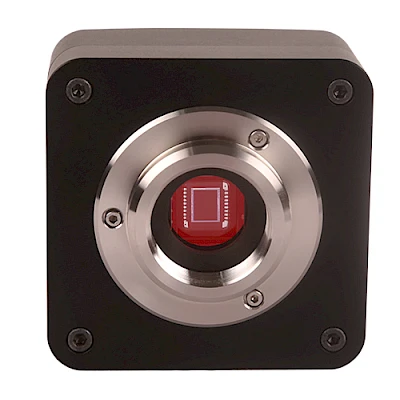

C	EXCCD series USB2.0 C-Mount camera
D	High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m
E	CD (Driver & utilities software, Ø12cm)
Optional Accessory
F	Adjustable lens adapter	C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope)	108001/AMA037 108002/AMA050 108003/AMA075
F	Adjustable lens adapter	C-Mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope)	108008/ATA037 108009/ATA050 108010/ATA075
G	Fixed lens Adapter	C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope)	108005/FMA037 108006/FMA050 108007/FMA075
	Fixed lens Adapter	C-mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope)	108011/FTA037 108012/FTA050 108013/FTA075
	Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), Jingtong engineer will help you to determine the right microscope or telescope camera adapter for your application;
H	108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube
I	108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube
J	108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube
K	Calibration kit	106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

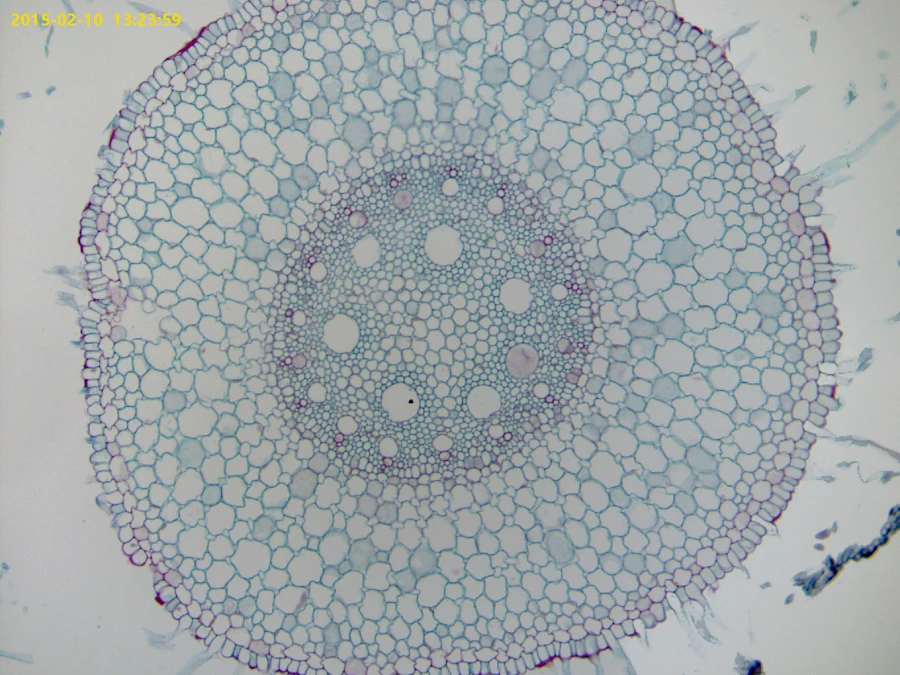

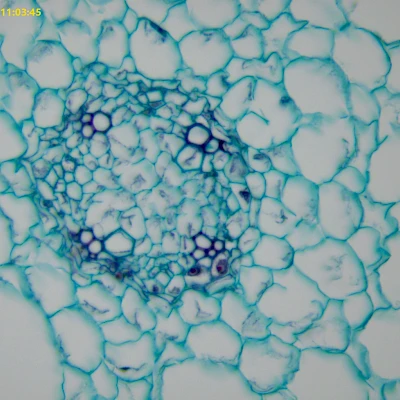

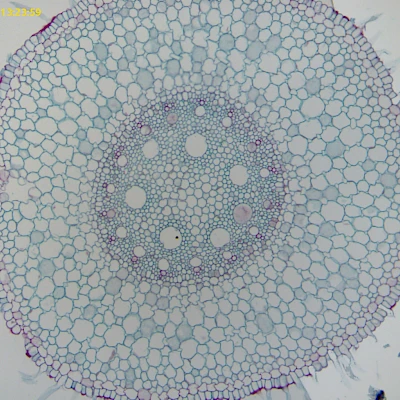

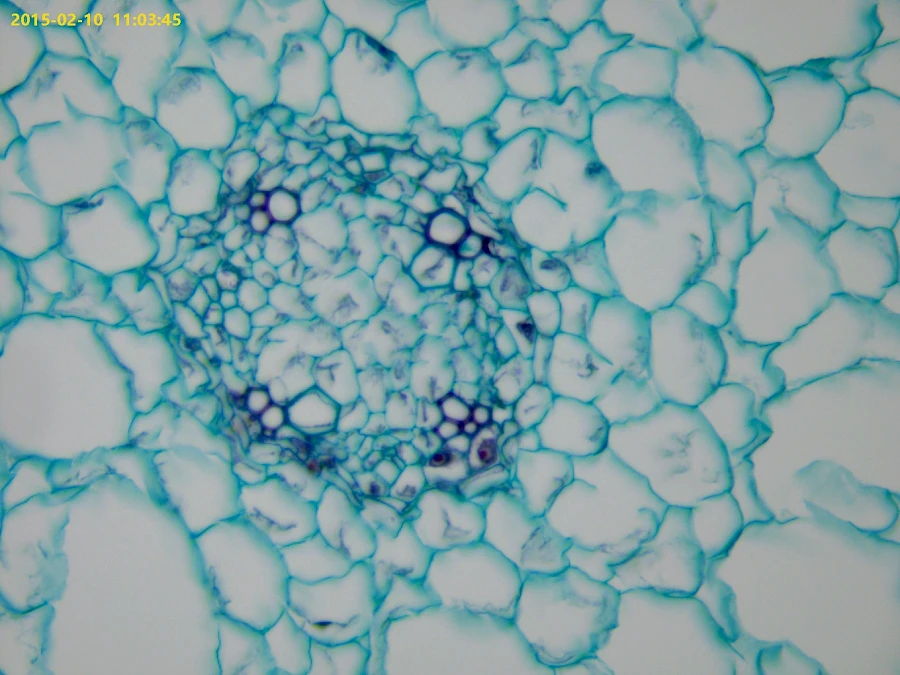

Typical dicot root,ranunculus mature root cs	Monocot root(zea mays)

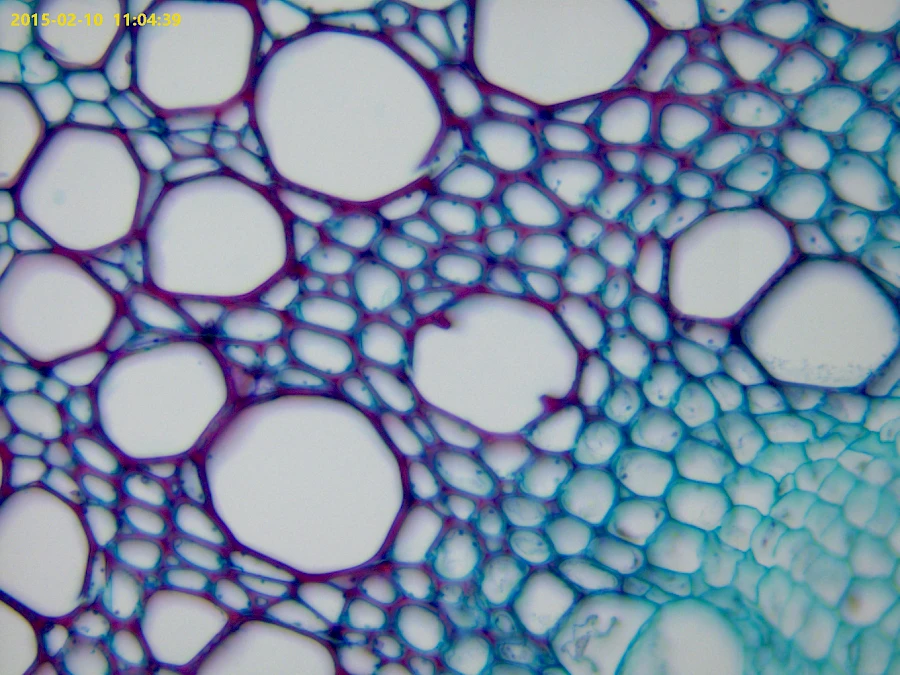

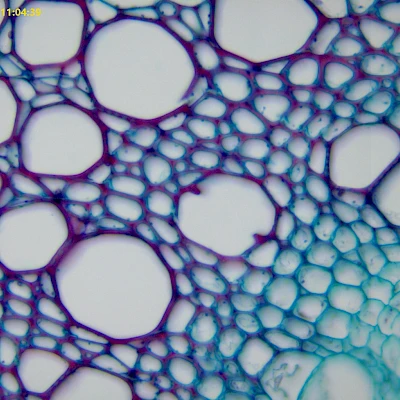

Dicot stem deliantdus older stem	Monocot stem (zea mays stem c.s.)

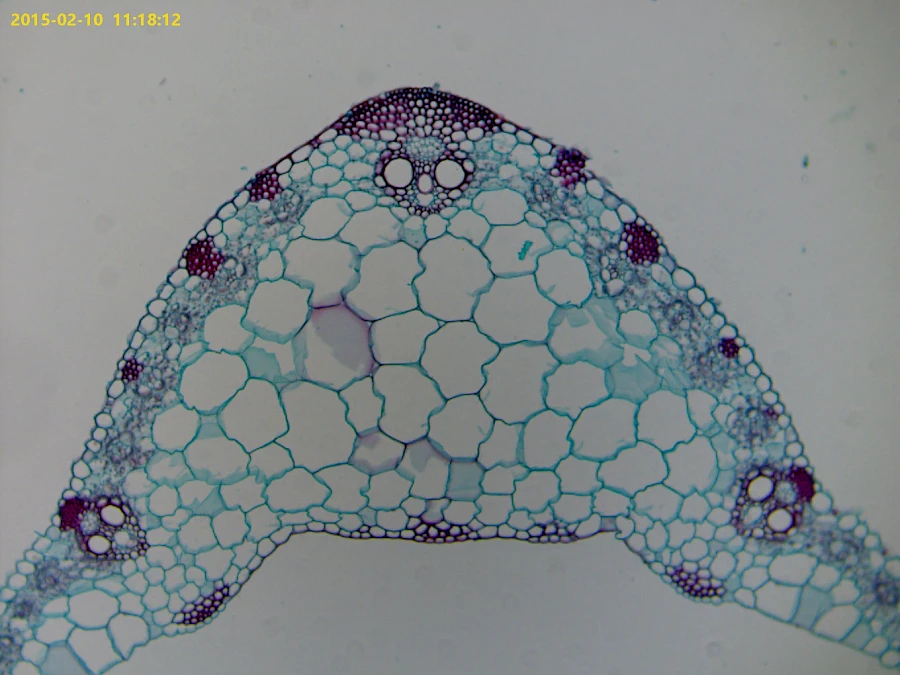

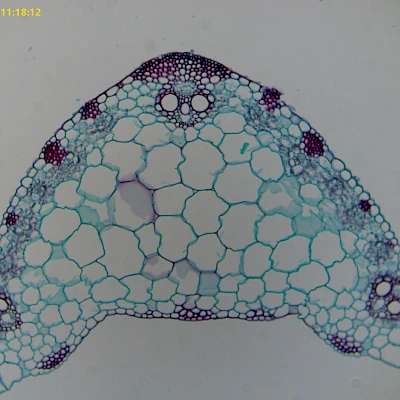

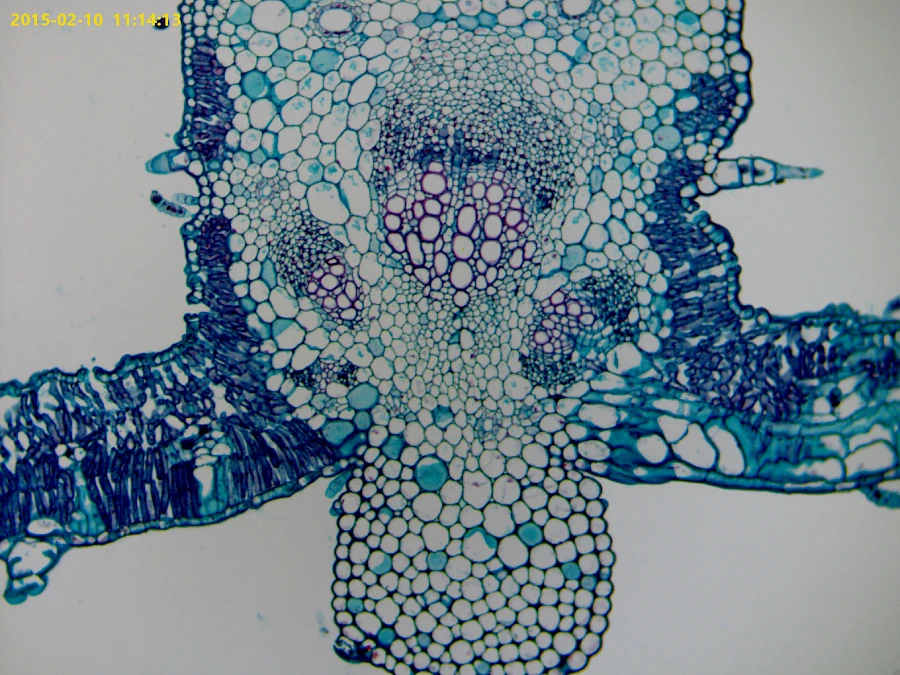

Dicot leaf heliantdus leaf c.s.	Monocot leaf zea mays c.s.

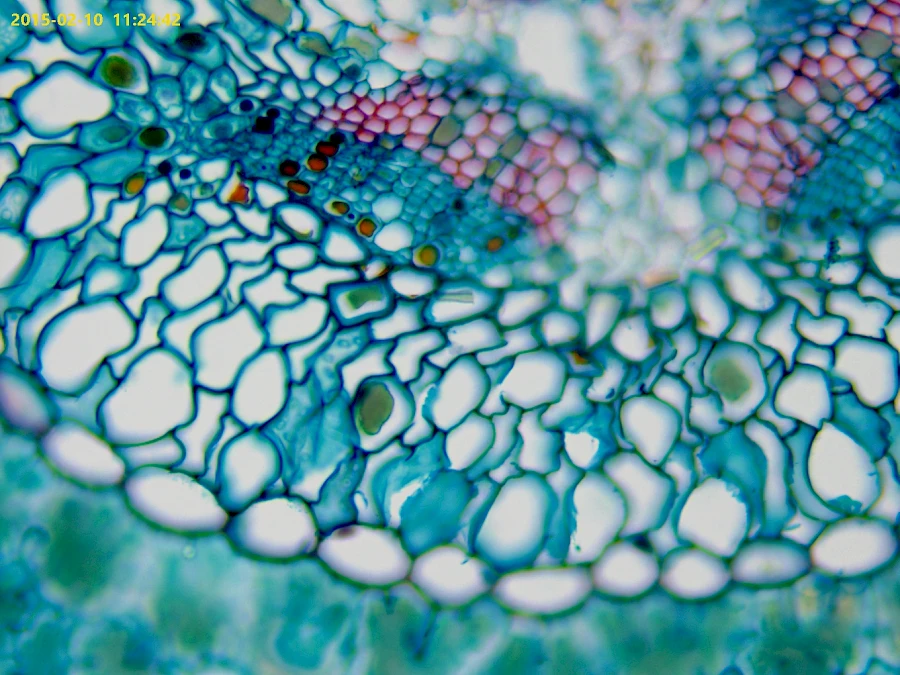

Cladymonas	Leaf of pine needle

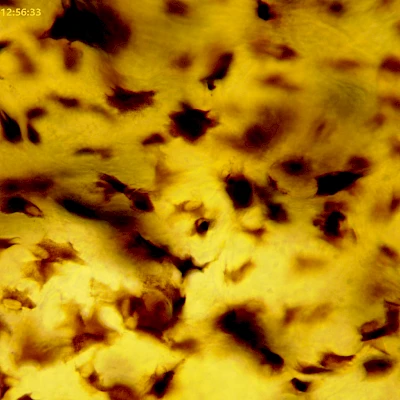

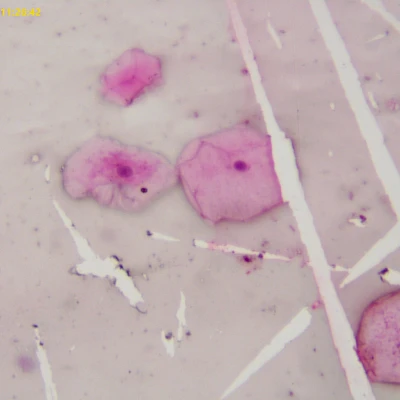

Human Cell Mucus Membrane (smear)	Frog Epidermic Cell (section)

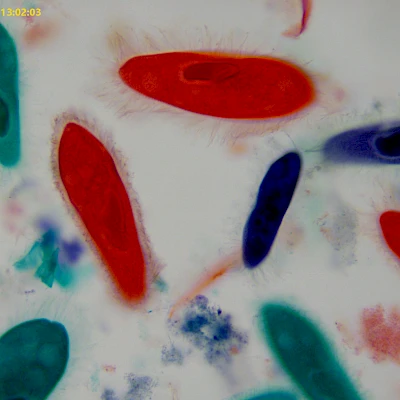

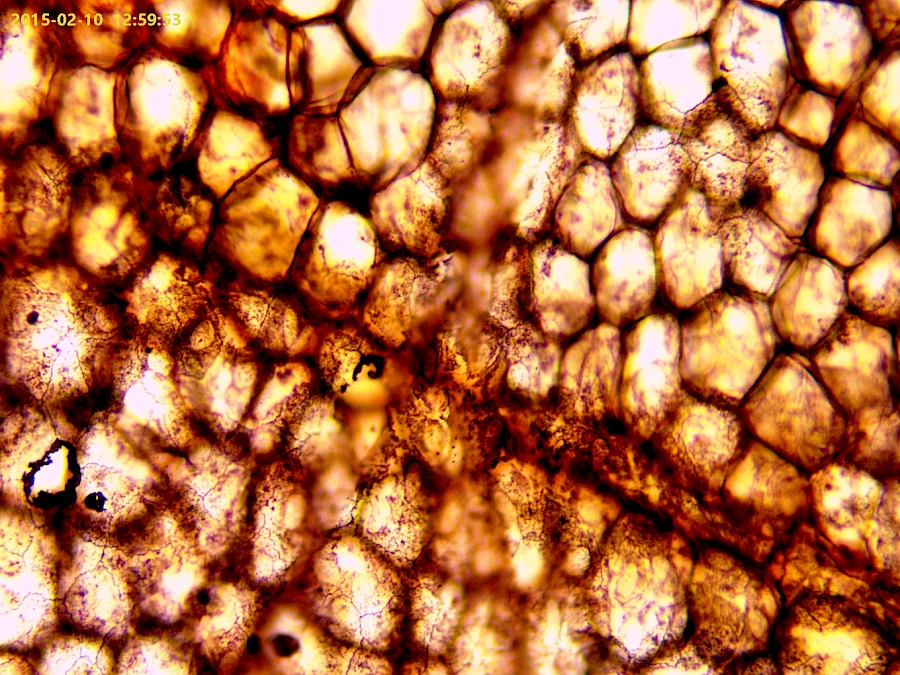

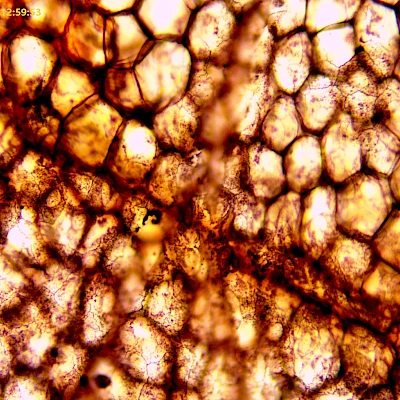

Dog squamous Epitdeblium (whole mount)	Paramecium (whole mount)

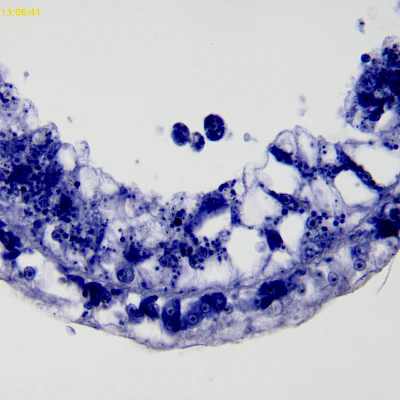

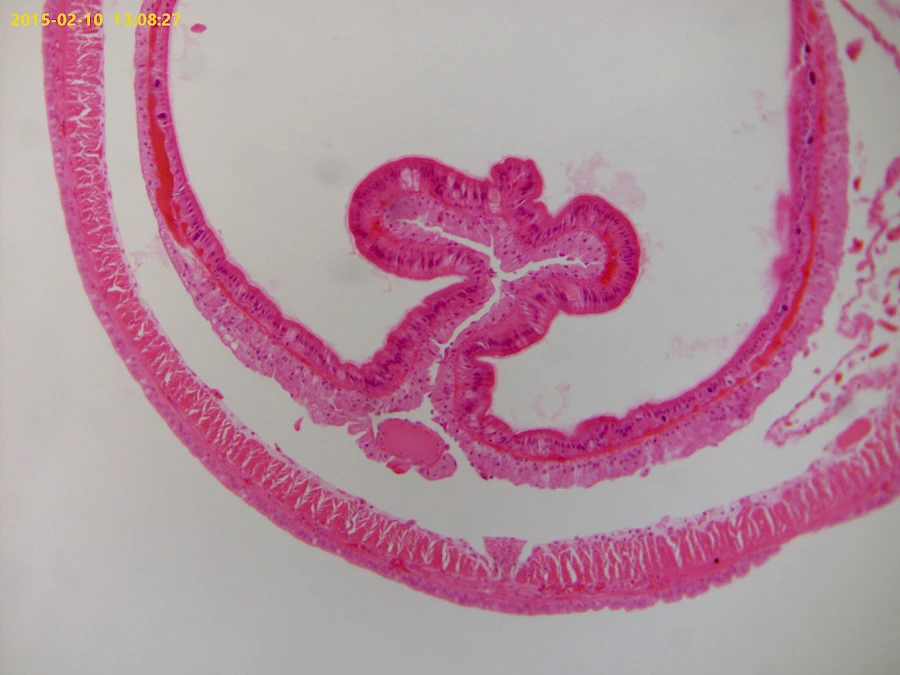

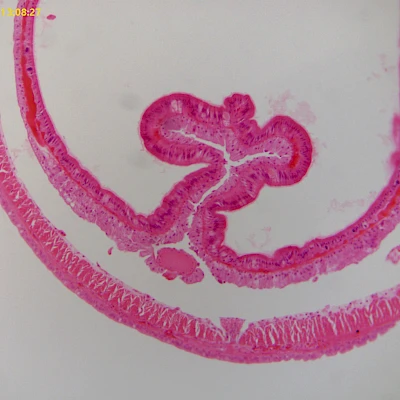

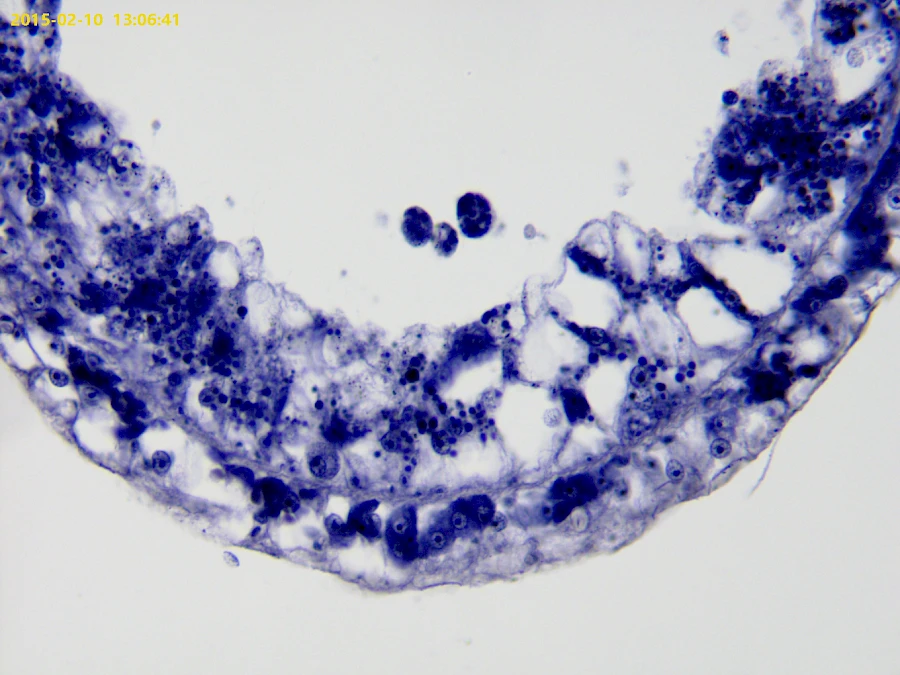

Hydra (cross section)	Eartdworm (crosssection)

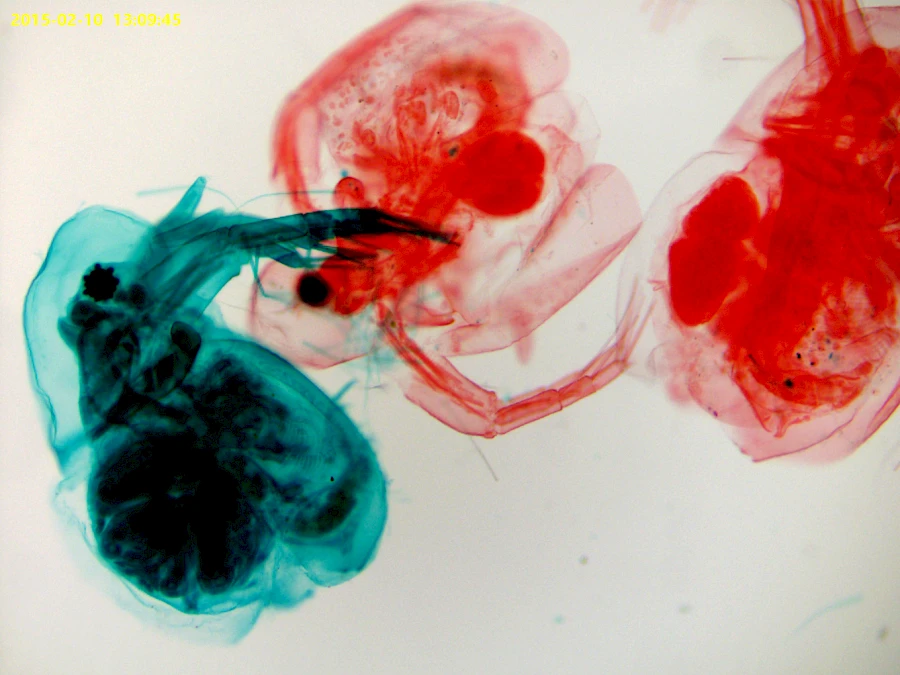

Daphina (whole mount)

EXCCD Series

Dimension of EXCCD

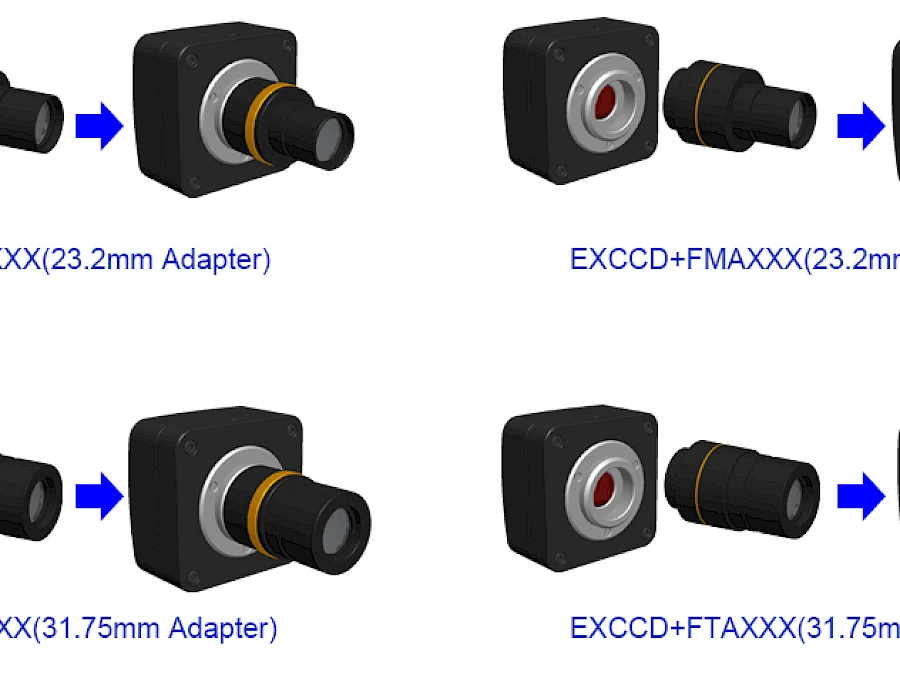

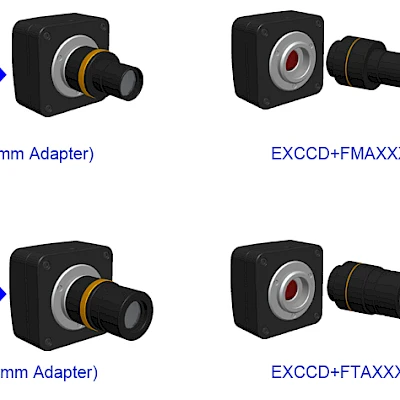

Extension of EXCCD with Microscope or Telescope Adapter

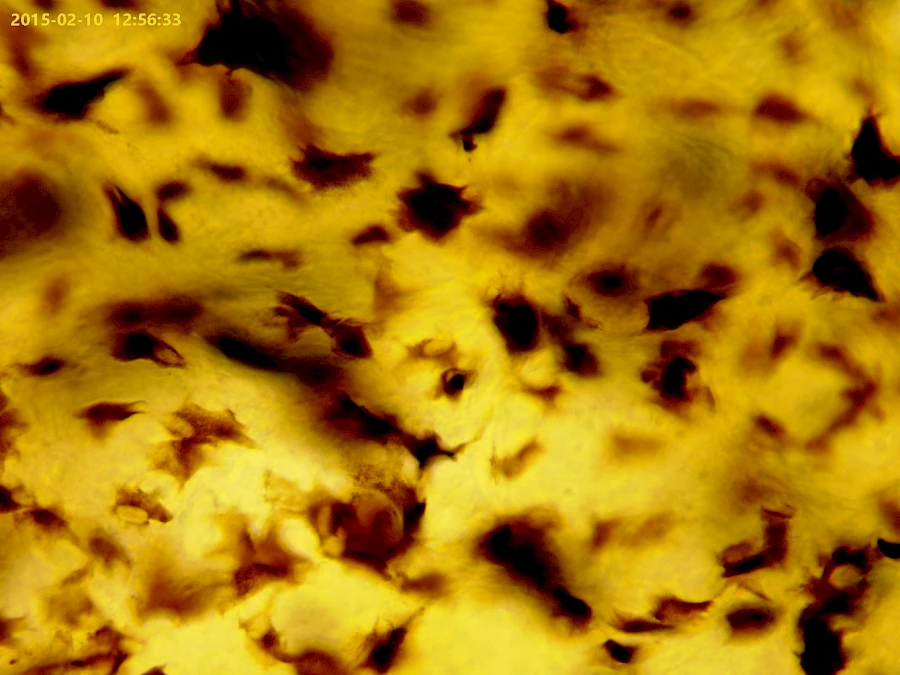

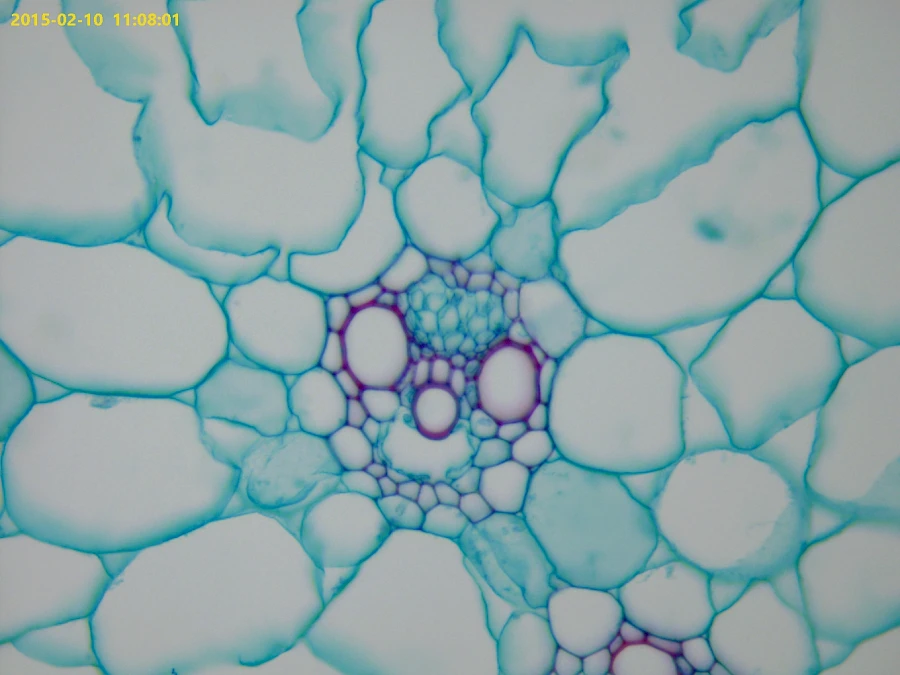

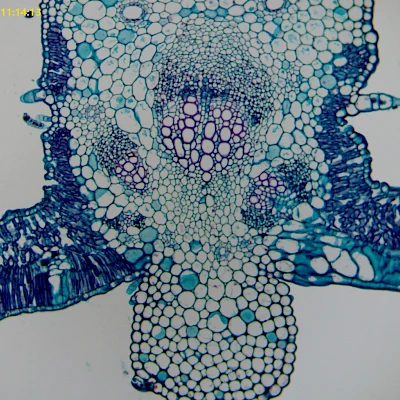

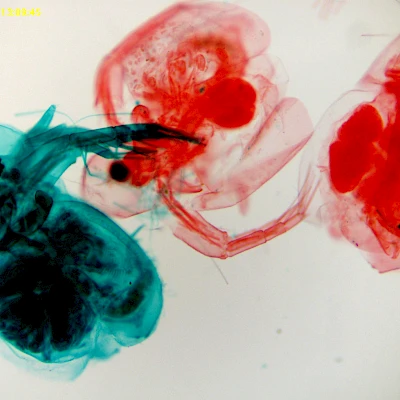

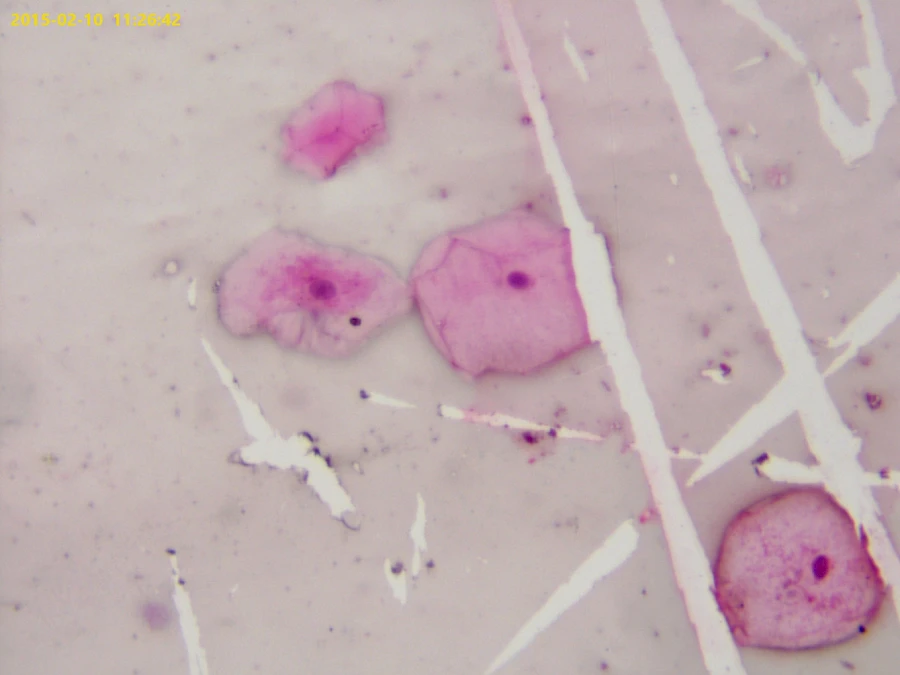

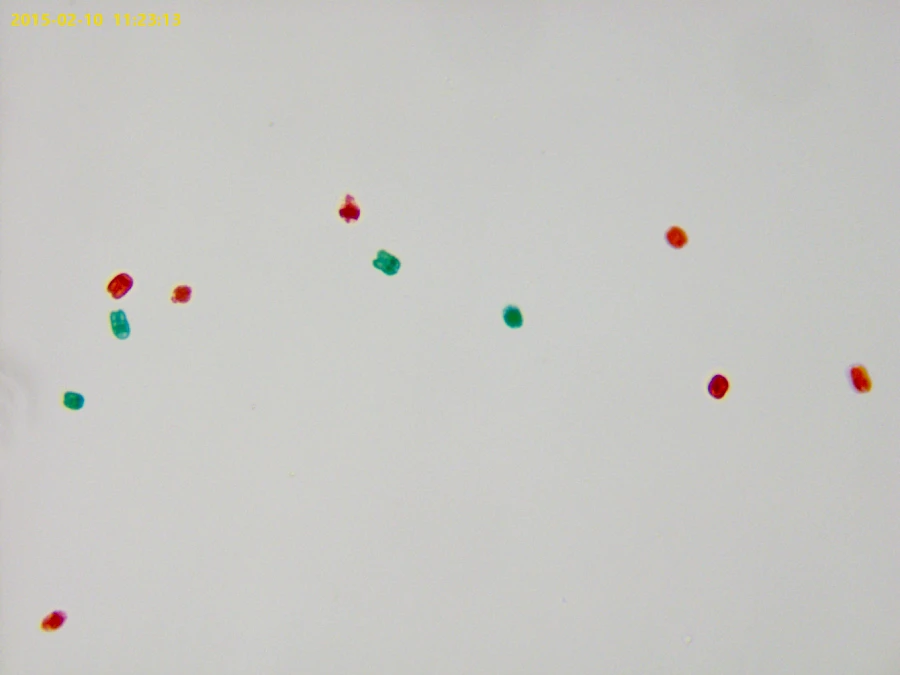

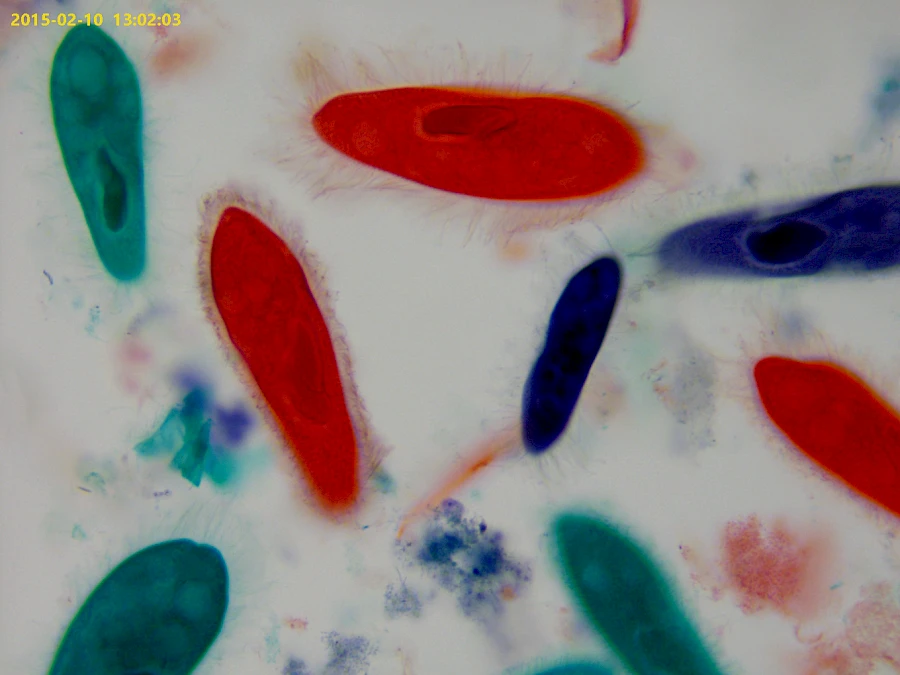

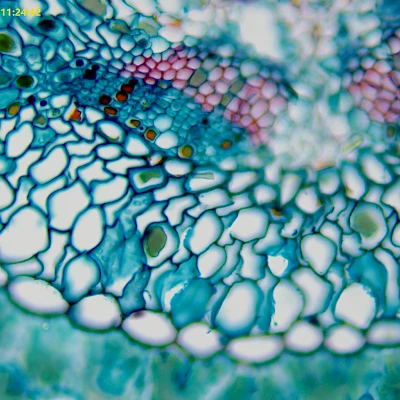

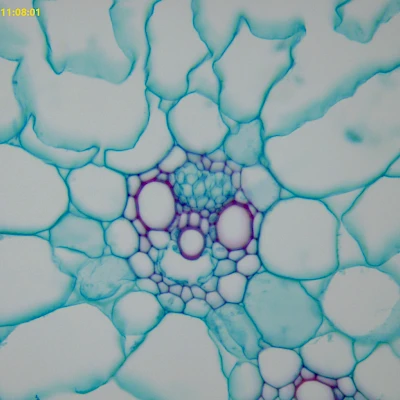

Sample Images Captured witd EXCCD Camera(EXCCD01400KPA)
