HD-4KLD Ultra 4K IMX 1/1.8'' SONY CMOS Sensor Industrial Camera Digital Phone Repairing Electron Microscope HDMI Camera

HD-4KLD

HDMI Mode: 1920*1080@60FPS & 3840*2160 (4K) @30FPS; USB Mode: 1920*1080/ 3840*2160

Core Features

Adopt with IMX 1/1.8” CMOS Sensor, show the live image directly on any HDMI monitor
Adopt 4K imported So-ny CMOS image sensor
HDMI 3840 30FPS / 1080P 60FPS image output
4K video recording
Support Photo, video measurement (PC Software)

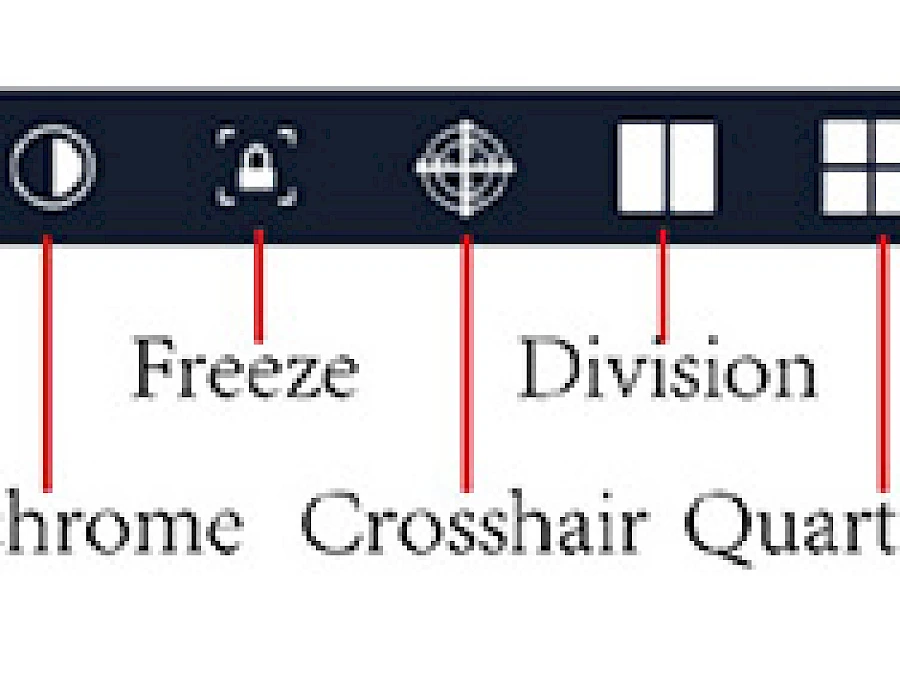

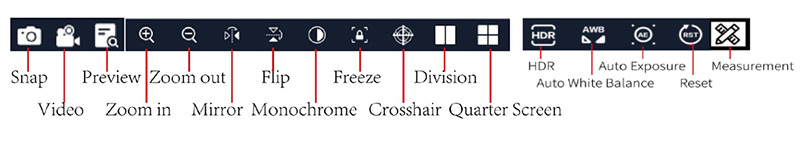

Support Mirroring, Flip,Freeze, Crosshair, Dinision & Quarter Screen

Configurations

Pixel

2.0µm × 2.0µm

Sensor

1/1.8”

U-Disk

Windows PC

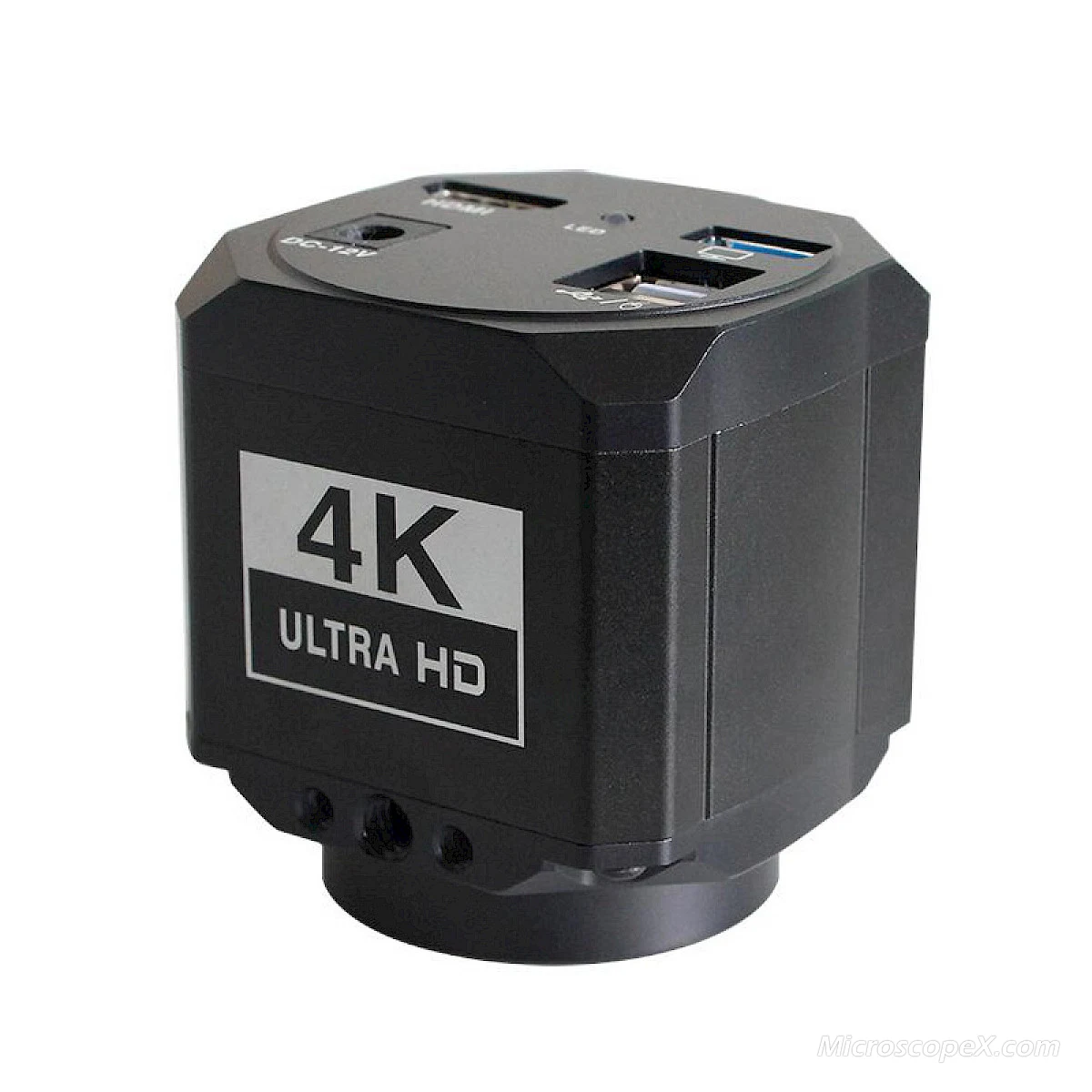

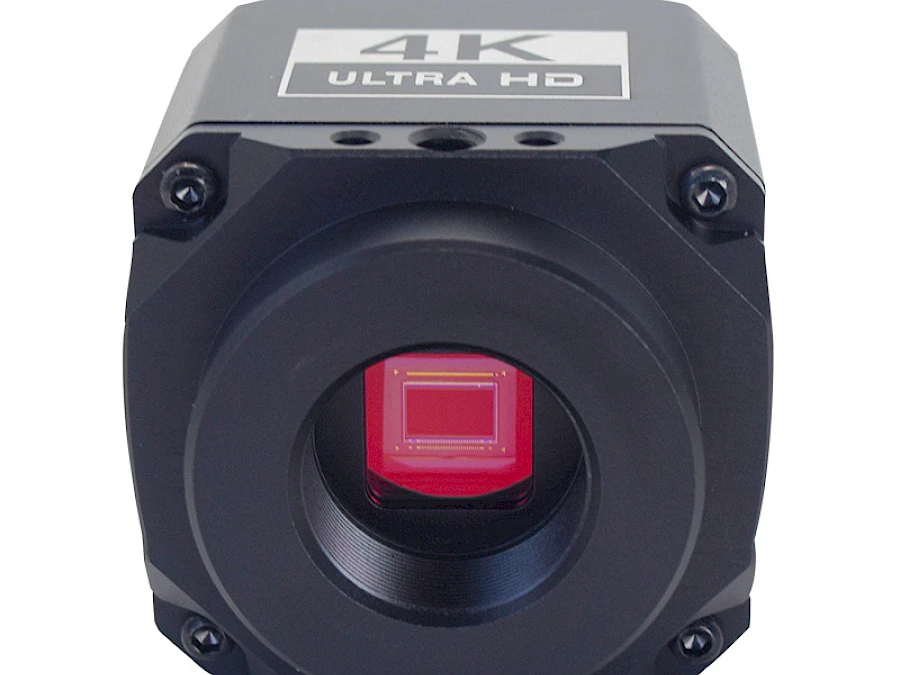

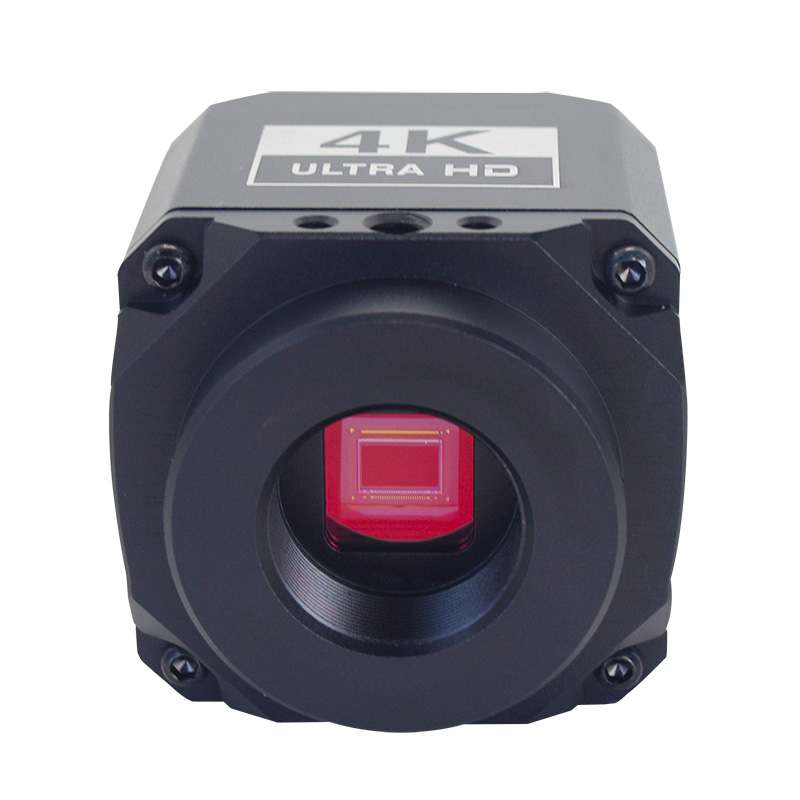

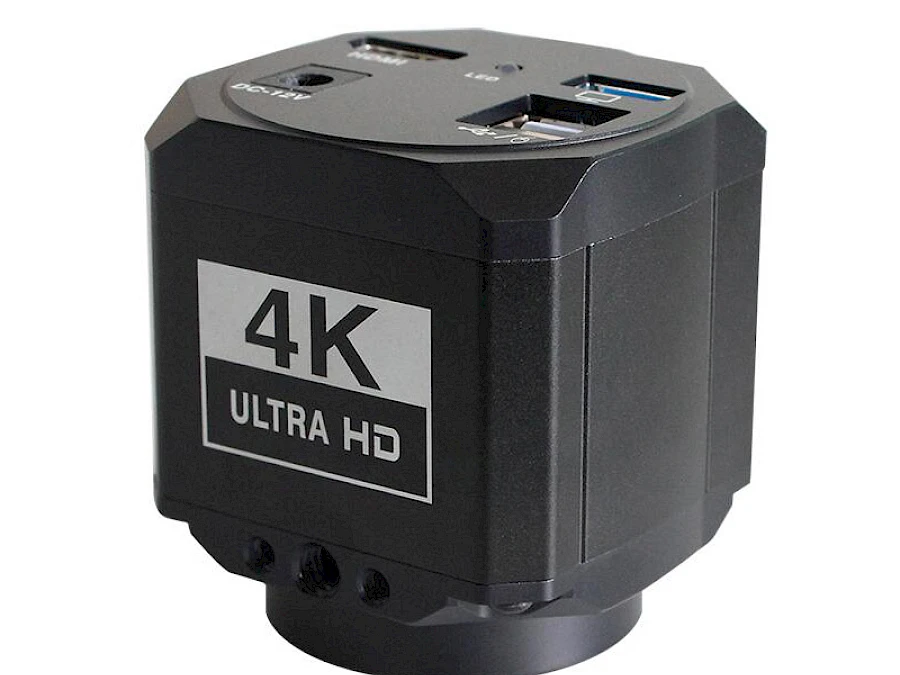

Different Views of HD-4KLD Camera with Black Shell

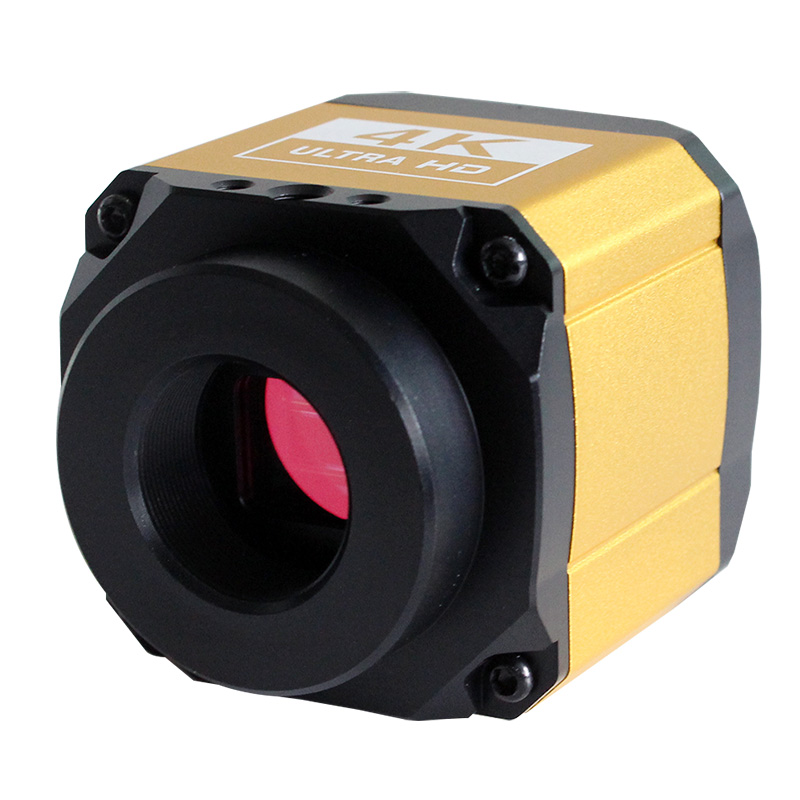

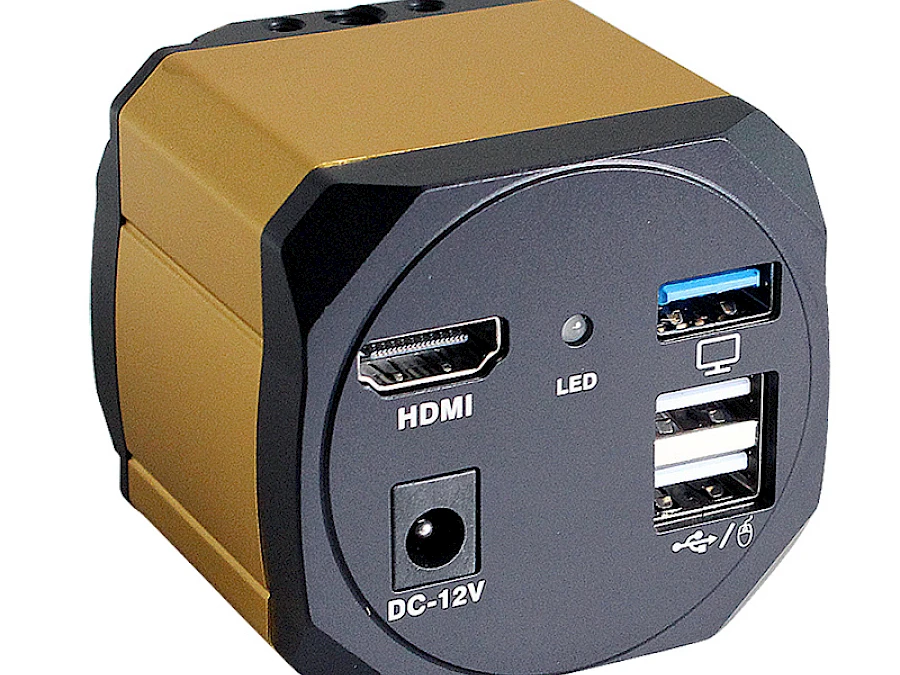

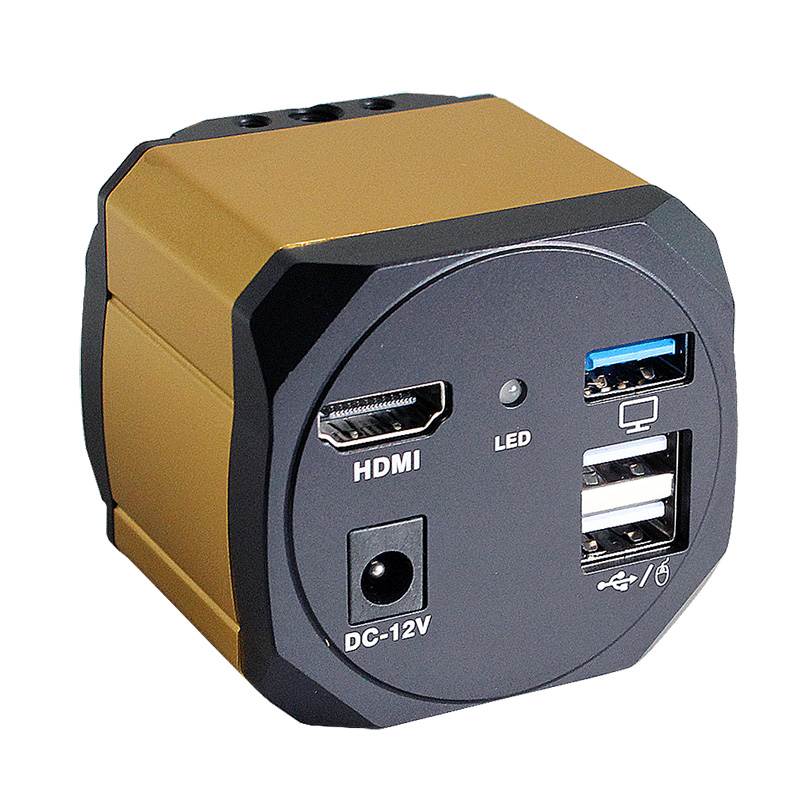

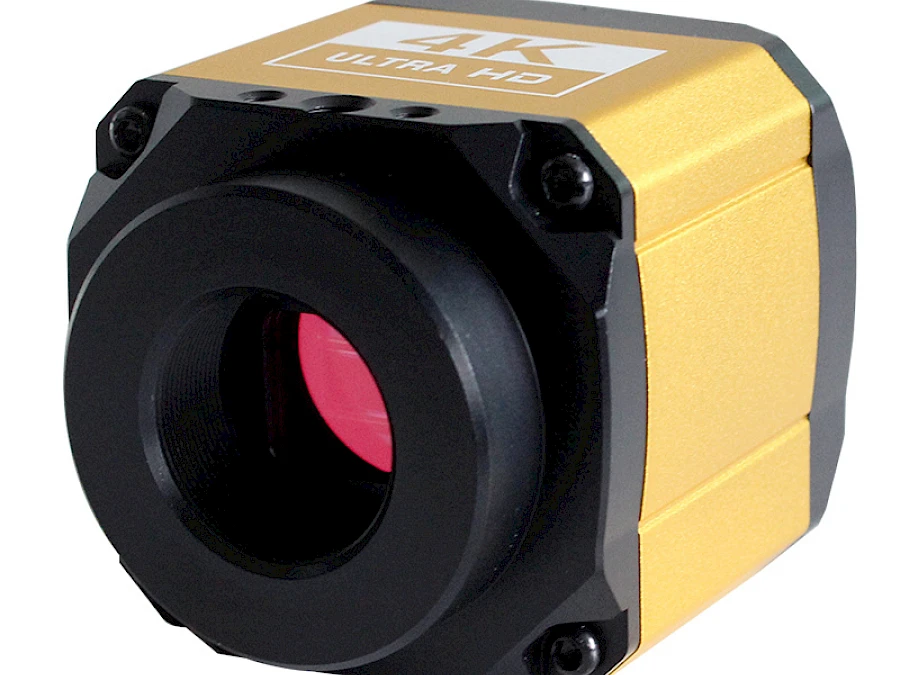

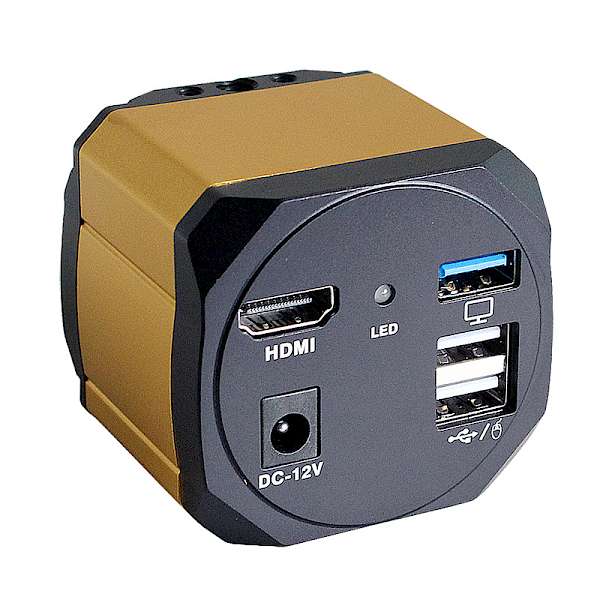

Different Views of HD-4KLD Camera with Yellow Shell

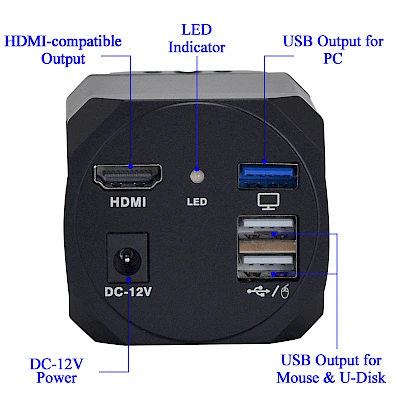

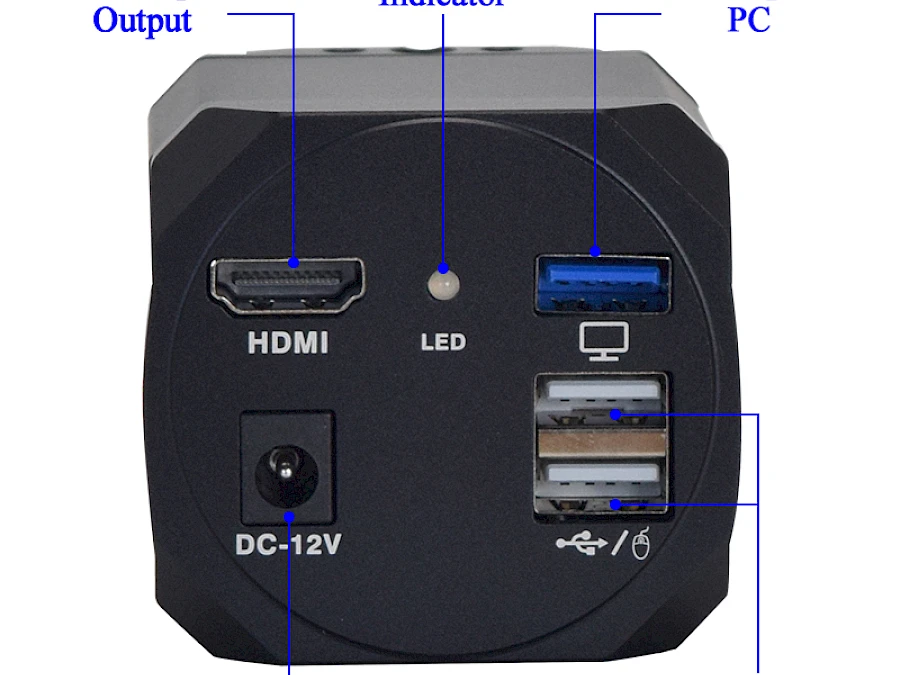

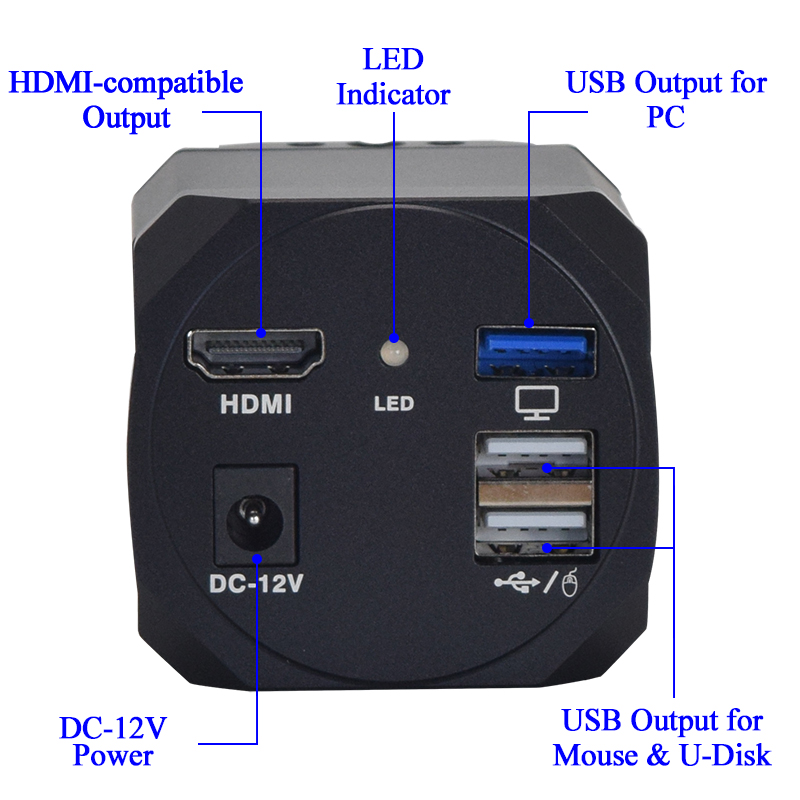

Structure of HD-4KLD

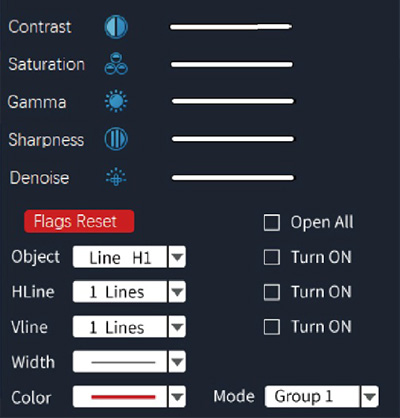

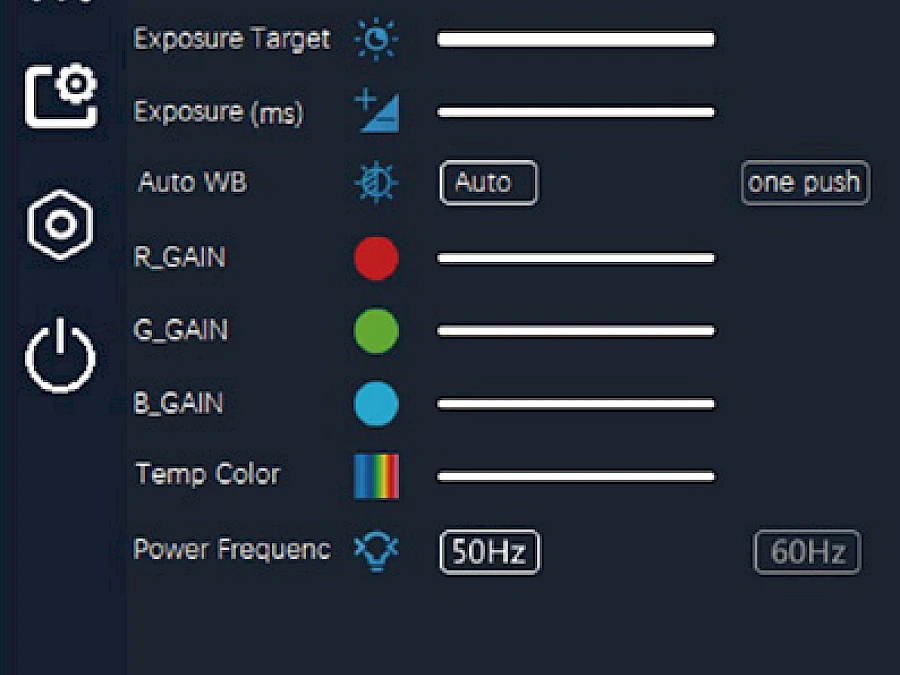

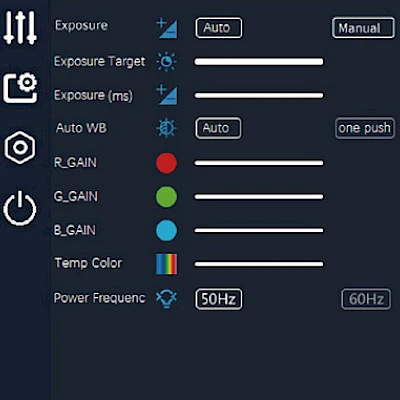

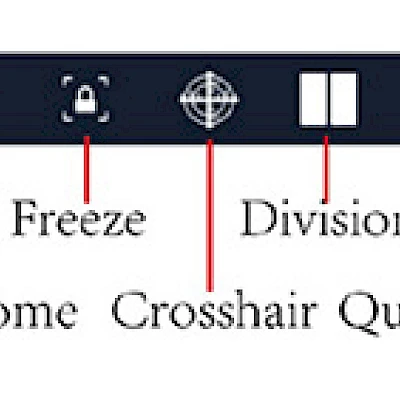

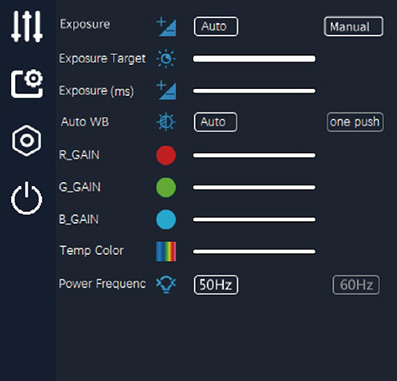

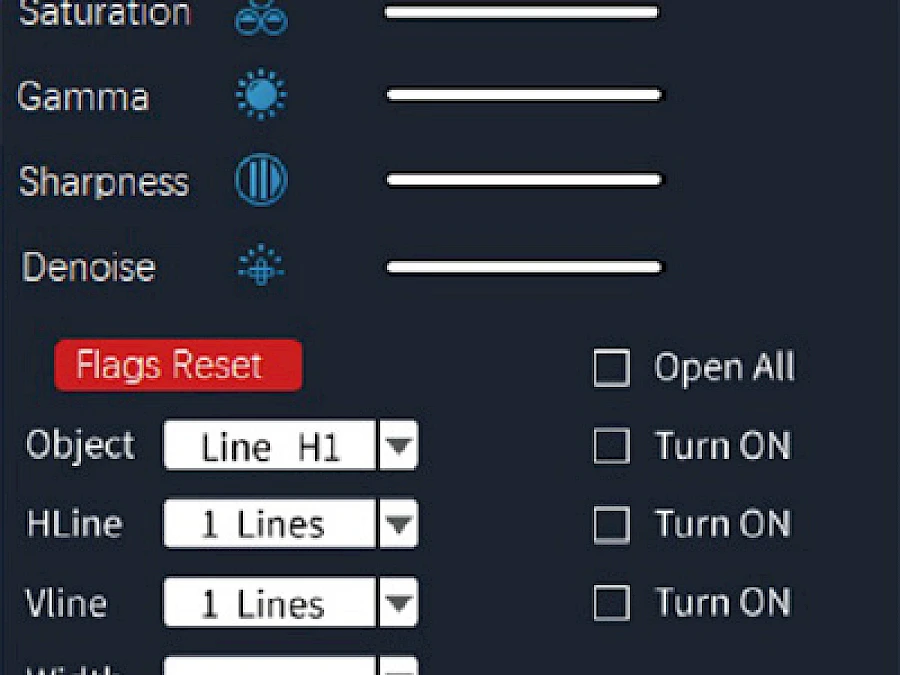

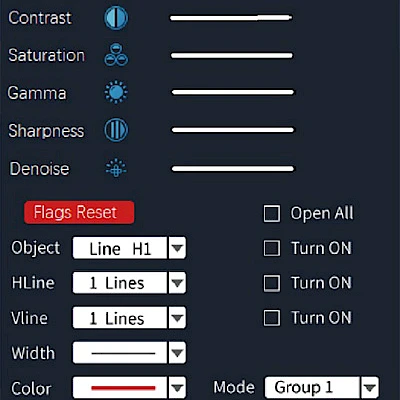

Software of HD-4KLD Camera

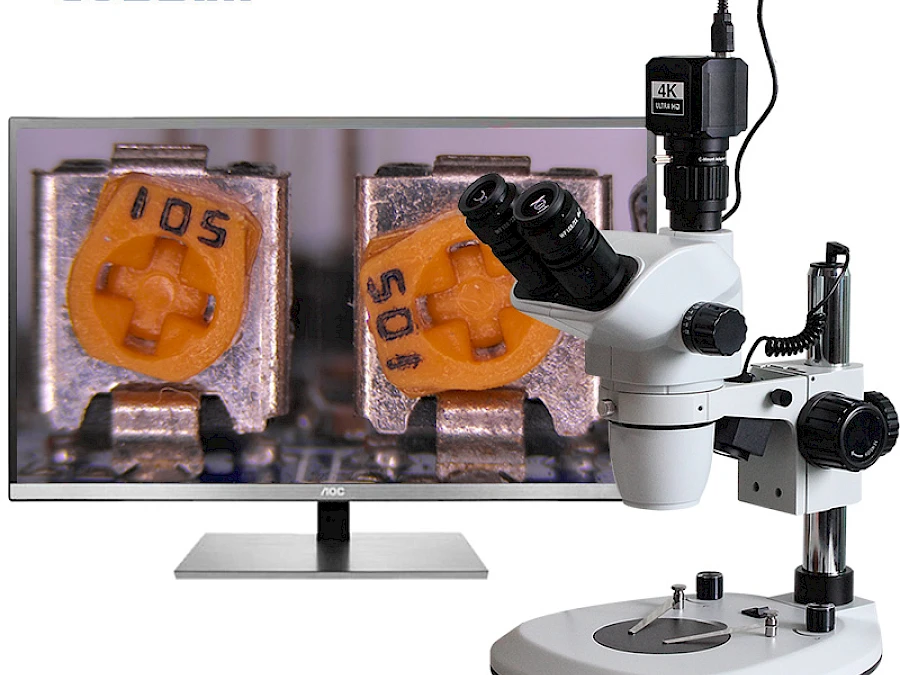

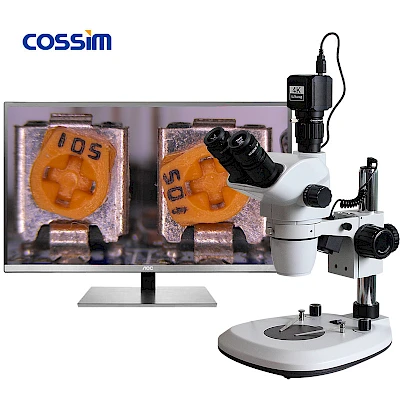

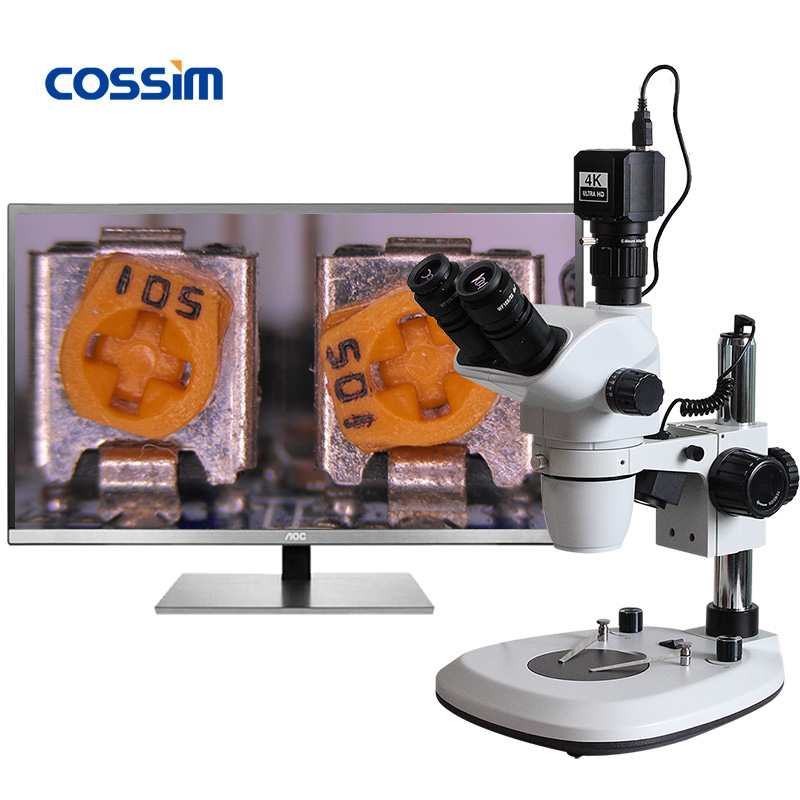

HD-4KLD Camera with its Connected Microscope

Specification for HD-4KLD:
Pixel size	2.0µm × 2.0µm
Sensor Size	1/1.8”
sensor	SONY IMX CMOS
Output Resolution	HDMI Mode: 19201080@60FPS & 38402160 (4K) @30FPS
Output Resolution	USB Mode: 19201080/ 38402160
Lens mount	1/1.8”
Image resolution	3840*2160
Video resolution	1920×1080/ 3840*2160 @ 30FPS
Save Function	U-Disk / Windows PC
Exposure	Auto/Manual/Brightness/Exposure Time Adjustable
White balance	Auto/Manual/ One-key, support RGB adjustable
Other Functions	Support Contrast/ Saturability/ Clarity/ Noise Reduction Etc.
Menu Panel	ICON Design
Windows Systems	Claymore Microscope Software, Available Win7/ 8/ 10/ 11
Input voltage	DC 12V
Working Tem.	0~60℃
Storage Tem.	-20~85℃
Net Weight	0.2KG
Product Size	585368m

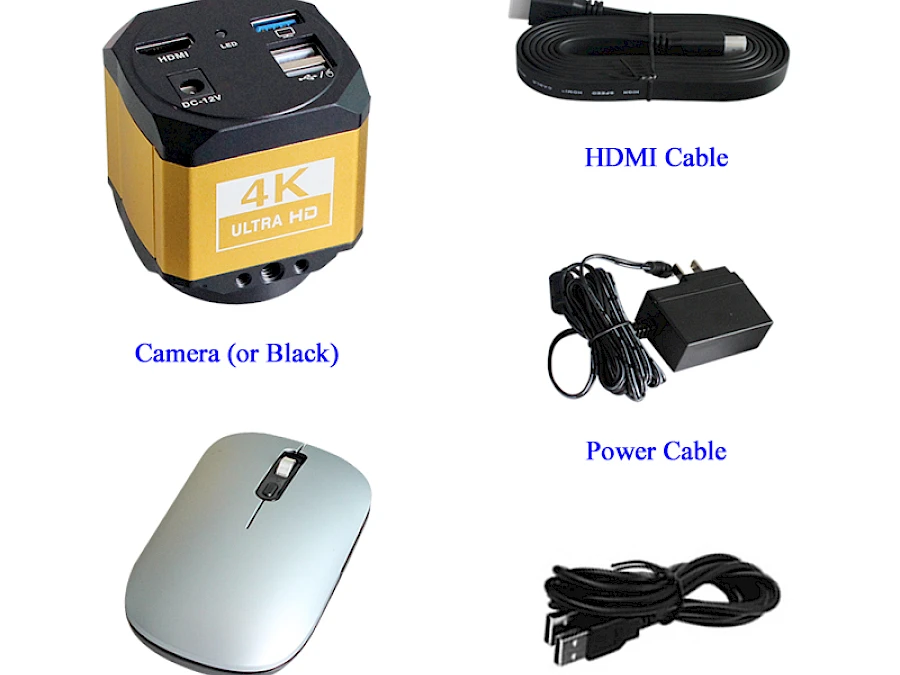

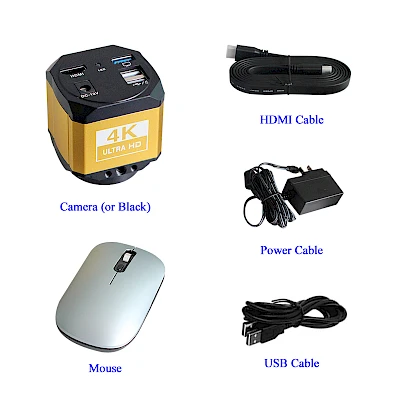

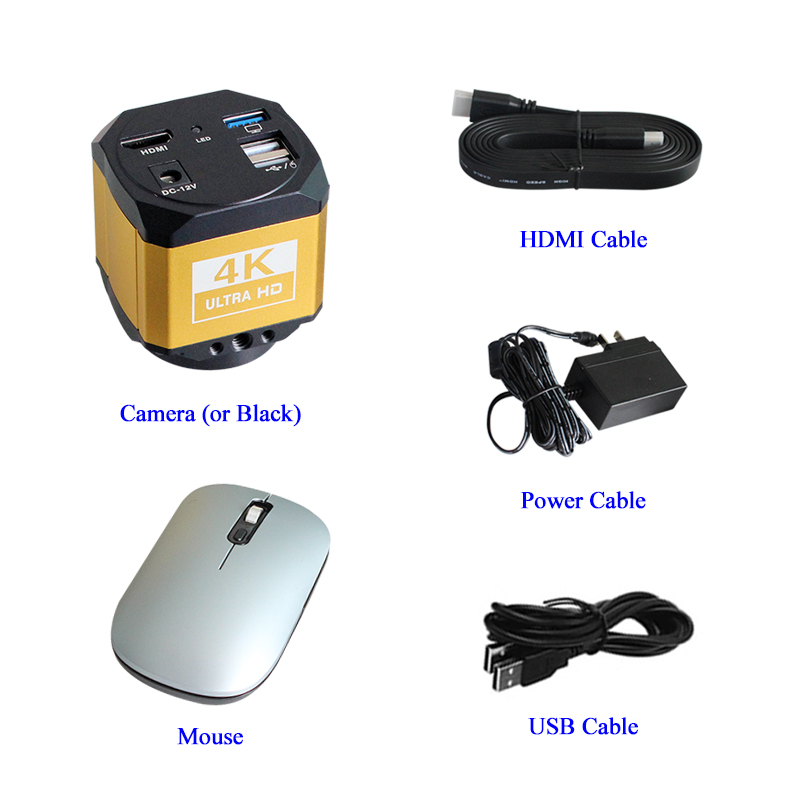

Standard Packing List for HD-4KLD:
No.	Item	Quantity
1	Digital Camera (Random Delivery)	1
2	Mouse	1
3	HDMI Cable	1
4	Power Cable	1
5	USB Cable	1
6	Operation Manual	1
7	Box	1
