MC4K USB Microscope Digital Camera

MC4K

stereoscopic and biological microscopes, professional image processing

Core Features

8.0MP HD Live image
30FPS 3840x2160
Full 4K record
Standard C-mount High-end metal housing
Perfect match for both stereoscopic and biological microscopes, as well as LED and halogen lamps
Professional image software: Capture/Record, Edit/Annotation, Dynamic/Static, Image/Settings, Export to Word, Excel, Outlook, Printer with one button

Configurations

8.0MP

SONY CMOS

Full 4K record

Standard C-mount

8.0MP HD Live image
30FPS 3840x2160
Full 4K record
Standard C-mount High-end metal housing
Perfect match for both stereoscopic and biological microscopes, as well as LED and halogen lamps
Professional image software: Capture/Record, Edit/Annotation, Dynamic/Static, Image/Settings, Export to Word, Excel, Outlook, Printer with one button

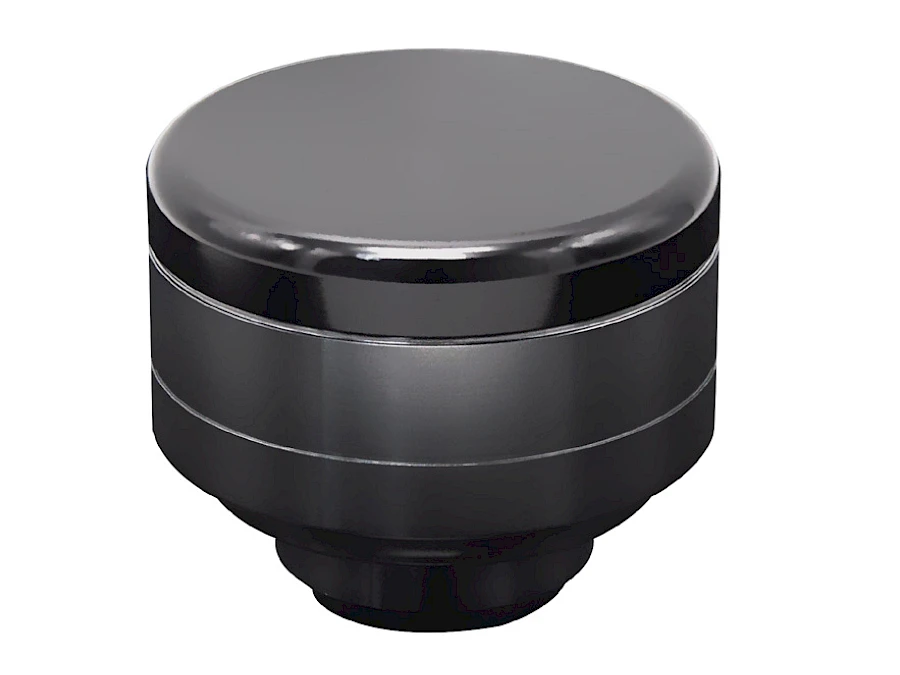

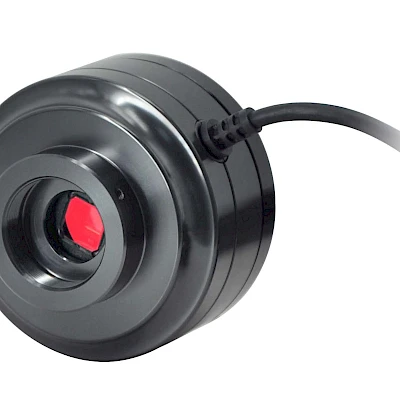

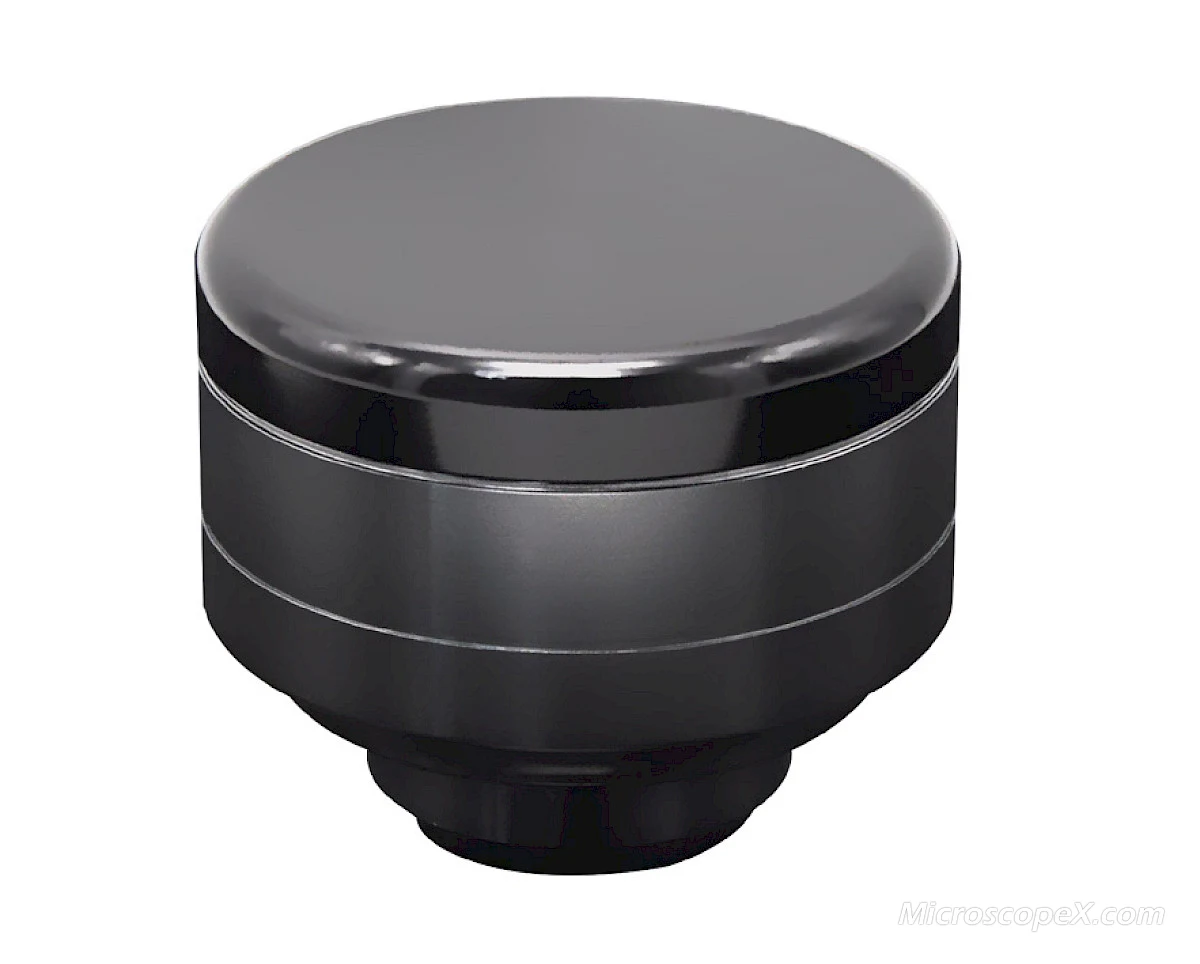

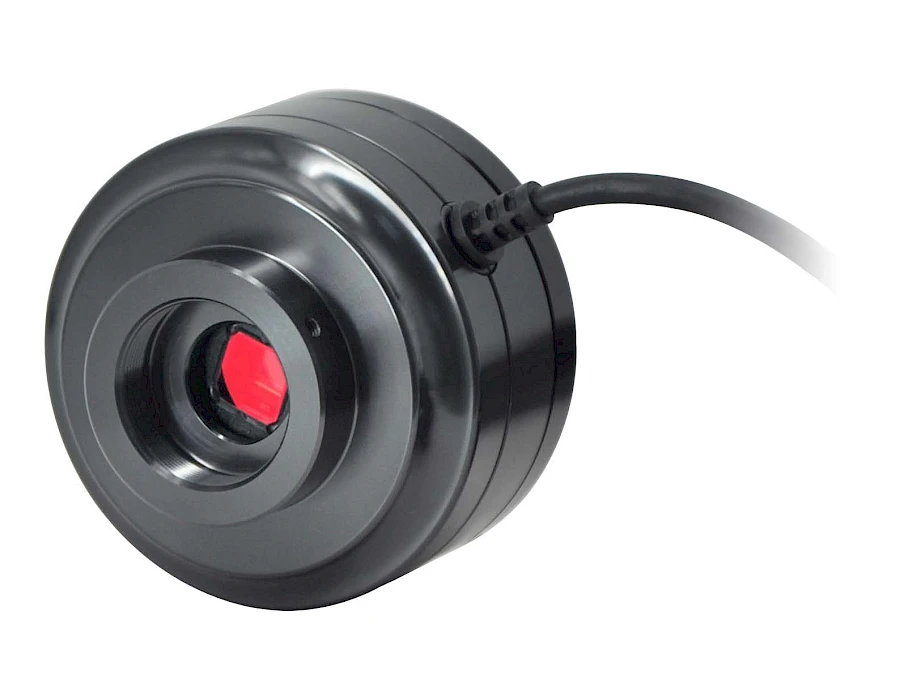

Different View of MC4K

Different Views of MC4K

Hardware Configuration
Image Sensor	SONY IMX334 CMOS Sensor
Expose mode	Rolling shutter
Maximum Resolution	3840x2160 (8,294,400 pixels)
Sensor Optical Format	1/1.8''
Pixel Size	2.0μm x 2.0μm
Dynamic Range	72db(non-HDR mode)
SNRmax	<0.64lx
Spectral Characteristics	380～650nm
Exposure Capability	Automatic and manual
White Balance	Automatic and manual
Preview Modes	30FPS@3840x2160,2592x1944,1920x1080,1024x768, 640x480
Record format	Snapshot Picture Format：JPG, BMP,PNG,TIFF,PDF Resolution：3840x2160 ,2592x1944,1920x1080,1024x768, 640x480 Record Video Format：MJPG format AVI file Resolution：3840x2160 ,2592x1944,1920x1080,1024x768, 640x480
Software Environment
Windows System Demand	Microsoft® Windows® XP / 7 / 8 /8.1/10(32 & 64 bit)
	CPU: equal or more than the second generation Intel core 2.8GHz
	Memory ：2G or more
	USB port：USB2.0 or compatible port
	Displayer ：suggest 17 inches or larger
Operating Environment
Operating Temperature	0℃～40℃
Storage Temperature	-20℃～60℃
Operating Humidity	30～80%RH
Storage Humidity	10～60%RH
Power Supply	Direct-current 5V, supply by USB port
