SPCMOS is an extension of SCMOS camera with fixed reduction lens to increase the field of view from the microscope eyepiece tube. The SPCMOS is still an economic version with simple and compact structure CMOS eyepiece camera. So here, the S means simple and compact, P means plus. USB2.0 is used as the data transfer interface.
The SPCMOS comes with high-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption;
Also the SPCMOS comes with advanced video & image processing application;
The SPCMOS can be widely used to transfer the mono or binocular student microscopes to digital microscope.
With 23.2 to 30mm or 23.2 to 30.75 convert ring, the SPCMOS camera can also change the stereo microscope to digital stereo microscope.

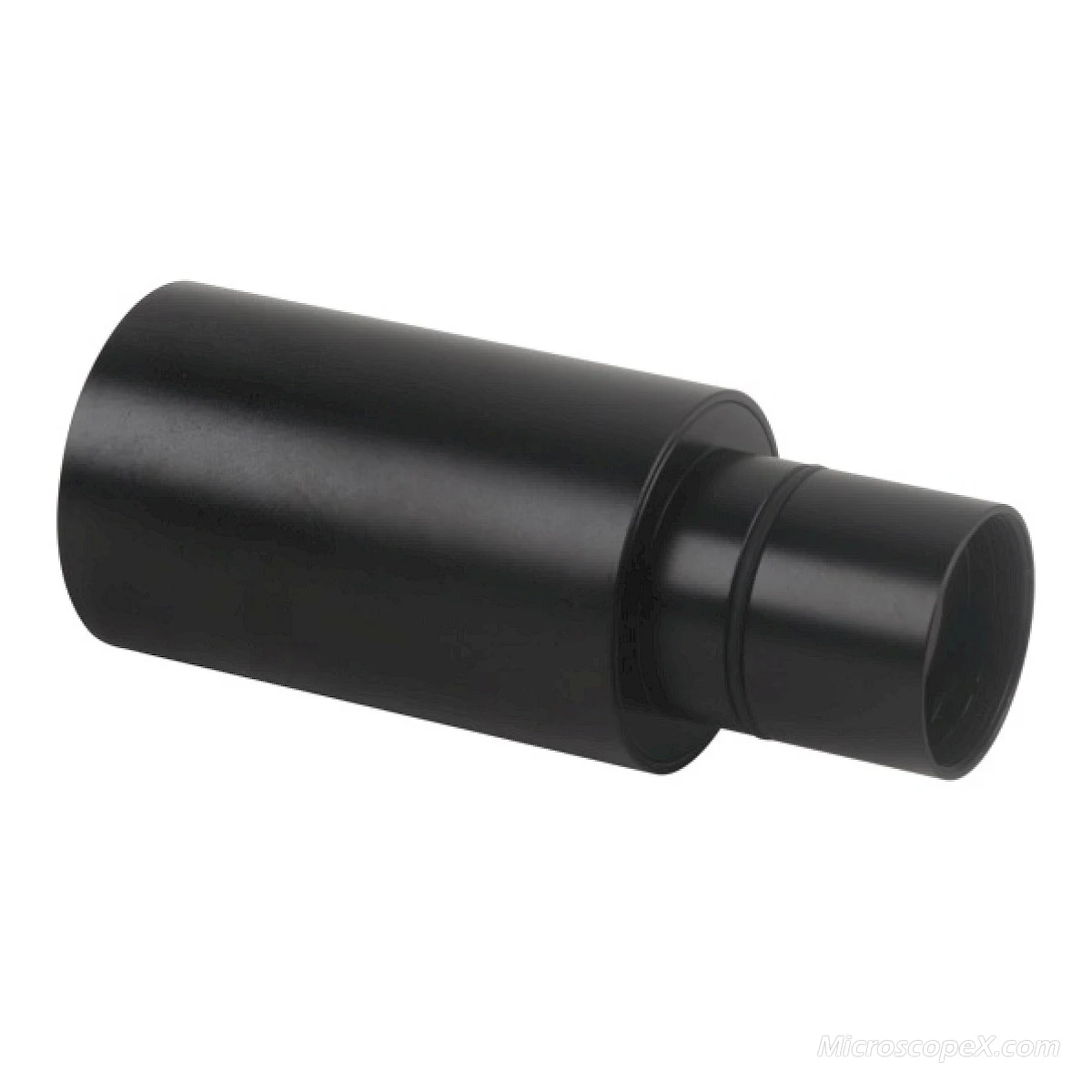

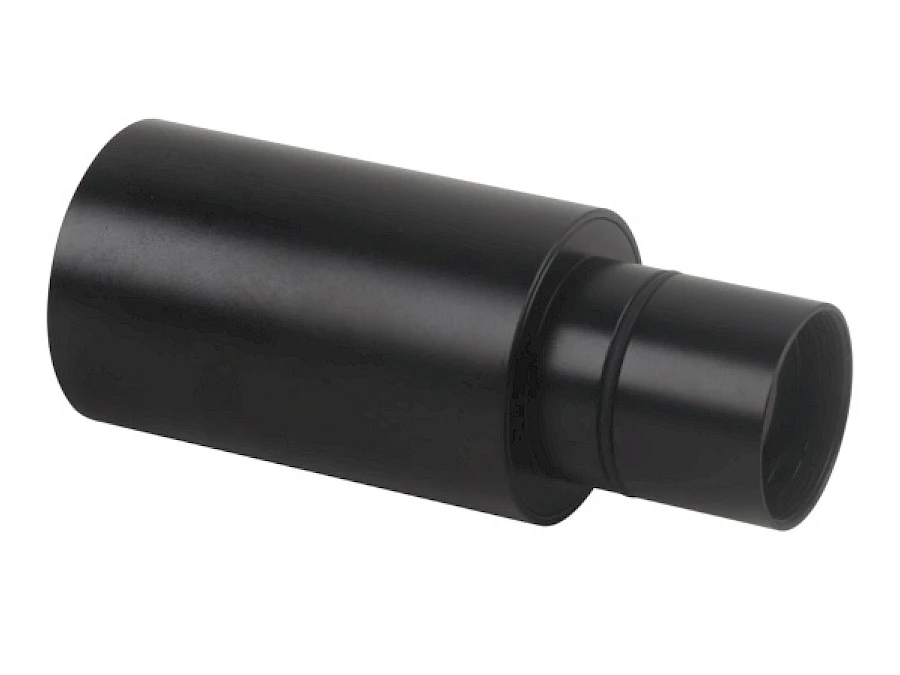

SPCMOS Eyepiece Camera

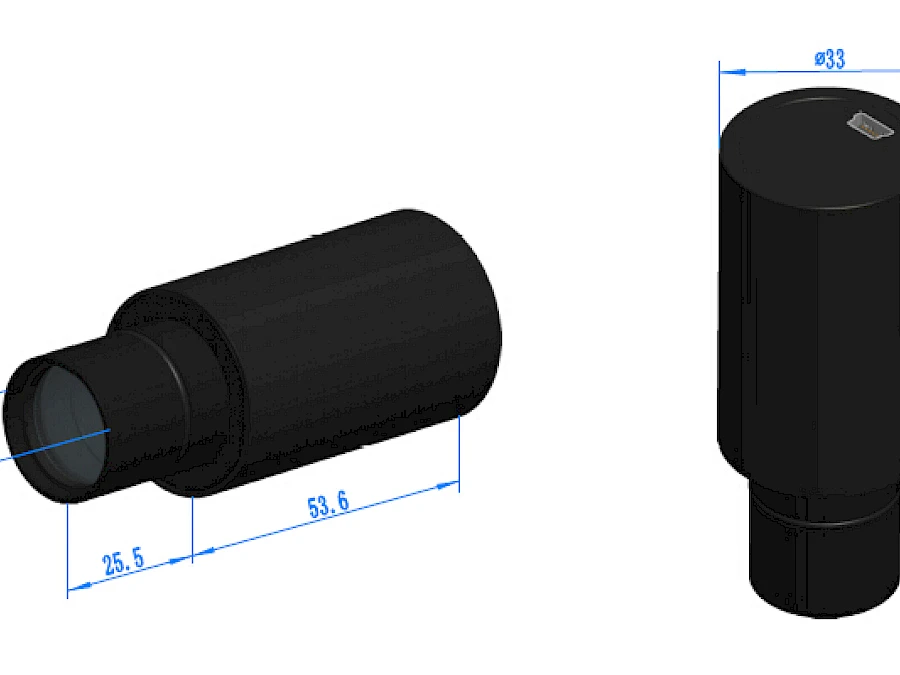

Dimension of SPCMOS
The SPCMOS body, made from aluminum alloy blackening, ocular housing: Dia.33 X 79.1mm ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT filter to filter the infrared light and protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
Dimension of SPCMOS
