Microscope X / Stereo Microscopes / ATE-5
Stereo Microscopes Industrial Inspection 3D Microscope

ATE-5

ATE-5 3D Manual Monocular Digital Video Stereo Microscope with HDMI 1080P Camera

3D Digital Video Microscope, 0.6~5X Continuous Zoom, 2D/3D Switch manually and freely, 4 Zones Control LED Light

Core Features
  • Equipped with HDMI industrial camera, 1920*1080 resolution
  • The camera field of view without black edge, high resolution and large depth of field
  • Equipped with infinity optical system, 0.6X~5X continuous zoom, and the zoom ratio is 1:8.3
  • 2D/3D observation can be manually and freely switched, with 360 ° rotation and 45 ° viewing angle of objective lens. When switching, the working distance (86mm) and the central position remains unchanged
  • Widely used in microelectronics, precision electronics, precision hardware, deep hole wall, life science, animal and plant morphology, criminal investigation and identification, etc.
Configurations
Monocular Head
HDMI Camera
Mag.
0.6X~5X
3D Manual
360° Rotation
Real-time Image
Observation
2D/3D switch
manually and freely
Request Quotation Email Phone Back to Products
ATE-5 3D Manual Stereo Microscope with 16MP HDMI Camera

ATE-5 Microscope optical system features the quality optical system, low distortion, high resolution, flat and large field of view, high depth of field and superior parfocality. The novel design and one-up-technology make it easy for operation.

The 2D/3D angle lens attachment is changed manually from two-dimensional image to three-dimensional. The microscope can realize 3D image effects for observing the components and deep holes. It remains the same superior resolution and the central position keeps consistent.

When the manual zoom with detents is used in measuring systems, the calibration of magnification is needed, and the pre-set stops are at 0.6X, 1X, 1.5X, 2X, 2.5X, 3X, 3.5X, 4X, 4.5X, 5X.

The 3D 360° rotary observation lens can achieve 86mm (Max) working distance. By selecting the appropriate objectives, different magnification, field of view and depth of field can be acquired. Digital and Analog video systems can meet the different users' demands.

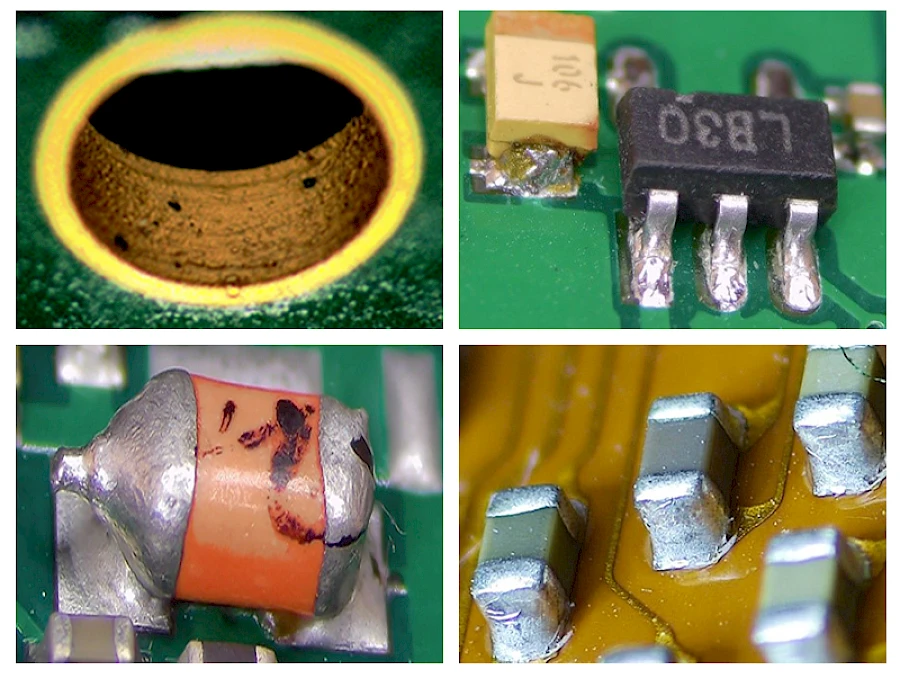

3D Video Microscope can be widely used in the areas of micro-electronics, precision electronic inspection, PCB solder testing industries, hardware & precision parts, criminal investigation and life sciences, as well as plant morphology, etc.

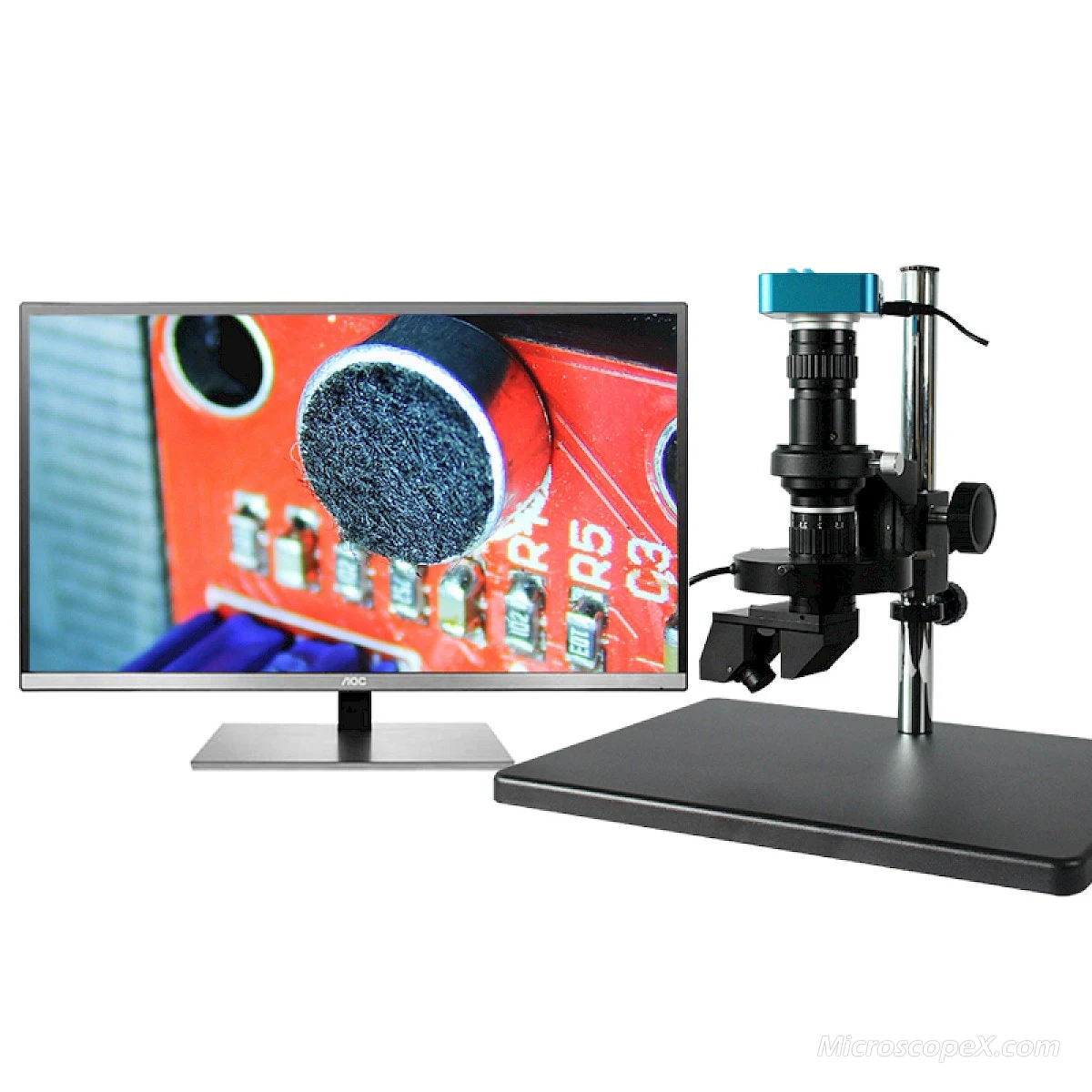

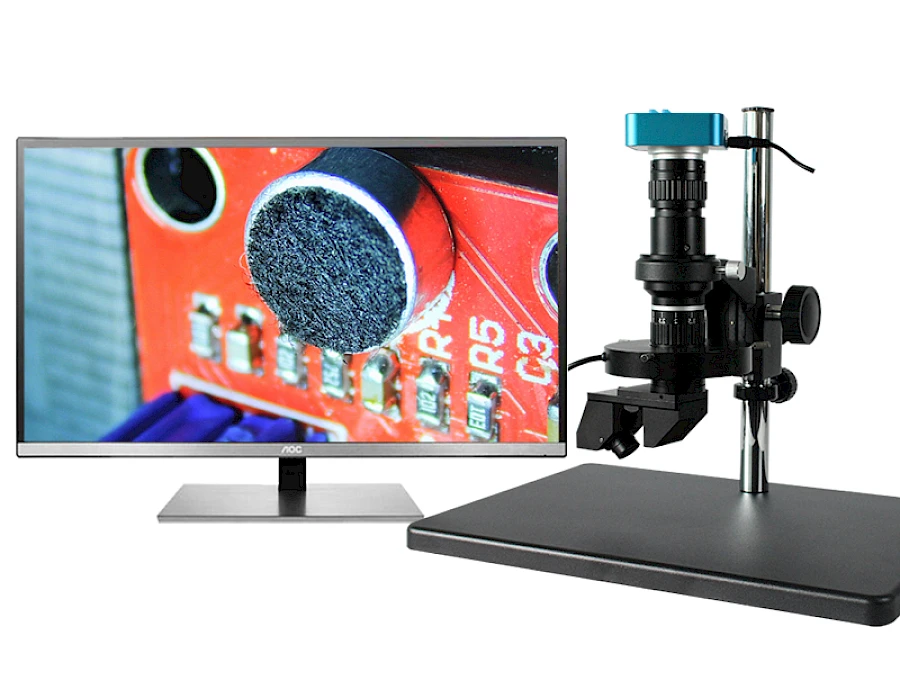

ATE-5 3D Manual Stereo Microscope with 16MP HDMI Camera

ATE-5 3D Manual Stereo Microscope with 16MP HDMI Camera

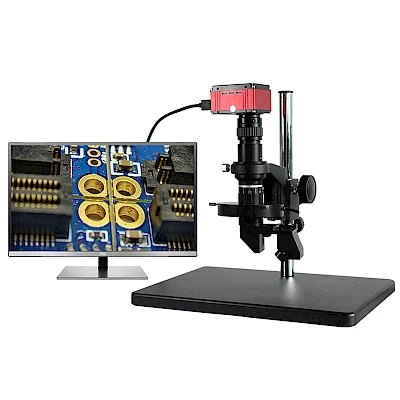

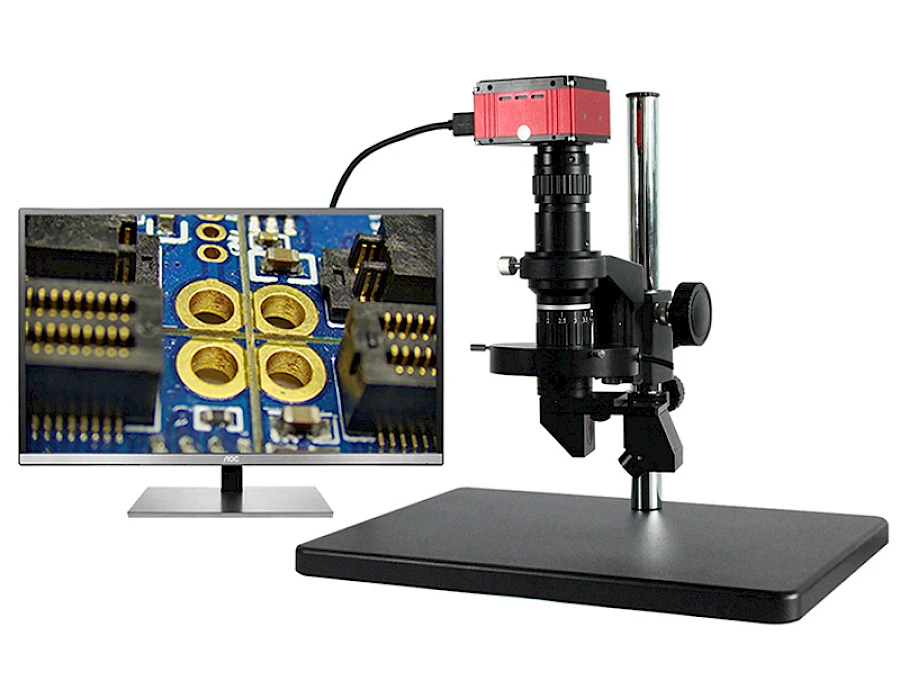

ATE-5 3D Manual Stereo Microscope with 2K HDMI Camera

ATE-5 3D Manual Stereo Microscope with 2K HDMI Camera

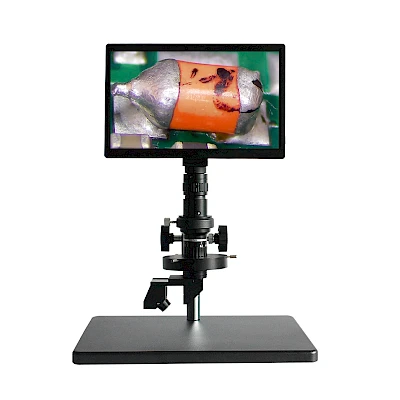

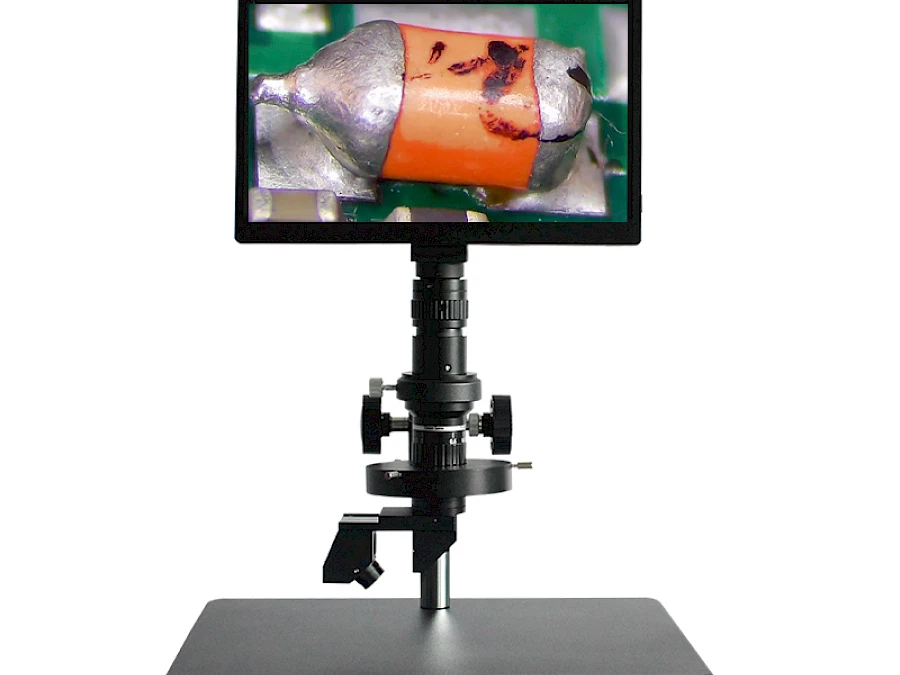

ATE-5 3D Manual Stereo Microscope with 11.6" LCD Display Monitor

ATE-5 3D Manual Stereo Microscope with 11.6" LCD Display Monitor

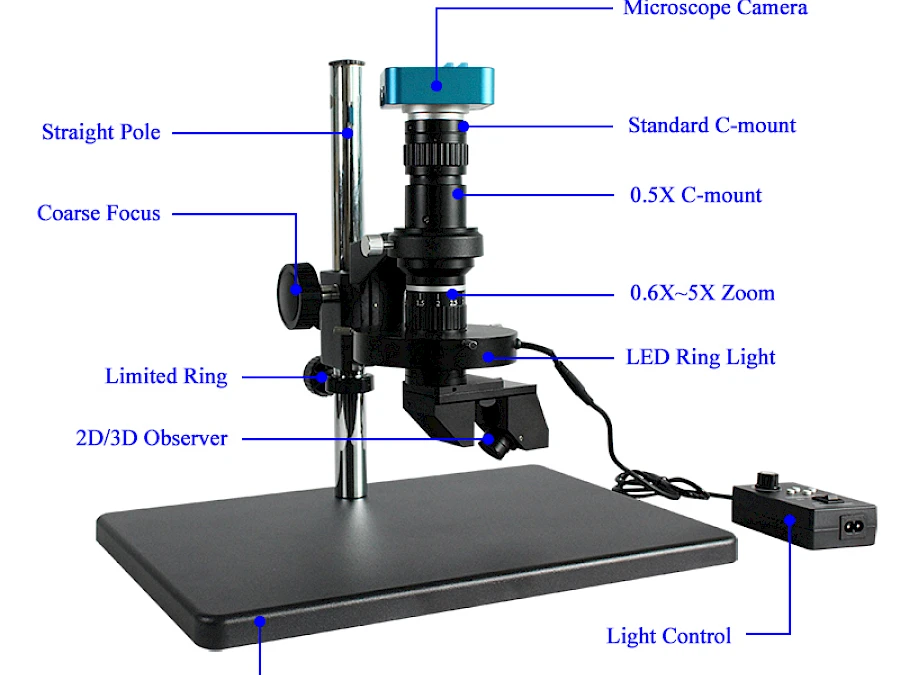

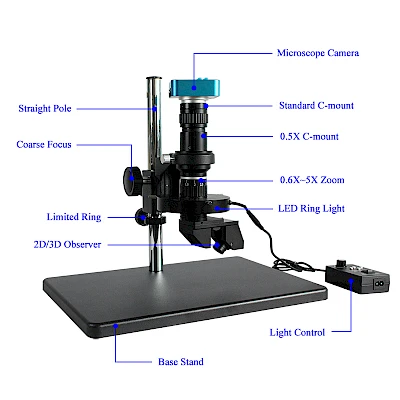

Structure of ATE-5 3D Manual Stereo Microscope

Structure of ATE-5 3D Manual Stereo Microscope

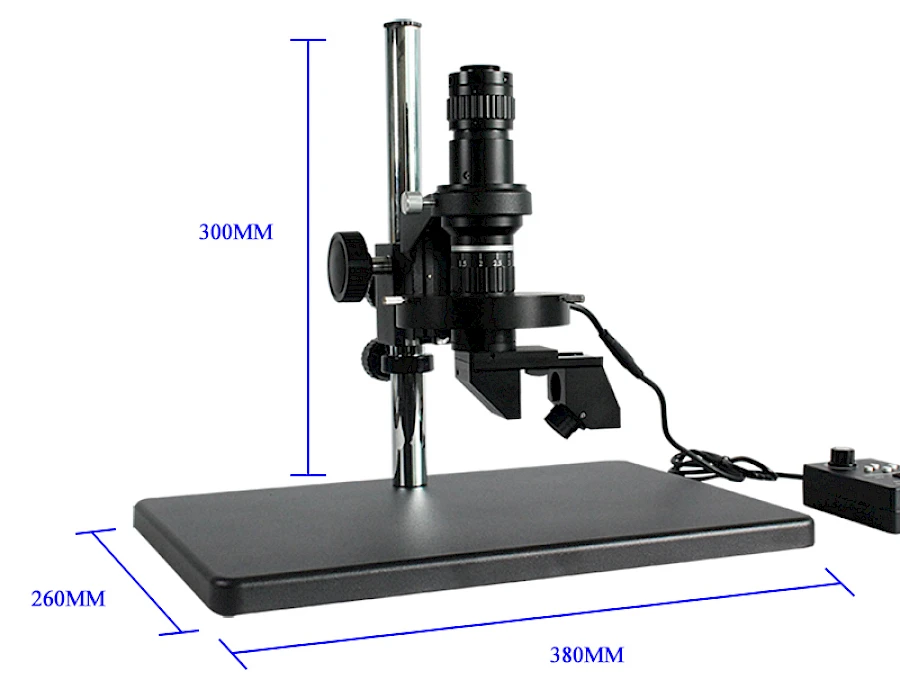

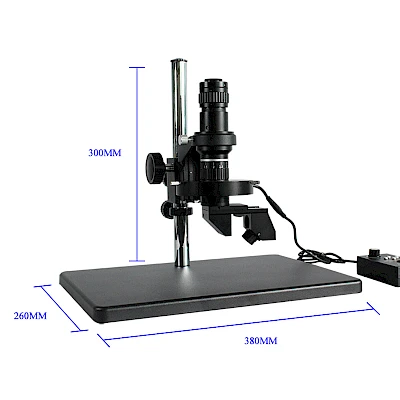

Dimension of ATE-5 3D Manual Stereo Microscope

Dimension of ATE-5 3D Manual Stereo Microscope

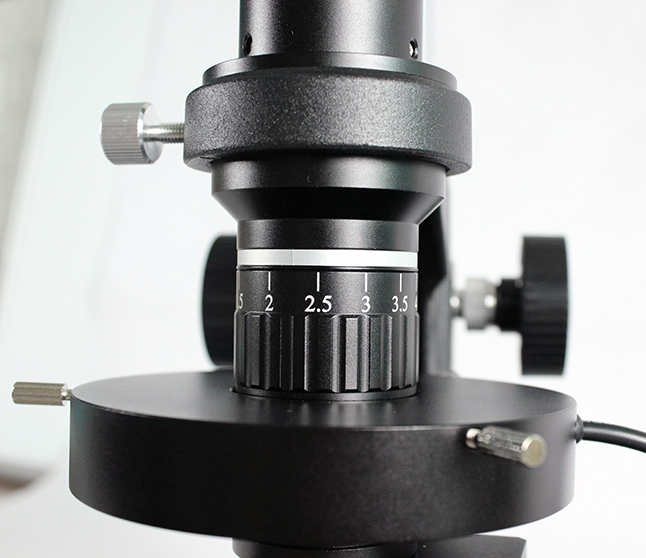

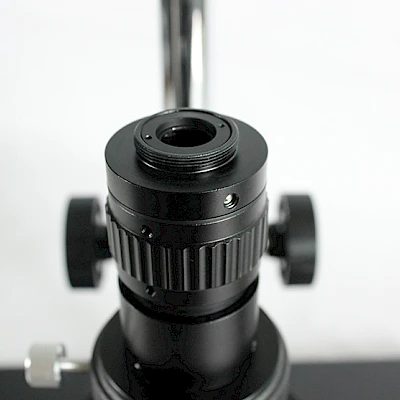

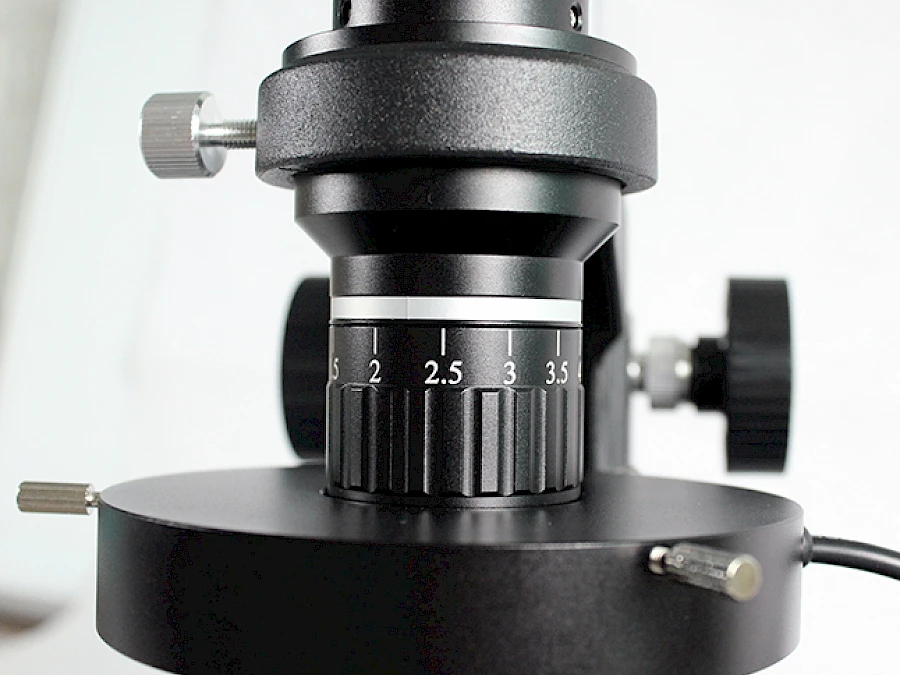

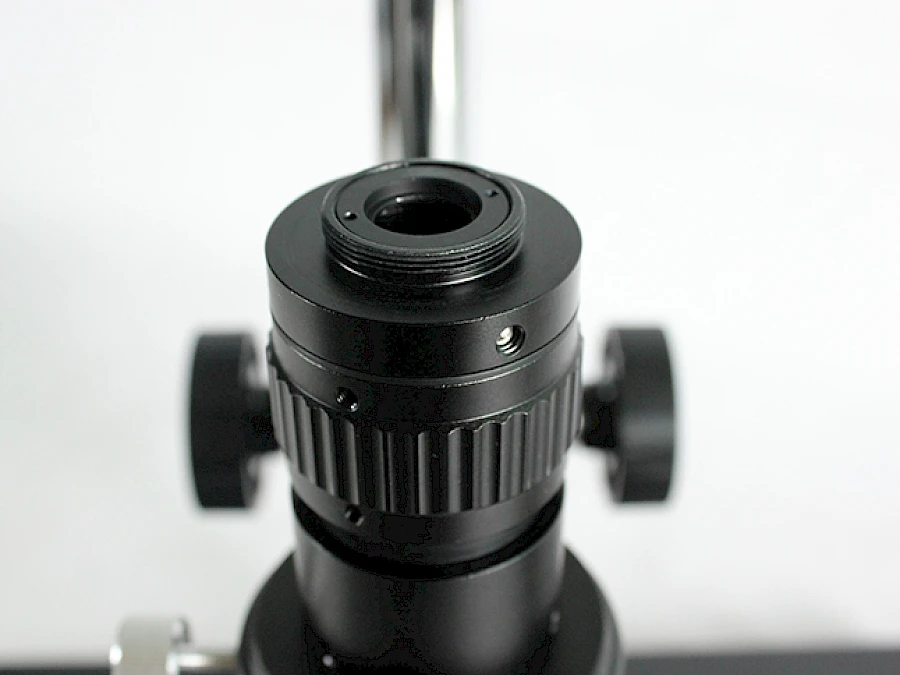

Standard C-Mount Interface0.6~5X Continuous Zoom

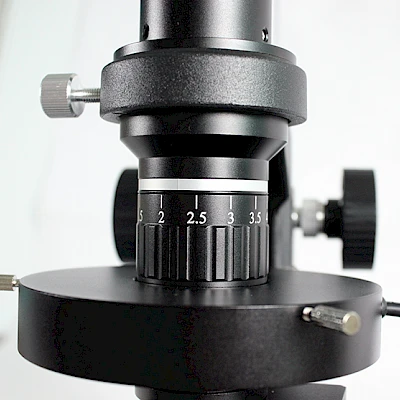

Standard C-Mount Interface & Continuous Zoom of ATE-5

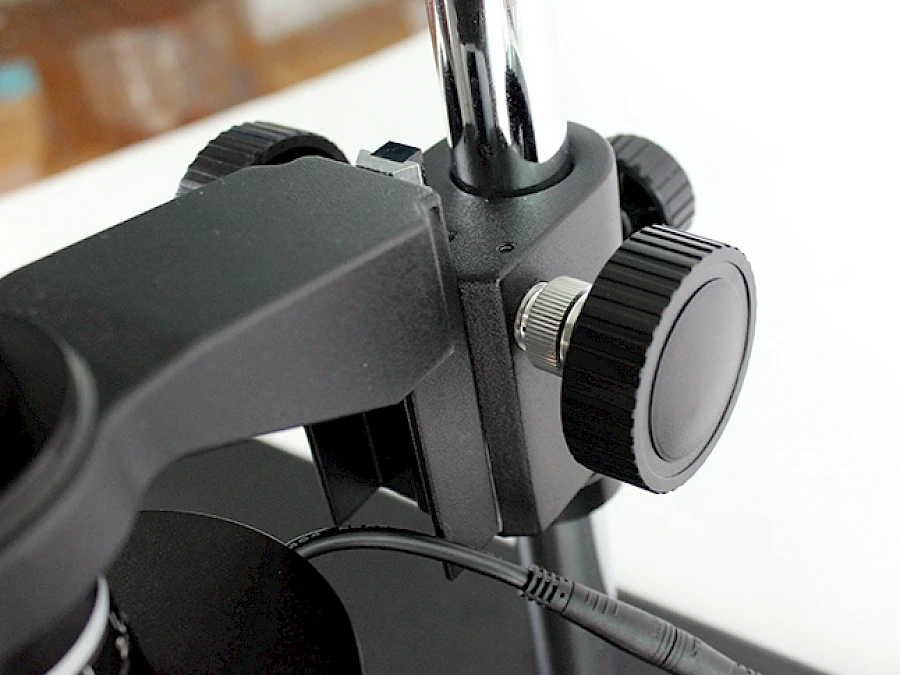

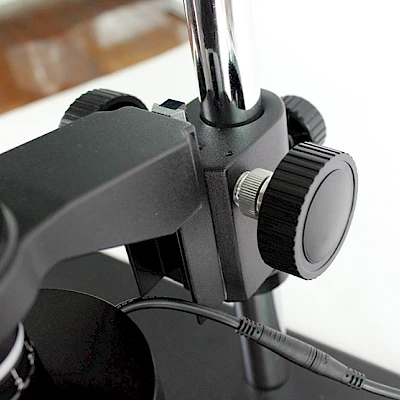

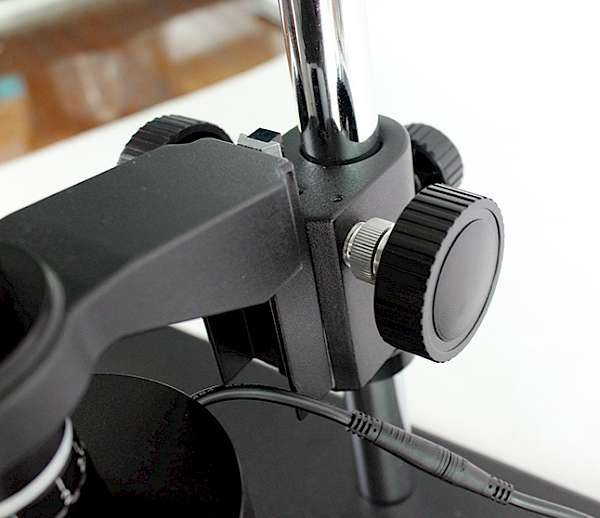

Coarse Focus4 Zones Control LED Light

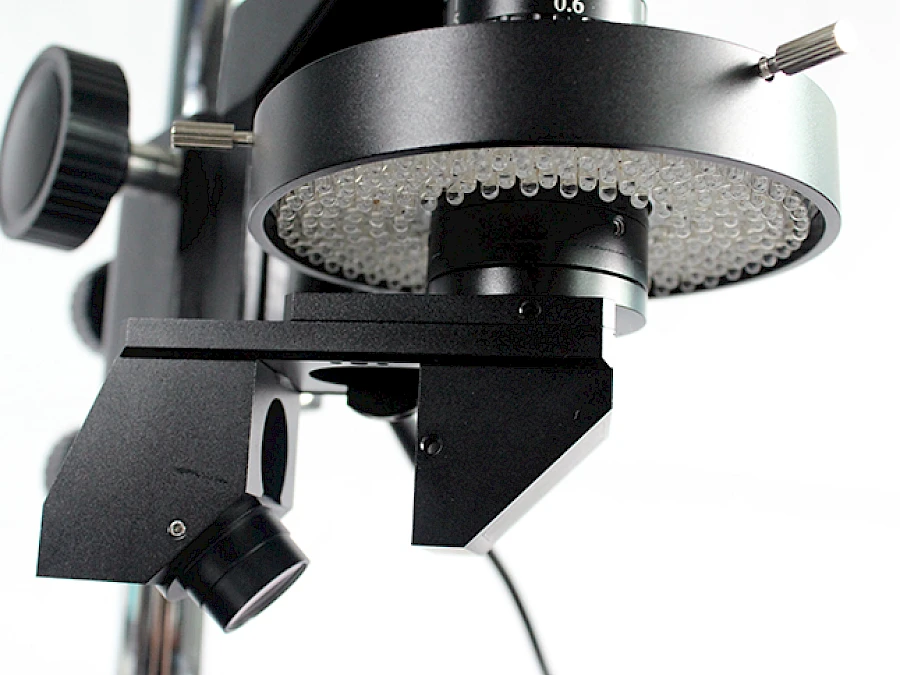

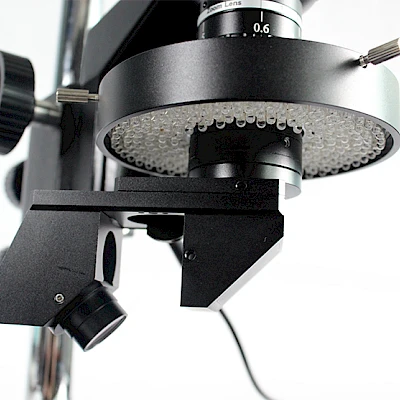

Coarse Focus & 4 Zones Control LED Ring Light of ATE-5

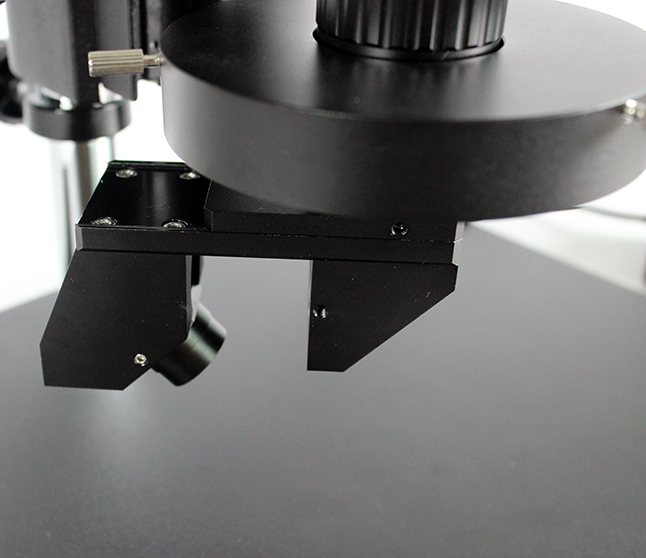

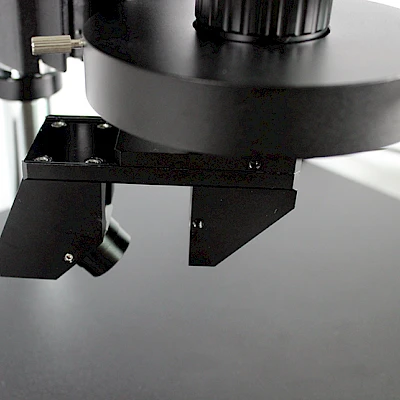

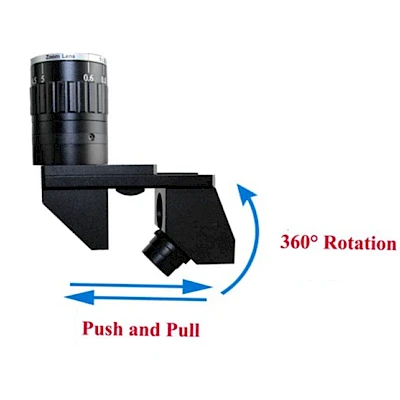

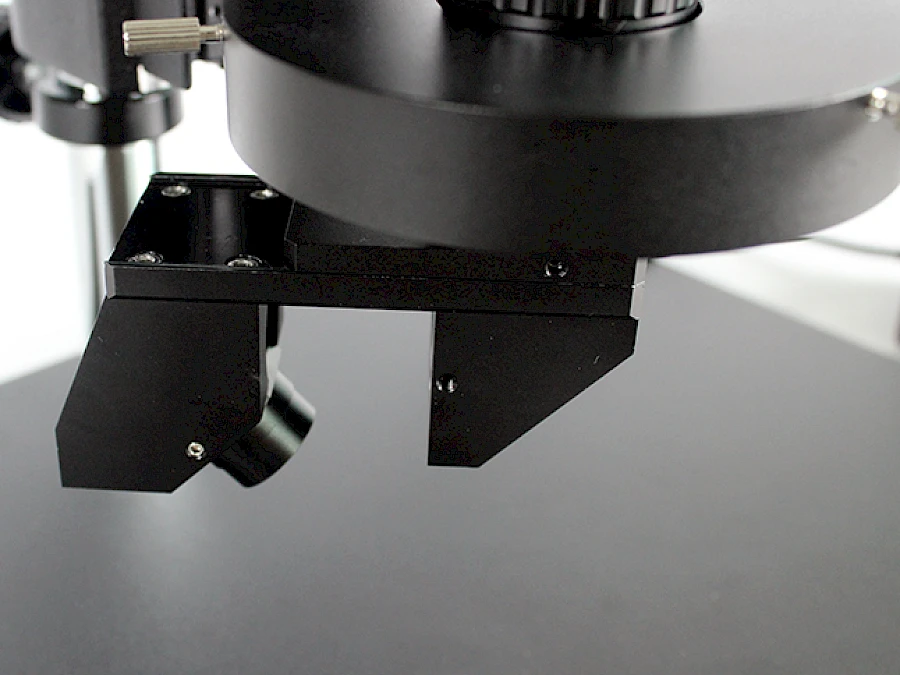

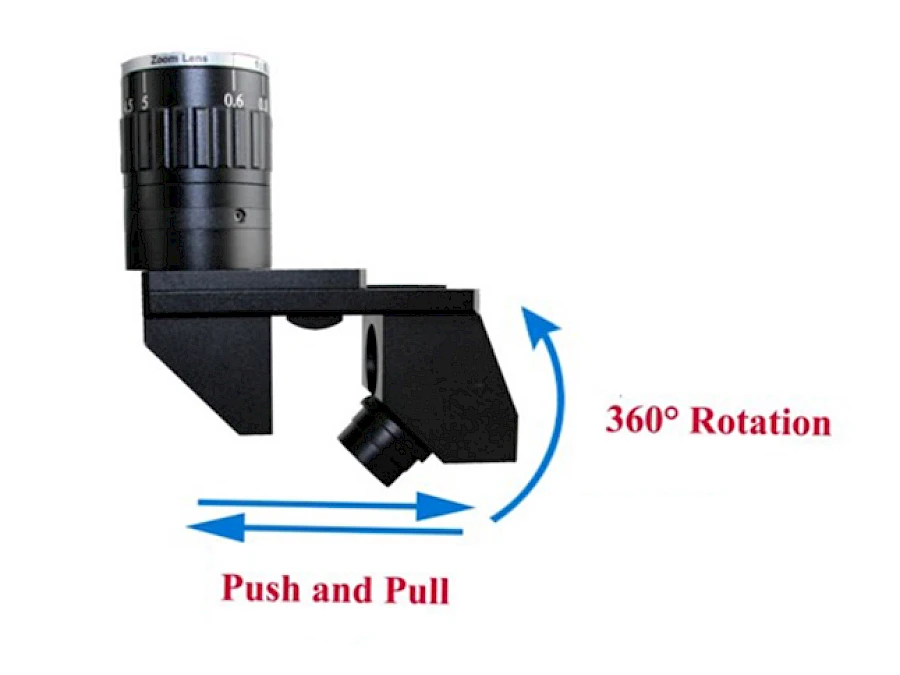

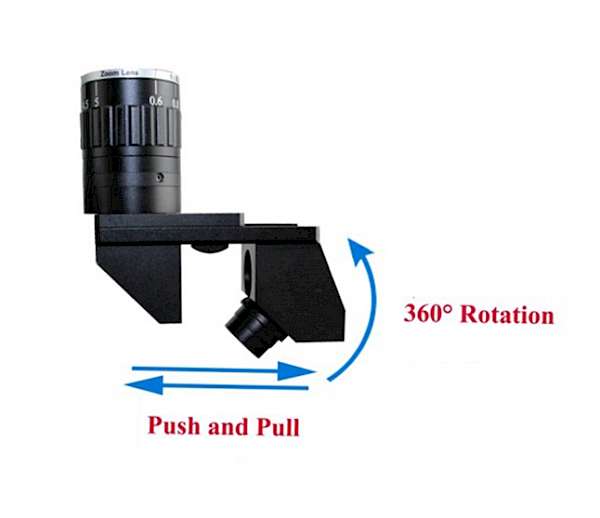

2D/3D Observer2D/3D Observer

2D/3D Observer of ATE-5
