BD7024 Series

BD7024 Series 10X-120X inspection & measurement Stereo Microscope with optional illumination

different two magnification level, 20X-40X, 10X-120X(Mag.), new ergonomics design

Core Features

20X-40X, 10X-120X(optional eyepiece & objective)
optical system with super high resolution
extremely great flat and contrast images
new ergonomics design
easy and comfortable operation, against fatigue
widely used in various fields: electronic industry, educational demonstration and agricultural research

Configurations

20X-40X

10X-120X

WF10X/23mm

super high resolution

micro-object observation

inspection & measurement

Request Quotation Email Phone Back to Products

BD7024 Series Stereo Microscope is fully coated optical system with super high resolution. It offers sharp clear images with extremely great flatness and contrast. With the new ergonomics design and super large field of view, you can use this microscope for long time without fatigue. It is widely used in electronic industry, educational demonstration and agricultural research for micro-object observation, inspection and measurement.

BD7024-PS

BD7024-PRT

BD7024-PL

BD7024-PLGL

BD7024-PI

BD7024-PI2L

BD7024-PIGL

BD7024-PF

BD7024-PF2L

BD7024-AS

BD7024-AL

BD7024-AI

BD7024-AI2L

BD7024-AF

BD7024-AF2L

BD7024-SU1

BD7024-SU2

BD7024-SU3

BD7024-DU1

BD7024-DU2

BD7024-RU1

BD7024-U2

BD7024-PS

BD7024-PRT

BD7024-PL

BD7024-PLGL

BD7024-PI

BD7024-PI2L

BD7024-PIGL

BD7024-PF

BD7024-PF2L

BD7024-U2

Item	Stand	Illumination	Focusing Mount

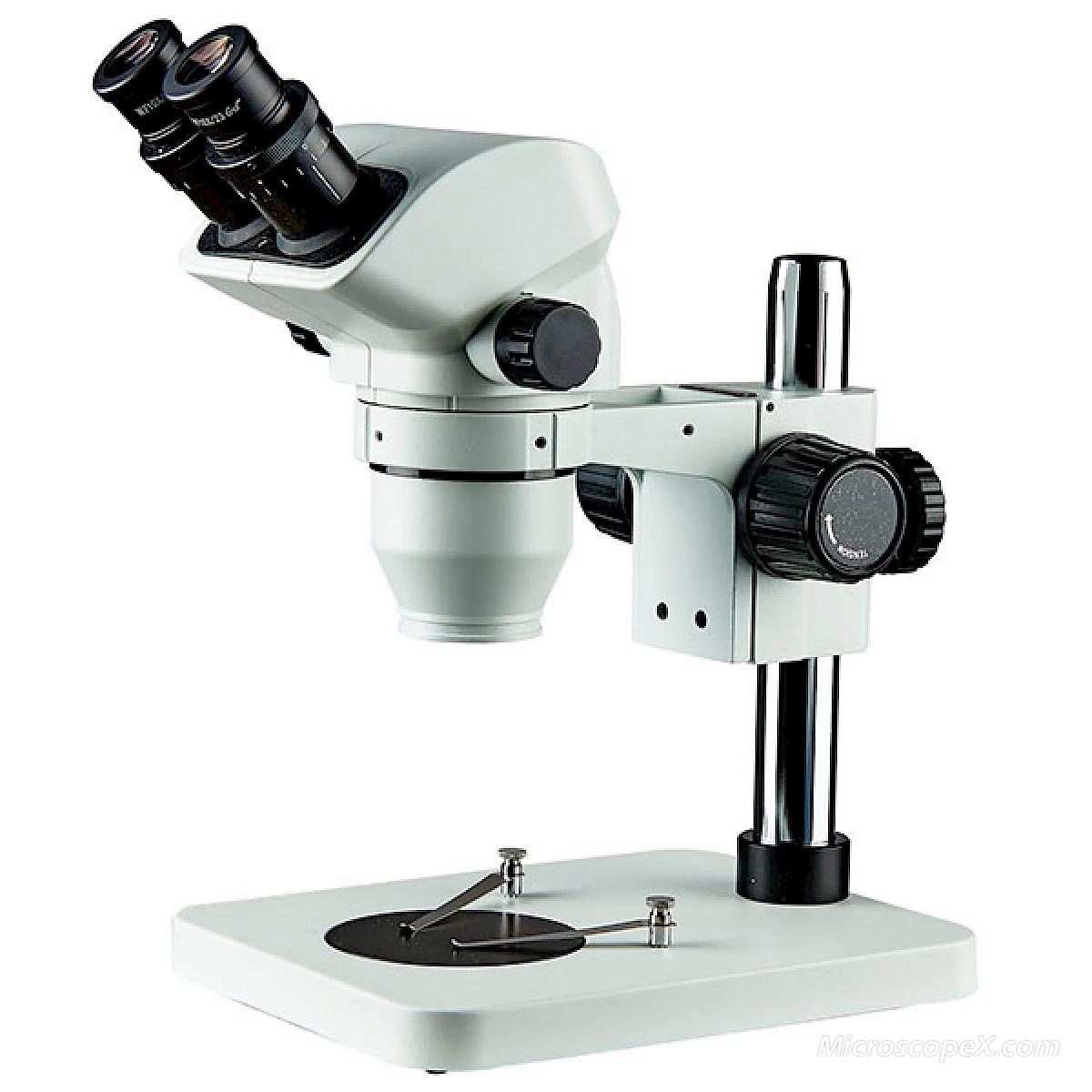

BD7024 -PS	PS pole stand	Fluorescent lamp, LED ring light	C1 focusing mount with vertical working distance 50mm

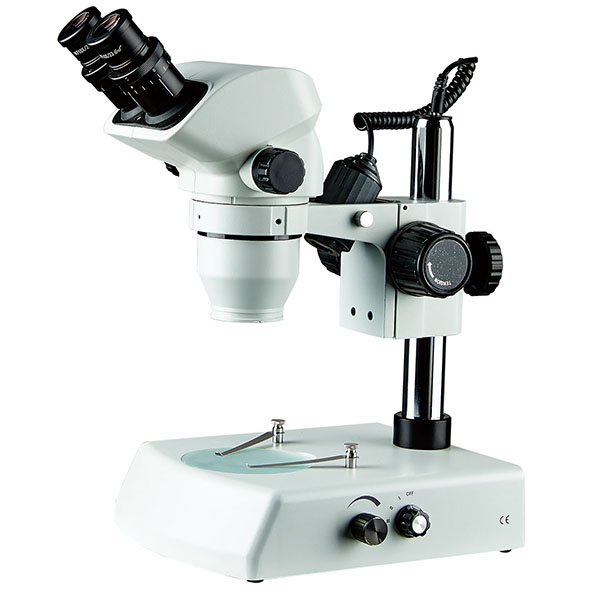

BD7024 -PRT	PRT pole stand	Transmitted and reflected 12v/15w halogen, 7w fluorescent, 5v/3w LED illumination	C1 focusing mount with vertical working distance 50mm

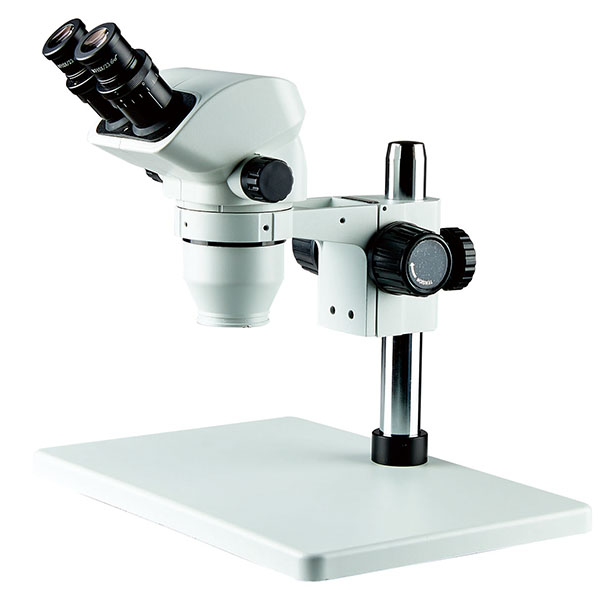

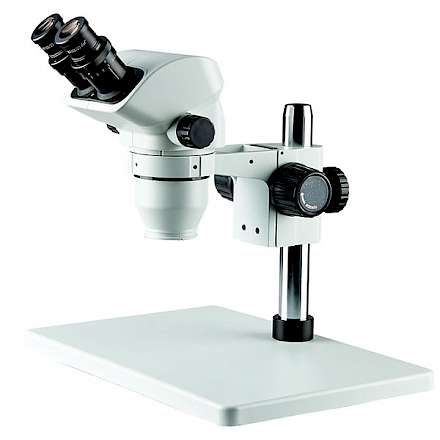

BD7024 -PL	PL pole stand	Fluorescent lamp, LED ring light	C1 focusing mount with vertical working distance 50mm

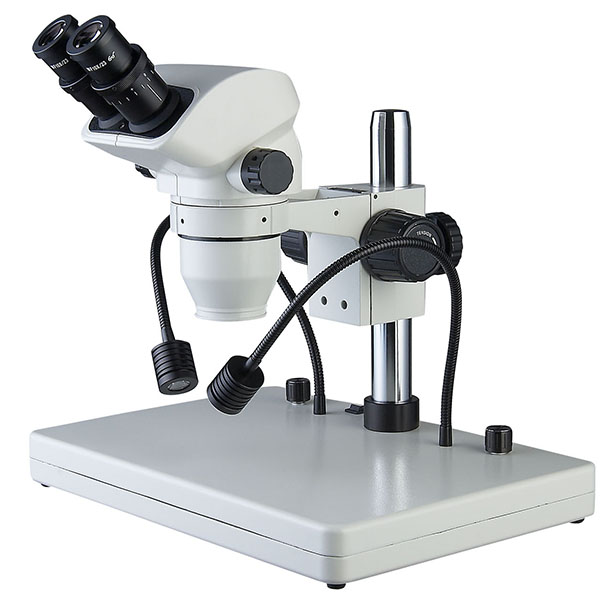

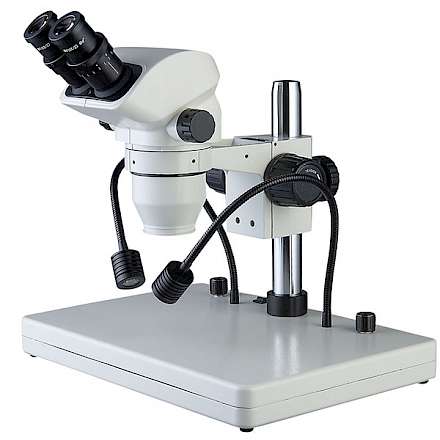

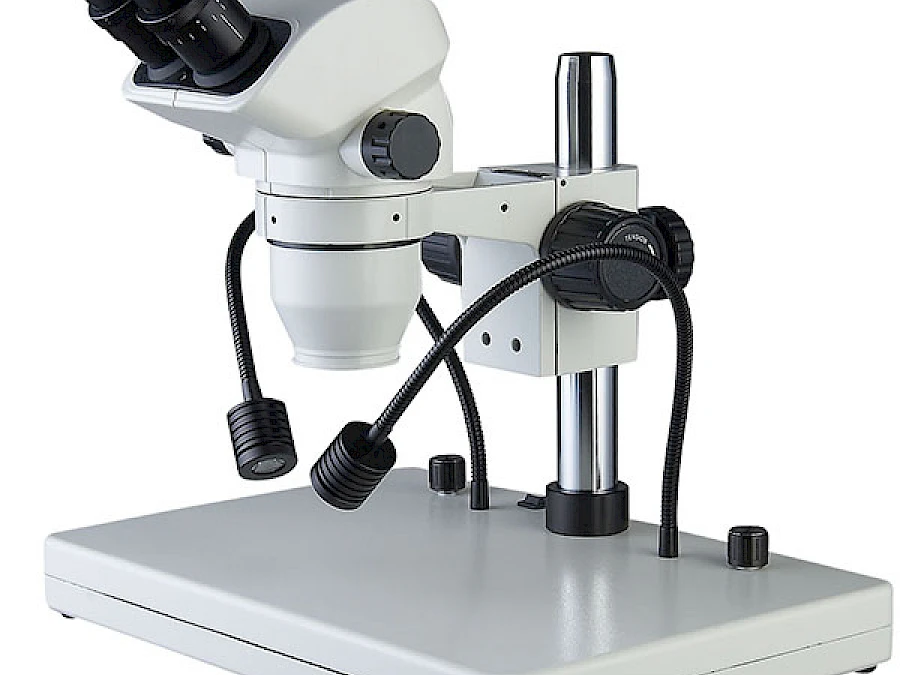

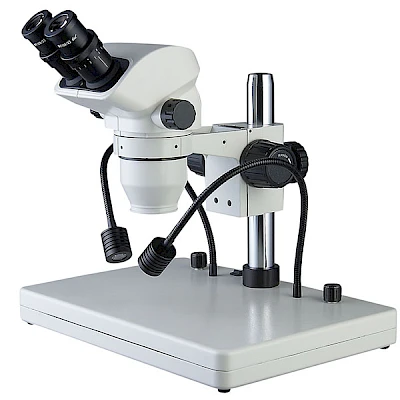

BD7024 -PLGL	PLGL pole stand	Double gooseneck LED illumination with independent switches and adjustable intensity	C1 focusing mount with vertical working distance 50mm

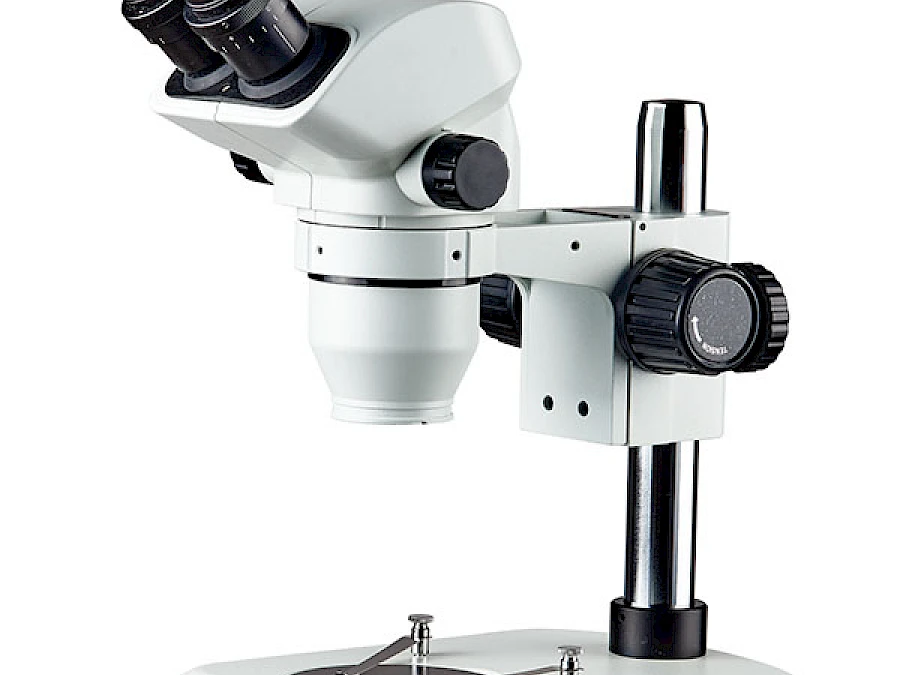

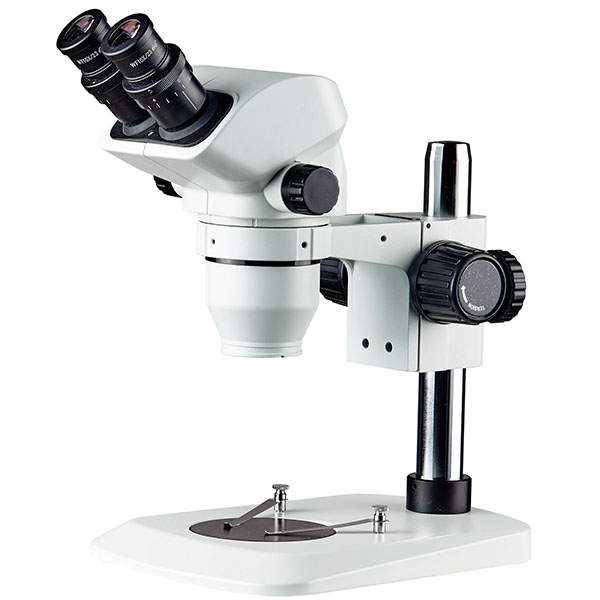

BD7024 -PI	PI pole stand	Fluorescent lamp, LED ring light	C1 focusing mount with vertical working distance 50mm

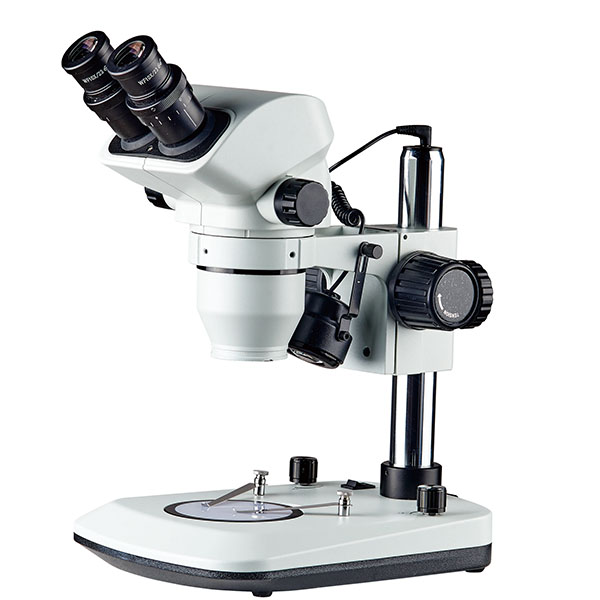

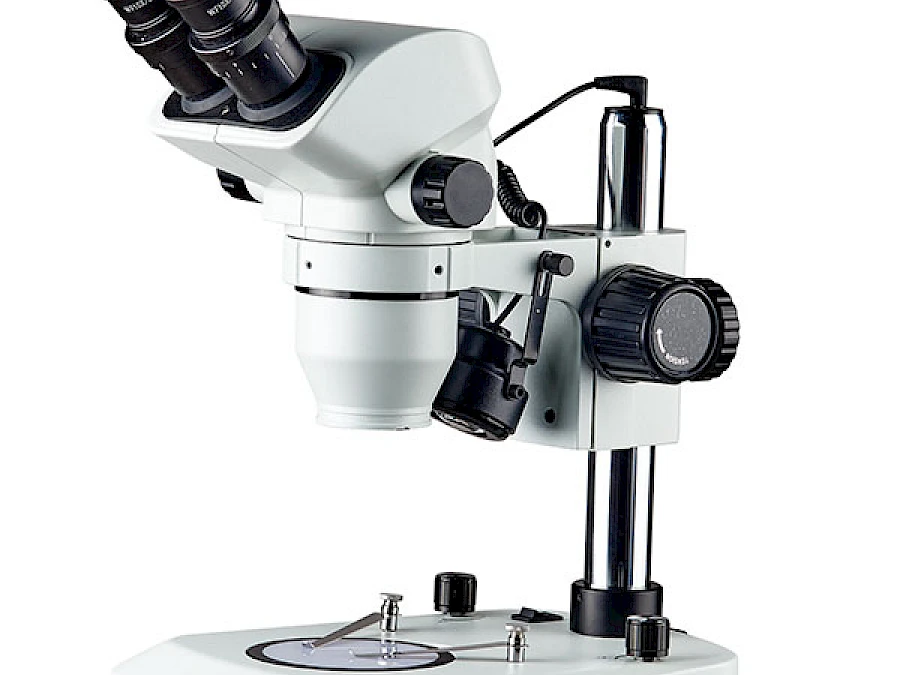

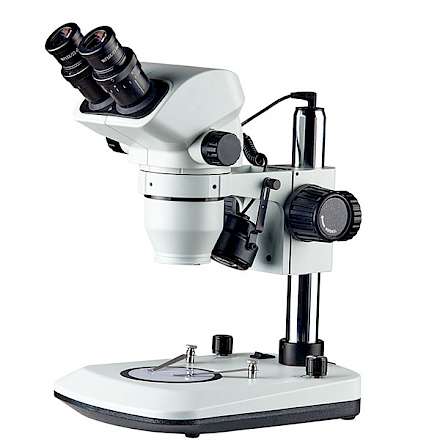

BD7024 -PI2L	PI2L pole stand	Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity	C1 focusing mount with vertical working distance 50mm

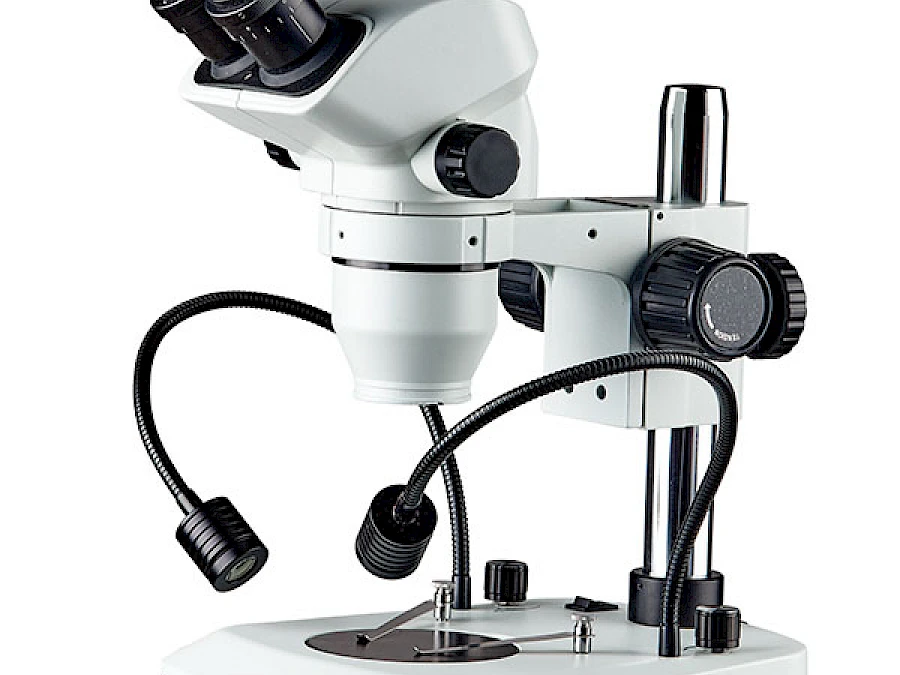

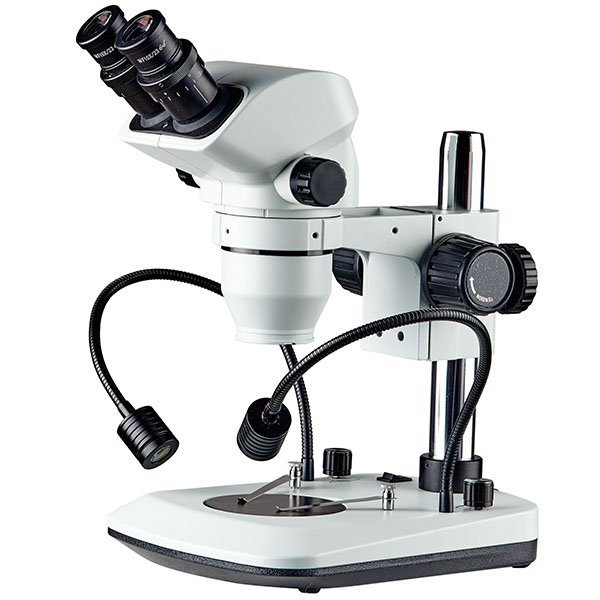

BD7024 -PIGL	PIGL pole stand	Double gooseneck LED illumination with independent switches and adjustable intensity	C1 focusing mount with vertical working distance 50mm

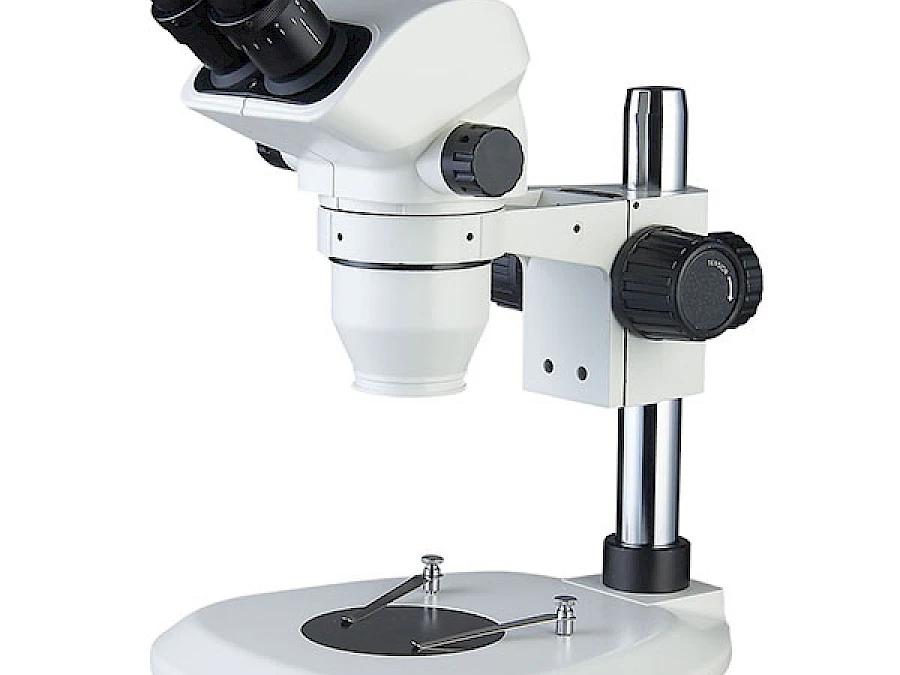

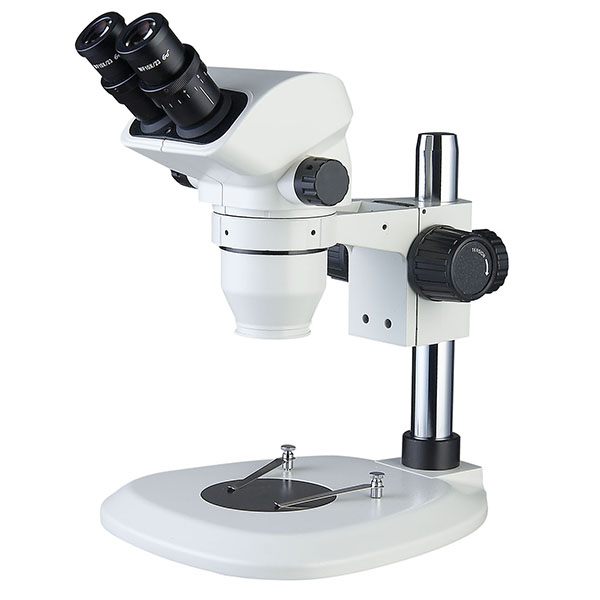

BD7024 -PF	PF fan base pole stand	Fluorescent lamp, LED ring light	C1 focusing mount with vertical working distance 50mm

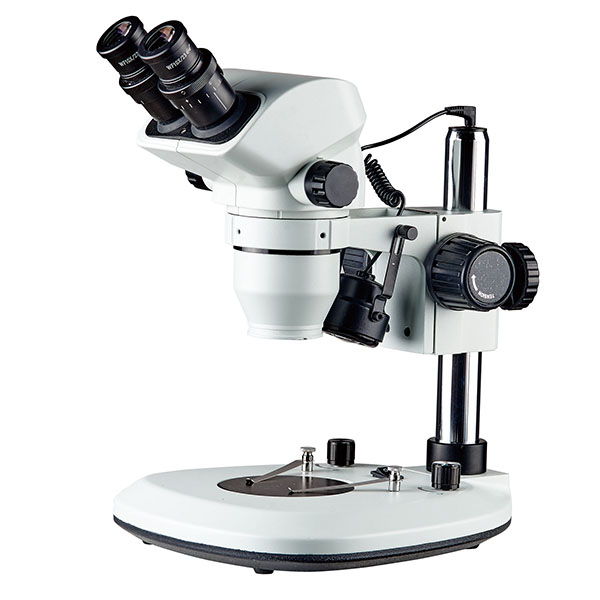

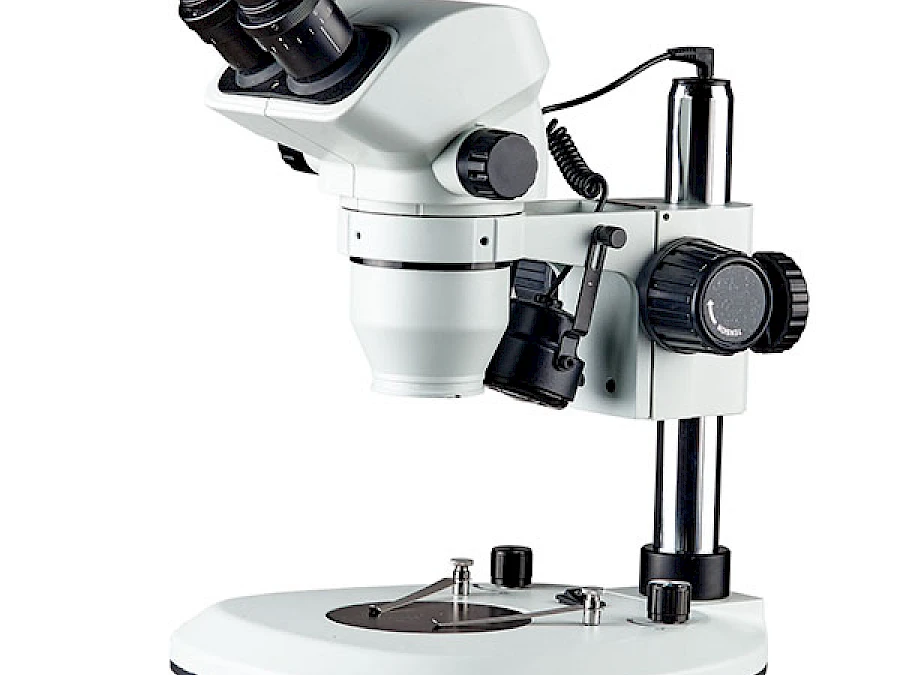

BD7024 -PF2L	PF2L fan base pole stand	Transmitted and reflected LED illumination with independent switches and adjustable intensity	C1 focusing mount with vertical working distance 50mm

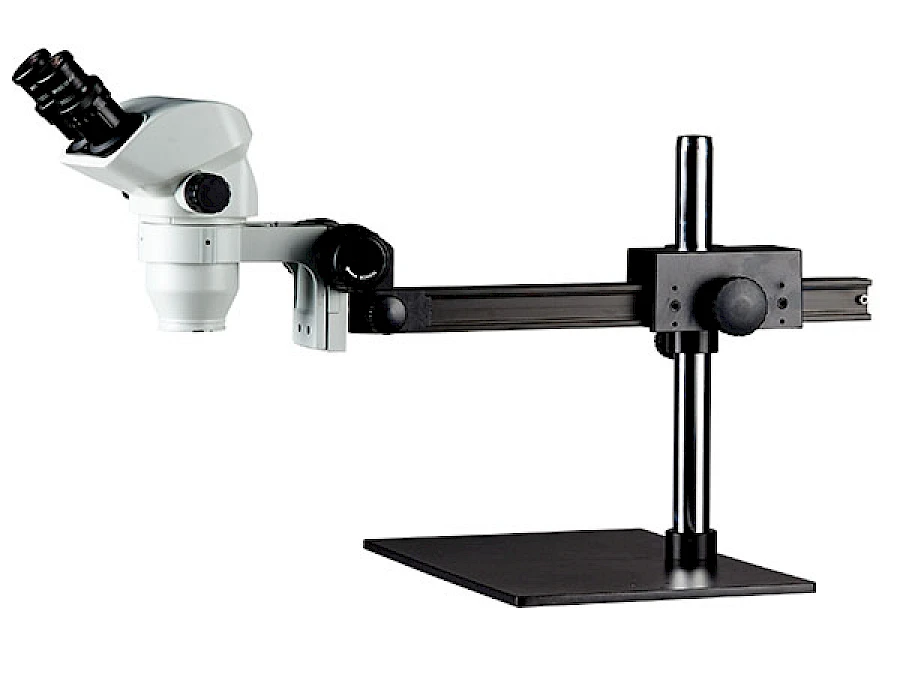

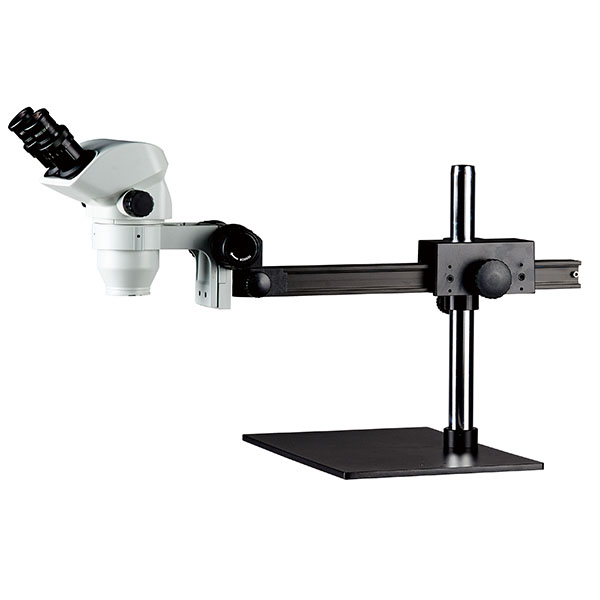

BD7024 -U2	U2 pole stand	Fluorescent lamp, LED ring light	C3 focusing mount with vertical working distance 50mm

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Specification for BD7024 Pole Stand
Eyepiece	Objective 1X		Objective 2X		Objective 3X		Objective 4X
	Working Distance 100mm
	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V
10X/23mm	10X	20.0mm	20X	10.0mm	30X	7.5mm	40X	5.0mm
15X/16mm	15X	16.0mm	30X	8.0mm	45X	5.0mm	60X	3.3mm
20X/12mm	20X	12.0mm	40X	6.0mm	60X	3.3mm	80X	2.5mm
25X/9mm	25X	9.0mm	50X	4.5mm	75X	3.0mm	100X	2.3mm
30X/8mm	30X	8.0mm	60X	4.0mm	90X	2.7mm	120X	2.0mm
Magnification	20X-40X, 10X-120X with optional eyepieces and objectives
Eyepiece	WF10X/23mm high-eyepoint, super wide-field; Convenient for observers wearing glasses
Optional Eyepiece	WF10X/23mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
Main Body	Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Main Body	Interpupillary Distance adjustment:54-75mm; Diopter adjustment:±5 diopters
Objective	2X/4X, 1X/3X, 1X/2X

BD7024-AS

BD7024-AL

BD7024-AI

BD7024-AI2L

BD7024-AF

BD7024-AF2L

Item	Stand	Illumination

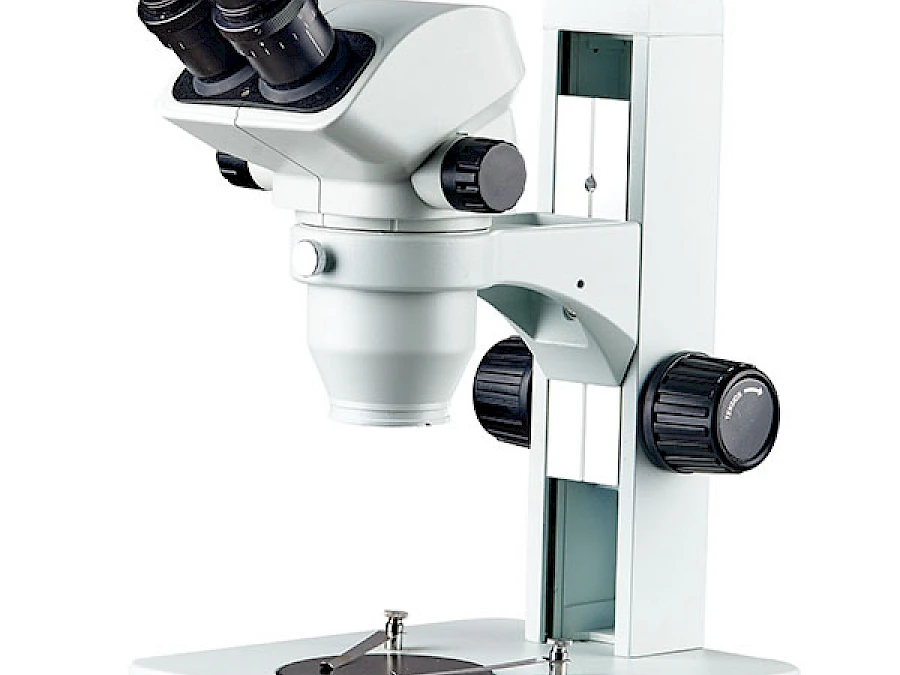

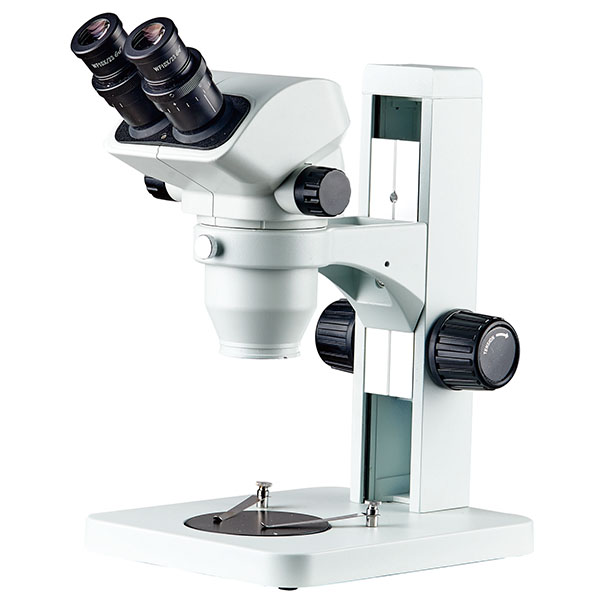

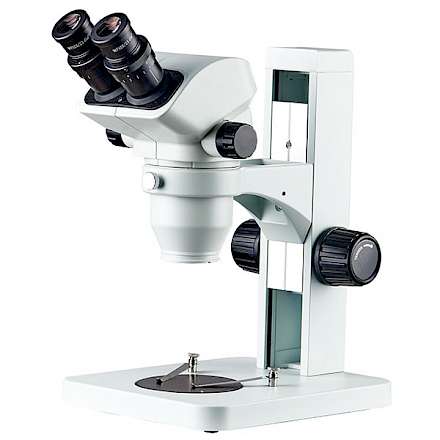

BD7024-AS	AS track stand	Fluorescent lamp, LED ring light

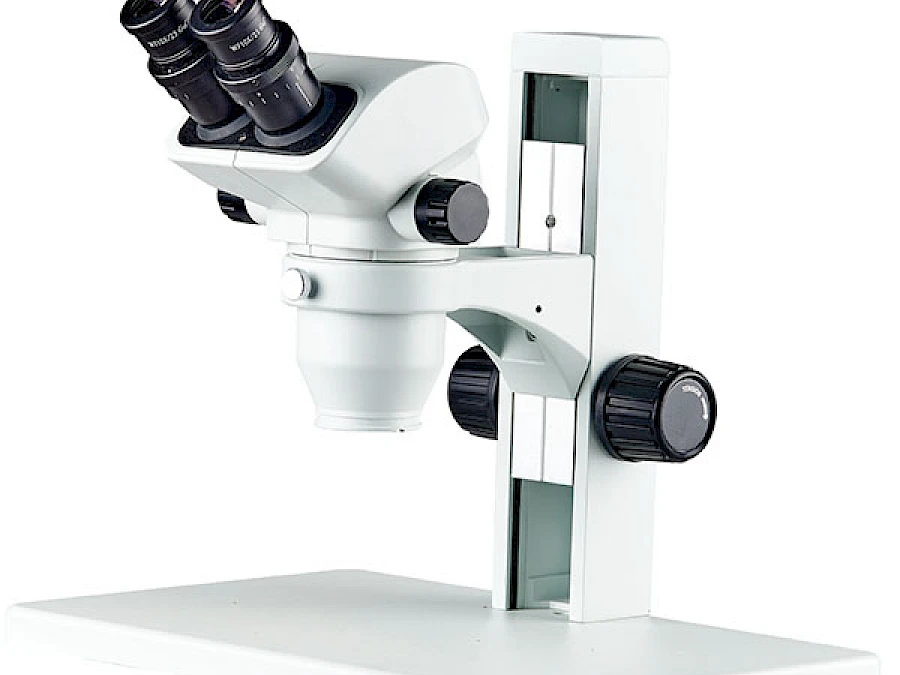

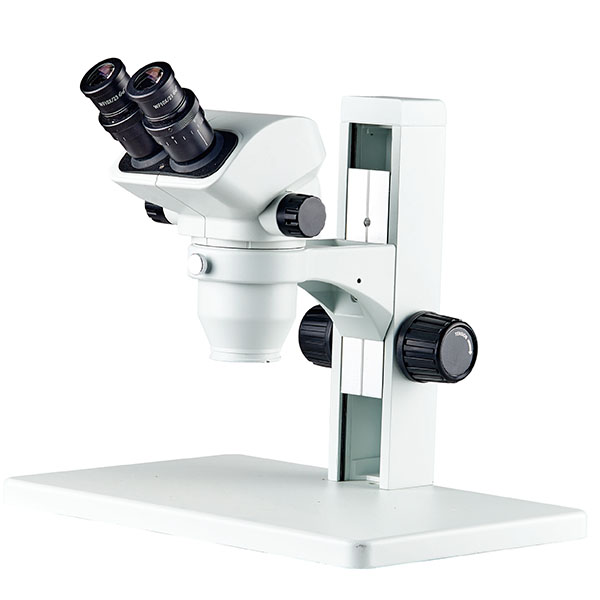

BD7024-AL	AL track stand	Fluorescent lamp, LED ring light

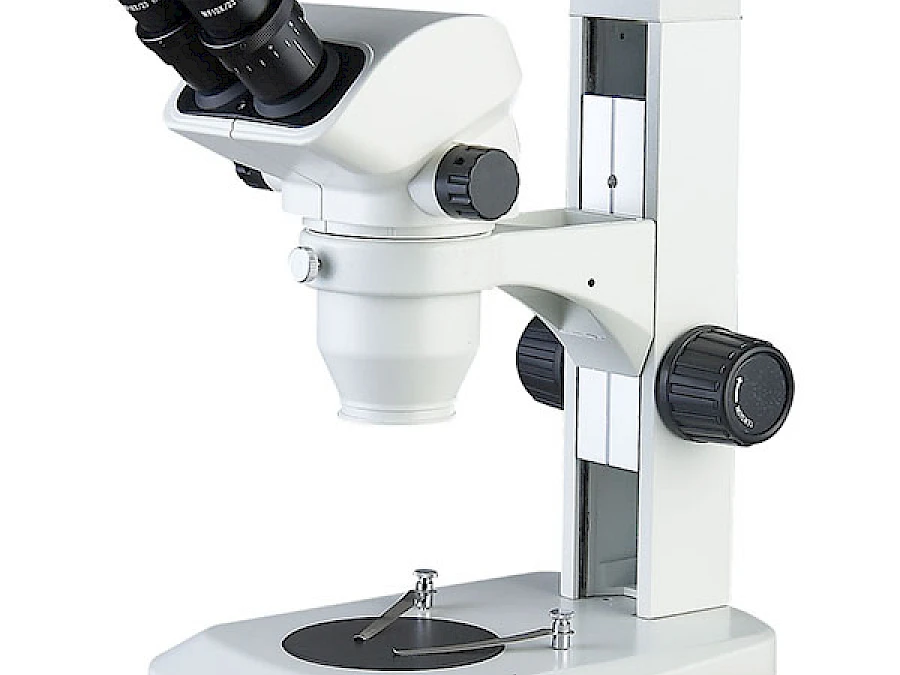

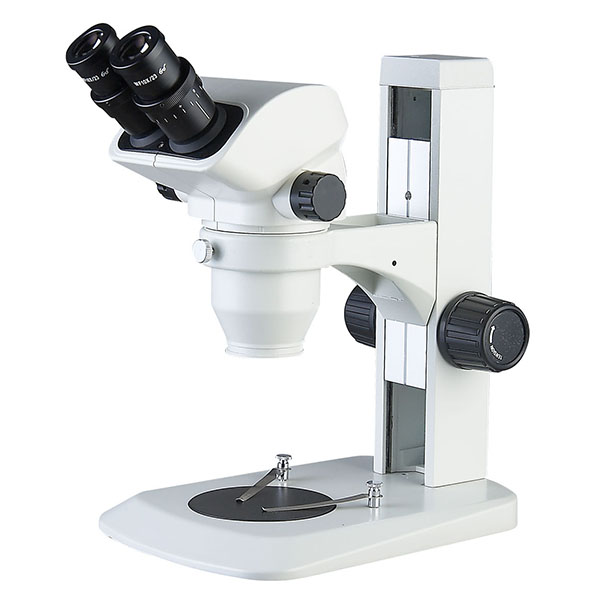

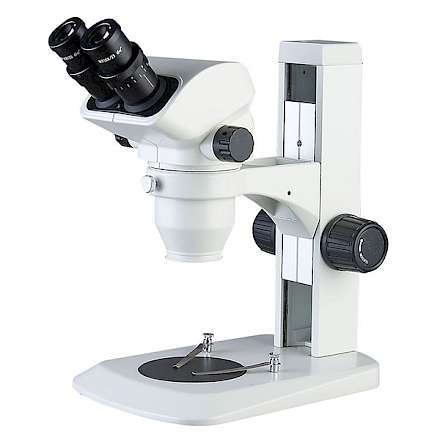

BD7024-AI	AI track stand	Fluorescent lamp, LED ring light

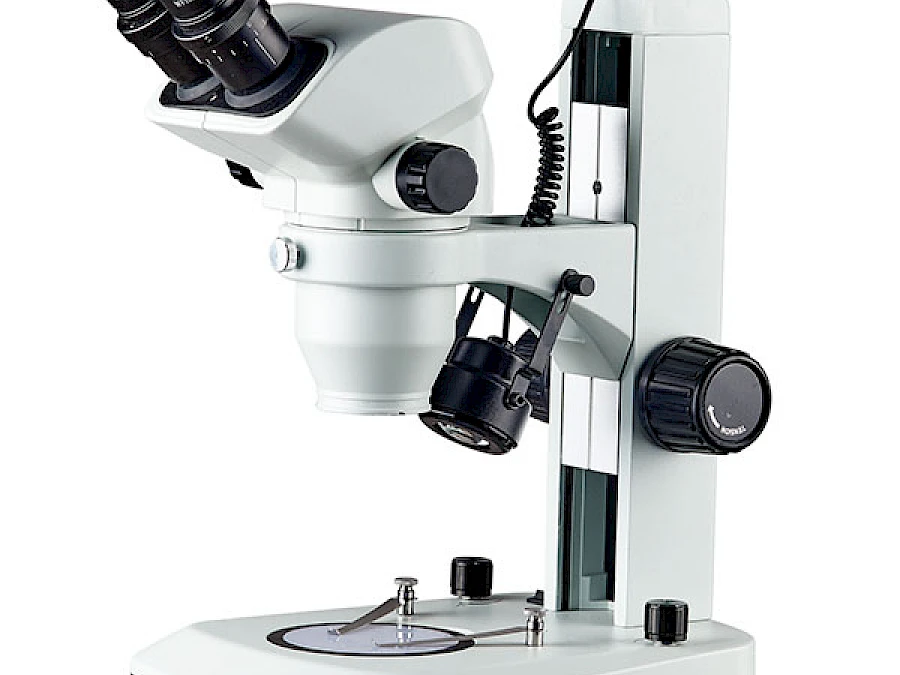

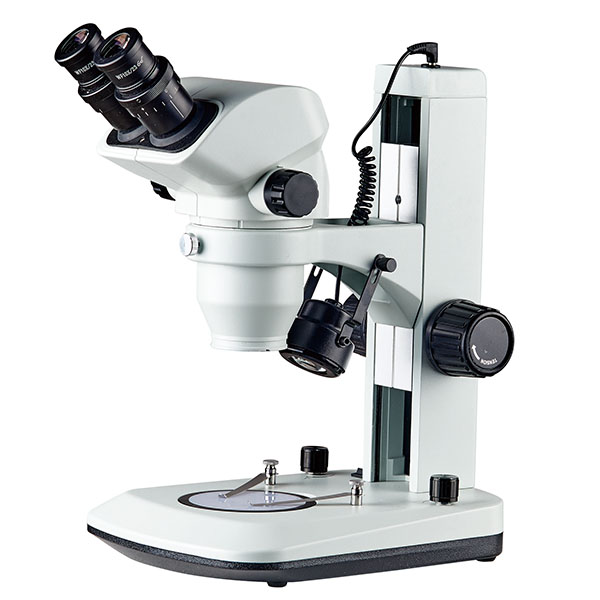

BD7024-AI2L	AI2L track stand	Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity

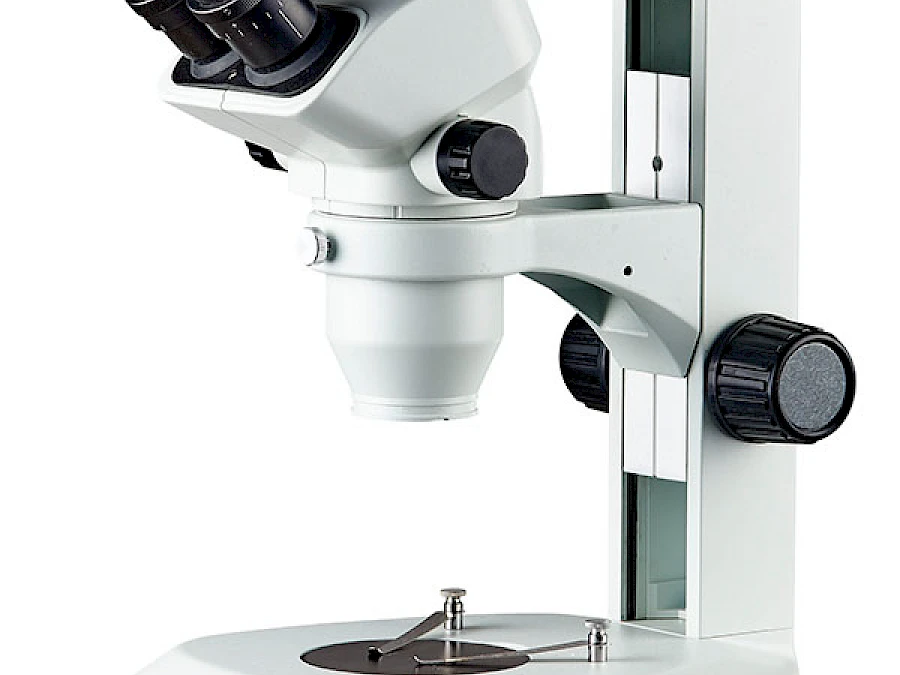

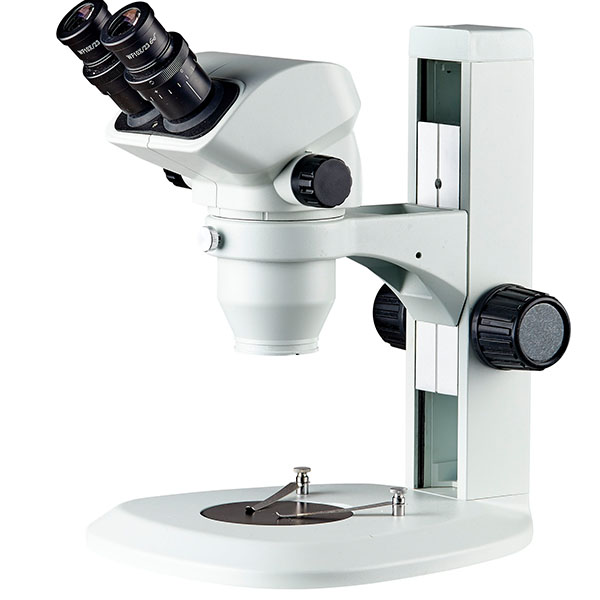

BD7024-AF	AF fan track stand	Fluorescent lamp, LED ring light

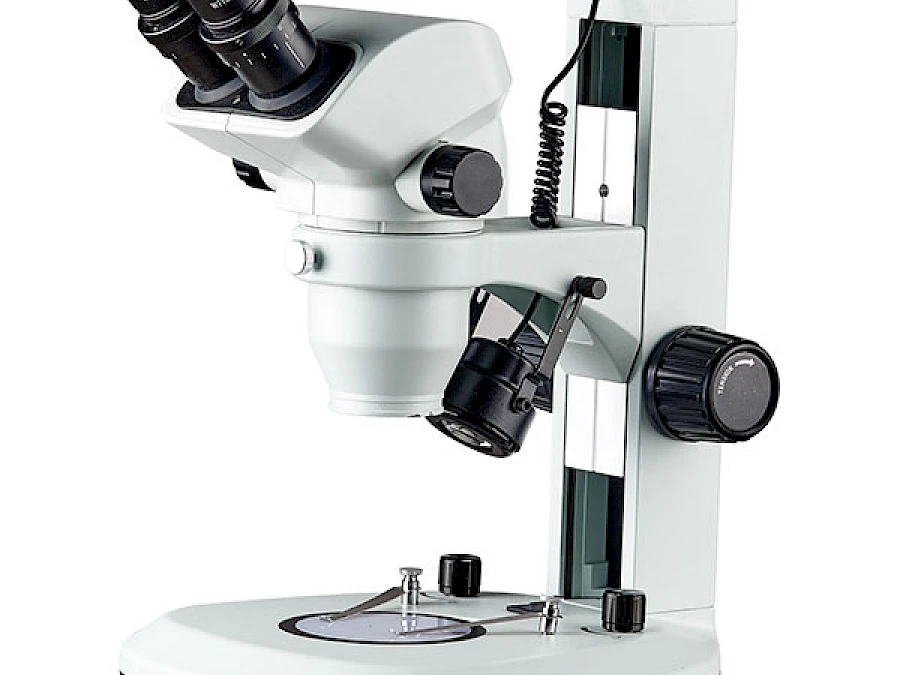

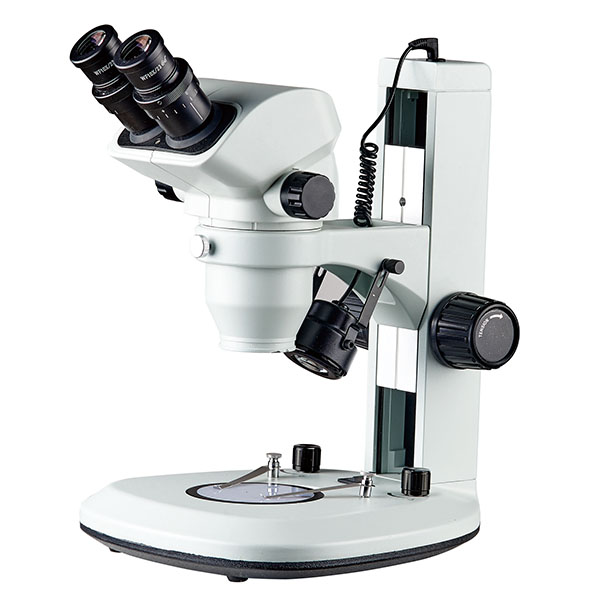

BD7024-AF2L	AF2L fan base track stand	Transmitted and reflected LED illumination with independent switches and adjustable intensity

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Specification for BD7024 Track Stand
Eyepiece	Objective 1X		Objective 2X		Objective 3X		Objective 4X
	Working Distance 100mm
	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V
10X/23mm	10X	20.0mm	20X	10.0mm	30X	7.5mm	40X	5.0mm
15X/16mm	15X	16.0mm	30X	8.0mm	45X	5.0mm	60X	3.3mm
20X/12mm	20X	12.0mm	40X	6.0mm	60X	3.3mm	80X	2.5mm
25X/9mm	25X	9.0mm	50X	4.5mm	75X	3.0mm	100X	2.3mm
30X/8mm	30X	8.0mm	60X	4.0mm	90X	2.7mm	120X	2.0mm
Magnification	20X-40X, 10X-120X with optional eyepieces and objectives
Eyepiece	WF10X/23mm high-eyepoint, super wide-field; Convenient for observers wearing glasses
Optional Eyepiece	WF10X/23mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
Main Body	Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Main Body	Interpupillary Distance adjustment:54-75mm; Diopter adjustment:±5 diopters
Objective	2X/4X, 1X/3X, 1X/2X
Focusing Mount	Focusing track mount with vertical working distance 106mm

BD7024-SU1

BD7024-SU2

BD7024-SU3

BD7024-DU1

BD7024-DU2

BD7024-RU1

Item	Stand	Focusing Mount

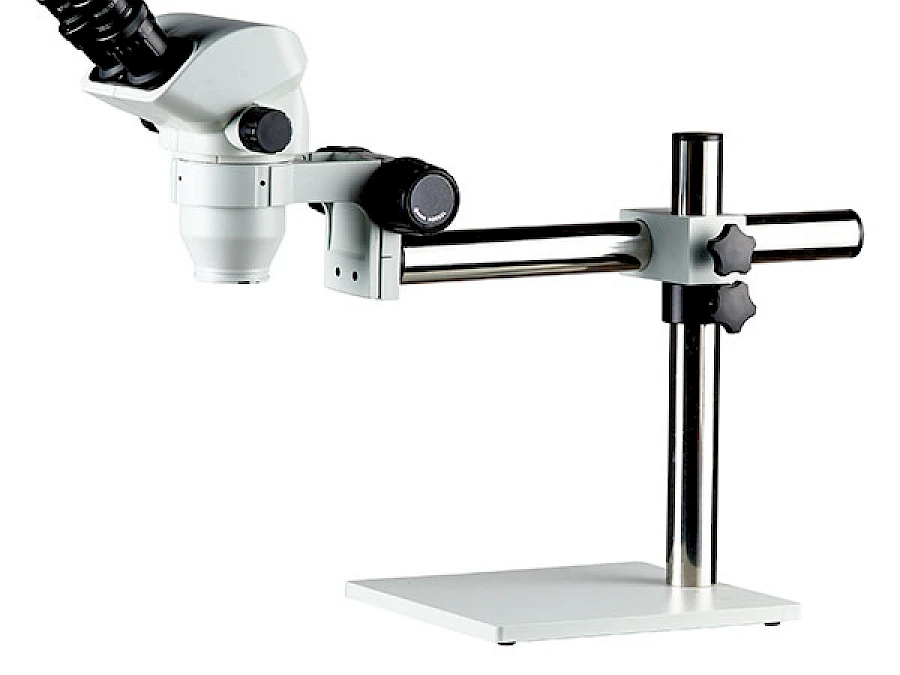

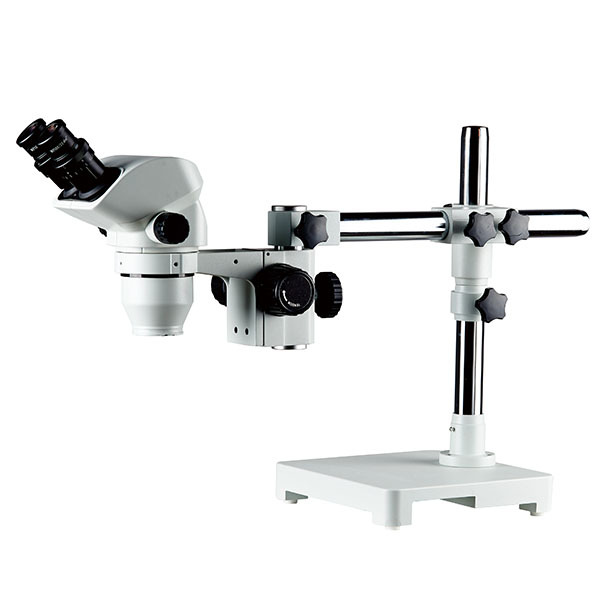

BD7024-SU1	SU1 boom stand	C1 focusing mount with vertical working distance 50mm

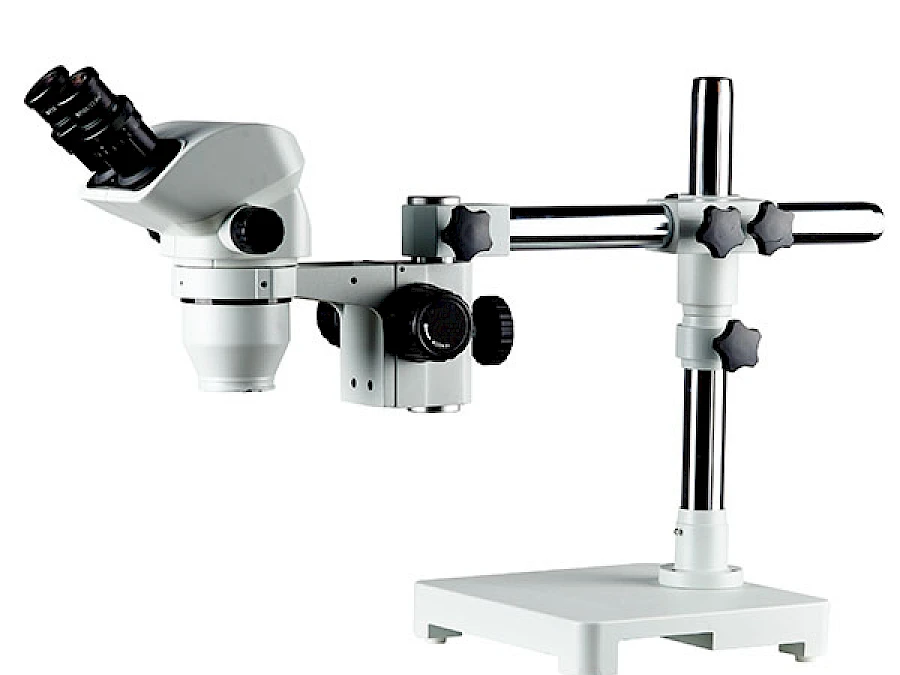

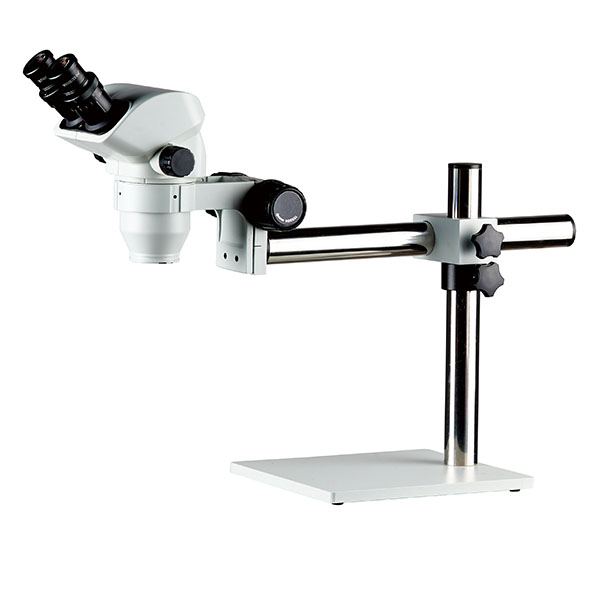

BD7024-SU2	SU2 boom stand	C3 focusing mount with vertical working distance 50mm

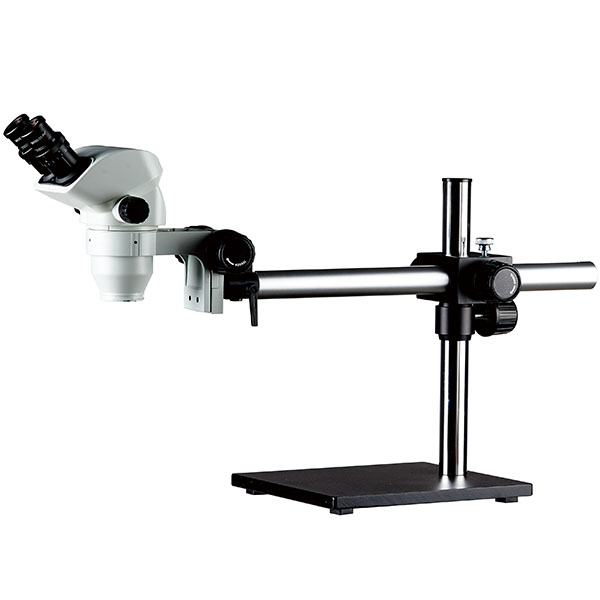

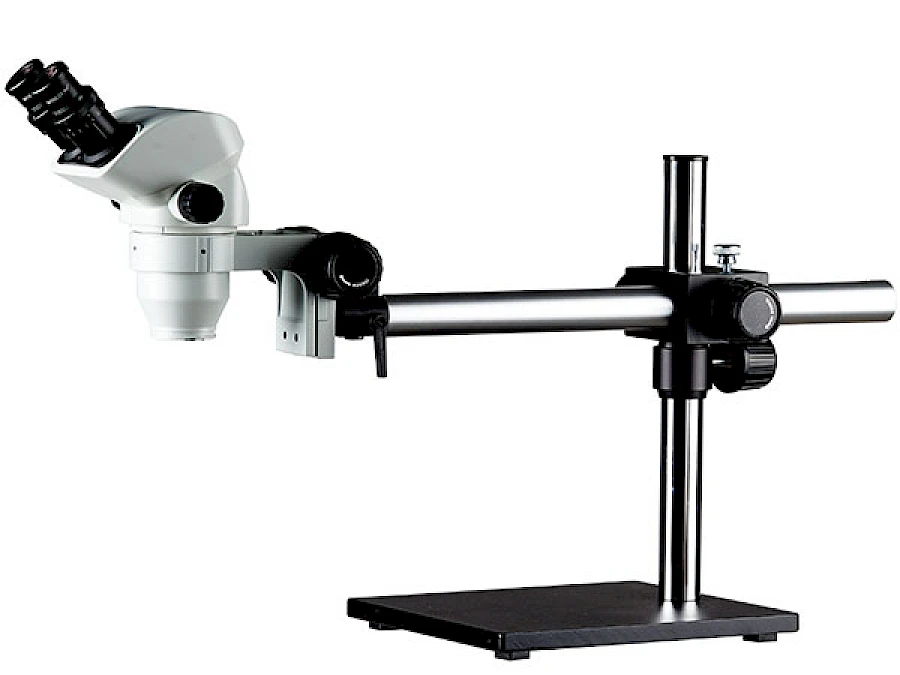

BD7024-SU3	SU3 boom stand	C3 focusing mount with vertical working distance 50mm

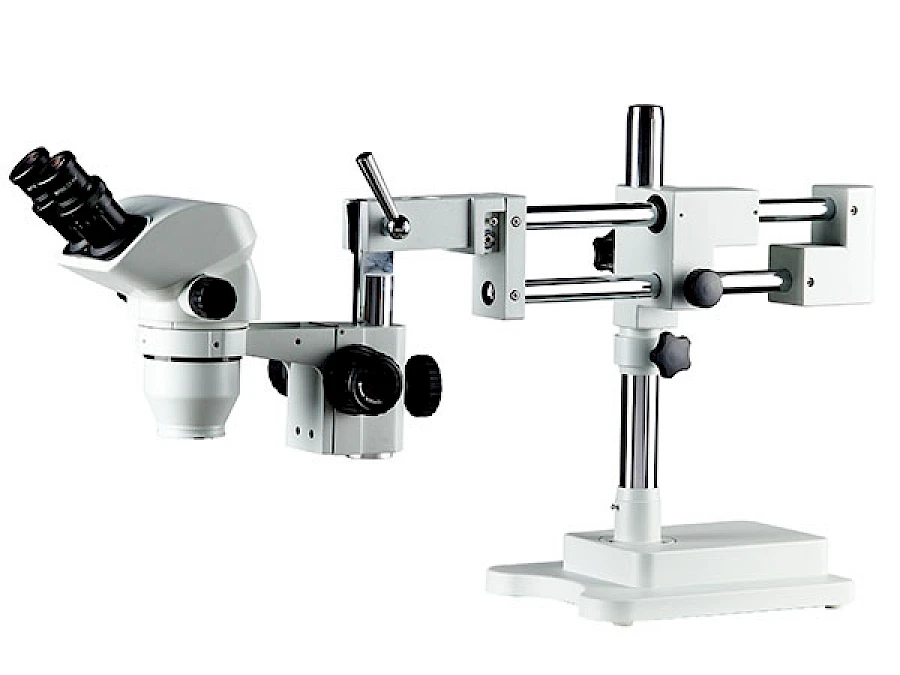

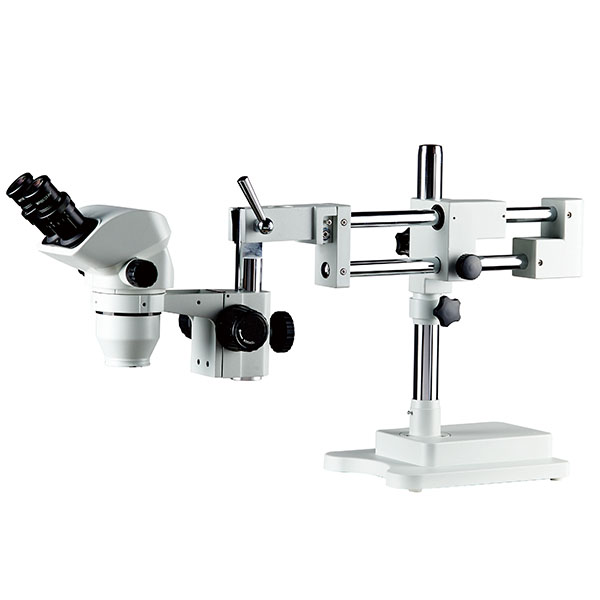

BD7024-DU1	DU1 boom stand	C1 focusing mount with vertical working distance 50mm

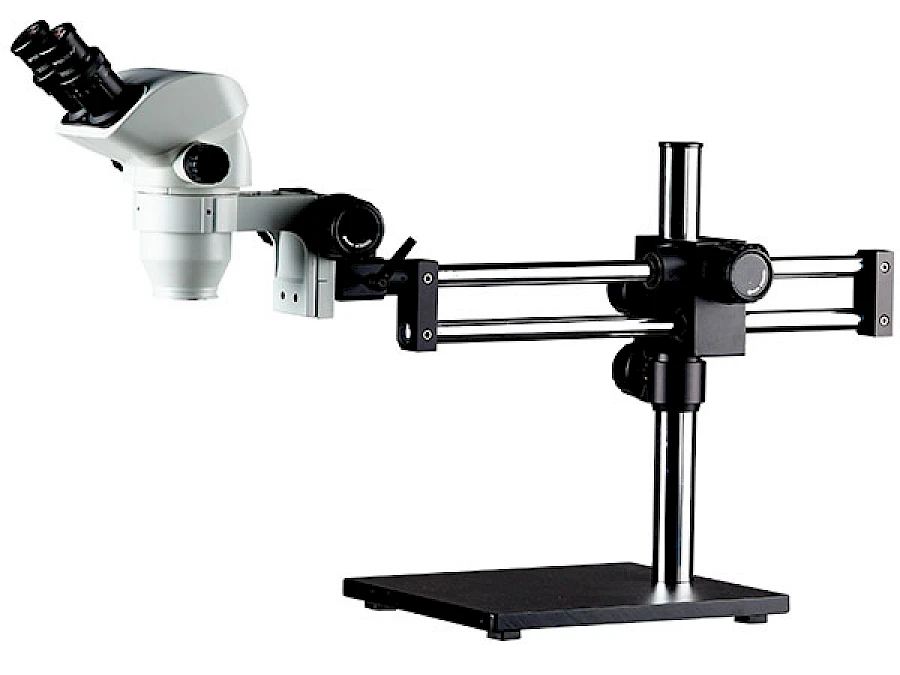

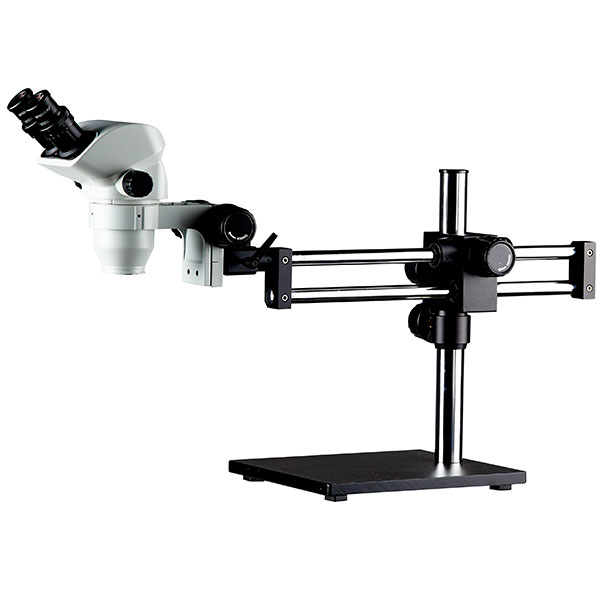

BD7024-DU2	DU2 boom stand	C3 focusing mount with vertical working distance 50mm

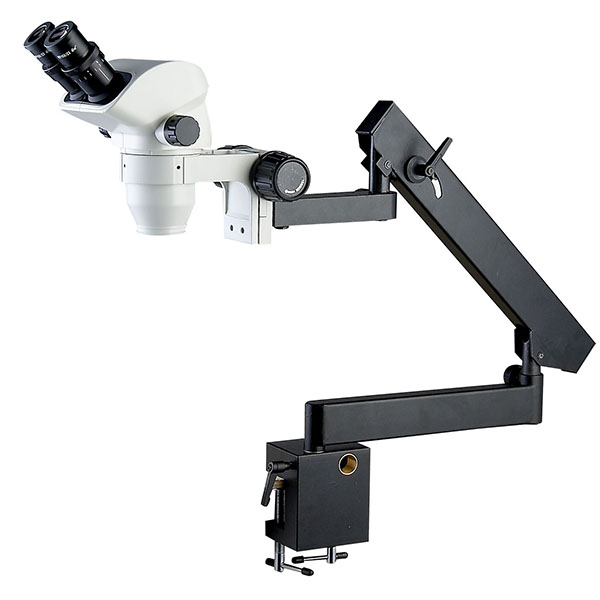

BD7024-RU1	RU1 clamp boom stand	C3 focusing mount with vertical working distance 50mm

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Specification for BD7024 Boom Stand
Eyepiece	Objective 1X		Objective 2X		Objective 3X		Objective 4X
	Working Distance 100mm
	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V
10X/23mm	10X	20.0mm	20X	10.0mm	30X	7.5mm	40X	5.0mm
15X/16mm	15X	16.0mm	30X	8.0mm	45X	5.0mm	60X	3.3mm
20X/12mm	20X	12.0mm	40X	6.0mm	60X	3.3mm	80X	2.5mm
25X/9mm	25X	9.0mm	50X	4.5mm	75X	3.0mm	100X	2.3mm
30X/8mm	30X	8.0mm	60X	4.0mm	90X	2.7mm	120X	2.0mm
Magnification	20X-40X, 10X-120X with optional eyepieces and objectives
Eyepiece	WF10X/23mm high-eyepoint, super wide-field; Convenient for observers wearing glasses
Optional Eyepiece	WF10X/23mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
Main Body	Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Main Body	Interpupillary Distance adjustment:54-75mm; Diopter adjustment:±5 diopters
Illumination	Fluorescent lamp, LED ring light
