Microscope X / Stereo Microscopes / BR8050 Series

BR8050 Series

BR8050 Series 4X-300X Continuous Zoom Stereo Microscope

Mag. 8X-50X, 4X-300X, precision-oriented view

Core Features

8X-50X,4X-300X(Mag.)
0.5X, 2.0X(Aux. Lens）
optical system with super high resolution
great flatness and contrast images
super wide-field high-eyepoint eyepieces

Configurations

8X-50X

4X-300X

super high resolution

flatness and contrast images

clear and sharp images

super wide-field

high-eyepoint eyepieces

precision-oriented

Request Quotation Email Phone Back to Products

BR8050 Series Stereo Zoom Microscope is fully coated optical system with super high resolution. It offers sharp clear images with extremely great flatness and contrast. Once brought in focus, image remains clear and sharp throughout the whole zoom range. It comes with super wide-field high-eyepoint eyepieces. The flat field parfocal zoom objectives provide continuously variable magnification from 4X to 300X with optional eyepieces and auxiliary lenses. It’s an ideal instrument for those who require precision-oriented observation.

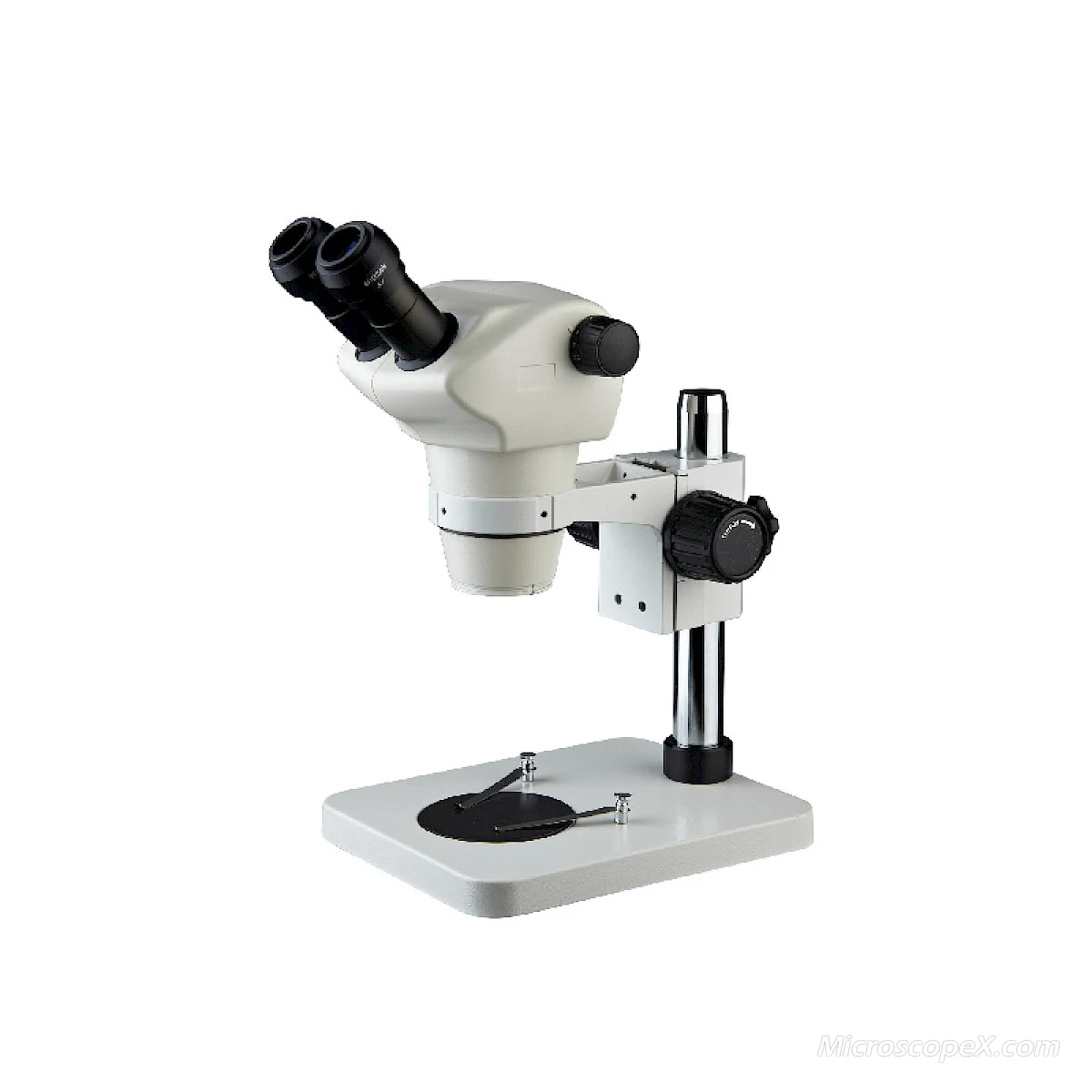

BR8050-PS

BR8050-PRT

BR8050-PL

BR8050-PI

BR8050-PI2L

BR8050-PIGL

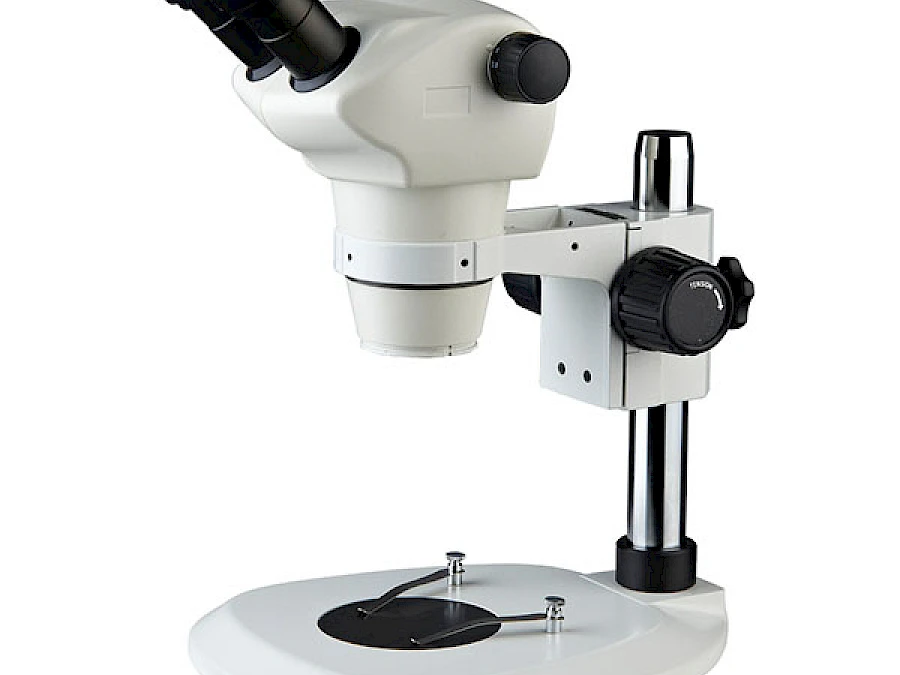

BR8050-PF

BR8050-PF2L

BR8050-AS

BR8050-AL

BR8050-AI

BR8050-AI2L

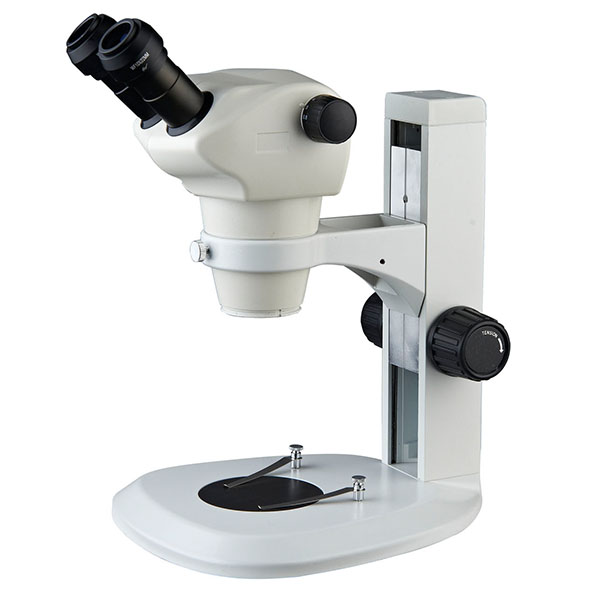

BR8050-AF

BR8050-AF2L

BR8050-ART

BR8050-SU1

BR8050-DU1

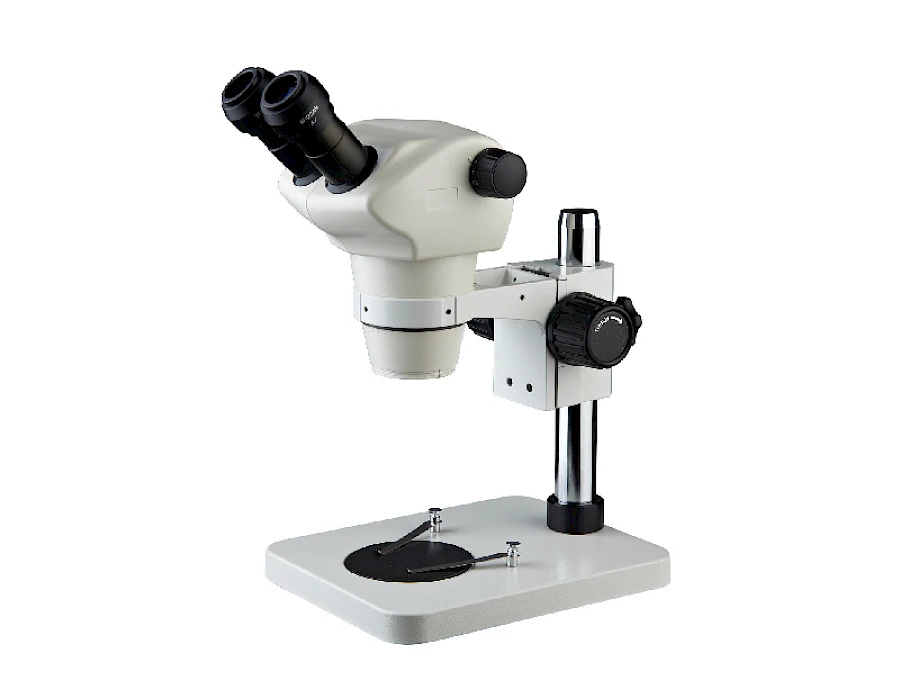

BR8050-PS

BR8050-PRT

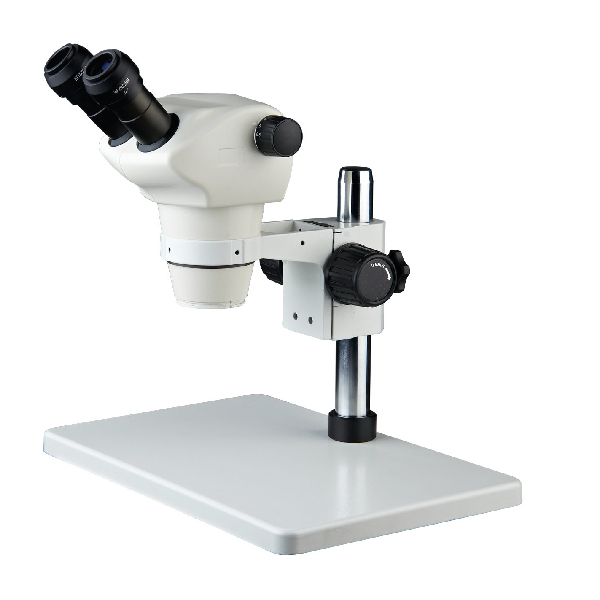

BR8050-PL

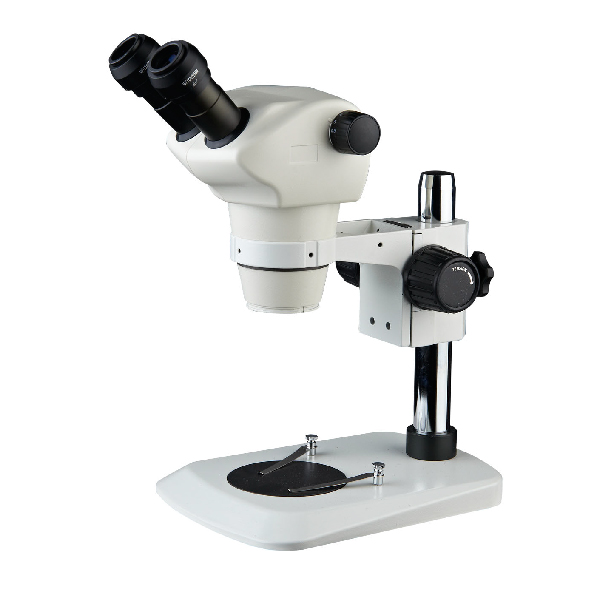

BR8050-PI

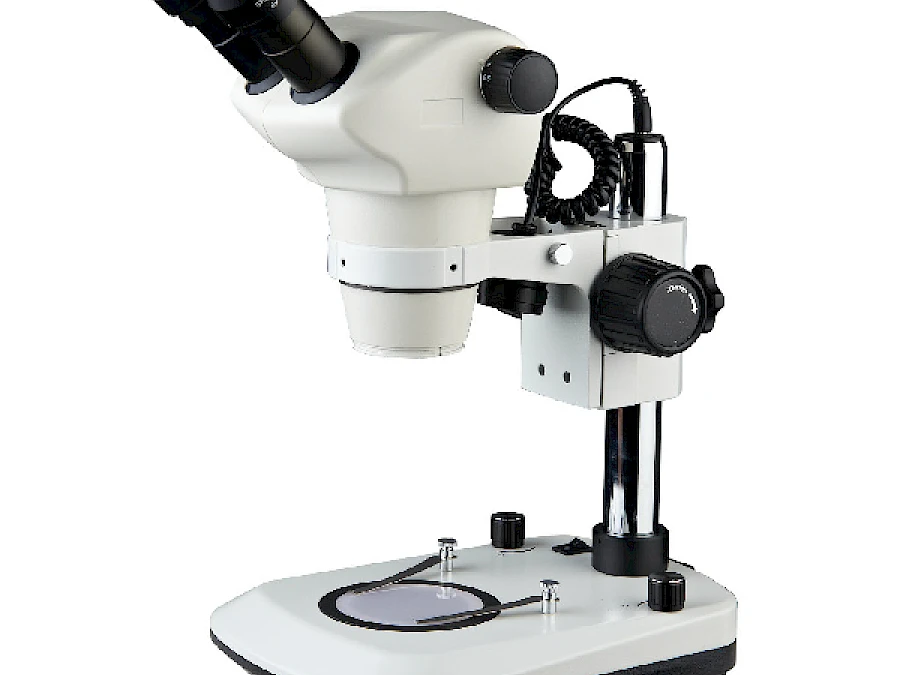

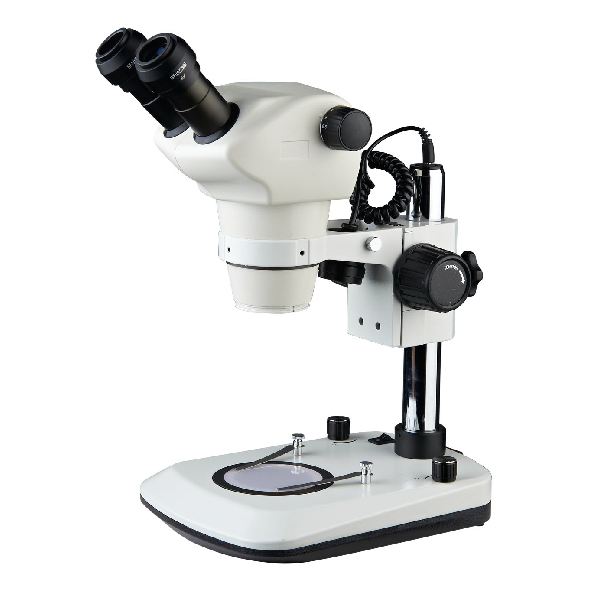

BR8050-PI2L

BR8050-PIGL

BR8050-PF

BR8050-PF2L

Item	Stand	Illumination
BR8050 -PS	PS pole stand	Fluorescent lamp, LED ring light

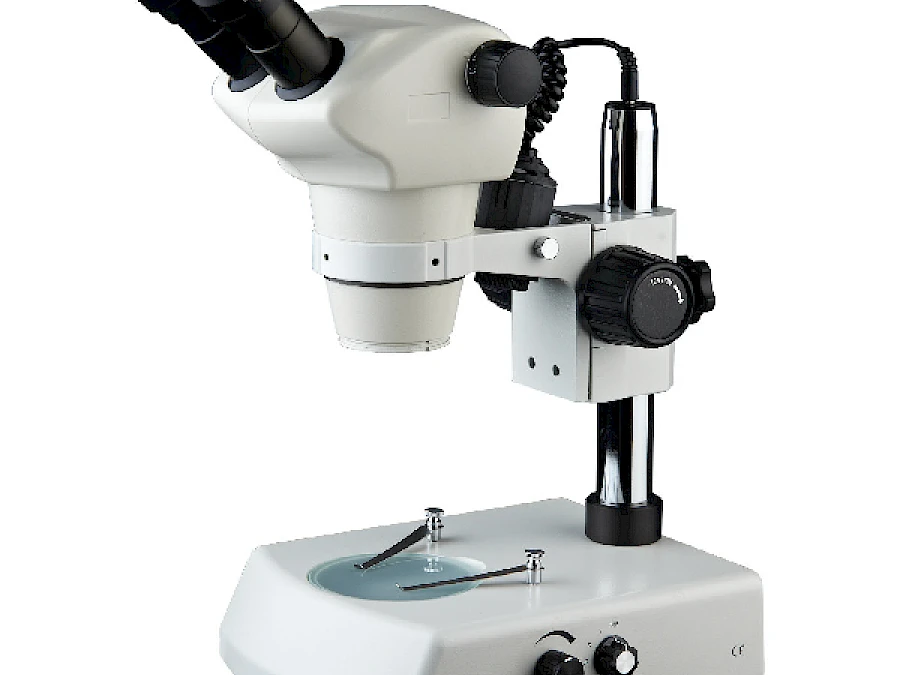

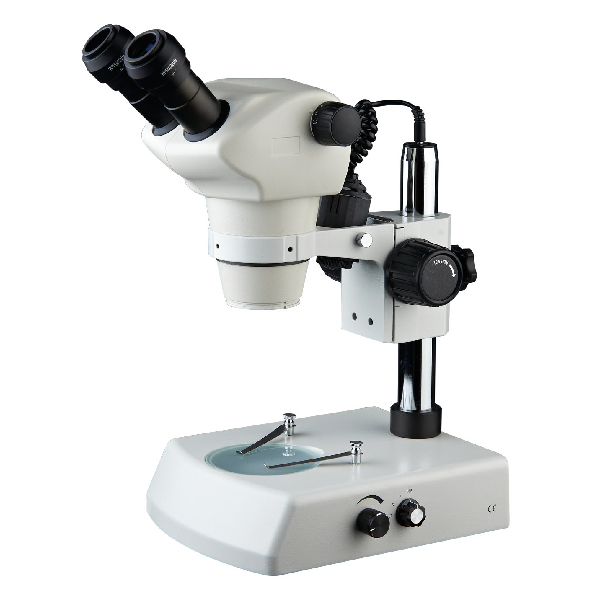

BR8050 -PRT	PRT pole stand	Transmitted and reflected 12v/15w halogen, 7w fluorescent, 5v/3w LED illumination

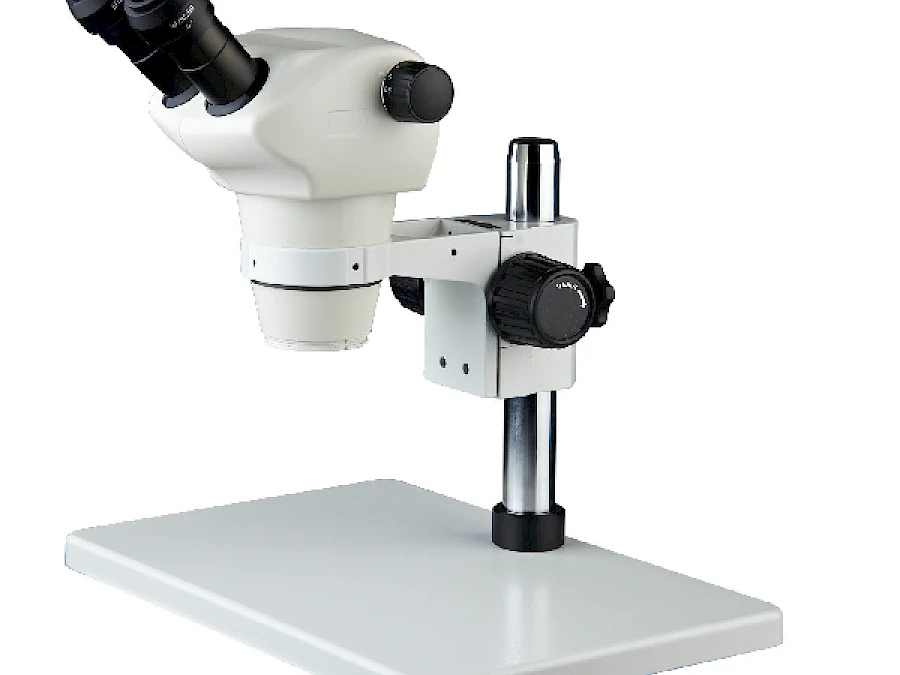

BR8050 -PL	PL pole stand	Fluorescent lamp, LED ring light

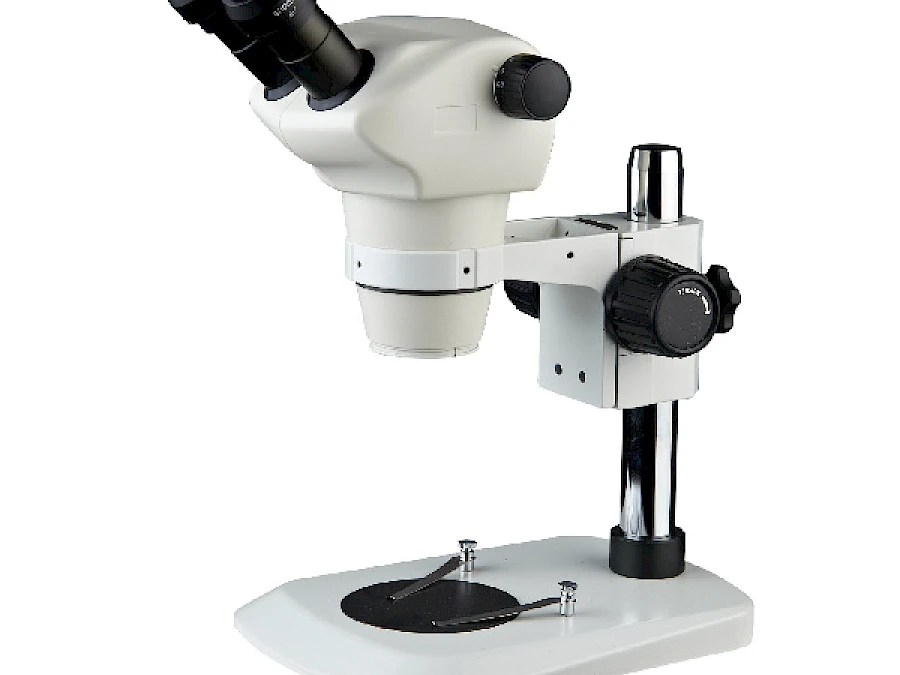

BR8050 -PI	PI pole stand	Fluorescent lamp, LED ring light
BR8050 -PI2L	PI2L pole stand	Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity

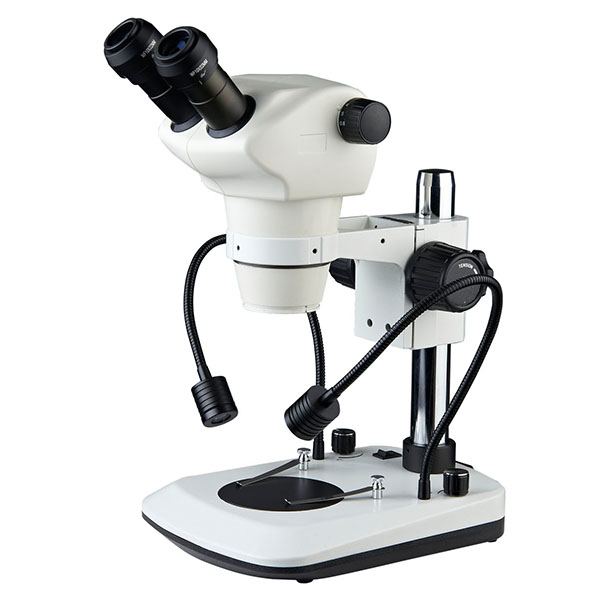

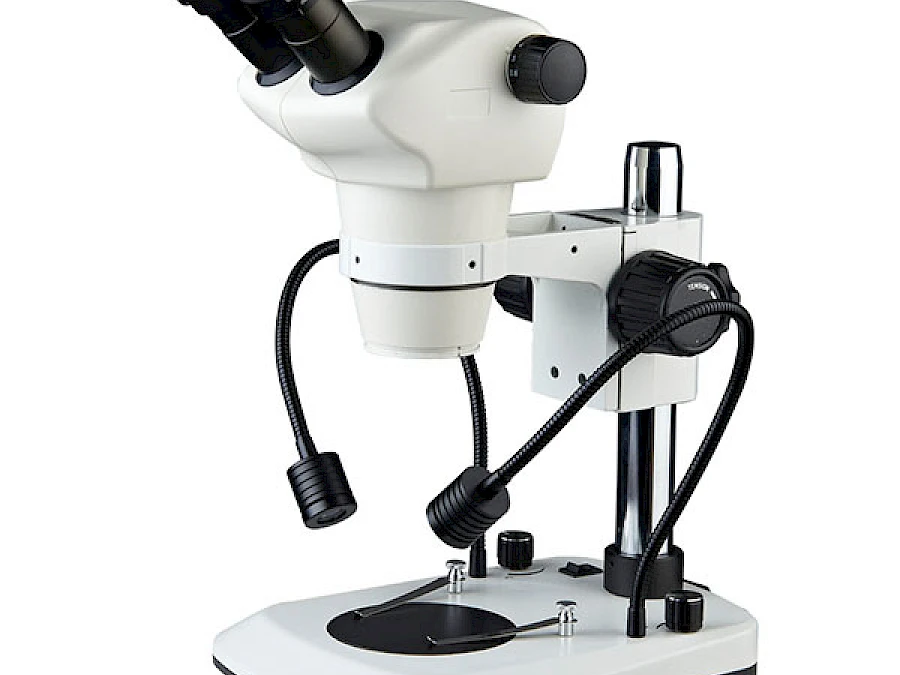

BR8050 -PIGL	PIGL pole stand	Double gooseneck LED illumination with independent switches and adjustable intensity

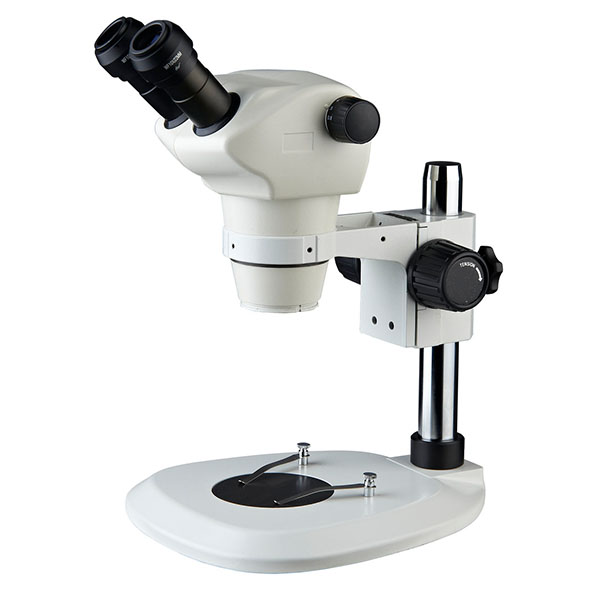

BR8050 -PF	PF fan base pole stand	Fluorescent lamp, LED ring light

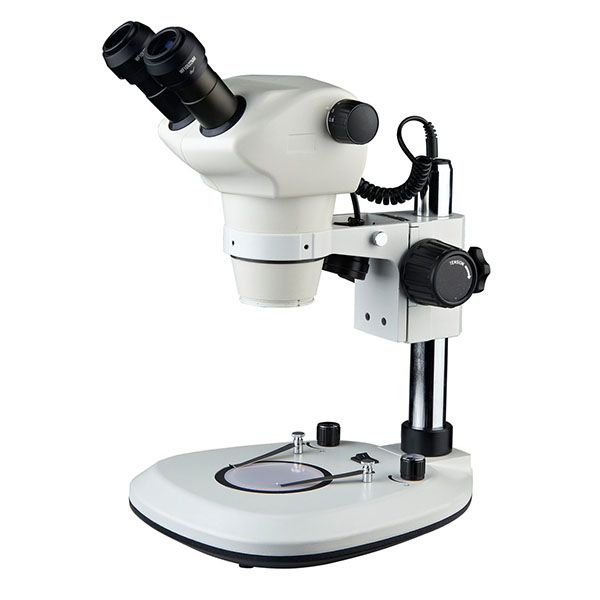

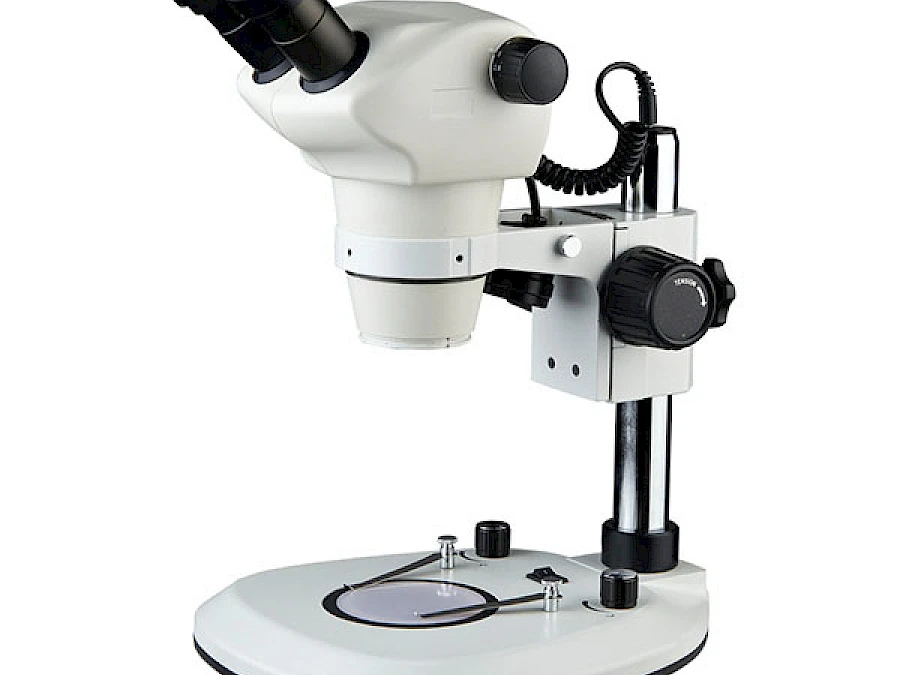

BR8050 -PF2L	PF2L fan base pole stand	Transmitted and reflected LED illumination with independent switches and adjustable intensity

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Specification for BR8050 Pole Stand Series
Eyepiece	Standard		Auxiliary Lens 0.5X		Auxiliary Lens 2.0X
	W.D. 115mm		W.D. 211mm		W.D. 43.5mm
	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V
10X/22mm	8X	27.5mm	4X	55.0mm	16X	13.8mm
10X/22mm	50X	4.4mm	25X	8.8mm	100X	2.2mm
15X/16mm	12X	20.0mm	6X	40.0mm	24X	10.0mm
15X/16mm	75X	3.2mm	37.5X	6.4mm	150X	1.6mm
20X/12mm	16X	15.6mm	8X	31.2mm	32X	7.8mm
20X/12mm	100X	2.5mm	50X	5.0mm	200X	1.3mm
25X/9mm	20X	11.3mm	10X	22.5mm	40X	5.6mm
25X/9mm	125X	1.8mm	62.5X	3.6mm	250X	0.9mm
30X/8mm	24X	10.0mm	12X	20.0mm	48X	5.0mm
30X/8mm	150X	1.6mm	75X	3.2mm	300X	0.8mm
Magnification	8X-50X, 4X-300X with optional eyepieces and objectives
Eyepiece	WF10X/22mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece	WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
Main Body	Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Main Body	Interpupillary Distance adjustment:52-75mm; Diopter adjustment:±5 diopters
Objective	0.8X-5.0X stereo zoom; Zoom Ratio:6.3:1
Aux Lens	0.5X, 2.0X
Focusing Mount	C1 focusing mount with vertical working distance 50mm

BR8050-AS

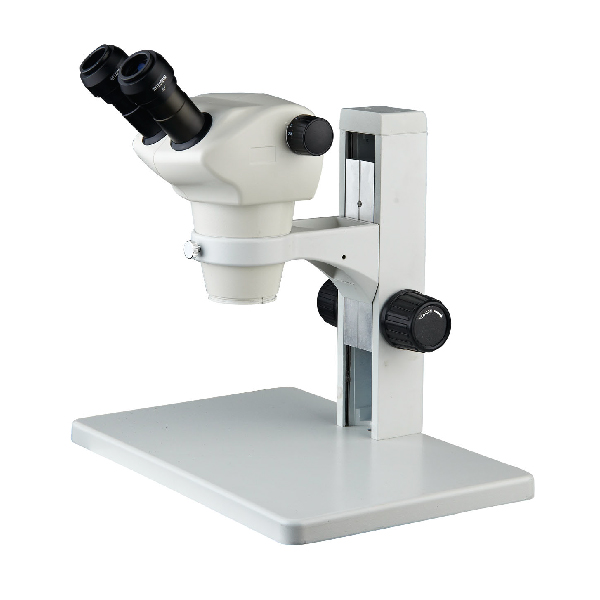

BR8050-AL

BR8050-AI

BR8050-AI2L

BR8050-AF

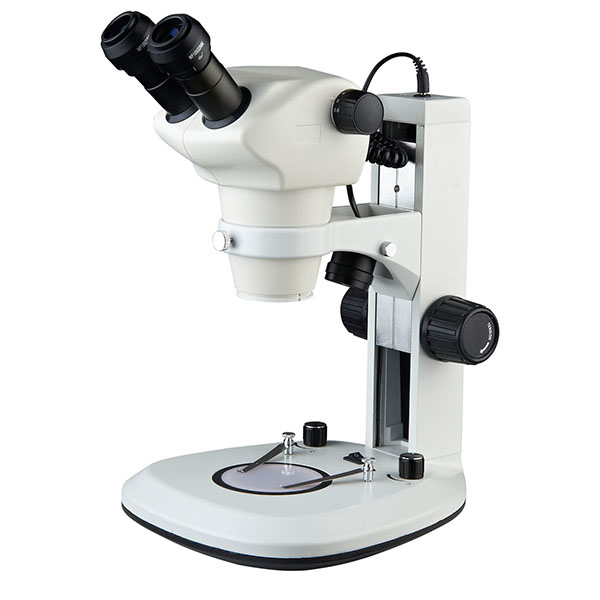

BR8050-AF2L

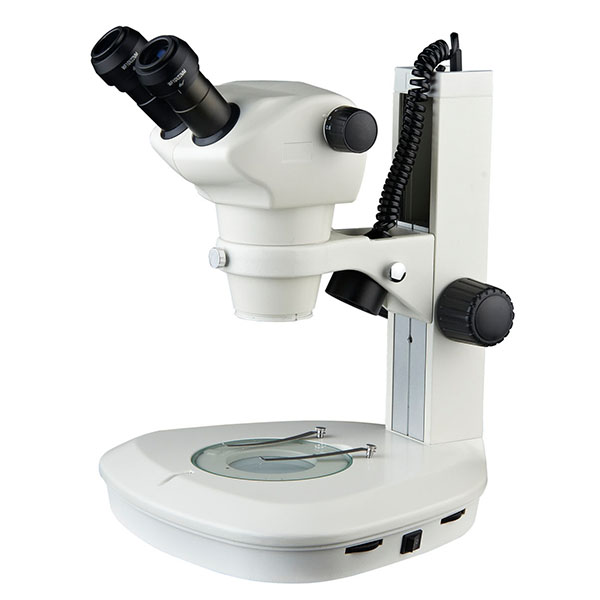

BR8050-ART

Item	Stand	Illumination

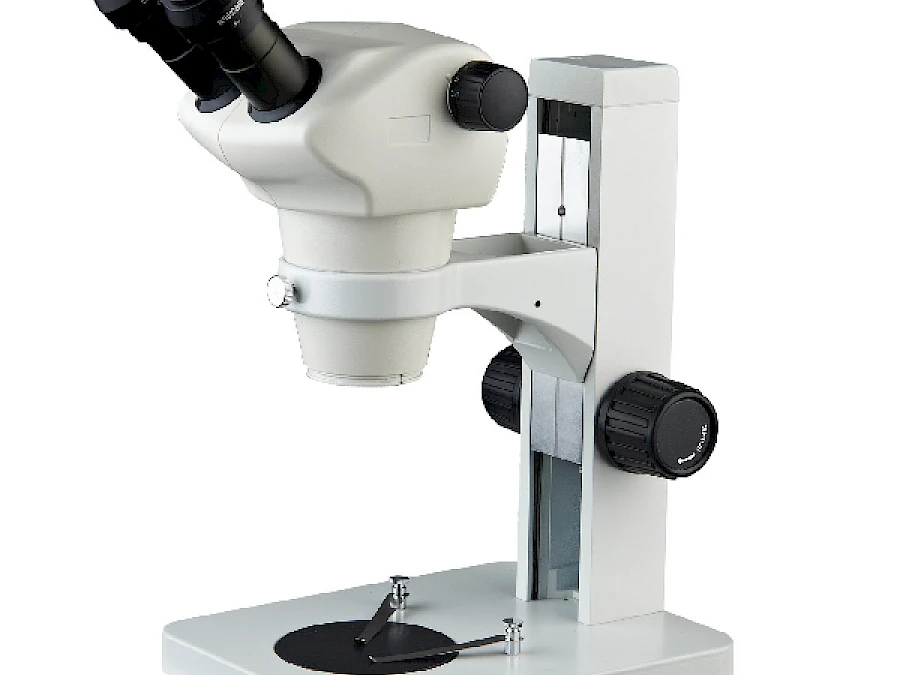

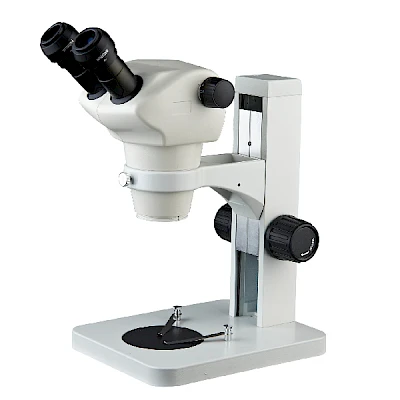

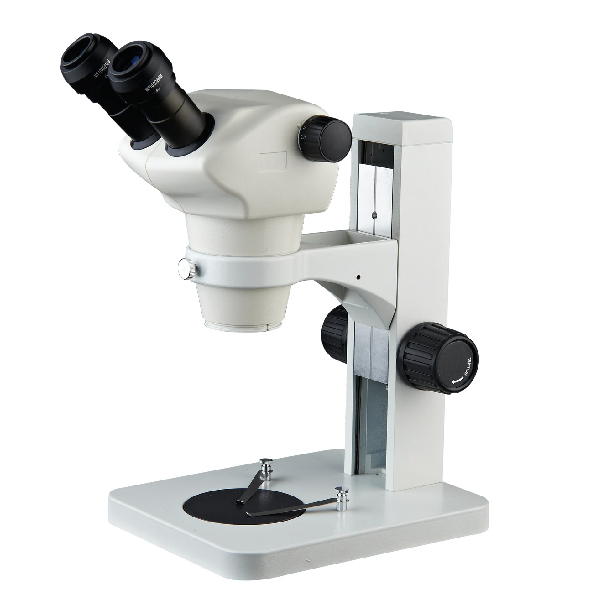

BR8050-AS	AS track stand	Fluorescent lamp, LED ring light

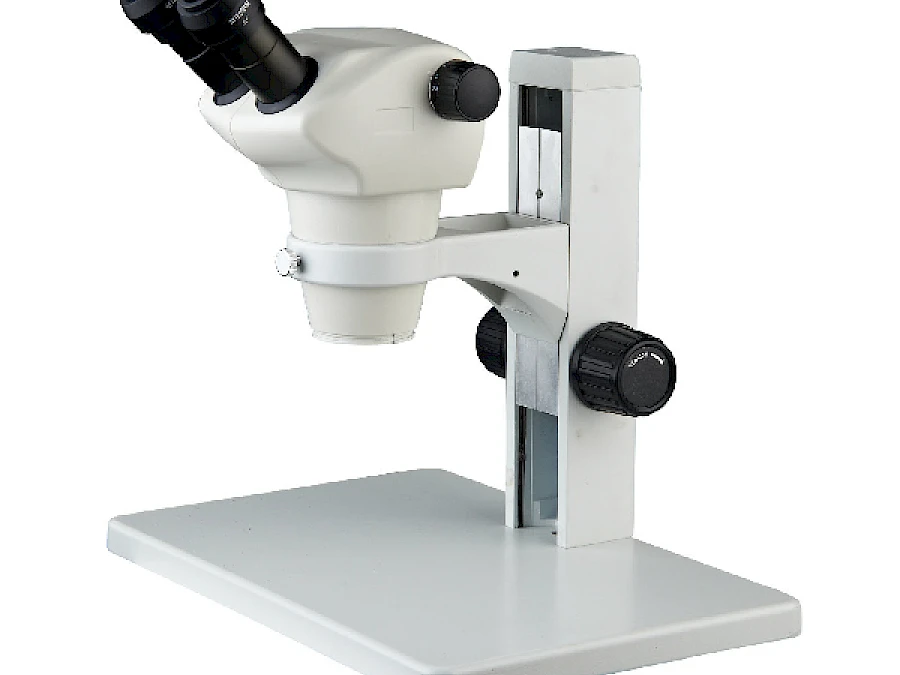

BR8050-AL	AL track stand	Fluorescent lamp, LED ring light

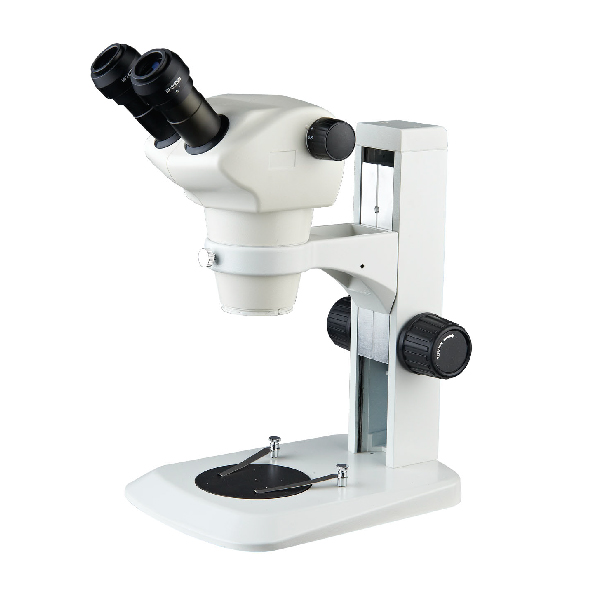

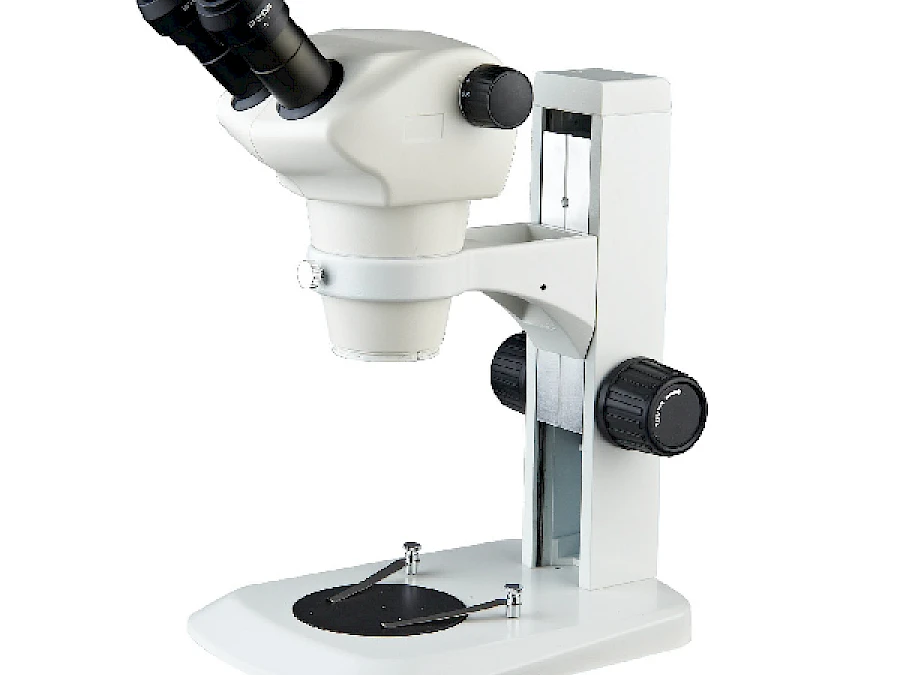

BR8050-AI	AI track stand	Fluorescent lamp, LED ring light

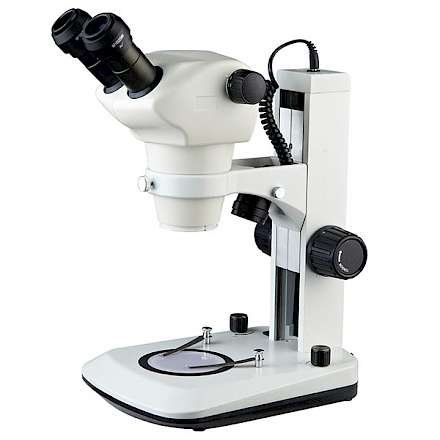

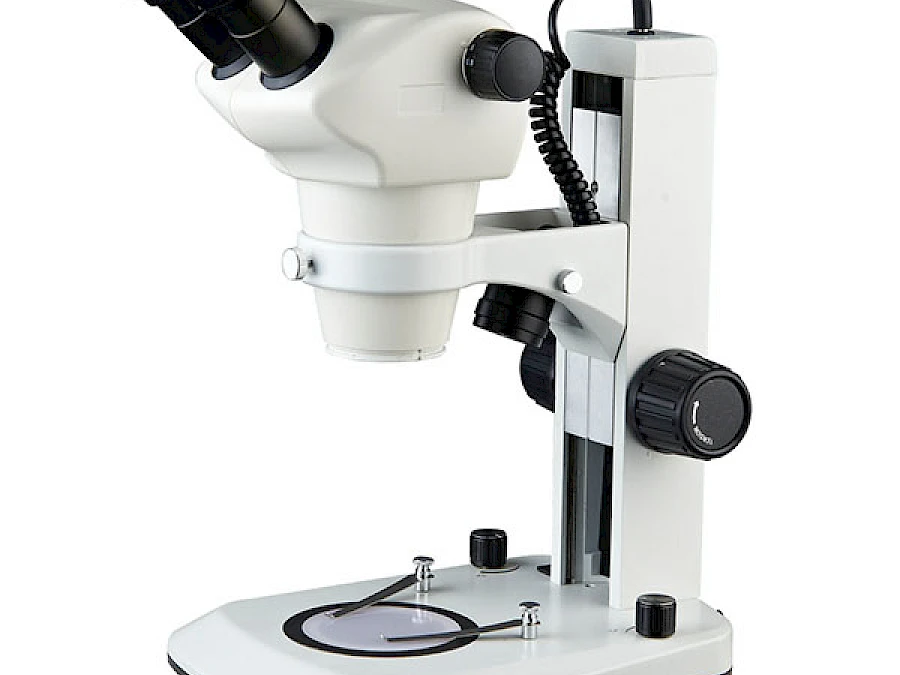

BR8050-AI2L	AI2L track stand	Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity

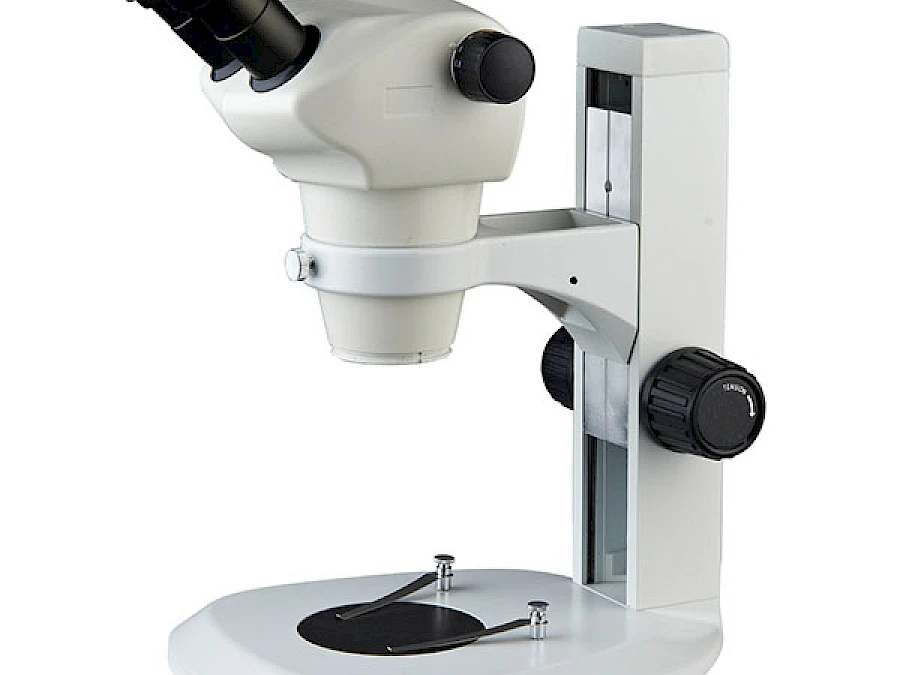

BR8050-AF	AF fan track stand	Fluorescent lamp, LED ring light

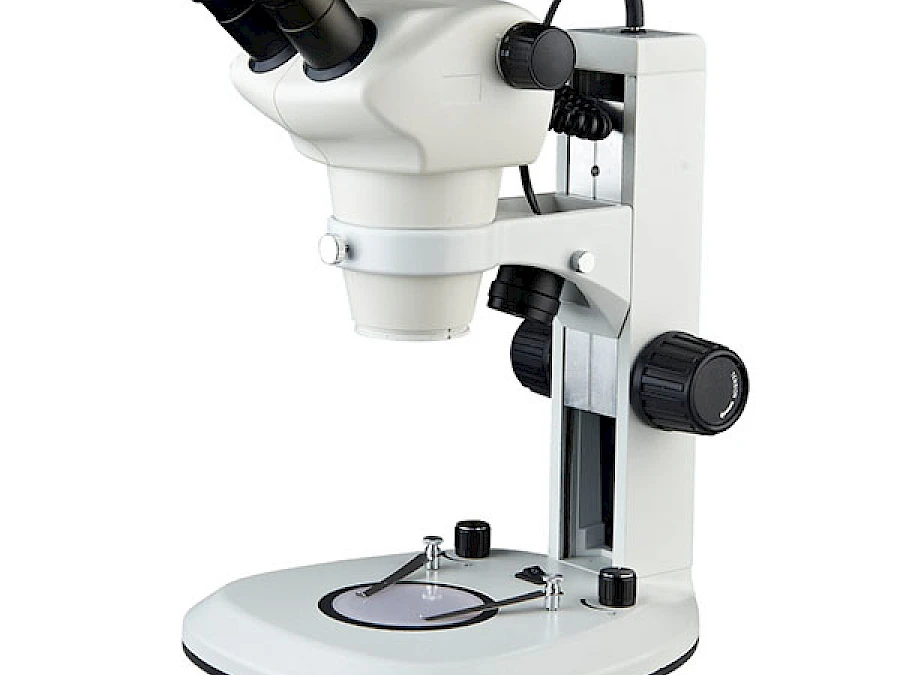

BR8050-AF2L	AF2L fan base track stand	Transmitted and reflected LED illumination with independent switches and adjustable intensity

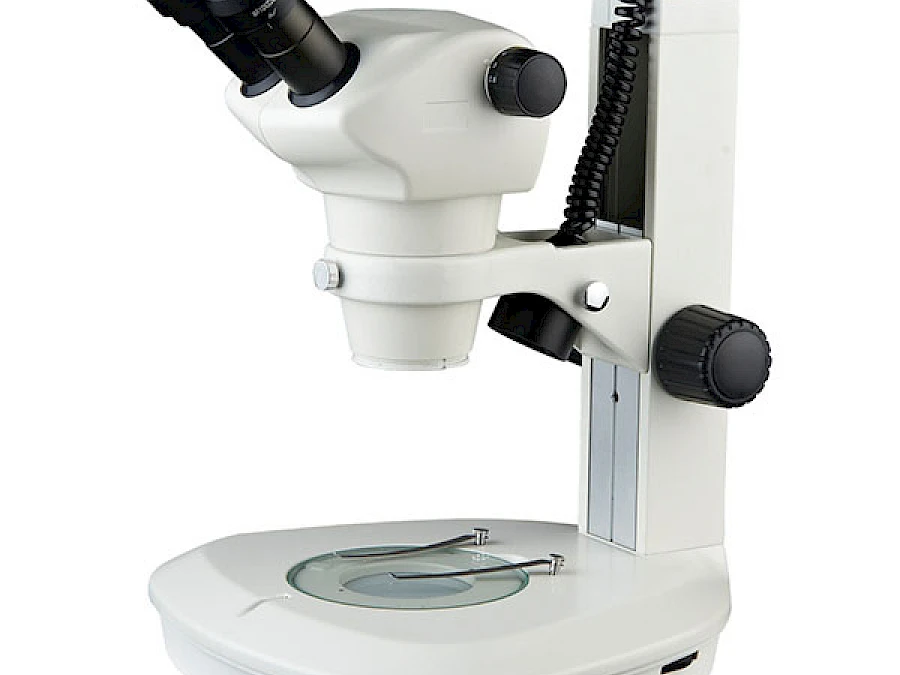

BR8050-ART	ART track stand	Transmitted and reflected LED illumination with independent switches and adjustable intensity

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Specification for BR8050 Track Stand Series
Eyepiece	Standard		Auxiliary Lens 0.5X		Auxiliary Lens 2.0X
	W.D. 115mm		W.D. 211mm		W.D. 43.5mm
	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V
10X/22mm	8X	27.5mm	4X	55.0mm	16X	13.8mm
10X/22mm	50X	4.4mm	25X	8.8mm	100X	2.2mm
15X/16mm	12X	20.0mm	6X	40.0mm	24X	10.0mm
15X/16mm	75X	3.2mm	37.5X	6.4mm	150X	1.6mm
20X/12mm	16X	15.6mm	8X	31.2mm	32X	7.8mm
20X/12mm	100X	2.5mm	50X	5.0mm	200X	1.3mm
25X/9mm	20X	11.3mm	10X	22.5mm	40X	5.6mm
25X/9mm	125X	1.8mm	62.5X	3.6mm	250X	0.9mm
30X/8mm	24X	10.0mm	12X	20.0mm	48X	5.0mm
30X/8mm	150X	1.6mm	75X	3.2mm	300X	0.8mm
Magnification	8X-50X, 4X-300X with optional eyepieces and objectives
Eyepiece	WF10X/22mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece	WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
Main Body	Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Main Body	Interpupillary Distance adjustment:52-75mm; Diopter adjustment:±5 diopters
Objective	0.8X-5.0X stereo zoom; Zoom Ratio:6.3:1
Aux Lens	0.5X, 2.0X
Focusing Mount	Focusing track mount with vertical working distance 106mm

BR8050-SU1

BR8050-DU1

Item	Stand

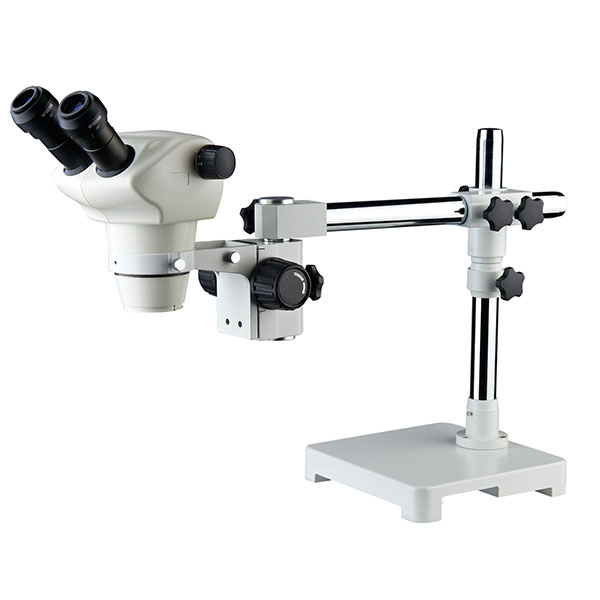

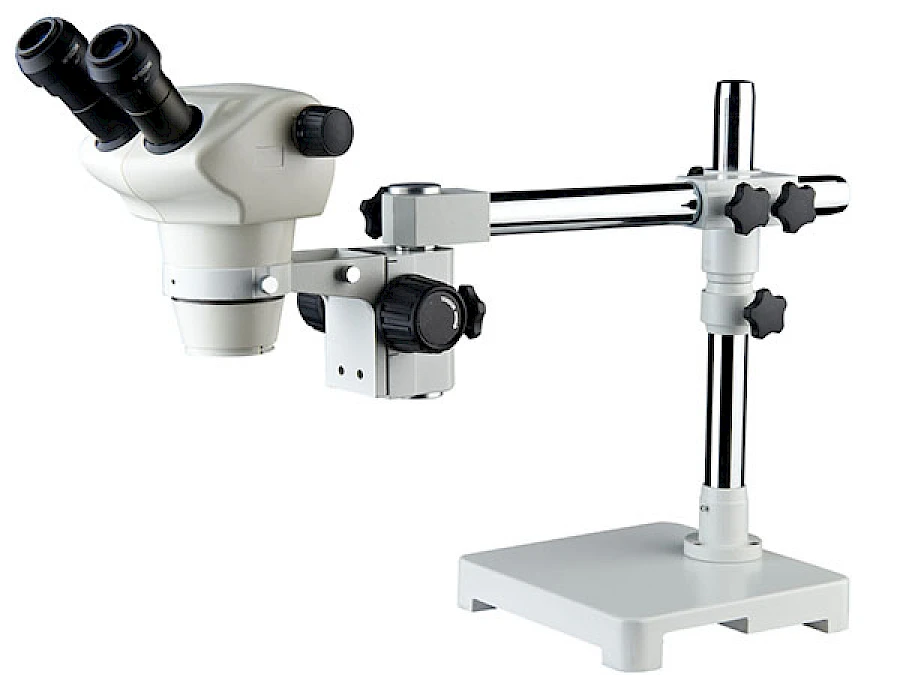

BR8050-SU1	SU1 boom stand

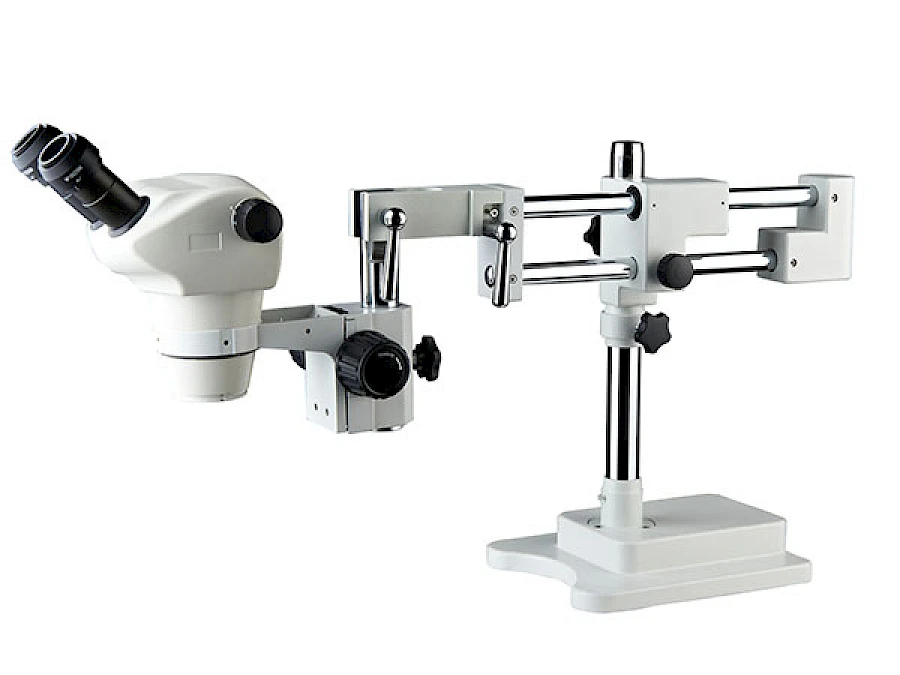

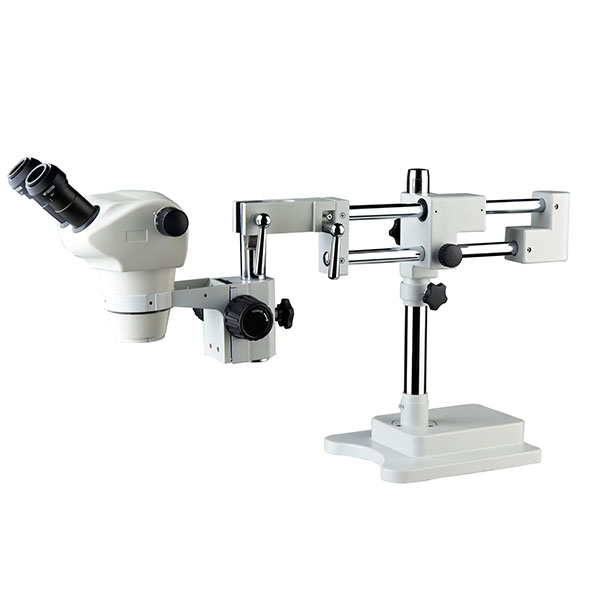

BR8050-DU1	DU1 boom stand

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Specification for BR8050 Boom Stand Series
Eyepiece	Standard		Auxiliary Lens 0.5X		Auxiliary Lens 2.0X
	W.D. 115mm		W.D. 211mm		W.D. 43.5mm
	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V
10X/22mm	8X	27.5mm	4X	55.0mm	16X	13.8mm
10X/22mm	50X	4.4mm	25X	8.8mm	100X	2.2mm
15X/16mm	12X	20.0mm	6X	40.0mm	24X	10.0mm
15X/16mm	75X	3.2mm	37.5X	6.4mm	150X	1.6mm
20X/12mm	16X	15.6mm	8X	31.2mm	32X	7.8mm
20X/12mm	100X	2.5mm	50X	5.0mm	200X	1.3mm
25X/9mm	20X	11.3mm	10X	22.5mm	40X	5.6mm
25X/9mm	125X	1.8mm	62.5X	3.6mm	250X	0.9mm
30X/8mm	24X	10.0mm	12X	20.0mm	48X	5.0mm
30X/8mm	150X	1.6mm	75X	3.2mm	300X	0.8mm
Magnification	8X-50X, 4X-300X with optional eyepieces and objectives
Eyepiece	WF10X/22mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece	WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
Main Body	Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Main Body	Interpupillary Distance adjustment:52-75mm; Diopter adjustment:±5 diopters
Objective	0.8X-5.0X stereo zoom; Zoom Ratio:6.3:1
Aux Lens	0.5X, 2.0X
Focusing Mount	C1 focusing mount with vertical working distance 50mm
Illumination	Fluorescent lamp, LED ring light
