BZW6565 Series

BZW6565 Series 6.5X~65X Continuous Zoom Stereo Microscope with Different Stand Bases

6.5X-65X, Good Depth, Broad Field of View, WF20X/10mm Eyepiece Optional, Teaching & Repairing

Core Features

WF10X22 Eyepiece, 0.65X~6.5X Objective Zoom
Provide crystal clear sharp images with high resolution
Remains clear and sharp images throughout the whole zoom range
Widely used in electronic industry, educational demonstration and agricultural research

Configurations

high resolution

good depth

6.5X-65X

2X-260X

optional eyepieces & objectives

optional stand bases

Request Quotation Email Phone Back to Products

BZW6565 Series Stereo Zoom Microscope can provide crystal clear sharp images with high resolution and good depth within a broad field of view. Once brought in focus, images remain clear and sharp throughout the whole zoom range. It is widely used in electronic industry, educational demonstration and agricultural research for micro-object observation, inspection and measurement.

BZW6565-PS

BZW6565-PRT

BZW6565-PL

BZW6565-PLH

BZW76565-PI

BZW6565-PF

BZW6565-PF2L

BZW6565-AF

BZW6565-SU1

BZW6565-SU2

BZW6565-DU1

BZW6565-RU1

BZW76565-RU2

BZW6565-RU3

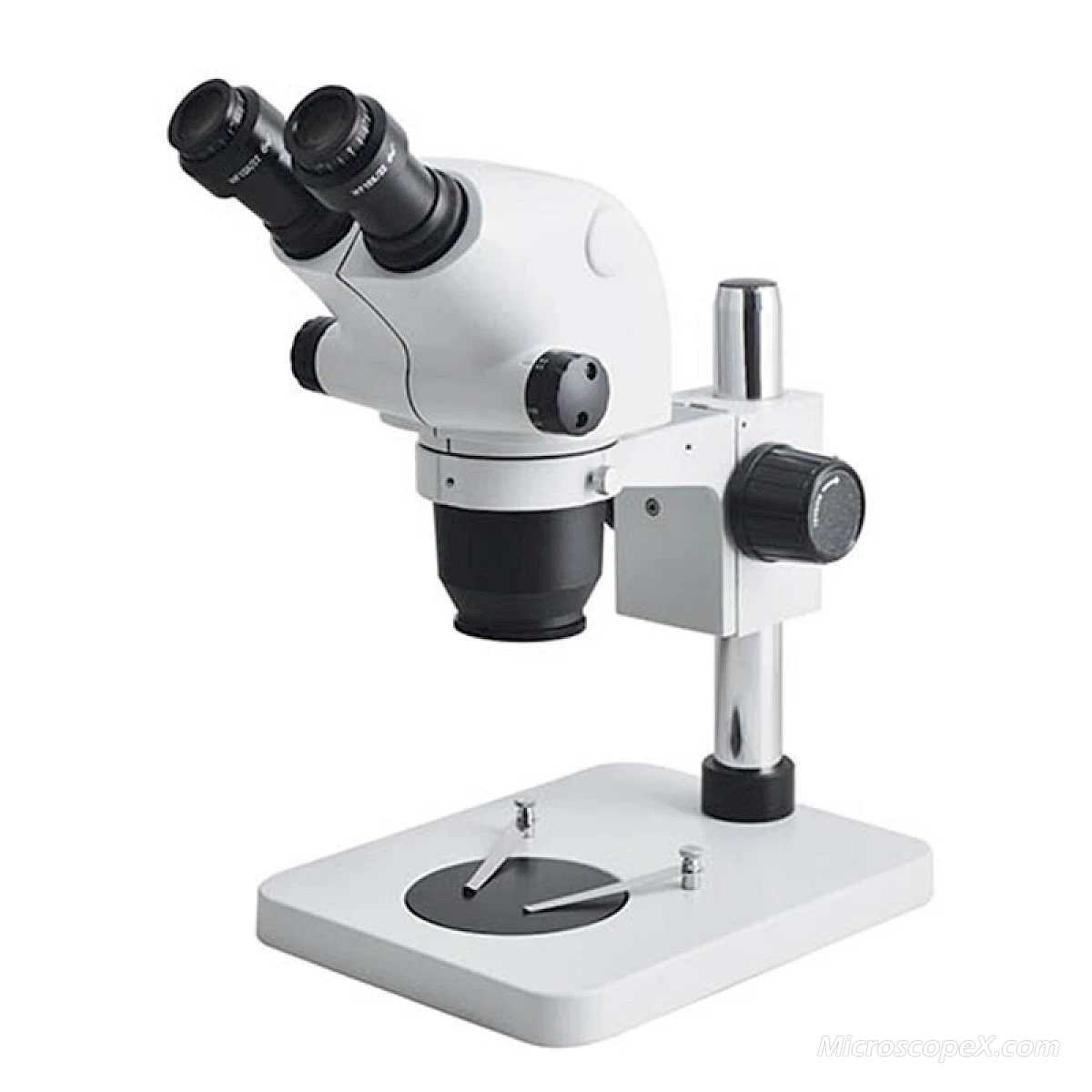

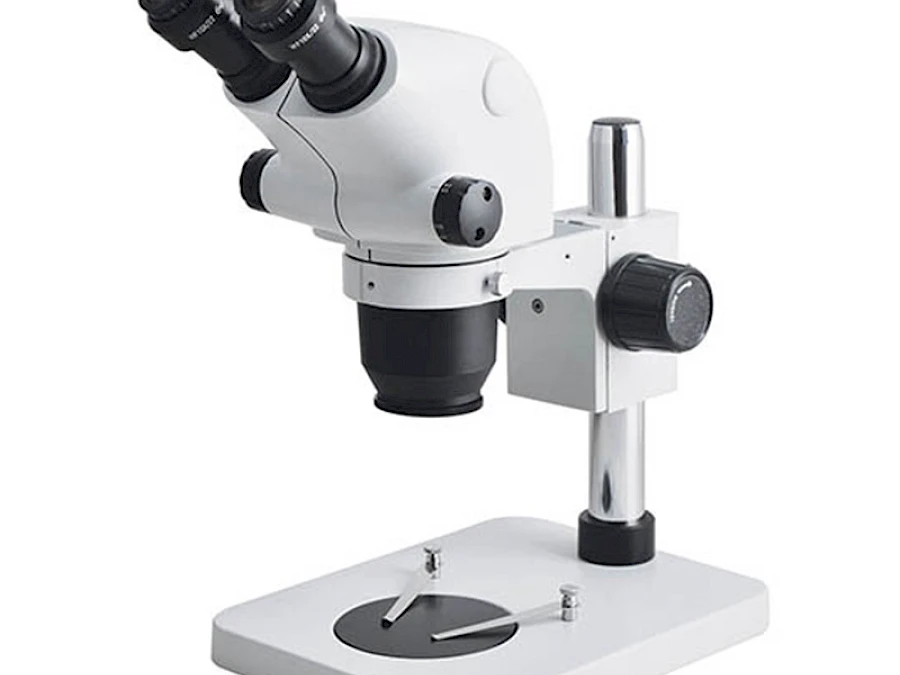

BZW6565-PS

BZW6565-PRT

BZW6565-PL

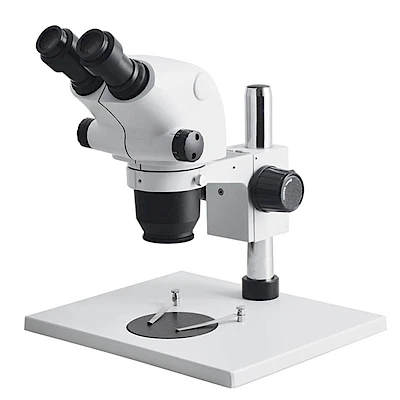

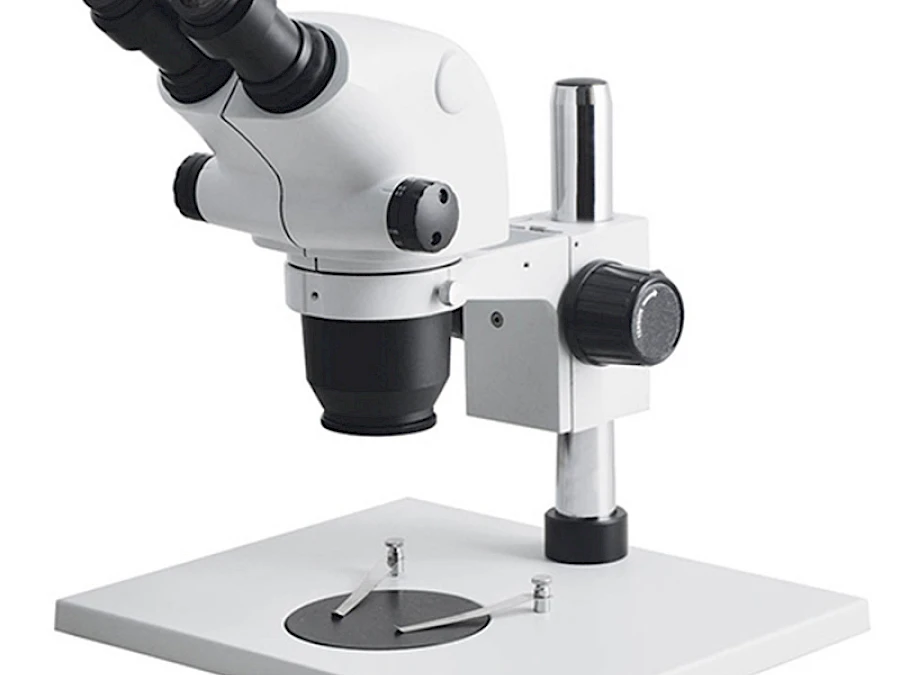

BZW6565-PLH

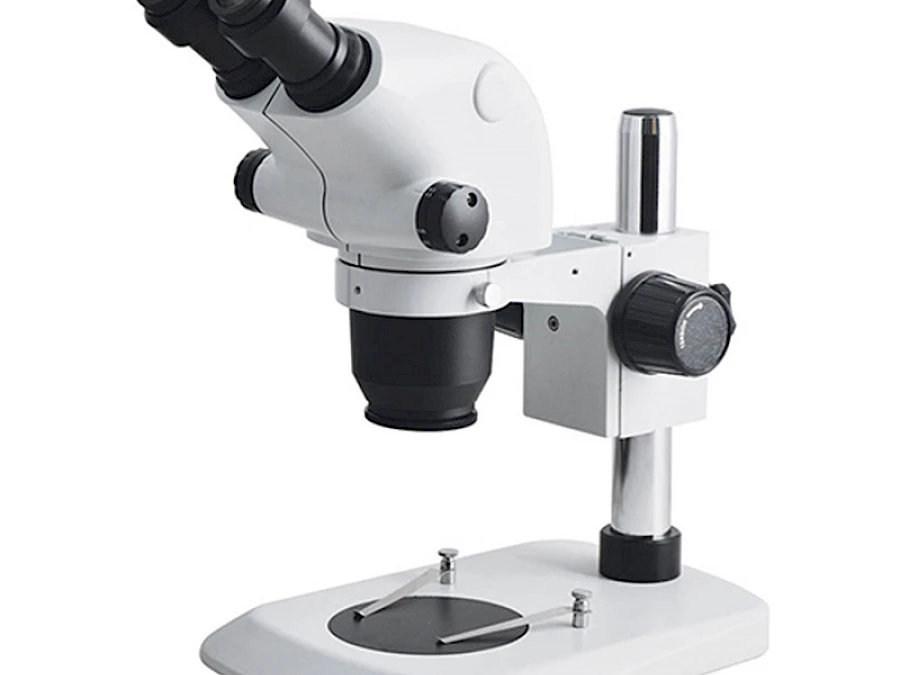

BZW76565-PI

BZW6565-PF

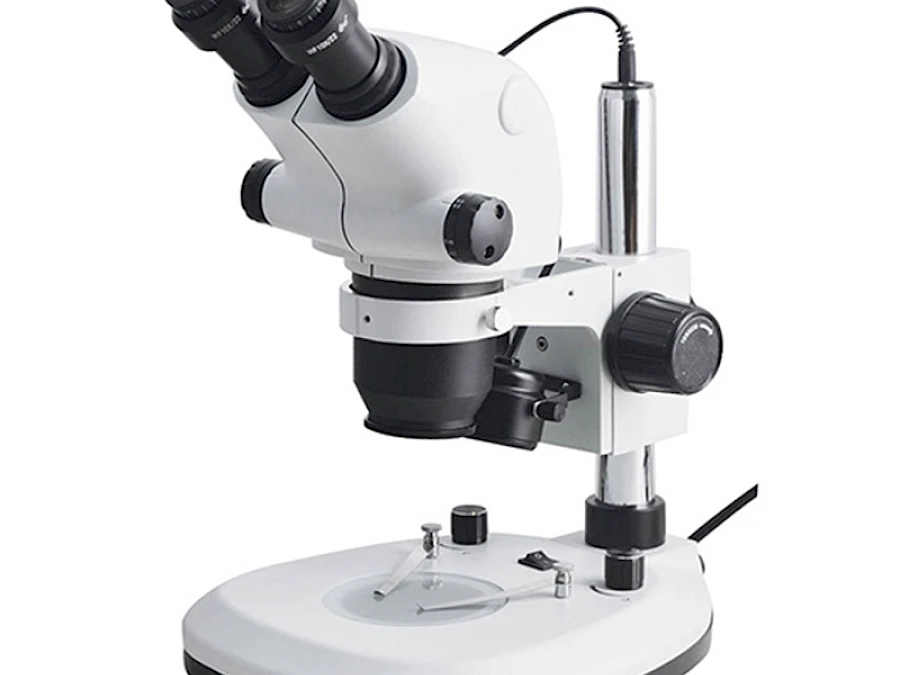

BZW6565-PF2L

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Item	Stand	Illumination
BZW6565-PS	PS pole stand	LED ring light

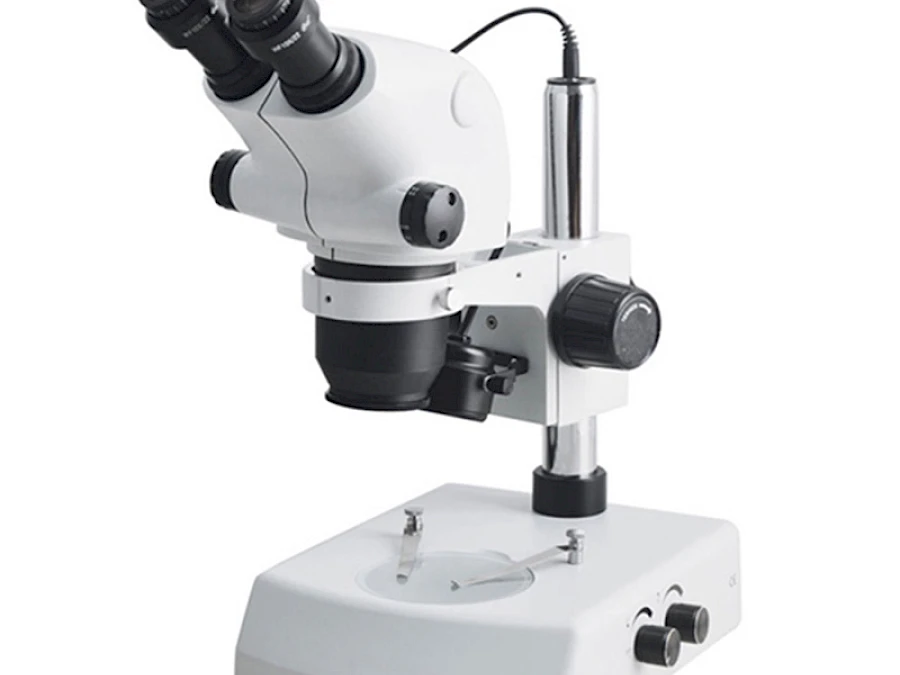

BZW6565-PRT	PRT pole stand	Transmitted and reflected 3w LED illumination

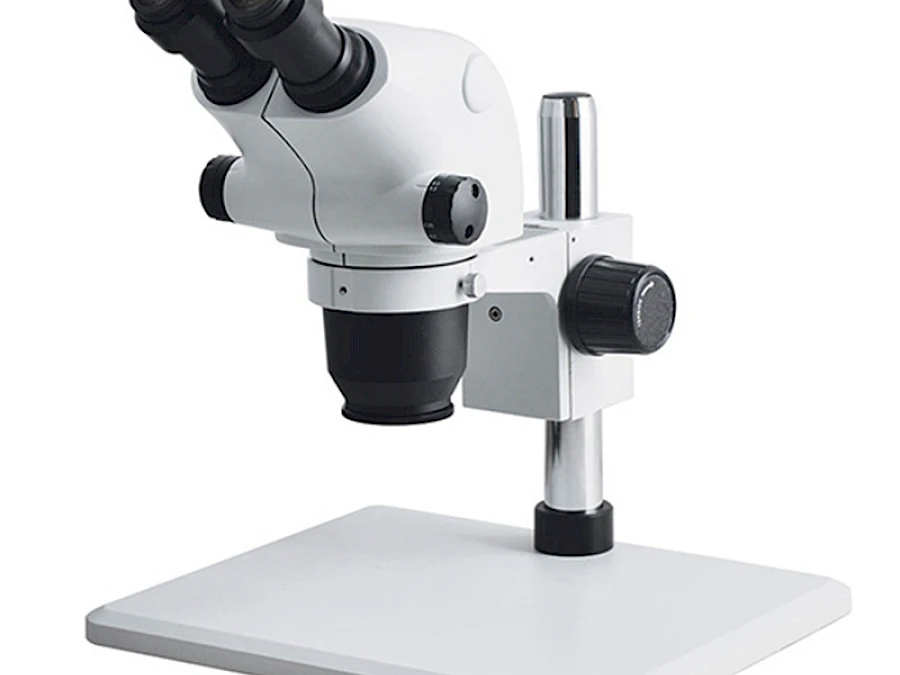

BZW6565-PL	PL pole stand	LED ring light
BZW6565-PLH	PLH pole stand	LED ring light
BZW6565-PI	PI pole stand	LED ring light
BZW6565-PF	PF pole stand	LED ring light

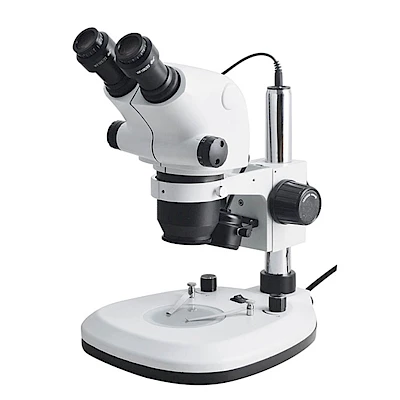

BZW6565-PF2L	PF2L pole stand	Transmitted and reflected 3w LED illumination

BZW6565

Standard (No auxiliary objective)

Auxiliary Lens

0.3X

0.5X

0.7X

1.5X

Working Distance

100mm

287mm

165mm

120mm

45mm

30mm

Eyepiece

Zoom Rate position

Magnification

view

Magnification

view

Magnification

view

Magnification

view

Magnification

view

Magnification

view

WF10X22

0.65

6.5X

32.2mm

1.95X

107.3mm

3.25X

64.4mm

4.88X

46mm

9.75X

21.5mm

13X

16.1mm

6.5

65X

3.4mm

19.5X

11.3mm

32.5X

6.8mm

48.8X

11.2mm

97.5X

2.3mm

130X

1.7m

Observation head	45°decline,360°rotate, Pupil distance 54---76mm; Bilateral visual adjustment±5
Adjustable eyepiece	Standard WF10X22, High angle wide angle eyepiece, provide convenience for observers wearing glasses
Optional eyepiece	WF10X22，WF20X12mm
Objective	0.65X---6.5X Zoom Range, objective magnification ratio 1：10, Ensure image alignment
Auxiliary Lens	0.3X，0.5X，0.75X，1X，1.5X，2X For option
Magnification	Standard 6.5X---65X, Optional and auxiliary lenses can be extended to 2X---260X,Continuous doubling
Working Distance	110mm
Focus arm	76mm Diameter,32mm pole size
Plate	Black/White plate
Illumination	LED Illumination, 60 LED lamp beads

BZW6565-AF

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Item	Stand	Illumination

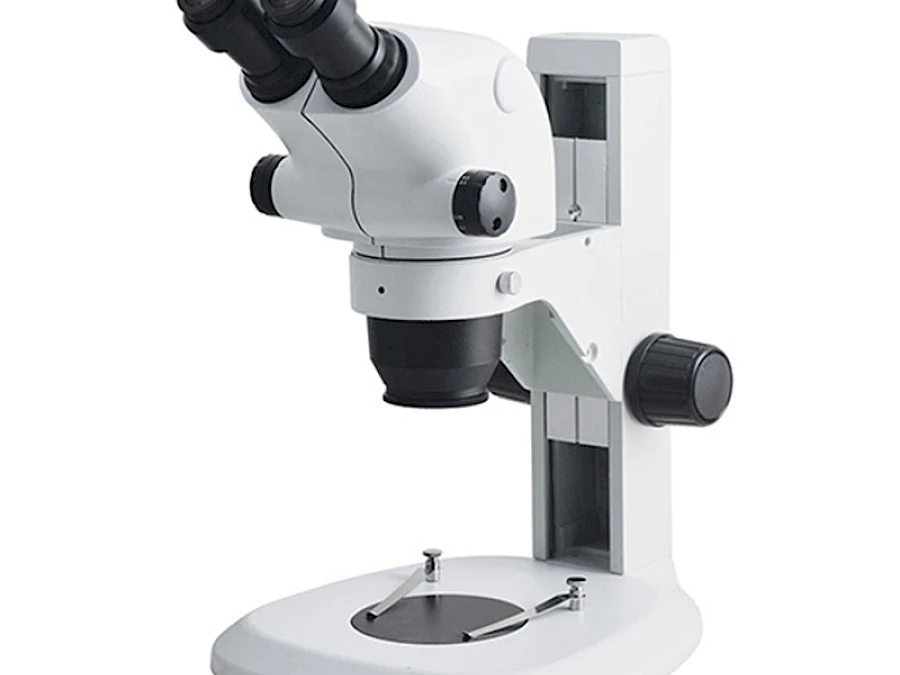

BZW6565-AF	AF Track stand	LED ring light

BZW6565

Standard (No auxiliary objective)

Auxiliary Lens

0.3X

0.5X

0.7X

1.5X

Working Distance

100mm

287mm

165mm

120mm

45mm

30mm

Eyepiece

Zoom Rate position

Magnification

view

Magnification

view

Magnification

view

Magnification

view

Magnification

view

Magnification

view

WF10X22

0.65

6.5X

32.2mm

1.95X

107.3mm

3.25X

64.4mm

4.88X

46mm

9.75X

21.5mm

13X

16.1mm

6.5

65X

3.4mm

19.5X

11.3mm

32.5X

6.8mm

48.8X

11.2mm

97.5X

2.3mm

130X

1.7m

Observation head	45°decline,360°rotate, Pupil distance 54---76mm; Bilateral visual adjustment±5
Adjustable eyepiece	Standard WF10X22, High angle wide angle eyepiece, provide convenience for observers wearing glasses
Optional eyepiece	WF10X22，WF20X12mm
Objective	0.65X---6.5X Zoom Range, objective magnification ratio 1：10, Ensure image alignment
Auxiliary Lens	0.3X，0.5X，0.75X，1X，1.5X，2X For option
Magnification	Standard 6.5X---65X, Optional and auxiliary lenses can be extended to 2X---260X,Continuous doubling
Working Distance	110mm
Focus arm	76mm Diameter,32mm pole size
Plate	Black/White plate
Illumination	LED Illumination, 60 LED lamp beads

BZW6565-SU1

BZW6565-SU2

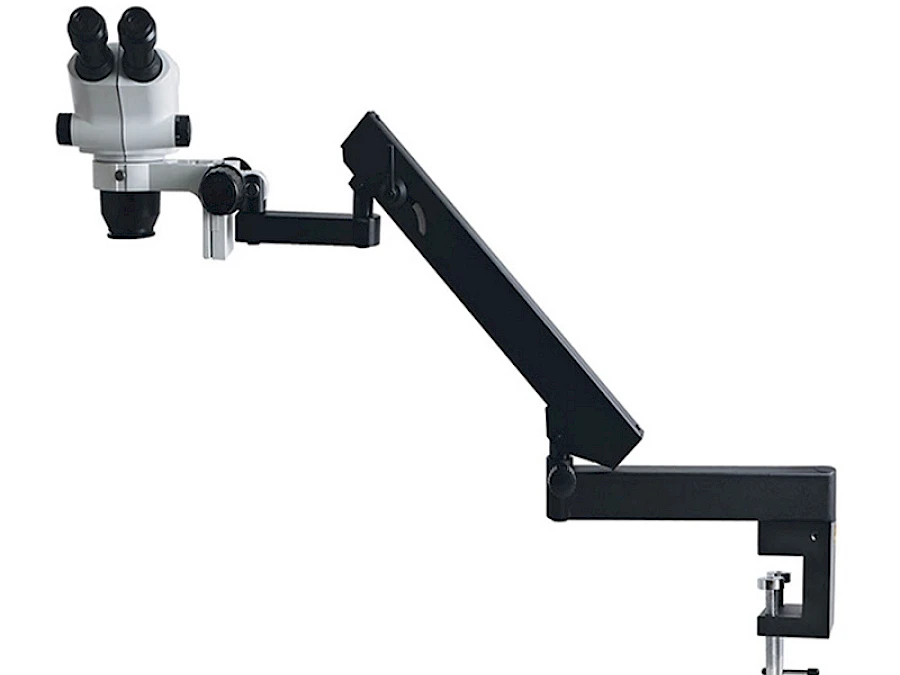

BZW6565-RU1

BZW6565-RU2

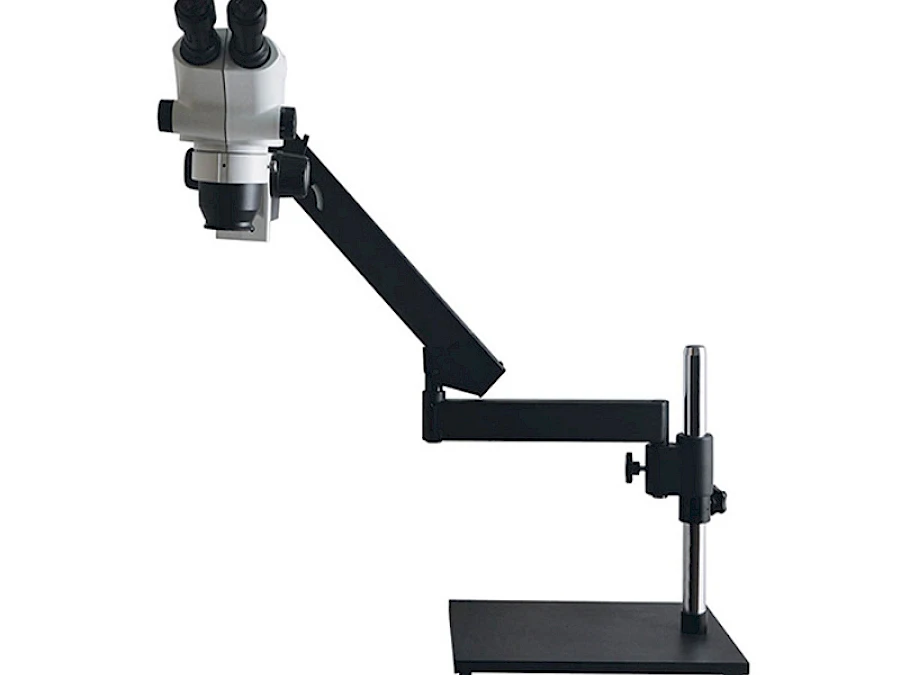

BZW6565-RU3

BZW6565-DU1

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Item	Stand	Illumination

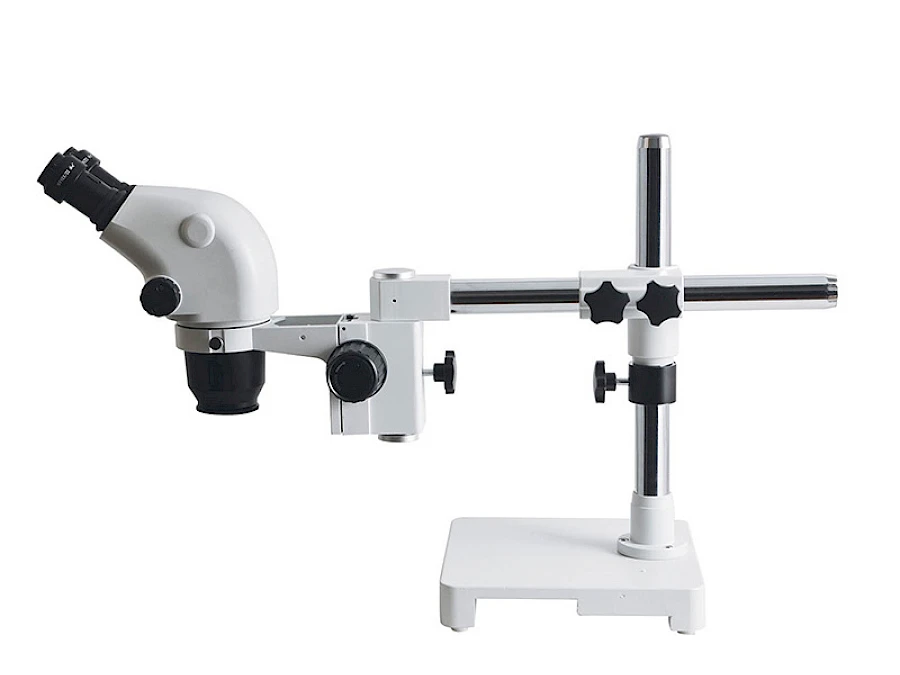

BZW6565-SU1	SU1 boom stand	LED ring light

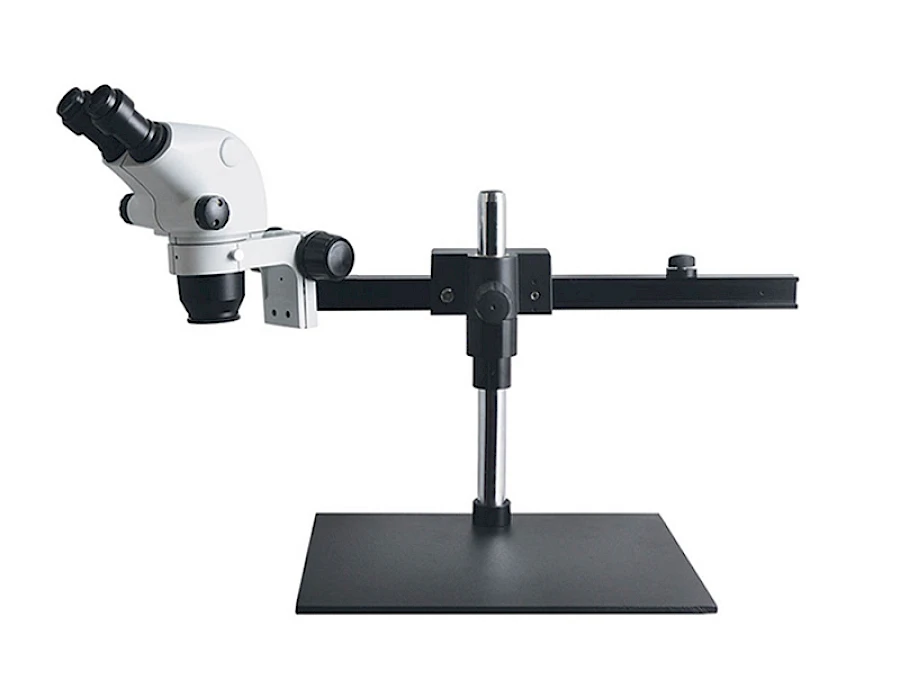

BZW6565-SU2	SU2 boom stand	LED ring light
BZW6565-RU1	RU1 clamp boom stand	LED ring light

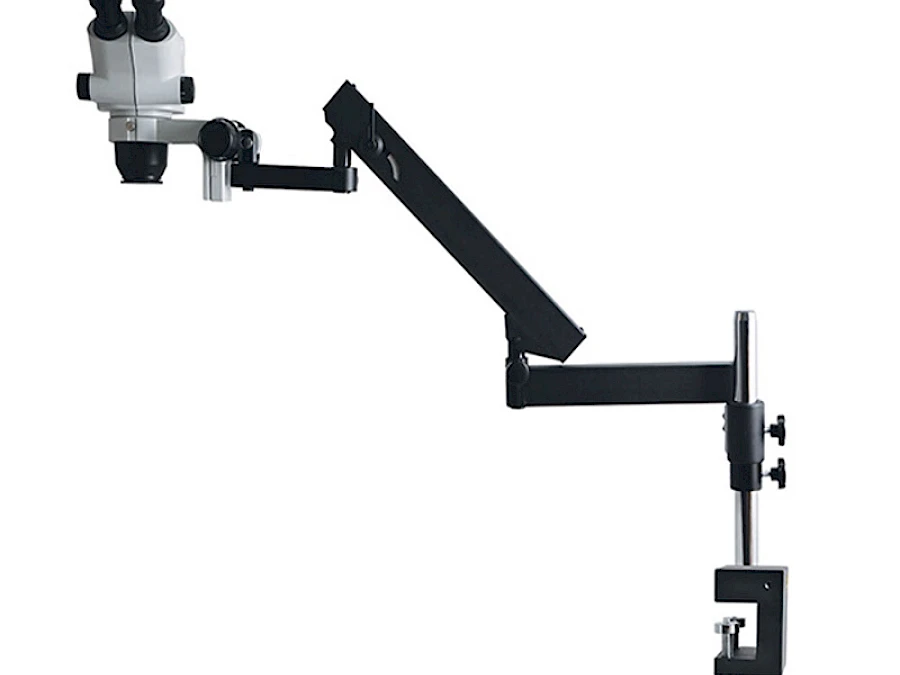

BZW6565-RU2	RU2 clamp boom stand	LED ring light
BZW6565-RU3	RU3 clamp boom stand	LED ring light

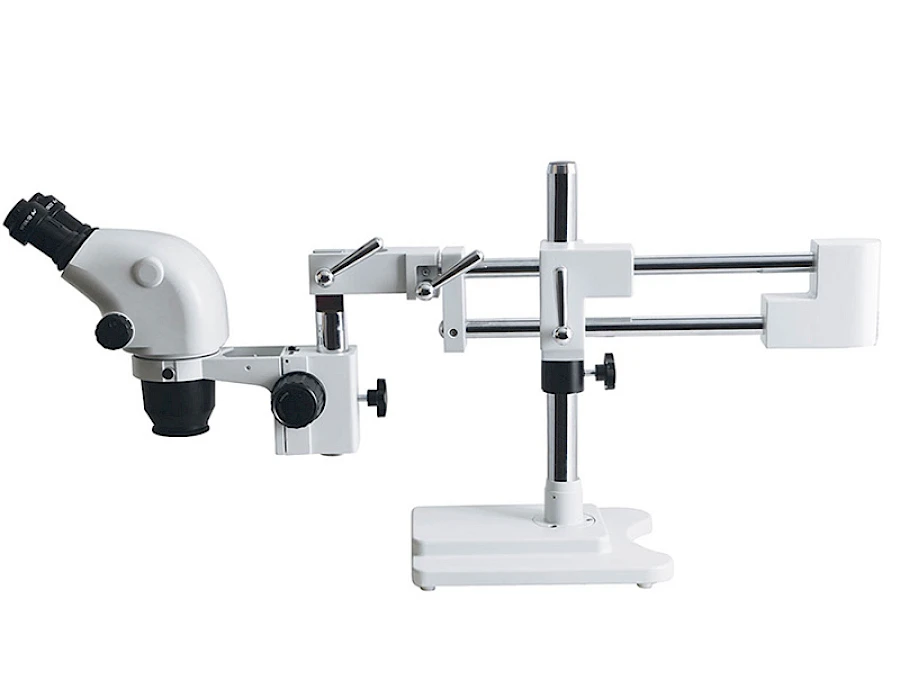

BZW6565-DU1	DU1 boom stand	LED ring light

BZW6565

Standard (No auxiliary objective)

Auxiliary Lens

0.3X

0.5X

0.7X

1.5X

Working Distance

100mm

287mm

165mm

120mm

45mm

30mm

Eyepiece

Zoom Rate position

Magnification

view

Magnification

view

Magnification

view

Magnification

view

Magnification

view

Magnification

view

WF10X22

0.65

6.5X

32.2mm

1.95X

107.3mm

3.25X

64.4mm

4.88X

46mm

9.75X

21.5mm

13X

16.1mm

6.5

65X

3.4mm

19.5X

11.3mm

32.5X

6.8mm

48.8X

11.2mm

97.5X

2.3mm

130X

1.7m

Observation head	45°decline,360°rotate, Pupil distance 54---76mm; Bilateral visual adjustment±5
Adjustable eyepiece	Standard WF10X22, High angle wide angle eyepiece, provide convenience for observers wearing glasses
Optional eyepiece	WF10X22，WF20X12mm
Objective	0.65X---6.5X Zoom Range, objective magnification ratio 1：10, Ensure image alignment
Auxiliary Lens	0.3X，0.5X，0.75X，1X，1.5X，2X For option
Magnification	Standard 6.5X---65X, Optional and auxiliary lenses can be extended to 2X---260X,Continuous doubling
Working Distance	110mm
Focus arm	76mm Diameter,32mm pole size
Plate	Black/White plate
Illumination	LED Illumination, 60 LED lamp beads
