DTB45 Series Monocular Inspection & Measurement Continuous Zoom Video Digital Stereo Microscope

DTB45 Series

0.35X-2.25X(Mag.), connect to the cameras & displays, inspection & measurement

Core Features

sharp clear images
using with a CCD camera
63-180lp/mm resolution
0.5X, 1.0X, 2.0X(Aux Lens)
widely used in various fields: electronic industry and agricultural research

Configurations

sharp clear images

63-180lp/mm resolution

micro-object observation

inspection & measurement

DTB45 Series Monocular Stereo Zoom Video Microscope offers sharp clear images, and it is primarily designed for using with a CCD camera. It is widely used in electronic industry and agricultural research for micro-object observation, inspection and measurement. 63-180lp/mm resolution meets the requirements of conventional imaging machine vision.

DTB45-PRT

DTB45-PL

DTB45-U1

Item	Stand	Illumination

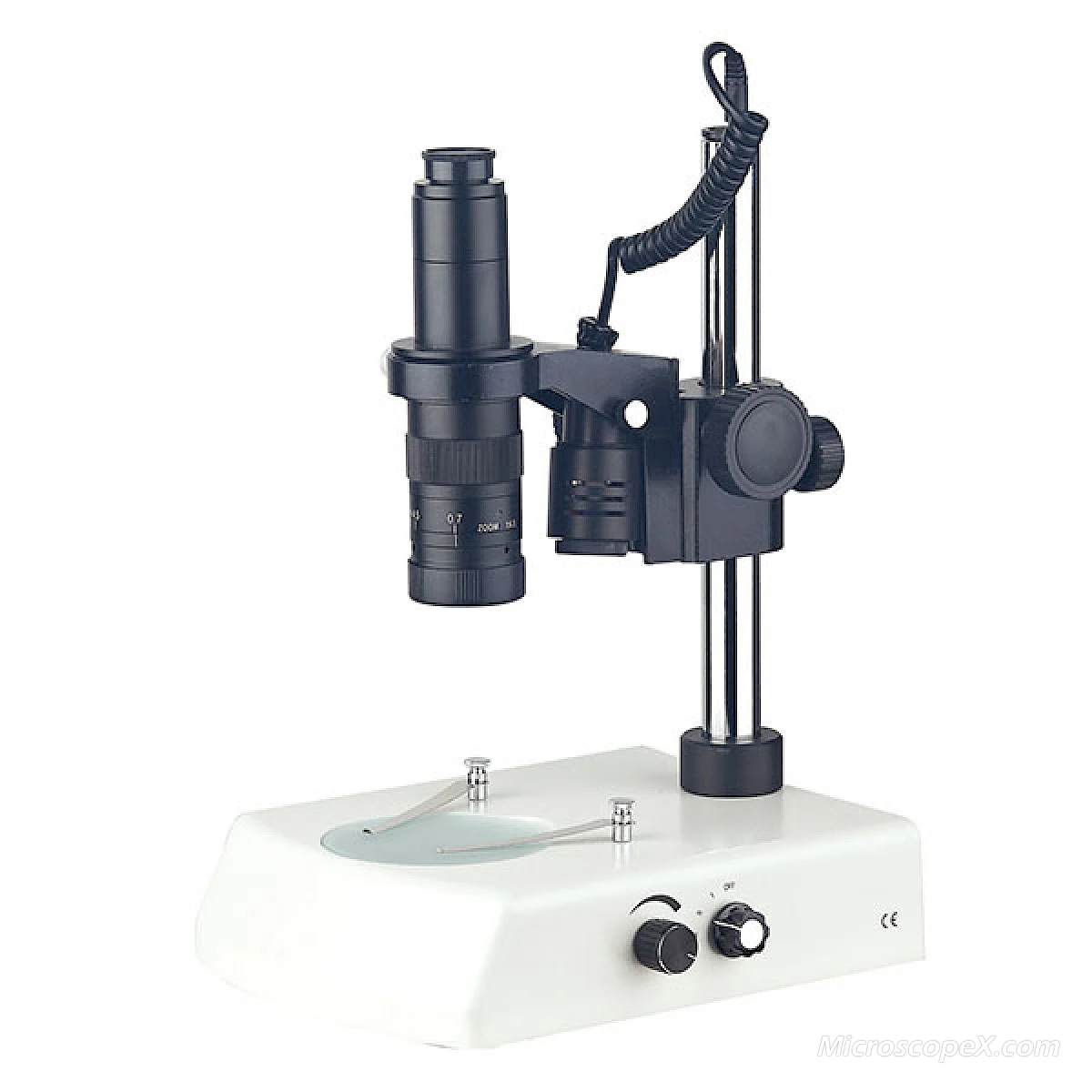

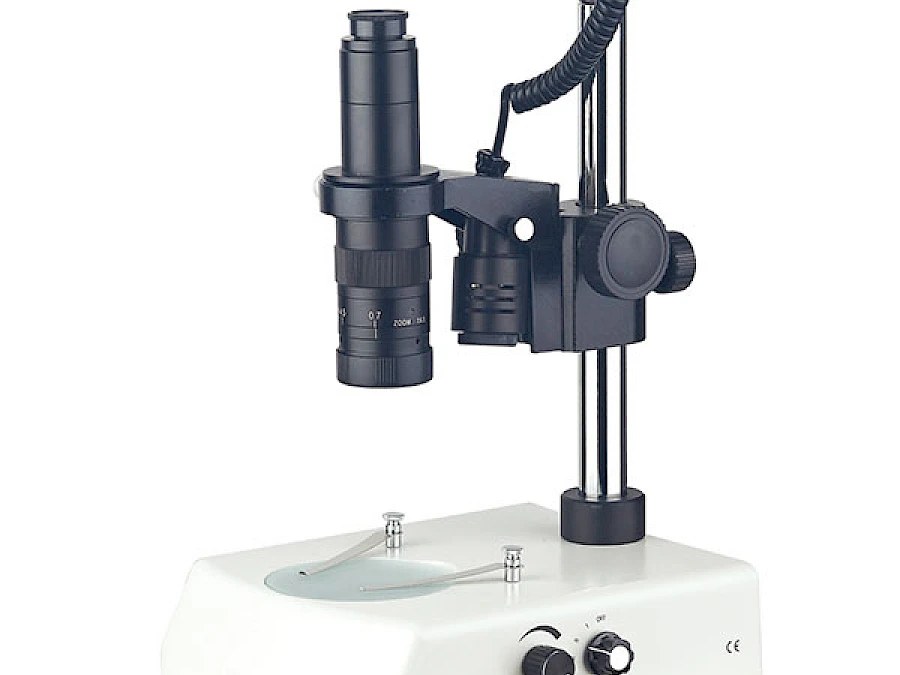

DTB45-PRT	PRT pole stand	Transmitted and reflected 12v/15w halogen, 7w fluorescent, 5v/3w LED illumination

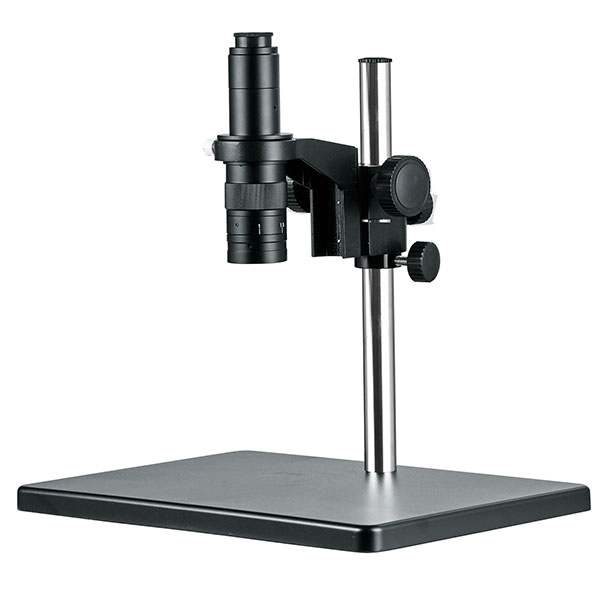

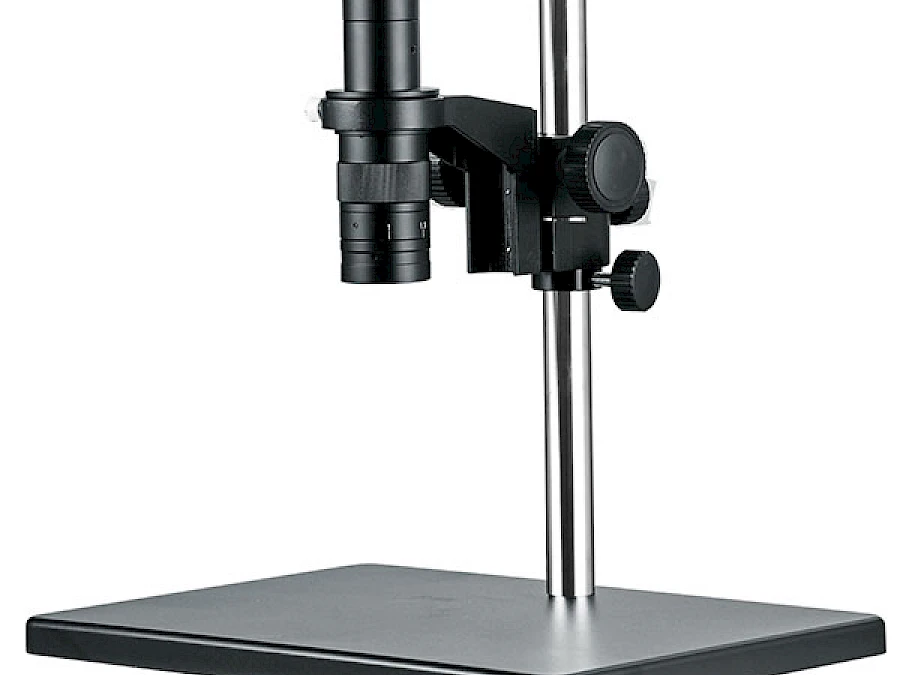

DTB45-PL	PL pole stand	Fluorescent lamp, LED ring light

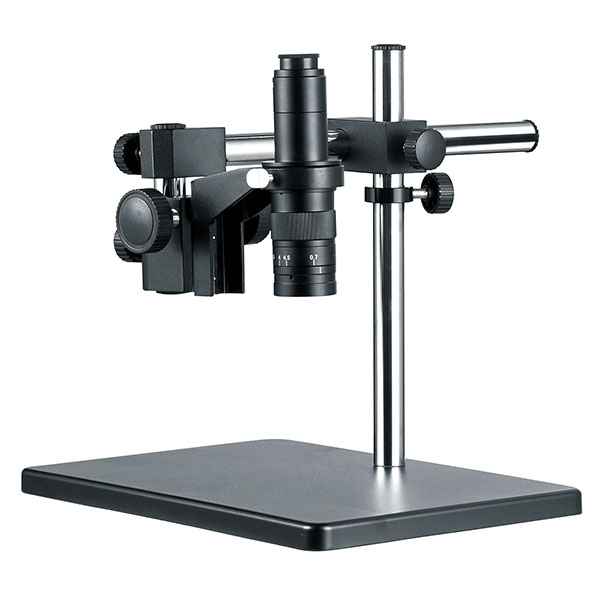

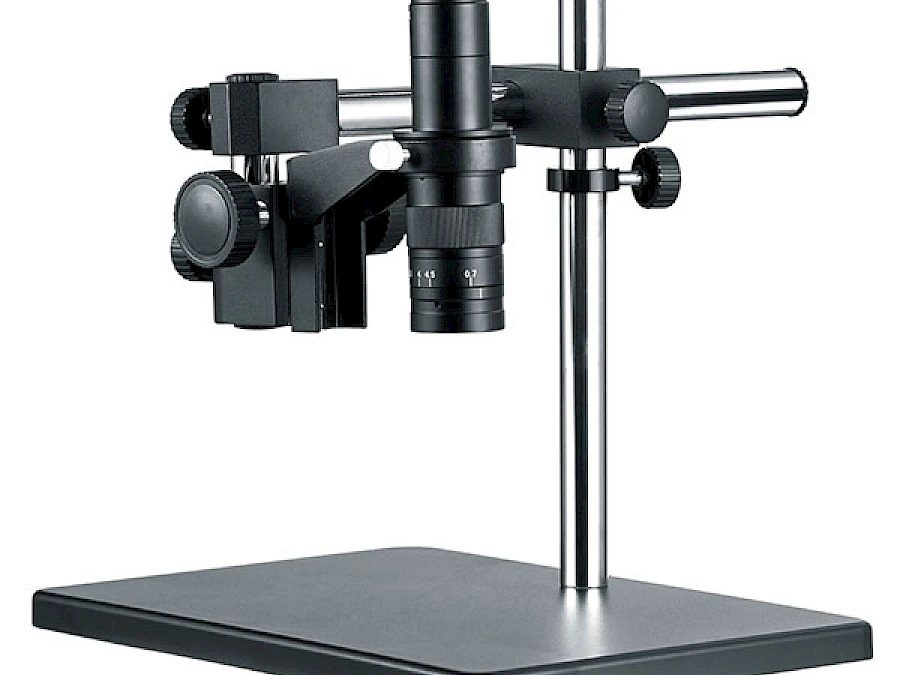

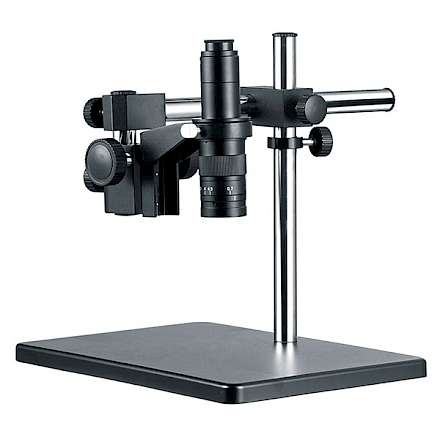

DTB45-U1	U1 pole stand	Fluorescent lamp, LED ring light

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Other Specification for DTB45 Series
Eyepiece	Standard		Auxiliary Lens 0.5X		Auxiliary Lens 2.0X
	W.D. 100mm		W.D. 165mm		W.D. 30mm
	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V
0.35X	0.245X	23mm	0.1225X	46mm	0.49X	11.6mm
0.35X	1.575X	3mm	0.7875X	7mm	3.15X	1.7mm
0.5X	0.35X	17.6mm	0.175X	35mm	0.7X	8.8mm
0.5X	2.25X	2.7mm	1.125X	5mm	4.5X	1.3mm
1X	0.7X	9mm	0.35X	17.6mm	1.4X	4mm
1X	4.5X	1.6mm	2.25X	3mm	9X	0.71mm
Magnification	0.35X-2.25X(standard)
Eyepiece	0.5X(standard)
Optional Eyepiece	0.35X, 0.5X, 1X
Objective	0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1
Aux Lens	0.5X, 1.0X, 2.0X
Focusing Mount	DTB45-C1 focusing mount with vertical working distance 62mm; ID:50mm for lens
Accessories	Can be connected to the cameras and displays
