HVS-300P HDMI Integrated Digital Video LCD Microscope with Measuring Software & LED Light

HVS-300P

Mag. 17X~110X , 11.6” HD IPS Display, 60fps@1920 * 1080p, External Mouse & U-disk

Core Features

Standard optical magnification is 7X~45X, digital magnification is 17X~110X (based on 11.6” display)
Equipped with 11.6” IPS HD display screen, ultra high reproduction color technology;
HDMI-compatible output can be connected to external large monitor, to show publicly, and support same display screen images comparison;
60fps real-time frame rate, no delay, improve efficiency for online defect detection of electronic components

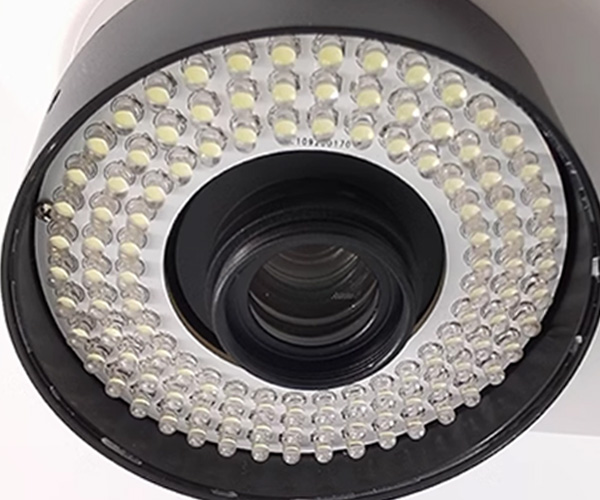

Integrated special 5500K LED ring light source, to ensure the images quality in any work environment

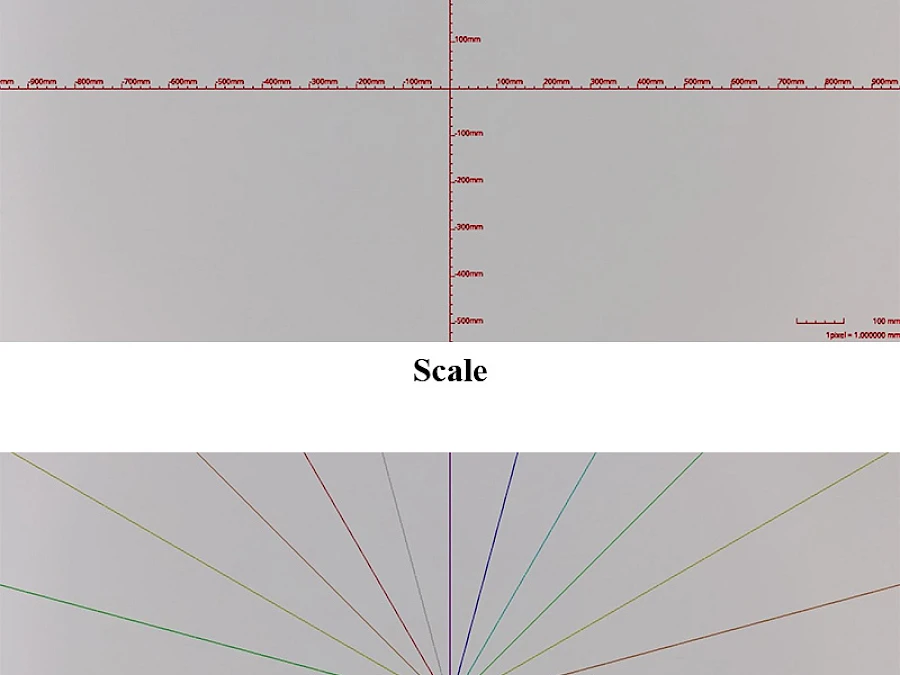

Integrated camera, with measurement (real-time), photo, video and save functions;

Configurations

Sensor Size

1/3” CMOS

Objective lens

7X~45X

60FPS

1920*1080P

Base

330*300mm

Power

DC12V 2A

HVS-300P integrated microscope combined the traditional optical and electronic video technology. It is compact in size, one power cord connected the body and screen provides easy operation.

Equipped with 11.6” HD IPS Display Screen, 60fps@1920 * 1080p Resolution for clear and sharp image. The display screen can be titled back 90°, angle adjustable. Integrated measurement software, real-time photos, video, preview, settings, measurement, real-time scale etc.

This kind of optical microscope is widely used in agriculture and forestry, archaeological identification, PC line inspection, textile industry, universities and research institutions etc.

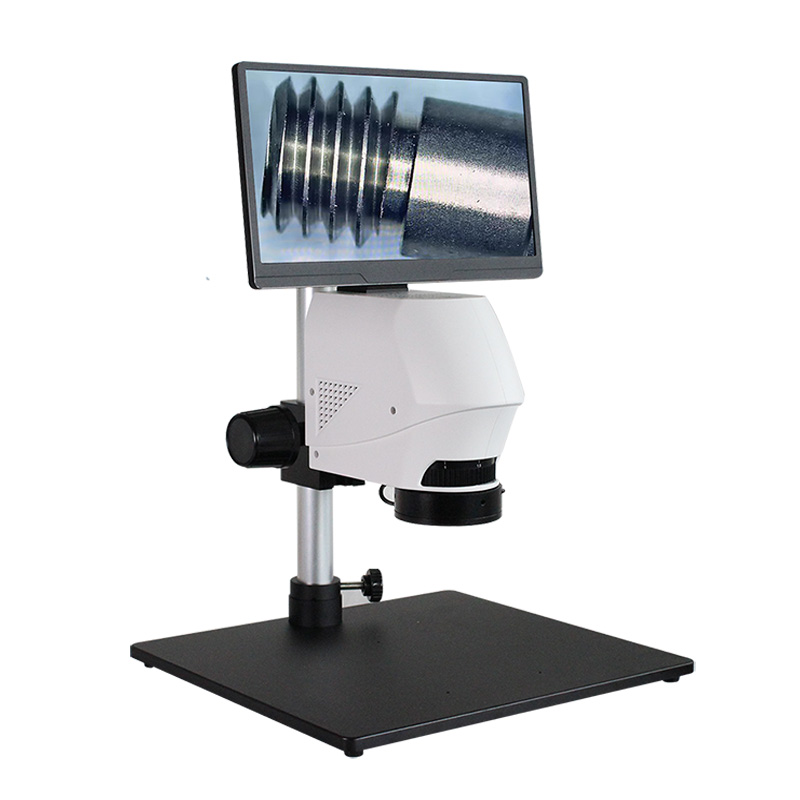

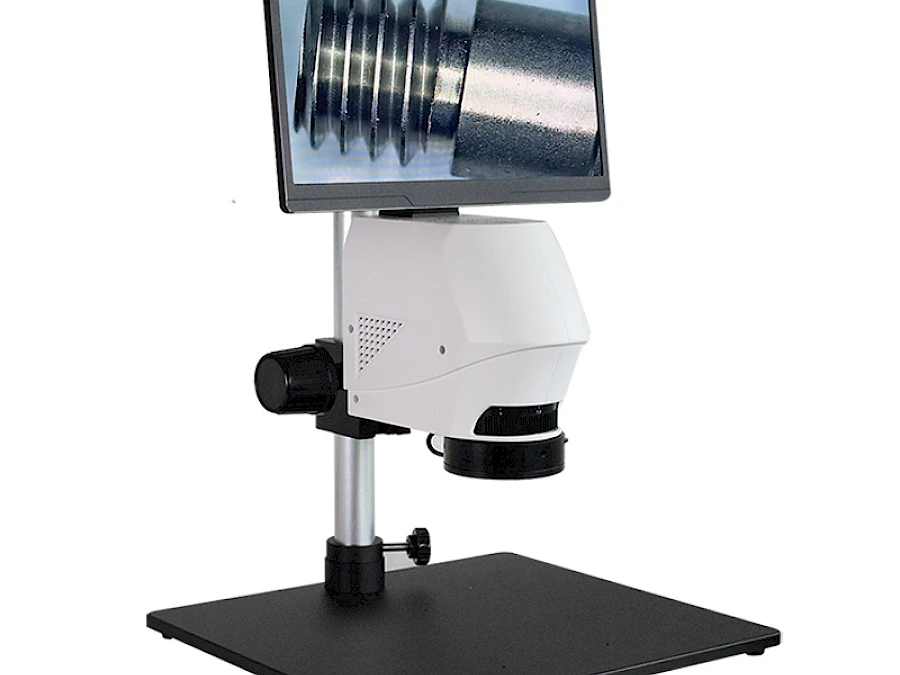

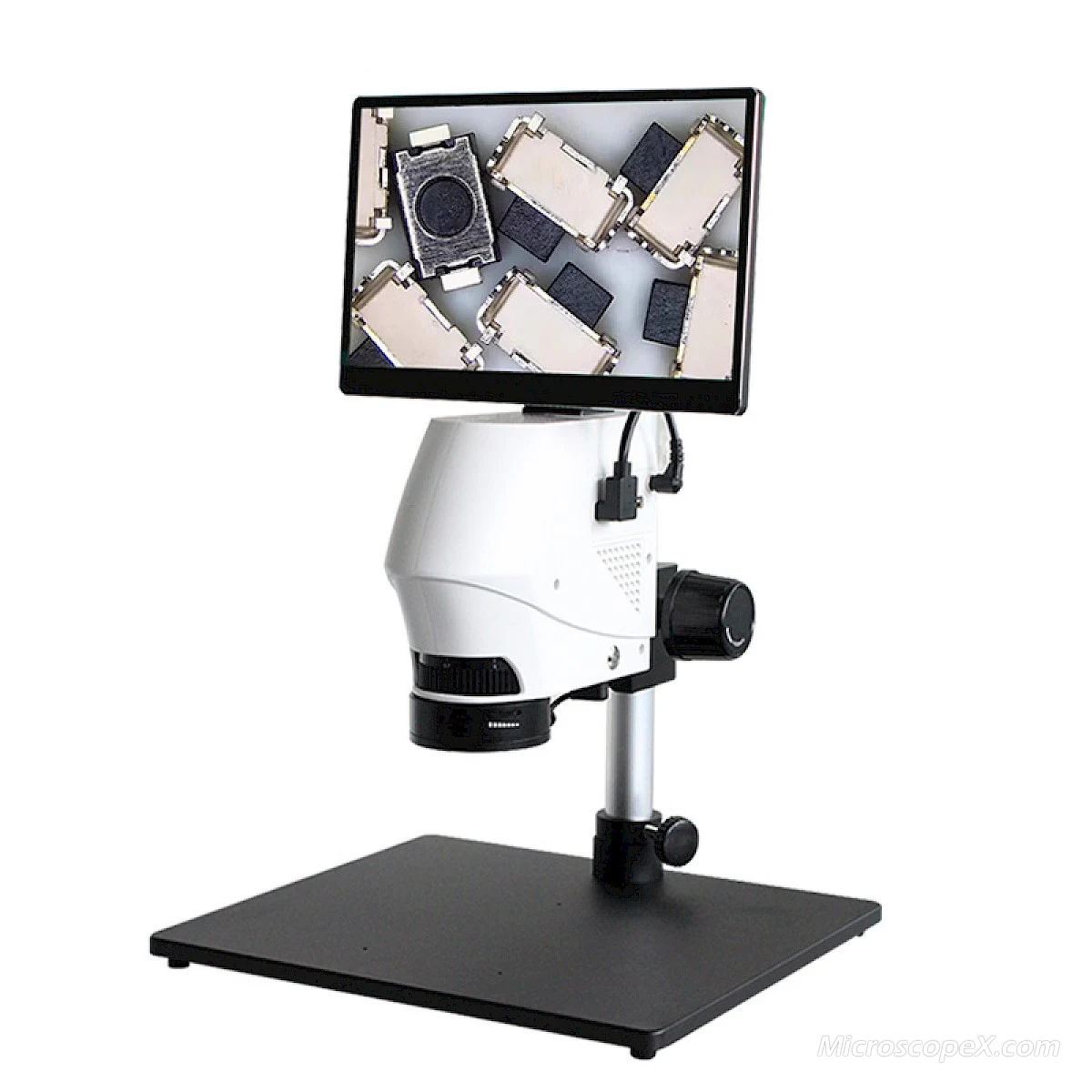

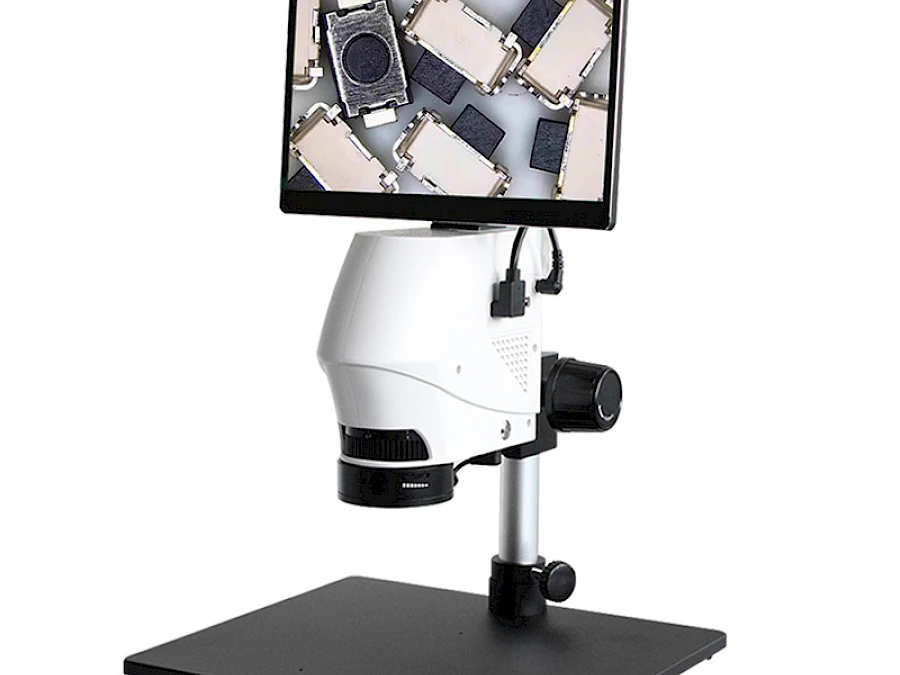

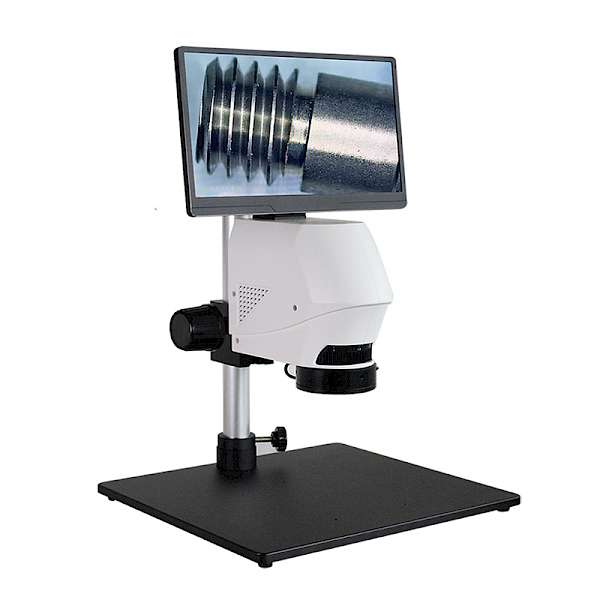

HVS-300P Video Microscope

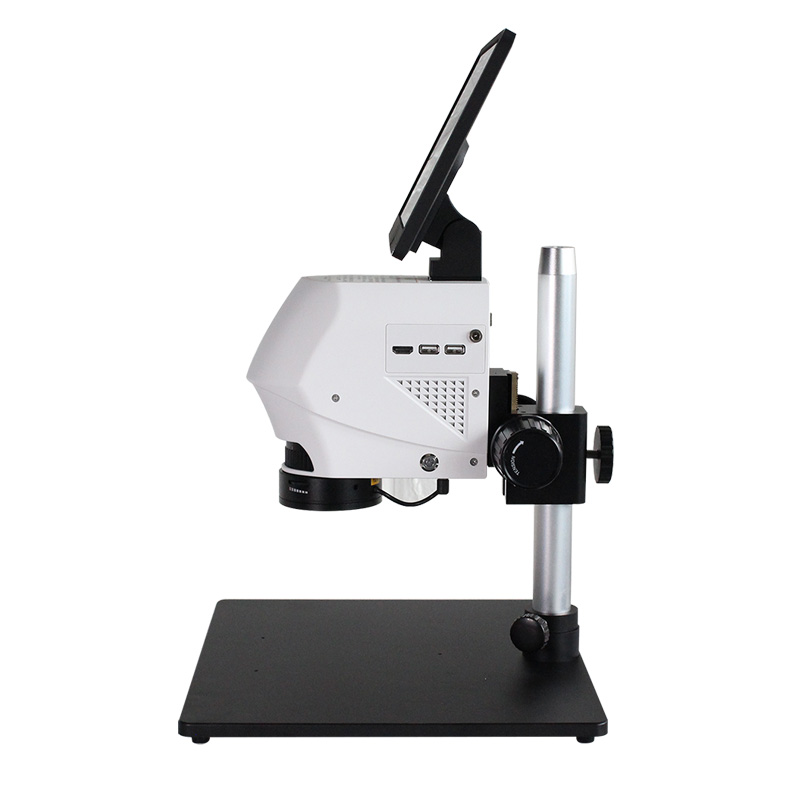

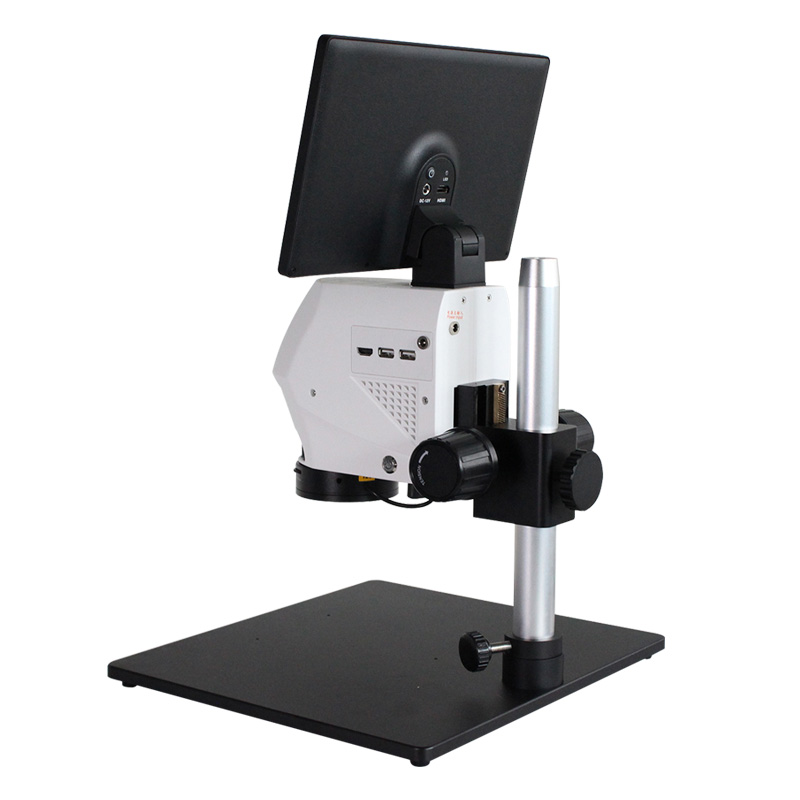

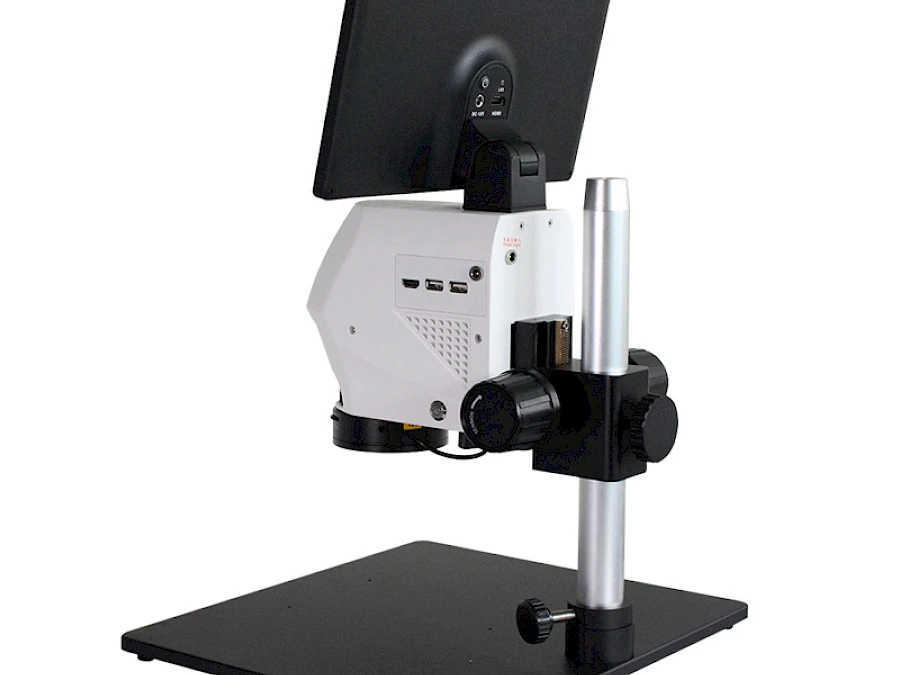

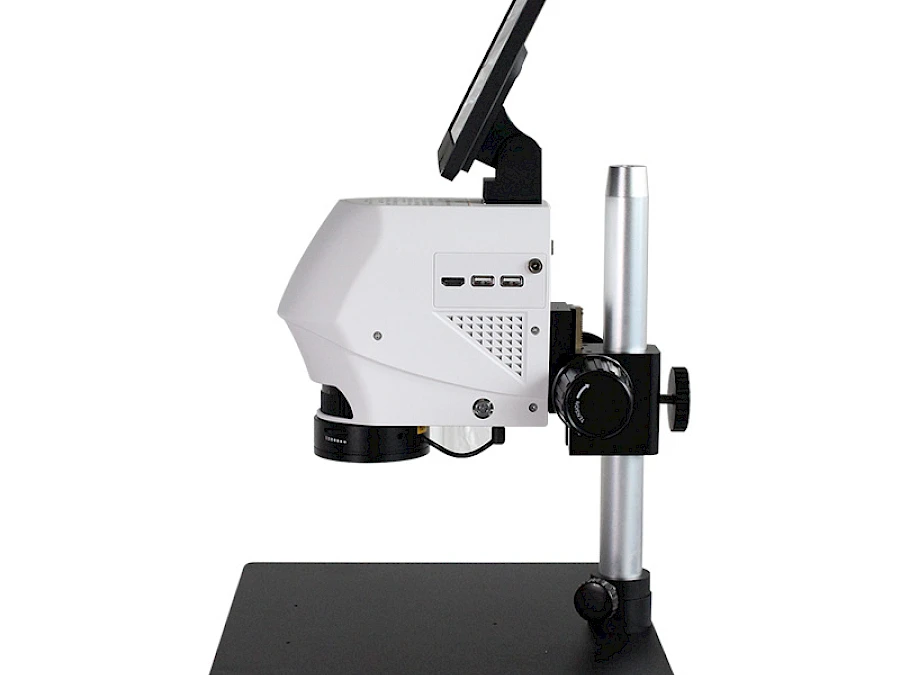

Side & Back Views of HVS-300P Video Microscope

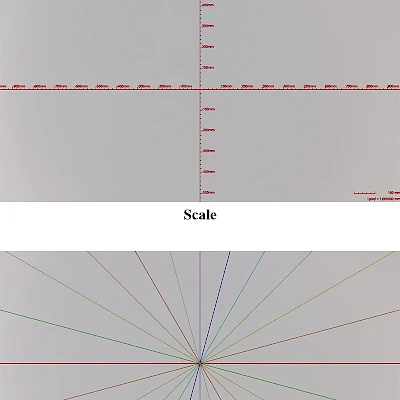

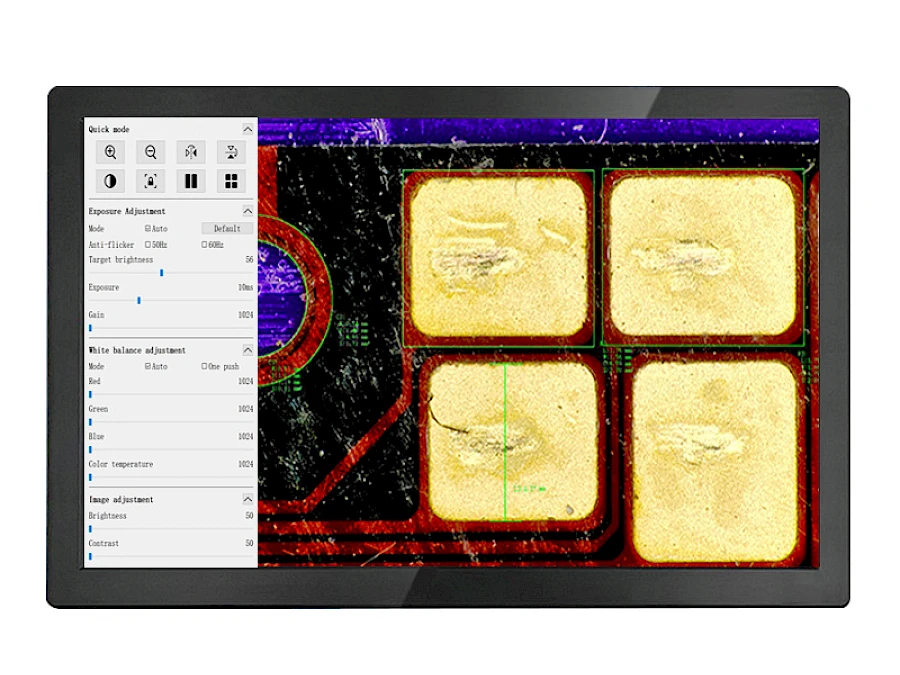

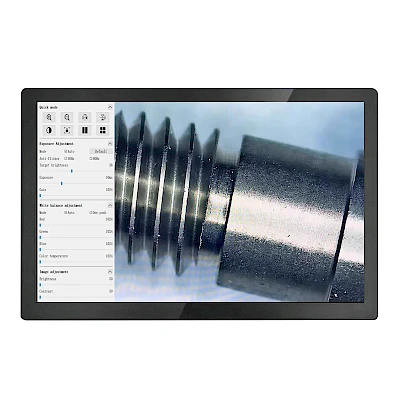

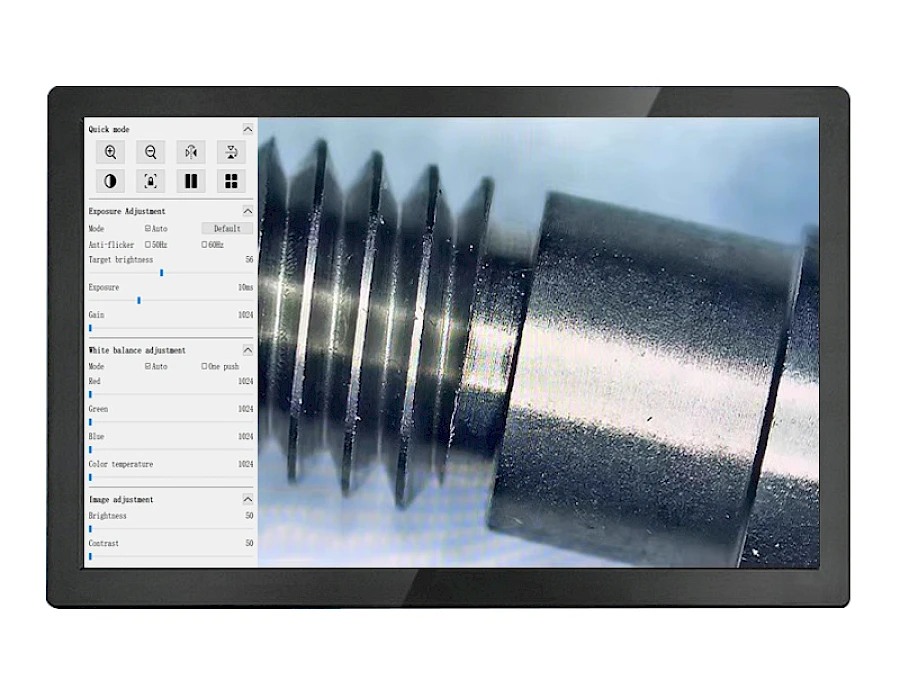

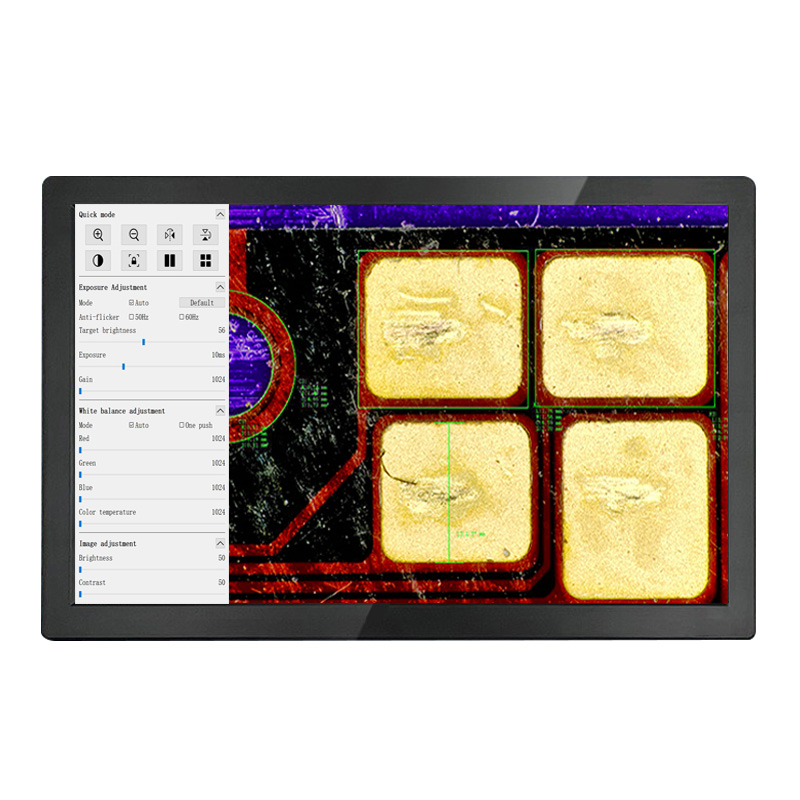

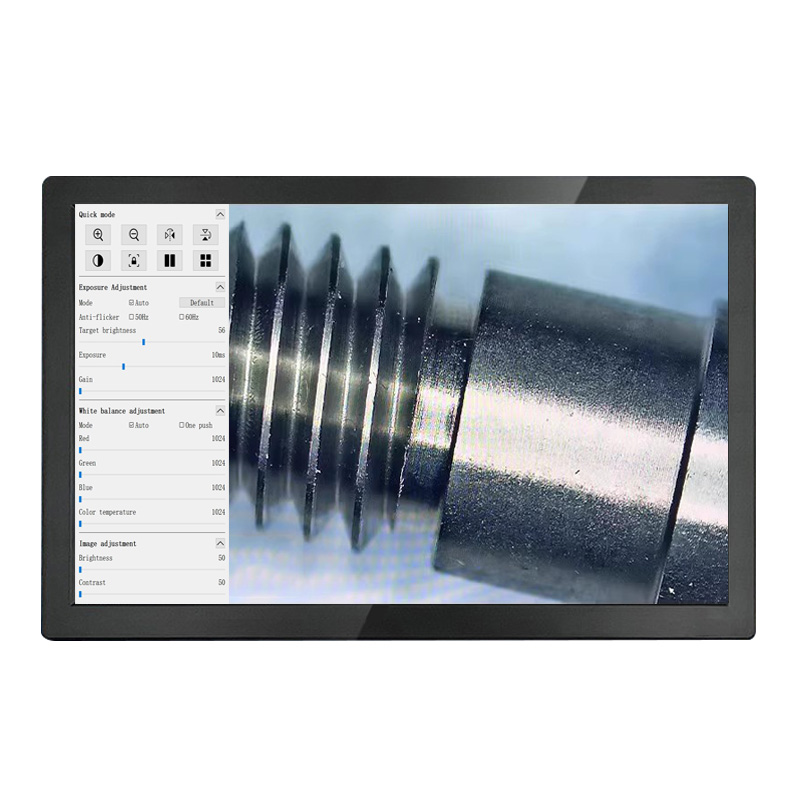

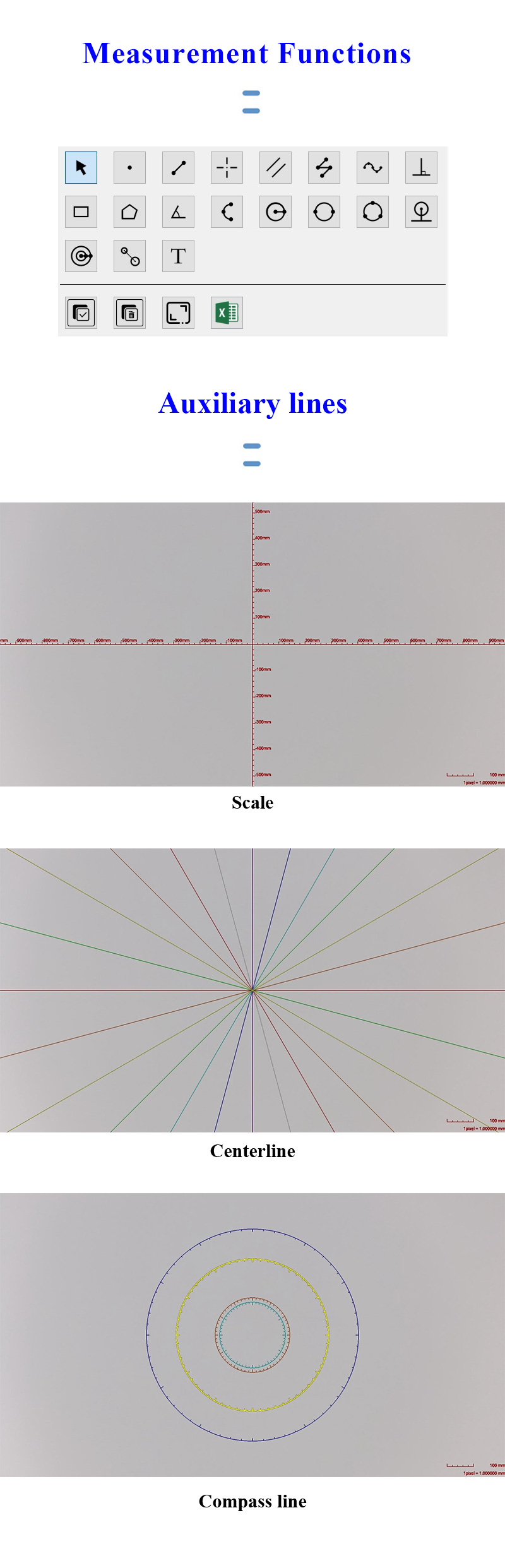

Integrated Software of HVS-300P Video Microscope

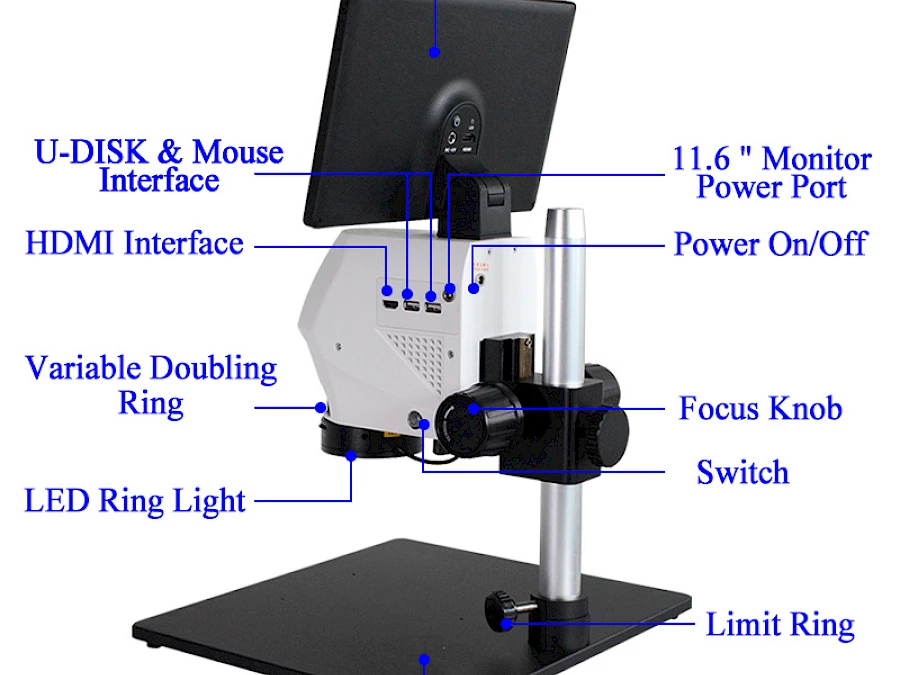

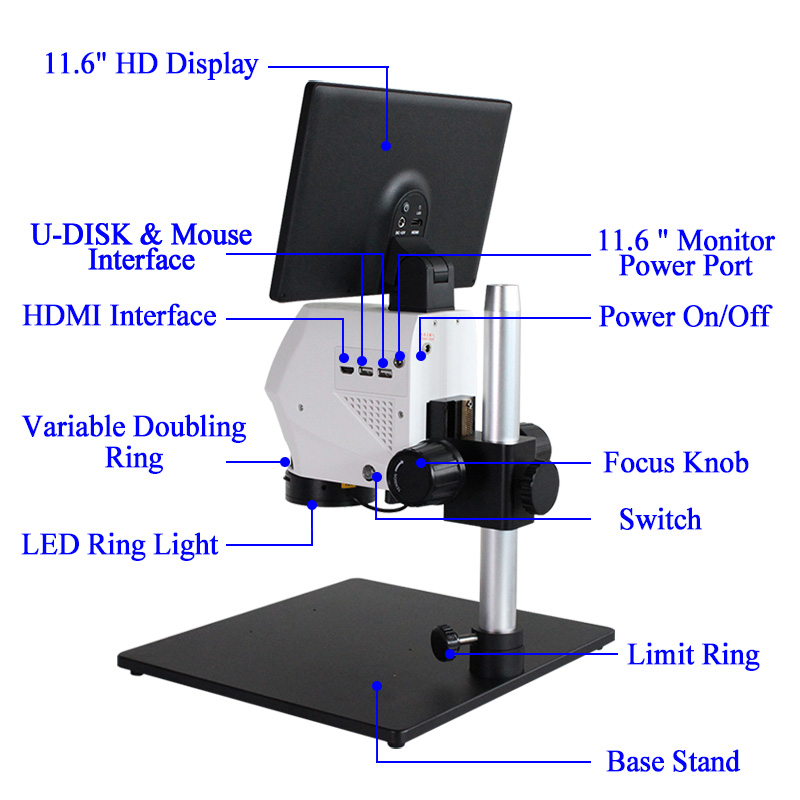

Structure of HVS-300P Video Microscope

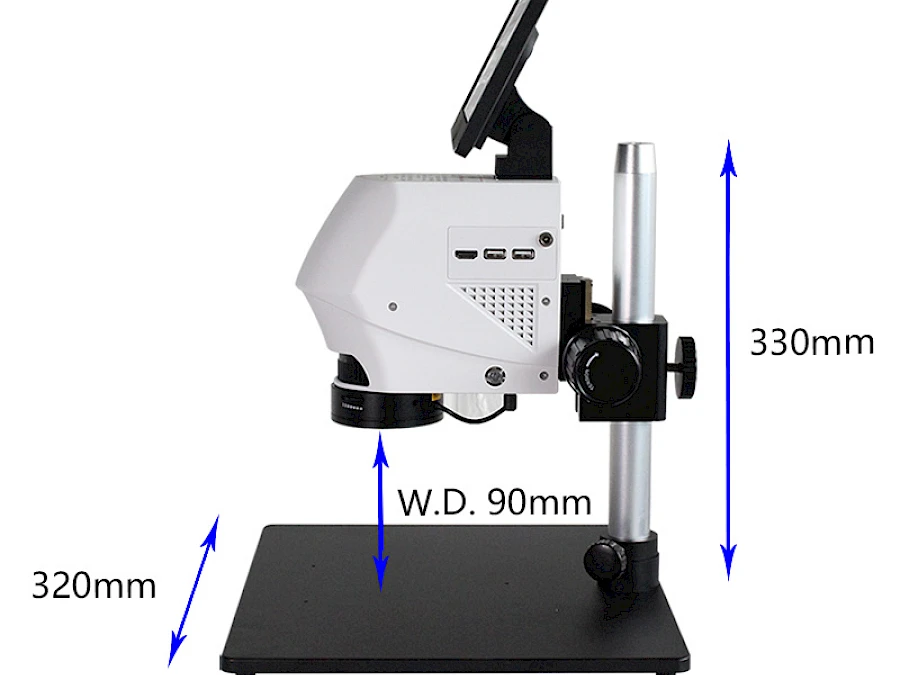

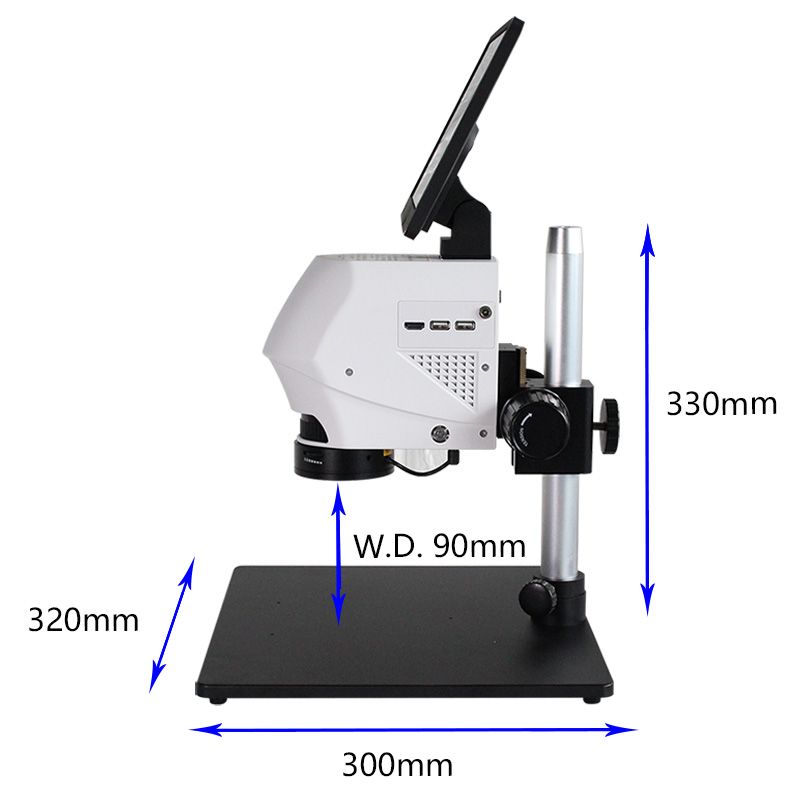

Size of HVS-300P Video Microscope

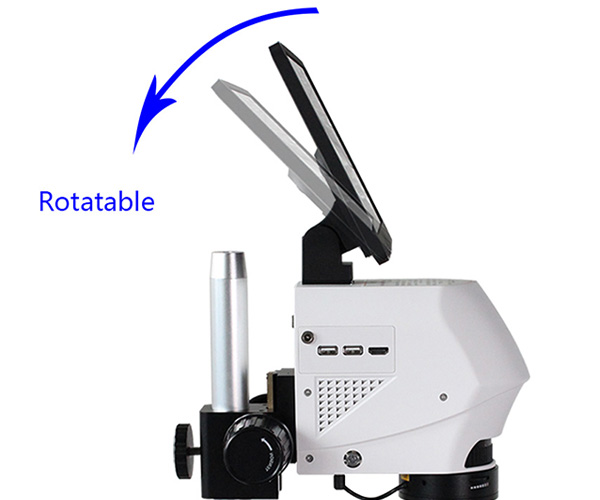

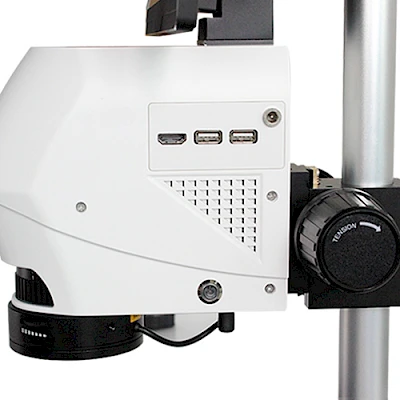

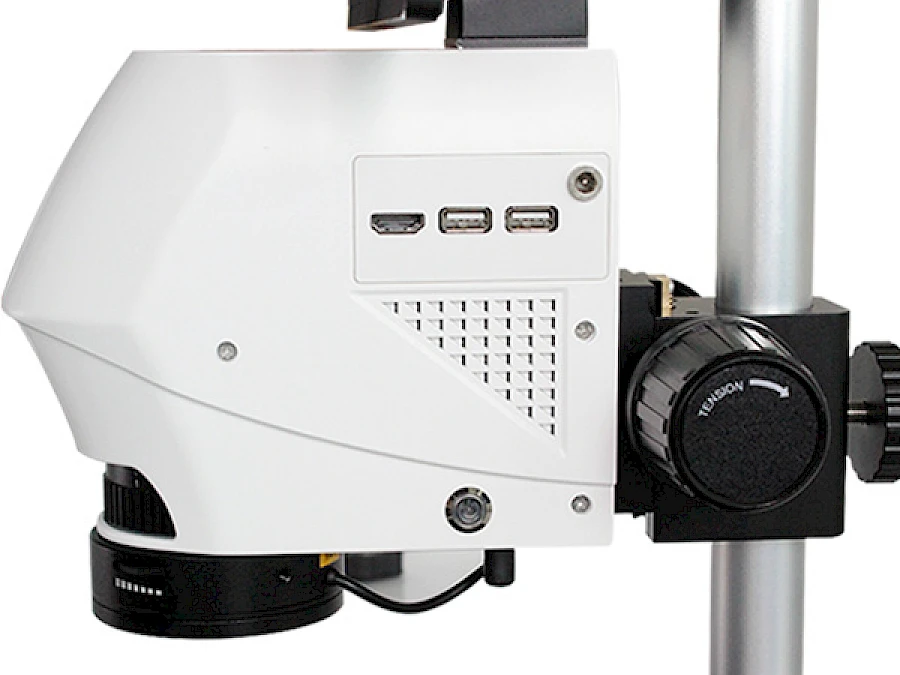

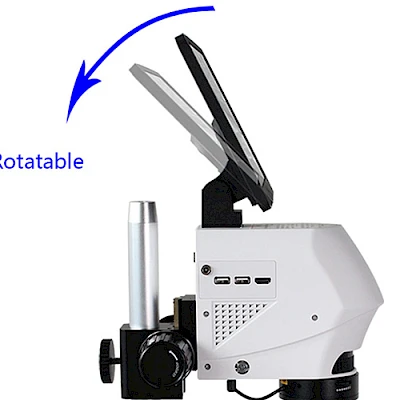

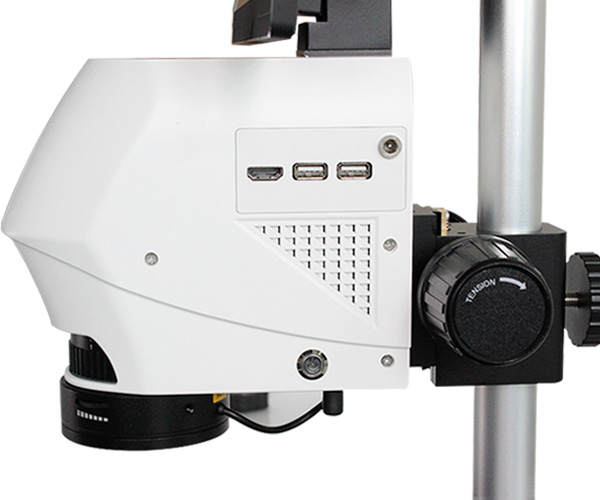

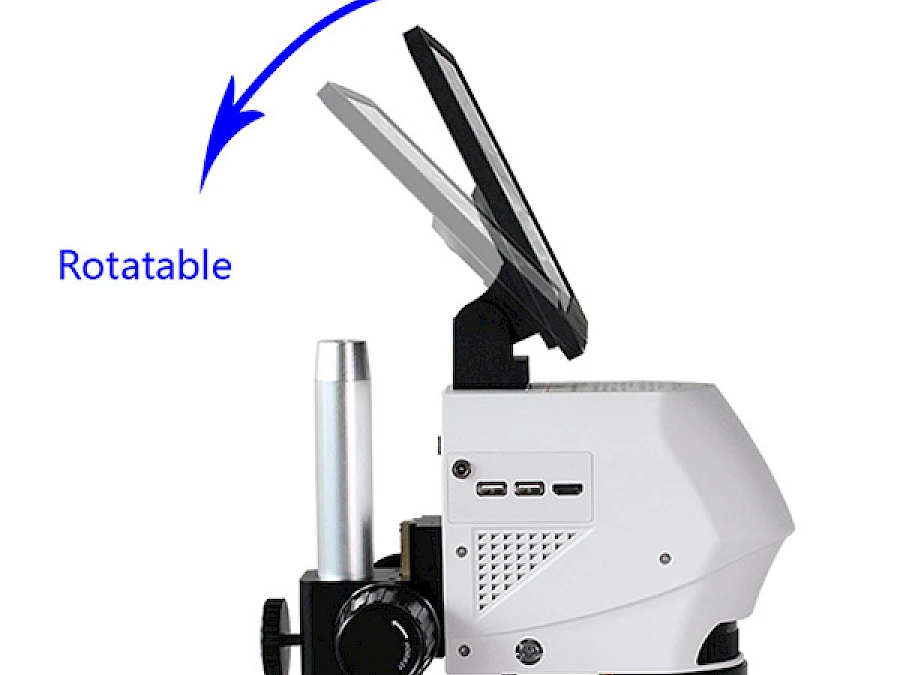

Multiple Outputs & Rotate Display of HVS-300P

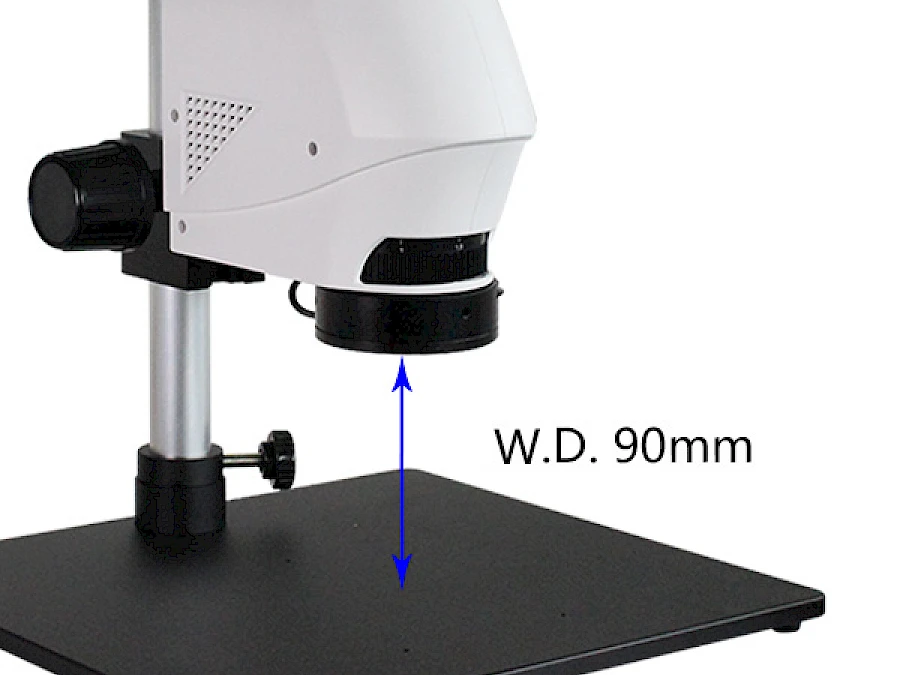

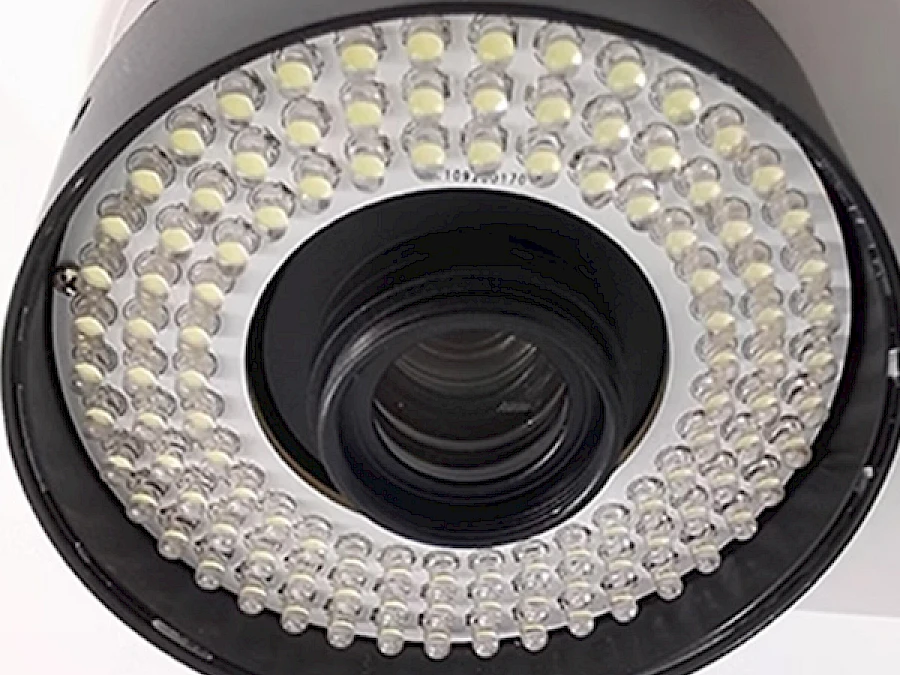

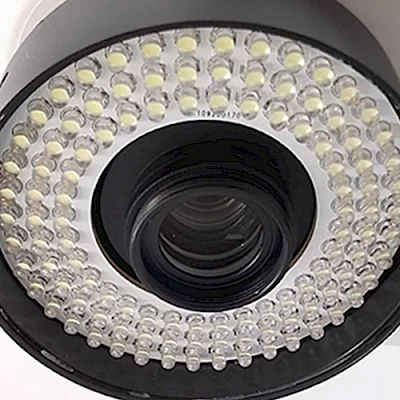

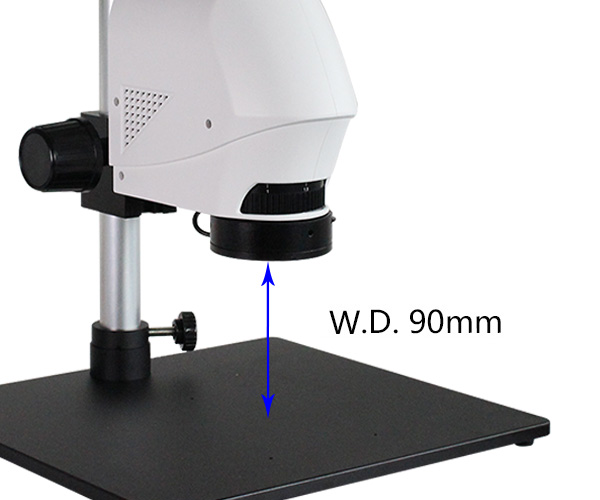

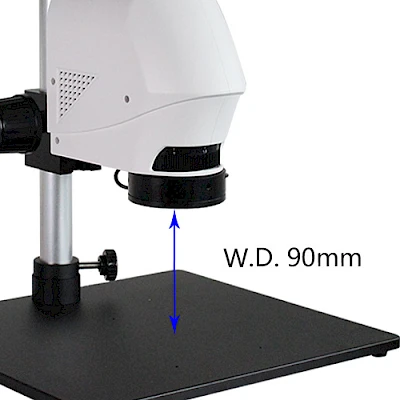

Illumination & Working Distance of HVS-300P

Specification for HVS-300P
lens	CCD connector	0.5X
	Objective lens	0.7X-4.5X Freeze the frame and set the gear
	magnification	17-110X (Connect to 11.6-inch monitor) 32.6-209.5X (Connect to 21.5-inch monitor)
	Multiplier ratio	1:6.5
	Working distance	100mm
Imaging system	Sensor size	1/3”
	resolution	1920*1080
	Frame rate	60fps
	Image output	HDMI
frame	Base size	330*300mm
frame	material	Aluminum alloy anodizing
Light source	Integrated special LED ring light source
function	Take pictures	support
	Video recording	support
	measurement	support
	Image comparison	support
	Electron amplification	support
	reticle	support
	Grid line	support
	Compass line	support
Power	DC12V 2A
Optional	Objective lens	0.5X reduction objective, 2X increase objective
	display	11.6、22、24 inch
	Trans reflectance observation	Base with LED light source, brightness can be adjusted
	Mobile platform	XY axis movement, table size: 180155mm, travel: 7555mm
	Coarse trimmer bracket	Square column, coarse trimmer coaxial
	Cross arm support	The transverse arm length is 340mm
