TW870AH Heating Stage Digital Dissecting Stereo Microscope Track Microscope Stand With Transmitted Light

TW870AH

Tem. Range: 0℃~60℃; Accuracy ±0.1℃; Digital Display; 220V Power

Core Features

High eye point WF10X/Φ22mm Eyepiec
0.67X-4.5X, ratio: 1:6.7 Objective Lens
Vertical Track Height: 300mm
Coarse Focus Distance per Rotation: 22mm
Work Plate Size & Material: Φ180x6mm Clear Glass
Power 100-240V AC 50/60Hz

Configurations

Eyepiece

WF10X/Φ22mm

0.67X-4.5X

ratio: 1:6.7

Trinocular

45° inclined

Φ180x6mm

Clear Glass

LED

Halogen Lamp

6V 20W

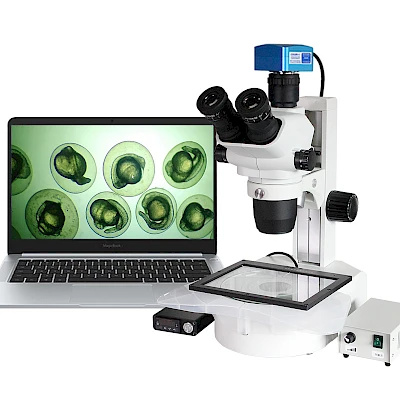

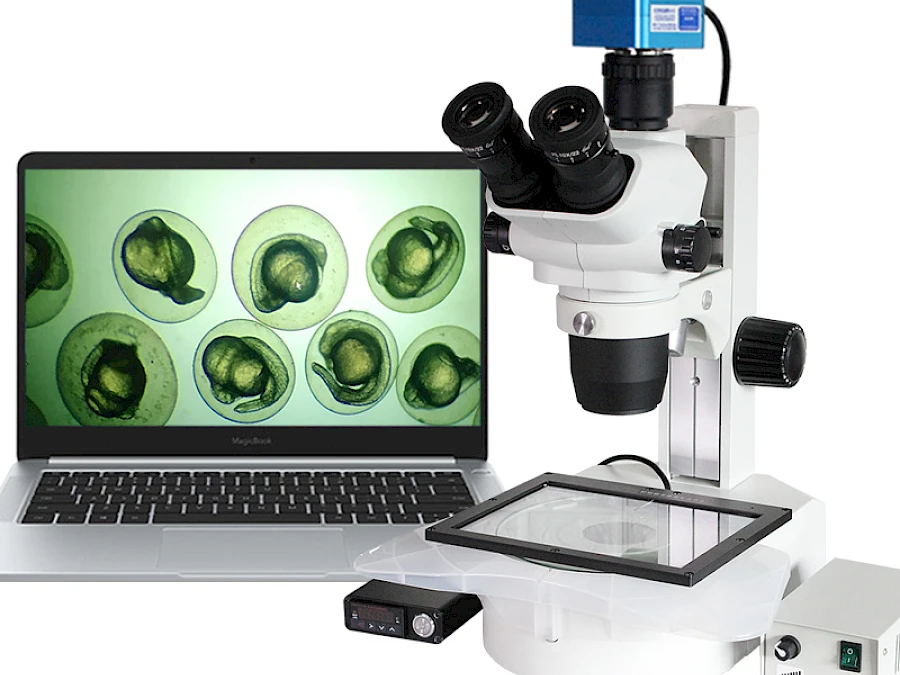

Continuous Zoom Stereo Microscope is equipped with high eye point wide field eyepiece and continuous zoom objective. It has wide field of view, high resolution, strong stereoscopic sense and sharp image. It can also be equipped with photographic camera device, connected to the computer for observation, and the images can be edited, saved, printed.

It is also widely used in teaching demonstration, biological anatomy, seed inspection of agriculture and forestry, criminal investigation and detection of public security department, assembly and maintenance of electronic precision components, quality control of textile industry, auxiliary identification of cultural relics and stamps, and surface observation of various materials.

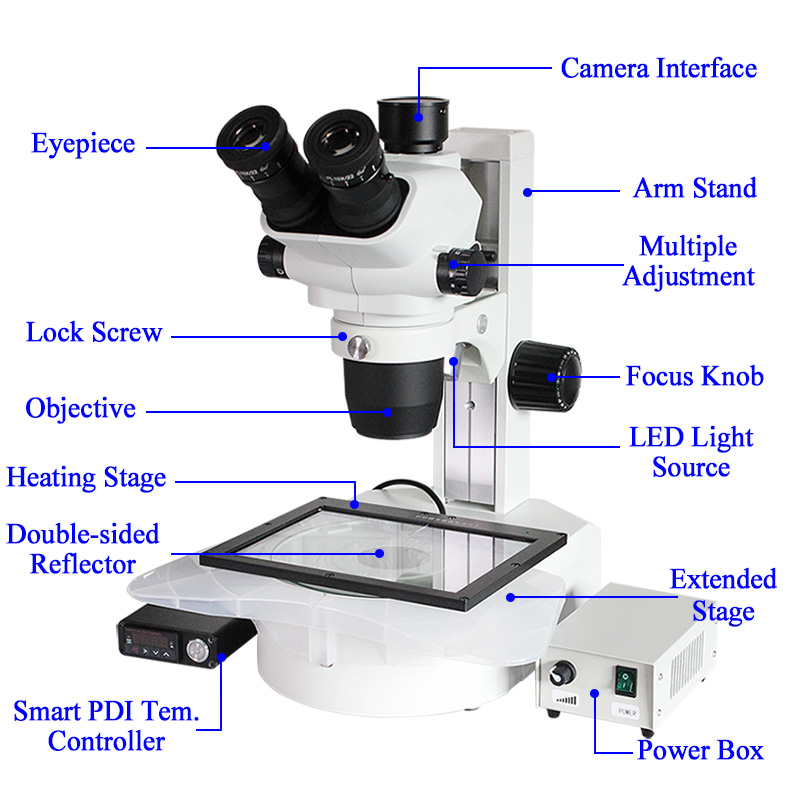

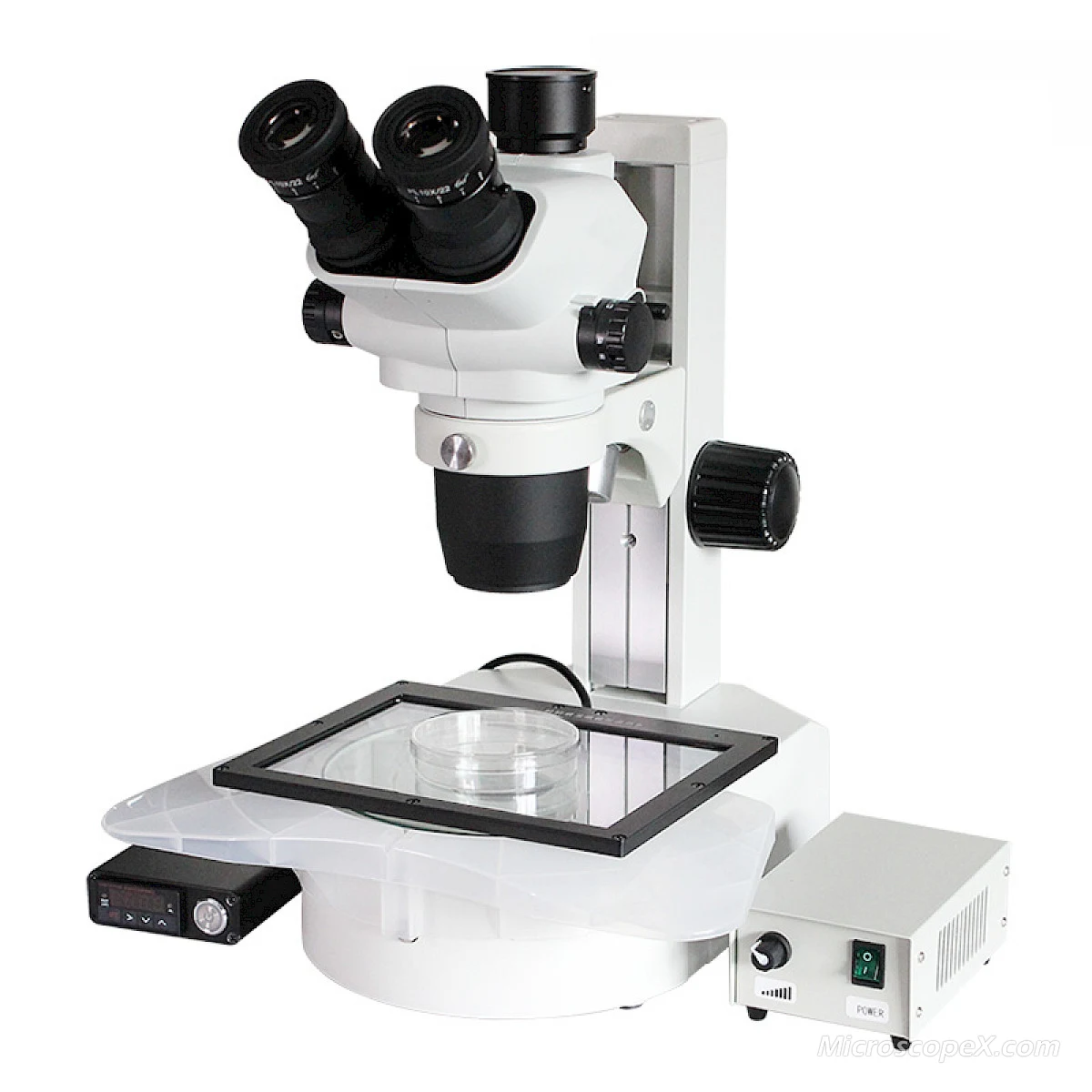

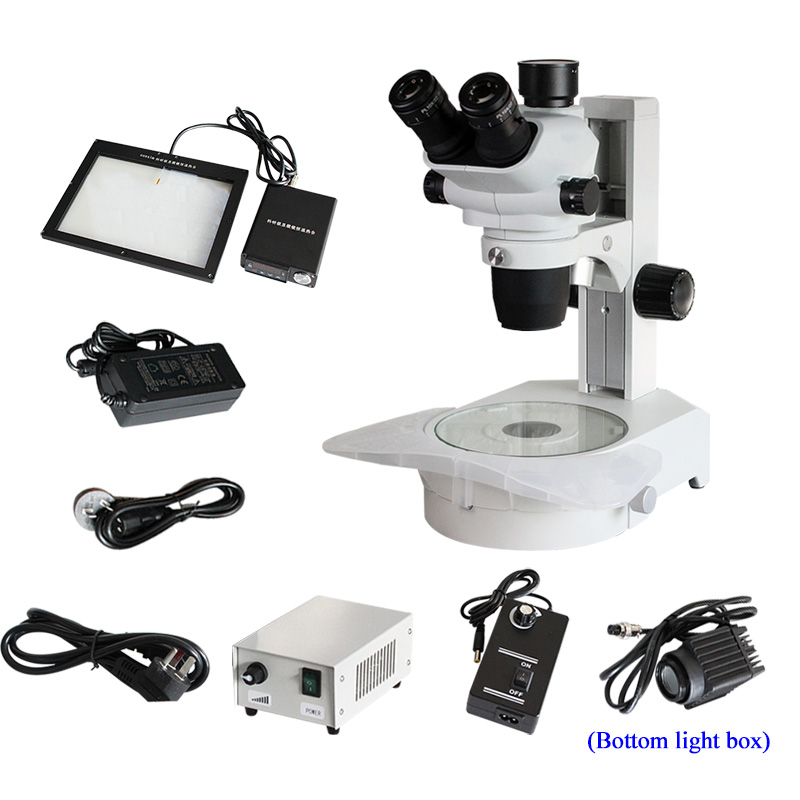

Structure of TW870AH

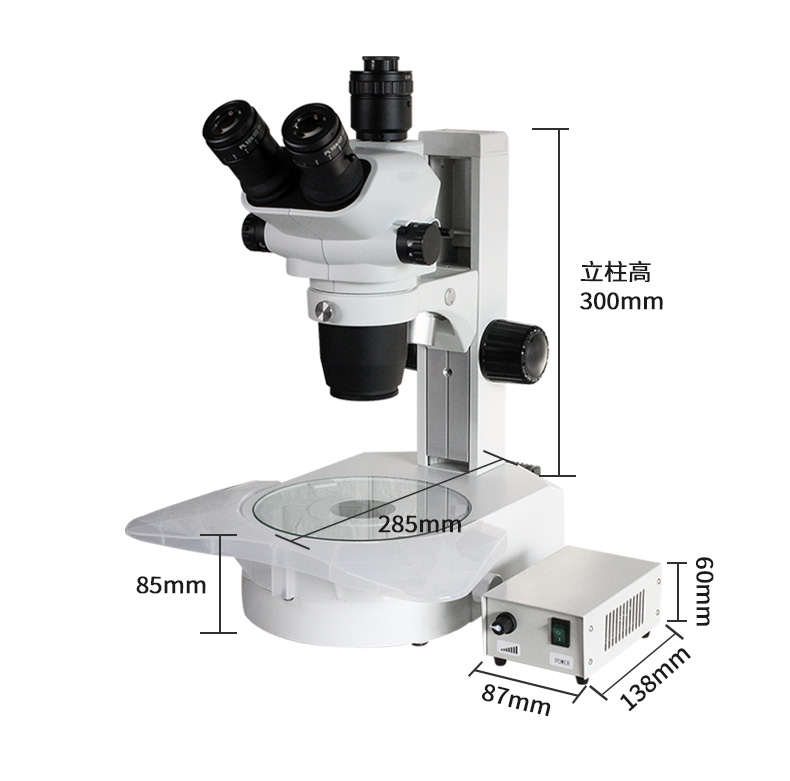

Dimension of TW870A

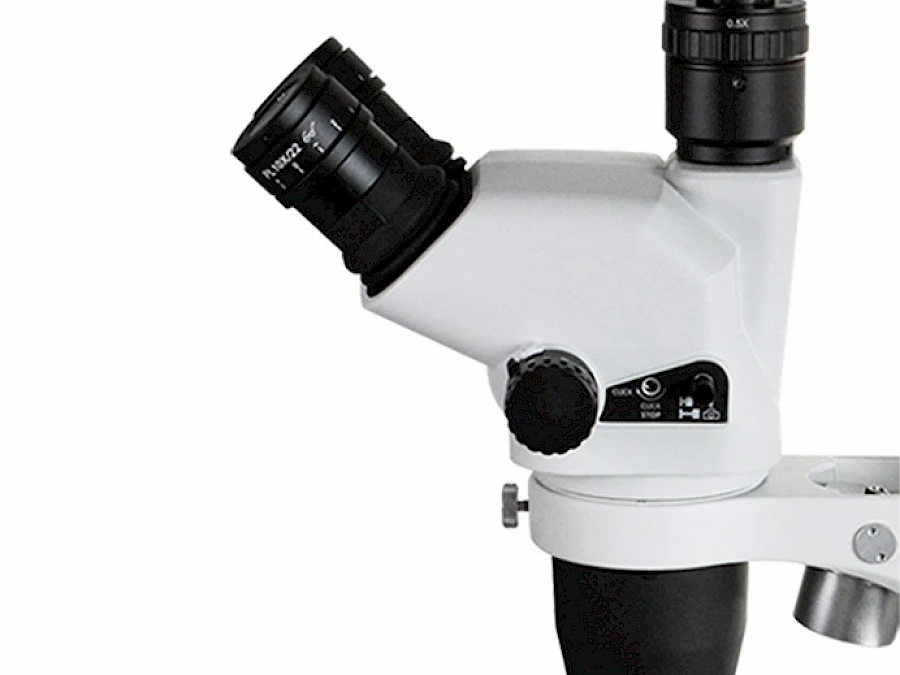

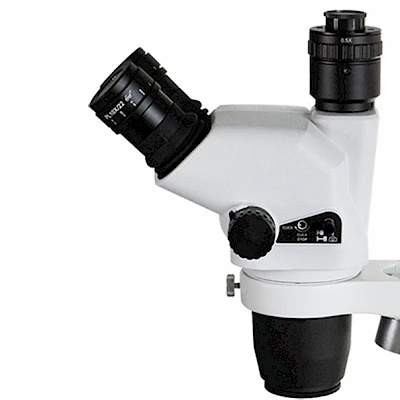

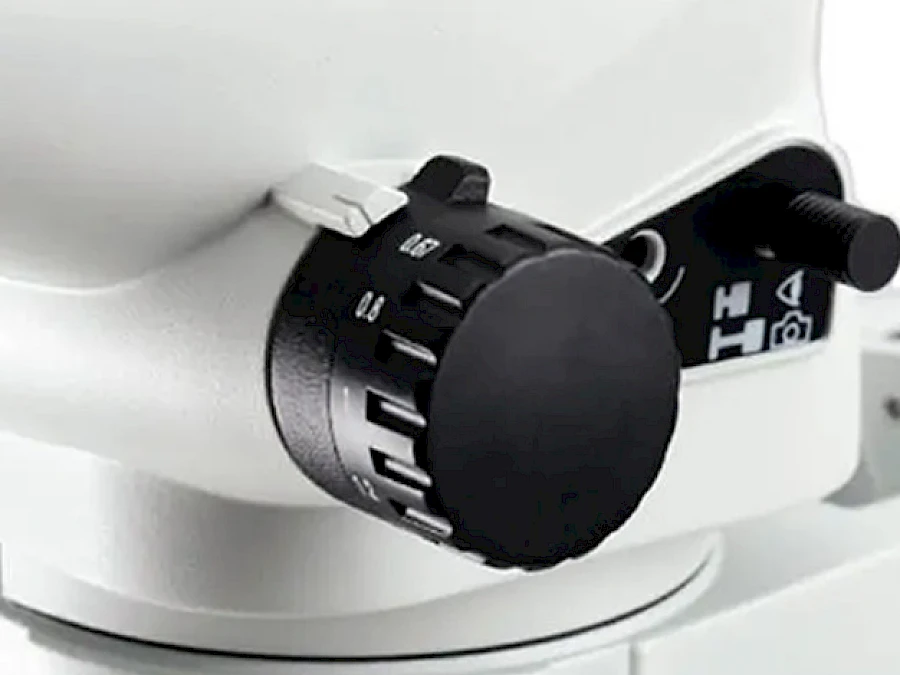

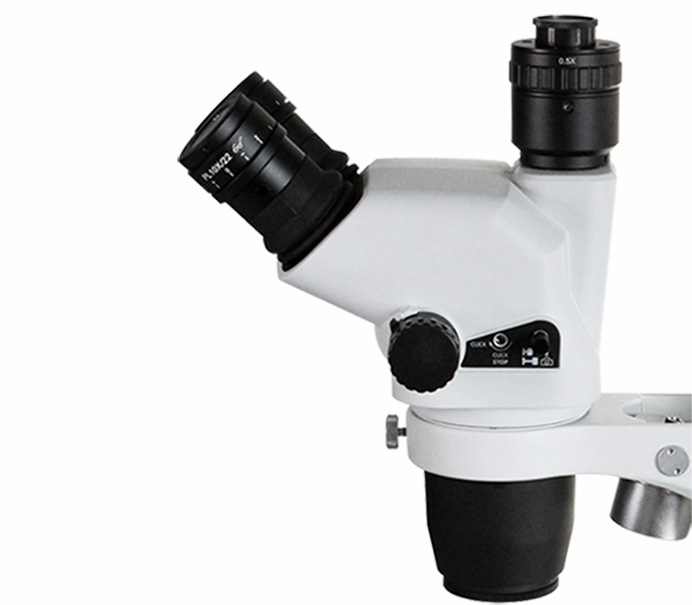

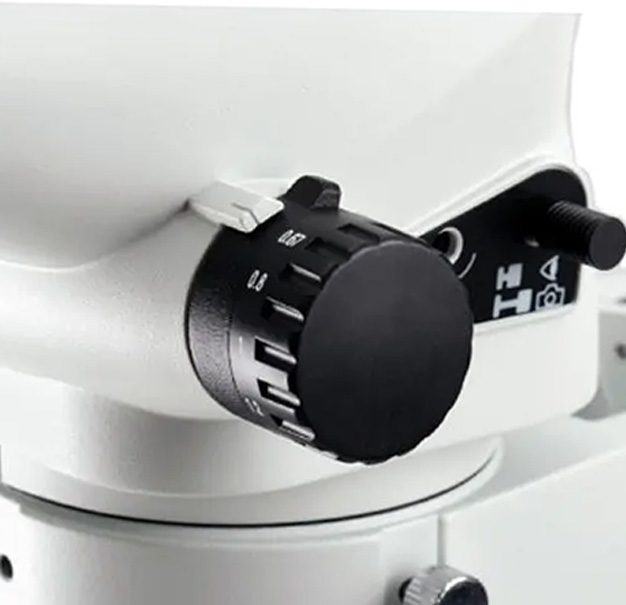

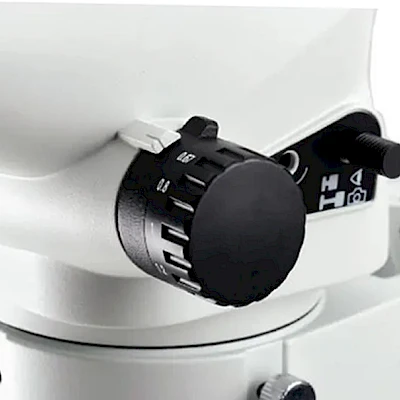

Head & Magnification of TW870AH

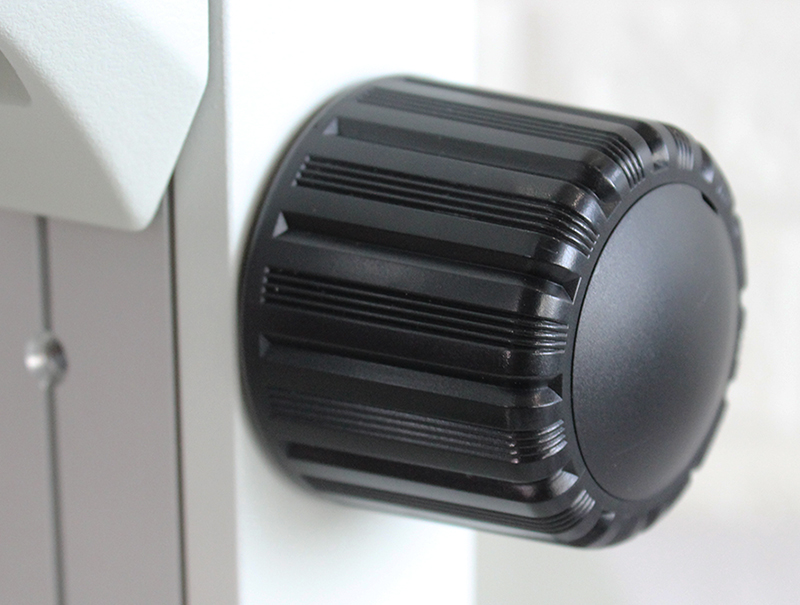

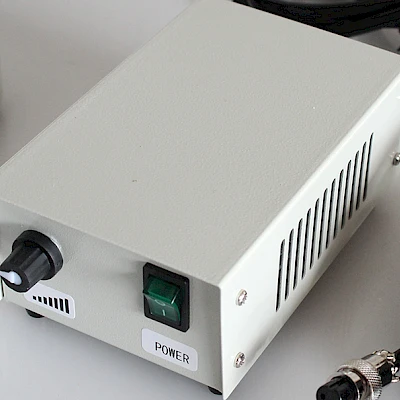

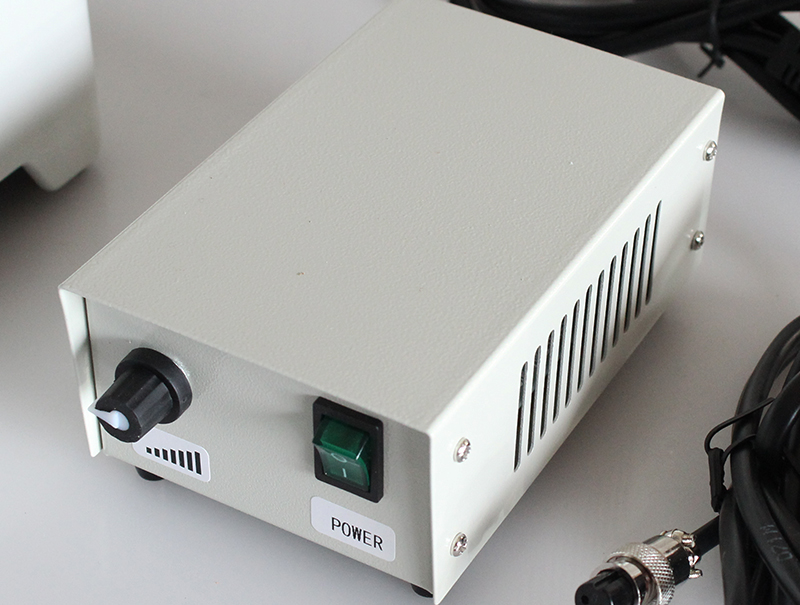

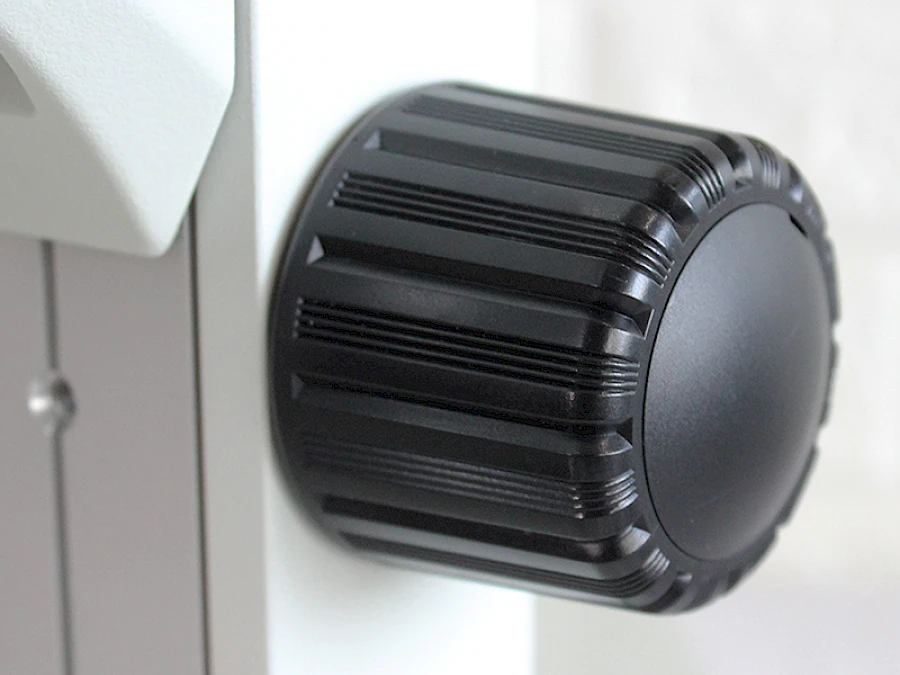

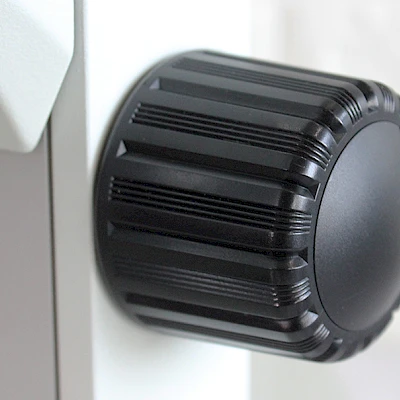

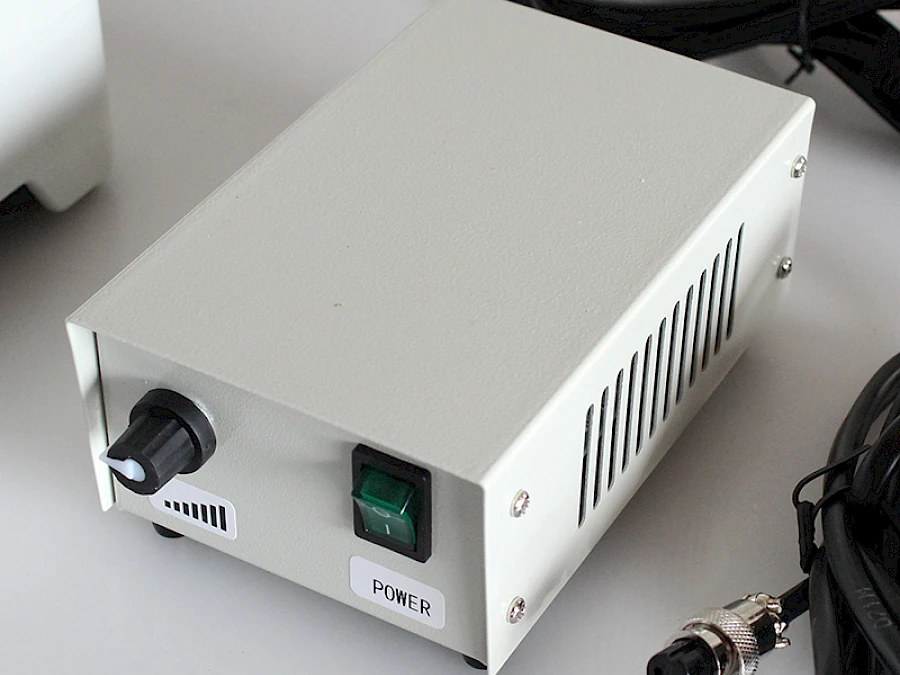

Focus Knob & Power Box of TW870AH

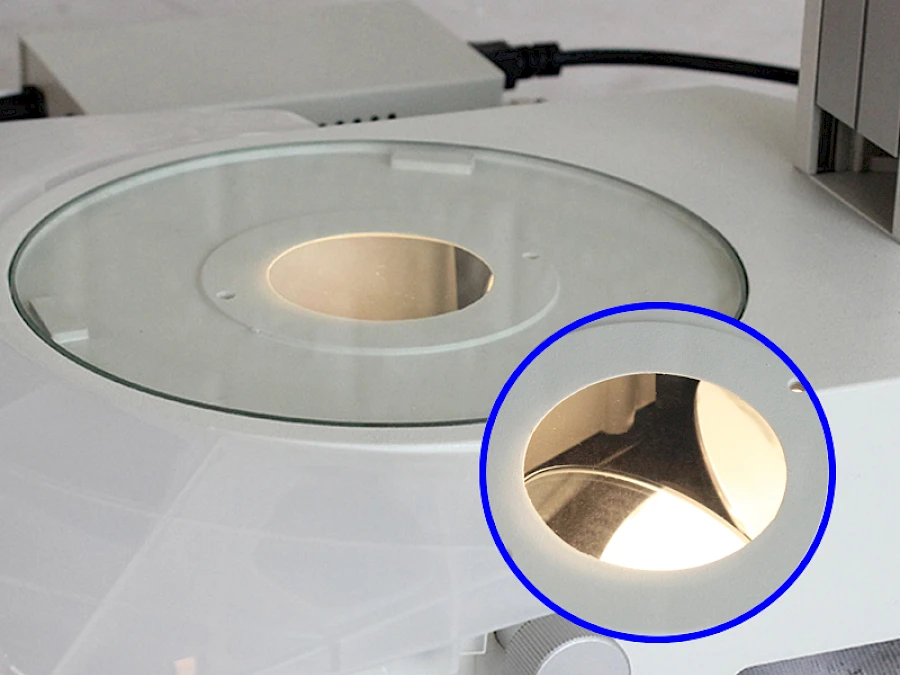

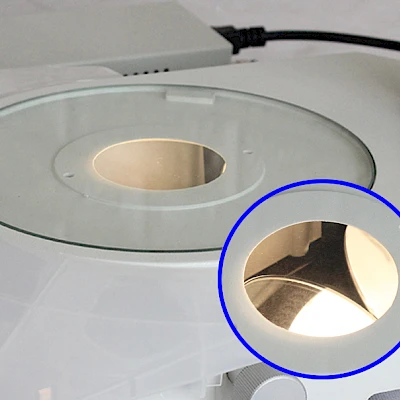

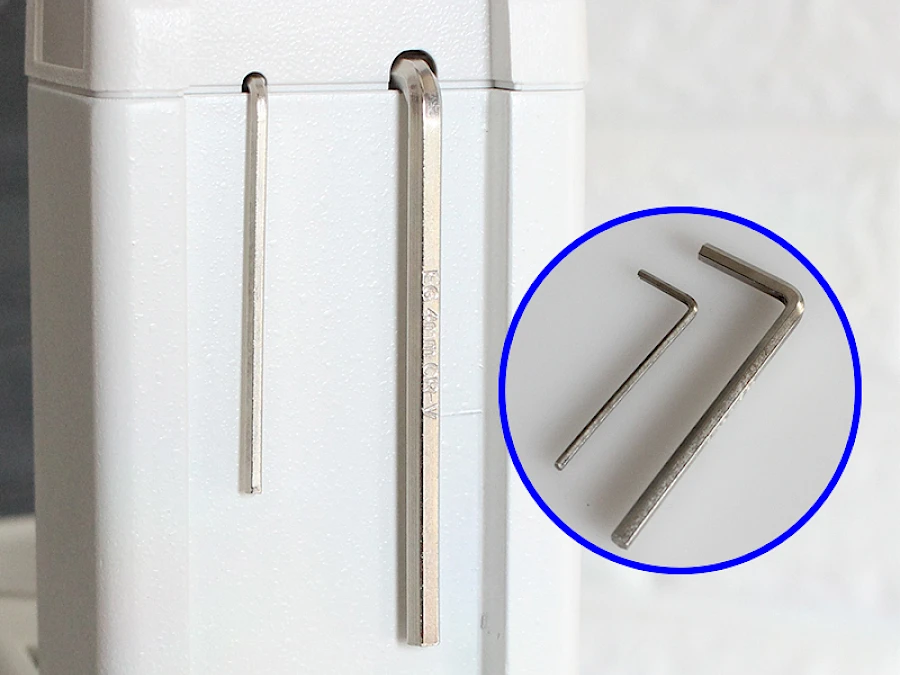

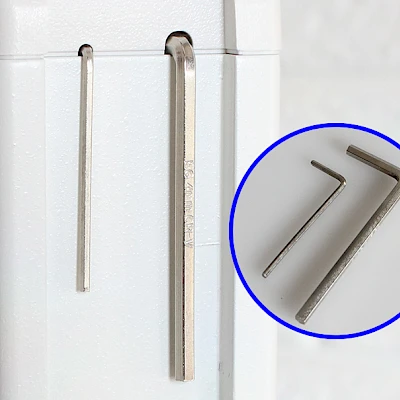

Portable Tool & Transmitted Illumination of TW870AH

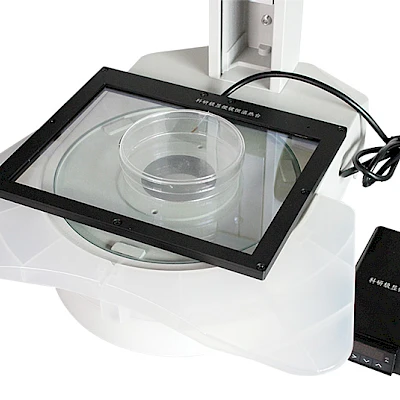

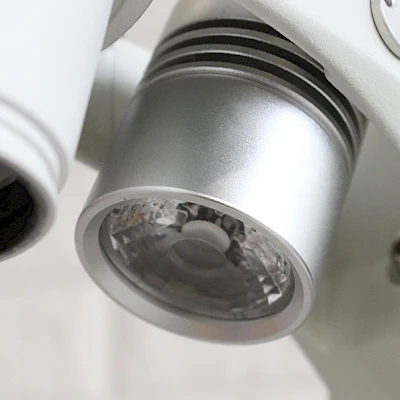

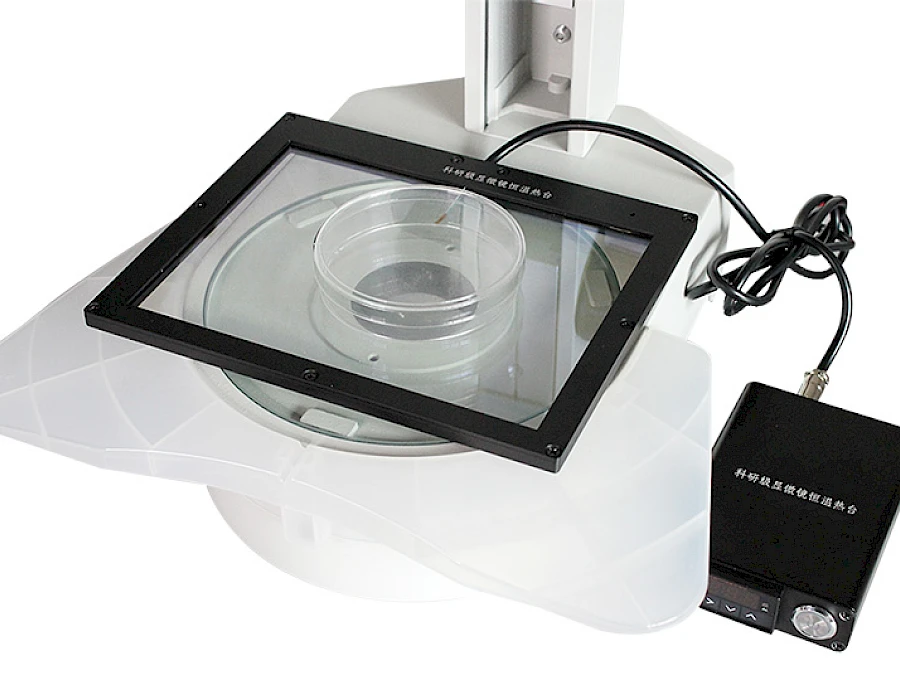

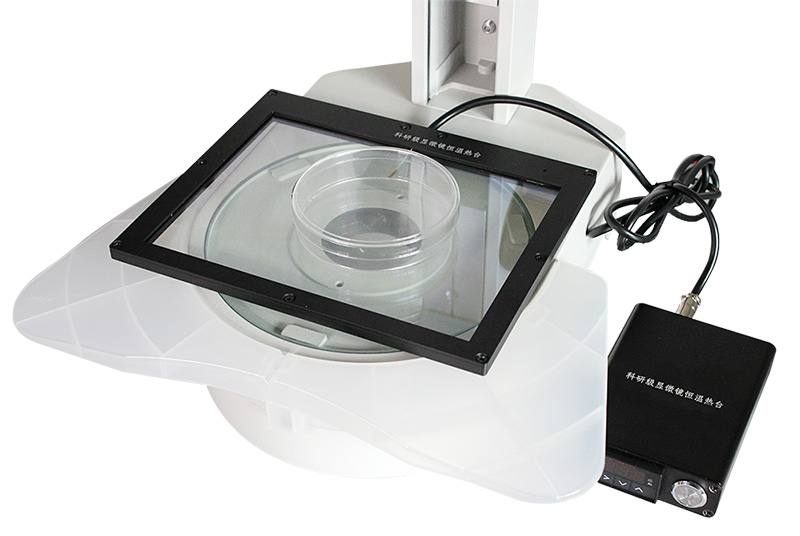

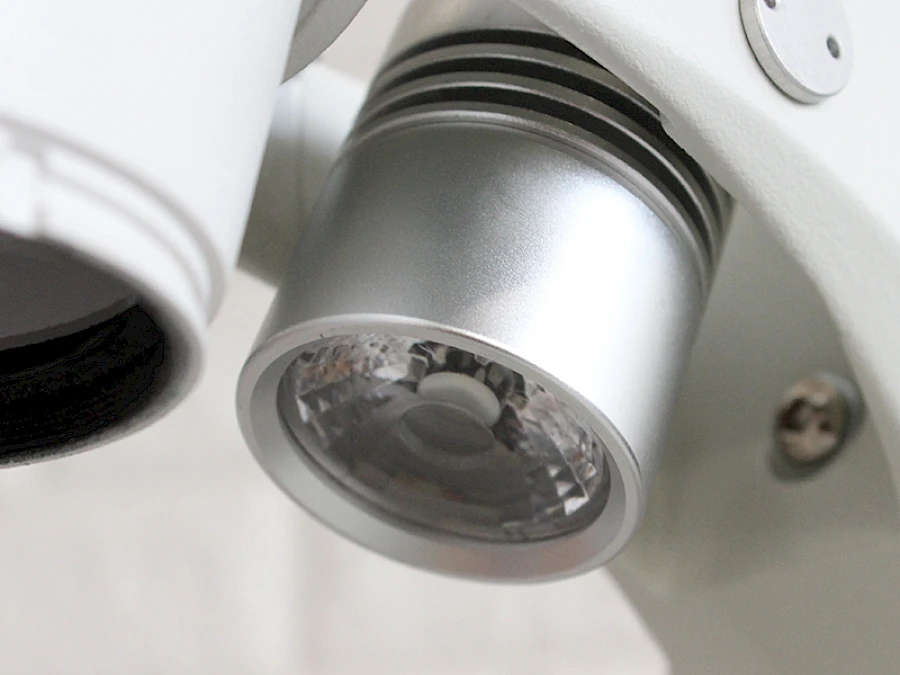

Reflected & Heating Stage of TW870AH

Fish Roe Samples under Different Light Sources

Specification for Microscope:
Eyepiece	High eye point WF10X(Φ22mm) adjustable diopter (micrometer can be installed)
Objective	0.67X-4.5X Ratio: 1:6.7
Total Mag.	6.7X/90X (with Optional: 0.5X,2X Aux.)
Head	Trinocular, 45°inclined, with built-in interlock mechanism, fixed eyepiece barrel, fixed frame and multiplier mechanism and magnification limit function design
Interpupillary distance	52-76mm
Working Distance	105mm
Vertical track height	300mm
Holder diameter	76mm
Stage	With both-side Armrest
Work plate size & material	Φ180x6mm clear glass
Illuminator	Transmitted and reflected light source, brightness adjustable, LED light source and 6V 20W Halogen Lamp, 3W LED
Contrast methods	Oblique; 360° rotating mirror; polished mirror silver metallic frosted for each side
Weight	Net: 6.5KGs; Gross weight: 8KGs
Input Voltage	100-240V AC 50/60Hz
Specification for Heating Stage:
Rated Power	220V
Tem. Range	0℃~60℃
Accuracy	Accuracy ±0.1℃.
Tem. Set Mode	Digital Display
Controller	high-precision temperature transmitter
Stage Size	21.517.50.8cm (Glass size: 18.7140.11cm)
Output Voltage	72W
