TZ6745 Series

TZ6745 Series Trinocular Continuous Zoom Stereo Microscope with vertical phototube / C-mount

6.7X-45X Continuous Zoom, connect camera, clarity image, industrial inspection & measurement

Core Features

trinocular stereo microscope
super high resolution
high precision
maximum working distance
suit for various fields: Industry, Biology
brand-new optical design provides the best reproduction and true color image

Configurations

super high resolution

trinoculoar

long working distance

best reproduction

true color image

industrial research

biological research

Request Quotation Email Phone Back to Products

TZ6745-PS

TZ6745 Series Stereo Zoom Microscope is fully coated optical system with super high resolution. It is characterized by brand-new optical design, the best reproduction and true color image. It is ideally suited for industrial as well as for biological research where high precision, maximum working distance and large field coverage is required.

TZ6745-PS

TZ6745-PRT

TZ6745-PL

TZ6745-PLGL

TZ6745-PI

TZ6745-PI2L

TZ6745-PIGL

TZ6745-PF

TZ6745-PF2L

TZ6745-AS

TZ6745-AL

TZ6745-AI

TZ6745-AI2L

TZ6745-AF

TZ6745-AF2L

TZ6745-SU1

TZ6745-SU2

TZ6745-SU3

TZ6745-DU1

TZ6745-DU2

TZ6745-RU1

TZ6745-U2

TZ6745-PS

TZ6745-PRT

TZ6745-PL

TZ6745-PLGL

TZ6745-PI

TZ6745-PI2L

TZ6745-PIGL

TZ6745-PF

TZ6745-PF2L

TZ6745-U2

Item	Stand	Illumination	Focusing Mount

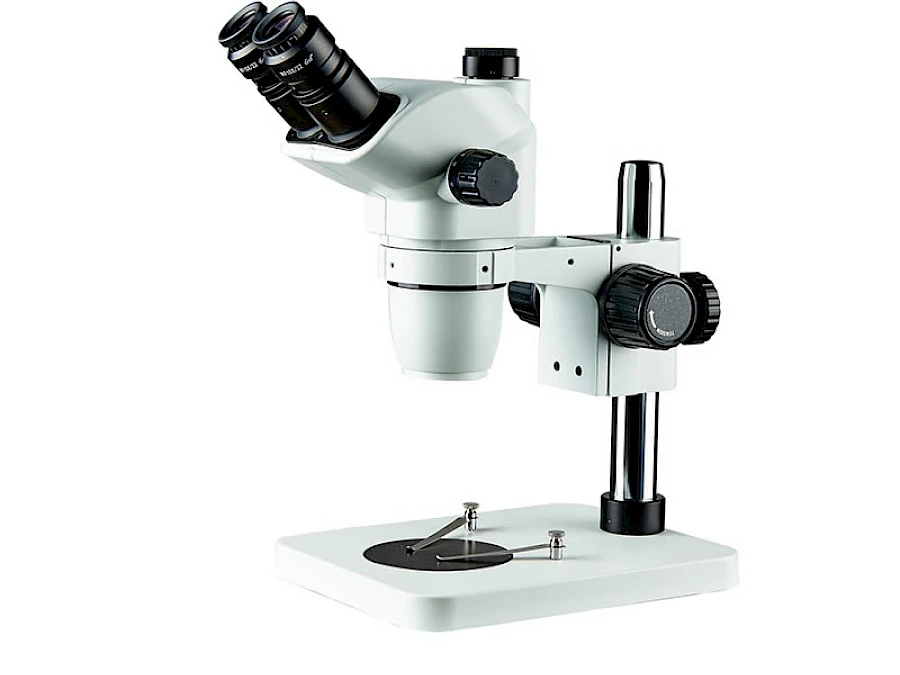

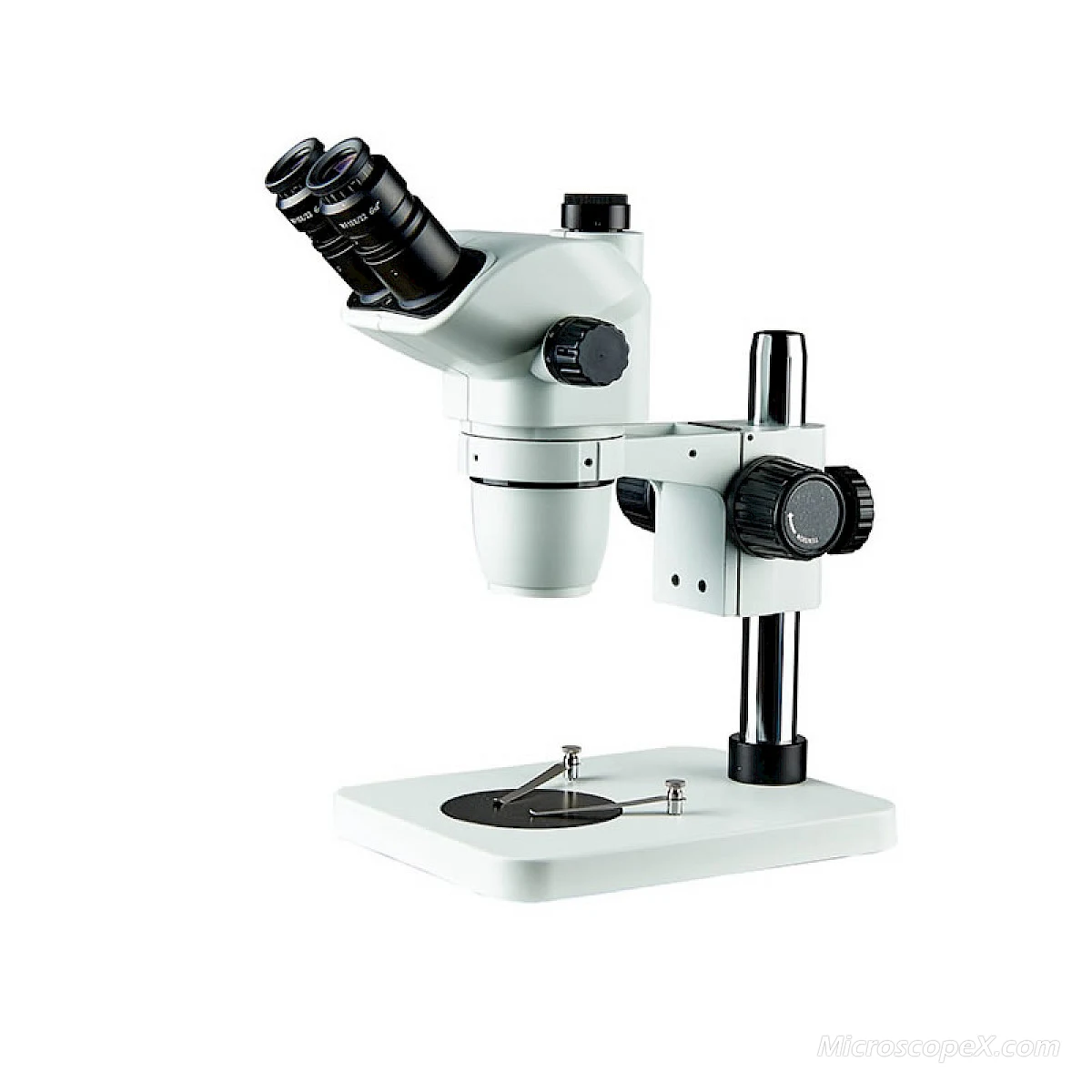

TZ6745-PS	PS pole stand	Fluorescent lamp, LED ring light	C1 focusing mount with vertical working distance 50mm

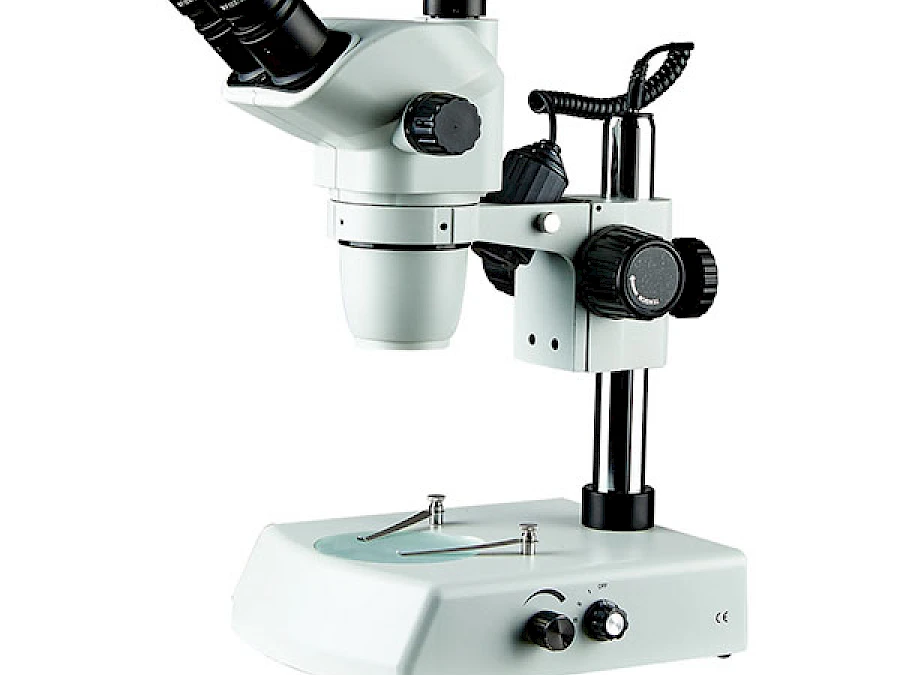

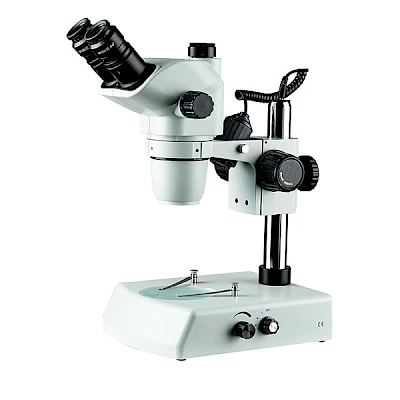

TZ6745-PRT	PRT pole stand	Transmitted and reflected 12v/15w halogen, 7w fluorescent, 5v/3w LED illumination	C1 focusing mount with vertical working distance 50mm

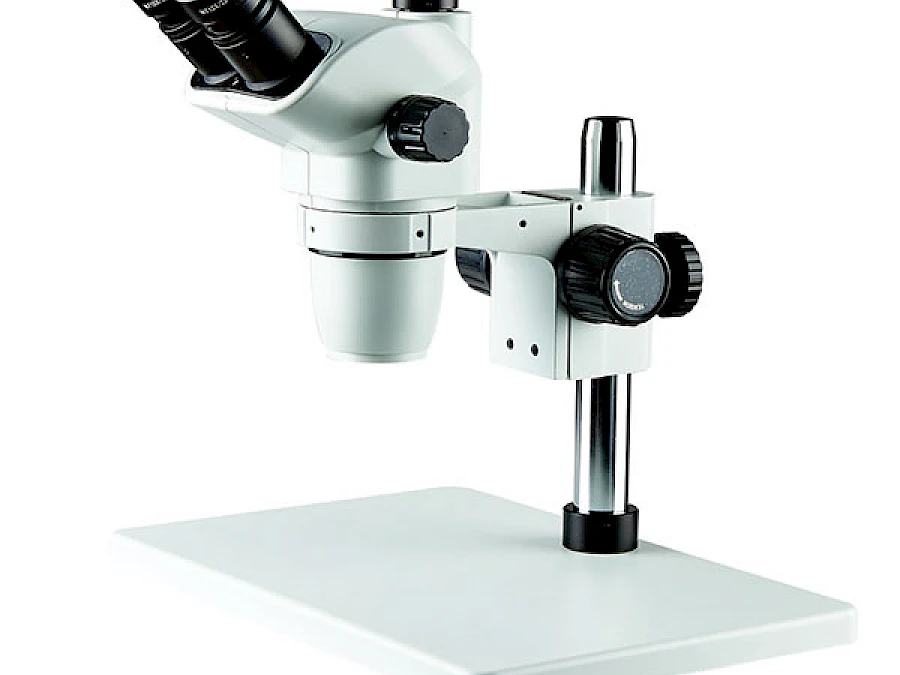

TZ6745-PL	PL pole stand	Fluorescent lamp, LED ring light	C1 focusing mount with vertical working distance 50mm

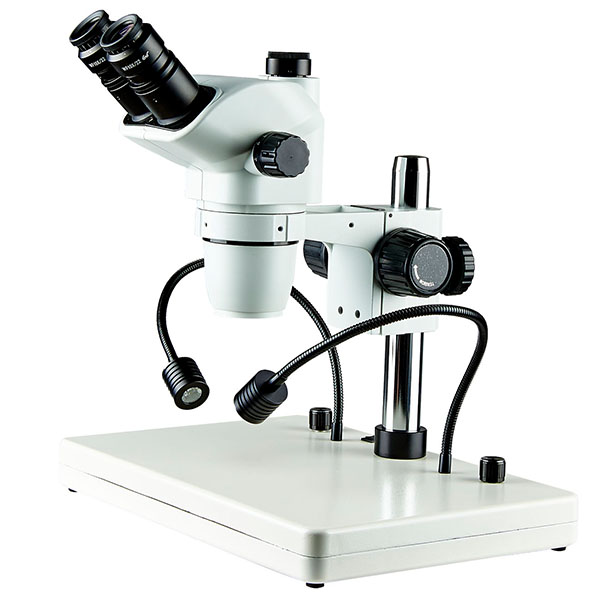

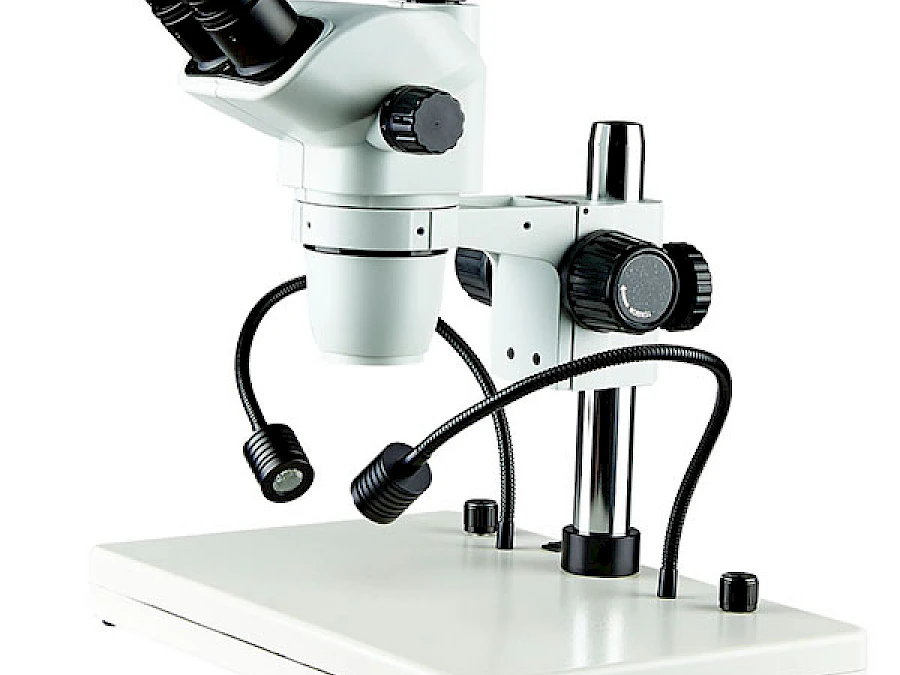

TZ6745- PLGL	PLGL pole stand	Double gooseneck LED illumination with independent switches and adjustable intensity	C1 focusing mount with vertical working distance 50mm

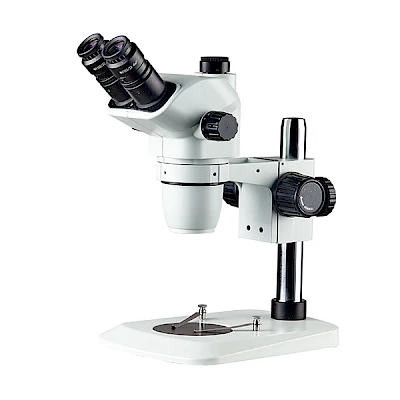

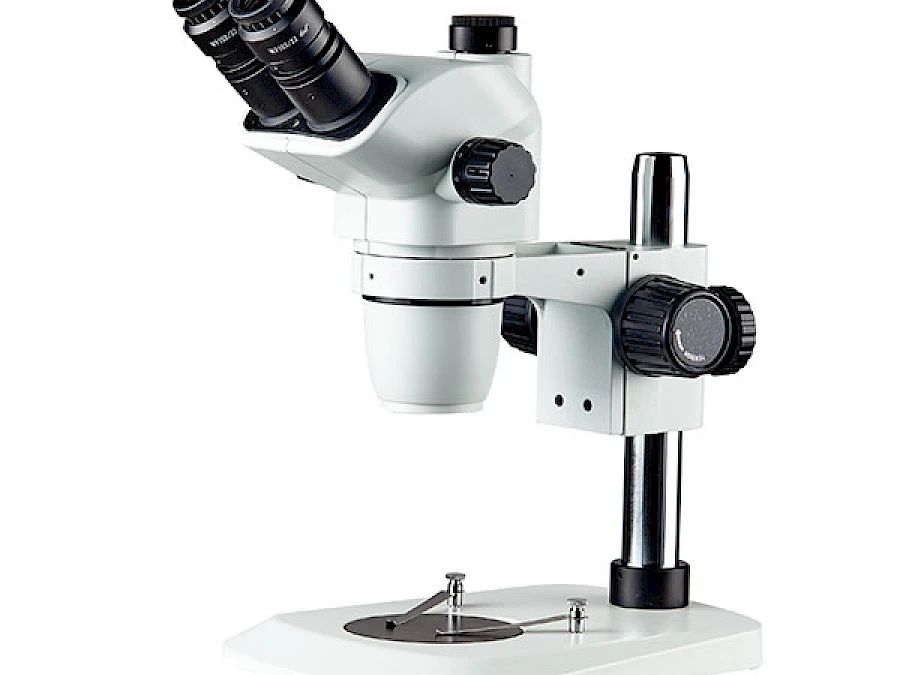

TZ6745- PI	PI pole stand	Fluorescent lamp, LED ring light	C1 focusing mount with vertical working distance 50mm

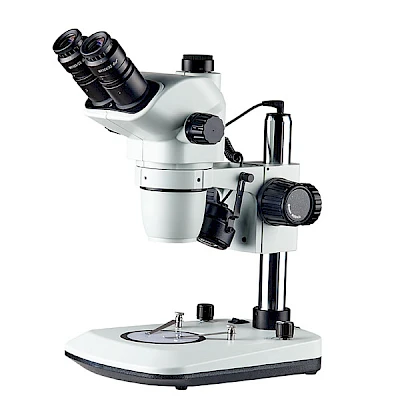

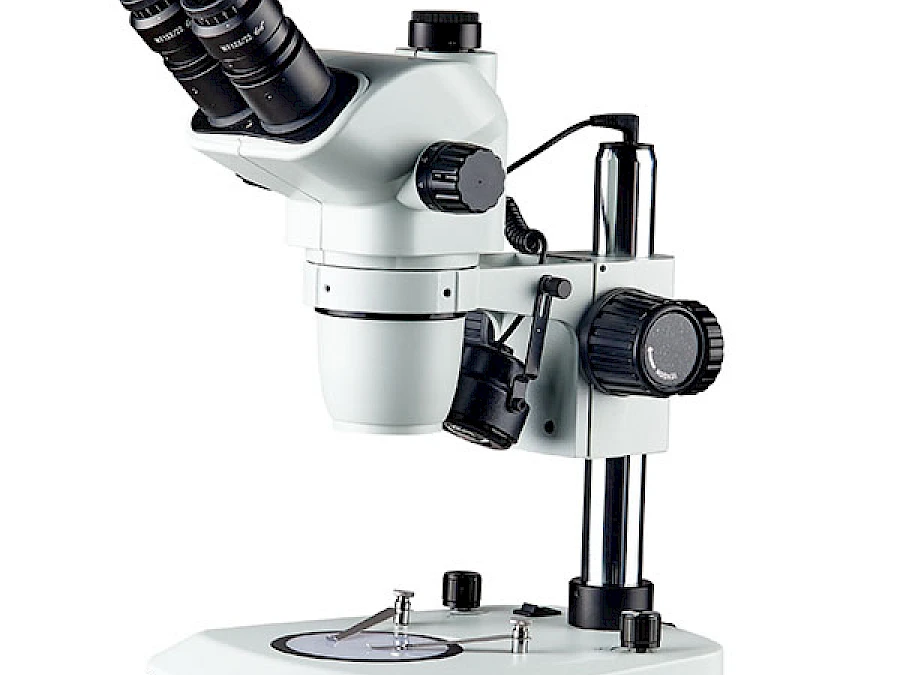

TZ6745-PI2L	PI2L pole stand	Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity	C1 focusing mount with vertical working distance 50mm

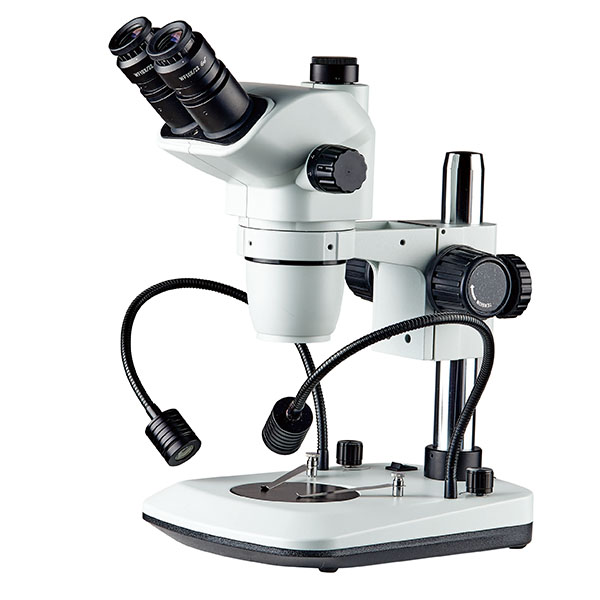

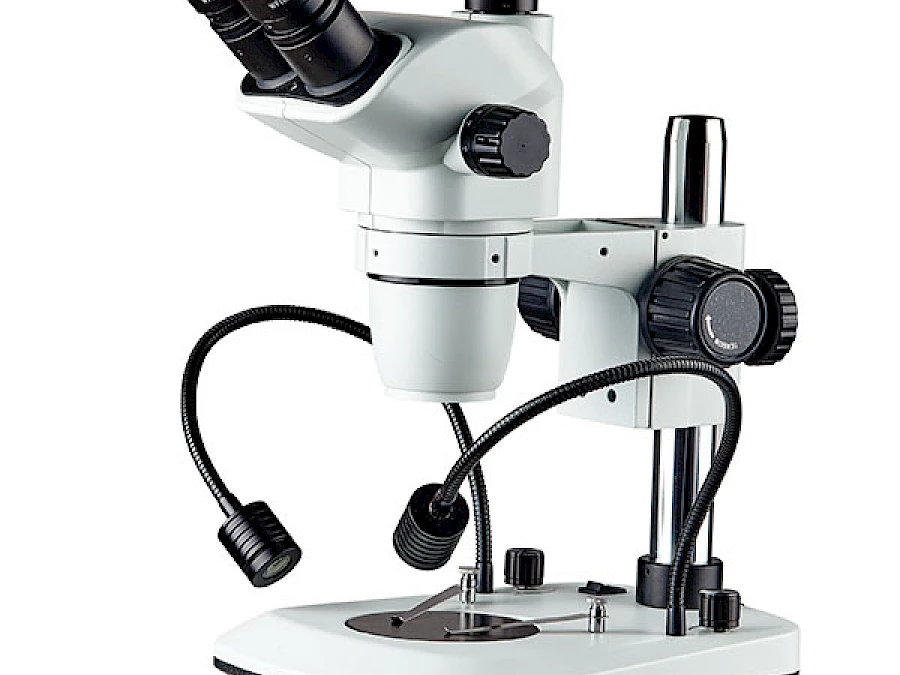

TZ6745-PIGL	PIGL pole stand	Double gooseneck LED illumination with independent switches and adjustable intensity	C1 focusing mount with vertical working distance 50mm

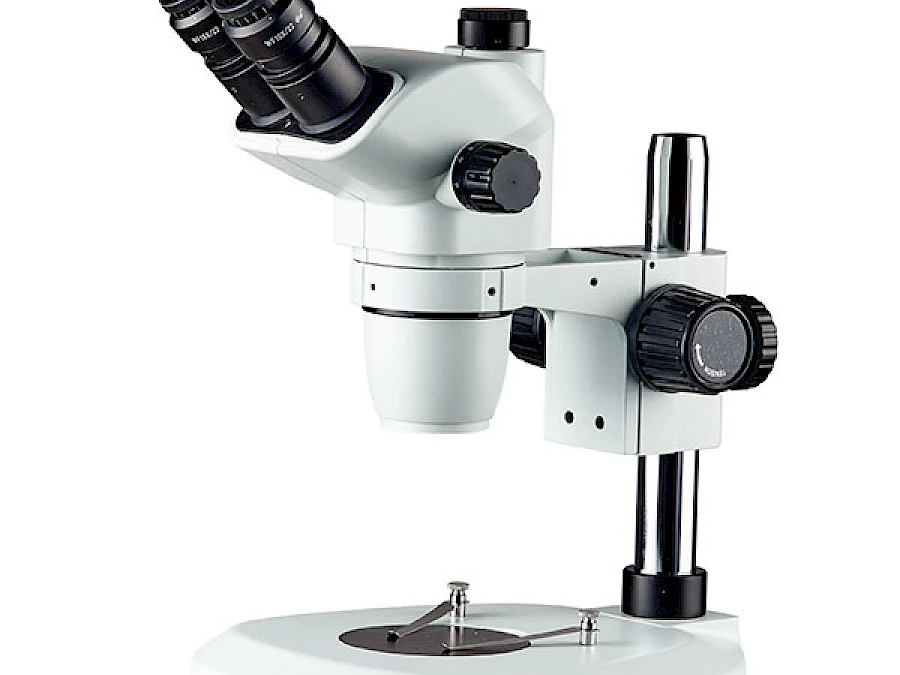

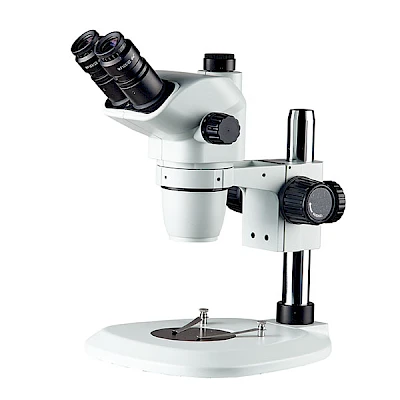

TZ6745-PF	PF fan base pole stand	Fluorescent lamp, LED ring light	C1 focusing mount with vertical working distance 50mm

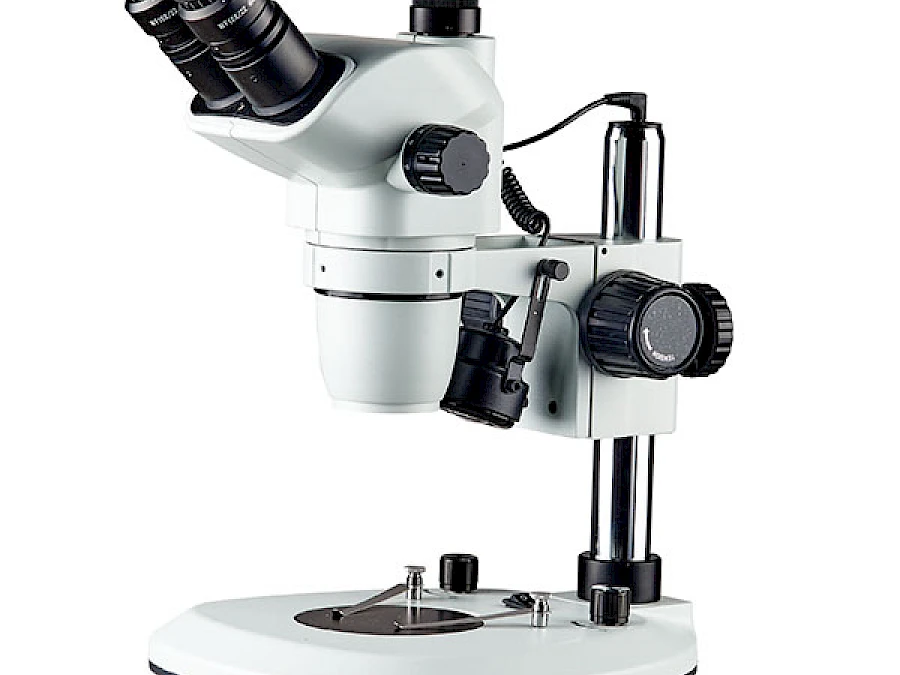

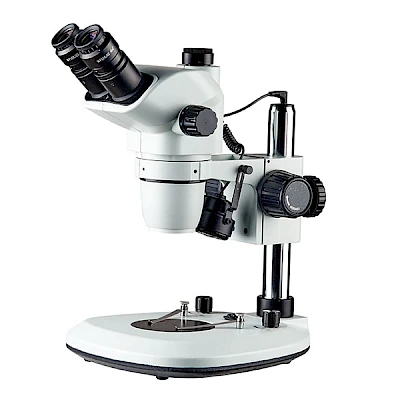

TZ6745-PF2L	PF2L fan base pole stand	Transmitted and reflected LED illumination with independent switches and adjustable intensity	C1 focusing mount with vertical working distance 50mm

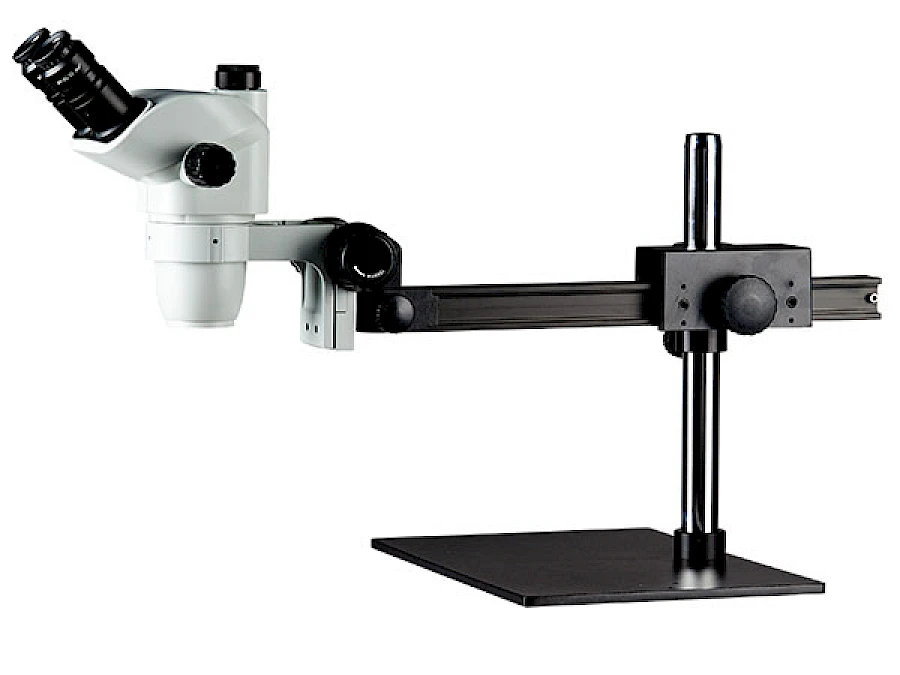

TZ6745-U2	U2 pole stand	Fluorescent lamp, LED ring light	C3 focusing mount with vertical working distance 50mm

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Other Specification for TZ6745 Pole Stand Series
Eyepiece	Standard		Auxiliary Lens 0.5X		Auxiliary Lens 1.5X		Auxiliary Lens 2X
	W.D. 105mm		W.D. 177mm		W.D. 47mm		W.D. 26mm
	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V
10X/22mm	6.7X	32.8mm	3.4X	65.7mm	10.1X	21.9mm	13.4X	16.4mm
10X/22mm	45.0X	4.9mm	22.5X	9.8mm	67.5X	3.3mm	90.0X	2.4mm
15X/16mm	10.1X	23.9mm	5.0X	47.8mm	15.1X	15.9mm	20.1X	11.9mm
15X/16mm	67.5X	3.6mm	33.8X	7.1mm	101.3X	2.4mm	135.0X	1.8mm
20X/12mm	13.4X	17.9mm	6.7X	38.5mm	20.1X	11.9mm	26.8X	9.0mm
20X/12mm	90.0X	2.7mm	45.0X	5.3mm	135.0X	1.8mm	180.0X	1.3mm
25X/9mm	16.8X	13.4mm	8.4X	26.9mm	25.1X	9.0mm	33.5X	6.7mm
25X/9mm	112.5X	2.0mm	56.3X	4.0mm	168.8X	1.3mm	225.0X	1.0mm
30X/8mm	20.1X	11.9mm	10.1X	23.8mm	30.2X	7.9mm	40.2X	6.0mm
30X/8mm	135.0X	1.8mm	67.5X	3.6mm	202.5X	1.2mm	270.0X	0.9mm
Magnification	6.7X-45X, 3.4X-270X with optional eyepieces and objectives
Eyepiece	WF10X/22mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece	WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
Main Body	Tinocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Main Body	Interpupillary Distance adjustment:54-75mm; Diopter adjustment:±5 diopters
Objective	0.67X-4.5X stereo zoom; Zoom Ratio:6.7:1
Aux Lens	0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Adapter	Provides a vertical phototube, C-mount adapters for CCD camera

TZ6745-AS

TZ6745-AL

TZ6745-AI

TZ6745-AI2L

TZ6745-AF

TZ6745-AF2L

Item	Stand	Illumination

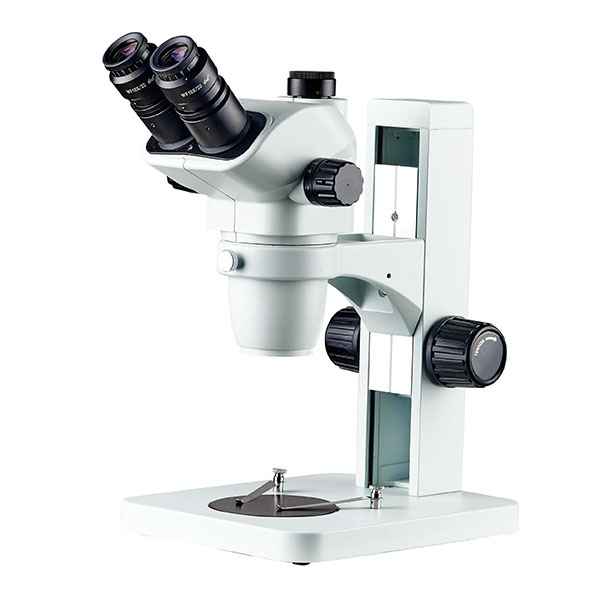

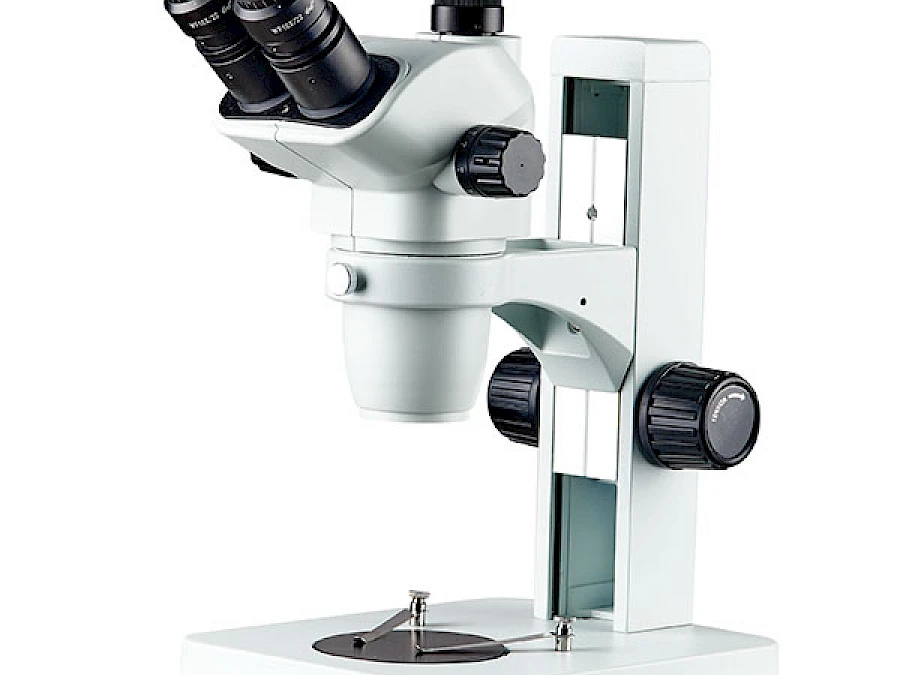

TZ6745-AS	AS track stand	Fluorescent lamp, LED ring light

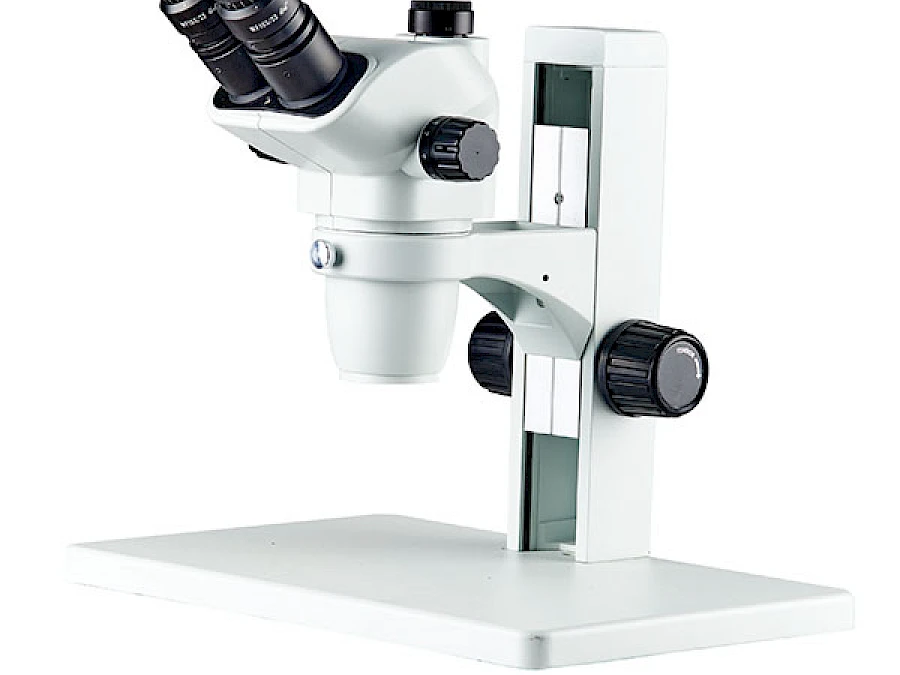

TZ6745- AL	AL track stand	Fluorescent lamp, LED ring light

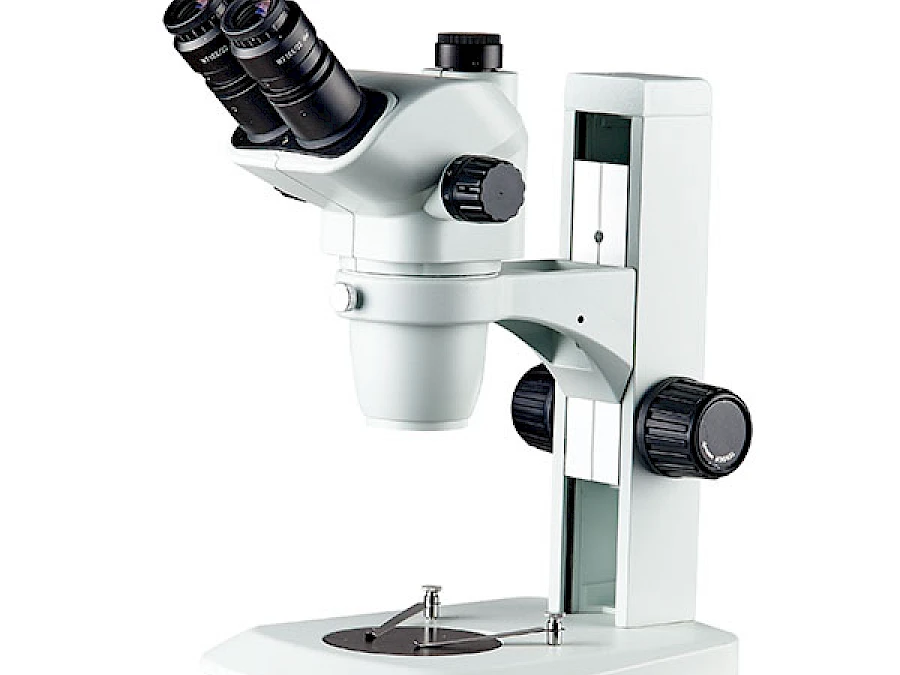

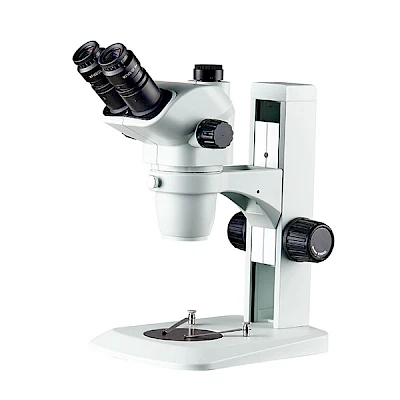

TZ6745- AI	AI track stand	Fluorescent lamp, LED ring light

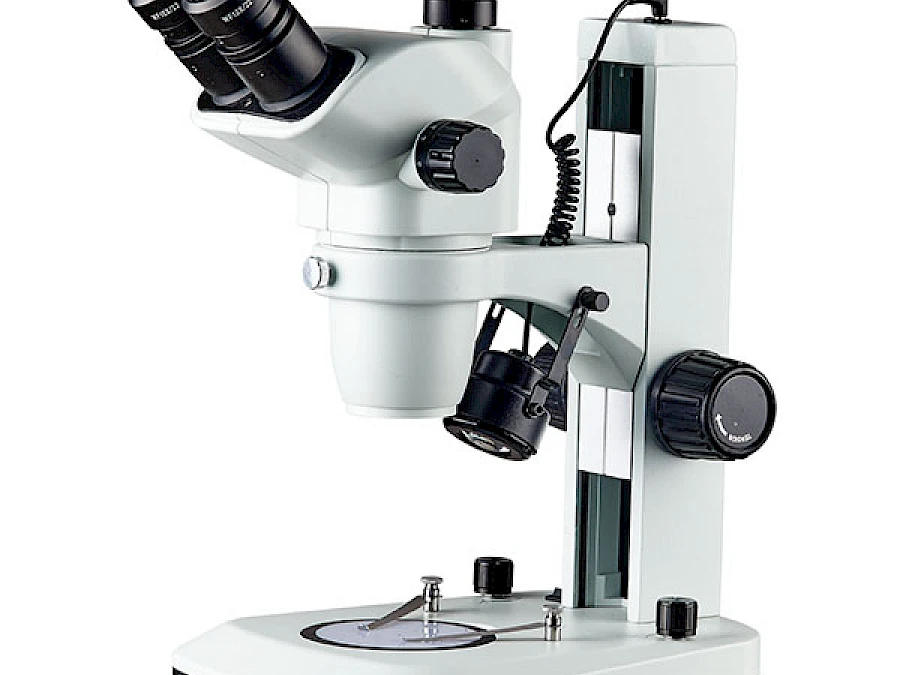

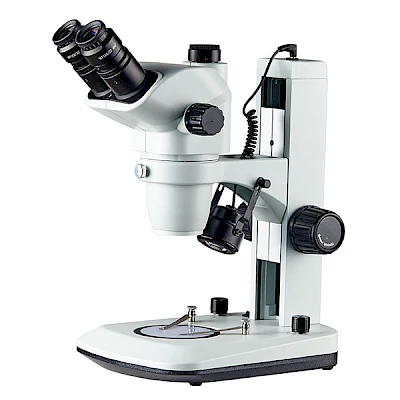

TZ6745- AI2L	AI2L track stand	Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity

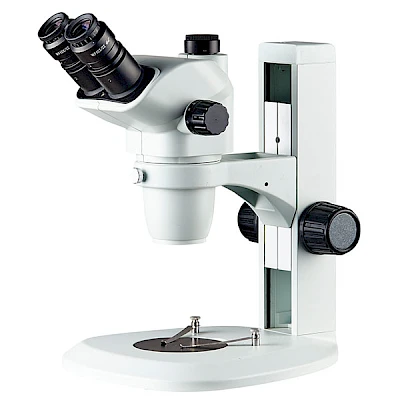

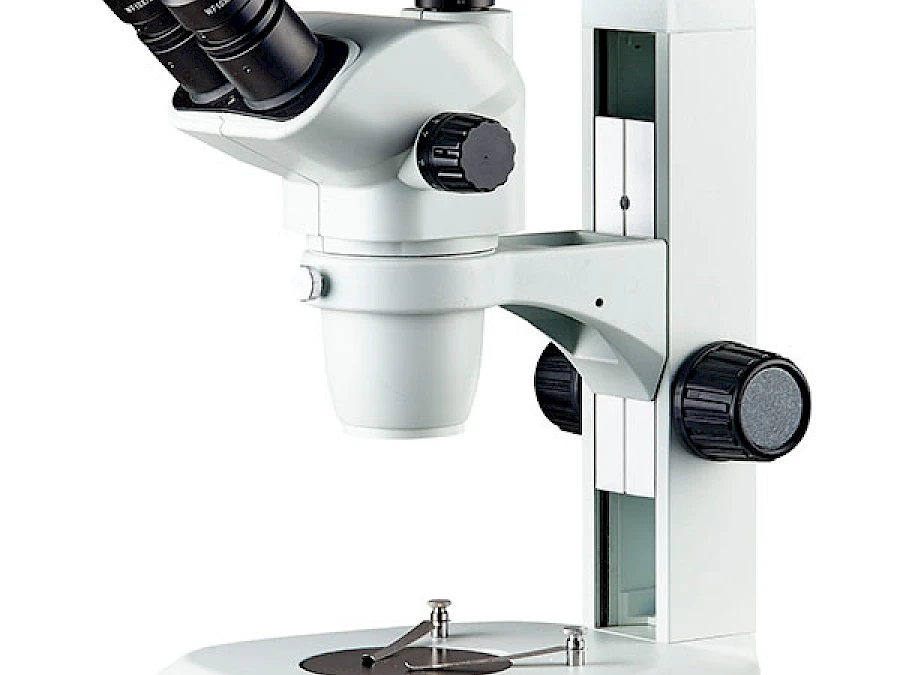

TZ6745- AF	AF fan base track stand	Fluorescent lamp, LED ring light

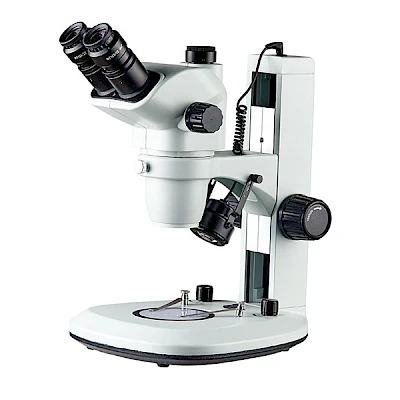

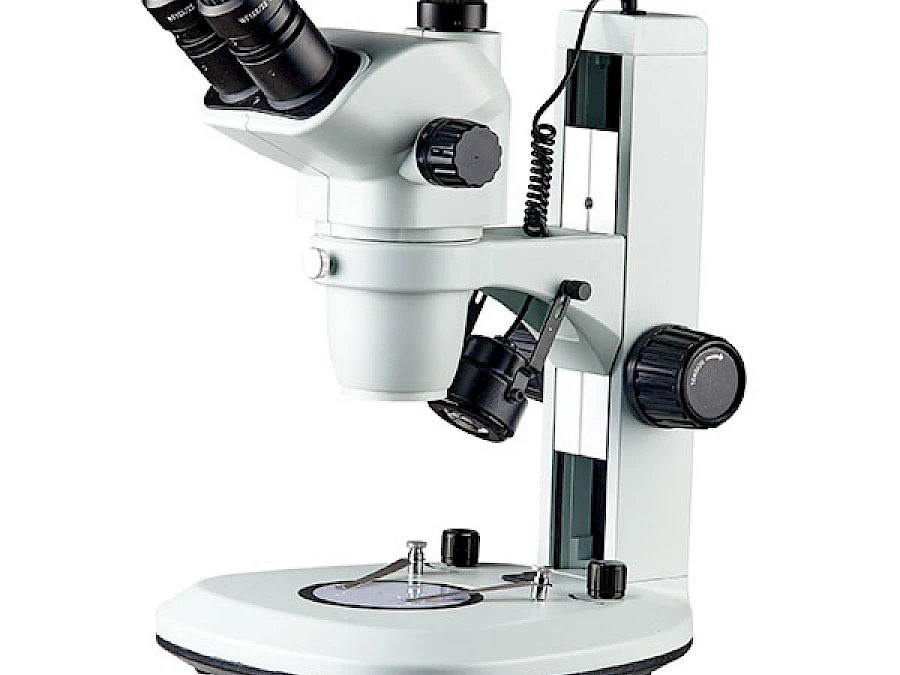

TZ6745-AF2L	AF2L fan base track stand	Transmitted and reflected LED illumination with independent switches and adjustable intensity

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR

Other Specification for TZ6745 Track Stand Series
Eyepiece	Standard		Auxiliary Lens 0.5X		Auxiliary Lens 1.5X		Auxiliary Lens 2X
	W.D. 105mm		W.D. 177mm		W.D. 47mm		W.D. 26mm
	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V
10X/22mm	6.7X	32.8mm	3.4X	65.7mm	10.1X	21.9mm	13.4X	16.4mm
10X/22mm	45.0X	4.9mm	22.5X	9.8mm	67.5X	3.3mm	90.0X	2.4mm
15X/16mm	10.1X	23.9mm	5.0X	47.8mm	15.1X	15.9mm	20.1X	11.9mm
15X/16mm	67.5X	3.6mm	33.8X	7.1mm	101.3X	2.4mm	135.0X	1.8mm
20X/12mm	13.4X	17.9mm	6.7X	38.5mm	20.1X	11.9mm	26.8X	9.0mm
20X/12mm	90.0X	2.7mm	45.0X	5.3mm	135.0X	1.8mm	180.0X	1.3mm
25X/9mm	16.8X	13.4mm	8.4X	26.9mm	25.1X	9.0mm	33.5X	6.7mm
25X/9mm	112.5X	2.0mm	56.3X	4.0mm	168.8X	1.3mm	225.0X	1.0mm
30X/8mm	20.1X	11.9mm	10.1X	23.8mm	30.2X	7.9mm	40.2X	6.0mm
30X/8mm	135.0X	1.8mm	67.5X	3.6mm	202.5X	1.2mm	270.0X	0.9mm
Magnification	6.7X-45X, 3.4X-270X with optional eyepieces and objectives
Eyepiece	WF10X/22mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece	WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
Main Body	Tinocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Main Body	Interpupillary Distance adjustment:54-75mm; Diopter adjustment:±5 diopters
Objective	0.67X-4.5X stereo zoom; Zoom Ratio:6.7:1
Aux Lens	0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Focusing Mount	Focusing track mount with vertical working distance 106mm
Adapter	Provides a vertical phototube, C-mount adapters for CCD camera

TZ6745-SU1

TZ6745-SU2

TZ6745-SU3

TZ6745-DU1

TZ6745-DU2

TZ6745-RU1

Item	Stand	Illumination	Focusing Mount

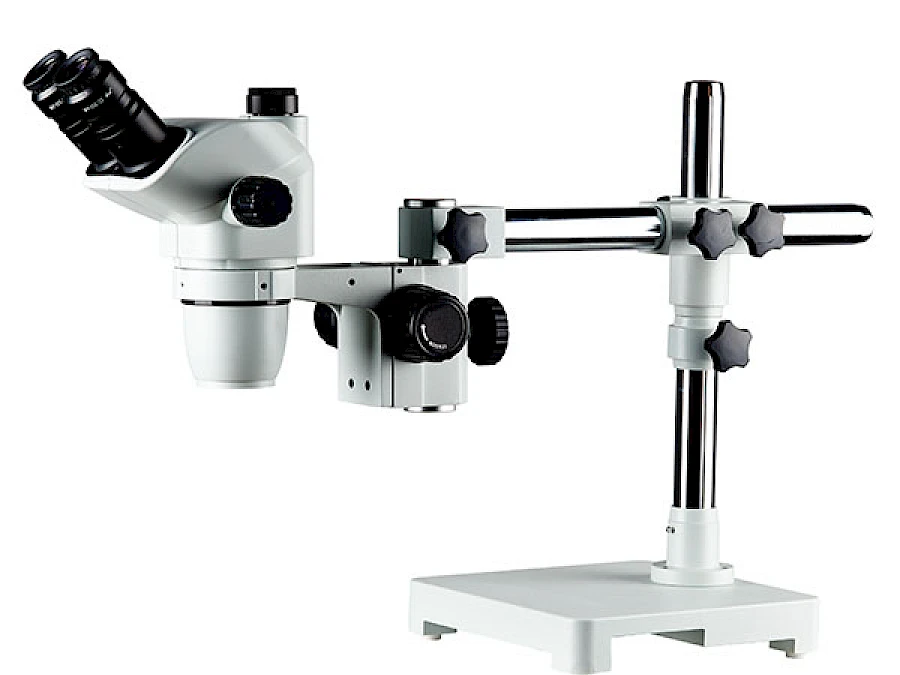

TZ6745-SU1	SU1 boom stand	Fluorescent lamp, LED ring light	C1 focusing mount with vertical working distance 50mm

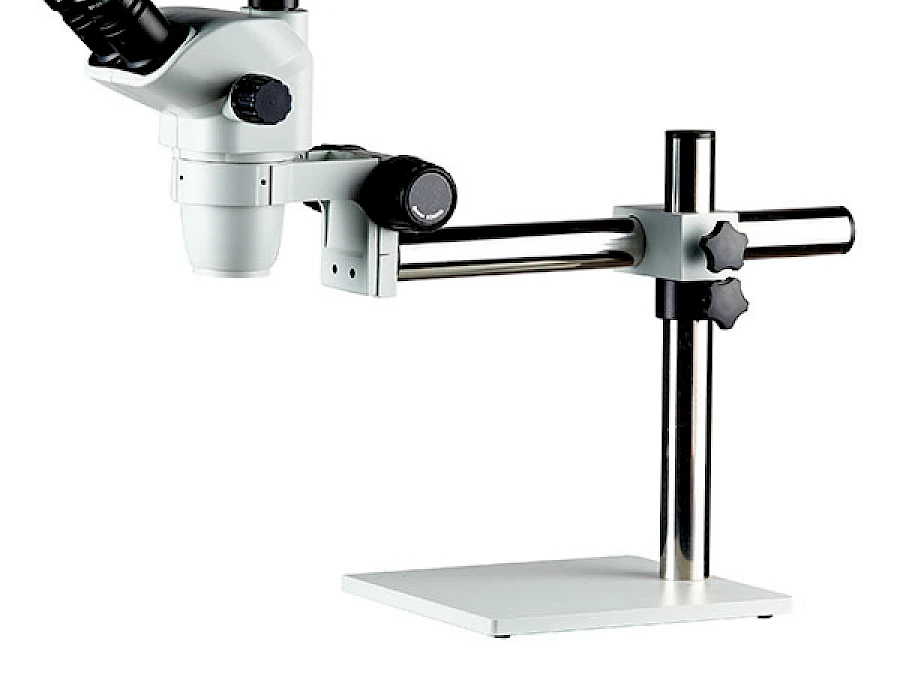

TZ6745- SU2	SU2 boom stand	Fluorescent lamp, LED ring light	C3 focusing mount with vertical working distance 50mm

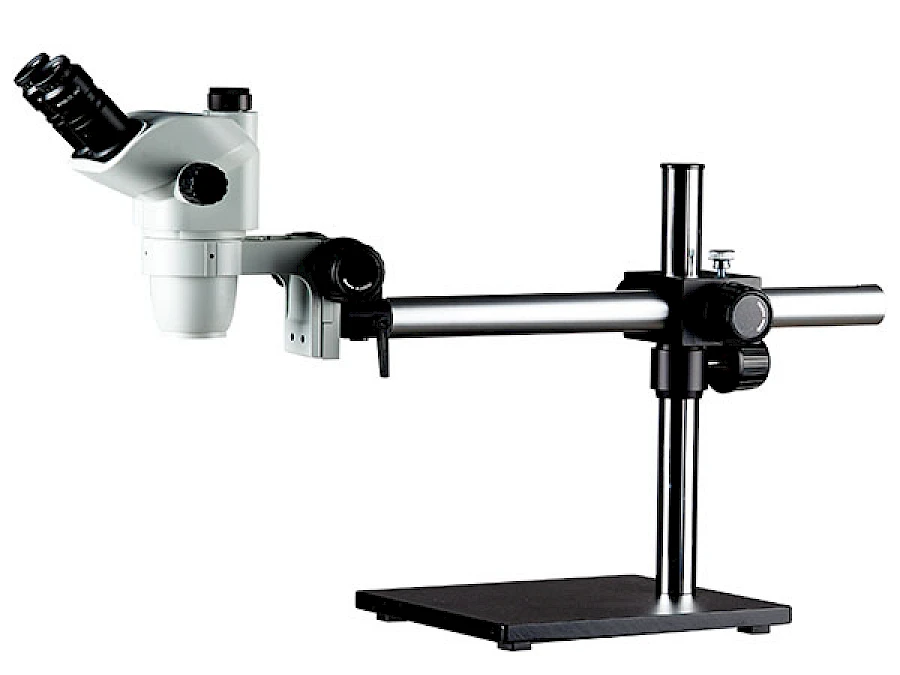

TZ6745- SU3	SU3 boom stand	Fluorescent lamp, LED ring light	C3 focusing mount with vertical working distance 50mm

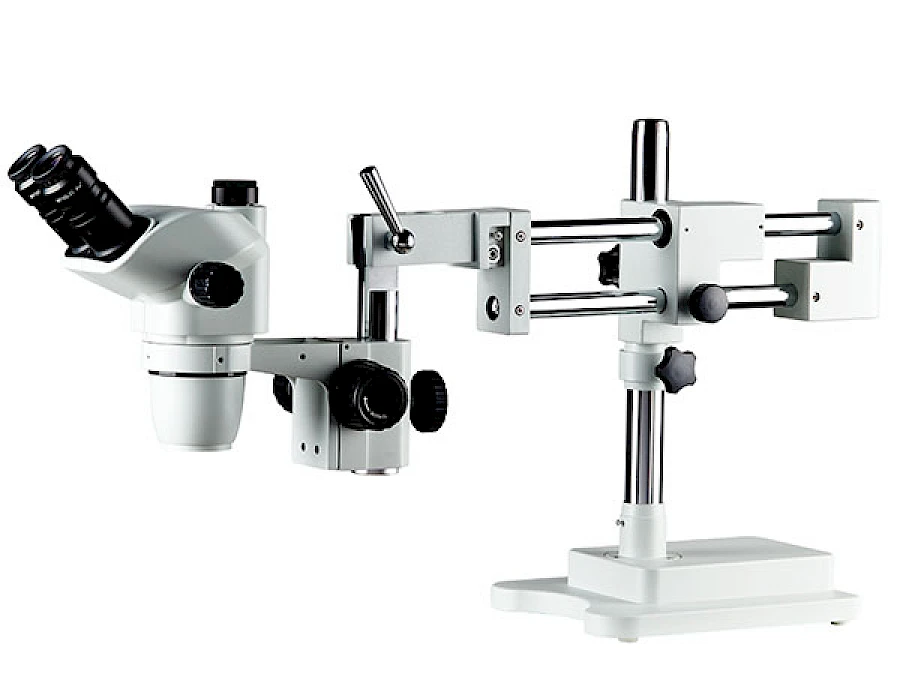

TZ6745- DU1	DU1 boom stand	Fluorescent lamp, LED ring light	C1 focusing mount with vertical working distance 50mm

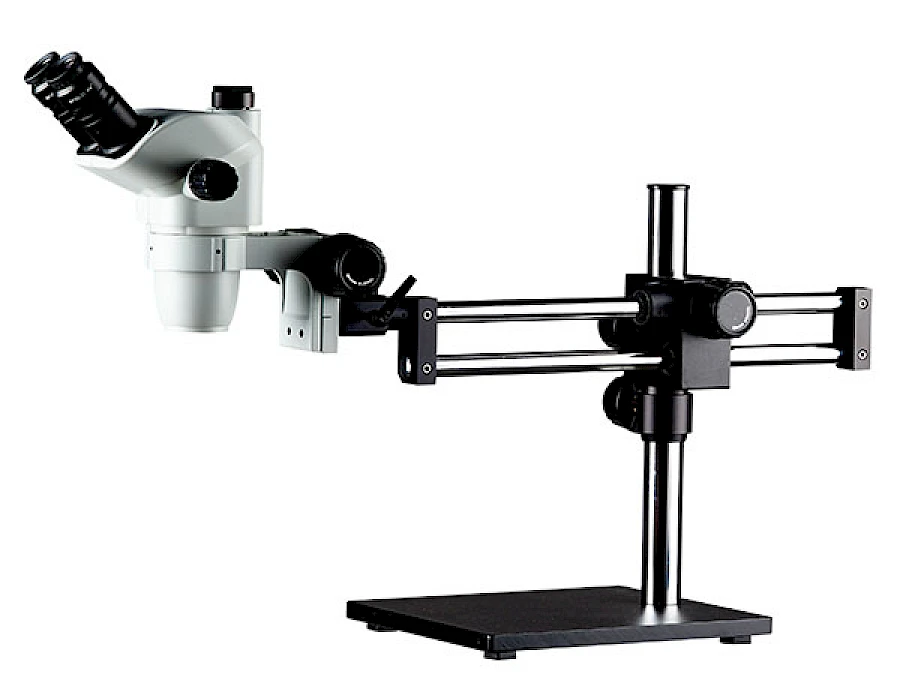

TZ6745- DU2	DU2 boom stand	Fluorescent lamp, LED ring light	C3 focusing mount with vertical working distance 50mm

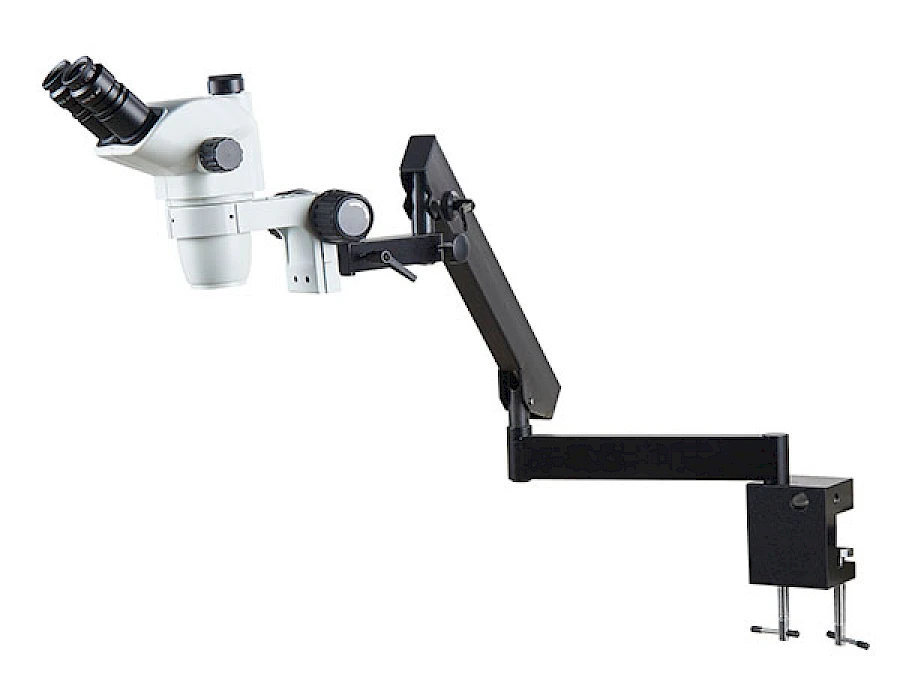

TZ6745-RU1	RU1 boom stand	Fluorescent lamp, LED ring light	C3 focusing mount with vertical working distance 50mm

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Other Specification for TZ6745 Boom Stand Series
Eyepiece	Standard		Auxiliary Lens 0.5X		Auxiliary Lens 1.5X		Auxiliary Lens 2X
	W.D. 105mm		W.D. 177mm		W.D. 47mm		W.D. 26mm
	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V
10X/22mm	6.7X	32.8mm	3.4X	65.7mm	10.1X	21.9mm	13.4X	16.4mm
10X/22mm	45.0X	4.9mm	22.5X	9.8mm	67.5X	3.3mm	90.0X	2.4mm
15X/16mm	10.1X	23.9mm	5.0X	47.8mm	15.1X	15.9mm	20.1X	11.9mm
15X/16mm	67.5X	3.6mm	33.8X	7.1mm	101.3X	2.4mm	135.0X	1.8mm
20X/12mm	13.4X	17.9mm	6.7X	38.5mm	20.1X	11.9mm	26.8X	9.0mm
20X/12mm	90.0X	2.7mm	45.0X	5.3mm	135.0X	1.8mm	180.0X	1.3mm
25X/9mm	16.8X	13.4mm	8.4X	26.9mm	25.1X	9.0mm	33.5X	6.7mm
25X/9mm	112.5X	2.0mm	56.3X	4.0mm	168.8X	1.3mm	225.0X	1.0mm
30X/8mm	20.1X	11.9mm	10.1X	23.8mm	30.2X	7.9mm	40.2X	6.0mm
30X/8mm	135.0X	1.8mm	67.5X	3.6mm	202.5X	1.2mm	270.0X	0.9mm
Magnification	6.7X-45X, 3.4X-270X with optional eyepieces and objectives
Eyepiece	WF10X/22mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece	WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
Main Body	Tinocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Main Body	Interpupillary Distance adjustment:54-75mm; Diopter adjustment:±5 diopters
Objective	0.67X-4.5X stereo zoom; Zoom Ratio:6.7:1
Aux Lens	0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Adapter	Provides a vertical phototube, C-mount adapters for CCD camerax
