TZW6565 Series

TZW6565 Series 2X~260X WF10X/22mm Stereo Microscope with LED Ring Light Source

Trinocular Head, Standard 6.5X-65X Mag., Continuous Zoom, Double Boom Stand Base, Phone Repairing & Soldering Inspection

Core Features

WF10X22 Eyepiece, 0.65X~6.5X Objective Zoom
Provide crystal clear sharp images with high resolution
Remains clear and sharp images throughout the whole zoom range
Widely used in electronic industry, educational demonstration and agricultural research

Configurations

high resolution

good depth

6.5X-65X

2X-260X

optional eyepieces & objectives

optional stand bases

Request Quotation Email Phone Back to Products

TZW6565 Series Stereo Zoom Microscope can provide crystal clear sharp images with high resolution and good depth within a broad field of view. Once brought in focus, images remain clear and sharp throughout the whole zoom range. It is widely used in electronic industry, educational demonstration and agricultural research for micro-object observation, inspection and measurement.

TZW6565-PS

TZW6565-PRT

TZW6565-PL

TZW6565-PLH

TZW76565-PI

TZW6565-PF

TZW6565-PF2L

TZW6565-AF

TZW6565-SU1

TZW6565-SU2

TZW6565-DU1

TZW6565-RU1

TZW76565-RU2

TZW6565-RU3

TZW6565-PS

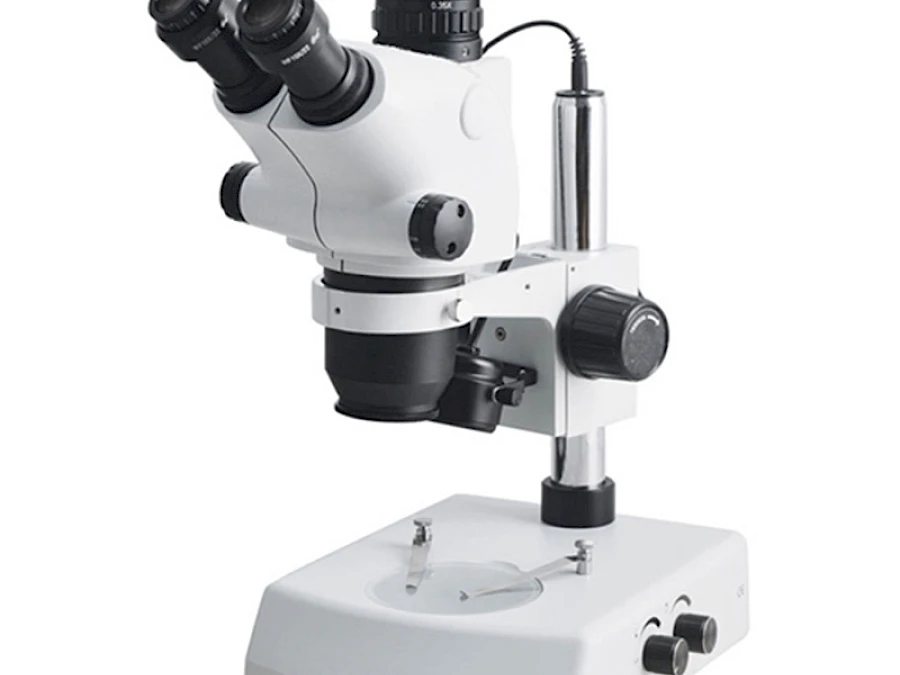

TZW6565-PRT

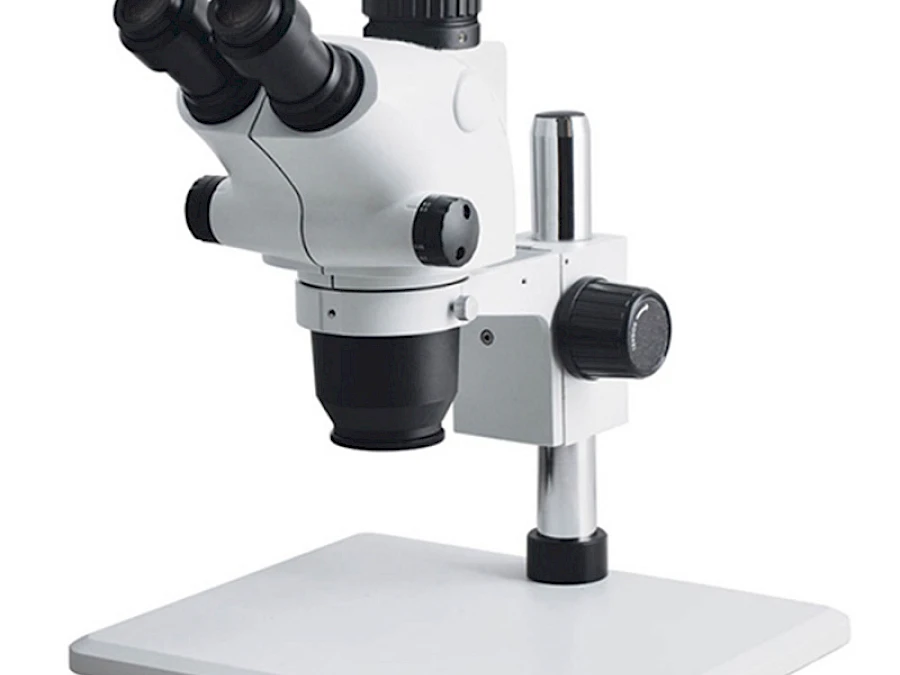

TZW6565-PL

TZW6565-PLH

TZW76565-PI

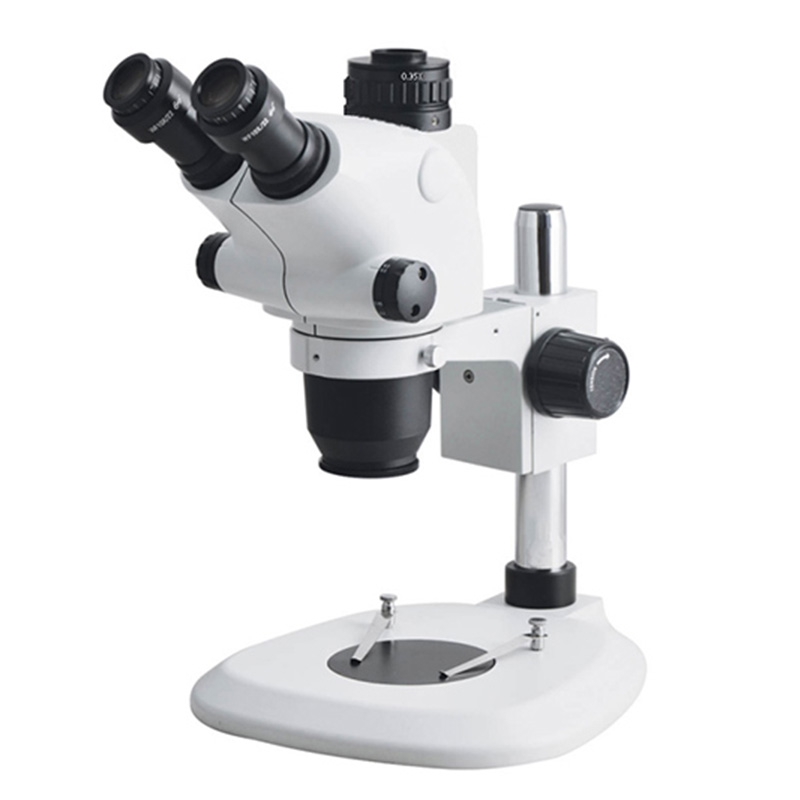

TZW6565-PF

TZW6565-PF2L

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Item	Stand	Illumination

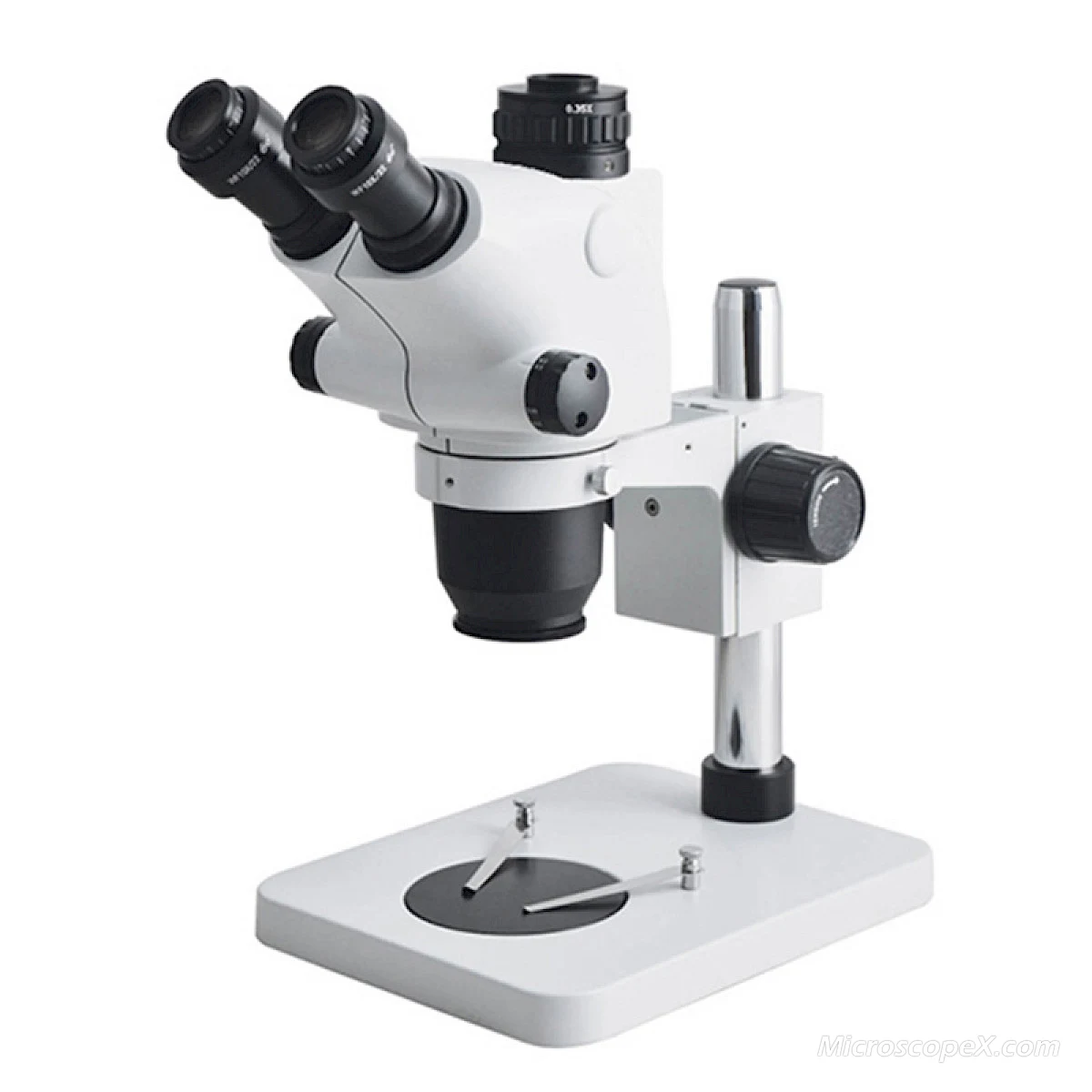

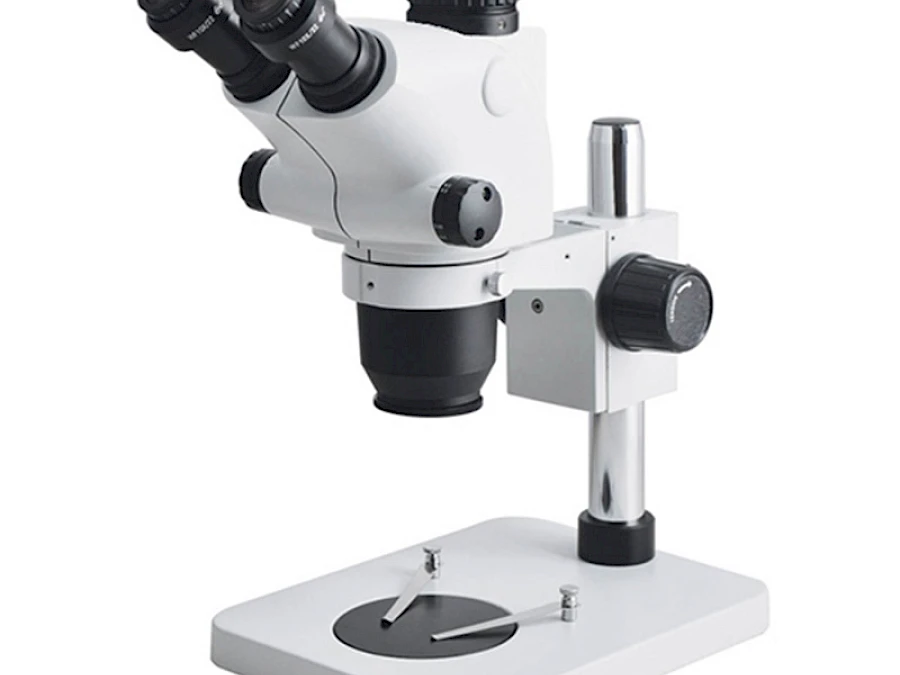

TZW6565-PS	PS pole stand	LED ring light

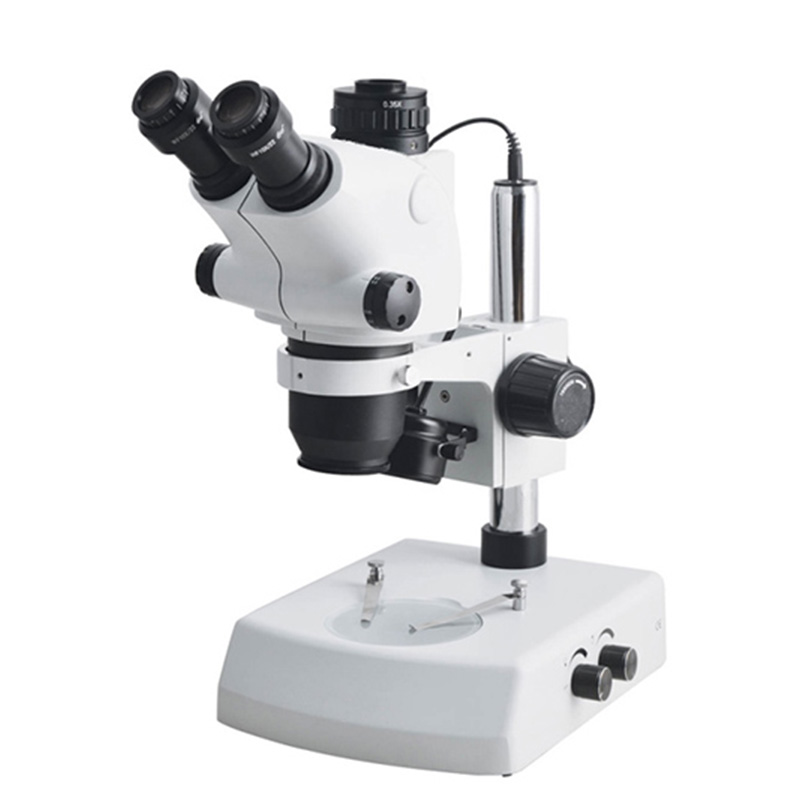

TZW6565-PRT	PRT pole stand	Transmitted and reflected 3w LED illumination

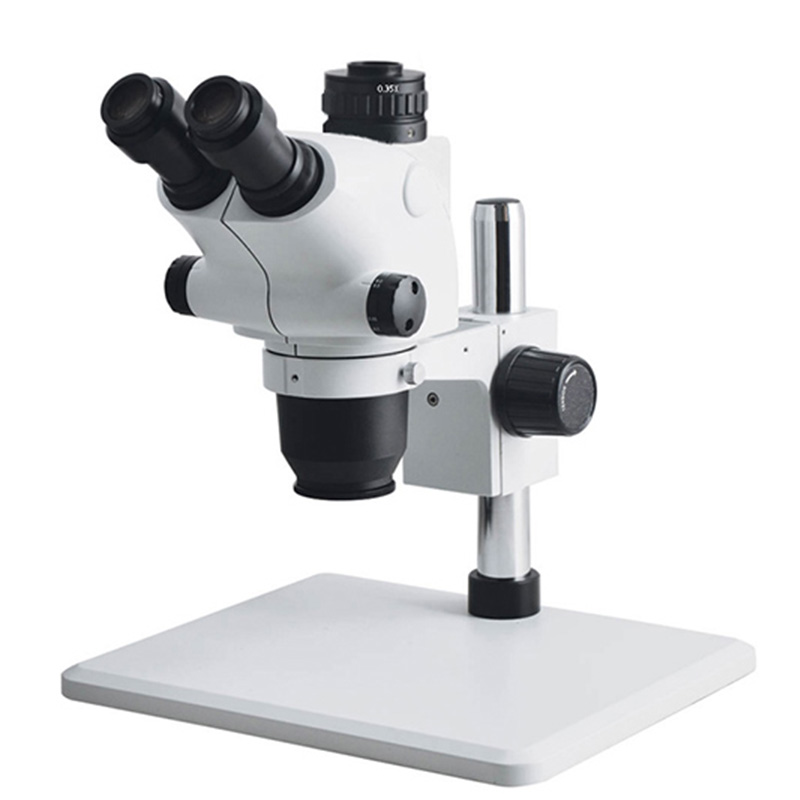

TZW6565-PL	PL pole stand	LED ring light

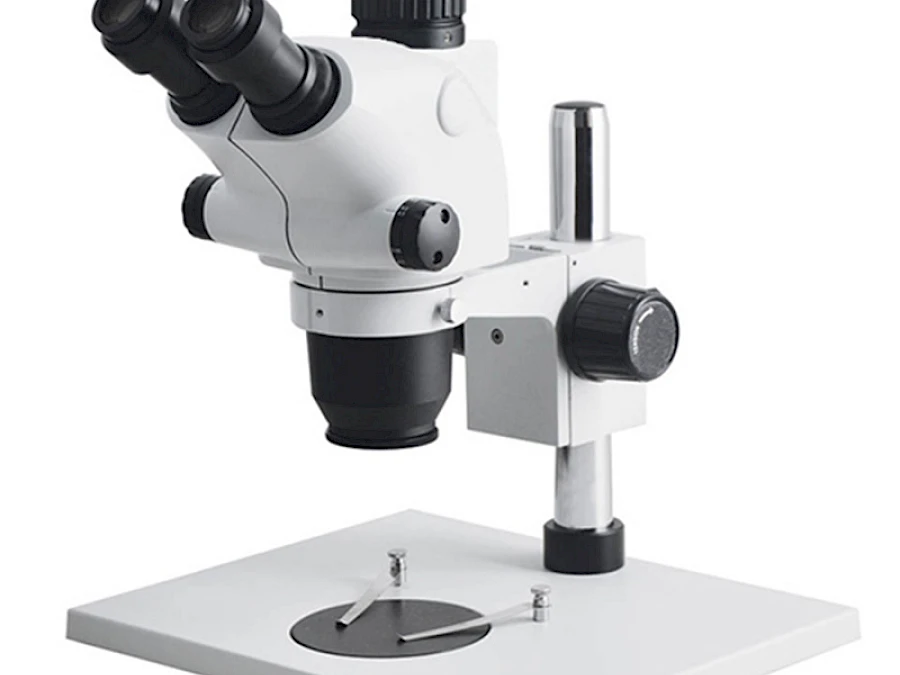

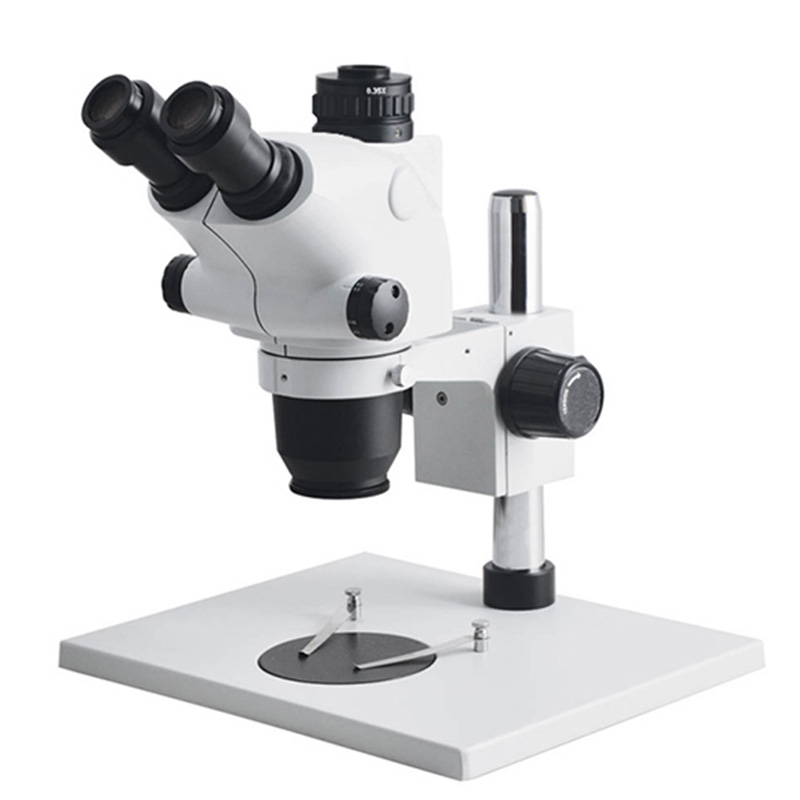

TZW6565-PLH	PLH pole stand	LED ring light

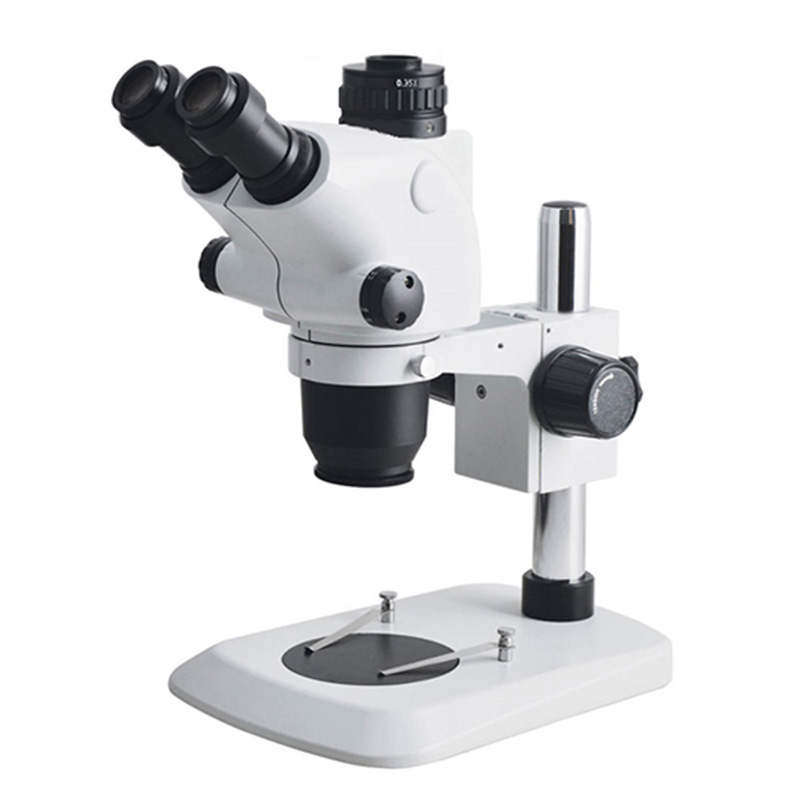

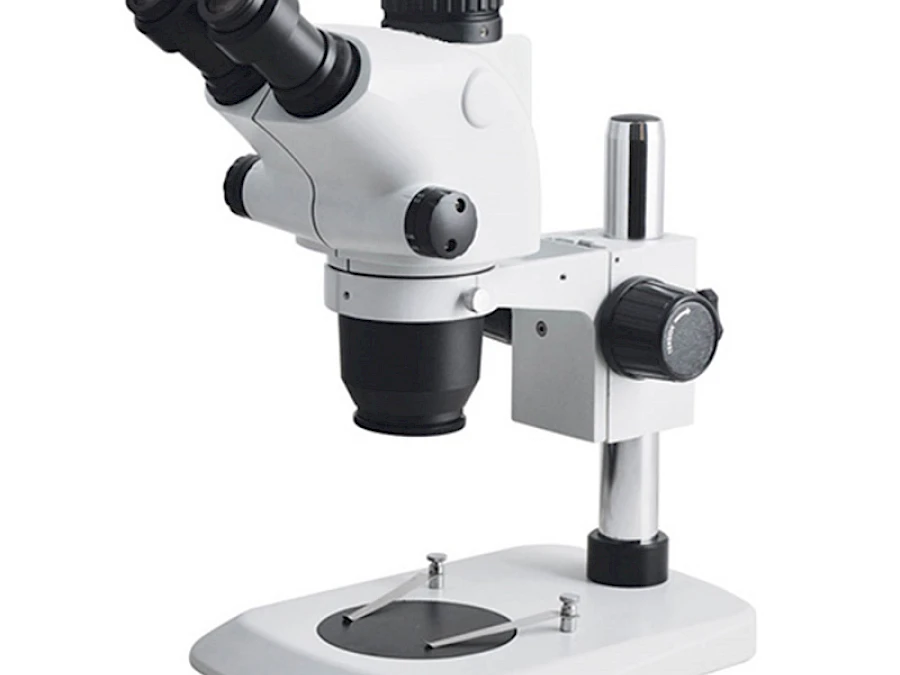

TZW6565-PI	PI pole stand	LED ring light

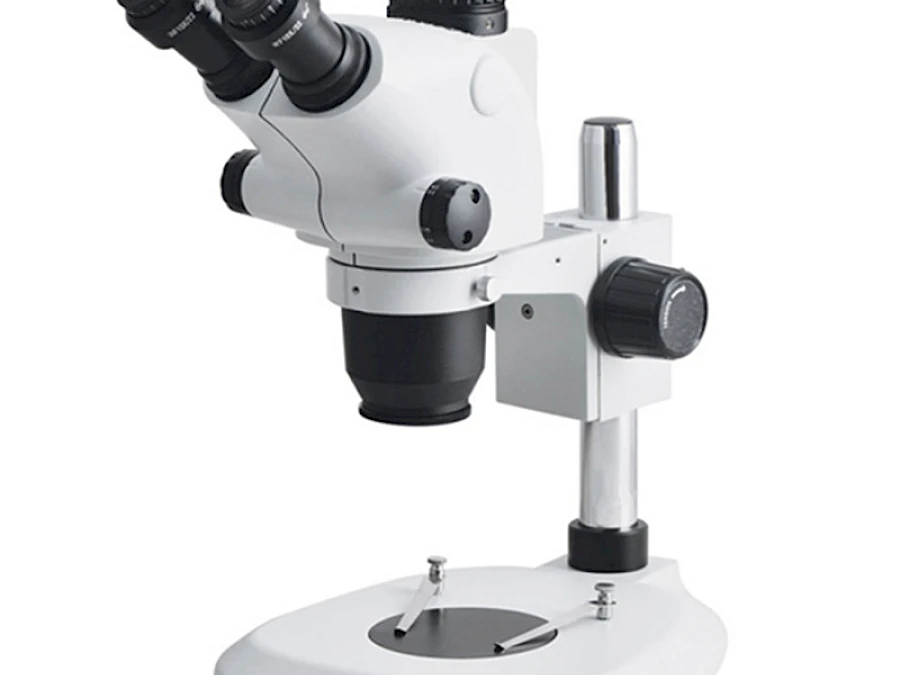

TZW6565-PF	PF pole stand	LED ring light

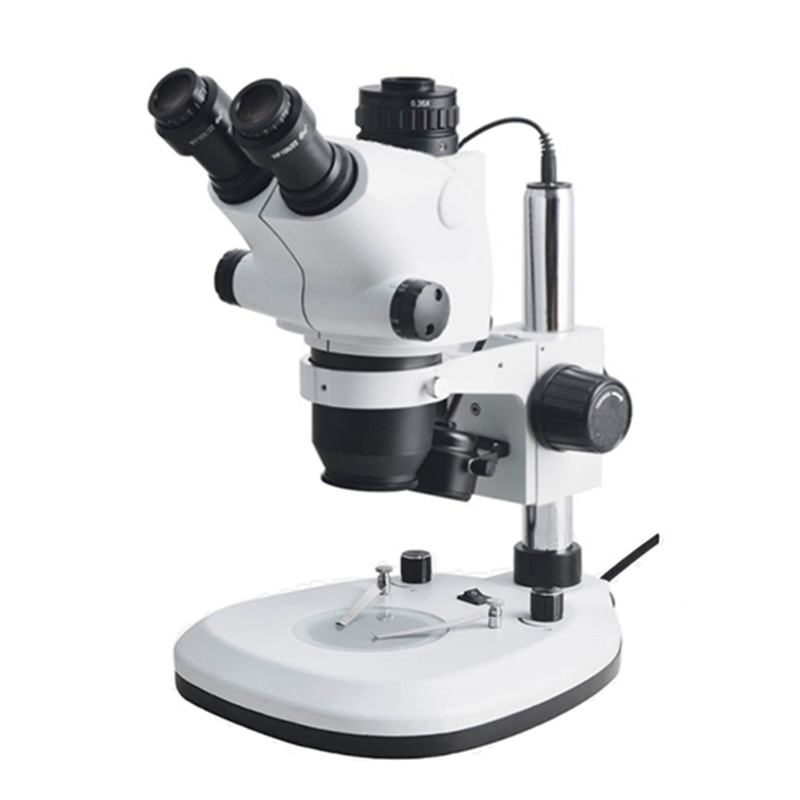

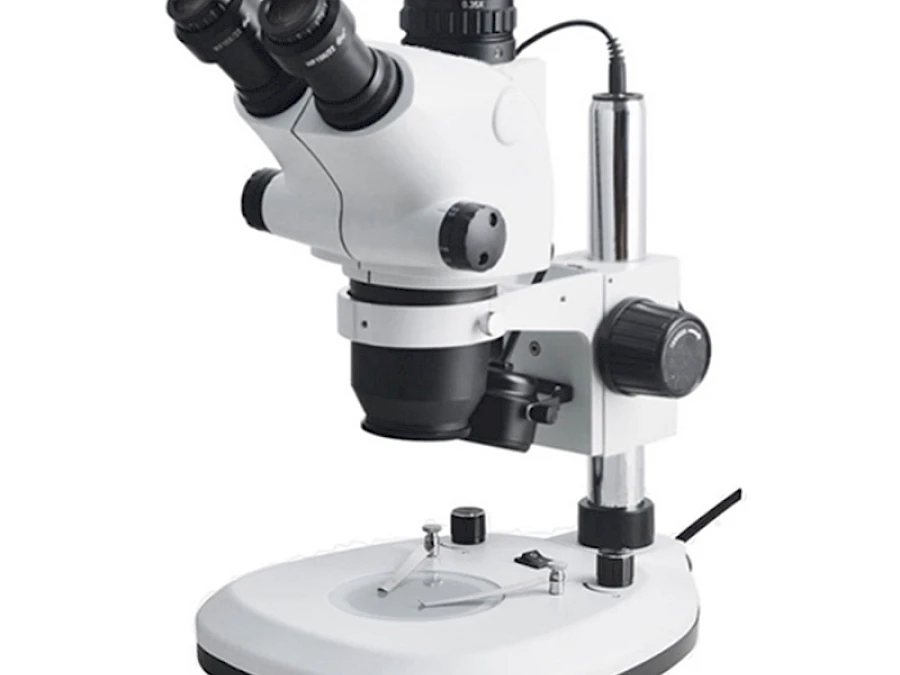

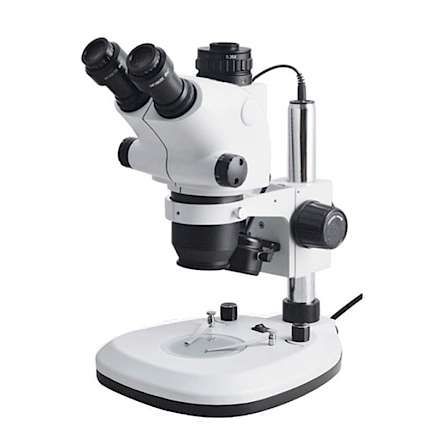

TZW6565-PF2L	PF2L pole stand	Transmitted and reflected 3w LED illumination

TZW6565

Standard (No auxiliary objective)

Auxiliary Lens

0.3X

0.5X

0.7X

1.5X

Working Distance

100mm

287mm

165mm

120mm

45mm

30mm

Eyepiece

Zoom Rate position

Magnification

view

Magnification

view

Magnification

view

Magnification

view

Magnification

view

Magnification

view

WF10X22

0.65

6.5X

32.2mm

1.95X

107.3mm

3.25X

64.4mm

4.88X

46mm

9.75X

21.5mm

13X

16.1mm

6.5

65X

3.4mm

19.5X

11.3mm

32.5X

6.8mm

48.8X

11.2mm

97.5X

2.3mm

130X

1.7m

Observation head	45°decline,360°rotate, Pupil distance 54---76mm; Bilateral visual adjustment±5
Adjustable eyepiece	Standard WF10X22, High angle wide angle eyepiece, provide convenience for observers wearing glasses
Optional eyepiece	WF10X22，WF20X12mm
Objective	0.65X---6.5X Zoom Range, objective magnification ratio 1：10, Ensure image alignment
Auxiliary Lens	0.3X，0.5X，0.75X，1X，1.5X，2X For option
Magnification	Standard 6.5X---65X, Optional and auxiliary lenses can be extended to 2X---260X,Continuous doubling
Working Distance	110mm
Focus arm	76mm Diameter,32mm pole size
Plate	Black/White plate
Illumination	LED Illumination, 60 LED lamp beads

TZW6565-AF

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Item	Stand	Illumination

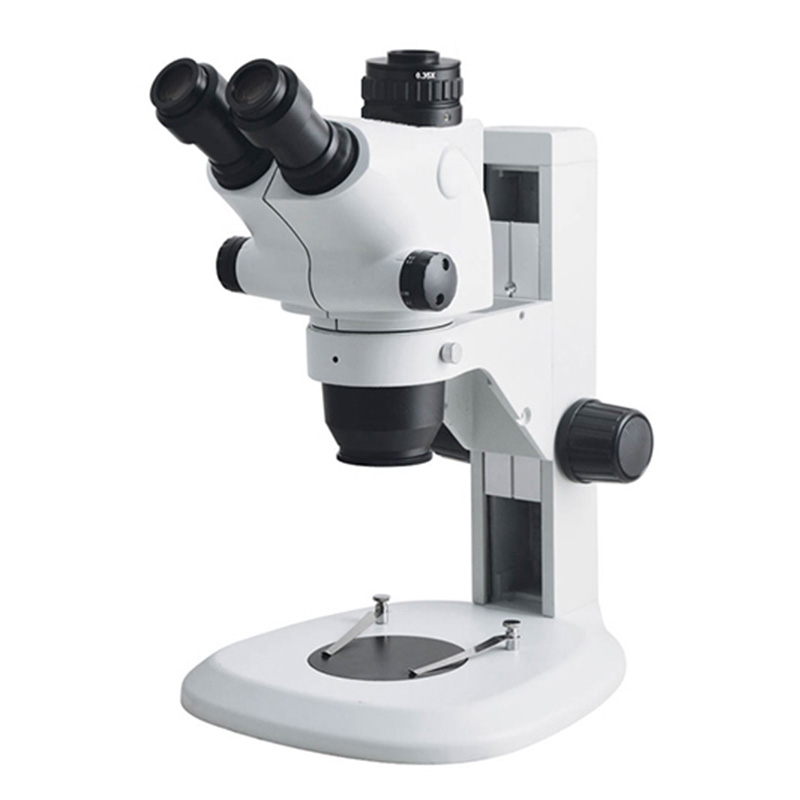

TZW6565-AF	AF Track stand	LED ring light

TZW6565

Standard (No auxiliary objective)

Auxiliary Lens

0.3X

0.5X

0.7X

1.5X

Working Distance

100mm

287mm

165mm

120mm

45mm

30mm

Eyepiece

Zoom Rate position

Magnification

view

Magnification

view

Magnification

view

Magnification

view

Magnification

view

Magnification

view

WF10X22

0.65

6.5X

32.2mm

1.95X

107.3mm

3.25X

64.4mm

4.88X

46mm

9.75X

21.5mm

13X

16.1mm

6.5

65X

3.4mm

19.5X

11.3mm

32.5X

6.8mm

48.8X

11.2mm

97.5X

2.3mm

130X

1.7m

Observation head	45°decline,360°rotate, Pupil distance 54---76mm; Bilateral visual adjustment±5
Adjustable eyepiece	Standard WF10X22, High angle wide angle eyepiece, provide convenience for observers wearing glasses
Optional eyepiece	WF10X22，WF20X12mm
Objective	0.65X---6.5X Zoom Range, objective magnification ratio 1：10, Ensure image alignment
Auxiliary Lens	0.3X，0.5X，0.75X，1X，1.5X，2X For option
Magnification	Standard 6.5X---65X, Optional and auxiliary lenses can be extended to 2X---260X,Continuous doubling
Working Distance	110mm
Focus arm	76mm Diameter,32mm pole size
Plate	Black/White plate
Illumination	LED Illumination, 60 LED lamp beads

TZW6565-SU1

TZW6565-SU2

TZW6565-RU1

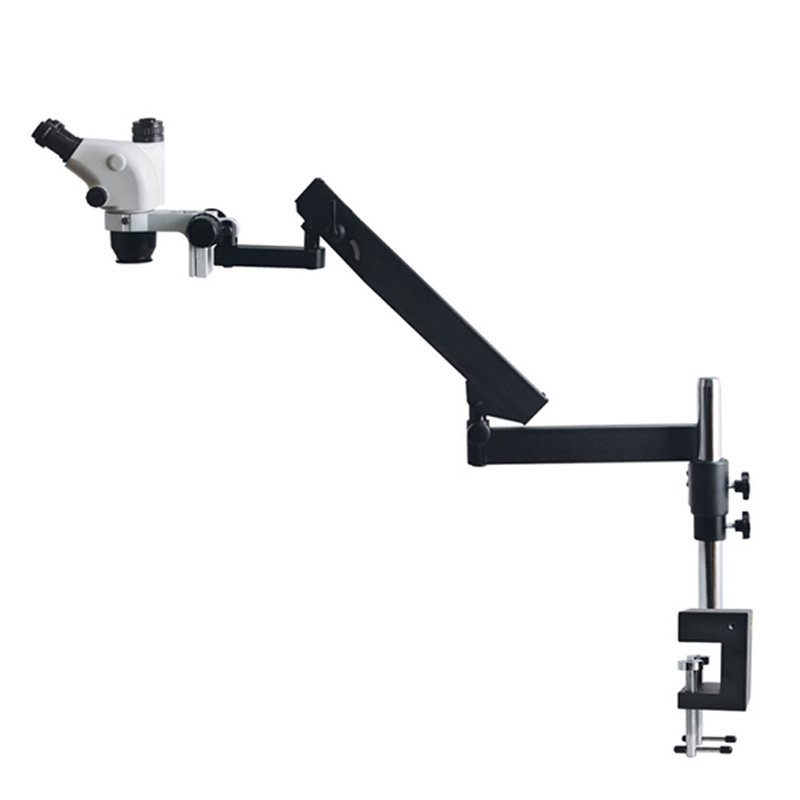

TZW76565-RU2

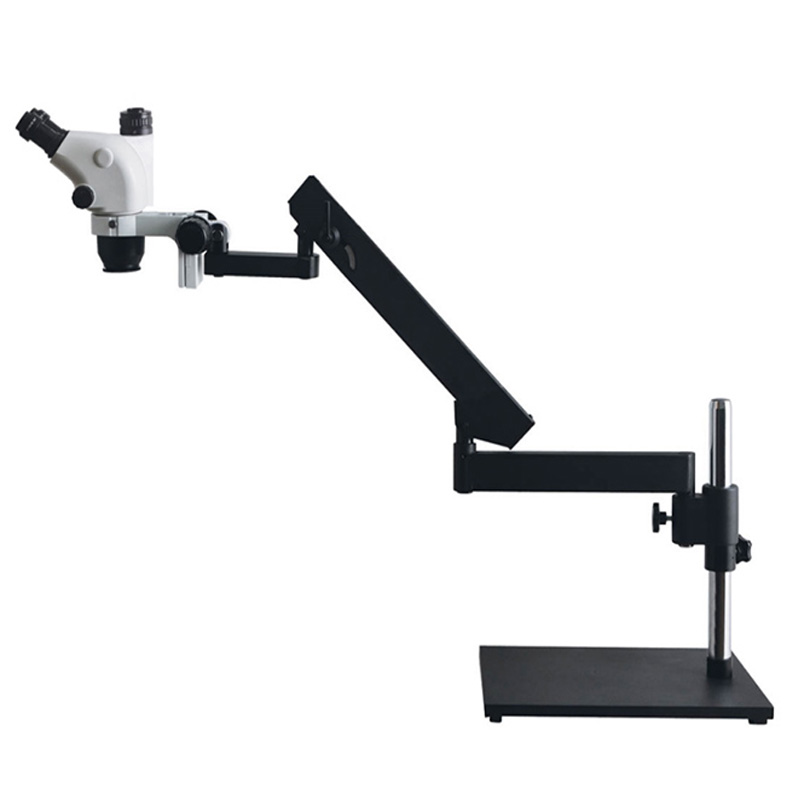

TZW6565-RU3

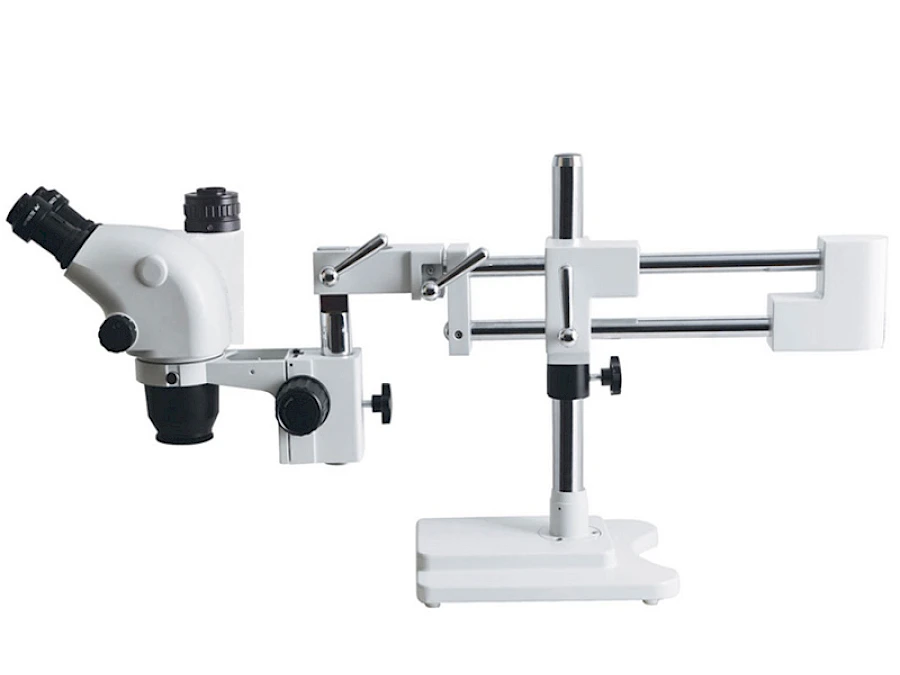

TZW6565-DU1

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Item	Stand	Illumination

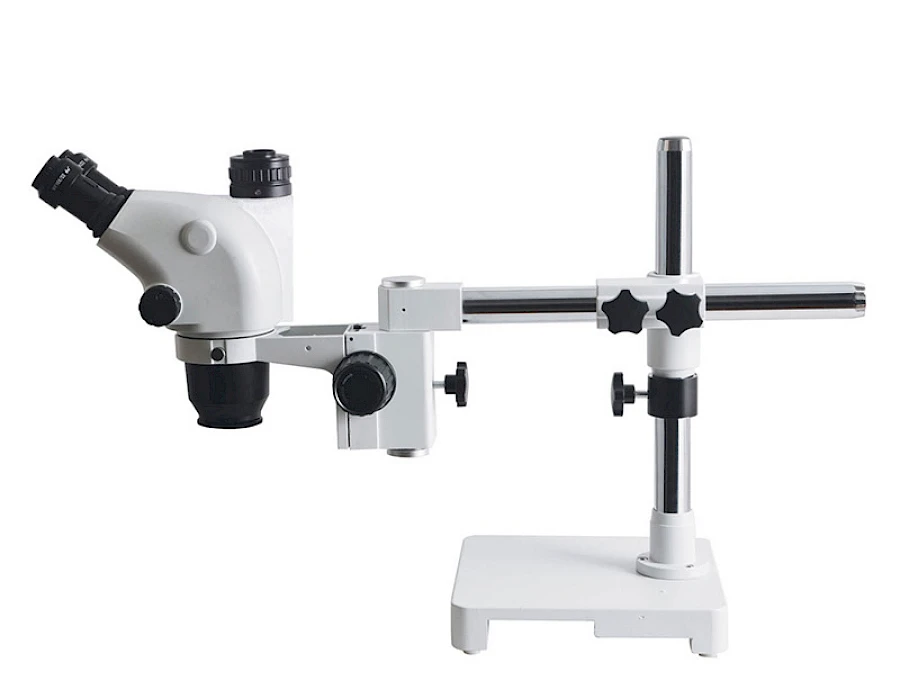

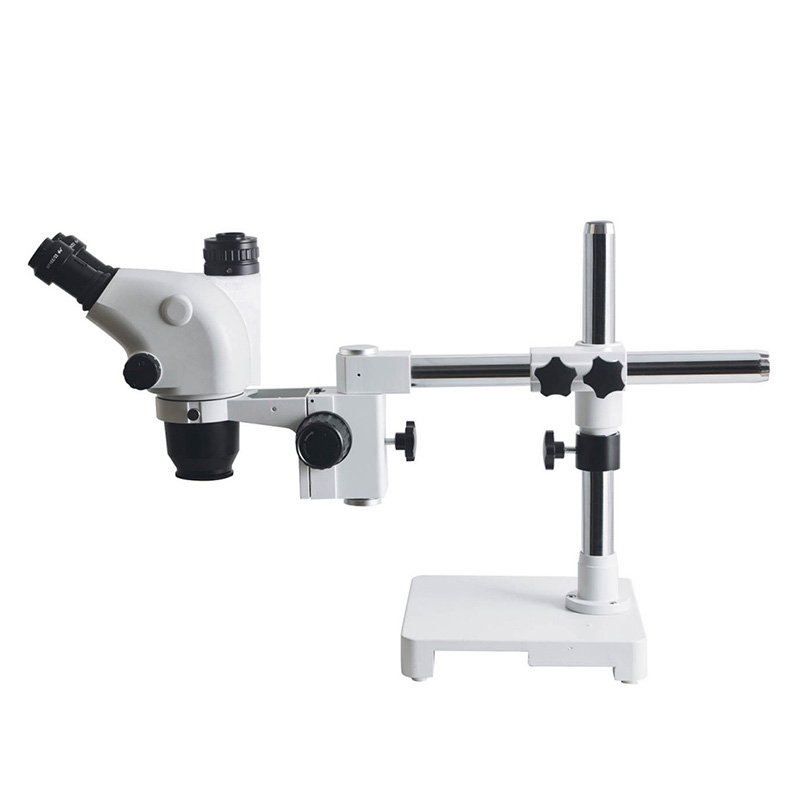

TZW6565-SU1	SU1 boom stand	LED ring light

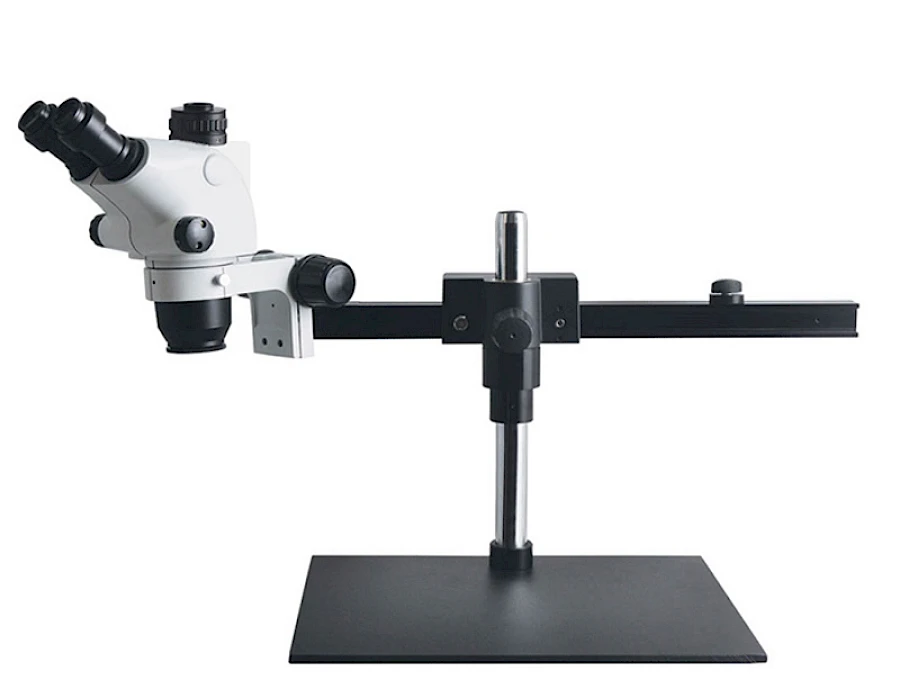

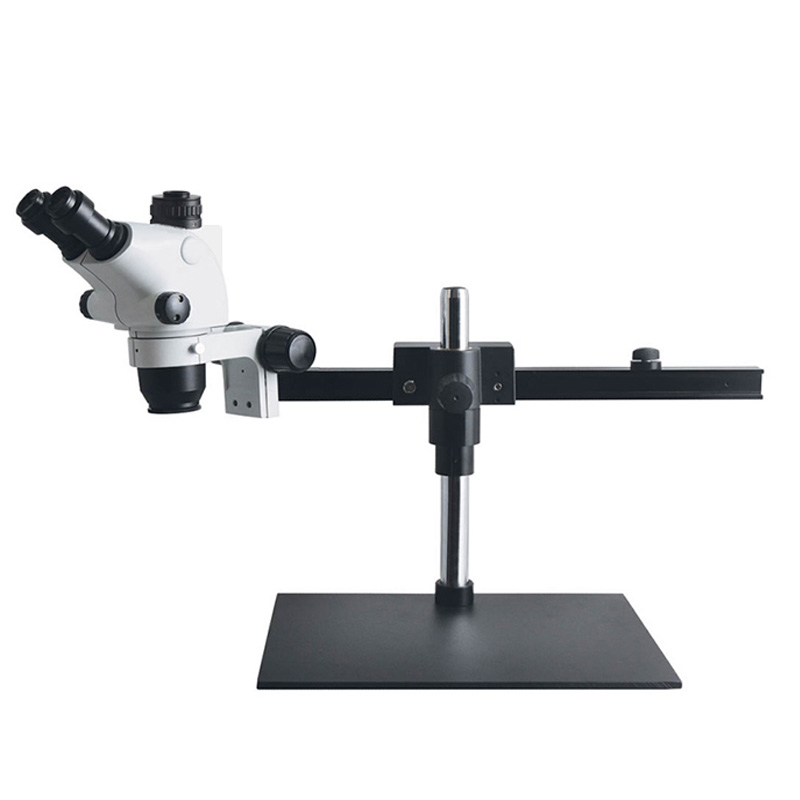

TZW6565-SU2	SU2 boom stand	LED ring light

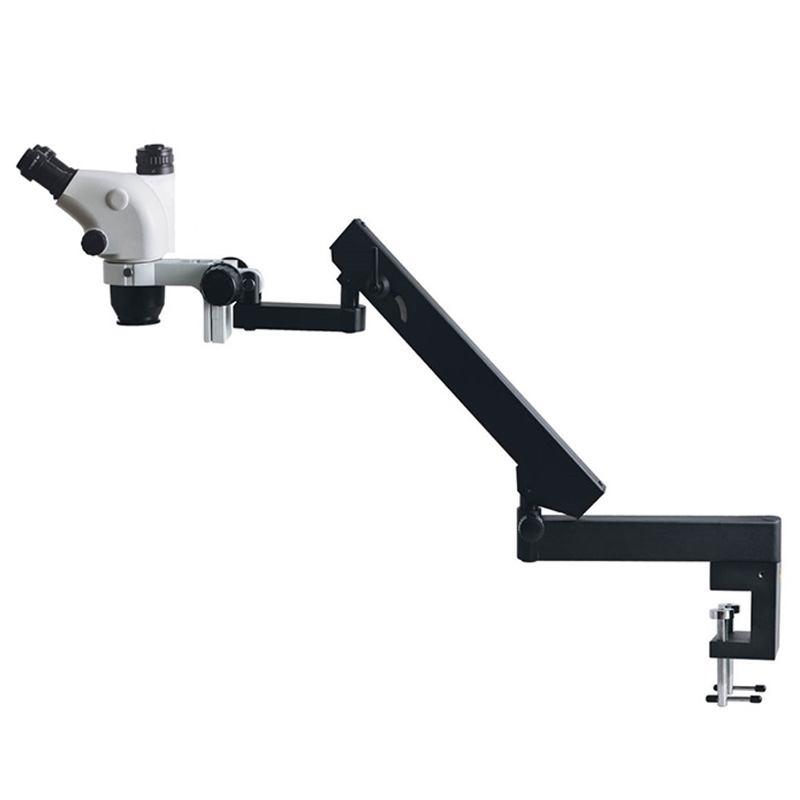

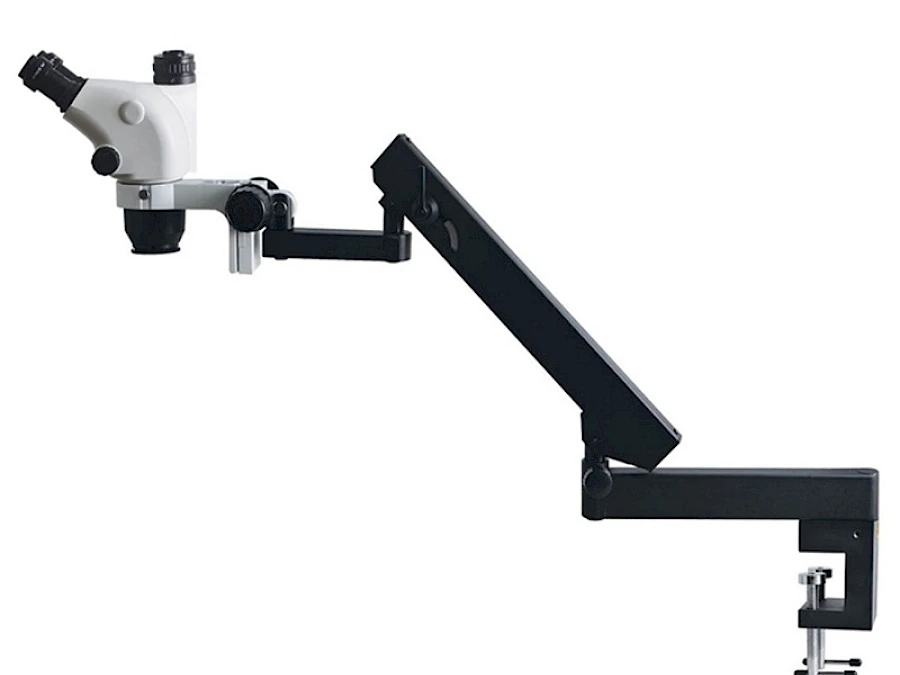

TZW6565-RU1	RU1 clamp boom stand	LED ring light
TZW6565-RU2	RU2 clamp boom stand	LED ring light

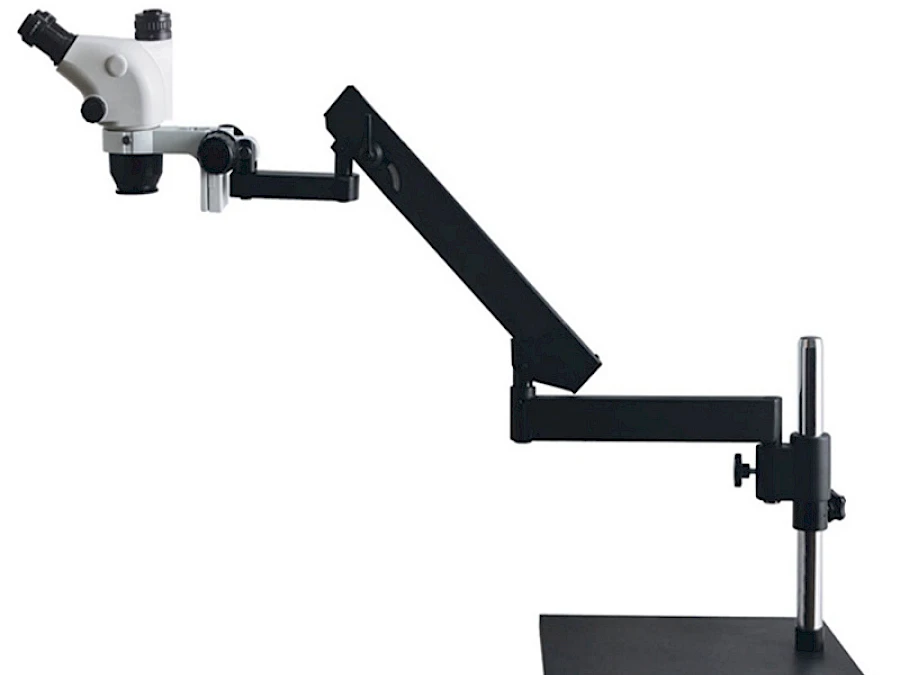

TZW6565-RU3	RU3 clamp boom stand	LED ring light

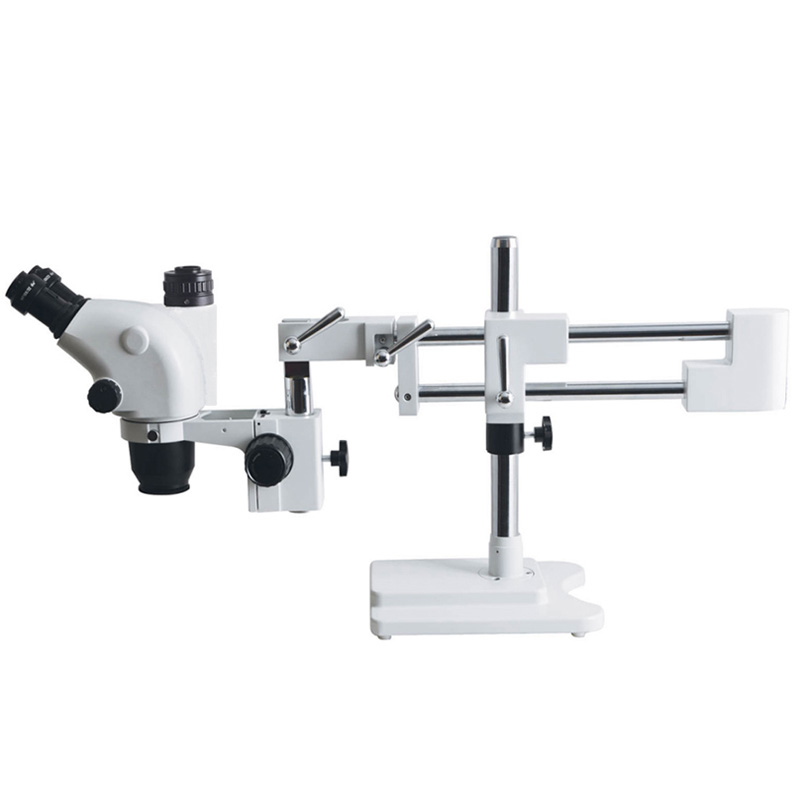

TZW6565-DU1	DU1 boom stand	LED ring light

TZW6565

Standard (No auxiliary objective)

Auxiliary Lens

0.3X

0.5X

0.7X

1.5X

Working Distance

100mm

287mm

165mm

120mm

45mm

30mm

Eyepiece

Zoom Rate position

Magnification

view

Magnification

view

Magnification

view

Magnification

view

Magnification

view

Magnification

view

WF10X22

0.65

6.5X

32.2mm

1.95X

107.3mm

3.25X

64.4mm

4.88X

46mm

9.75X

21.5mm

13X

16.1mm

6.5

65X

3.4mm

19.5X

11.3mm

32.5X

6.8mm

48.8X

11.2mm

97.5X

2.3mm

130X

1.7m

Observation head	45°decline,360°rotate, Pupil distance 54---76mm; Bilateral visual adjustment±5
Adjustable eyepiece	Standard WF10X22, High angle wide angle eyepiece, provide convenience for observers wearing glasses
Optional eyepiece	WF10X22，WF20X12mm
Objective	0.65X---6.5X Zoom Range, objective magnification ratio 1：10, Ensure image alignment
Auxiliary Lens	0.3X，0.5X，0.75X，1X，1.5X，2X For option
Magnification	Standard 6.5X---65X, Optional and auxiliary lenses can be extended to 2X---260X,Continuous doubling
Working Distance	110mm
Focus arm	76mm Diameter,32mm pole size
Plate	Black/White plate
Illumination	LED Illumination, 60 LED lamp beads
