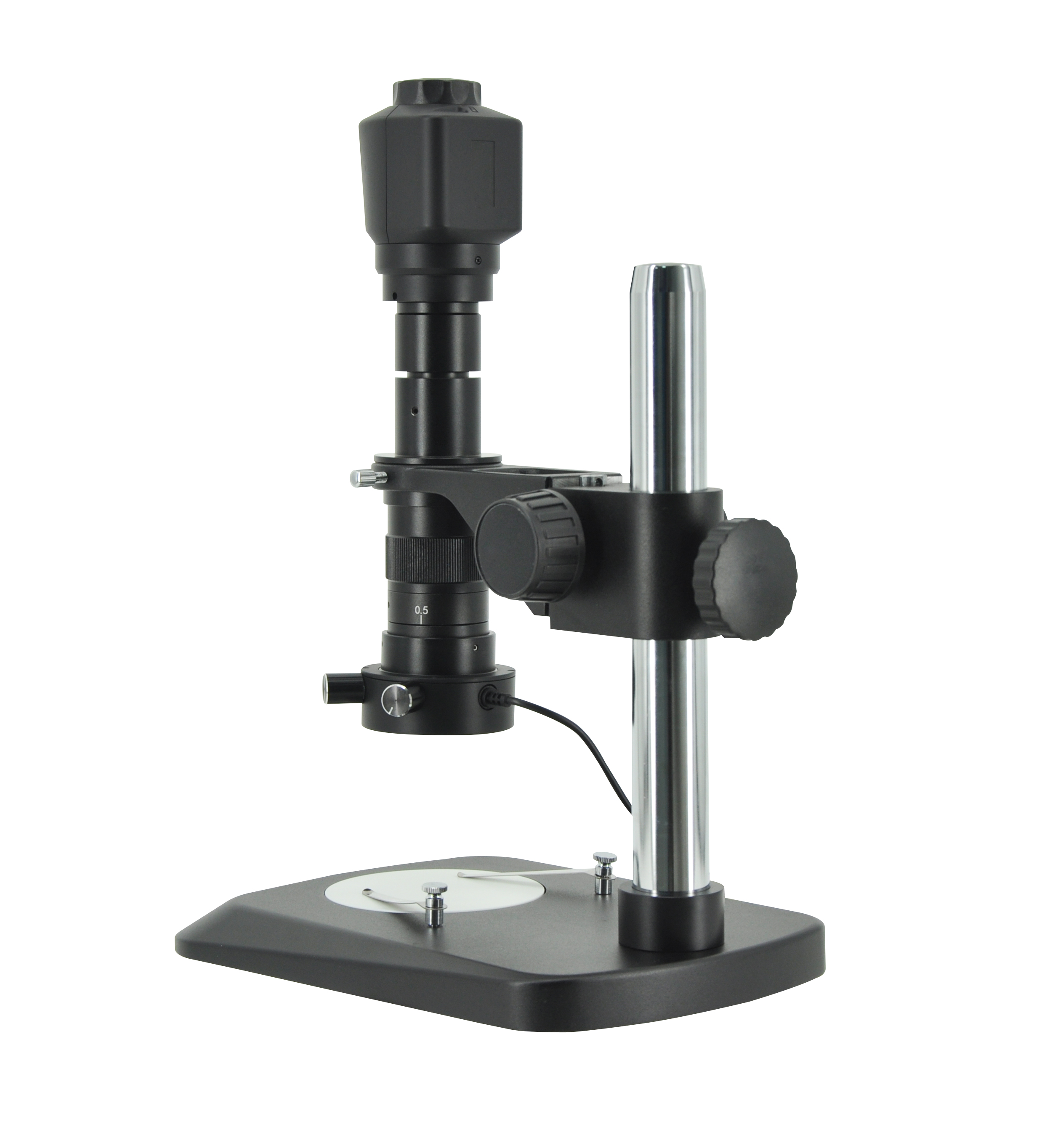

HC51-H HDMI/USB Industrial HD Microscope

Long working distance
0mm~200mm

Ultra wide field of view
28.4mm×16mm

3.5 MP HD Camera

High definition optical lens

10X-117X overall magnifications

12.5”HD 1080P monitor

Unique diffuse light

External coaxial light

HC51-H combined the traditional optical and electronic video technology, completely solves the disadvantages of the traditional microscope, which is easy to cause human fatigue when observed for a long time.

HC51-H integrates magnification imaging, monitor and LED lightings into one. It is designed for fast and efficient observation of details.

It has unique manual focus knob on top of camera helps you to product the sharpest image within the working distance (0mm~200mm ) when the observation object size changed from smal l to large. Avoid tedious adjustment work and directly change the working distance through eye-height adjustment ring and expand the original magnification ratio of the microscope.

It equipped with a factory integrated 3.5MP 1080i 60pfs digital camera and HD lens.

HC51-H is also equipped with the External coaxial light, which can uniformly illuminate the surface of the plane and the shiny surface, and enhance the features of marking, recessing or embossing.It can highlight the uneven surface of the object, overcome the interference caused by the reflection of the surface, and improve the microscope reproducibility , more details shown.

Easy to realize continuous zoom to overall magnification of 10X~117X (based on 12.5'' monitor).

Simple, easy-to-use image and video capture software is included as standard to allow you to use it instantly.

HC51-H and its Back Panel

Different Views of HC51-H

HC51-H's CMOS Camera

HC51-H and its Display

Dimension of HC51-H

Packing Information for HC51-H

HC51-H Camera Specifications
Image Sensor	Aptina AR0330 CMOS Sensor
Expose mode	Rolling shutter
Maximum Resolution	2304 x 1536 (3,538,944 pixels)
Sensor Optical Format	1/3'' (5.07mm(H) x 3.38mm(V), Diagonal 6.09mm)
Pixel Size	2.2μm x 2.2μm
Dynamic Range	69.5dB
SNR（Signal Noise Ratio）	39dB
Spectral Characteristics	380～650nm
Exposure Capability	Real-time auto, Single auto, Manual adjustment
White Balance	Real-time auto, Single auto, Manual adjust R G B seperately
Display (preview) resolution	HDMI:1920X1080i60，1920X1080P30,1280x720P60, 640x480P60(Auto fit by the monitor)
Record format	Snapshot Picture Format：JPG Resolution： HDMI: 2304 x 1536,2304 x 1296,1920x1080,1280x720,800x480 Record Video Format：MOV Resolution： HDMI：1280x720@30FPS, 800x480@30FPS
Record Route	HDMI：TF card(Maximum support 64G)
Power supply	Power adapter: Input:AC100~240V/50~60Hz;Output:DC12V/5A/60W
Power supply	Monitor：USB-A-Output:DC5V/2A×3
HC51-H Lens specifications
Optical Magnification	0.3X~2X
Optical Resolution	When in 0.3X 16.67um
	When in 0.5X 10um
	When in 1X 5um
	When in 1.5X 4um
	When in 2X 3.7um

Microscope Specifications
Working distance	When in 0.3X 0mm~200mm adjustable
	When in 0.5X 13mm~101 mm adjustable
	When in 1X 56mm~80mm adjustable
	When in 1.5X 65mm~77mm adjustable
	When in 2X 69mm~75mm adjustable
Depth of field	When in 0.3X 2.2mm~10mm
	When in 0.5X 1.2mm~2.5mm
	When in 1X 0.8mm~1mm
	When in 1.5X 0.6mm
	When in 2X 0.4mm
Observation range , adjustable (L x D)	28.4mm x 16mm~2.37mm x 1.33mm
Overall magnification (based on 12.5” monitor)	When in 0.3X 10X~26X
	When in 0.5X 16X~33X
	When in 1X 55X~57X
	When in 1.5X 82X~85
	When in 2X 108X~117X

Sample Photos Captured with HC51-H
