Soldering Microscopes Electronics & Soldering Microscopes

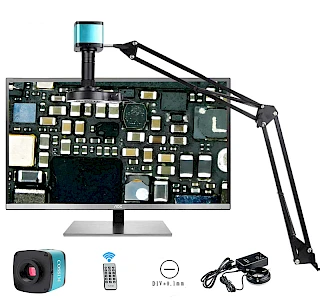

HDMI & LAN & USB Multi-Outputs
Large working distance, 10cm~∞
Auto Focus, large field of view (Max 450mm*240mm)
Supporting 1080P@60Hz or 1080P@50Hz display monitor
Providing directly measurement without calibration, photo, video and other images processing functions, save to U-disk
Magnification displayed on the monitor in real time for easy comparison

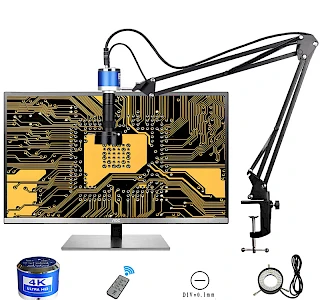

HDMI & LAN & USB Multi-Outputs
Large working distance, 10cm~∞
Auto Focus, large field of view (Max 450mm*240mm)
Supporting 1080P@60Hz or 1080P@50Hz display monitor
Providing directly measurement without calibration, photo, video and other images processing functions, save to U-disk
Magnification displayed on the monitor in real time for easy comparison

Infinite Objective Lens: 5X, 10X, 20X, 50X, 100X (Optional)
Trinocular Head, Inclined 45°, Interpupillary Distance 50-75mm
Double Layer Mechanical Stage: 215mmx165mm with Scale
Coded Quintuple Nosepiece, to Show lens magnification when switching, adjusts the calibration values recorded
Brightness Memory Function, remember the lighting brightness when using each objective

Vertical Track Height: 300mm
Max Working Distance: 115mm
Coarse Focus Distance per Rotation: 22mm
Work Plate Size & Material: Φ180x6mm Clear Glass
Transmitted and reflected light source, 3W LED light source and 6V 20W Halogen Lamp, brightness adjustable

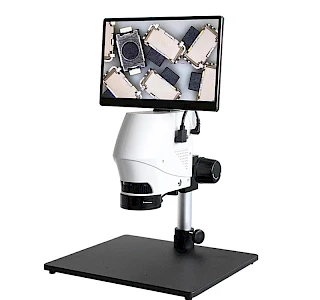

Standard optical magnification is 7X~45X, digital magnification is 17X~110X (based on 11.6” display)
Equipped with 11.6” IPS HD display screen, ultra high reproduction color technology;
HDMI-compatible output can be connected to external large monitor, to show publicly, and support same display screen images comparison;
60fps real-time frame rate, no delay, improve efficiency for online defect detection of electronic components
Integrated special 5500K LED ring light source, to ensure the images quality in any work environment
Integrated camera, with measurement (real-time), photo, video and save functions;
External mouse and U-disk card provide easy operation, to connect with the USB output.

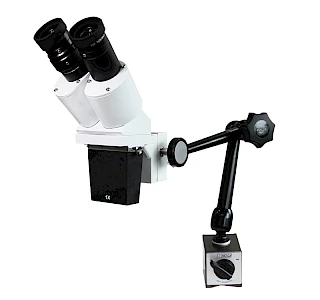

WF10X/20mm Eyepiece (WF20X Optional)
1X Objective (0.5X, 2X Optional)
Super long working distance, for any directions
Wide field of view, clear imaging and strong stereo sensation
Suitable for large magnetic workpiece surface parts inspection and maintenance, mechanical parts observation and repairing

WF10X22 Eyepiece, 0.65X~6.5X Objective Zoom
Provide crystal clear sharp images with high resolution
Remains clear and sharp images throughout the whole zoom range
Widely used in electronic industry, educational demonstration and agricultural research

WF10X22 Eyepiece, 0.65X~6.5X Objective Zoom
Provide crystal clear sharp images with high resolution
Remains clear and sharp images throughout the whole zoom range
Widely used in electronic industry, educational demonstration and agricultural research

Real-time image observation and 360° rotation
Rotate speed adjustable, continuous zoom, multi angles observation
Wide range of depth of field, high resolution (required digital camera support)
Total Magnification can reach 276X, the max working distance is 45mm, object field of view is 30mm

6.5X-55X, continuous zoom, easy and convenient operation
Available connected with display screen or microscope camera
Two light paths output, one for observation, and the other for camera shooting
Transmitted and reflected LED light source, observe opaque, transparent and translucent objects
