HC210-P Stereoscopic & Biological HDMI Microscope with display integrated camera & 1.5m wired controller

Long working distance
0mm~200mm

Ultra wide field of view
28.4mm×16mm

HDMI 2.0MP

10X-117X overall magnifications

1.5m controller without interruption

LED and halogen lamps

Displayer integrated camera

HC210-P combined the traditional optical and electronic video technolo gy, completely solves the disadvantages of the traditional microscope, which is easy to cause human fatigue when observed for a long time. HC52-H integrates magnification imaging, monitor and LED lightings into one. It is designed for fast and efficient observation of details.

Use 1/2.8 inch CMOS SONY IMX291 featured with ultra wide dynamic ,ultra low illumination and excellent color r eduction, to help you get the sharpest image effect.

HC210-P is equipped with the External coaxial light, which can uniformly illuminate the surface of the plane and the shiny surface, and enhance the features of marking, recessing or embossing.It can highlight the uneven surface of the object, overcome the interference caused by the reflection of the surface, and improve the microscope reproducibility, more details shown.

Easy to realize continuous zoom to overall magnification of 10X~117X (based on 12.5“ monitor).

Complete solution - one device can realize multiple functions; equipped with 12.5 inches full HD displayer, display from diffe rent joint rotation and flip (rotate270 ° , flip120 ° ). At the same time, the front and rear space position can be moved, truly adapt to the best viewing angle without shaking;two HDMI signal inputs; three USB 5V2A external power supply interfaces can be connected to external lighting, saving adapter and space.

As a standard configuration, it provides built-in and efficient image capture software, which is convenient for you to use quickly.

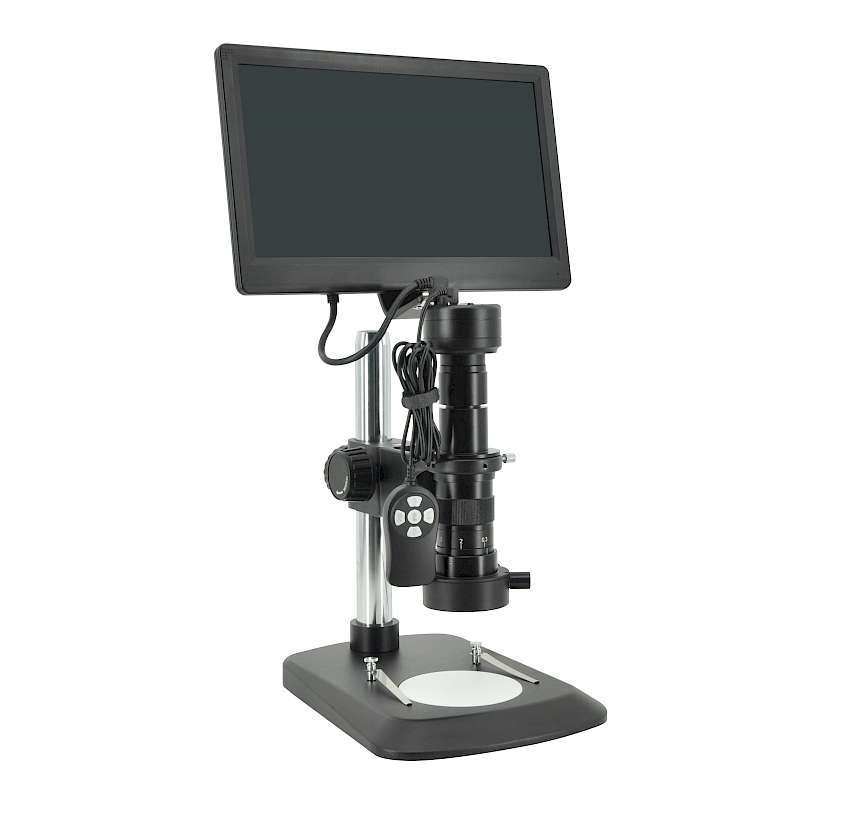

HC210-P and its Back Panel

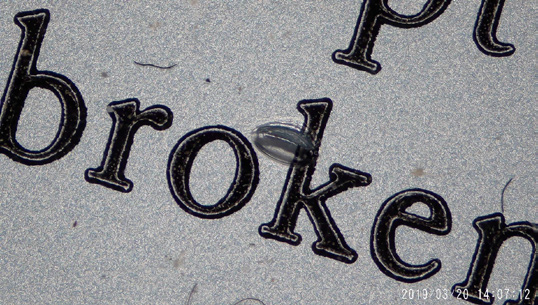

HC210-P and its Images

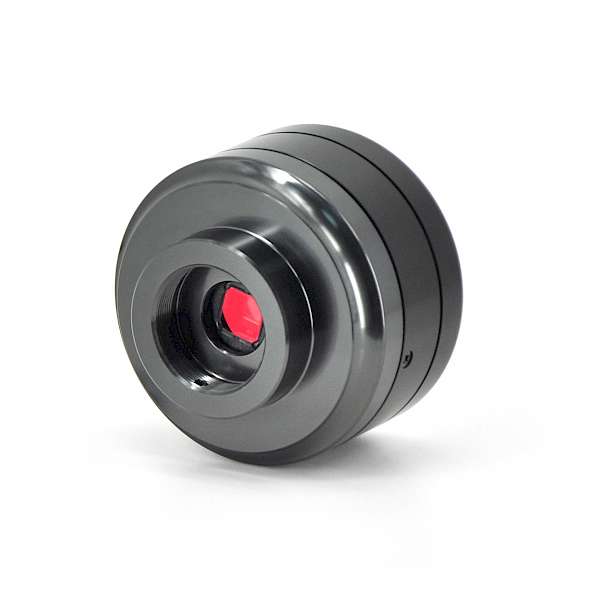

HC210-P's Digital Camera

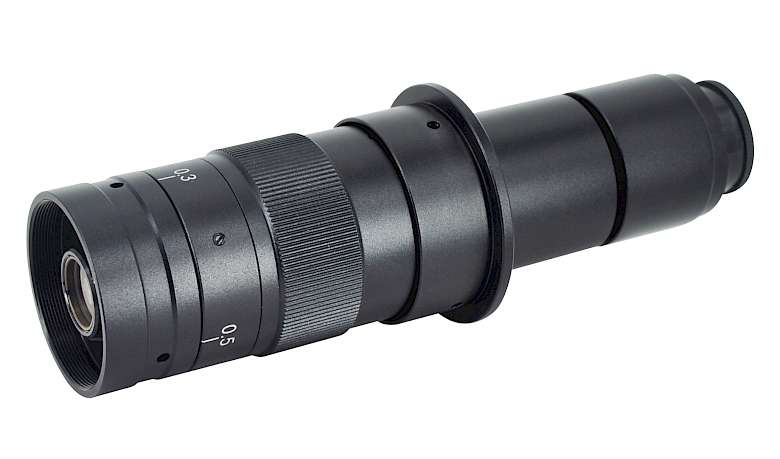

HC210-P's Camera Lens

1.5m Wired Controller

HC210-P Camera Specifications
Image Sensor	SONY CMOS IMX291super wide dynamic CMOS sensor
Expose mode	Rolling shutter
Maximum Resolution	1920 x 1080 (2,073,600 pixels)
Sensor Optical Format	1/2.8'' (6.058mm(H) x 4.415mm(V))
Pixel Size	2.9μm x 2.9μm
Dynamic Range	128dB
SNR（Signal Noise Ratio）	30dB
Spectral Characteristics	380～650nm
Exposure Capability	Real-time auto, Single auto, Manual adjustment
White Balance	Real-time auto, Single auto, Manual adjust R G B seperately
Display (preview) resolution	HDMI:1920X1080P60
Record format	Snapshot Picture Format：JPG Resolution： HDMI: 1920x1080 Record Video Format：MOV Resolution： HDMI：1920X1080P30,1280x720P60
Record Route	TF card(Maximum support 128G，Support hot plug )
Camera interface parameter
Camear interface	C mount thread（1＂×1/32）
Image output interface	HDMI TYPE C(Mini HDMI)
HC210-P Lens specifications
Optical Magnification	0.3X~2X
Optical Resolution	When in 0.3X 16.67um
	When in 0.5X 10um
	When in 1X 5um
	When in 1.5X 4um
	When in 2X 3.7um

Monitor parameters
Size	12.5’’
Type	a-Si TFT-LCD/IPS
Resolution	1920x1080
Color display	16.7M
Brightness	300 Nit
Contrast	800:1
Visible angle	170° horizontal & vertical

Microscope Specifications
Working distance	When in 0.3X 0mm~200mm adjustable
	When in 0.5X 13mm~101 mm adjustable
	When in 1X 56mm~80mm adjustable
	When in 1.5X 65mm~77mm adjustable
	When in 2X 69mm~75mm adjustable
Depth of field	When in 0.3X 2.2mm~10mm
	When in 0.5X 1.2mm~2.5mm
	When in 1X 0.8mm~1mm
	When in 1.5X 0.6mm
	When in 2X 0.4mm
Observation range , adjustable (L x D)	28.4mm x 16mm~2.37mm x 1.33mm
Overall magnification (based on 12.5” monitor)	When in 0.3X 10X~26X
	When in 0.5X 16X~33X
	When in 1X 55X~57X
	When in 1.5X 82X~85
	When in 2X 108X~117X
