HD32 Daily Inspection, Operation, Repairing, Reporting Video Microscope with dual LED Ring Lights

The HD32 is compact in size, is comprised of a video microscope, HD camera, LED lighting and monitor. Offering truly imaging plus the flexibility and convenience of digital image capture. Combining the ergonomic benefits of this unique integration, it eliminates the vision limitations of traditional microscope, allowing operators freedom of head movement, providing superb ergonomics and hand-eye coordination.

It has unique manual focus knob on top of camera helps you to p roduct the sharpest image within the working distance (33mm~320mm) when the observation object size changed from smal l to large. Avoid tedious adjustment work and directly change the working distance through eye-height adjustment ring and expand the original magnification ratio of the microscope.

4.8x~55x overall magnification (Based on actual measurement on 12.5”monitor). It is ideal complete solution for low magnification inspection, operation, repairing and reporting.

With a factory integrated 3.5MP 1080i 60pfs digital camera and 8.0MP HD lens. Fatigue-free optical observation under excellent diffuse light & external coaxial light.

Outstanding ergonomics design with 360 ° universal shaft bracket, to hover randomly. It is flexible and easy to use, convenient for operator to view from different angles, Free up the operato r's head and body, the work efficiency can be improved and fatigue can be reduced effectively.

Integrated solution - one device can achieve multiple functions of low magnification tasks; Equipped with all-in-one 12.5'' monitor, when needed, operator can fine-tune screen angle to look up (max 90 °) or look down (max 24 °) Simple, easy-to-use image and video capture software is included as standard to allow you to use it instantly.

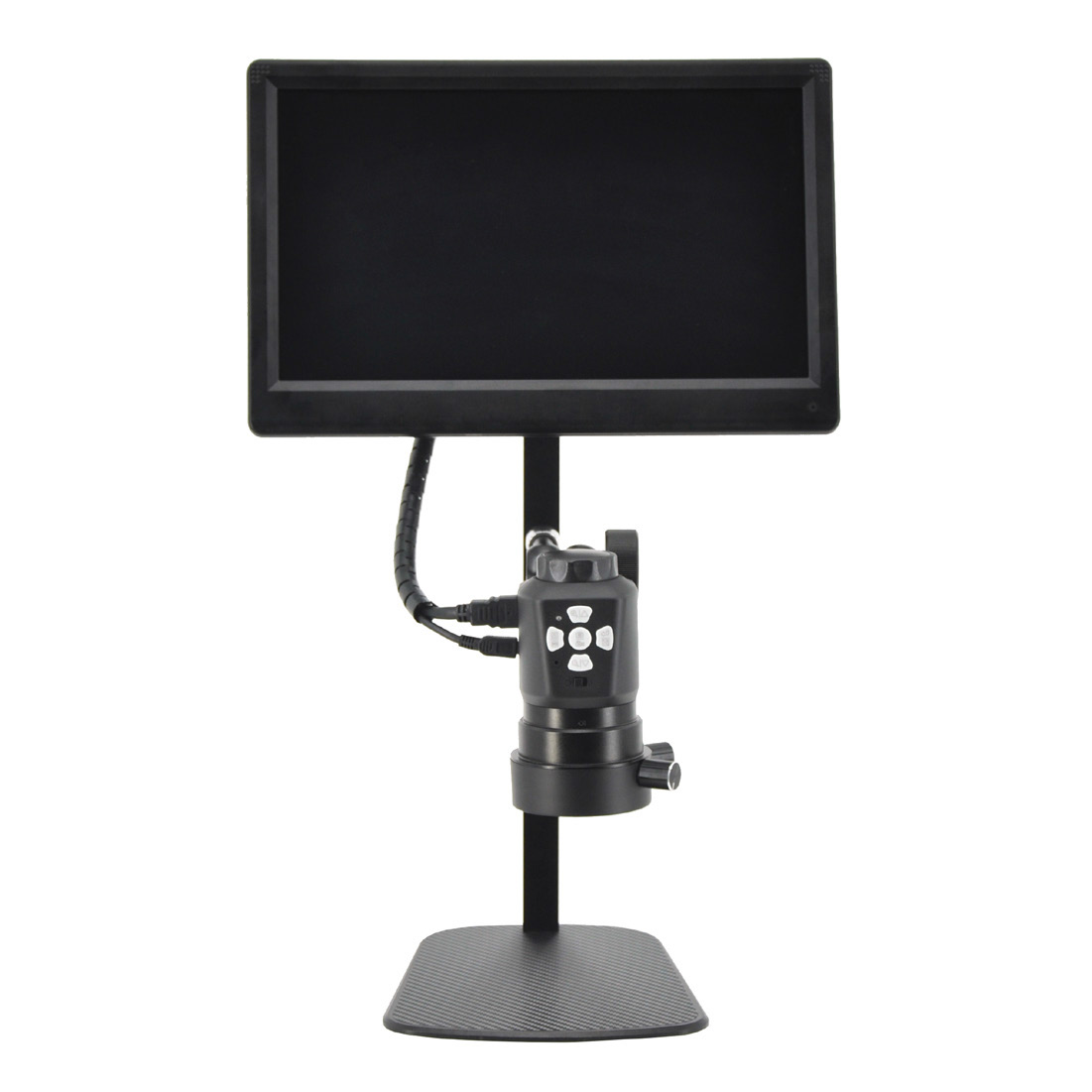

HD32 and its Back Panel

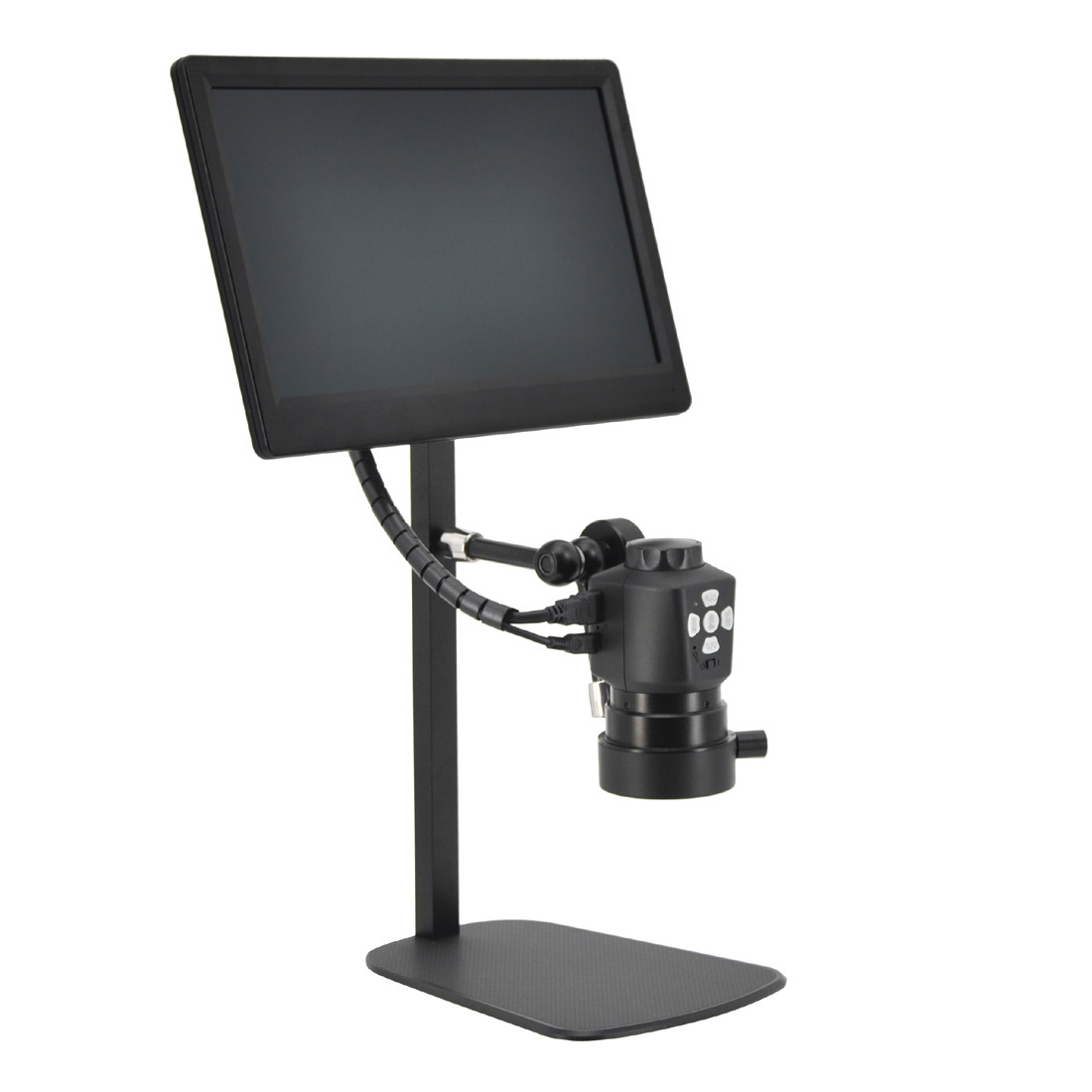

Different Views of HD32

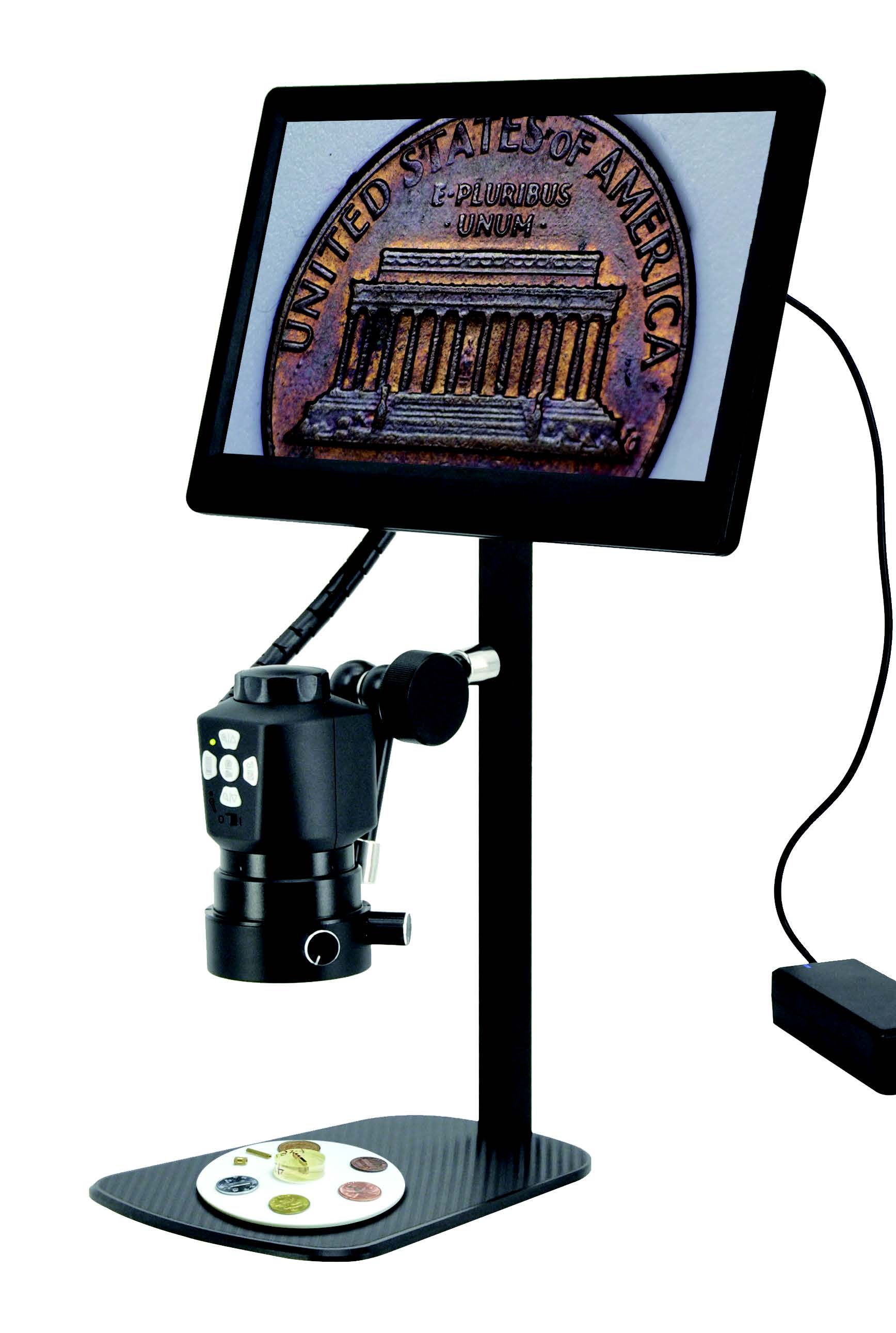

HD32 and its image

HD32's Digital Camera

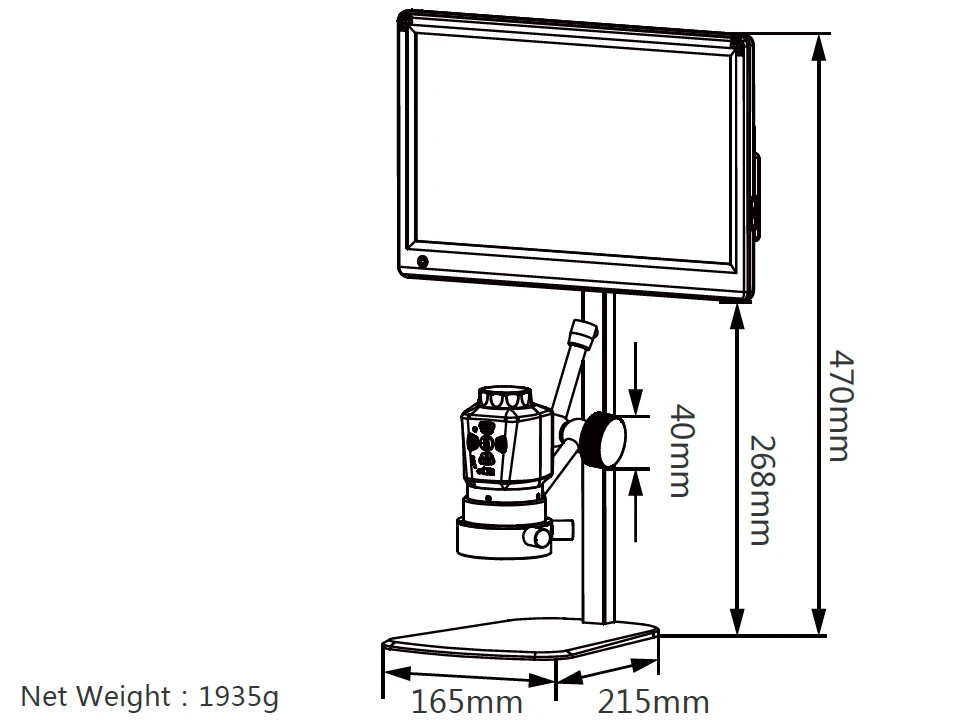

Dimension of HD32

Dimension of HD32

Packing Information for HD32
