TZ6745 Series Trinocular Continuous Zoom Stereo Microscope with vertical phototube / C-mount

TZ6745-PS

6.7X-45X Continuous Zoom, connect camera, clarity image, industrial inspection & measurement

Features


  • trinocular stereo microscope
  • super high resolution
  • high precision
  • maximum working distance
  • suit for various fields: Industry, Biology
  • brand-new optical design provides the best reproduction and true color image

Tags: Stereo MicroscopesIndustrial Inspection

Request a Quote?


Get Quote Live chat Email Phone

super high resolution
trinoculoar
long working distance
best reproduction
true color image
industrial research
biological research

TZ6745 Series Stereo Zoom Microscope is fully coated optical system with super high resolution. It is characterized by brand-new optical design, the best reproduction and true color image. It is ideally suited for industrial as well as for biological research where high precision, maximum working distance and large field coverage is required.

TZ6745-PS

TZ6745-PS

TZ6745-PRT

TZ6745-PRT

TZ6745-PL

TZ6745-PL

TZ6745-PLGL

TZ6745-PLGL

TZ6745-PI

TZ6745-PI

TZ6745-PI2L

TZ6745-PI2L

TZ6745-PIGL

TZ6745-PIGL

TZ6745-PF

TZ6745-PF

TZ6745-PF2L

TZ6745-PF2L

TZ6745-AS

TZ6745-AS

TZ6745-AL

TZ6745-AL

TZ6745-AI

TZ6745-AI

TZ6745-AI2L

TZ6745-AI2L

TZ6745-AF

TZ6745-AF

TZ6745-AF2L

TZ6745-AF2L

TZ6745-SU1

TZ6745-SU1

TZ6745-SU2

TZ6745-SU2

TZ6745-SU3

TZ6745-SU3

TZ6745-DU1

TZ6745-DU1

TZ6745-DU2

TZ6745-DU2

TZ6745-RU1

TZ6745-RU1

TZ6745-U2

TZ6745-U2

TZ6745-PS

TZ6745-PRT

TZ6745-PL

TZ6745-PLGL

TZ6745-PI

TZ6745-PI2L

TZ6745-PIGL

TZ6745-PF

TZ6745-PF2L

TZ6745-U2

Item

Stand

Illumination

Focusing Mount

TZ6745-PS

PS pole stand

Fluorescent lamp, LED ring light

C1 focusing mount with vertical working distance 50mm

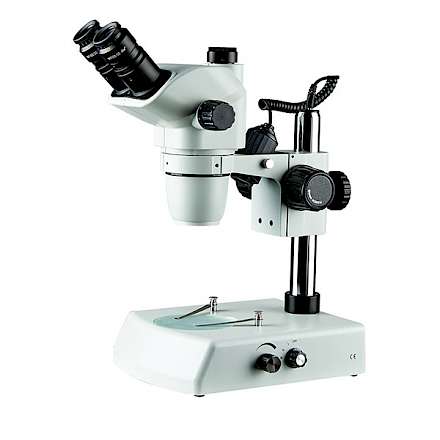

TZ6745-PRT

PRT pole stand

Transmitted and reflected 12v/15w halogen, 7w fluorescent, 5v/3w LED illumination

C1 focusing mount with vertical working distance 50mm

TZ6745-PL

PL pole stand

Fluorescent lamp, LED ring light

C1 focusing mount with vertical working distance 50mm

TZ6745-PLGL

PLGL pole stand

Double gooseneck LED illumination with independent switches and adjustable intensity

C1 focusing mount with vertical working distance 50mm

TZ6745-PI

PI pole stand

Fluorescent lamp, LED ring light

C1 focusing mount with vertical working distance 50mm

TZ6745-PI2L

PI2L pole stand

Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity

C1 focusing mount with vertical working distance 50mm

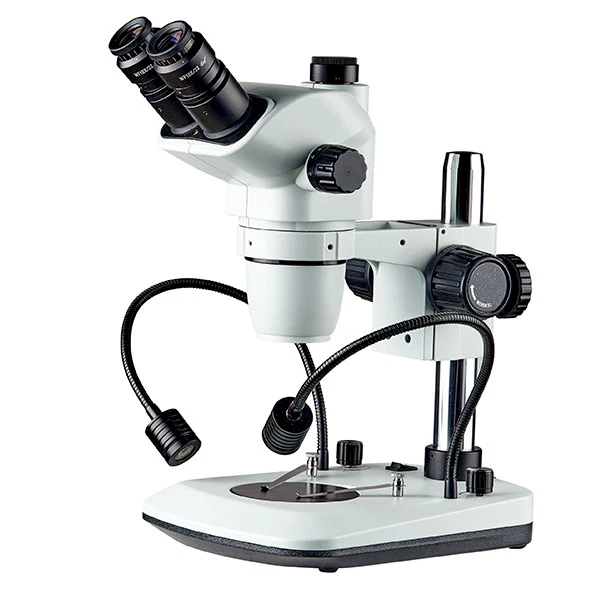

TZ6745-PIGL

PIGL pole stand

Double gooseneck LED illumination with independent switches and adjustable intensity

C1 focusing mount with vertical working distance 50mm

TZ6745-PF

PF fan base pole stand

Fluorescent lamp, LED ring light

C1 focusing mount with vertical working distance 50mm

TZ6745-PF2L

PF2L fan base pole stand

Transmitted and reflected LED illumination with independent switches and adjustable intensity

C1 focusing mount with vertical working distance 50mm

TZ6745-U2

U2 pole standFluorescent lamp, LED ring lightC3 focusing mount with vertical working distance 50mm

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Other Specification for TZ6745 Pole Stand Series

Eyepiece

Standard

Auxiliary Lens 0.5X

Auxiliary Lens 1.5X

Auxiliary Lens 2X

W.D. 105mm

W.D. 177mm

W.D. 47mm

W.D. 26mm

Mag.

F.O.V

Mag.

F.O.V

Mag.

F.O.V

Mag.

F.O.V

10X/22mm

6.7X

32.8mm

3.4X

65.7mm

10.1X

21.9mm

13.4X

16.4mm

45.0X

4.9mm

22.5X

9.8mm

67.5X

3.3mm

90.0X

2.4mm

15X/16mm

10.1X

23.9mm

5.0X

47.8mm

15.1X

15.9mm

20.1X

11.9mm

67.5X

3.6mm

33.8X

7.1mm

101.3X

2.4mm

135.0X

1.8mm

20X/12mm

13.4X

17.9mm

6.7X

38.5mm

20.1X

11.9mm

26.8X

9.0mm

90.0X

2.7mm

45.0X

5.3mm

135.0X

1.8mm

180.0X

1.3mm

25X/9mm

16.8X

13.4mm

8.4X

26.9mm

25.1X

9.0mm

33.5X

6.7mm

112.5X

2.0mm

56.3X

4.0mm

168.8X

1.3mm

225.0X

1.0mm

30X/8mm

20.1X

11.9mm

10.1X

23.8mm

30.2X

7.9mm

40.2X

6.0mm

135.0X

1.8mm

67.5X

3.6mm

202.5X

1.2mm

270.0X

0.9mm

Magnification

6.7X-45X, 3.4X-270X with optional eyepieces and objectives

Eyepiece

WF10X/22mm high-eyepoint, wide-field; Convenient for observers wearing glasses

Optional Eyepiece

WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm

Main Body

Tinocular head, 45° inclined, 360° rotatable, can be locked in any position desired

Interpupillary Distance adjustment:54-75mm; Diopter adjustment:±5 diopters

Objective

0.67X-4.5X stereo zoom; Zoom Ratio:6.7:1

Aux Lens

0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X

Adapter

Provides a vertical phototube, C-mount adapters for CCD camera

TZ6745-AS

TZ6745-AL

TZ6745-AI

TZ6745-AI2L

TZ6745-AF

TZ6745-AF2L

Item

Stand

Illumination

TZ6745-AS

AS track stand

Fluorescent lamp, LED ring light

TZ6745-AL

AL track stand

Fluorescent lamp, LED ring light

TZ6745-AI

AI track stand

Fluorescent lamp, LED ring light

TZ6745-AI2L

AI2L track stand

Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity

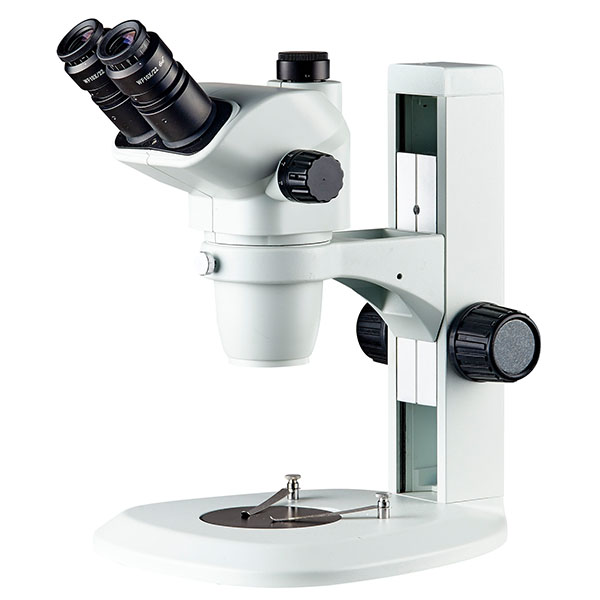

TZ6745-AF

AF fan base track stand

Fluorescent lamp, LED ring light

TZ6745-AF2L

AF2L fan base track stand

Transmitted and reflected LED illumination with independent switches and adjustable intensity

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR

Other Specification for TZ6745 Track Stand Series

Eyepiece

Standard

Auxiliary Lens 0.5X

Auxiliary Lens 1.5X

Auxiliary Lens 2X

W.D. 105mm

W.D. 177mm

W.D. 47mm

W.D. 26mm

Mag.

F.O.V

Mag.

F.O.V

Mag.

F.O.V

Mag.

F.O.V

10X/22mm

6.7X

32.8mm

3.4X

65.7mm

10.1X

21.9mm

13.4X

16.4mm

45.0X

4.9mm

22.5X

9.8mm

67.5X

3.3mm

90.0X

2.4mm

15X/16mm

10.1X

23.9mm

5.0X

47.8mm

15.1X

15.9mm

20.1X

11.9mm

67.5X

3.6mm

33.8X

7.1mm

101.3X

2.4mm

135.0X

1.8mm

20X/12mm

13.4X

17.9mm

6.7X

38.5mm

20.1X

11.9mm

26.8X

9.0mm

90.0X

2.7mm

45.0X

5.3mm

135.0X

1.8mm

180.0X

1.3mm

25X/9mm

16.8X

13.4mm

8.4X

26.9mm

25.1X

9.0mm

33.5X

6.7mm

112.5X

2.0mm

56.3X

4.0mm

168.8X

1.3mm

225.0X

1.0mm

30X/8mm

20.1X

11.9mm

10.1X

23.8mm

30.2X

7.9mm

40.2X

6.0mm

135.0X

1.8mm

67.5X

3.6mm

202.5X

1.2mm

270.0X

0.9mm

Magnification

6.7X-45X, 3.4X-270X with optional eyepieces and objectives

Eyepiece

WF10X/22mm high-eyepoint, wide-field; Convenient for observers wearing glasses

Optional Eyepiece

WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm

Main Body

Tinocular head, 45° inclined, 360° rotatable, can be locked in any position desired

Interpupillary Distance adjustment:54-75mm; Diopter adjustment:±5 diopters

Objective

0.67X-4.5X stereo zoom; Zoom Ratio:6.7:1

Aux Lens

0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X

Focusing Mount

Focusing track mount with vertical working distance 106mm

Adapter

Provides a vertical phototube, C-mount adapters for CCD camera

TZ6745-SU1

TZ6745-SU2

TZ6745-SU3

TZ6745-DU1

TZ6745-DU2

TZ6745-RU1

Item

Stand

Illumination

Focusing Mount

TZ6745-SU1

SU1 boom stand

Fluorescent lamp, LED ring light

C1 focusing mount with vertical working distance 50mm

TZ6745-SU2

SU2 boom stand

Fluorescent lamp, LED ring light

C3 focusing mount with vertical working distance 50mm

TZ6745-SU3

SU3 boom stand

Fluorescent lamp, LED ring light

C3 focusing mount with vertical working distance 50mm

TZ6745-DU1

DU1 boom stand

Fluorescent lamp, LED ring light

C1 focusing mount with vertical working distance 50mm

TZ6745-DU2

DU2 boom stand

Fluorescent lamp, LED ring light

C3 focusing mount with vertical working distance 50mm

TZ6745-RU1

RU1 boom stand

Fluorescent lamp, LED ring light

C3 focusing mount with vertical working distance 50mm

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Other Specification for TZ6745 Boom Stand Series

Eyepiece

Standard

Auxiliary Lens 0.5X

Auxiliary Lens 1.5X

Auxiliary Lens 2X

W.D. 105mm

W.D. 177mm

W.D. 47mm

W.D. 26mm

Mag.

F.O.V

Mag.

F.O.V

Mag.

F.O.V

Mag.

F.O.V

10X/22mm

6.7X

32.8mm

3.4X

65.7mm

10.1X

21.9mm

13.4X

16.4mm

45.0X

4.9mm

22.5X

9.8mm

67.5X

3.3mm

90.0X

2.4mm

15X/16mm

10.1X

23.9mm

5.0X

47.8mm

15.1X

15.9mm

20.1X

11.9mm

67.5X

3.6mm

33.8X

7.1mm

101.3X

2.4mm

135.0X

1.8mm

20X/12mm

13.4X

17.9mm

6.7X

38.5mm

20.1X

11.9mm

26.8X

9.0mm

90.0X

2.7mm

45.0X

5.3mm

135.0X

1.8mm

180.0X

1.3mm

25X/9mm

16.8X

13.4mm

8.4X

26.9mm

25.1X

9.0mm

33.5X

6.7mm

112.5X

2.0mm

56.3X

4.0mm

168.8X

1.3mm

225.0X

1.0mm

30X/8mm

20.1X

11.9mm

10.1X

23.8mm

30.2X

7.9mm

40.2X

6.0mm

135.0X

1.8mm

67.5X

3.6mm

202.5X

1.2mm

270.0X

0.9mm

Magnification

6.7X-45X, 3.4X-270X with optional eyepieces and objectives

Eyepiece

WF10X/22mm high-eyepoint, wide-field; Convenient for observers wearing glasses

Optional Eyepiece

WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm

Main Body

Tinocular head, 45° inclined, 360° rotatable, can be locked in any position desired

Interpupillary Distance adjustment:54-75mm; Diopter adjustment:±5 diopters

Objective

0.67X-4.5X stereo zoom; Zoom Ratio:6.7:1

Aux Lens

0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X

Adapter

Provides a vertical phototube, C-mount adapters for CCD camerax
