TZL6745 Series Trinocular 6.7X-45X Continuous Zoom Stereo Microscope
easy operation, superior system, industrial & biological research
Features
- Fully coated optical system with super high resolution
- Provide precision-oriented observation
- Trinocular head, 45° or 60° inclined
- Optical design provides the best reproduction and true color image
Tags: Stereo MicroscopesIndustrial Inspection
Request a Quote?
Get Quote Live chat Email Phone
high-eyepoint
45° or 60° inclined
white or camel
TZL6745 Series Stereo Zoom Microscope is fully coated optical system with super high resolution. The flat field parfocal zoom objectives provide continuously variable magnification from 3.35x-270x depending upon the eyepiece and auxiliary lenses used. It's an ideal instrument for those who require precision-oriented observation.
TZL6745-PS |
TZL6745-PRT |
TZL6745-PL |
TZL6745-PLGL |
TZL6745-PI |
TZL6745-PI2L |
TZL6745-PIGL |
TZL6745-PF |
TZL6745-PF2L |
TZL6745-AS |
TZL6745-AL |
TZL6745-AI |
TZL6745-AI2L |
TZL6745-AF |
TZL6745-AF2L |
TZL6745-SU1 |
TZL6745-SU2 |
TZL6745-SU3 |
TZL6745-DU1 |
TZL6745-DU2 |
TZL6745-U2 |
TZL6745-PS |
TZL6745-PRT |
TZL6745-PL |
TZL6745-PLGL |
TZL6745-PI |
TZL6745-PI2L |
TZL6745-PIGL |
TZL6745-PF |
TZL6745-PF2L |
TZL6745-U2 |
Item | Stand | Illumination | Focusing Mount |
|---|---|---|---|
TZL6745-PS | PS pole stand | Fluorescent lamp, LED ring light | C1 focusing mount with vertical working distance 50mm |
TZL6745- PRT | PRT pole stand | Transmitted and reflected 12v/15w halogen, 7w fluorescent, 5v/3w LED illumination | C1 focusing mount with vertical working distance 50mm |

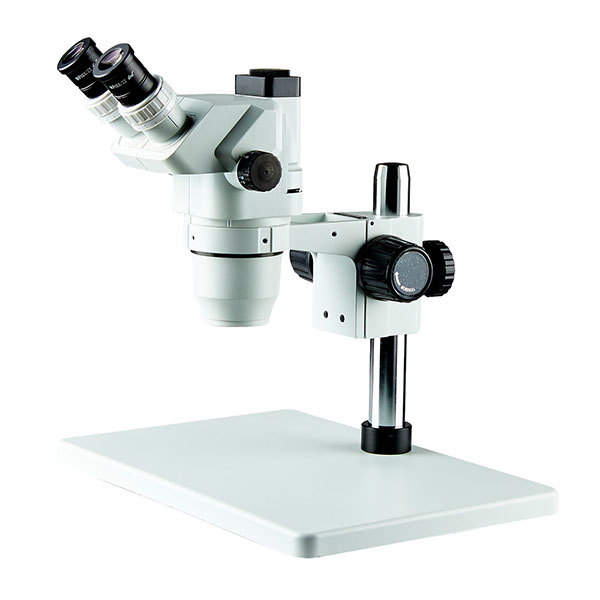

TZL6745- PL | PL pole stand | Fluorescent lamp, LED ring light | C1 focusing mount with vertical working distance 50mm |

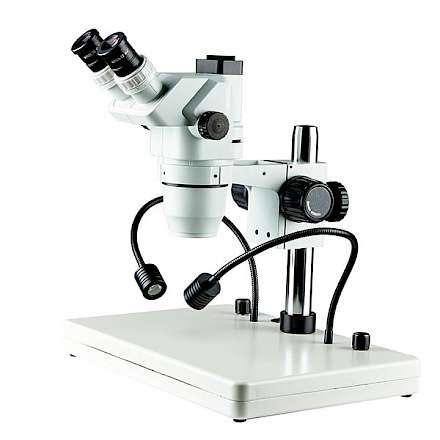

TZL6745- PLGL | PLGL pole stand | Double gooseneck LED illumination with independent switches and adjustable intensity | C1 focusing mount with vertical working distance 50mm |
TZL6745- PI | PI pole stand | Fluorescent lamp, LED ring light | C1 focusing mount with vertical working distance 50mm |
TZL6745-PI2L | PI2L pole stand | Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity | C1 focusing mount with vertical working distance 50mm |

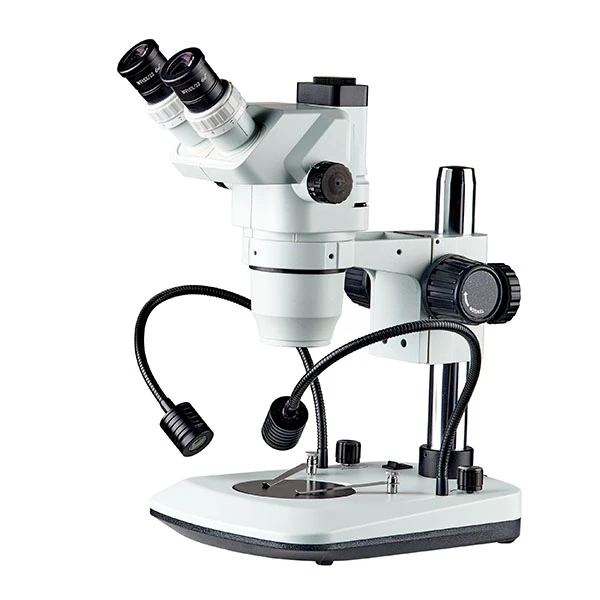

TZL6745-PIGL | PIGL pole stand | Double gooseneck LED illumination with independent switches and adjustable intensity | C1 focusing mount with vertical working distance 50mm |
TZL6745-PF | PF fan base pole stand | Fluorescent lamp, LED ring light | C1 focusing mount with vertical working distance 50mm |
TZL6745-PF2L | PF2L fan base pole stand | Transmitted and reflected LED illumination with independent switches and adjustable intensity | C1 focusing mount with vertical working distance 50mm |
TZL6745-U2 | U2 pole stand | Fluorescent lamp, LED ring light | C3 focusing mount with vertical working distance 50mm |
For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”
Other Specification for TZL6745 Pole Stand Series | ||||||||
|---|---|---|---|---|---|---|---|---|
Eyepiece | Standard | Auxiliary Lens 0.5X | Auxiliary Lens 1.5X | Auxiliary Lens 2X | ||||
W.D. 105mm | W.D. 177mm | W.D. 47mm | W.D. 26mm | |||||
Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | |
10X/22mm | 6.7X | 32.8mm | 3.4X | 65.7mm | 10.1X | 21.9mm | 13.4X | 16.4mm |
45.0X | 4.9mm | 22.5X | 9.8mm | 67.5X | 3.3mm | 90.0X | 2.4mm | |
15X/16mm | 10.1X | 23.9mm | 5.0X | 47.8mm | 15.1X | 15.9mm | 20.1X | 11.9mm |
67.5X | 3.6mm | 33.8X | 7.1mm | 101.3X | 2.4mm | 135.0X | 1.8mm | |
20X/12mm | 13.4X | 17.9mm | 6.7X | 38.5mm | 20.1X | 11.9mm | 26.8X | 9.0mm |
90.0X | 2.7mm | 45.0X | 5.3mm | 135.0X | 1.8mm | 180.0X | 1.3mm | |
25X/9mm | 16.8X | 13.4mm | 8.4X | 26.9mm | 25.1X | 9.0mm | 33.5X | 6.7mm |
112.5X | 2.0mm | 56.3X | 4.0mm | 168.8X | 1.3mm | 225.0X | 1.0mm | |
30X/8mm | 20.1X | 11.9mm | 10.1X | 23.8mm | 30.2X | 7.9mm | 40.2X | 6.0mm |
135.0X | 1.8mm | 67.5X | 3.6mm | 202.5X | 1.2mm | 270.0X | 0.9mm | |
Magnification | 6.7X-45X, 3.4X-270X with optional eyepieces and objectives | |||||||
Eyepiece | WF10X/22mm high-eyepoint, wide-field; Convenient for observers wearing glasses | |||||||
Optional Eyepiece | WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm | |||||||
Main Body | Trinocular head, 45° or 60° inclined, 360° rotatable, can be locked in any position desired | |||||||
Interpupillary Distance adjustment:54-75mm; Diopter adjustment:±5 diopters | ||||||||
Objective | 0.67X-4.5X stereo zoom; Zoom Ratio:6.7:1 | |||||||
Aux Lens | 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X | |||||||
Adapter | Provides a vertical phototube, C-mount adapters for CCD camera | |||||||
Main Body Color | White or camel | |||||||
TZL6745-AS |
TZL6745-AL |
TZL6745-AI |
TZL6745-AI2L |
TZL6745-AF |
TZL6745-AF2L |
Item | Stand | Illumination |
|---|---|---|
TZL6745-AS | AS track stand | Fluorescent lamp, LED ring light |
TZL6745- AL | AL track stand | Fluorescent lamp, LED ring light |
TZL6745- AI | AI track stand | Fluorescent lamp, LED ring light |

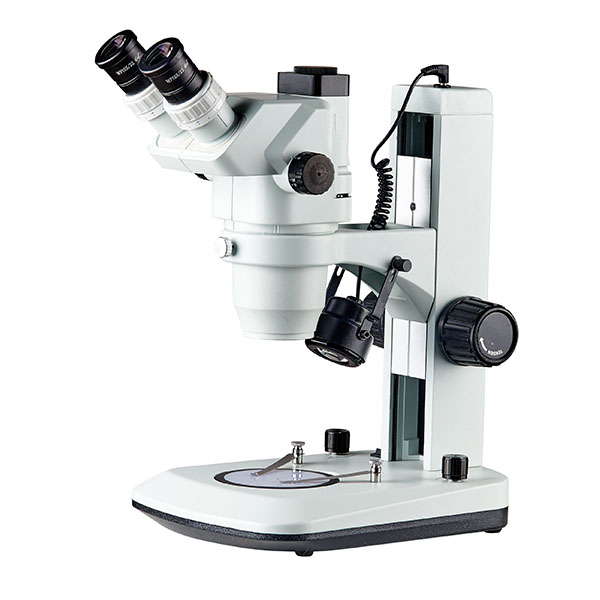

TZL6745- AI2L | AI2L track stand | Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity |
TZL6745- AF | AF fan base track stand | Fluorescent lamp, LED ring light |
TZL6745-AF2L | AF2L fan base track stand | Transmitted and reflected LED illumination with independent switches and adjustable intensity |
For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”
Other Specification for TZL6745 Track Stand Series | ||||||||
|---|---|---|---|---|---|---|---|---|
Eyepiece | Standard | Auxiliary Lens 0.5X | Auxiliary Lens 1.5X | Auxiliary Lens 2X | ||||
W.D. 105mm | W.D. 177mm | W.D. 47mm | W.D. 26mm | |||||
Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | |
10X/22mm | 6.7X | 32.8mm | 3.4X | 65.7mm | 10.1X | 21.9mm | 13.4X | 16.4mm |
45.0X | 4.9mm | 22.5X | 9.8mm | 67.5X | 3.3mm | 90.0X | 2.4mm | |
15X/16mm | 10.1X | 23.9mm | 5.0X | 47.8mm | 15.1X | 15.9mm | 20.1X | 11.9mm |
67.5X | 3.6mm | 33.8X | 7.1mm | 101.3X | 2.4mm | 135.0X | 1.8mm | |
20X/12mm | 13.4X | 17.9mm | 6.7X | 38.5mm | 20.1X | 11.9mm | 26.8X | 9.0mm |
90.0X | 2.7mm | 45.0X | 5.3mm | 135.0X | 1.8mm | 180.0X | 1.3mm | |
25X/9mm | 16.8X | 13.4mm | 8.4X | 26.9mm | 25.1X | 9.0mm | 33.5X | 6.7mm |
112.5X | 2.0mm | 56.3X | 4.0mm | 168.8X | 1.3mm | 225.0X | 1.0mm | |
30X/8mm | 20.1X | 11.9mm | 10.1X | 23.8mm | 30.2X | 7.9mm | 40.2X | 6.0mm |
135.0X | 1.8mm | 67.5X | 3.6mm | 202.5X | 1.2mm | 270.0X | 0.9mm | |
Magnification | 6.7X-45X, 3.4X-270X with optional eyepieces and objectives | |||||||
Eyepiece | WF10X/22mm high-eyepoint, wide-field; Convenient for observers wearing glasses | |||||||
Optional Eyepiece | WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm | |||||||
Main Body | Trinocular head, 45° or 60° inclined, 360° rotatable, can be locked in any position desired | |||||||
Interpupillary Distance adjustment:54-75mm; Diopter adjustment:±5 diopters | ||||||||
Objective | 0.67X-4.5X stereo zoom; Zoom Ratio:6.7:1 | |||||||
Aux Lens | 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X | |||||||
Focusing Mount | Focusing track mount with vertical working distance 106mm | |||||||
Adapter | Provides a vertical phototube, C-mount adapters for CCD camera | |||||||
Main Body Color | White or camel | |||||||
TZL6745-SU1 |
TZL6745-SU2 |
TZL6745-SU3 |
TZL6745-DU1 |
TZL6745-DU2 |
Item | Stand | Focusing Mount |
|---|---|---|
TZL6745-SU1 | SU1 boom stand | C1 focusing mount with vertical working distance 50mm |
TZL6745- SU2 | SU2 boom stand | C3 focusing mount with vertical working distance 50mm |

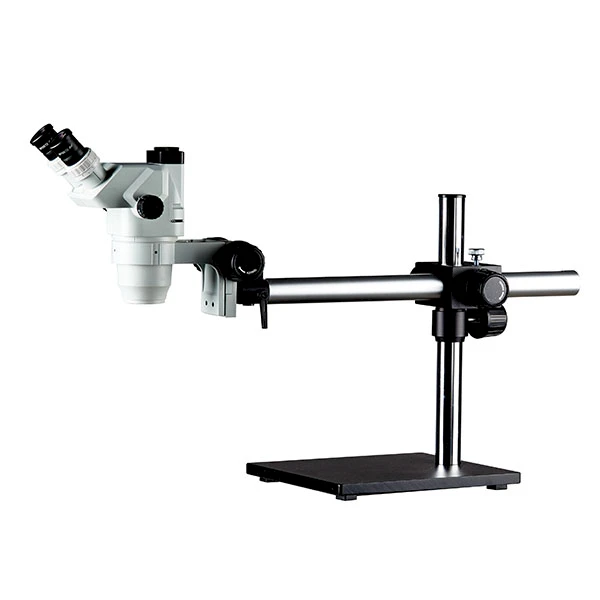

TZL6745- SU3 | SU3 boom stand | C3 focusing mount with vertical working distance 50mm |

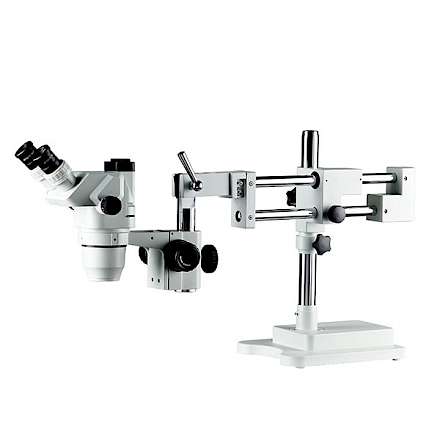

TZL6745- DU1 | DU1 boom stand | C1 focusing mount with vertical working distance 50mm |
TZL6745- DU2 | DU2 boom stand | C3 focusing mount with vertical working distance 50mm |
For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”
Other Specification for TZL6745 Boom Stand Series | ||||||||
|---|---|---|---|---|---|---|---|---|
Eyepiece | Standard | Auxiliary Lens 0.5X | Auxiliary Lens 1.5X | Auxiliary Lens 2X | ||||
W.D. 105mm | W.D. 177mm | W.D. 47mm | W.D. 26mm | |||||
Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | |
10X/22mm | 6.7X | 32.8mm | 3.4X | 65.7mm | 10.1X | 21.9mm | 13.4X | 16.4mm |
45.0X | 4.9mm | 22.5X | 9.8mm | 67.5X | 3.3mm | 90.0X | 2.4mm | |
15X/16mm | 10.1X | 23.9mm | 5.0X | 47.8mm | 15.1X | 15.9mm | 20.1X | 11.9mm |
67.5X | 3.6mm | 33.8X | 7.1mm | 101.3X | 2.4mm | 135.0X | 1.8mm | |
20X/12mm | 13.4X | 17.9mm | 6.7X | 38.5mm | 20.1X | 11.9mm | 26.8X | 9.0mm |
90.0X | 2.7mm | 45.0X | 5.3mm | 135.0X | 1.8mm | 180.0X | 1.3mm | |
25X/9mm | 16.8X | 13.4mm | 8.4X | 26.9mm | 25.1X | 9.0mm | 33.5X | 6.7mm |
112.5X | 2.0mm | 56.3X | 4.0mm | 168.8X | 1.3mm | 225.0X | 1.0mm | |
30X/8mm | 20.1X | 11.9mm | 10.1X | 23.8mm | 30.2X | 7.9mm | 40.2X | 6.0mm |
135.0X | 1.8mm | 67.5X | 3.6mm | 202.5X | 1.2mm | 270.0X | 0.9mm | |
Magnification | 6.7X-45X, 3.4X-270X with optional eyepieces and objectives | |||||||
Eyepiece | WF10X/22mm high-eyepoint, wide-field; Convenient for observers wearing glasses | |||||||
Optional Eyepiece | WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm | |||||||
Main Body | Trinocular head, 45° or 60° inclined, 360° rotatable, can be locked in any position desired | |||||||
Interpupillary Distance adjustment:54-75mm; Diopter adjustment:±5 diopters | ||||||||
Objective | 0.67X-4.5X stereo zoom; Zoom Ratio:6.7:1 | |||||||
Aux Lens | 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X | |||||||
Illumination | Fluorescent lamp, LED ring light | |||||||
Adapter | Provides a vertical phototube, C-mount adapters for CCD camera | |||||||
Main Body Color | White or camel | |||||||
