BD6024C Series Binocular Jewelry & Gemology Stereo Microscope
two magnification levels(10x/20x, 10x/30x, or 20x/40x), inspection & training
Features
- 20X-40X, 10X-80X (optional eyepiece & objective)
- easy operation
- educational teaching & learning
- jewelry & gemology
- zoology
Tags: Stereo MicroscopesGemological MicroscopesZoology
Request a Quote?
Get Quote Live chat Email Phone
100mm
WF10X/20mm
identification & appraisal
BD6024C Series Stereo Microscope has two magnification levels(10x/20x, 10x/30x, or 20x/40x). It is easy to operate and it is an ideal microscope for student learning and classroom teaching. It is also a perfect device for viewing jewel, PCB, insects and so on.
BD6024C-PS |
BD6024C-PRT |
BD6024C-PL |
BD6024C-PLGL |
BD6024C-PI |
BD6024C-PI2L |
BD6024C-PIGL |
BD6024C-PF |
BD6024C-PF2L |
BD6024C-AS |
BD6024C-AL |
BD6024C-AI |
BD6024C-AI2L |
BD6024C-AF |
BD6024C-AF2L |
BD6024C-AC |
BD6024C-AC2L |
BD6024C-SU1 |
BD6024C-SU2 |
BD6024C-SU3 |
BD6024C-DU1 |
BD6024C-DU2 |
BD6024C-RU1 |
BD6024C-U2 |
BD6024C-PS |
BD6024C-PRT |
BD6024C-PL |
BD6024C-PLGL |
BD6024C-PI |
BD6024C-PI2L |
BD6024C-PIGL |
BD6024C-PF |
BD6024C-PF2L |
BD6024C-U2 |
Item | Stand | Illumination | Focusing Mount |
|---|---|---|---|
BD6024C -PS | PS pole stand | Fluorescent lamp, LED ring light | C1 focusing mount with vertical working distance 50mm |
BD6024C -PRT | PRT pole stand | Transmitted and reflected 12v/15w halogen, 7w fluorescent, 5v/3w LED illumination | C1 focusing mount with vertical working distance 50mm |
BD6024C -PL | PL pole stand | Fluorescent lamp, LED ring light | C1 focusing mount with vertical working distance 50mm |
BD6024C -PLGL | PLGL pole stand | Double gooseneck LED illumination with independent switches and adjustable intensity | C1 focusing mount with vertical working distance 50mm |
BD6024C -PI | PI pole stand | Fluorescent lamp, LED ring light | C1 focusing mount with vertical working distance 50mm |
BD6024C -PI2L | PI2L pole stand | Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity | C1 focusing mount with vertical working distance 50mm |

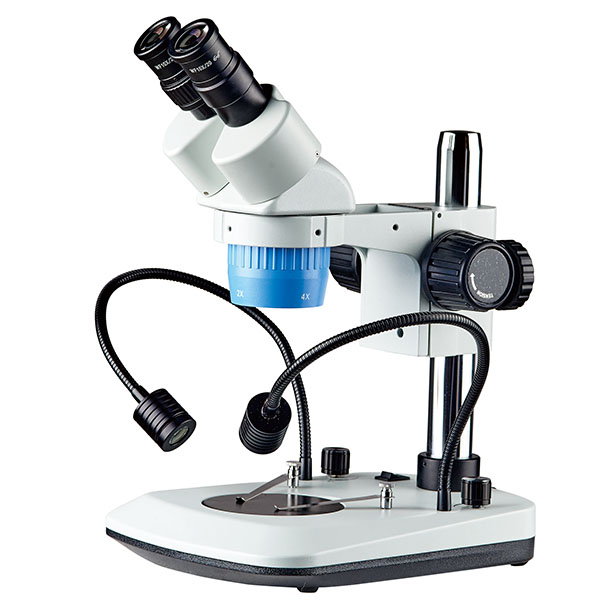

BD6024C -PIGL | PIGL pole stand | Double gooseneck LED illumination with independent switches and adjustable intensity | C1 focusing mount with vertical working distance 50mm |
BD6024C -PF | PF fan base pole stand | Fluorescent lamp, LED ring light | C1 focusing mount with vertical working distance 50mm |
BD6024C -PF2L | PF2L fan base pole stand | Transmitted and reflected LED illumination with independent switches and adjustable intensity | C1 focusing mount with vertical working distance 50mm |
BD6024C -U2 | U2 pole stand | Fluorescent lamp, LED ring light | C3 focusing mount with vertical working distance 50mm |
For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”
Specification for BD6024C Pole Stand Series | ||||||||
|---|---|---|---|---|---|---|---|---|
Eyepiece | Objective 1X | Objective 2X | Objective 3X | Objective 4X | ||||
Working Distance 100mm | ||||||||
Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | |
10X/20mm | 10X | 20.0mm | 20X | 10.0mm | 30X | 7.5mm | 40X | 5.0mm |
15X/15mm | 12X | 15.0mm | 30X | 7.5mm | 45X | 5.0mm | 60X | 3.3mm |
20X/10mm | 20X | 10.0mm | 40X | 5.0mm | 60X | 3.3mm | 80X | 2.5mm |
Magnification | 20X-40X, 10X-80X with optional eyepieces and objectives | |||||||
Eyepiece | WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses | |||||||
Optional Eyepiece | WF10X/20mm, WF15X/15mm, WF20X/10mm | |||||||
Main Body | Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired | |||||||
Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters | ||||||||
Objective | 2X/4X, 1X/3X, 1X/2X | |||||||
BD6024C-AS |
BD6024C-AL |
BD6024C-AI |
BD6024C-AI2L |
BD6024C-AF |
BD6024C-AF2L |
BD6024C-AC |
BD6024C-AC2L |
Item | Stand | Illumination |
|---|---|---|
BD6024C-AS | AS track stand | Fluorescent lamp, LED ring light |

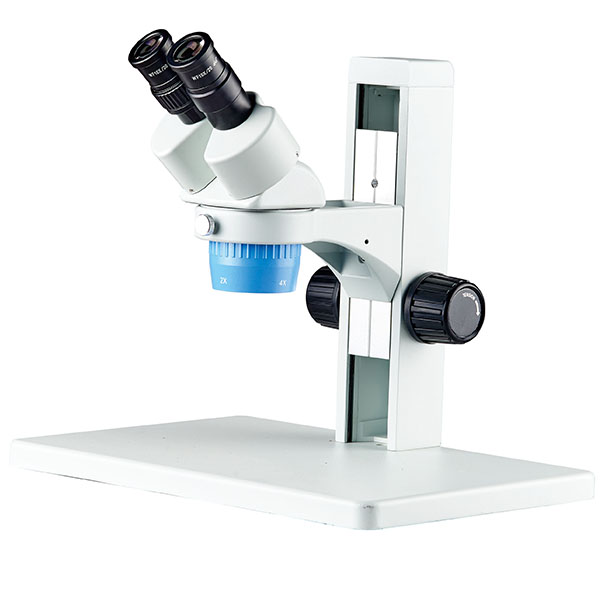

BD6024C-AL | AL track stand | Fluorescent lamp, LED ring light |
BD6024C-AI | AI track stand | Fluorescent lamp, LED ring light |

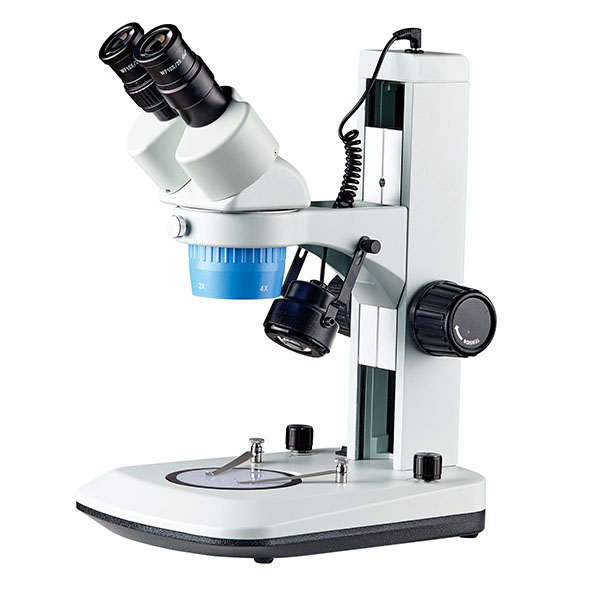

BD6024C-AI2L | AI2L track stand | Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity |
BD6024C-AF | AF fan track stand | Fluorescent lamp, LED ring light |
BD6024C-AF2L | AF2L fan base track stand | Transmitted and reflected LED illumination with independent switches and adjustable intensity |
BD6024C-AC | AC track stand | Fluorescent lamp, LED ring light |
BD6024C-AC2L | AC2L track stand | Transmitted and reflected LED illumination with independent switches and adjustable intensity |
For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”
Specification for BD6024C Track Stand Series | ||||||||
|---|---|---|---|---|---|---|---|---|
Eyepiece | Objective 1X | Objective 2X | Objective 3X | Objective 4X | ||||
Working Distance 100mm | ||||||||
Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | |
10X/20mm | 10X | 20.0mm | 20X | 10.0mm | 30X | 7.5mm | 40X | 5.0mm |
15X/15mm | 12X | 15.0mm | 30X | 7.5mm | 45X | 5.0mm | 60X | 3.3mm |
20X/10mm | 20X | 10.0mm | 40X | 5.0mm | 60X | 3.3mm | 80X | 2.5mm |
Magnification | 20X-40X, 10X-80X with optional eyepieces and objectives | |||||||
Eyepiece | WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses | |||||||
Optional Eyepiece | WF10X/20mm, WF15X/15mm, WF20X/10mm | |||||||
Main Body | Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired | |||||||
Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters | ||||||||
Objective | 2X/4X, 1X/3X, 1X/2X | |||||||
Focusing Mount | Focusing track mount with vertical working distance 50mm | |||||||
BD6024C-SU1 |
BD6024C-SU2 |
BD6024C-SU3 |
BD6024C-DU1 |
BD6024C-DU2 |
BD6024C-RU1 |
Item | Stand | Focusing Mount |
|---|---|---|
BD6024C-SU1 | SU1 boom stand | C1 focusing mount with vertical working distance 50mm |
BD6024C-SU2 | SU2 boom stand | C3 focusing mount with vertical working distance 50mm |
BD6024C-SU3 | SU3 boom stand | C3 focusing mount with vertical working distance 50mm |
BD6024C-DU1 | DU1 boom stand | C1 focusing mount with vertical working distance 50mm |
BD6024C-DU2 | DU2 boom stand | C3 focusing mount with vertical working distance 50mm |
BD6024C-RU1 | RU1 clamp boom stand | C3 focusing mount with vertical working distance 50mm |
For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”
Specification for BD6024C Boom Stand Series | ||||||||
|---|---|---|---|---|---|---|---|---|
Eyepiece | Objective 1X | Objective 2X | Objective 3X | Objective 4X | ||||
Working Distance 100mm | ||||||||
Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | |
10X/20mm | 10X | 20.0mm | 20X | 10.0mm | 30X | 7.5mm | 40X | 5.0mm |
15X/15mm | 12X | 15.0mm | 30X | 7.5mm | 45X | 5.0mm | 60X | 3.3mm |
20X/10mm | 20X | 10.0mm | 40X | 5.0mm | 60X | 3.3mm | 80X | 2.5mm |
Magnification | 20X-40X, 10X-80X with optional eyepieces and objectives | |||||||
Eyepiece | WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses | |||||||
Optional Eyepiece | WF10X/20mm, WF15X/15mm, WF20X/10mm | |||||||
Main Body | Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired | |||||||
Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters | ||||||||
Objective | 2X/4X, 1X/3X, 1X/2X | |||||||
Illumination | Fluorescent lamp, LED ring light | |||||||
