BD7024 Series 10X-120X inspection & measurement Stereo Microscope with optional illumination
different two magnification level, 20X-40X, 10X-120X(Mag.), new ergonomics design
Features
- 20X-40X, 10X-120X(optional eyepiece & objective)
- optical system with super high resolution
- extremely great flat and contrast images
- new ergonomics design
- easy and comfortable operation, against fatigue
- widely used in various fields: electronic industry, educational demonstration and agricultural research
Tags: Stereo Microscopes
Request a Quote?
Get Quote Live chat Email Phone
10X-120X
BD7024 Series Stereo Microscope is fully coated optical system with super high resolution. It offers sharp clear images with extremely great flatness and contrast. With the new ergonomics design and super large field of view, you can use this microscope for long time without fatigue. It is widely used in electronic industry, educational demonstration and agricultural research for micro-object observation, inspection and measurement.
BD7024-PS |
BD7024-PRT |
BD7024-PL |
BD7024-PLGL |
BD7024-PI |
BD7024-PI2L |
BD7024-PIGL |
BD7024-PF |
BD7024-PF2L |
BD7024-AS |
BD7024-AL |
BD7024-AI |
BD7024-AI2L |
BD7024-AF |
BD7024-AF2L |
BD7024-SU1 |
BD7024-SU2 |
BD7024-SU3 |
BD7024-DU1 |
BD7024-DU2 |
BD7024-RU1 |
BD7024-U2 |
BD7024-PS |
BD7024-PRT |
BD7024-PL |
BD7024-PLGL |
BD7024-PI |
BD7024-PI2L |
BD7024-PIGL |
BD7024-PF |
BD7024-PF2L |
BD7024-U2 |
Item | Stand | Illumination | Focusing Mount |
|---|---|---|---|
BD7024 -PS | PS pole stand | Fluorescent lamp, LED ring light | C1 focusing mount with vertical working distance 50mm |
BD7024 -PRT | PRT pole stand | Transmitted and reflected 12v/15w halogen, 7w fluorescent, 5v/3w LED illumination | C1 focusing mount with vertical working distance 50mm |
BD7024 -PL | PL pole stand | Fluorescent lamp, LED ring light | C1 focusing mount with vertical working distance 50mm |
BD7024 -PLGL | PLGL pole stand | Double gooseneck LED illumination with independent switches and adjustable intensity | C1 focusing mount with vertical working distance 50mm |
BD7024 -PI | PI pole stand | Fluorescent lamp, LED ring light | C1 focusing mount with vertical working distance 50mm |
BD7024 -PI2L | PI2L pole stand | Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity | C1 focusing mount with vertical working distance 50mm |
BD7024 -PIGL | PIGL pole stand | Double gooseneck LED illumination with independent switches and adjustable intensity | C1 focusing mount with vertical working distance 50mm |
BD7024 -PF | PF fan base pole stand | Fluorescent lamp, LED ring light | C1 focusing mount with vertical working distance 50mm |
BD7024 -PF2L | PF2L fan base pole stand | Transmitted and reflected LED illumination with independent switches and adjustable intensity | C1 focusing mount with vertical working distance 50mm |
BD7024 -U2 | U2 pole stand | Fluorescent lamp, LED ring light | C3 focusing mount with vertical working distance 50mm |
For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”
Specification for BD7024 Pole Stand | ||||||||
|---|---|---|---|---|---|---|---|---|
Eyepiece | Objective 1X | Objective 2X | Objective 3X | Objective 4X | ||||
Working Distance 100mm | ||||||||
Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | |
10X/23mm | 10X | 20.0mm | 20X | 10.0mm | 30X | 7.5mm | 40X | 5.0mm |
15X/16mm | 15X | 16.0mm | 30X | 8.0mm | 45X | 5.0mm | 60X | 3.3mm |
20X/12mm | 20X | 12.0mm | 40X | 6.0mm | 60X | 3.3mm | 80X | 2.5mm |
25X/9mm | 25X | 9.0mm | 50X | 4.5mm | 75X | 3.0mm | 100X | 2.3mm |
30X/8mm | 30X | 8.0mm | 60X | 4.0mm | 90X | 2.7mm | 120X | 2.0mm |
Magnification | 20X-40X, 10X-120X with optional eyepieces and objectives | |||||||
Eyepiece | WF10X/23mm high-eyepoint, super wide-field; Convenient for observers wearing glasses | |||||||
Optional Eyepiece | WF10X/23mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm | |||||||
Main Body | Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired | |||||||
Interpupillary Distance adjustment:54-75mm; Diopter adjustment:±5 diopters | ||||||||
Objective | 2X/4X, 1X/3X, 1X/2X | |||||||
BD7024-AS |
BD7024-AL |
BD7024-AI |
BD7024-AI2L |
BD7024-AF |
BD7024-AF2L |
Item | Stand | Illumination |
|---|---|---|
BD7024-AS | AS track stand | Fluorescent lamp, LED ring light |
BD7024-AL | AL track stand | Fluorescent lamp, LED ring light |
BD7024-AI | AI track stand | Fluorescent lamp, LED ring light |
BD7024-AI2L | AI2L track stand | Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity |
BD7024-AF | AF fan track stand | Fluorescent lamp, LED ring light |
BD7024-AF2L | AF2L fan base track stand | Transmitted and reflected LED illumination with independent switches and adjustable intensity |
For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”
Specification for BD7024 Track Stand | ||||||||
|---|---|---|---|---|---|---|---|---|
Eyepiece | Objective 1X | Objective 2X | Objective 3X | Objective 4X | ||||
Working Distance 100mm | ||||||||
Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | |
10X/23mm | 10X | 20.0mm | 20X | 10.0mm | 30X | 7.5mm | 40X | 5.0mm |
15X/16mm | 15X | 16.0mm | 30X | 8.0mm | 45X | 5.0mm | 60X | 3.3mm |
20X/12mm | 20X | 12.0mm | 40X | 6.0mm | 60X | 3.3mm | 80X | 2.5mm |
25X/9mm | 25X | 9.0mm | 50X | 4.5mm | 75X | 3.0mm | 100X | 2.3mm |
30X/8mm | 30X | 8.0mm | 60X | 4.0mm | 90X | 2.7mm | 120X | 2.0mm |
Magnification | 20X-40X, 10X-120X with optional eyepieces and objectives | |||||||
Eyepiece | WF10X/23mm high-eyepoint, super wide-field; Convenient for observers wearing glasses | |||||||
Optional Eyepiece | WF10X/23mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm | |||||||
Main Body | Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired | |||||||
Interpupillary Distance adjustment:54-75mm; Diopter adjustment:±5 diopters | ||||||||
Objective | 2X/4X, 1X/3X, 1X/2X | |||||||
Focusing Mount | Focusing track mount with vertical working distance 106mm | |||||||
BD7024-SU1 |
BD7024-SU2 |
BD7024-SU3 |
BD7024-DU1 |
BD7024-DU2 |
BD7024-RU1 |
Item | Stand | Focusing Mount |
|---|---|---|

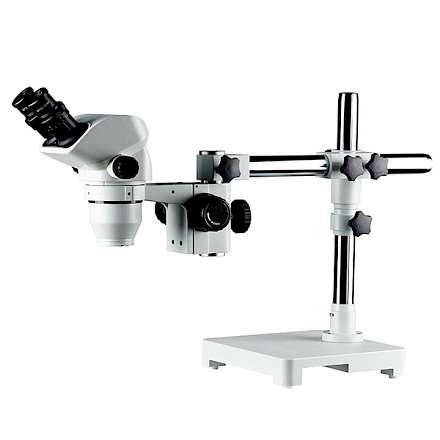

BD7024-SU1 | SU1 boom stand | C1 focusing mount with vertical working distance 50mm |
BD7024-SU2 | SU2 boom stand | C3 focusing mount with vertical working distance 50mm |

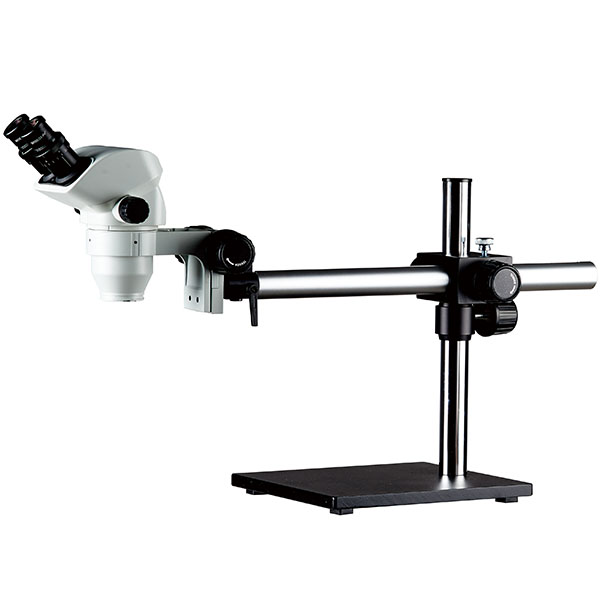

BD7024-SU3 | SU3 boom stand | C3 focusing mount with vertical working distance 50mm |

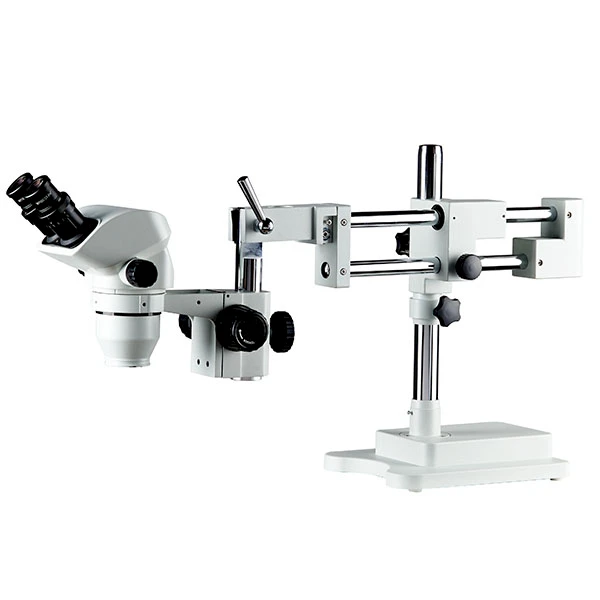

BD7024-DU1 | DU1 boom stand | C1 focusing mount with vertical working distance 50mm |
BD7024-DU2 | DU2 boom stand | C3 focusing mount with vertical working distance 50mm |
BD7024-RU1 | RU1 clamp boom stand | C3 focusing mount with vertical working distance 50mm |
For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”
Specification for BD7024 Boom Stand | ||||||||
|---|---|---|---|---|---|---|---|---|
Eyepiece | Objective 1X | Objective 2X | Objective 3X | Objective 4X | ||||
Working Distance 100mm | ||||||||
Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | |
10X/23mm | 10X | 20.0mm | 20X | 10.0mm | 30X | 7.5mm | 40X | 5.0mm |
15X/16mm | 15X | 16.0mm | 30X | 8.0mm | 45X | 5.0mm | 60X | 3.3mm |
20X/12mm | 20X | 12.0mm | 40X | 6.0mm | 60X | 3.3mm | 80X | 2.5mm |
25X/9mm | 25X | 9.0mm | 50X | 4.5mm | 75X | 3.0mm | 100X | 2.3mm |
30X/8mm | 30X | 8.0mm | 60X | 4.0mm | 90X | 2.7mm | 120X | 2.0mm |
Magnification | 20X-40X, 10X-120X with optional eyepieces and objectives | |||||||
Eyepiece | WF10X/23mm high-eyepoint, super wide-field; Convenient for observers wearing glasses | |||||||
Optional Eyepiece | WF10X/23mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm | |||||||
Main Body | Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired | |||||||
Interpupillary Distance adjustment:54-75mm; Diopter adjustment:±5 diopters | ||||||||
Illumination | Fluorescent lamp, LED ring light | |||||||
