DTB45 Series Monocular Inspection & Measurement Continuous Zoom Video Digital Stereo Microscope
0.35X-2.25X(Mag.), connect to the cameras & displays, inspection & measurement
Features
- sharp clear images
- using with a CCD camera
- 63-180lp/mm resolution
- 0.5X, 1.0X, 2.0X(Aux Lens)
- widely used in various fields: electronic industry and agricultural research
Tags: Stereo Microscopes
Request a Quote?
Get Quote Live chat Email Phone
DTB45 Series Monocular Stereo Zoom Video Microscope offers sharp clear images, and it is primarily designed for using with a CCD camera. It is widely used in electronic industry and agricultural research for micro-object observation, inspection and measurement. 63-180lp/mm resolution meets the requirements of conventional imaging machine vision.
DTB45-PRT |

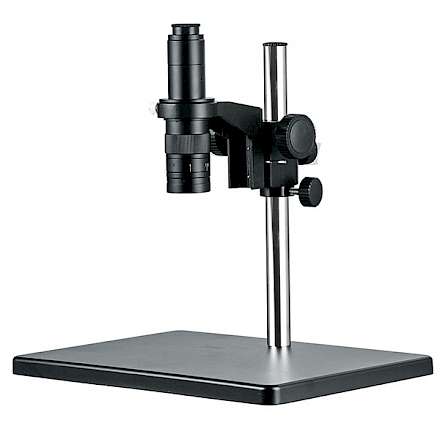

DTB45-PL |
DTB45-U1 |
Item | Stand | Illumination |
|---|---|---|
DTB45-PRT | PRT pole stand | Transmitted and reflected 12v/15w halogen, 7w fluorescent, 5v/3w LED illumination |
DTB45-PL | PL pole stand | Fluorescent lamp, LED ring light |
DTB45-U1 | U1 pole stand | Fluorescent lamp, LED ring light |
For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”
Other Specification for DTB45 Series | ||||||
|---|---|---|---|---|---|---|
Eyepiece | Standard | Auxiliary Lens 0.5X | Auxiliary Lens 2.0X | |||
W.D. 100mm | W.D. 165mm | W.D. 30mm | ||||
Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | |
0.35X | 0.245X | 23mm | 0.1225X | 46mm | 0.49X | 11.6mm |
1.575X | 3mm | 0.7875X | 7mm | 3.15X | 1.7mm | |
0.5X | 0.35X | 17.6mm | 0.175X | 35mm | 0.7X | 8.8mm |
2.25X | 2.7mm | 1.125X | 5mm | 4.5X | 1.3mm | |
1X | 0.7X | 9mm | 0.35X | 17.6mm | 1.4X | 4mm |
4.5X | 1.6mm | 2.25X | 3mm | 9X | 0.71mm | |
Magnification | 0.35X-2.25X(standard) | |||||
Eyepiece | 0.5X(standard) | |||||
Optional Eyepiece | 0.35X, 0.5X, 1X | |||||
Objective | 0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1 | |||||
Aux Lens | 0.5X, 1.0X, 2.0X | |||||
Focusing Mount | DTB45-C1 focusing mount with vertical working distance 62mm; ID:50mm for lens | |||||
Accessories | Can be connected to the cameras and displays | |||||
