VM2020M Series Upright Industrial School Research Metallurgical Microscope with Reflected & Transmitted Illumination System
50X-600X, Trinocular, 185mm x 140mm stage, Halogen lamp
Features
- With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field
- Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μm
- With vertical illuminator and transmitted illuminator, can observe surfaces of non-transparent object or transparent object
- 6V 20W halogen lamp, brightness control
- Trinocular, can switch to observe normally or to observe the polarize, can send 100% of light to the binocular eyepieces or to the top port
Tags: Compound MicroscopesMetallurgical Microscopes
Request a Quote?
Get Quote Live chat Email Phone
VM2020M Series Reflected and Transmitted Metallurgical Microscopes are suitable to observe surfaces of non-transparent object or transparent object. They are equipped with vertical illuminator and transmitted illuminator, plan achromatic objectives with long working distance(no cover glass), wide field eyepieces and set polarizer device in trinocular. They provide clear and high-contrast image, convenient control. They are the ideal instruments in research work in biology, metallography, mineralogy, precision engineering, electronics etc. They are suitable for scientific research, teaching demonstration in the colleges and factory.
Trinocular, single diopter adjustment, inclined 30° and integrated analyzer, it can be connected to the camera.
Integrated field, aperture diaphragm and (Y, B, G, Ground glass) switching device. Puller polarizer can be circumrotated for 90°.
Outside field diaphragm, 6V20W Halogen lamp, brightness adjustable. Abbe condenser N.A. 1.25 Rack & pinion adjustable. Equipped with B filter and frosted glass.
By adding the appurtenance such as CCD adapter, digital camera adapter and single-reverse digital camera adapter etc. They can achieve high clear observation mode of camera and vidicon.

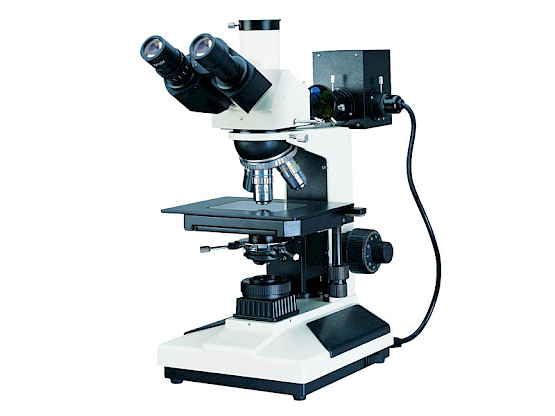

VM2020M Series
Head & Mechanical Stage of VM2020M Series
Epi-illumiantion & Transmitted illumination system of VM2020M Series

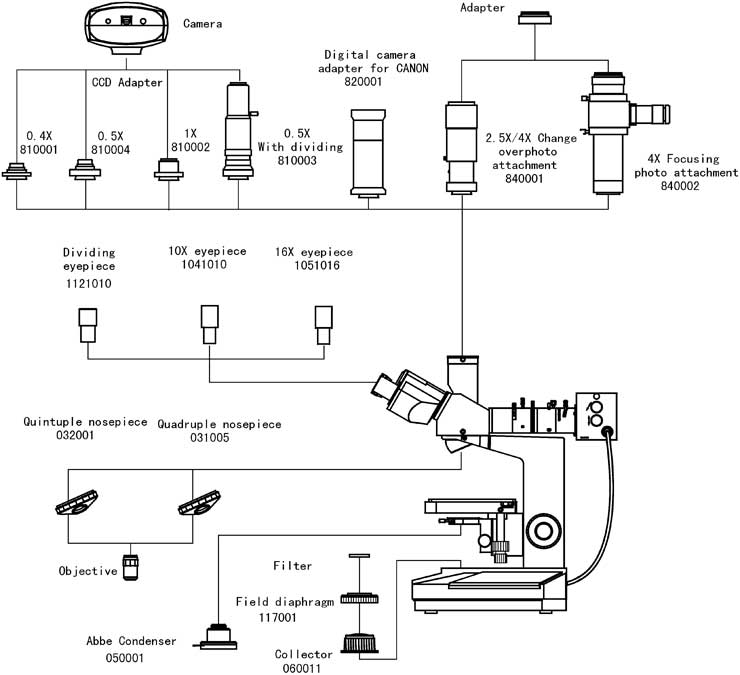

Diagram of VM2020M Series
Dimension of VM2020M Series
Specification for VM2020M Sereis | ||
|---|---|---|
Eyepiece | WF 10X (Φ18mm) | |
Eyepiece Tube | Trinocular, inclined 30°, Analyzer with field diaphragm to switch | |
Objective | VM2020MA | VM2020MB |
Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12 | Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12 | |
Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25 | Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25 | |
Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60 | Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40 | |
Plan achromatic objectives with long working distance (no cover glass) PL L60X/0.75 (Spring) | Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60 | |
Plan achromatic objectives with long working distance (no cover glass) PL L60X/0.75(Spring ) | ||
Focus System | Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing is 2.0μm | |
Nosepiece | Quadruple (Backward Ball bearing inner locating) | |
Quintuple (Backward Ball bearing inner locating) | ||
Working Stage | Double layer mechanical (Size:185mmX140mm,moving range:75mmX50mm) | |
Vertical Illumination Unit | 6V 20W Halogen Lamp, brightness control | |
Vertical illumination With field diaphragm, aperture diaphragm and polarizer, (Y, B, G) filter and frosted filter | ||
Vertical Illumination Unit | Abbe Condenser N.A. 1.25 Rack & pinion adjustable | |
Blue filter & Frosted filter | ||
Collector for halogen lamp | ||
6V 20W Halogen lamp, brightness control | ||
Accessories for VM2020M Series | |
|---|---|
Eyepiece | WF 16X(Φ11mm) |
Dividing 10X(Φ18mm) 0.1mm/Div | |
Objective | Plan achromatic objectives with long working distance (no cover glass) PL L50X/0.70 |
Plan achromatic objectives with long working distance (no cover glass) PL L80X/0.80 | |
Plan achromatic objectives with long working distance (no cover glass) PL L100X/0.85 (Spring) | |
Plan achromatic objectives (no cover glass) PL 100X/1.25 (Spring, Oil) | |
Filter | Green filter |
Yellow filter | |
CCD Adapter | 0.4X |
0.5X | |
1X | |
0.5X (with dividing 0.1mm/Div) | |
Camera | DV-1 (with USB & Video Output) |
DV-2 (with USB Output) | |
DV-3 (with Video Output) | |
Photo Unit | 2.5X/4X Change over photograph attachment with 10X viewing eyepiece |
4X Focusing photograph attachment | |
MD Adapter | |
PK Adapter | |
Digital camera adapter | CANON (A610, A620, A630, A640) |
