VMF32ALED Multi-use Professional Epi-Fluorescent Microscope with LED Illumination
40X~1000X, 210mm x 140mm reasonable mechanical stage design
Features
- Adopt infinity optical system and modularization function design
- Equipped with infinity plan achromatic fluorescent objectives, enable obtain more clearer and brighter image.
- Wide-field plan eyepieces: field number Ф22mm.
- Coaxial coarse/fine focus system, with tension adjustable and limit stopper , minimum division of fine focusing: 2μm
- Transmitted illumination system: Abbe condenser NA.1.25, integrated field diaphragm, 3W high bightness white LED
- Epi-illumination system: 5W hight brightness LED
Tags: Compound MicroscopesFluorescence Microscope
Request a Quote?
Get Quote Live chat Email Phone
VMF32ALED LED Epi-fluorescent microscope is used for fluorescence microscopy and transmitted field observation. It is equipped with no magnification spherochromatic aberration infinity plan achromatic fluorescent objectives and wide field eyepieces, has clear picture and wide view field. The transmitted and epi-fluorescent illumination light source are high power & brightness LED, but power consumption is lower and use life longer, very good radiating heat effect. Safely and comfortably using the instrument, the cost of use and maintenance are more lower. It is the ideal instrument in biology, cytology, oncology, genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.
Trinocular can be connected to the camera. 10X wide field plan eyepiece, field Φ20mm, can provide an expanse and smooth space for observation.
3W high brightness LED. Enable selecting monochromatic or bichromatic LED for light source every monochromatic LED for light source every monochromatic LED wave band: Green (475nm~550nm), Blue (410nm~490nm). Fluorescence filter: B (Blue) and G (Green).
Abbe condenser NA.1.25 Rack & pinion adjustable. Blue filter and ground glass. Collertor for LED illumination and integrated field diaphragm. 3W high brightness white LED, brightness adjustable.
By adding the appurtenance such as CCD adapter, digital camera adapter and single-reverse digital camera adapter etc. It can achieve high clear observation mode of camera and vidicon.

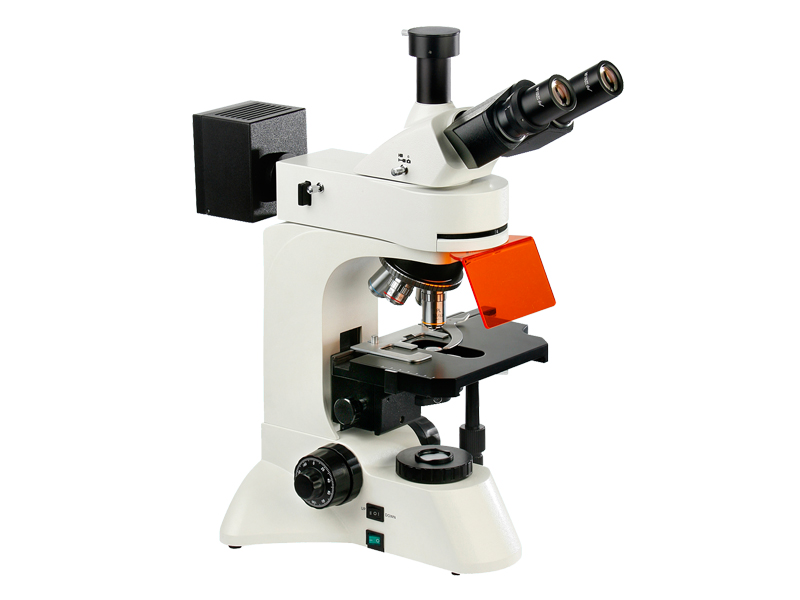

VMF32ALED
Head & Mechanical Stage of VMF32ALED
Transmitted Illumination System of VMF32ALED
Digital Camera Photo
Fluorescent Observe
Diagram of VMF32ALED
Dimension of VMF32ALED
Specification for VMF32ALED | |
|---|---|
Eyepiece | WF 10X (Φ22mm) |
Eyepiece Tube | Trinocular, inclined 30° |
Infinity plan achromatic objective | PL 4X/0.10 (Work distance)：19.8 mm |
PL 10X/0.25 (Work distance)：5.0 mm | |
PLF L40X/0.85 (Spring) (Work distance)：0.42mm (No magnification spherochromatic aberration ) | |
PL 100X/1.25(Spring, oil) (Work distance)：0.36mm | |
Epi-fluorescent illumination system | 5W high brightness LED. Enable selecting monochromatic or bichromatic LED for light source, every monochromatic LED wave band: Green (475nm~550nm) Blue( 410nm~490nm) |
Fluorescence filters: B(Blue) and G(Green). | |
Focus System | Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing is 2.0μm |
Nosepiece | Quadruple (Backward ball bearing inner locating) |
Working Stage | Double layer mechanical (Size:210mmX140mm,moving range:75mmX50mm) |
Transmitted illumination system | Abbe condenser NA.1.25 Rack & pinion adjustable |
Blue filter and Ground glass | |
Collector for LED illumination and integrated field diaphragm | |
3W high brightness white LED, brightness adjustable | |
Accessories for VMF32ALED | |
|---|---|
Eyepiece | Dividing 10X(Φ22mm) 0.1mm/Div |
Objective | Infinity plan achromatic objective PL 60X/0.80(Work distance)：0.46 mm |
Infinity plan achromatic fluorescent objective PL FL10X/0.35 (Work distance: 2.37mm) | |
Nosepiece | Quintuple (Backward ball bearing inner locating) |
Filter | Yellow filte |
Green filter | |
LED | Violet (380nm~415nm) |
Ultra Violet (320nm~380nm) | |
Fluorescent filters | Violet |
Ultra Violet | |
CCD Adapter | 0.4X |
0.5X | |
1X | |
0.5X (with dividing 0.1mm/Div) | |
Camera | DV-1 Video output (380/ 520 TV Line) USB output (0.42M pixel) |
DV-2 (with USB Output) (1.3M, 3.0M, 5.0M, 10.0M pixel) | |
DV-3 (with Video Output) (380/ 520 TV Line) | |
Digital camera adapter | CANON (EF) NIKON(F) |
