POL1600 Series Trinocular Standard Polarizing Microscope with Transmitted Halogen Lamp


40X~1000X/ 40X~600X, 6V 20W halogen lamp, brightness enable control


  • Wide-field plan eyepieces: field number Ф18mm.
  • Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
  • Take-down style polarizer, 360° rotatable, have 0, 90, 180, 270 four scale, located down the aperture diaphragm
  • Impellent style analyer, 360° rotatable, push in/ out from optical path conveniently
  • Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6' center adjustable and with tightener

Tags: Compound MicroscopesPolarizing Microscopes

Request a Quote?

Get Quote Live chat Email Phone

WF 10X (Φ18mm)
inclined 30˚
6V 20W halogen
Abbe condenser N.A. 1.25

POL1600 Series Polarizing Microscope are appled to differentiate componen of matters that have birefraction characterist,as a sort of import tool in pharmacology, geognosy, mechanism, metallurgy to research crystal, mineral, rock and metallurgical form. The instrument, are equipped with strain-free plan achromatic objectives and wide field eyepieces, high precision rotatable polarizing stage and excellent accessories. They can be applied in single polarizing, orthogonal, conoscope. These productes have good sculpt and ateady mechanical structure, so that operate comfortably and expediently. They are the ideal instruments for factory,mine, scientific research and university to check, research and teaching ect.

Trinocular, single diopter adjustment, inclined 30°, can be connected to the camera. 10X wide field plan eyepiece, field Φ18 mm, can provide expanse and smooth observation space. Another eyepiece is 10X division eyepiece used for proofreading the centre.

The intermediate attachment includes the impellent style of analyer (360° retatable with scale and fine nonius) which can be taken off from the light path and the impellent style of bertrand lens (center adjustable). It can be added λ compensator, λ/4 compensator or quarts wedge compensator.

Frontward ball bearing inner locating, center adjustable, can ensure the centre of objective and the rotatable stage completeness superposition.

Strain-free plan achromatic objective or infinity strain-free plan.

Rotund rotatable stage, Φ150mm diameter, 360° graduated (in 1° increments), miniunm, retardation resolution 6’, center adjustable and with tightener.

Polarizer, 360° rotatable, having 0, 90 180, 270 four scale, set under the aperture disphragm, can take down from the optics body.

The illumination system with 6V 20W halogen lamp (brightness adjustable) can provide clear and bright image. The system also includes the collector with field disphragm.

By adding the appurtenance such as CCD adapter, digital camera adapter and single-reverse digital camera adapter etc. It can achieve high clear observation mode of camera and vidicon.



Head of POL1600Intermediate attachment of POL1600

Head & Intermediate attachment of POL1600

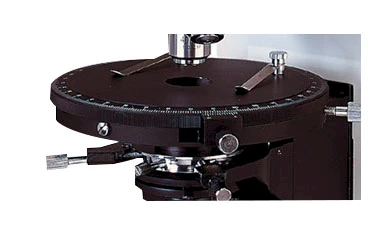

Nosepiece of POL1600Stage of POL1600

Nosepiece & Stage of POL1600

Polarizer of POL1600Transmitted Illumination System of POL1600

Polarizer & Transmitted Illumination System of POL1600

Diagram of POL1600 Series:

Diagram of POL1600

Dimension of POL1600 Series:

Digital Camera Photos:

Polarized Observe

Specification for POL1600 Series


POL1600A: (cover glass thickness:0.17)

POL1600B: (no cover glass )


WF 10X (Φ18mm)

Dividing eyepiece 10X (Φ18mm) 0.10mm/Div

Eyepiece Tube

Trinocular is inclined 30˚ and enable to shoot in 100% light flux


Strain-free plan achromatic objective



PL 4X/0.10 POL W.D17.94mm

PL L4X/0.12 POL W.D17.9 mm

PL 10X/0.25 POL W.D8.8 mm

PL L10X/0.25 POLW.D8.8 mm

PL 40X/0.65 POLspring W.D0.56 mm

PL L40X/0.60 POLspring

W.D3.73 mm

PL 100X/1.25 POLspringoil W.D0.36 mm

PL L60X/0.70 POLspring W.D1.34 mm





Rotatable stage,diameter Ø150mm,360°graduated(in 1°increments),minimum vernier division:6',center adjustable and with tightener.

Transmitted Illumination System

6V 20W halogen, brightness enable control.

Rotated 360°, have 0, 90, 180, 270 scale

Abbe condenser N.A. 1.25 and add iris diaphragm


Quadruple (the center of nosepiece is adjustable )

Focus System

Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing is 2.0μm

Intermediate attachment

Integrated analyzer, can be switched to normal or polarizing observe freely , enable 0~90° rotated and minimum vernier division is 12'.

Puller type bertrand lens and center adjustable.

λ , λ/4 and quarts wedge compensator.

Accessory for POL1600 Series




Cover thickness:0.17


No cover glass


Optical System

Infinity Optical System

Slide moving holder

Moving range: 30mm x 25mm

CCD Adapter



0.5X with dividing 0.1mm/Div


USB output1.3M/3.0M/5.0M/10.0 M pixel

VIDEO output380/520 TV line

Digital Camera adapter
