XLB-1 3D Super Wide Field Inspection Magnifier Stereo Microscope with Illumination
3D Stereo Microscope; Inspection Microscope; 2X, 4X, 6X standard objectives, 2X Eyepiece
Features
- Device height: 180cm
- Provided 2X, 4X, 6X standard objectives, 2X Eyepiece
- Superb Ergonomic design, can together fix 3 pcs of objectives with magnification
- Observe the free rotation of the head, with a large extension range of 850mm, which is convenient for observing large-area objects
- The support is stable, sliding freely, vertical 580mm, large stroke and powered lifting
- The bottom universal pulley is equipped with locking device, which can be moved or fixed freely, so as to observe the best position
Tags: Stereo Microscopes3D MicroscopeIndustrial Inspection
Request a Quote?
Get Quote Live chat Email Phone
2X
2X/4X/6X
208X to 80mm
68mm to 22.7mm
LED Light
3D Radical Stereo Inspection Scope is with an especially wide field of viewing. It can from a clear and sharp image with a strong stereo sense of sight be comfortably viewed and conveniently operated.
It is widely used in all kinds of field such as biology, anatomizing, electronic industry, mineral, investigation, inspection, etc. This improved operator's working efficiency and makes operators no longer suffer the strain of eye, neck and back due to the humanistic design. It is highly recommendable for electronic industry.

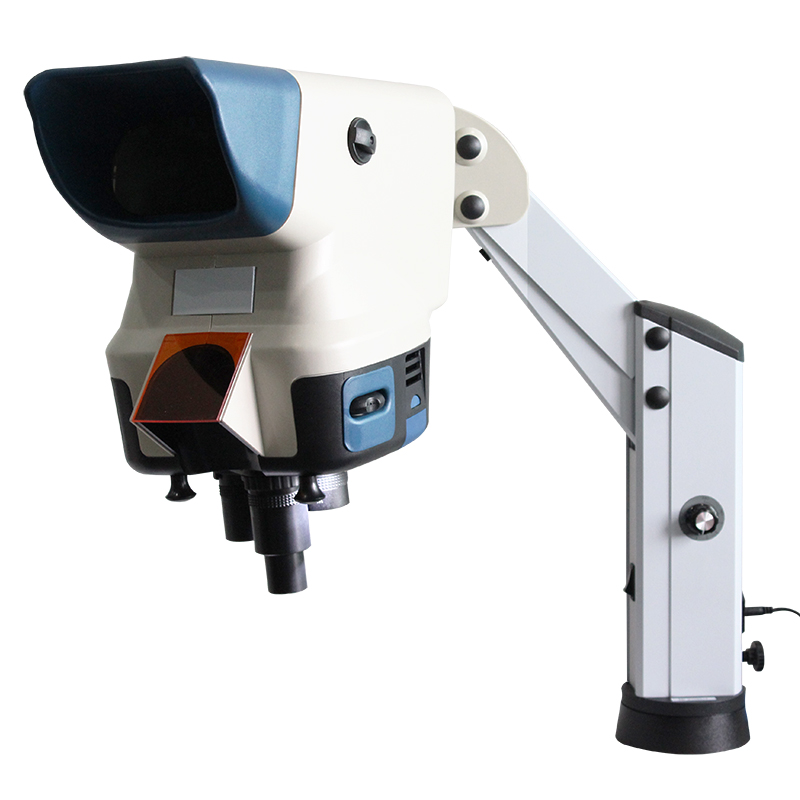

The Views of XLB-1 3D Stereo Microscope
The Views of XLB-1 3D Stereo Microscope
The Structure of XLB-1 3D Stereo Microscope
The Structure of XLB-1 3D Stereo Microscope

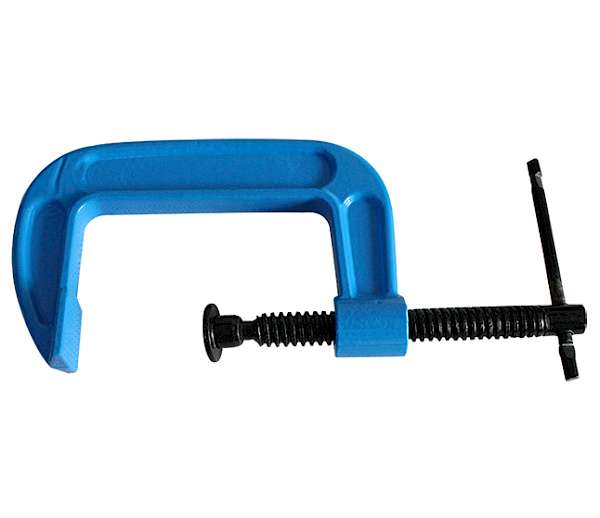

The G-Clamp of XLB-1
The objectives & protect box of XLB-1
The nosepiece & G-clamp of XLB-1

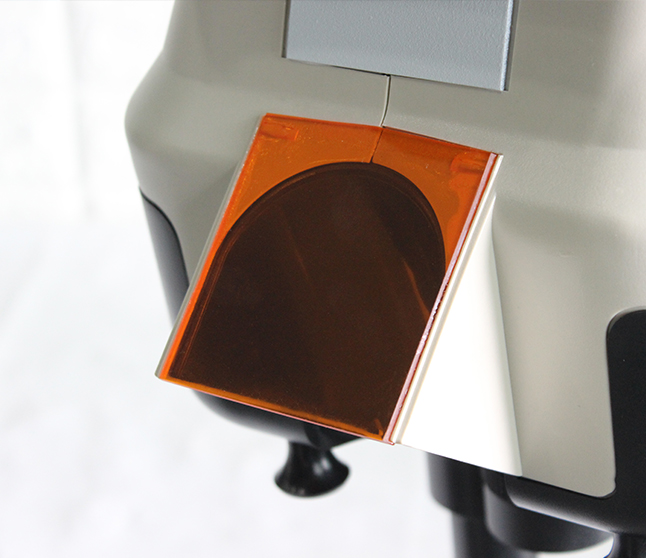

The fluorescent baffle & LED light source of XLB-1
Optional Accessories of XLB-1
Specification for XLB-1: | |
|---|---|
Eyepiece | 2X |
Objective | 2X, 4X, 6X |
Working Distance | 208X to 80mm |
Field of view | 68mm to 22.7mm |
Illumination | LED Light |
Objective | W.D.（mm） | F.O.V（mm） | |
|---|---|---|---|
Standard | 2X | 208 | 68 |
4X | 98 | 34 | |
6X | 80 | 22.7 | |
Optional | 6X(SLWD) | 115 | 17 |
8X | 58 | 17 | |
10X | 46 | 13.6 | |
15X | 49 | 9.07 | |
No. | Item | Spec. | Quantity | Unit |
|---|---|---|---|---|
1 | Main Body | / | 1 | unit |
2 | Support Arm | / | 1 | unit |
3 | G - Clamp | / | 1 | unit |
4 | Objective | 2X, 4X, 6X | 1 each | unit |
5 | Insurance Tube 1A (Spare Part) | / | 1 | unit |
6 | Lens Paper | / | 1 | unit |
7 | Operation Manual | / | 1 | unit |
No. | Item | Picture |
|---|---|---|
1 | 8X Objective | / |
2 | 10X Objective | / |
3 | 15X Objective | / |
4 | 6X(SLWD) Objective | / |
