VGM550A 10X~40X Binocular Gem Stereo Jewelry Gemological Microscope Jewelry Microscope with Base Stand

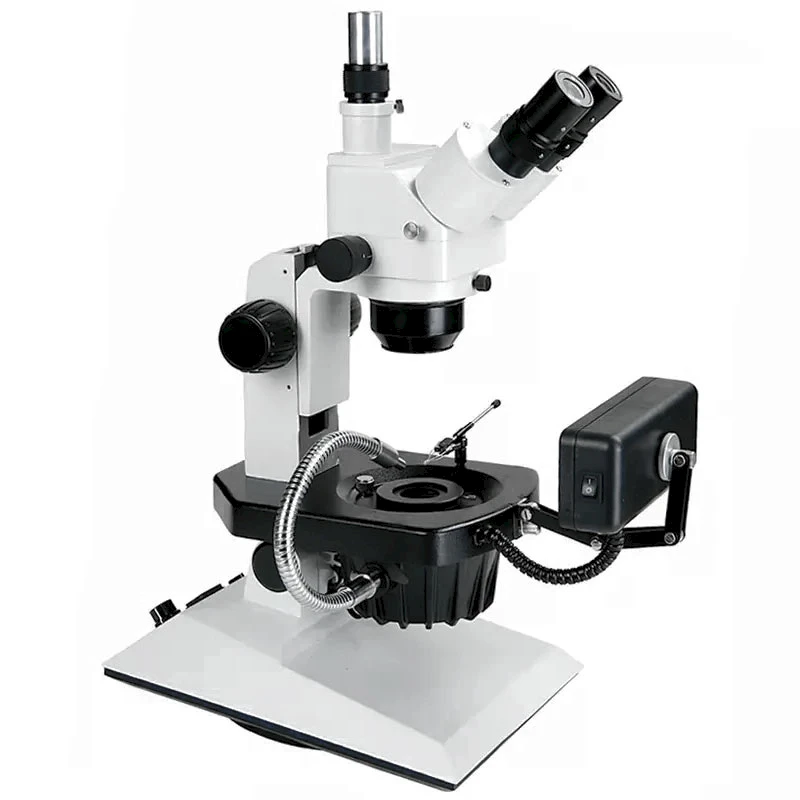

10X~40X Mag., Binocular / Trinocular Head, Rotate freely in a range of 30°,Fiber LED Cold Light
Features
- High contrast and flat image in the large field of view
- BF/DF Observation & Independent Fiber LED Cold Light
- Integrated global wide voltage power, 85V-230V, stable brightness
- Equipped with high-definition lens, coated with superior optical components with special film, so it has excellent optical system
Tags: Stereo MicroscopesGemological MicroscopesGemological Equipment
Request a Quote?
Get Quote Live chat Email Phone
1X~4X
SWF10X
≥90mm
fiber light
50Hz
VGM550A provides high resolution 3D image. This microscope adopts continuous zoom optical system, 1X~4X continuous zoom objective, which fully meet the requirements of observing the intrinsic and surface characteristics of the sample.
Superior optical system provides not only high clarity, high contrast, and high-resolution images, but also large depth of field.
We also provide the accessory gem clips, steel wire clip and flat clamp for operators. The crystal characteristics of the inner and outer structure of the gem will be better observed by the polarizer.

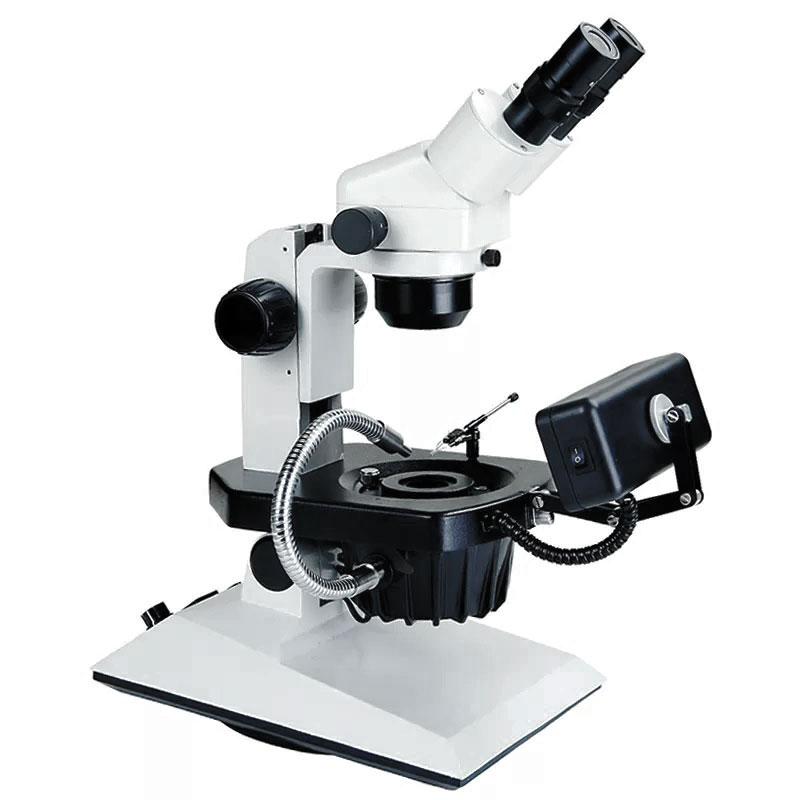

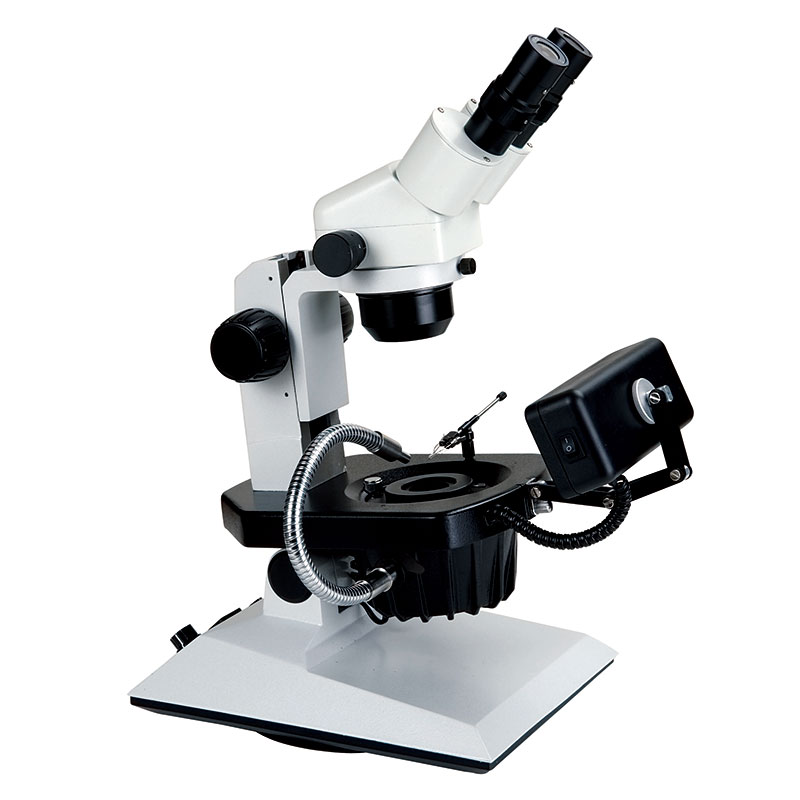

VGM550A Gemological Microscope
Structure of VGM550A Gemological Microscope
Eyepiece & Objective of VGM550A Gemological Microscope

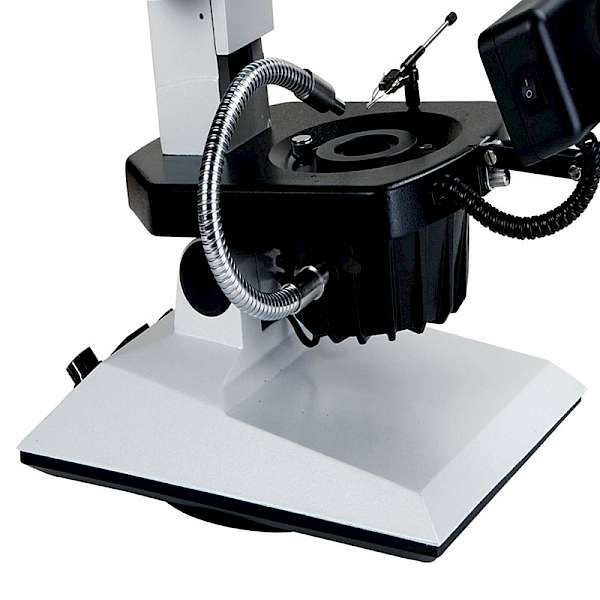

Focusing Knob & Base Stand of VGM550A Gemological Microscope

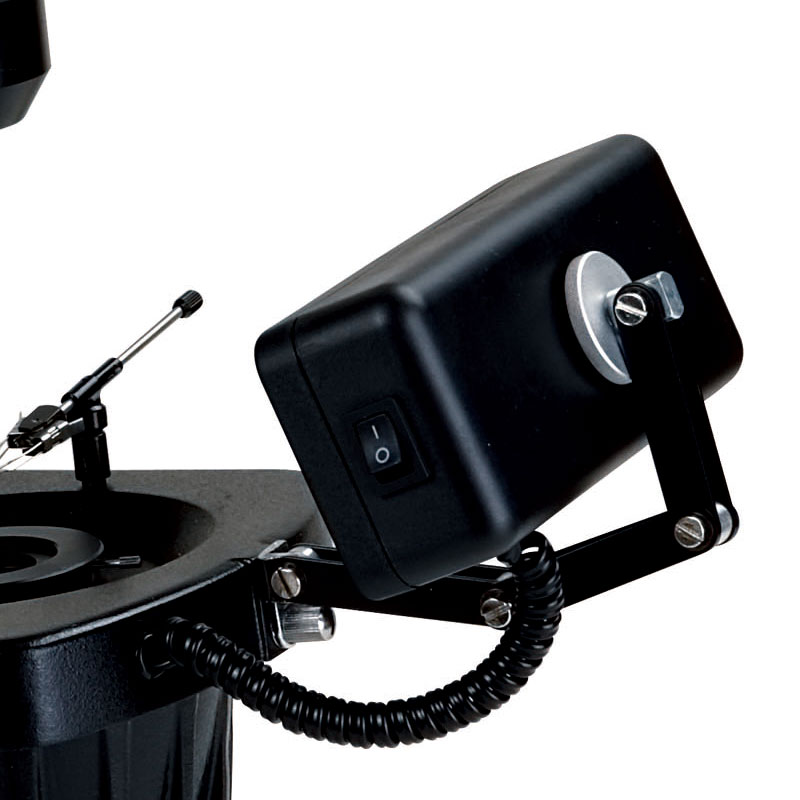

Halogen Lamp & Fiber Light of VGM550A Gemological Microscope
Specification for VGM550A: | |
|---|---|
Eyepiece | SWF10X |
Objective | 1X-4X Ratio: 1:4 |
Total Mag. | 10X~40X, Continuous Zoom |
Head | Binocular, inclined, 360°Rotatable, interpupillary distance: 55mm~75mm |
Diopter Adjustment | ±5mm, with Eyeguard |
Working Distance | ≥90mm |
Illumination | Three modes: bright field, dark field and fiber light: Two color temperature LED light source, transmitted Halogen Lamp 12V 10W, color tem. 4000K; reflected color tem. 6400K |
Gem clips | Two magnetic jewel holders and a spherical jewel holder |
Lifting self-locking mechanism | Tension Adjustable |
Rotating Arm | Rotate freely in a range of 30° |
Wide Voltage | AC：85-230V 50Hz |
