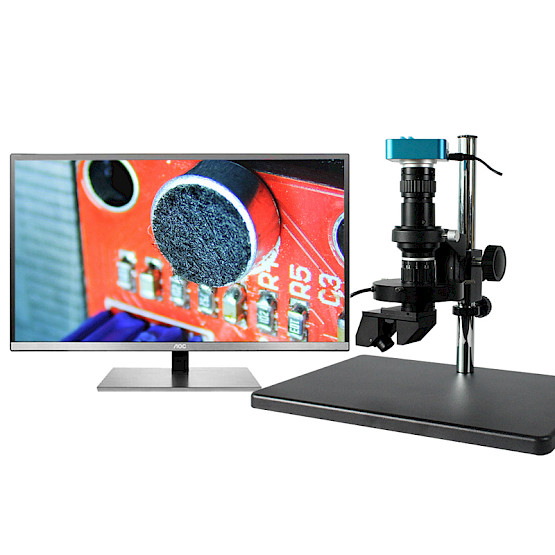

ATE-5 3D Manual Monocular Digital Video Stereo Microscope with HDMI 1080P Camera

ATE-5 Microscope optical system features the quality optical system, low distortion, high resolution, flat and large field of view, high depth of field and superior parfocality. The novel design and one-up-technology make it easy for operation.

The 2D/3D angle lens attachment is changed manually from two-dimensional image to three-dimensional. The microscope can realize 3D image effects for observing the components and deep holes. It remains the same superior resolution and the central position keeps consistent.

When the manual zoom with detents is used in measuring systems, the calibration of magnification is needed, and the pre-set stops are at 0.6X, 1X, 1.5X, 2X, 2.5X, 3X, 3.5X, 4X, 4.5X, 5X.

The 3D 360° rotary observation lens can achieve 86mm (Max) working distance. By selecting the appropriate objectives, different magnification, field of view and depth of field can be acquired. Digital and Analog video systems can meet the different users' demands.

3D Video Microscope can be widely used in the areas of micro-electronics, precision electronic inspection, PCB solder testing industries, hardware & precision parts, criminal investigation and life sciences, as well as plant morphology, etc.

ATE-5 3D Manual Stereo Microscope with 16MP HDMI Camera

ATE-5 3D Manual Stereo Microscope with 2K HDMI Camera

ATE-5 3D Manual Stereo Microscope with 11.6" LCD Display Monitor

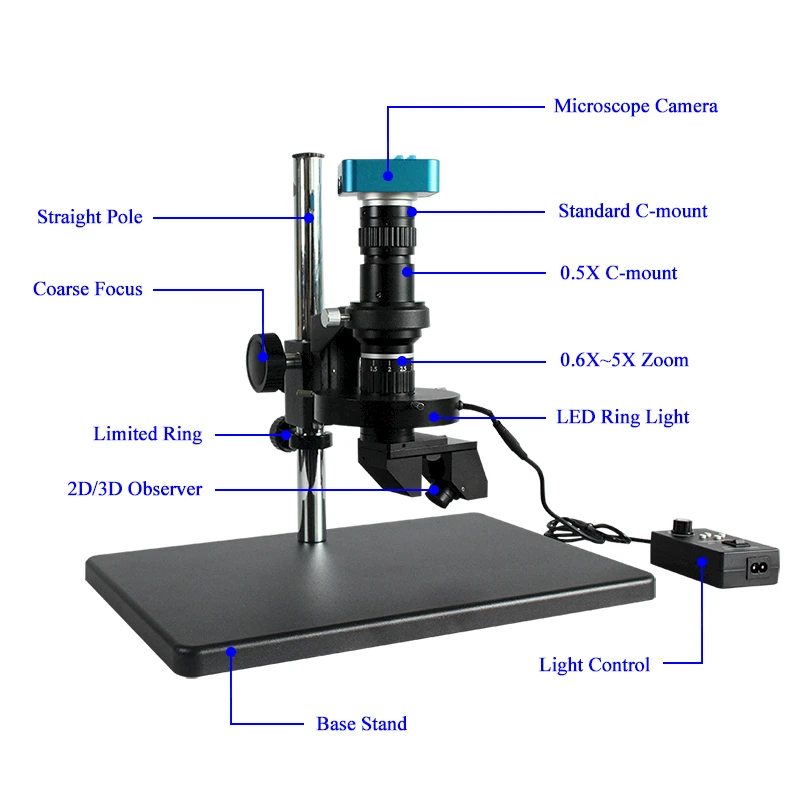

Structure of ATE-5 3D Manual Stereo Microscope

Dimension of ATE-5 3D Manual Stereo Microscope

Standard C-Mount Interface & Continuous Zoom of ATE-5

Coarse Focus & 4 Zones Control LED Ring Light of ATE-5

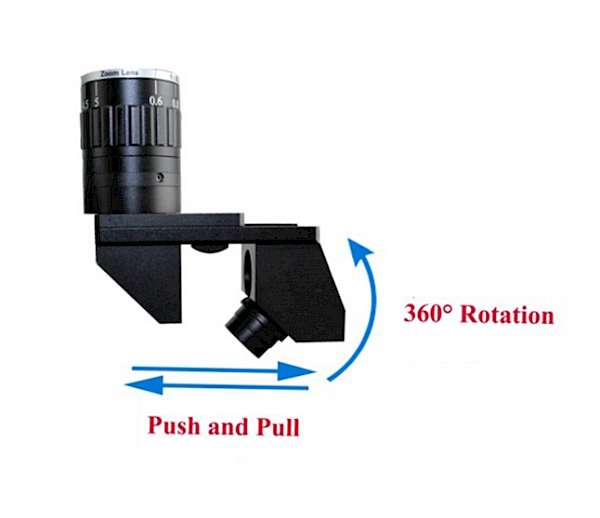

2D/3D Observer of ATE-5
