DM3 1000X Magnifier 2MP Portable 4.3 inches LCD Digital Inspection Microscope
4.3inch Display, 1000X Magnification, HD 1080P 2MP, TF Card Save, 8 LED light source
Features
- 4.3inch HD 1080P LCD screen, which is convenient to observe
- 1000X Magnified offer more clarity imaging
- 8 LED light source alleviates the problem of light in complex environment
- TF Card to save the images
Tags: USB OutputDigital MicroscopesKids MicroscopesHome and Hobby
Request a Quote?
Get Quote Live chat Email Phone
1/4”
10~40mm
26fps
USB2.0
DM3 is an Electric Digital Microscope, it has 4.3inch HD 1080P LCD screen, which is convenient to observe more.
The 8 LED light source can provides not only alleviate the problem of light in complex environment, but also solve the reflection problem of objects under light source. Connecting to PC is available, support Windows XP, Win7, Win8.1, Win10, Mac OSx10.5 or higher.
This digital microscope can be used widely in various fields: Industrial electronic maintenance display, biological observation, outdoor exploration, publishing and printing inspection, scientific experiment observation and college education.
Structure of DM3 Digital Microscope
Size of DM3 Digital Microscope
LED Light Source & Work while Charging of DM3
Dual Power Supply & Stand with Measurement of DM3

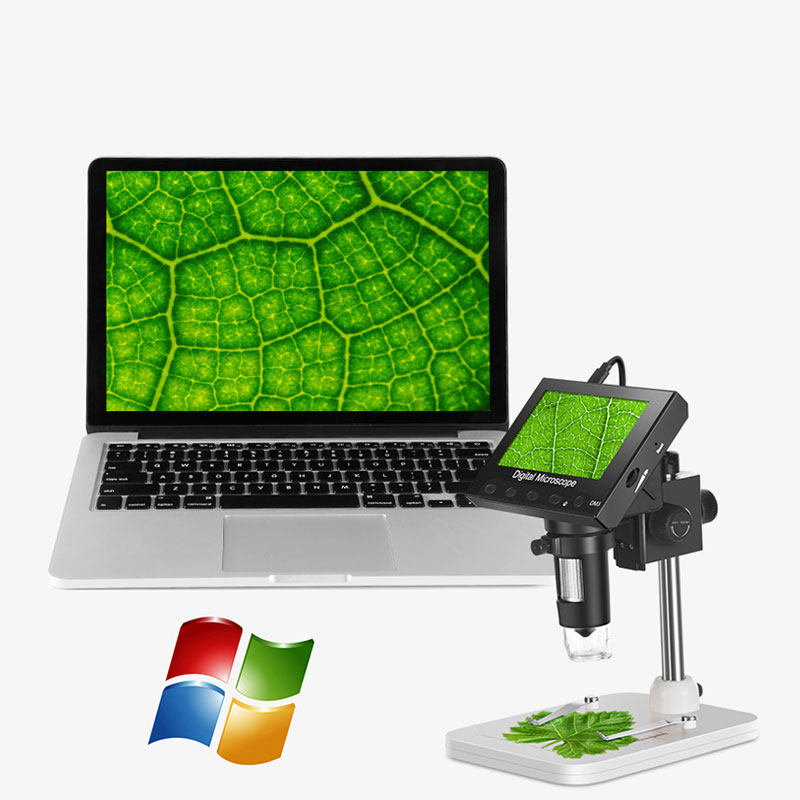

DM3 Digital Microscope with its connected PC
Specification for DM3 | |
|---|---|
Model | HM3 |
Display Screen | 4.3inch HD |
Optical Size | 1/4” |
Magnification | 1000X |
Max Video Resolution | 1080P 2MP |
Photo Resolution | Min: 640*480; Max: 4032*3024 |
Video Resolution | Min: 848*480; Max: 1920*1080 |
Video Format | AVI |
Photo Format | JPG |
Focusing | Manual, range: 10~40mm |
Light Source | 8 LED Light Lamp, brightness adjustable |
PC Resolution & TransmissionRate | 1280*720/26fps |
Lens Structure | 2G+IR |
F4.5 | |
View Angle | 16° |
White Balance | Auto |
Exposure | Auto |
Maximum Signal-to-noise Ratio | TBD dB |
Sensitivity | TDB mV/lux-sec |
Interface Output | Micro/USB2.0 |
Operation Tem. | -20°C ~ +60°C |
Operation Humi. | 30%~85%Rh |
Operation Current | 366mA |
PC Operation System | Windows XP, Win7, Win8.1, Win10, Mac OSx10.5 or higher |
Box Dimension | 21.8cm*17.7cm*8.6cm |
Weight | 780g |
Carton | 20 Boxes in one Carton |
Weight: 15.87KG | |
Dimension: 44.5*44*37cm | |
Standard Packing List | ||
|---|---|---|
No. | Project Name | Quantity |
A | Microscope Main Body | 1 |
B | Stand | 1 |
C | Calibration | 1 |
D | Remote Control | 1 |
E | USB Cord | 1 |
F | Installation CD (Driver, Measurement, System Components, User Manual) | 1 |
Words Captured by DM3

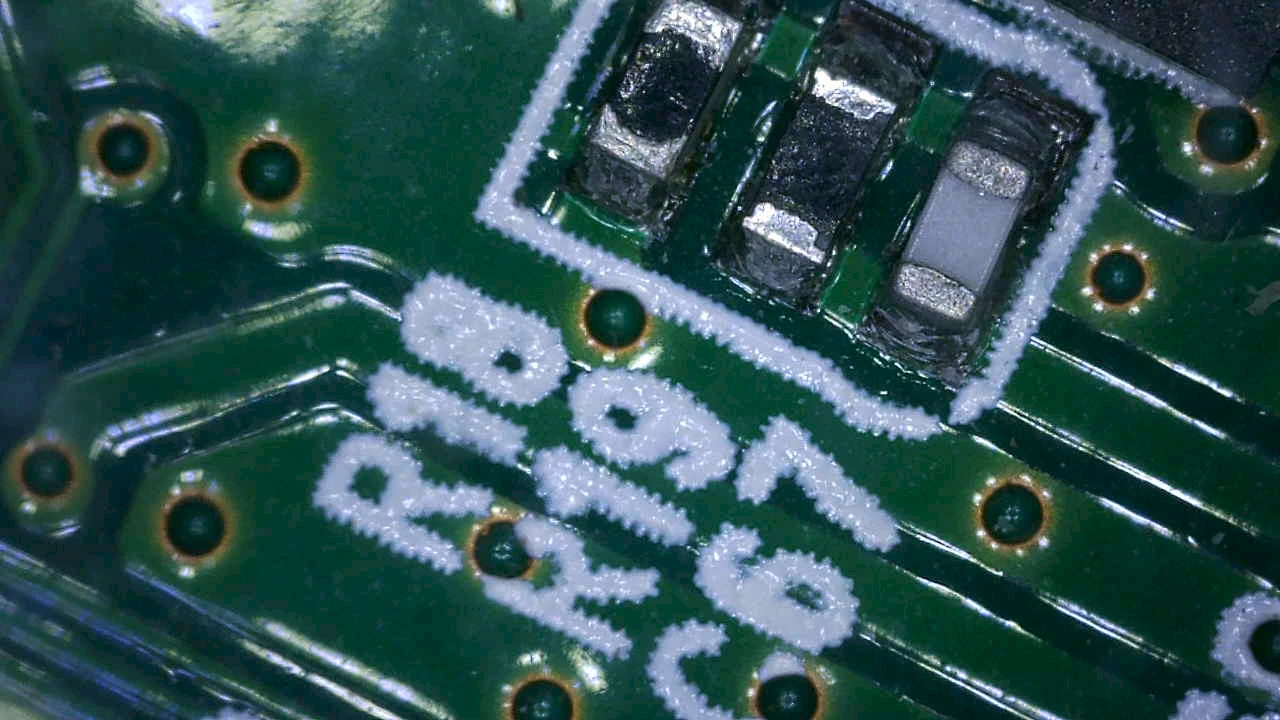

PCB Captured by DM3
