DM7 Portable 1000X 4.3" 1080P Digital LCD USB2.0 Digital Microscope with Suction Cup
4.3inch Display, 1000X Magnification, 8 LED Light Source, HD 1080P Digital Microscope, 360° & 270° Rotating
Features
- 4.3 inch HD LCD screen, which is convenient to observe more
- 1000X Magnified offer more clarity imaging
- 8 LED light source alleviates the problem of light in complex environment
- Micro/USB2.0 interface output
- 360° & 270° Rotating Head
Tags: Digital MicroscopesUSB OutputIndustrial InspectionHome and Hobby
Request a Quote?
Get Quote Live chat Email Phone
1/6”
10~40mm
1080P
USB2.0
DM7 is an Electric Digital Microscope, it has 4.3 inch HD LCD screen, which is convenient to observe more.
The LED light source can provides not only alleviate the problem of light in complex environment, but also solve the reflection problem of objects under light source.
Connecting to the PC is available, support Windows XP, Win7, Win8.1, Win10, Mac OSx10.5 or higher. Supported language: English, traditional Chinese, simplified Chinese, German, Italian, Portuguese, Korean, Russian, French, Japanese, Arabic, Dutch.
The vacuum suction cup stand is very stable, the 360° rotate model for any directions.
This digital microscope can be used widely in various fields: PCB inspection, watch and phone repair, jewelry identification, learning and demonstration, textile testing, skin detection, print inspection, money check etc.
Structure of DM7 Digital Microscope
Rotatable Vacuum Suction Cup of DM7

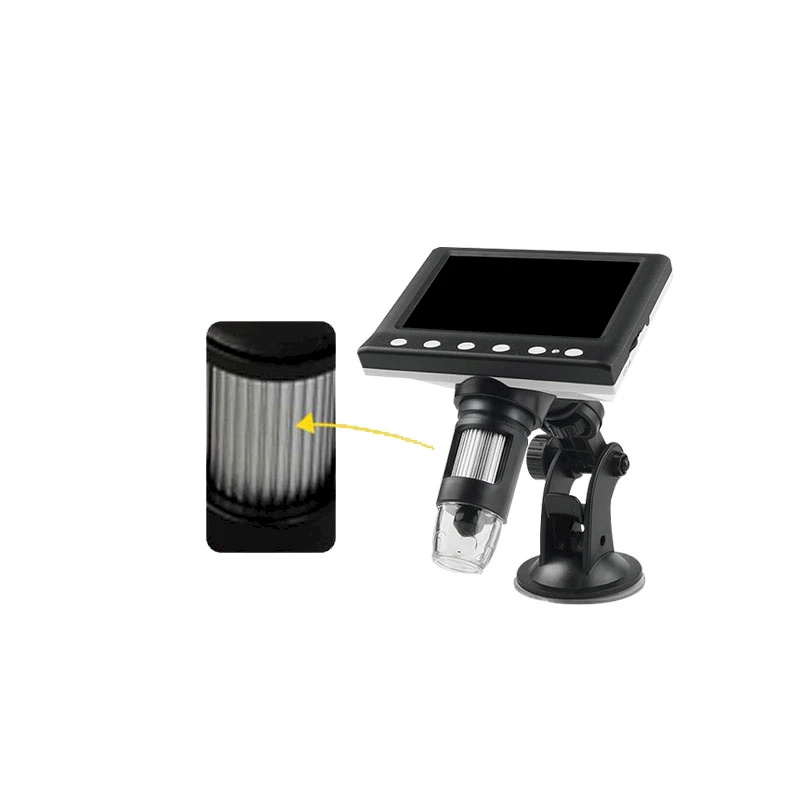

Focusing Knob & LED Light Source of DM7
Specification for DM7 | |
|---|---|
Model | DM7 |
Display Screen | 4.3 inch HD |
Optical Size | 1/6” |
Magnification | 1000X |
Max Video Resolution | 1080P |
Photo Resolution | QVGA, VGA, 720P |
Video Resolution | 240P, VGA, 720P, 960P, 1080P |
Video Format | AVI |
Photo Format | JPG |
Focusing | Manual, range: 10~40mm |
Light Source | 8 LED Light Lamp, brightness adjustable |
Interface Output | Micro/USB2.0 |
PC Resolution & TransmissionRate | 640*480/25fps, 320*240/25fps, 160*120/25fps |
Lens Structure | 2G+IR |
F4.5 | |
View Angle | 16° |
White Balance | Auto |
Exposure | Auto |
Language | 12 Language Available |
Operation Tem. | -20°C ~ +60°C |
Operation Humi. | 30%~85%Rh |
Operation Current | 340mA |
1.7W | |
PC Operation System | Windows XP, Win7, Win8.1, Win10, Mac OSx10.5 or higher |
Box Dimension | 18.6cm*17cm*8.3cm |
Weight | 0.46kg |
Carton | 20 Boxes in one Carton |
Weight: 10.07KG | |
Dimension: 43.5*38.5*35.5cm | |
Standard Packing List | ||
|---|---|---|
No. | Project Name | Quantity |
A | Microscope Main Body | 1 |
B | Stand | 1 |
C | USB Cord | 1 |
D | Manual Operation | 1 |
E | Installation CD (Driver, Measurement, System Components, User Manual) | 1 |
