MS4 50X~1000X USB/WIFI Portable Digital Microscope Digital USB Microscope for IOS/Android
50X~1000X Mag., WIFI, USB multiple interfaces, Display Screen Show
Features
- Magnification: 50X~1000X
- WIFI, USB multiple interfaces
- Built-in battery
- Display screen shows datas
- External LED supplementary light
Tags: Digital MicroscopesWIFI MicroscopesUSB MicroscopesWIFI OutputUSB OutputIndustrial InspectionStudent MicroscopesHome and Hobby
Request a Quote?
Get Quote Live chat Email Phone
Show
1/4"
1920*1080
10~40mm
MS4 is a portable digital microscope which has multiple interfaces: WIFI and USB. It also can be connected to phone, pad, Laptop and PC, showing the images directly without using your eyes. It is easy to photo and video through the app and save images.
MS4 has complete functions, clear imaging, exquisite workmanship, built-in battery, computer connection, small in size and portable, support for up to 12 languages, etc.
This portable digital microscope can be used widely in various fields: electronic circuit board testing, industrial testing, textile testing, clock and mobile phone maintenance, skin inspection, scalp inspection, printing inspection, teaching and research tools, precision object amplification measurement, reading help, hobby research, etc.
Structure of MS4 Digital Microscope
Size of MS4 Digital Microscope
Display Screen & Top Functions of MS4
Focus Knob & LED Light Source of MS4
Focal Length Adjusting Roller & Specimen Base of MS4
Specification for MS4 | |
|---|---|
Item | Parameters |
Product name | MS4 digital microscope |
Optical dimension of lens | 1/4" |
Signal-to-noise ratio | 37dB |
Sensitivity | 4300mV/lux-sec |
Photographic resolution | 640x480, 1280*720, 1920*1080 |
Video resolution | 640x480, 1280*720, 1920*1080 |
Video format | Mp4 |
Picture format | JPG |
Focus mode | Manual |
Magnification factor | 50X-1000X |
Light source | 8 LEDs (adjustable brightness) |
Focusing range | 10 ~ 40mm (long-range view) |
White balance | Automatic |
Exposure | Automatic |
PC operating system | Windows xp, win7, win8, win10, Mac OS x 10.5 or higher |
WiFi distance | Within 3 meters |
Lens structure | 2G + IR |
Aperture | F4.5 |
Lens angle of view | 16° |
Interface and signal transmission mode | Micro/usb2.0 |
Storage temperature/humidity | -20°C - +60°C 10-80% RH |
Operating temperature/humidity | 0°C - +50°C 30% ~ 85% Rh |
Operating current | ~ 270 mA |
Power consumption | 1.35 W |
APP working environment | Android 5.0 and above, ios 8.0 and above |
WIFI implementation standard | 2.4 Ghz (EEE 802.11 b/g/n) |

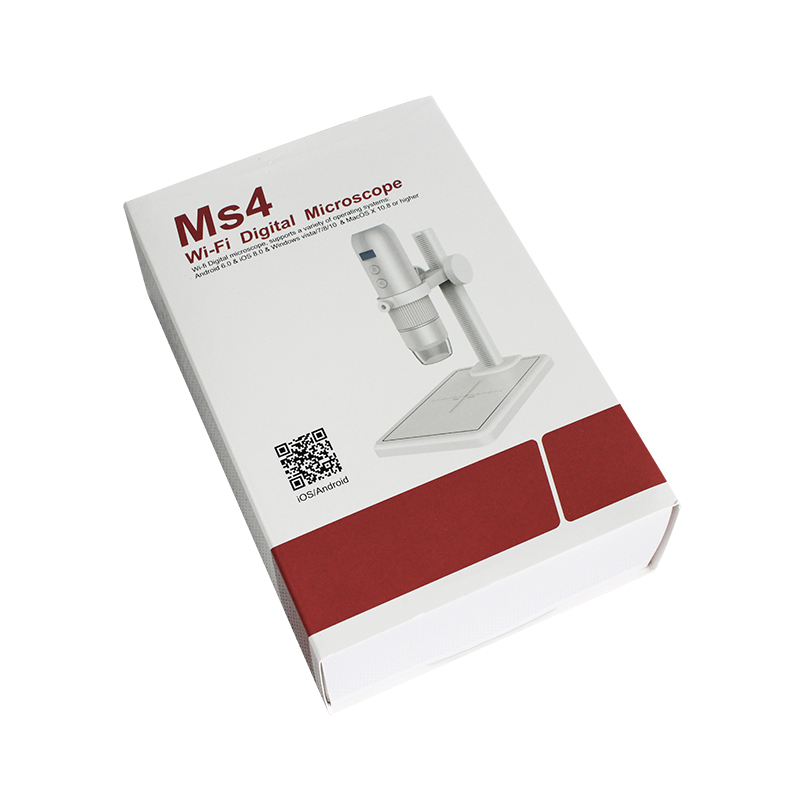

Packing of MS4 Digital Microscope
Standard Packing List | ||
|---|---|---|
No. | Project Name | Quantity |
A | Microscope Main Body | 1 |
B | Main Body Bracket | 1 |
C | Base Stand | 1 |
D | Calibration | 1 |
E | Operation Manual | 1 |
F | CD Drive | 1 |
G | Power Cord | 1 |
H | Box | 1 |
