HVS-300P HDMI Integrated Digital Video LCD Microscope with Measuring Software & LED Light
Mag. 17X~110X , 11.6” HD IPS Display, 60fps@1920 * 1080p, External Mouse & U-disk
Features
- Standard optical magnification is 7X~45X, digital magnification is 17X~110X (based on 11.6” display)
- Equipped with 11.6” IPS HD display screen, ultra high reproduction color technology;
- HDMI-compatible output can be connected to external large monitor, to show publicly, and support same display screen images comparison;
- 60fps real-time frame rate, no delay, improve efficiency for online defect detection of electronic components
- Integrated special 5500K LED ring light source, to ensure the images quality in any work environment
- Integrated camera, with measurement (real-time), photo, video and save functions;
- External mouse and U-disk card provide easy operation, to connect with the USB output.
Tags: Stereo MicroscopesDigital MicroscopesVideo MicroscopeLCD Display MicroscopesIndustrial InspectionSoldering Microscopes
Request a Quote?
Get Quote Live chat Email Phone
1/3” CMOS
7X~45X
1920*1080P
330*300mm
DC12V 2A
HVS-300P integrated microscope combined the traditional optical and electronic video technology. It is compact in size, one power cord connected the body and screen provides easy operation.
Equipped with 11.6” HD IPS Display Screen, 60fps@1920 * 1080p Resolution for clear and sharp image. The display screen can be titled back 90°, angle adjustable. Integrated measurement software, real-time photos, video, preview, settings, measurement, real-time scale etc.
This kind of optical microscope is widely used in agriculture and forestry, archaeological identification, PC line inspection, textile industry, universities and research institutions etc.

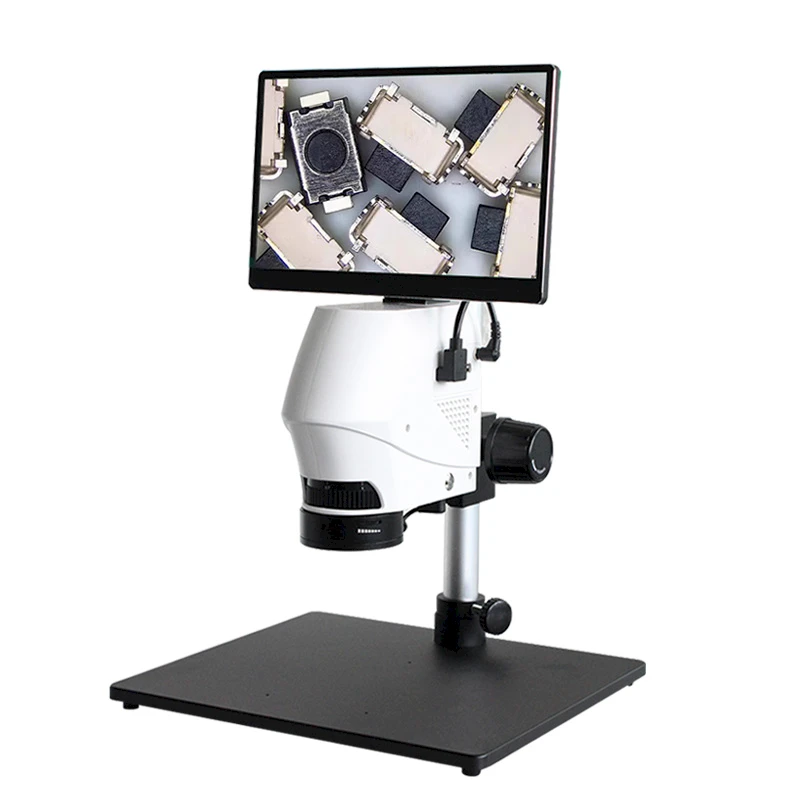

HVS-300P Video Microscope
Side & Back Views of HVS-300P Video Microscope

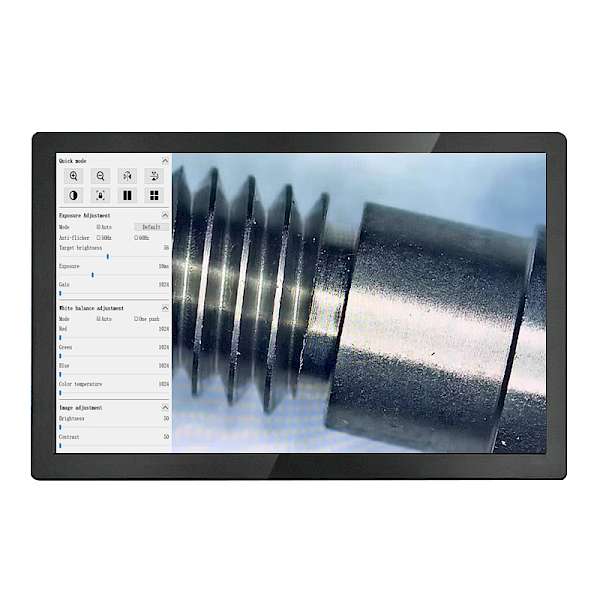

Integrated Software of HVS-300P Video Microscope
Structure of HVS-300P Video Microscope
Size of HVS-300P Video Microscope

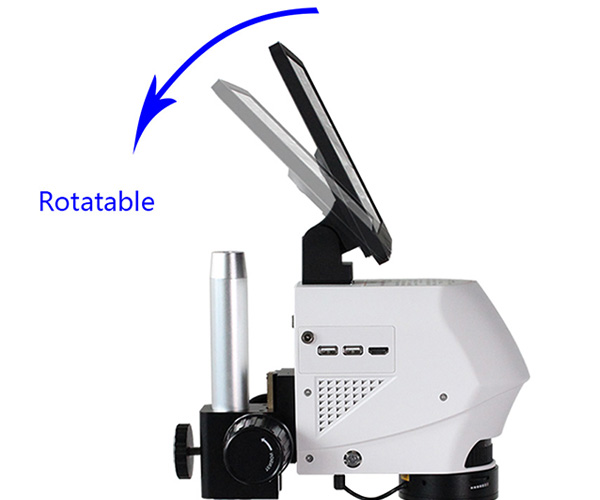

Multiple Outputs & Rotate Display of HVS-300P
Illumination & Working Distance of HVS-300P
Specification for HVS-300P | ||
|---|---|---|
lens | CCD connector | 0.5X |
Objective lens | 0.7X-4.5X Freeze the frame and set the gear | |
magnification | 17-110X (Connect to 11.6-inch monitor) 32.6-209.5X (Connect to 21.5-inch monitor) | |
Multiplier ratio | 1:6.5 | |
Working distance | 100mm | |
Imaging system | Sensor size | 1/3” |
resolution | 1920*1080 | |
Frame rate | 60fps | |
Image output | HDMI | |
frame | Base size | 330*300mm |
material | Aluminum alloy anodizing | |
Light source | Integrated special LED ring light source | |
function | Take pictures | support |
Video recording | support | |
measurement | support | |
Image comparison | support | |
Electron amplification | support | |
reticle | support | |
Grid line | support | |
Compass line | support | |
Power | DC12V 2A | |
Optional | Objective lens | 0.5X reduction objective, 2X increase objective |
display | 11.6、22、24 inch | |
Trans reflectance observation | Base with LED light source, brightness can be adjusted | |
Mobile platform | XY axis movement, table size: 180*155mm, travel: 75*55mm | |
Coarse trimmer bracket | Square column, coarse trimmer coaxial | |
Cross arm support | The transverse arm length is 340mm | |
Real Images Captured by HVS-300P
Application of HVS-300P
