TW650A Zoom Illuminated Dissecting Stereo Microscope with Both-side Armrest & Oblique 360° Rotating Mirror
Standard 6.5X~55X; 76mm Holder Diameter; Work Plate Φ180x6mm Clear Glass; Oblique; 360° Rotating Mirror
Features
- Vertical Track Height: 300mm
- Max Working Distance: 115mm
- Coarse Focus Distance per Rotation: 22mm
- Work Plate Size & Material: Φ180x6mm Clear Glass
- Transmitted and reflected light source, 3W LED light source and 6V 20W Halogen Lamp, brightness adjustable
Tags: Stereo MicroscopesSoldering Microscopes
Request a Quote?
Get Quote Live chat Email Phone
WF10X/Φ22mm
ratio: 1:8.5
rotatable 360°
4.0-31.4mm
3W
6V 20W
Continuous Zoom Stereo Microscope is equipped with high eye point wide field eyepiece and continuous zoom objective. It has wide field of view, high resolution, strong stereoscopic sense and sharp image. It can also be equipped with photographic camera device, connected to the computer for observation, and the images can be edited, saved, printed.
It is also widely used in teaching demonstration, biological anatomy, seed inspection of agriculture and forestry, criminal investigation and detection of public security department, assembly and maintenance of electronic precision components, quality control of textile industry, auxiliary identification of cultural relics and stamps, and surface observation of various materials.
Structure of TW650A
Dimension of TW650A
Head & Magnification of TW650A

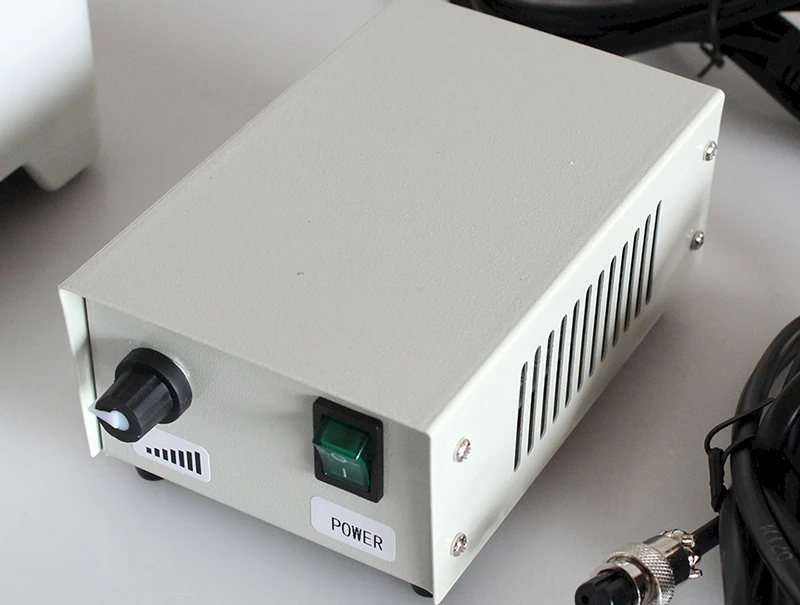

Focus Knob & Power Box of TW650A
Portable Tool & Working Stage of TW650A
Reflected & Transmitted Illumination of TW650A
Comparison of Fish Roe Samples under Different Light Sources
Specification for TW650A: | |
|---|---|
Eyepiece | High eye point WF10X/Φ22mm |
Objective | 0.65X-5.5X, ratio: 1:8.5 |
Total Mag. | 6.5X-55X (Optional Aux.0.5X, 2X ) 3.3X-220X with 20X eyepiece |
Head | Trinocular, inclined 45°, rotatable 360°, Diopter adjustment: ±5 diopters |
FOV | 4.0-31.4mm |
Interpupillary Distance | 54-75mm |
Standard Working Distance | 115mm Max |
Focusing Range | 45mm (pole: 240mm) |
Coarse focus distance per rotation | 22mm |
Vertical track height | 300mm |
Holder diameter | 76mm |
Stage | With both-side Armrest |
Work plate size & material | Φ180x6mm clear glass |
Illuminator | Transmitted and reflected light source, brightness adjustable, LED light source and 6V 20W Halogen Lamp, 3W LED |
Contrast methods | Oblique; 360° rotating mirror; polished mirror silver metallic frosted for each side |
Weight | Net: 6KGs; Gross weight: 7.5KGs |
Input Voltage | 100-240V AC 50/60Hz |
