HVS-12V Monocular Autofocus Integrated Stereo Video Microscope with Measurement Function
Super Large Field of View, Auto Focus, HDMI & LAN Outputs, 1080P@60fps/1080P@50fps
Features
- HDMI & LAN & USB Multi-Outputs
- Large working distance, 10cm~∞
- Auto Focus, large field of view (Max 450mm*240mm)
- Supporting 1080P@60Hz or 1080P@50Hz display monitor
- Providing directly measurement without calibration, photo, video and other images processing functions, save to U-disk
- Magnification displayed on the monitor in real time for easy comparison
Tags: Stereo MicroscopesVideo MicroscopePedestal StandPlatform StandMeasuring MicroscopesIndustrial InspectionSoldering MicroscopesEngravingStudent MicroscopesSchools and Students
Request a Quote?
Get Quote Live chat Email Phone
1/2.8” CMOS
Max 450mm*240mm
DC5V
2MP
1080P@50fps
HVS-12V Autofocus large field of view measurement microscope has the characteristics of fast transmission rate, and take pictures, videos and other picture processing functions. Suitable for medical and health, agriculture and forestry geology, electronic precision machinery and other industries and departments, especially suitable for LED, PCB inspection, stamping electroplating inspection, electronic components inspection and so on. It is also suitable for biological anatomy and macroscopic observation of insects. Language mode: Simplified Chinese, English, traditional Chinese and Japanese.

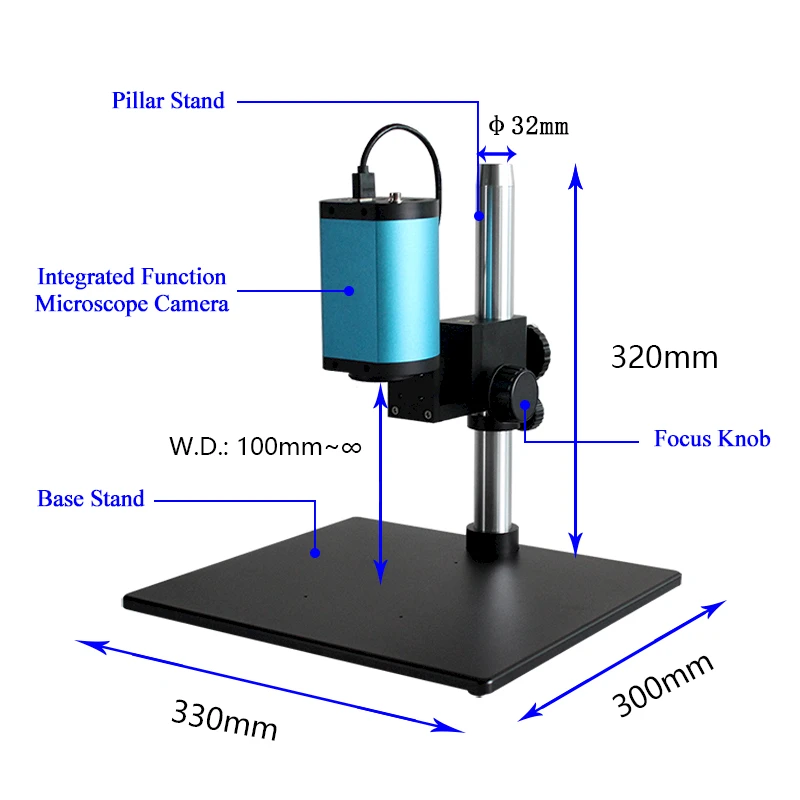

Structure of HVS-12V Video Stereo Microscope

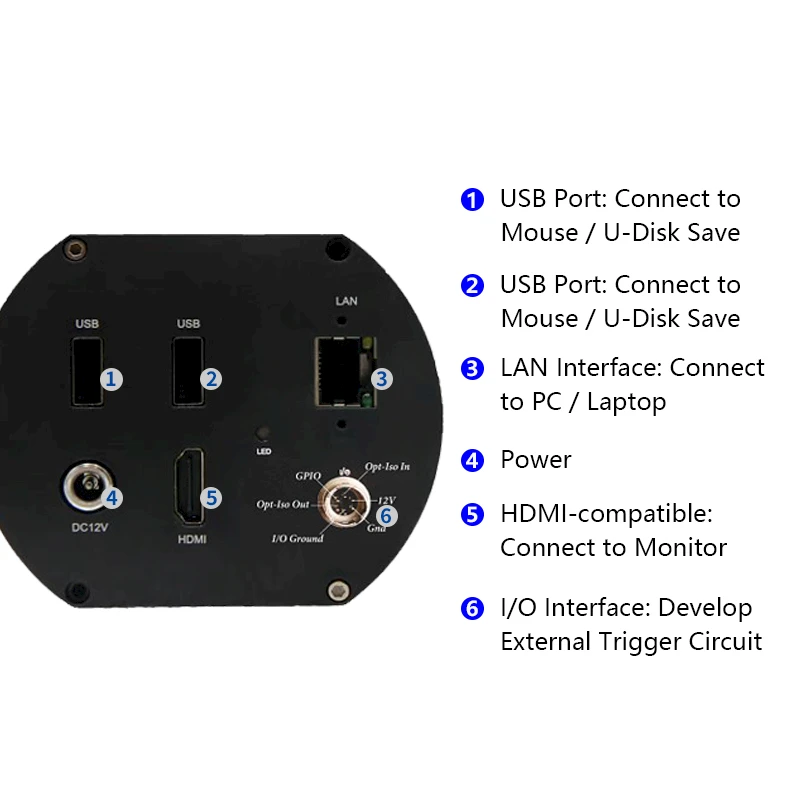

Buttons of HVS-12V Video Stereo Microscope

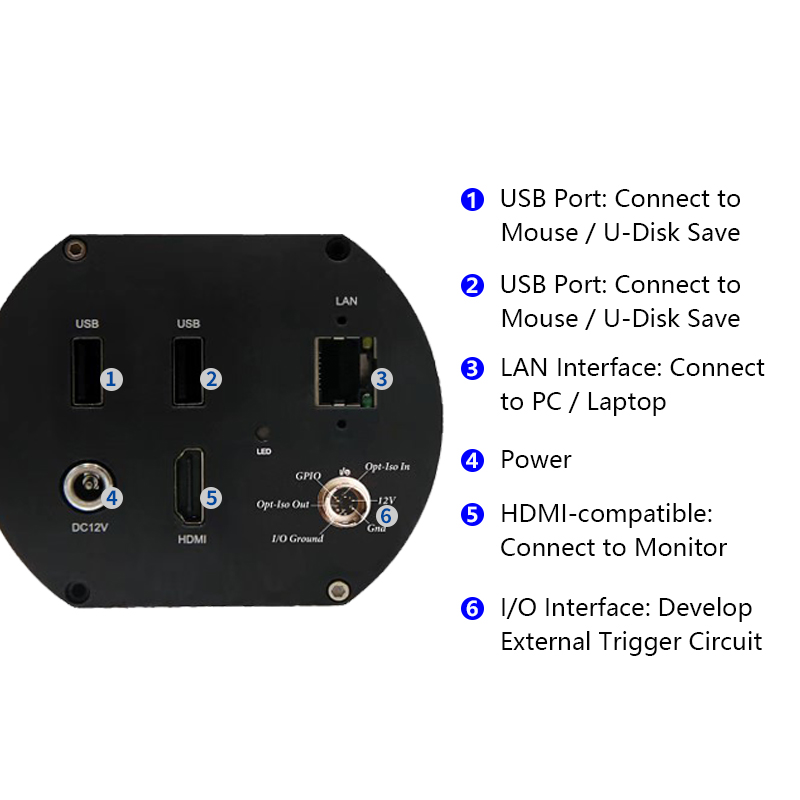

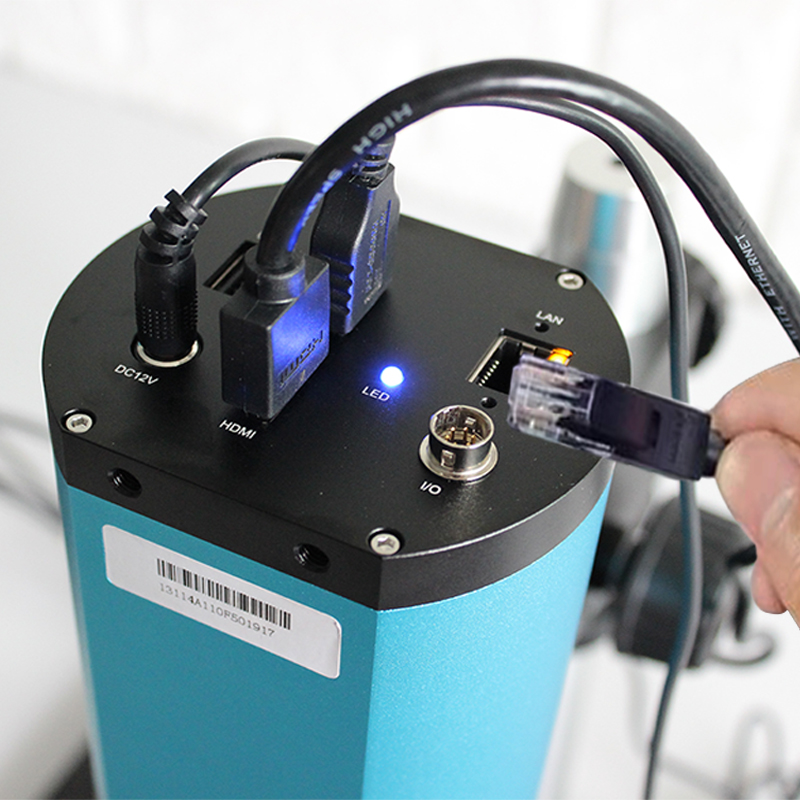

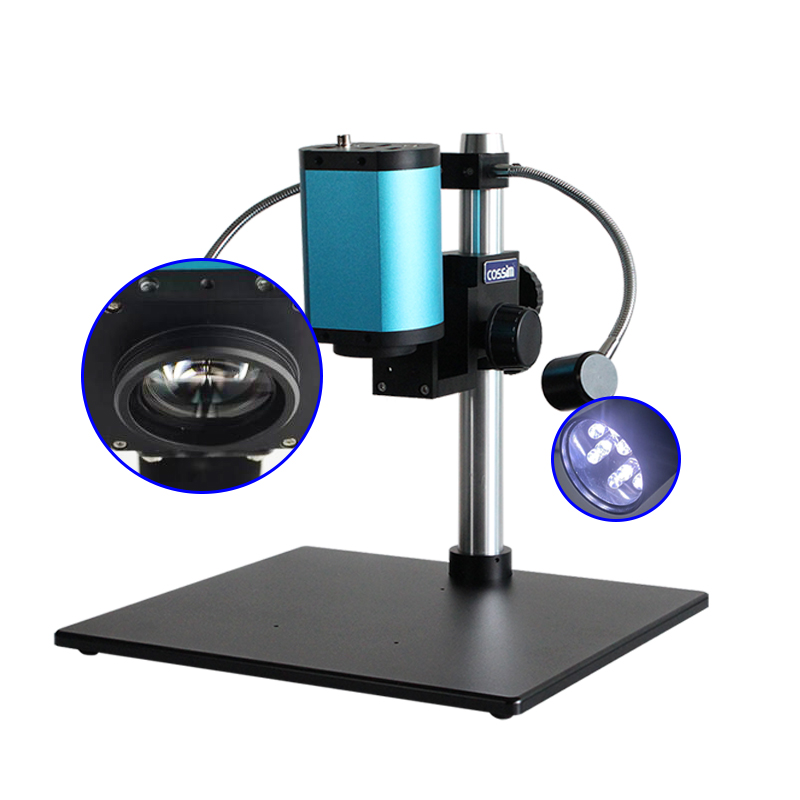

LAN Interface & External LED Light of HVS-12V

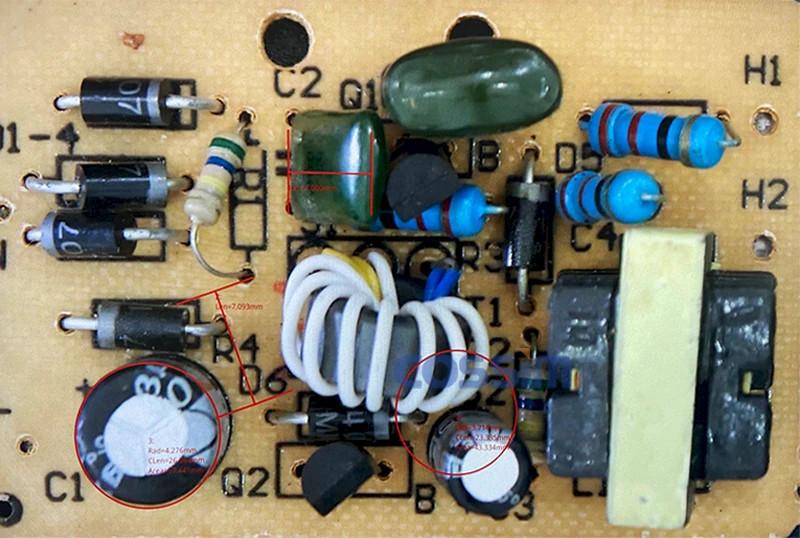

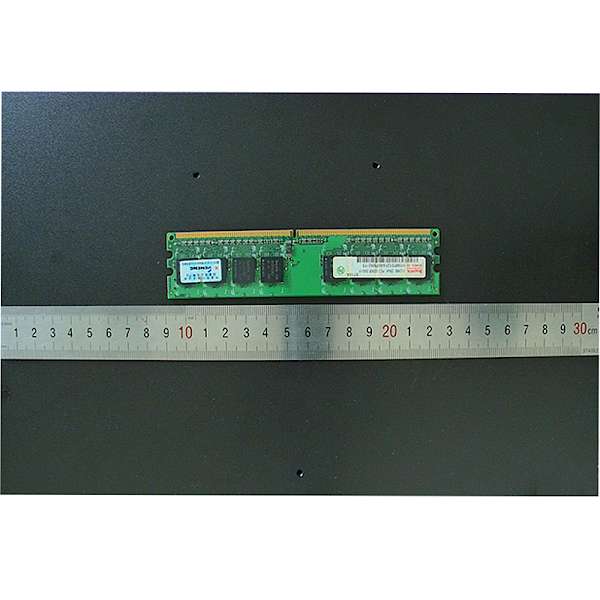

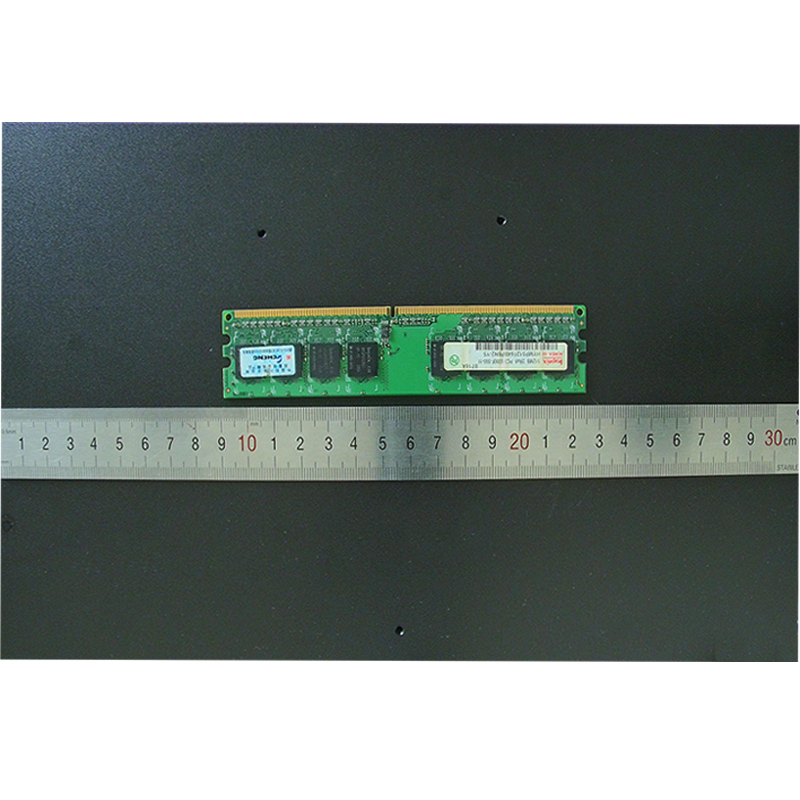

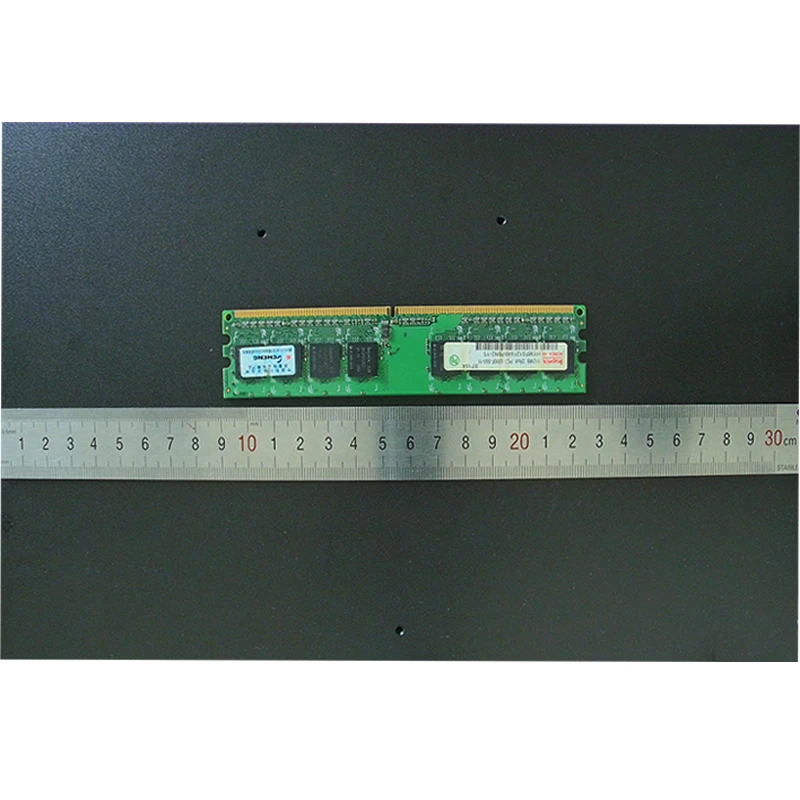

Measuring Function & Super View Field of HVS-12V

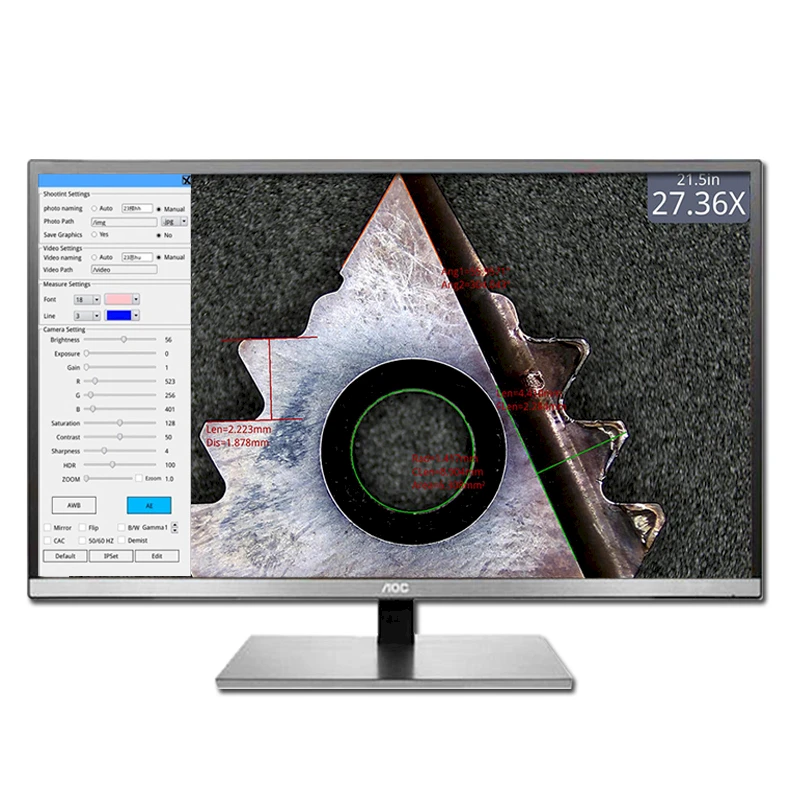

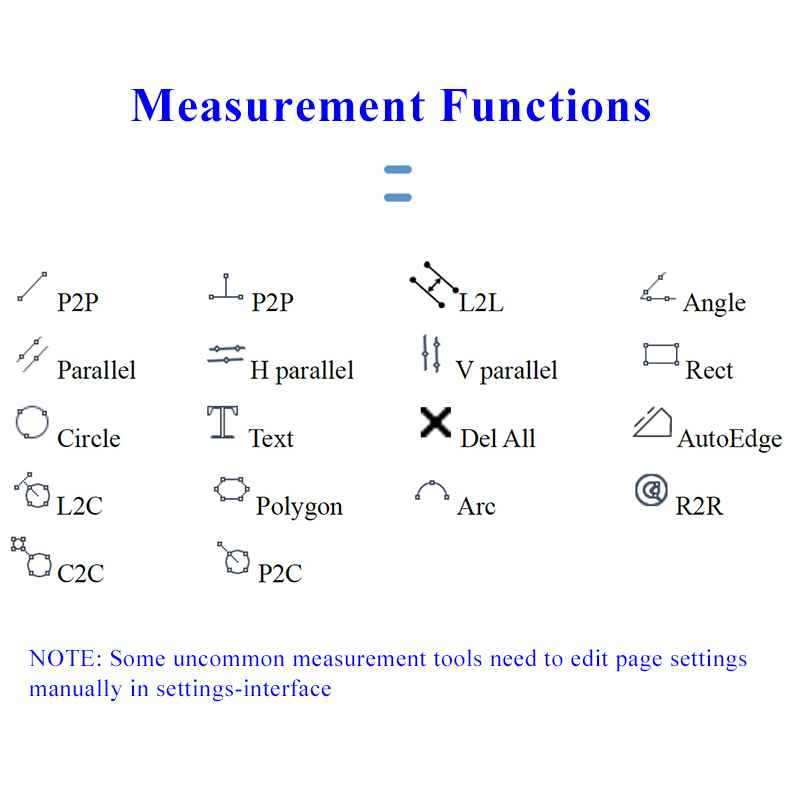

Measurement Function of HVS-12V

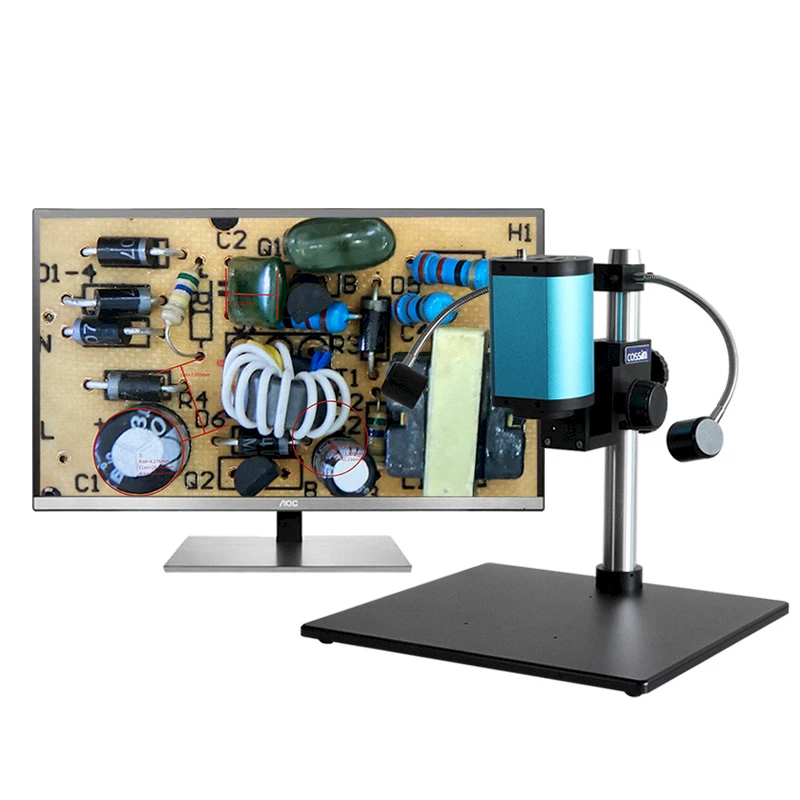

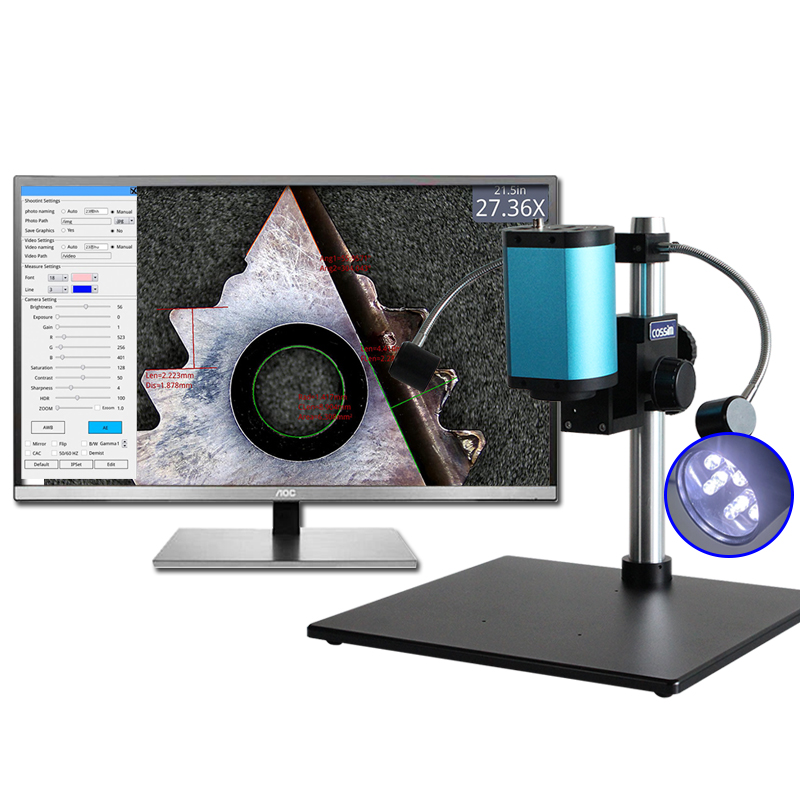

HVS-12V with its Connected Monitor
Specification for HVS-12V: | |
|---|---|
Sensor | Color CMOS |
Real Resolution | 2MP |
Sensor Size | 1/2.8” CMOS |
Menu | Full Digital UI Design |
Control | Mouse Action |
Power Supply | DC5V |
Output interface | HDMI |
Rate of Frame | 1080P@60fps/1080P@50fps |
Scanning Mode | Progressive scanning |
White Balance | Manual / Auto |
Exposure | Manual / Auto |
Electronic shutter speed | 1/50s(1/60s)～1/10000s |
Optical Magnification | 1~14X |
Digital Magnification | 1~6X |
Save Function | TF Card Save |
Mag. | Visible Range (Wide*Length) when W.D.100mm | Visible Range (Wide*Length) when W.D.300mm |
|---|---|---|
1X | 171*92mm | 420*230mm |
2X | 89*50mm | 196*110mm |
3X | 71*40mm | 150*84mm |
4X | 60*33mm | 116*65mm |
5X | 52*29mm | 101*57mm |
14X | 24.3*13.5mm | 45.5*25mm |

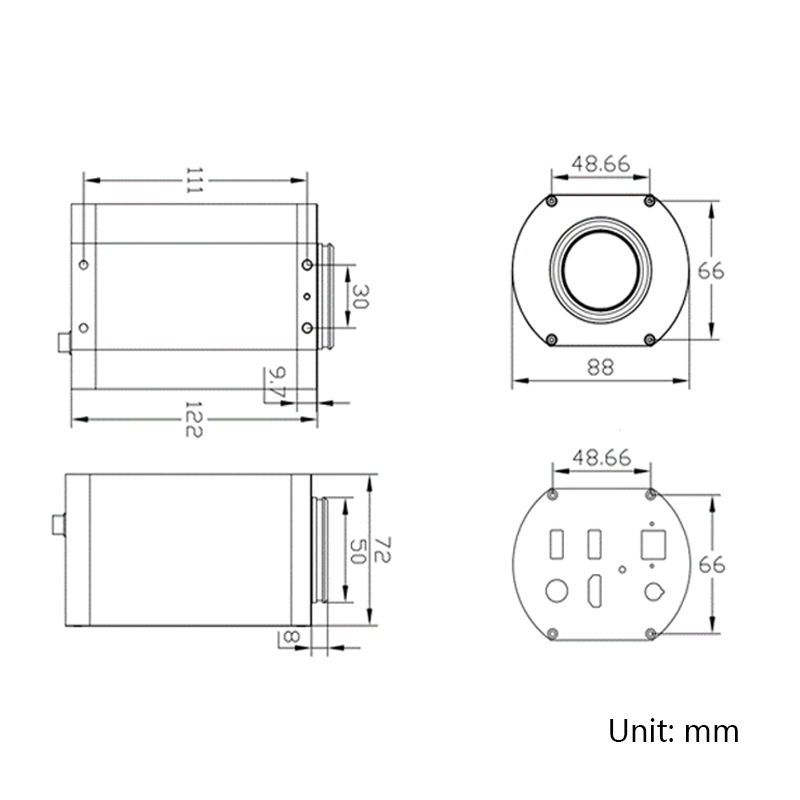

Dimension of HVS-12V Video Stereo Microscope

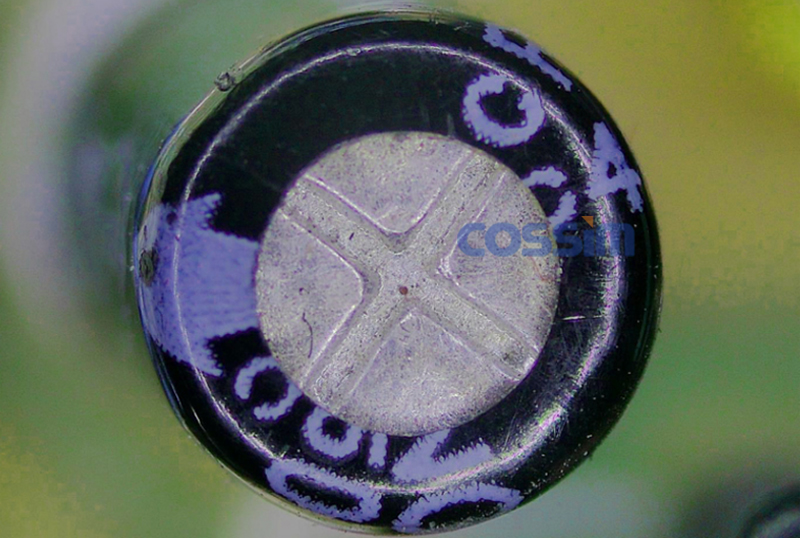

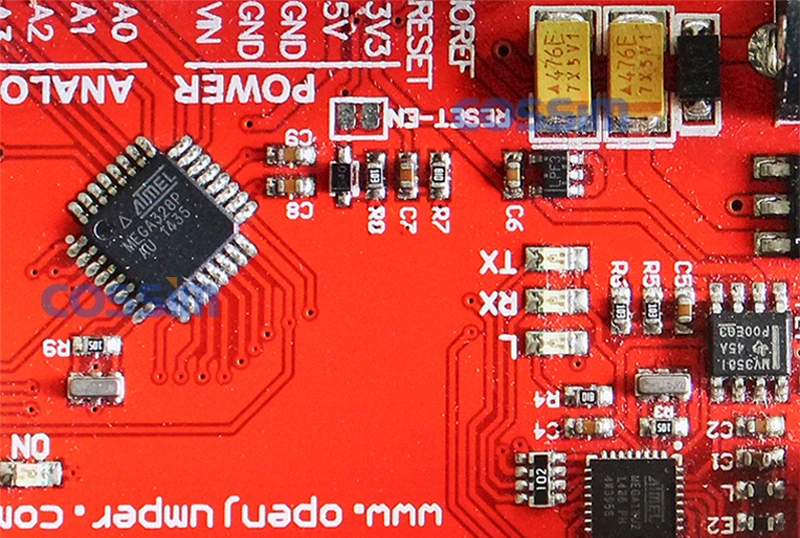

Real Image Captured by HVS-12V Video Stereo Microscope
