BL-125 Binocular/Trinocular Microscope Laboratory Clinical Biology Biological Microscope for Lab Live Blood Analysis Use
Total Mag. 40X~1600X; Kohler Illumination Halogen / LED; ABBE Condenser N.A. 1.25
Features
- 40X~1600X Total Magnification
- Wide field plan eyepiece, with high eye point
- N.A. 1.25 Abbe Condenser, with iris diaphragm, filter
- Kohler Illumination, diaphragm adjustable
Tags: Compound MicroscopesBiological MicroscopesBiological LensClinical and LabClinical & LabHome and HobbyHome & HobbySchools and StudentsStudent MicroscopesTeaching Demonstration
Request a Quote?
Get Quote Live chat Email Phone
WD=37.50mm
WD=7.31mm
WD=0.63mm
WD=0.18mm
Size: 135*140mm
6V 20W Halogen Lamp
BL-125 series Biological Microscope is equipped with achromatic objectives (4X, 10X, 40X, 100 oil), wide field eyepieces (10X, 16X). It has clear image, wide field, beautiful sculpt, convenient operation etc.
It can be used for medicine, and assay area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.

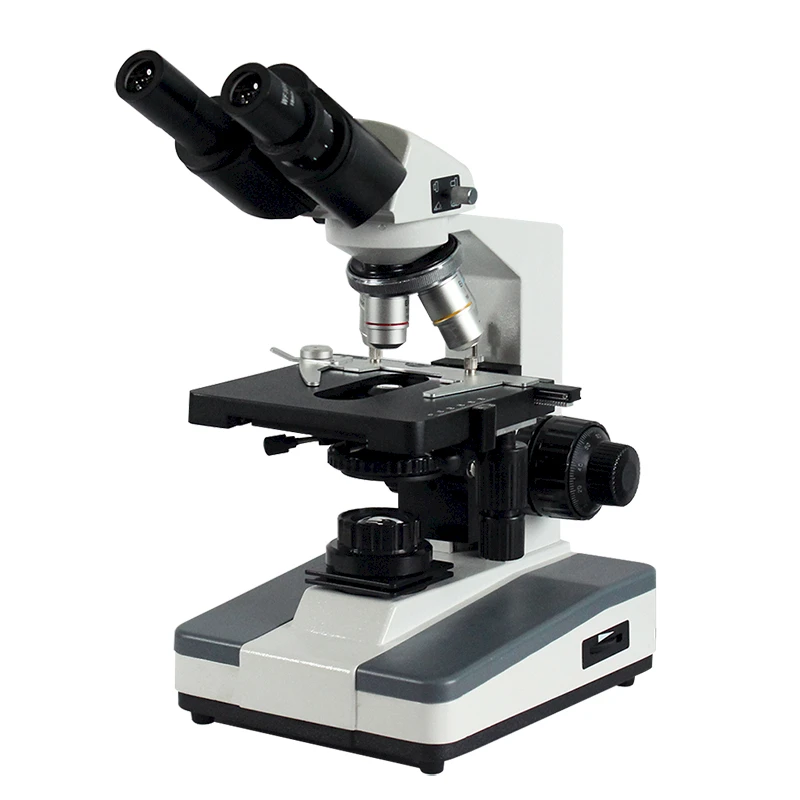

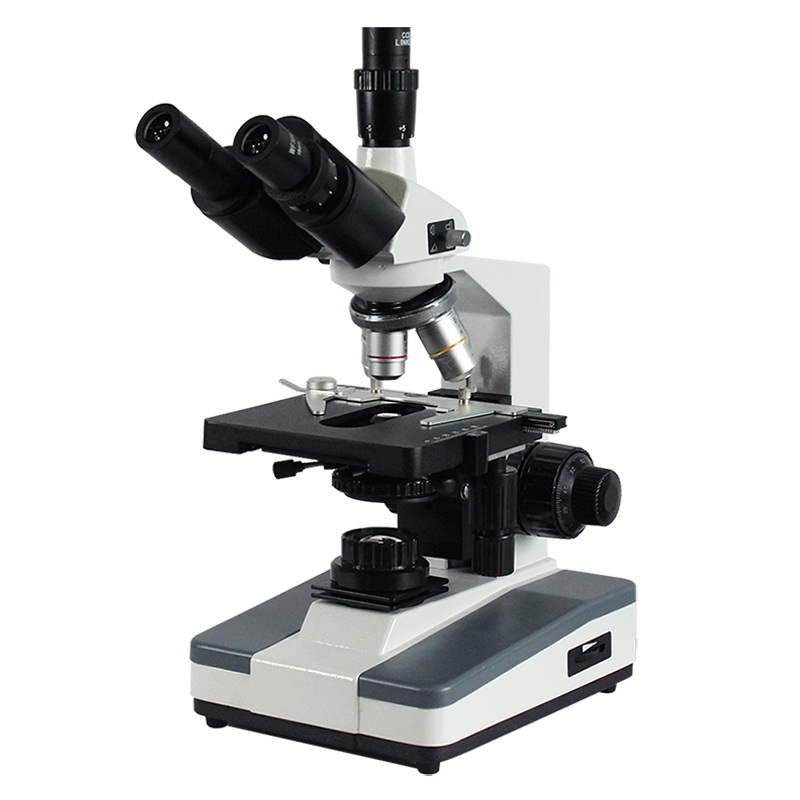

BL-125 Series Biological Microscope (Binocular / Trinocular)

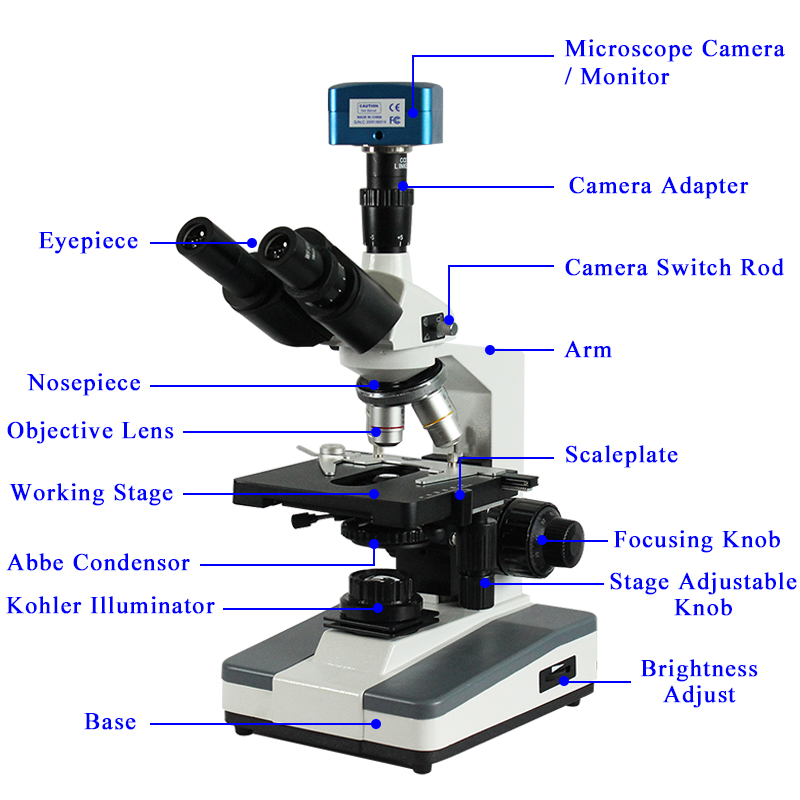

Structure of BL-125T Trinocular Microscope

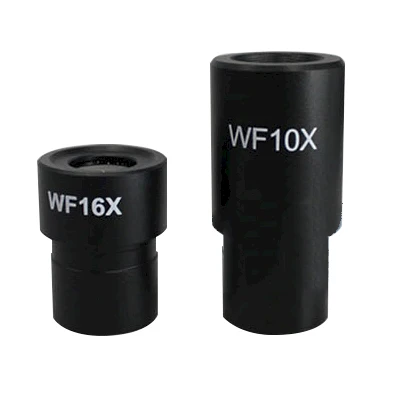

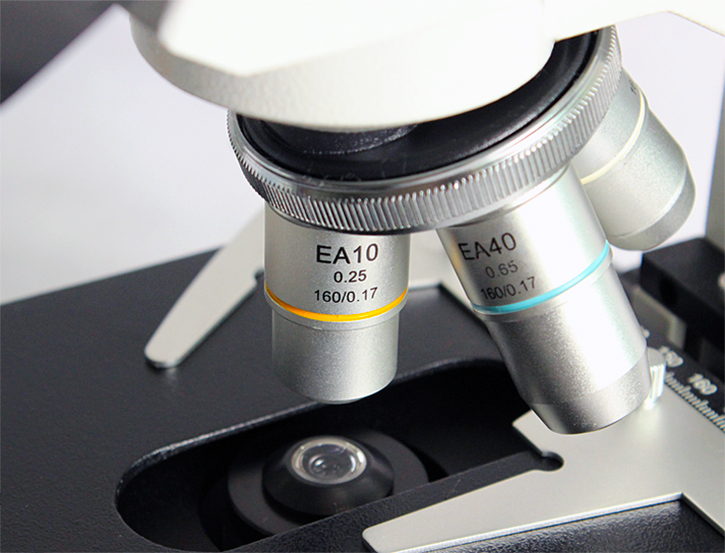

Eyepiece & Objective Lens of BL-125 Series

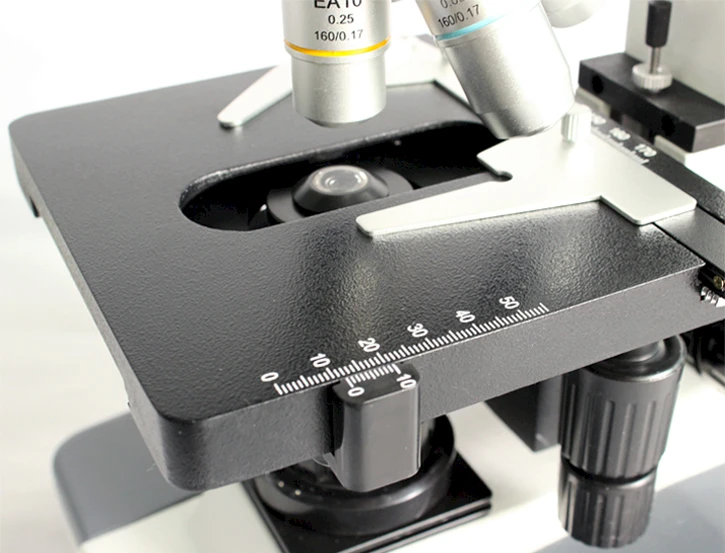

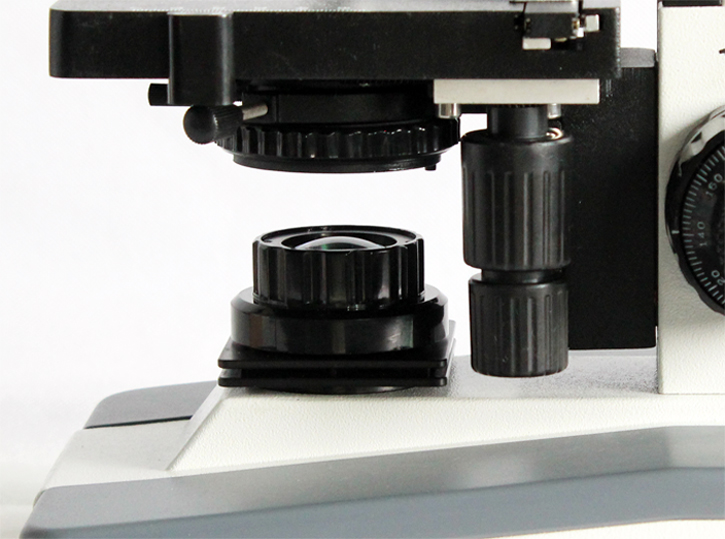

Working Stage & Condenser & Illuminator of BL-125 Series

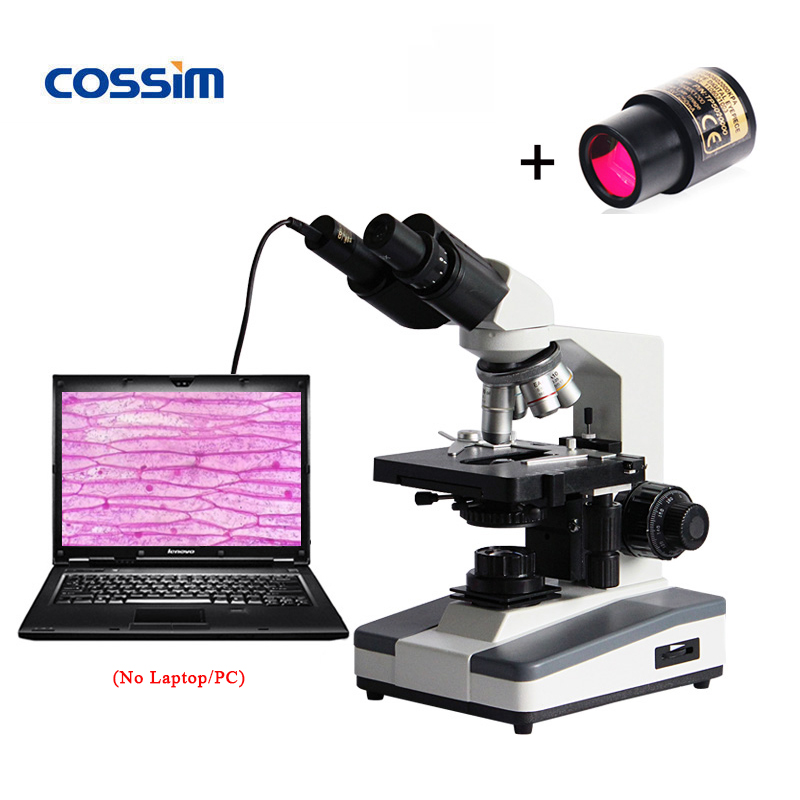

BL-125T with its Connected Eyepiece Camera

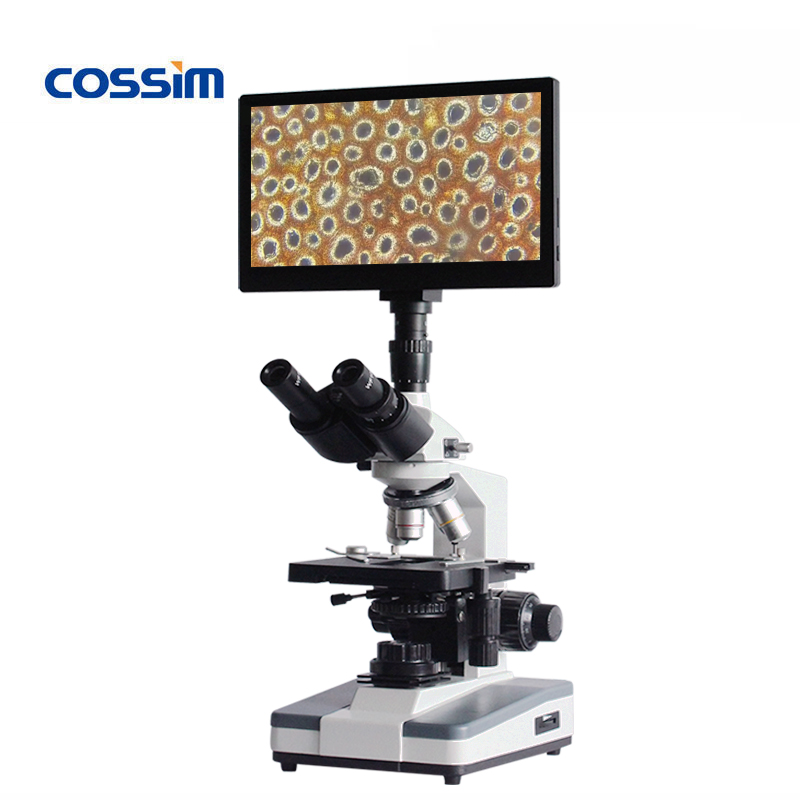

![BL-125T with its Connected 9" Monitor](/site/assets/files/2546/3.jpg "BL-125T with its Connected 9" Monitor")
BL-125T with its Connected 9" Monitor

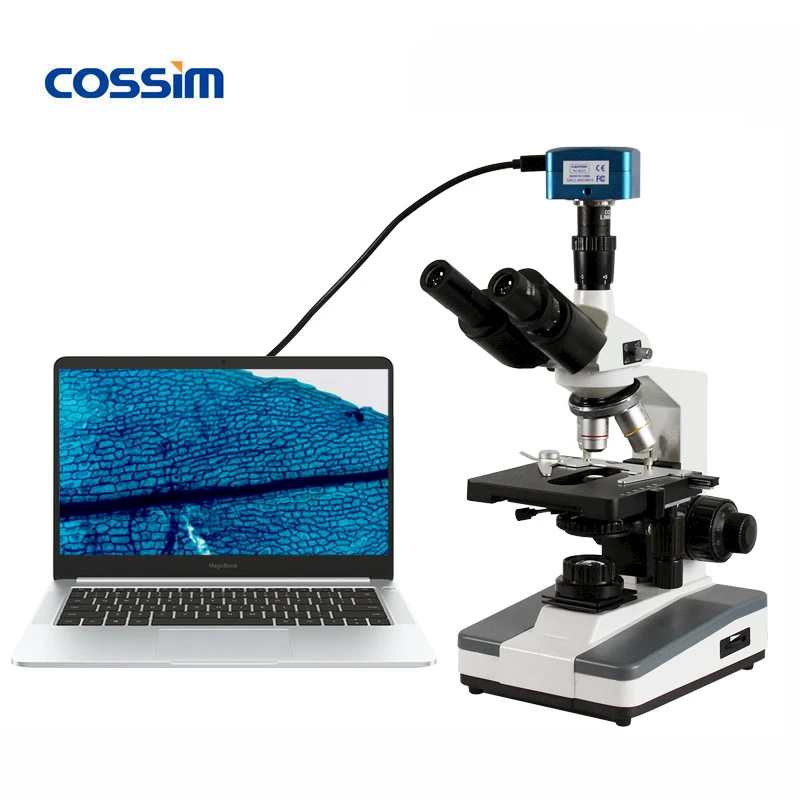

BL-125T with its Connected USB Camera

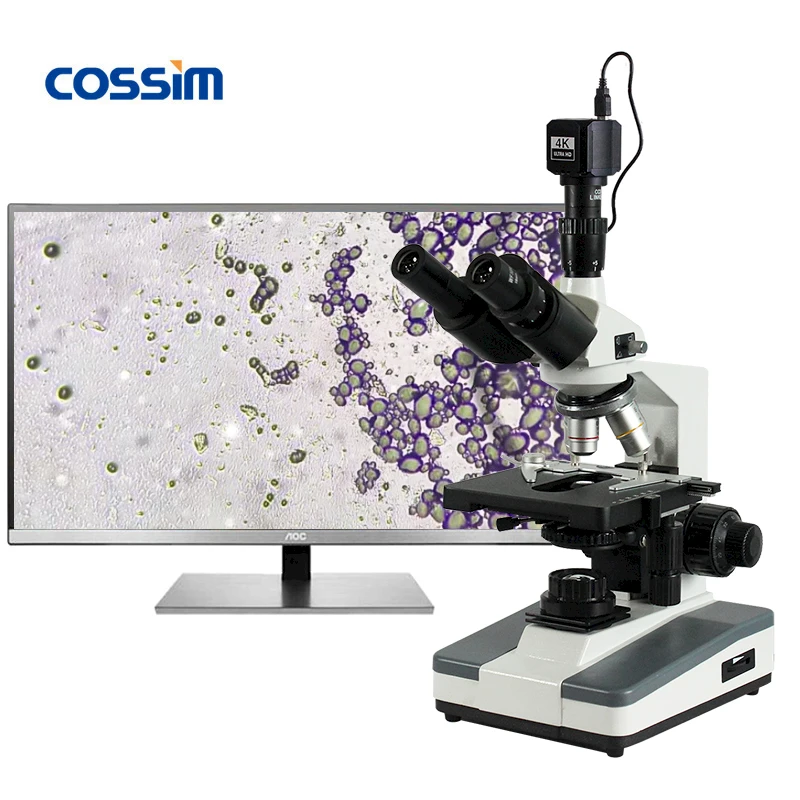

BL-125T with its Connected 4K Camera
Specification of BL-125 Series: | |
|---|---|
Eyepiece | WF10X(Φ18mm)；WF16X(Φ11mm) |
Eyepiece Tube | Binocular / Trinocular, inclined 30°, 360° rotatable, interpupillary distance: 48~75mm |
Total Mag. | 40X~1600X |
Achromatic Objective | 4X N.A=0.10 WD=37.50mm |
10X N.A=0.25 WD=7.31mm | |
40X N.A=0.65 WD=0.63mm | |
100X(Oil) N.A=1.25 WD=0.18mm | |
Focus System | Coaxial coarse & fine focusing, minimum division of fine focusing: 2μm, Range 30mm |
Nosepiece | Quadruple |
Stage | Double Layer Mechanical Stage (Size: 135mm x 140mm, Move range: 70mm x 50mm) |
Condenser | ABBE Condenser N.A. 1.25 with diaphragm, Rack & pinion adjustable |
Filters | Blue, yellow, green |
Light Source | 6V 20W Halogen Lamp, with brightness control |
Power | External Wide Voltage Power: AC 85~265V; 50~60Hz |

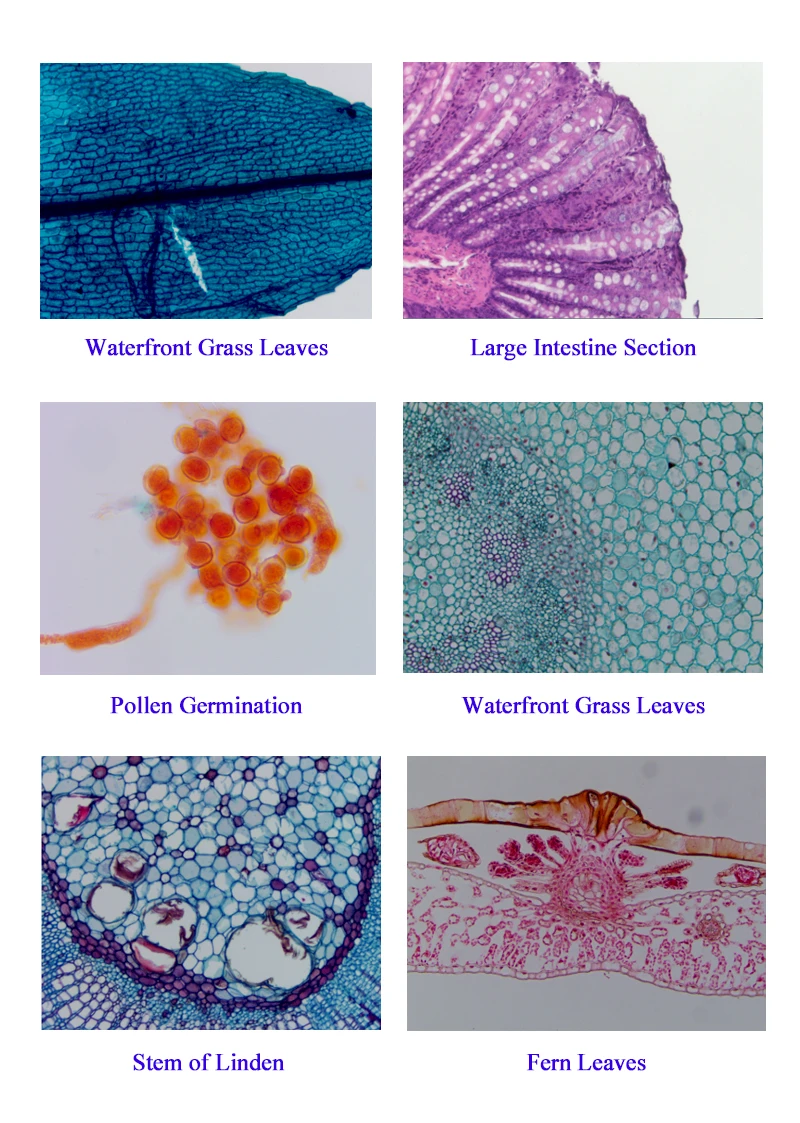

Real Images Captured by BL-125T Series
Applications of BL-125T Series
