3D Electron USB LCD Screen Digital Video Stereo Microscope Intergrated Measuring Software Camera & LED Illuminator
Mag. 17X~110X; 60fps@1920*1080; 2D/3D Observation Mode; 56 LED Ring Light; 0.5X / 2X (Optional)
Features
- Equipped with 11.6” display screen
- 2D/3D switch mode, used for observing 3D samples different angles
- HDMI & USB outputs can be realized simultaneously
- Integrated camera, with measurement, photo, video and save functions
- External mouse and TF card provide easy operation
- Dual screen output simultaneously, with HDMI-compatible display screen
Tags: Stereo MicroscopesVideo Microscope3D MicroscopeMeasuring MicroscopesPlatform StandIndustrial InspectionSoldering MicroscopesStudent MicroscopesSchools and Students
Request a Quote?
Get Quote Live chat Email Phone
1/2.8Inch
Ratio 6.4:1
IPS Screen
45 ° view angle
HVS-200P3D integrated microscope combined the traditional optical and electronic video technology. It is compact in size, one power cord connected the body and screen provides easy operation.
Equip with 3D observation mode, which could be switched manually and freely between 2D / 3D, 3D mode with 360 ° rotation, 45 ° viewing angle lens, which observe multiple angles of 3D samples.

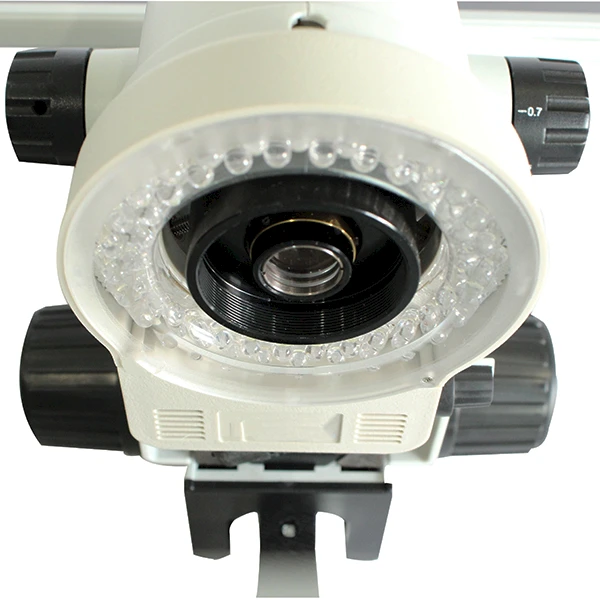

Two partition LED lights with adjustable switch knob, and the inner & outer illumination control independently. The outer oblique light to observe more details. The inner coaxial light to observe more accurate images.

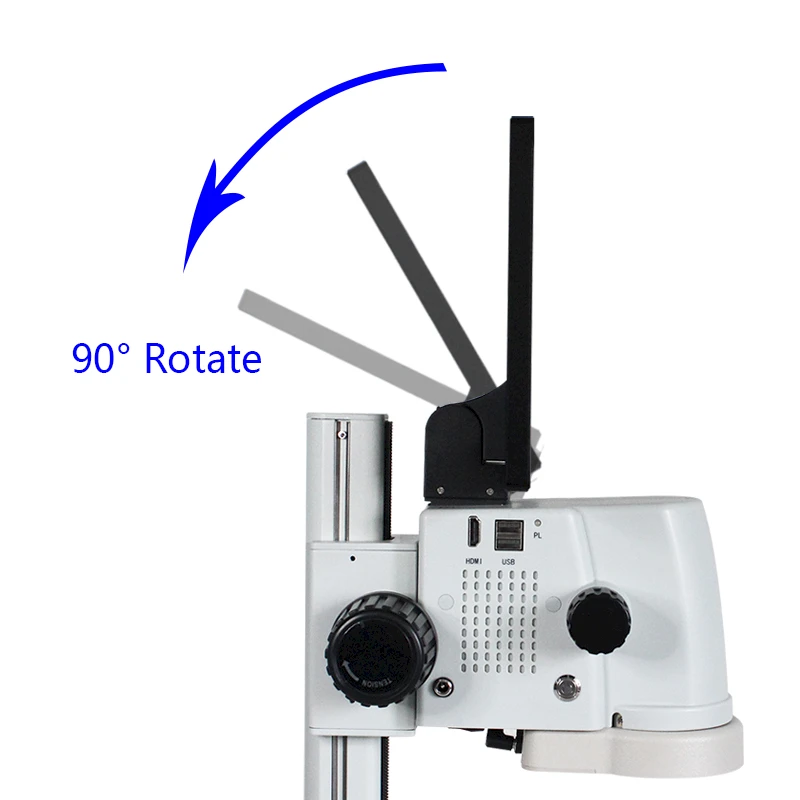

Equipped with 11.6” HD IPS Display Screen, 60fps@1920 * 1080p Resolution for clear and sharp image. The display screen can be titled back 90°, angle adjustable. Integrated measurement software, real-time photos, video, preview, settings, measurement etc. Dual screen output (HDMI-compatible & USB) can be realized simultaneously.
This kind of optical microscope is widely used in agriculture and forestry, archaeological identification, PC line inspection, textile industry, universities and research institutions etc.

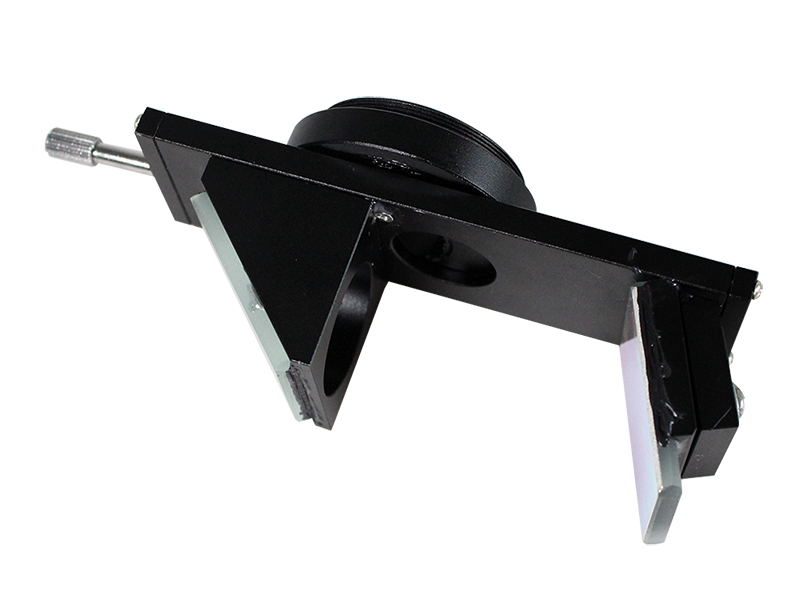

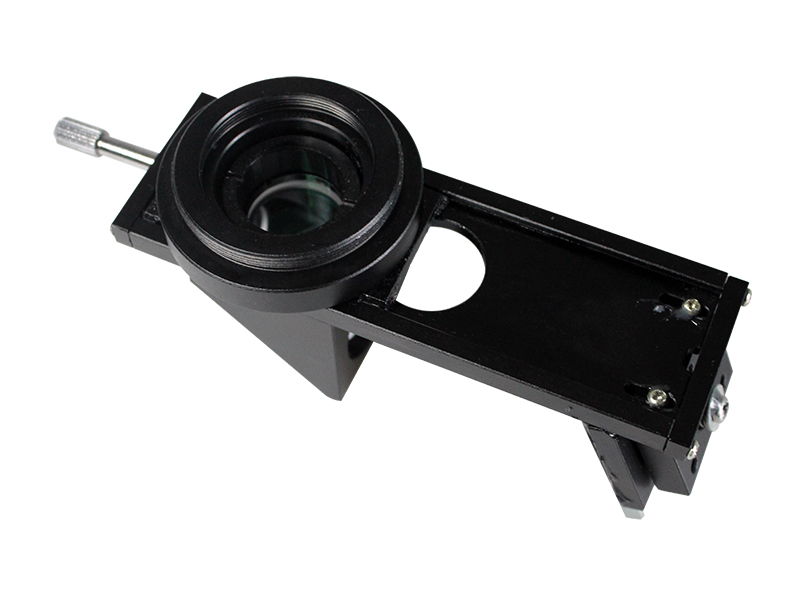

3D Device of HVS-200P3D

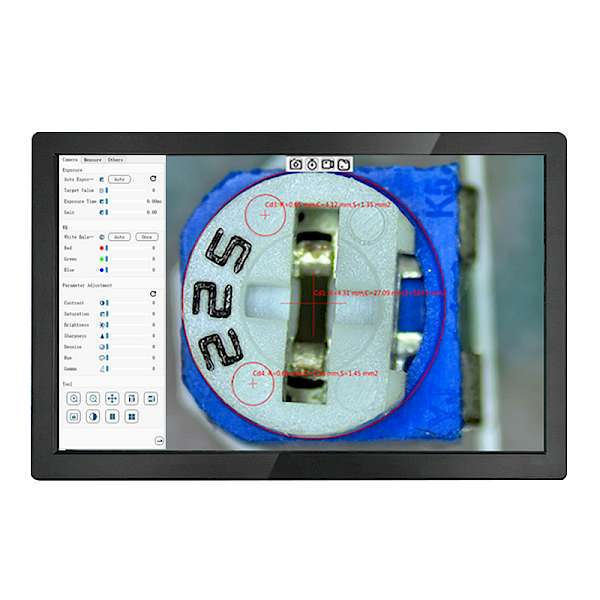

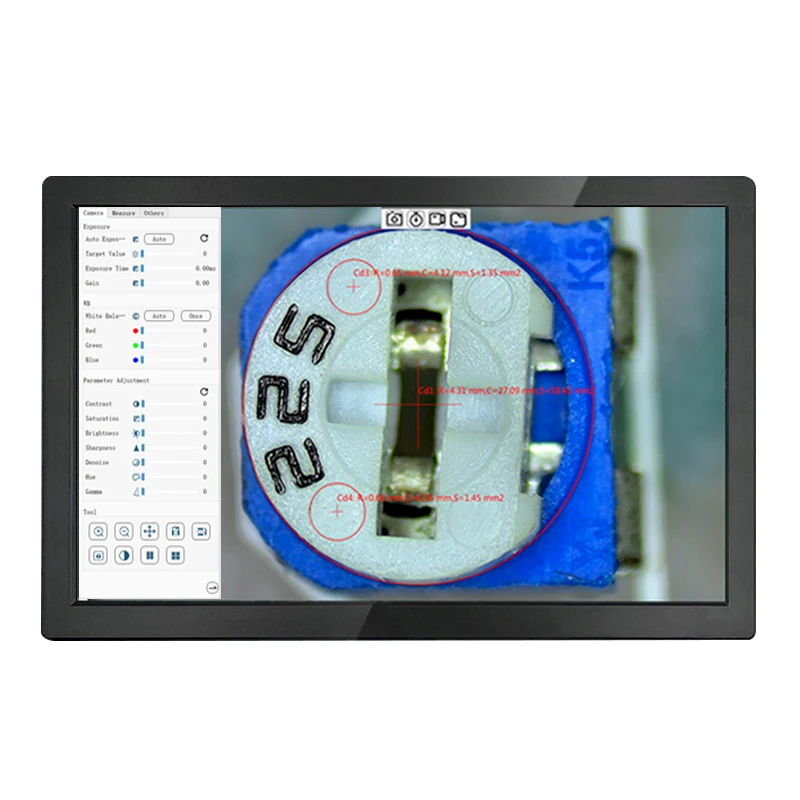

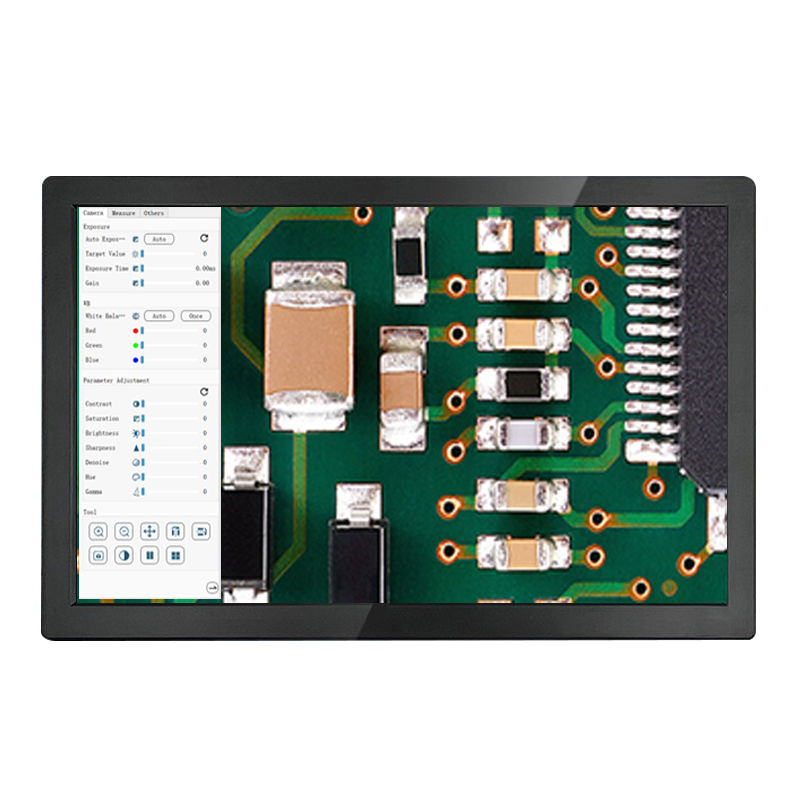

Integrated Camera Software of HVS-200P3D

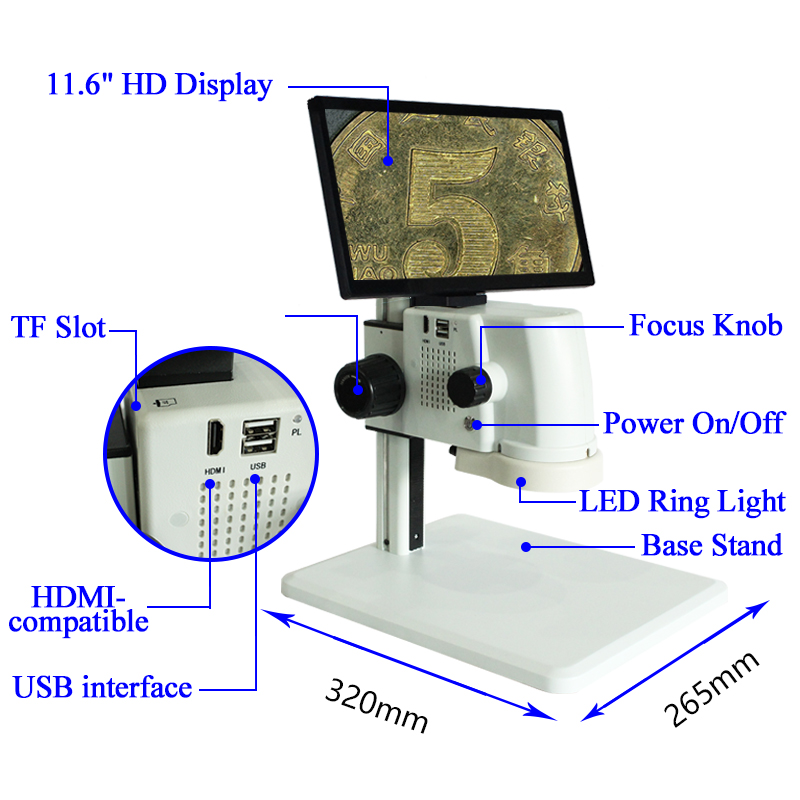

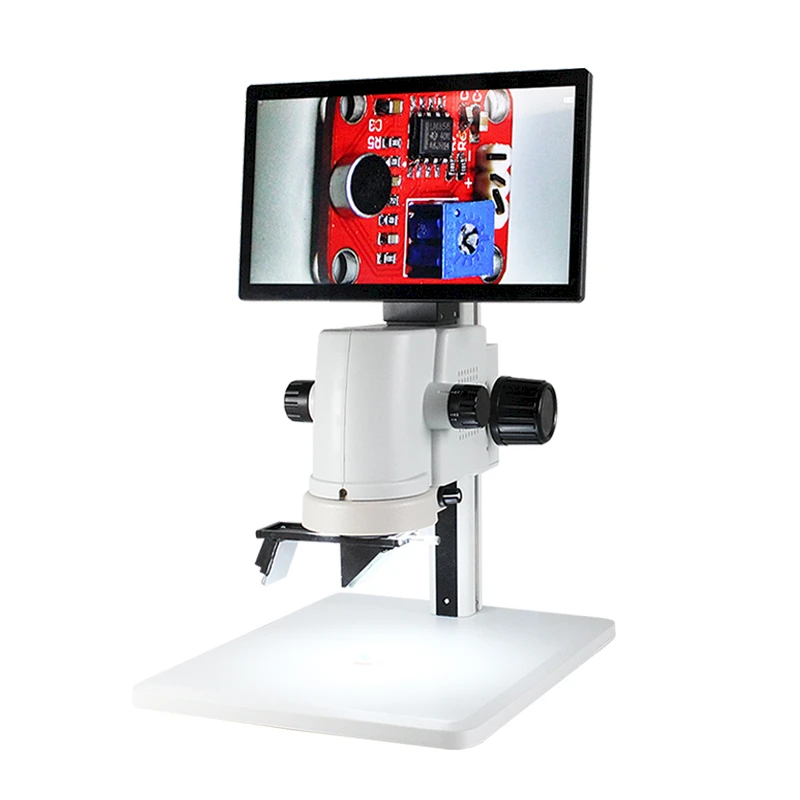

Structure of HVS-200P3D

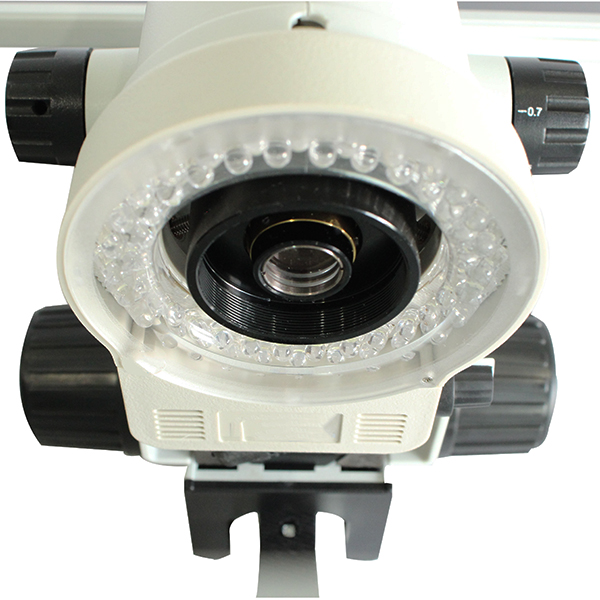

11.6inch Display & Illumination of HVS-200P3D
Specification for HVS-200P3D: | ||
|---|---|---|
Magnification | 17X~110X | |
Objective | 0.7X-4.5X stereo zoom, zoom ratio 6.4:1 | |
Display | 11.6Inch、1920H*1080V、 IPS Screen | |
2D/3D Modes | with 360 ° rotation, 45 ° viewing angle lens | |
Hardware Parameters | Imaging sensor | 1/2.8Inch SONY CMOS |
Real-time image frame rate | 60fps@1920*1080 | |
Photograph | 5 mega-pixel | |
Recording | 45fps@1920*1080 | |
Output Interface | HDMI-compatible | |
Input Interface | Double USB2.0 | |
Internal Software Parameters | Camera Parameters | Exposure,Whitebalance,Gain,Gamma,Brightness,Contrast,Hue,Saturation,Gray |
OSD Operation | Mouse | |
Storage Function | Snap, Record, USB Storage | |

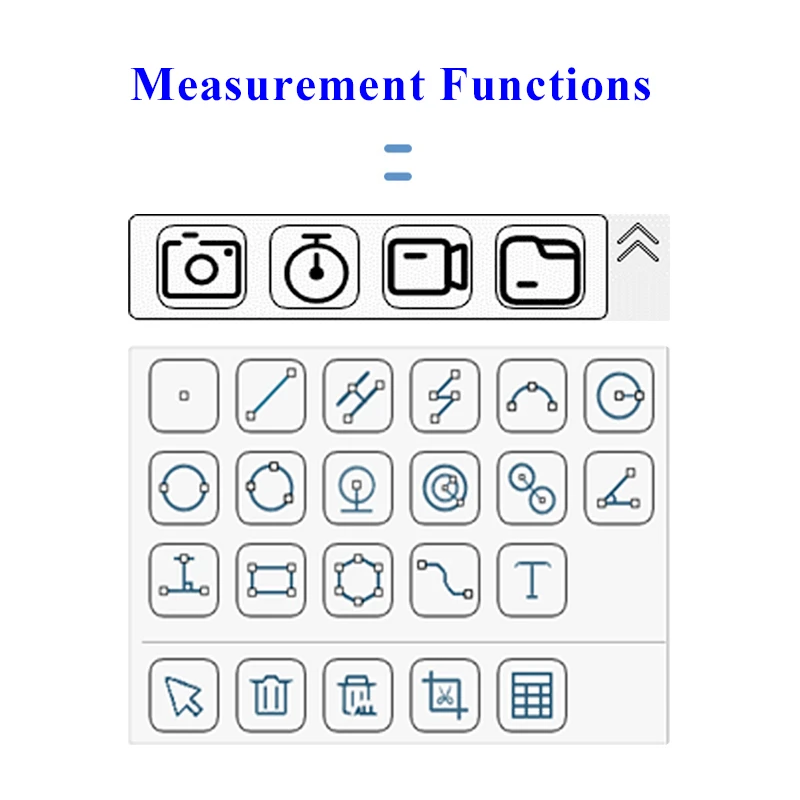

Measurement | Point, Line, Parallel lines, Broken lines, Angle, Diameter circle, Radius circle, Three-point circle, Distance from circle to line，Concentric circles, Double circle, Vertical line, Arbitrary line, Polygon, Arc, Mark, Screenshot, Table data export, Calibration, Parameter Settings | |
Other Function | Flip horizontally, Flip vertically, Freeze | |
Scale Ruler | 3 kinds | |
Grid lines | 8 groups | |
Languages | Simplified Chinese, Traditional Chinese、English, French, Russian, Japanese, Italian, German | |
Auxiliary Lens | 0.5X / 2X (Optional) | |
Light Source | 56 LED Ring Light, brightness adjustable | |
Base Stand | Standard: 265*320mm. (Various bases are available according to customers' requirements) | |

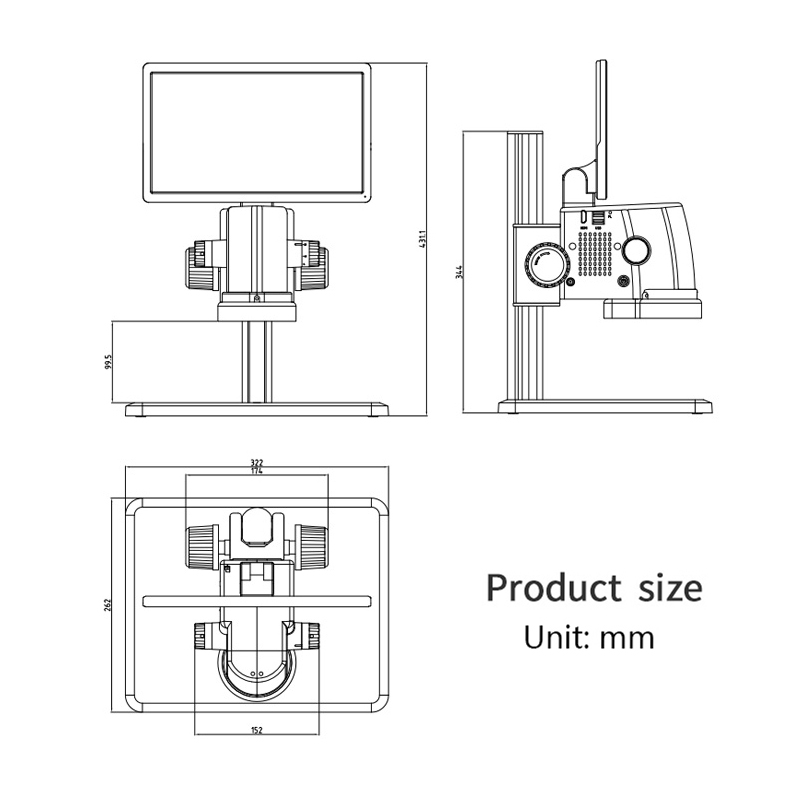

Size of HVS-200P3D
