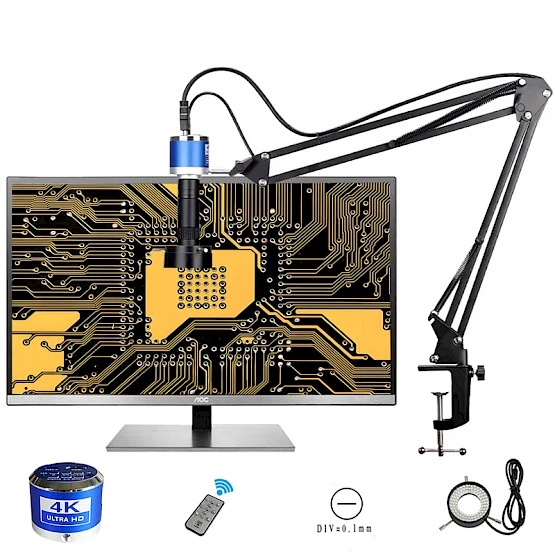

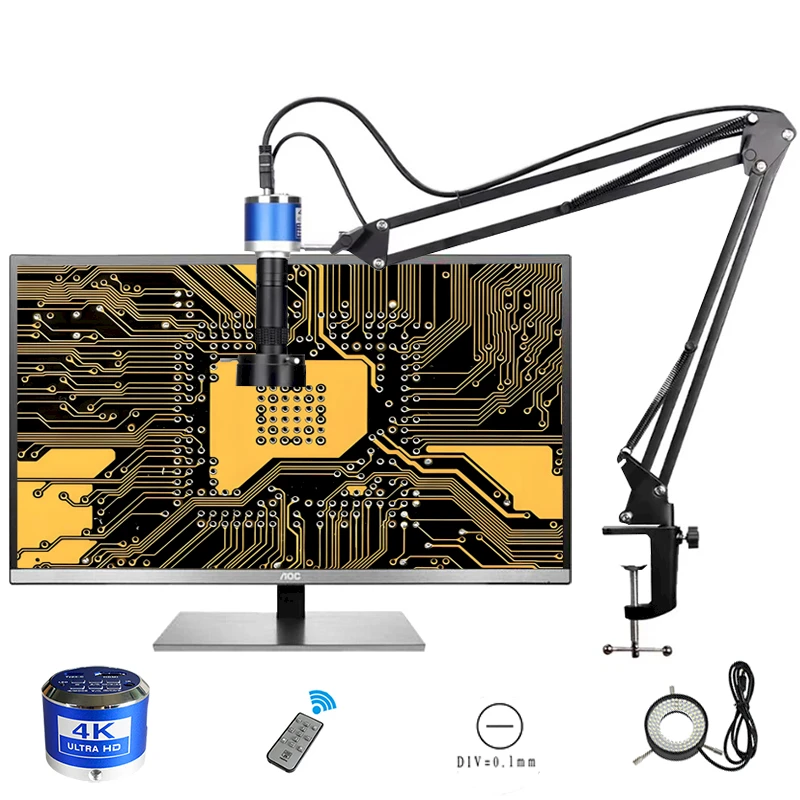

7X~45X Monocular Continuous Zoom Stereo Microscope with Universal Flip Foldable Holder & 4K HDMI Camera
3.5X~90X (Optional Mag.); Real 4K 1/1.8” HDMI & USB Camera; 1000mm Max W.D.; Measurement & Save Functions
Features
- 7X~45X (Standard Optical Mag.)
- Long working distance: 20~1000mm
- For any directions, clamp installation range: 6cm
- Adopt with 1/1.8” 4K Sony CMOS Sensor, show the live image directly on any HDMI monitor
- HDMI 3840 30FPS / 1080P 120FPS & 60 FPS image output
- 4K video recording
- Support Photo, video measurement (PC Software), mirroring functions etc.
- Wide field of view, clear imaging and strong stereo sensation
Tags: Stereo MicroscopesMonocular MicroscopesIndustrial InspectionMeasuring MicroscopesHDMI MicroscopesUSB MicroscopesSoldering MicroscopesEngraving
Request a Quote?
Get Quote Live chat Email Phone
with 10.1” display
C-mount
1/1.8inch Sensor
1920*1080 @ 120FPS & 60FPS
DTB-45KY-A Monocular Digital Stereo Microscope provides 3D image effect, easy operation, nice design, high cost effective. It is widely used in the inspection of production line of electronic industry, the verification of printed circuit board, defects in printed circuit components, etc.

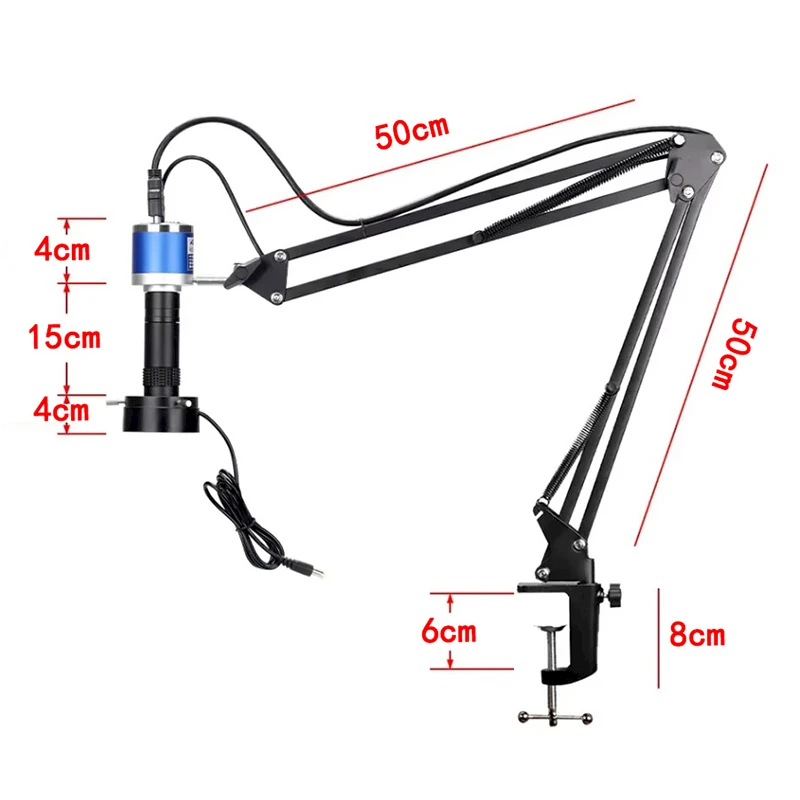

Size of DTB-45KY-A

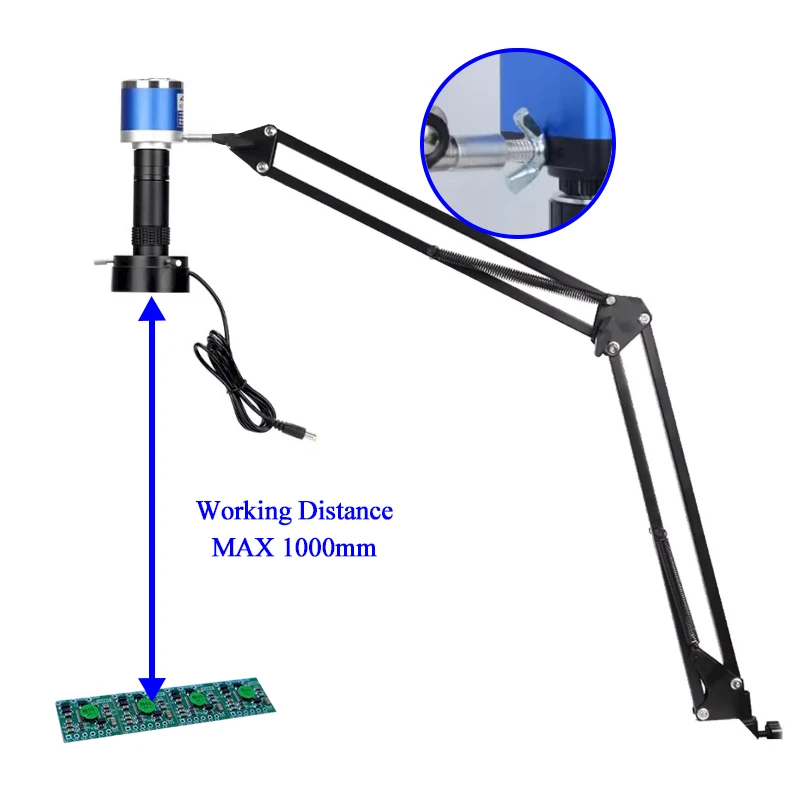

Working Distance of DTB-45KY-A

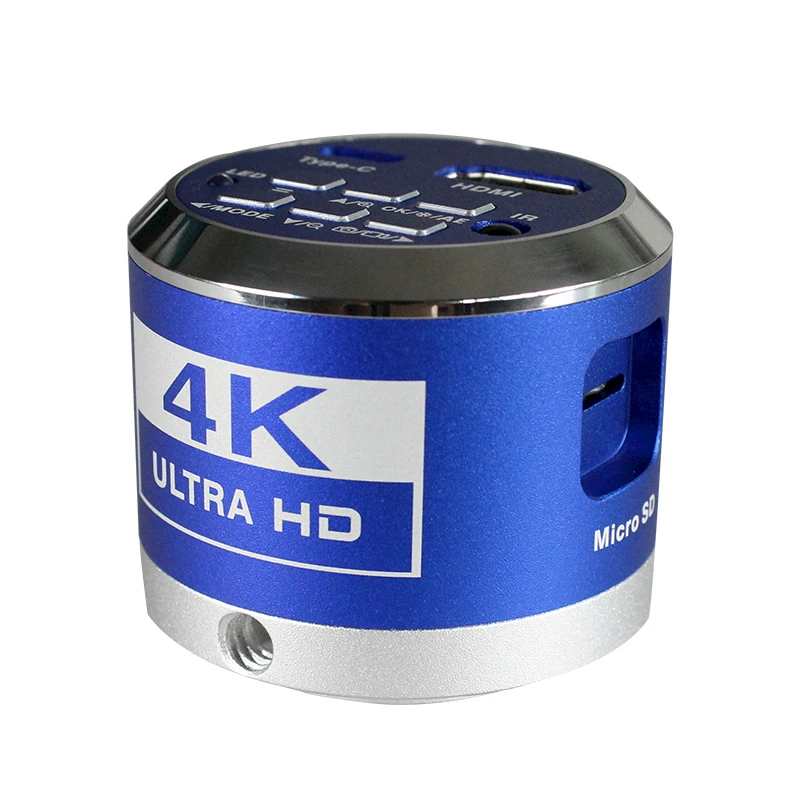

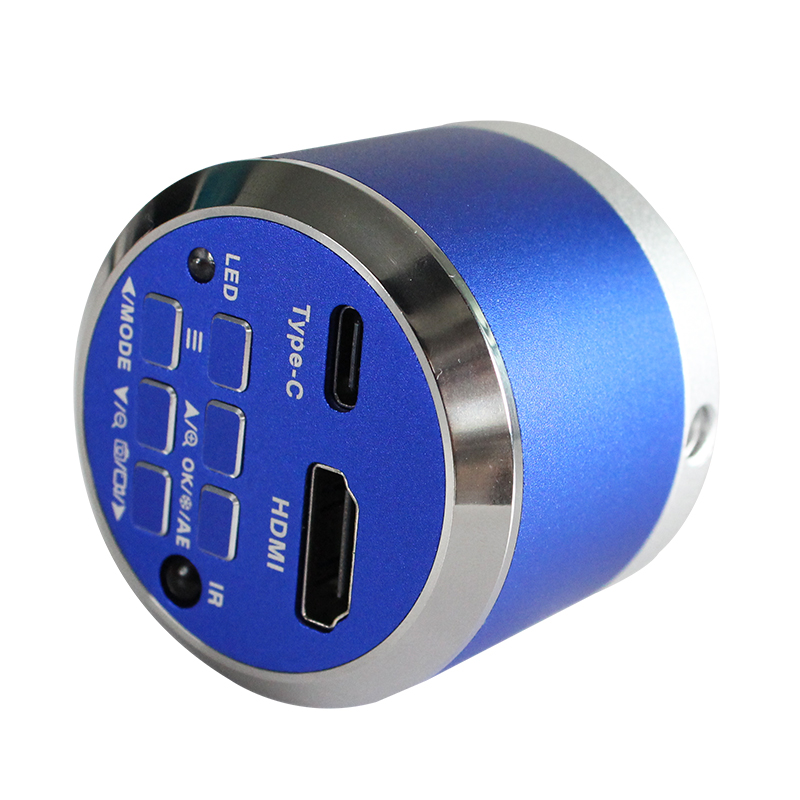

HD-4KY 4K Microscope Camera
Specifications for Microscope: | |
|---|---|
Drawtube | Monocular |
Objective | 0.7X~4.5X, ratio: 1:6.4 |
Total Magnification | 5X~100X (when with 10.1” display) |
Digital Device | HDMI 4K Camera |
Interface | Standard C-mount |
Adapter Lens | 0.5X |
Focusing | Pole |
Working Distance | 20mm~1000mm |
Illumination | LED Ring Light |
ID: 50mm (inner: Φ 30mm); ED: 68mm | |
Lamp Bead: 96 Granule | |
Max Illuminance : 15,000 Lux | |
Color: White 6400K(Standard) | |
Specifications for Camera: | |
Pixel size | 2.0µm × 2.0µm |
Sensor | SONY IMX678 1/1.8inch |
output | HDMI/ TF Card |
Lens mount | C-Mount |
Image resolution | 3840*2160 |
Video resolution | 3840*2160 @ 30FPS |
FPS | 3840*2160 @ 30FPS 1920*1080 @ 120FPS & 60FPS |
Save Function | TF Card / UVC |
Exposure | Auto/Manual |
Exposure Time | 0~33MS |
Exposure | Compensation Support |
White balance | Auto/Manual |
Other Functions | Support Color, Mirror, Lines, Tick Mark Etc. |
System | Youngwin OS |
PC Software | S-EYE2.0 |
Input voltage | DC 5V—12V |
Remote control | Support remote control operation |
Working Tem. | 0~60℃ |

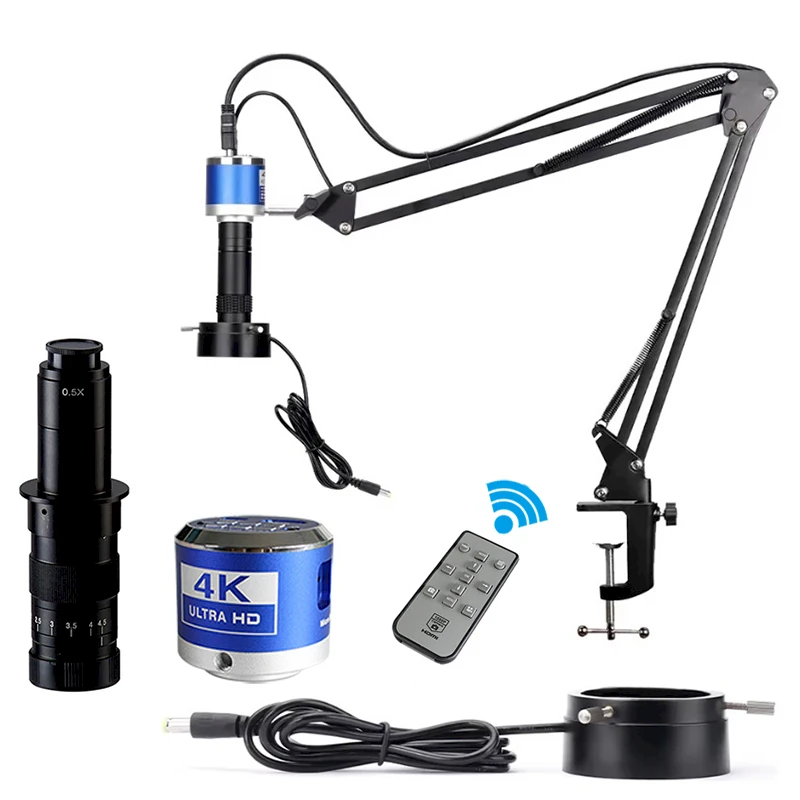

Standard Packing List: | |
|---|---|
Item | Quantity |
Monocular Microscope | 1 |
Foldable Holder | 1 |
LED Ring Light | 1 |
Digital Camera (4K) | 1 |
Remote control | 1 |
Power | 1 |
USB Cable | 1 |
Operation Manual | 1 |
Box | 1 |
