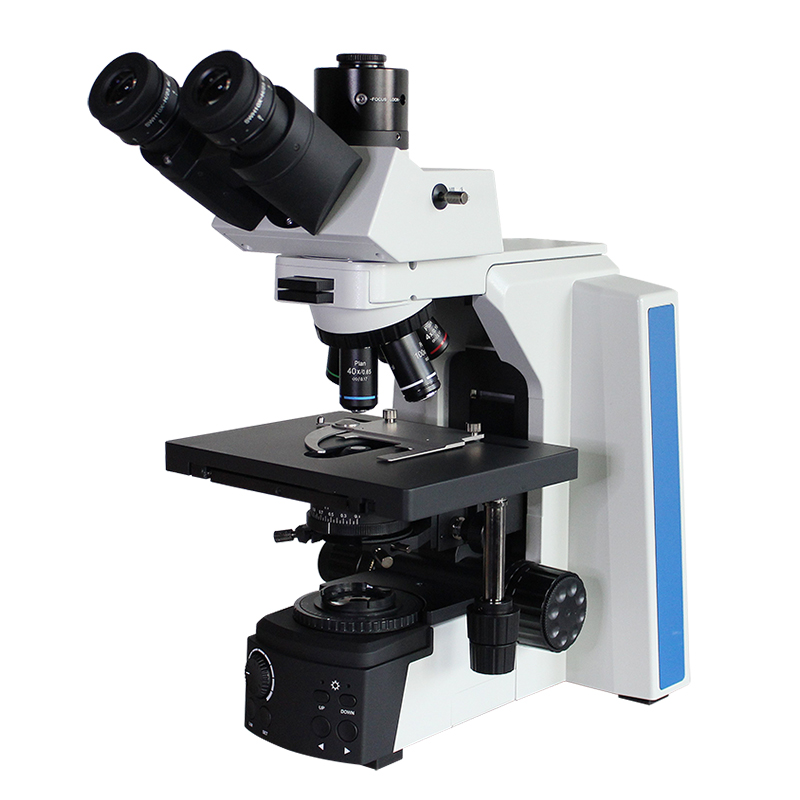

VMB630A Professional Integrated Coding Nosepiece Upright Trinocular Biological Microscope for Medical Operation & Teaching

Plan eyepiece

Large field of view SWH10X23mm, adjustable visual acuity, adjustable binocular refractive power (-2~+8), socket with anti rotation limit pin

Infinite PlanAchromatic Objective lens

4X N.A0.10 WD16；

10X N.A 0.25 WD4.4；

20X N.A 0.40 WD4；

40X N.A 0.65WD0.7；

100X oil N.A 1.25 WD0.21

Total magnification

40X-1000X

Viewing head

30 ° inclined, trinocular observation tube, pupillary distance adjustment: 50mm~75mm, unilateral visual acuity adjustment: ± 5 diopters, two spectral ratios R: T=100:0 or 50:50

Nosepiece

Integrated inward tilting quintuple coding nosepiece, RMS international standard objective thread interface (C-mount), software can code and recognize magnification when switching (supported by PC side camera software when used simultaneously)

Encoder

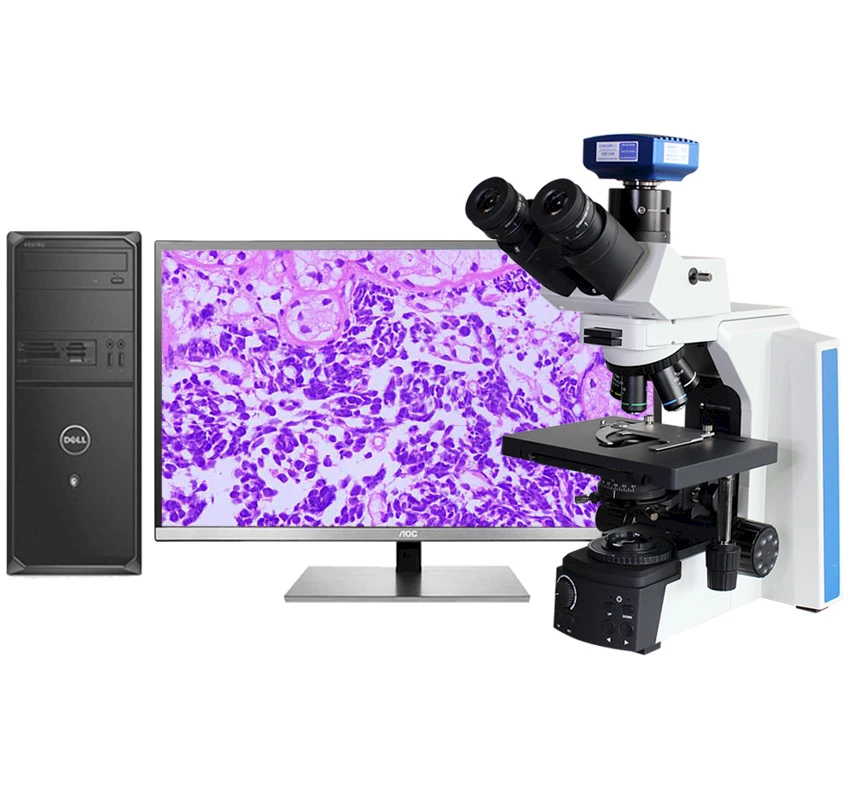

Hardware settings are integrated with image analysis software.The magnification of the objective lens is displayed on the screen, and the calibration value recorded in the software is automatically adjusted when switching the objective lens. The computer recognizes the aperture position of the objective lens, and the software automatically switches the ruler and loads preset parameters to prevent measurement errors caused by forgetting to switch the software magnification

LIM intelligent light intensity management

The light intensity and brightness memory function remembers the appropriate lighting brightness when using each objective lens (adjustable according to personal preference brightness), automatically adjusts the light intensity when replacing the objective lens, reduces visual fatigue, and improves work efficiency,

Focusing System

Low hand position coarse fine coaxial focusing system.Travel (focusing range) 28mm, fine adjustment accuracy 0.001mm. Equipped with an adjustable elastic device to prevent sliding

The upper limit device is used to prevent damage to the slices, and the random limit device can be used for quick replacement of slices, protecting the slices and objective lens

Stage

Right hand low-level double-layer mechanical working stage, wear-resistant ceramic coated tabletop, using alloy steel wire transmission structure, no exposed rack, with a movement stroke of 76 mm

55 mm, preset steel wire tension, comfortable and accurate positioning, no jamming or rebound, hands do not leave during low position handwheel operation

Desktop, less prone to fatigue.

Sample Clip

Slow rebound left-hand slicing clip, supports double slides, supports driving heavy samples such as cell counting pools and counting plates

Condenser

Pre aligned Kohler spotlight NA0.1~1.1 with aperture indicator scale markings, supporting multiple lighting modes such as bright field and polarization.

Camera interface

0.5X C-mount

Lighting

Built in daylight type simulated solar LED lighting system, with 10W output brightness (equivalent to 100W halogen lamp);The color temperature is constant at 4500K, with warm white light illumination. The light outlet supports the installation of a 45mm filter.
