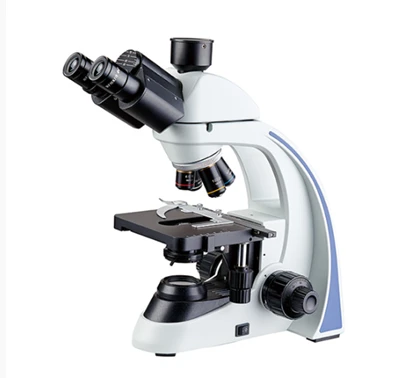

VMB1800A Infinity Trinocular Biological Microscope 40X~1000X with LED illumination
Coaxial coarse / fine focusing adjustable 25mm; Large Double Layer Stage; ABBE N.A.1.25 condenser; 100V~240V
Features
- Total Magnification: 40X~1000X
- LWD infinity plan achromatic objectives:4X, 10X, 40X, 100X(o)
- Coaxial coarse / fine focusing adjustable, division of the focusing: 2 um
- Double layer mechanical stage 155 x 142mm, coaxial vertical and horizontal adjustable knob
Tags: Compound MicroscopesBiological MicroscopesClinical and LabClinical & LabSchools and Students
Request a Quote?
Get Quote Live chat Email Phone
inclined
50~75mm
Nosepiece
Brightness adjustable
VMB1800A Biological Microscope is equipped with infinity achromatic objective lens and wide field eyepiece, which has the characteristics of clear imaging, wide field of vision, convenient operation and high-cost performance. The head spacing is adjustable (50mm-75mm), and an appropriate adjustment ring is installed on one of the binocular eyepiece, to adapt to the use of different operators.
The fine and coarse symmetrically installed on both sides of the main body can be operated by left and right hands to focusing. The adjustment accuracy of fine focusing is 0.002mm.
The mechanical upper limit structure is adopted to ensure that the specimen will not contact with the objective lens. It is widely used in the observation and research of cell tissue, biopharmaceutical, medical and health care, agriculture, animal husbandry, textile fiber, chemical particles and so on.

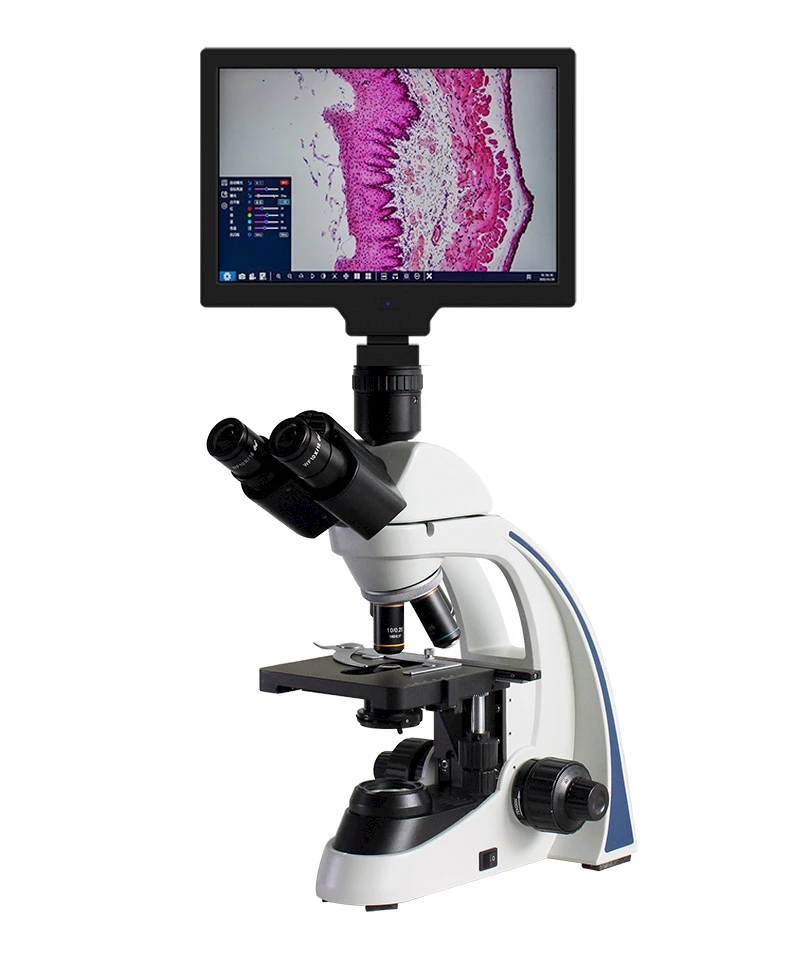

VMB1800A with its Connected Monitor

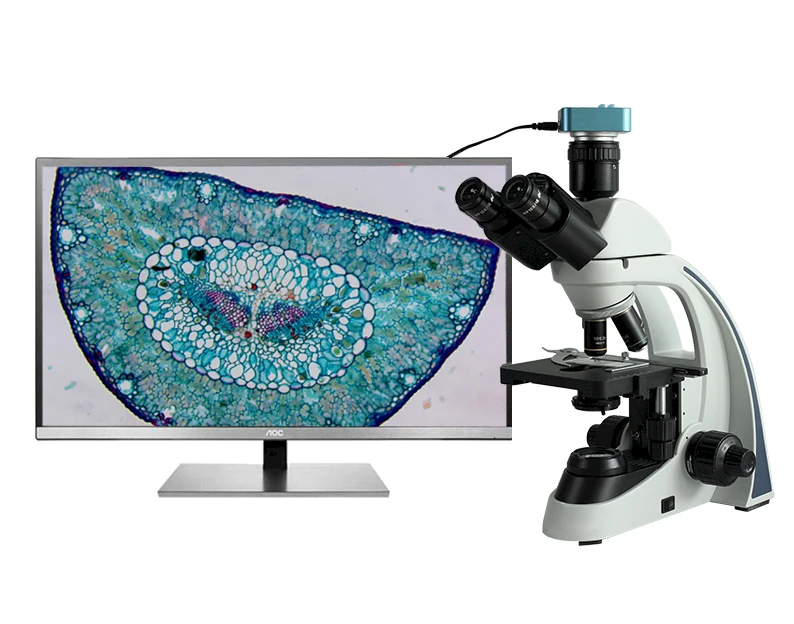

VMB1800A with its Connected HDMI Camera

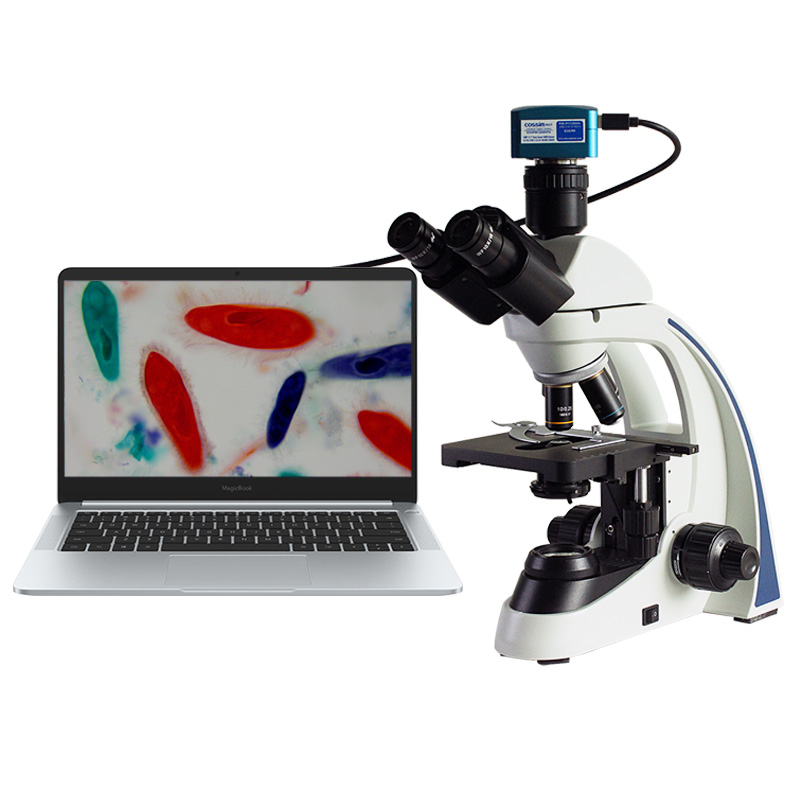

VMB1800A with its Connected USB Camera

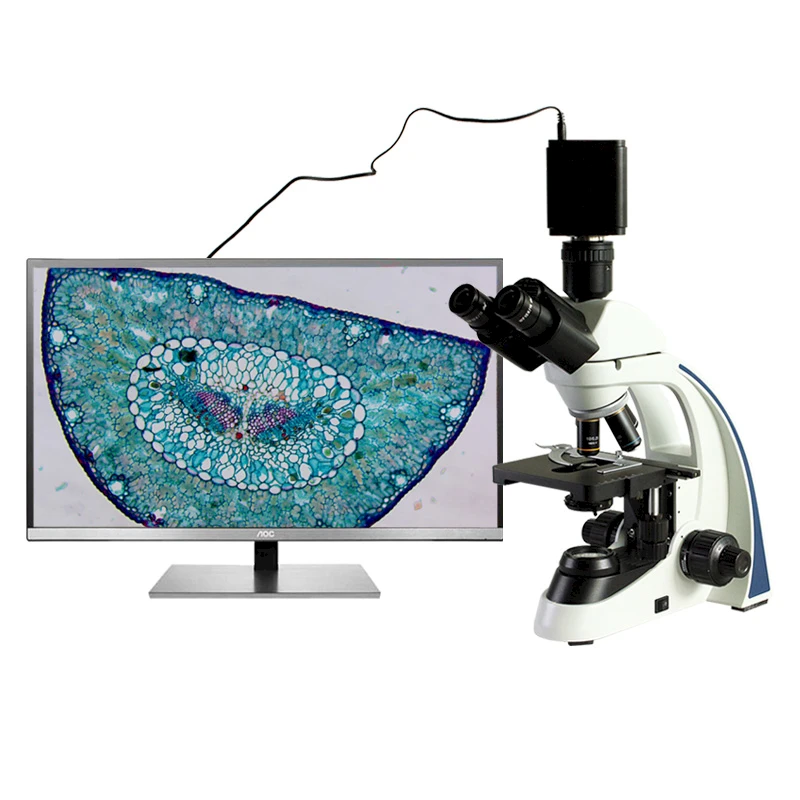

VMB1800A with its Connected Multi-interfaces Camera
Parameters for VMB1800A | |
|---|---|
Optical System | Infnity Correct Achromatic Optical System |
Eyepiece tube | Trinocular head, 30° inclined, interpupillary distance: 50~75mm, fixed spectral ratio R:T:80:20 |
Eyepiece | WF10X/18mm |
Objective | Plan Achromatic: 4X, 10X, 40X, 100X(o) |
Nosepiece | Quadruple |
Focusing | Coaxial coarse/fine focusing with up stop, minimum division of the focusing: 2 um, with up limit and tension adjustment |
Stage | Double Layer Mechanical Stage (Size: 155 x 142mm), detachable stage, moving device: 76 x 50mm |
Condenser | ABBE N.A.1.25 condenser, with Diaphragm |
Light Source | LED light source, brightness adjustable |
Power | External Wide Voltage Adapter, input: 100V~240V; AC50/60Hz, output: DC 12V2A |
Filter | Green, Yellow, Blue Filter |

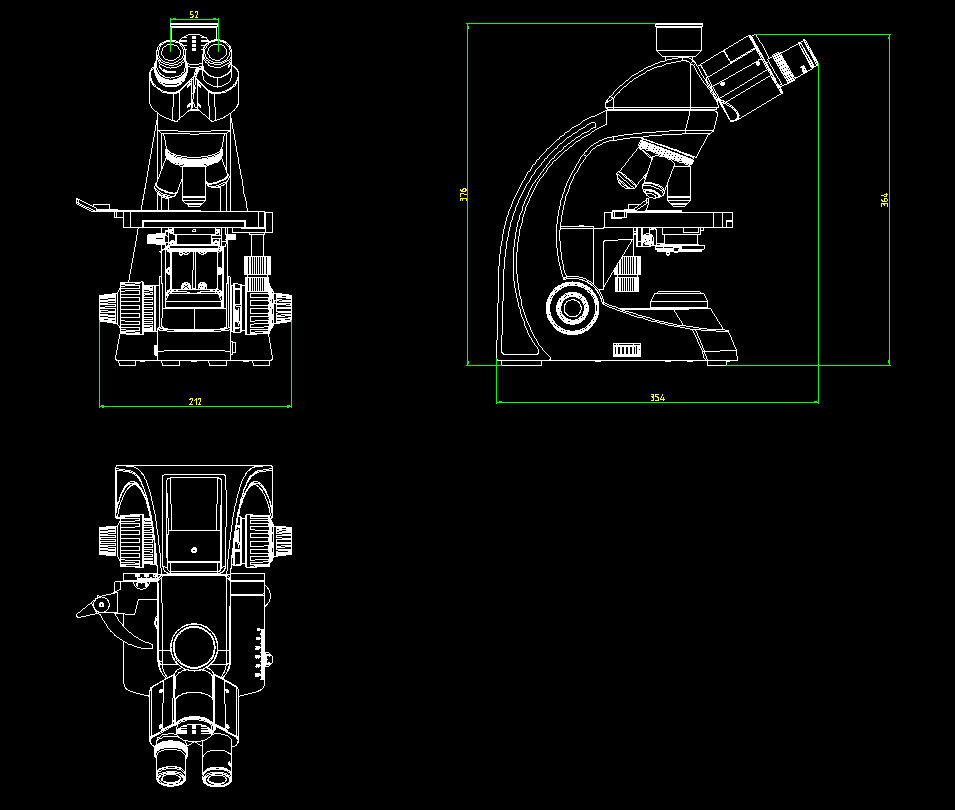

Dimension of VMB1800A
