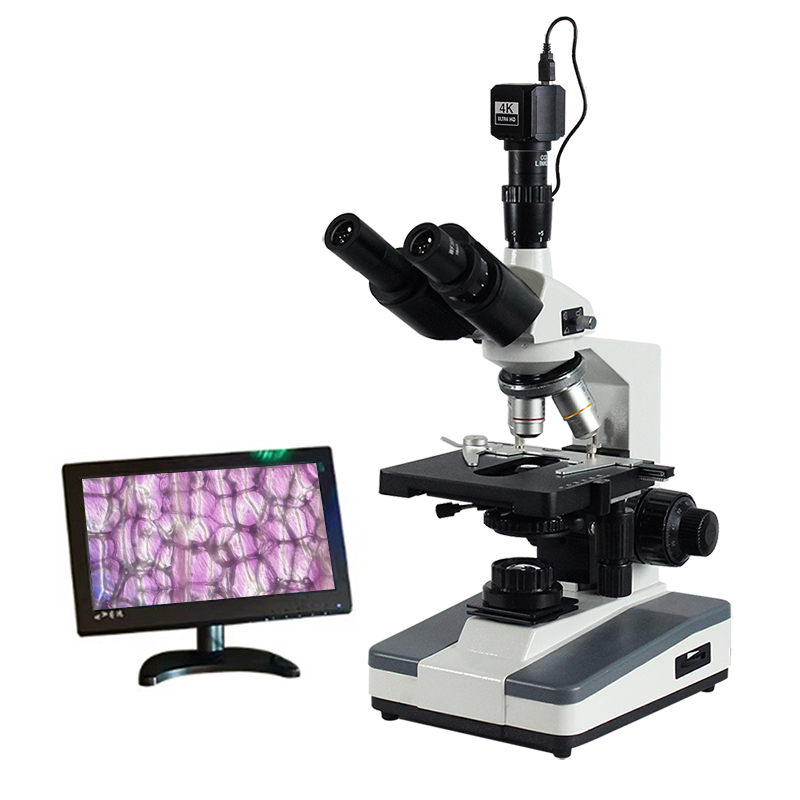

BLD-10A 40X~1000X Digital Trinocular Biological Microscope

Eyepiece

WF10X(Φ18mm)

Eyepiece Tube

Trinocular

Total Mag.

40X~1000X

Achromatic Objective

4X/0.1, 10X/0.25, 40X/0.65, 100X/1.25

Focus System

Coaxial coarse/fine focusing, minimum division of fine focusing: 2μm

Nosepiece

Quadruple

Stage

Double Layer Mechanical Stage (Size: 130mm x 140mm, Move range: 70mm x 50mm)

Condenser

ABBE Condenser N.A. 1.25 with diaphragm, Rack & pinion adjustable

Light Source

LED lamp, with brightness control

Pixel size

2.0µm × 2.0µm

Sensor Size

1/1.8”

sensor

SONY IMX CMOS

Output Resolution

HDMI Mode: 1920*1080@60FPS & 3840*2160 (4K) @30FPS

USB Mode: 1920*1080/ 3840*2160

Lens mount

C-Mount

Image resolution

3840*2160

Video resolution

1920×1080/ 3840*2160 @ 30FPS

Save Function

U-Disk / Windows PC

Exposure

Auto/Manual/Brightness/Exposure Time Adjustable

White balance

Auto/Manual/ One-key, support RGB adjustable

Other Functions

Support Contrast/ Saturability/ Clarity/ Noise Reduction Etc.

Menu Panel

ICON Design

Windows Systems

Claymore Microscope Software, Available Win7/ 8/ 10/ 11

Input voltage

DC 12V

Working Tem.

0~60℃

Storage Tem.

-20~85℃

Net Weight

0.2KG

Product Size

58*53*68m
