E3CMOS Series

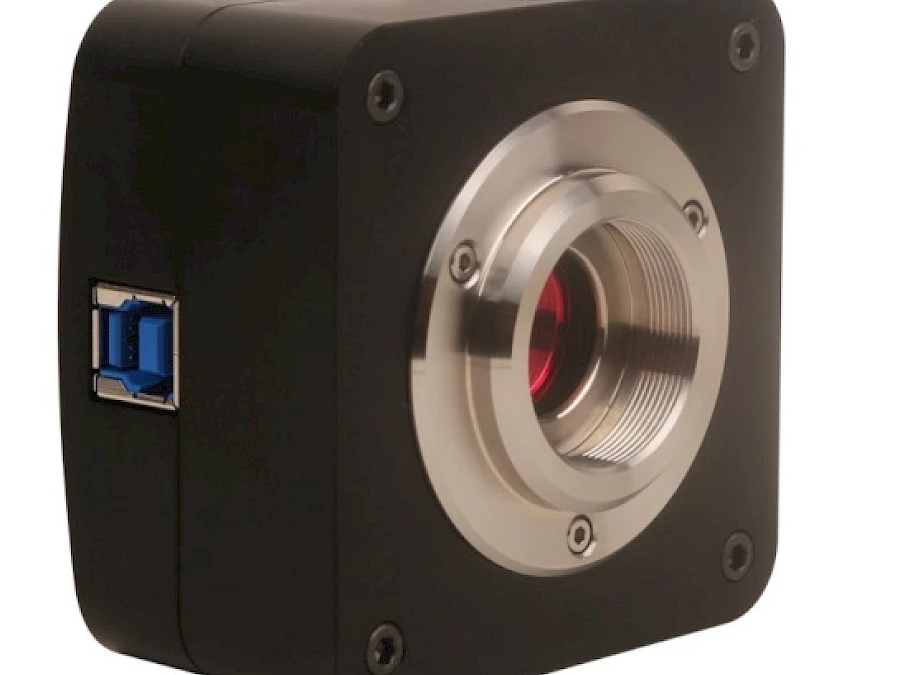

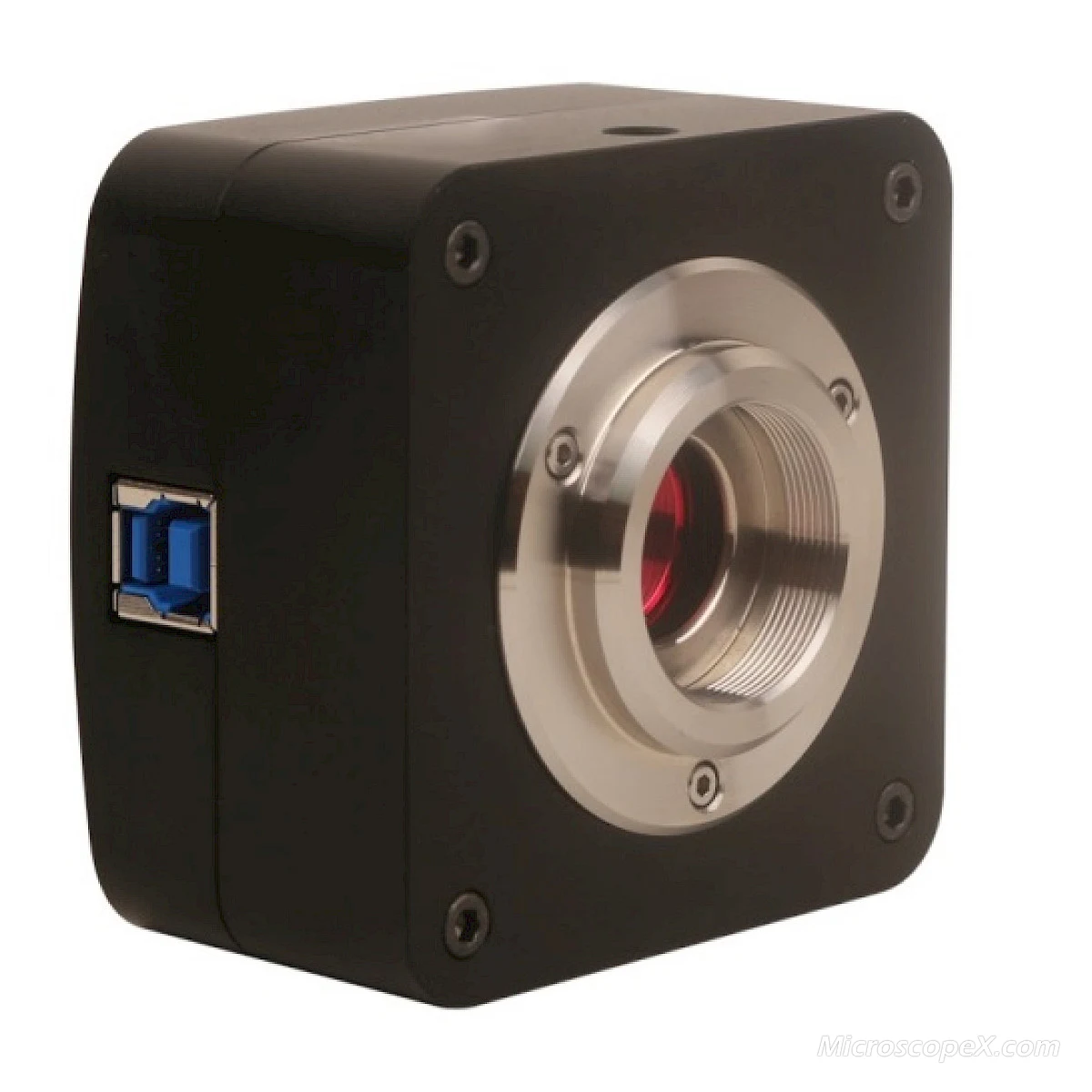

E3CMOS Series C-mount USB3.0 CMOS Camera

professional processing, USB 3.0

Core Features

SONY Exmor, Exmor R(Back-illuminated), Exmor RS CMOS sensor with USB3.0 interface
Real-time 8/12/14/16bit depth switch(depending on sensor)
Super high sensitivity up to 1120mV(IMX185)
Ultra low noise and low power dissipation by using column-parallel A/D conversion
With hardware resolution among 0.4M to 20M
Rolling Shutter or Global Shutter

Configurations

Super high sensitivity

up to 1120mV(IMX185)

Rolling Shutter or Global Shutter

Standard C-Mount

USB3.0

CNC aluminum alloy housing

Request Quotation Email Phone Back to Products

E3CMOS adopt SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the data transfer interface.

E3CMOS hardware resolutions range from 0.4M to 20M and come with the integrated CNC aluminum alloy compact housing.

E3CMOS comes with advanced video & image processing application; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

The E3CMOS can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.

E3CMOS Series

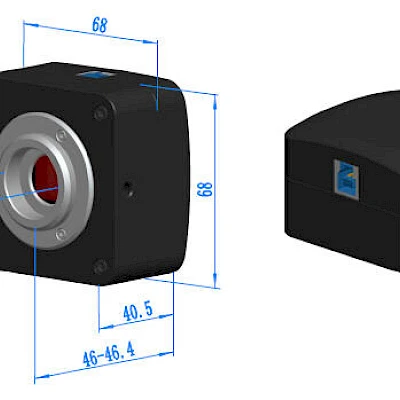

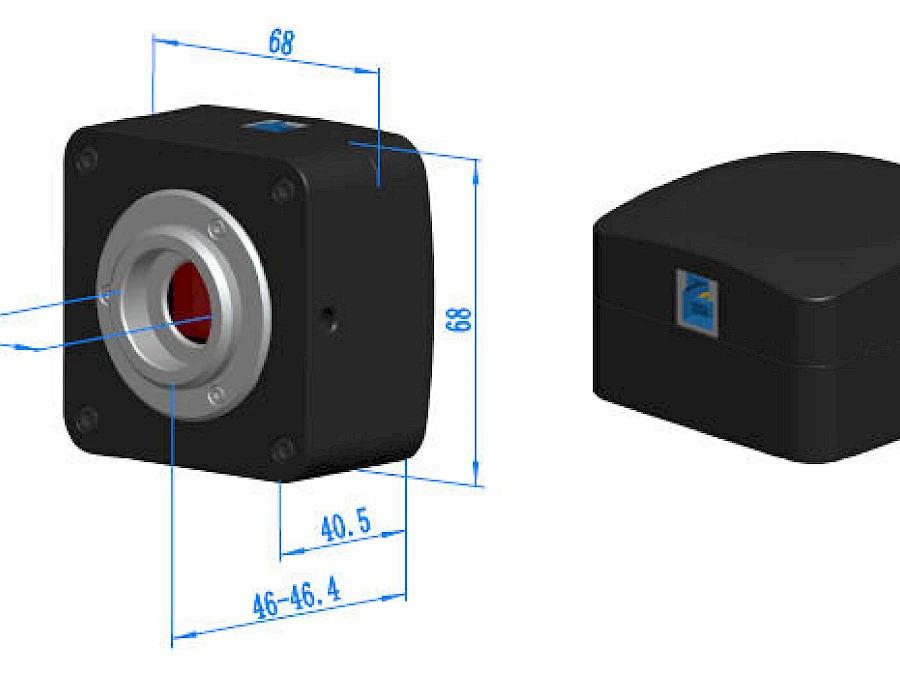

Dimension of E3CMOS

The E3CMOS body, made from tough, CNC aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

Dimension of E3CMOS

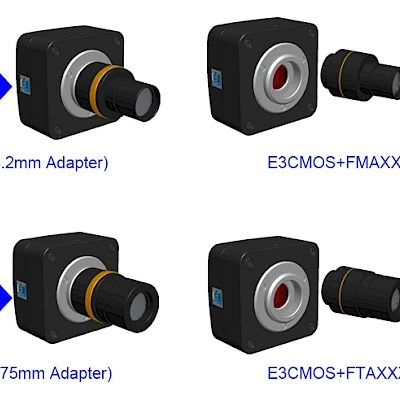

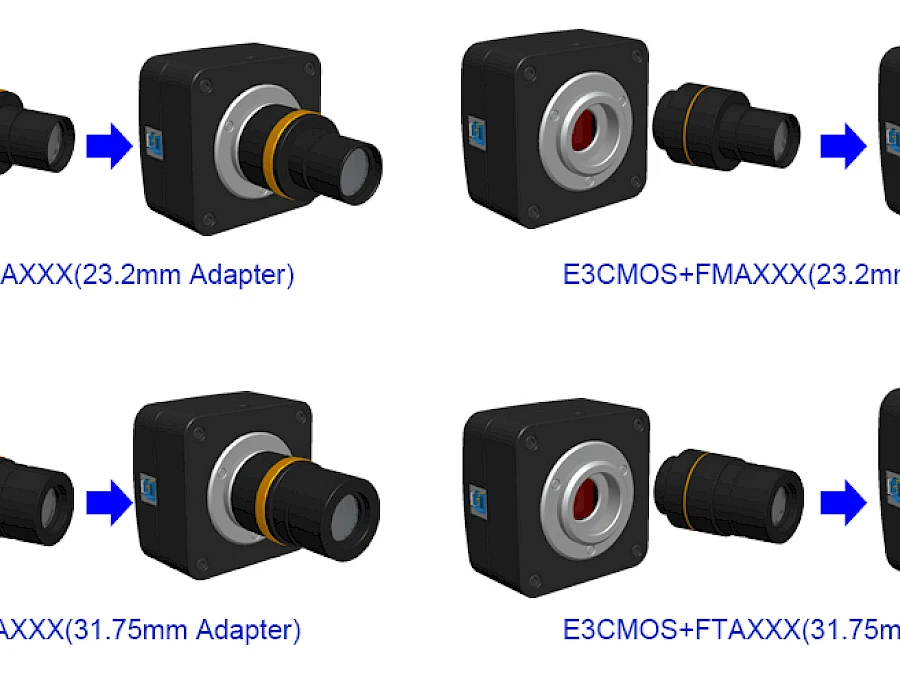

Extension of E3CMOS with Microscope or Telescope Adapter

Extension	Picture
C-mount Camera		Machine vision; Medical imaging; Semiconductor equipment; Test instruments; Document scanners; 2D barcode readers; Web camera and security video; Microscope imaging;
Microscope Camera
Telescope Camera

Order Code	Sensor & Size(mm)	Pixel(μm)	G Sensitivity Dark Signal	FPS/Resolution	Binning	Exposure
E3CMOS20000KPA EP120000A(Suspended)	20M/IMX183(C) 1 “(13.06x8.76)	2.4 x2.4	462mv with 1/30s 0.21mv with 1/30s	5.5@5440x3648 16@2736x1824 21@1824x1216	1x1, 2x2, 3x3	0.1ms~15s
E3CMOS20000KMA EM120000A(New)	20M/IMX183(M) 1 “(13.06x8.76)	2.4 x2.4	776mv with 1/30s 0.21mv with 1/30s	17.5@5440x3648 40@4080x2160 48@2736x1824 60@1824x1216	1x1, 1x1, 2x2, 3x3	0.1ms~60s
E3CMOS20000KPB EP120000B(New)	20M/IMX147(C) 1/2.3 “(6.24x4.67)	1.2 x1.2	130mv with 1/30s 0.1mv with 1/30s	5.2@5200x3888 15@2592x1944 30@1728x1296	1x1, 2x2, 3x3	0.1ms~15s
E3CMOS12300KMA EM112300A（New）	12.3M/IMX304(M) 1.1 ”(14.13x10.35)	3.45 x3.45	1146mv with 1/30s 0.1mv with 1/30s	23.4@4096x3000 46.3@2048x1500	1x1, 1x1,	0.244ms~15s
E3CMOS06300KPA EP106300A	6.3M/IMX178(C) 1/1.8“ (7.37x4.92)	2.4x2.4	425mv with 1/30s 0.15mv with 1/30s	15@3072 x2048 26@1536x 1024	1x1, 2x2	0.244ms~2000ms
E3CMOS06300KMA EM106300A	6.3M/IMX178(M) 1/1.8“ (7.37x4.92)	2.4x2.4	425mv with 1/30s 0.15mv with 1/30s	30@3072 x2048 50@1536x 1024	1x1, 2x2	0.244ms~2000ms
E3CMOS05000KPA EP105000A(Suspended)	5.0M/IMX264(C, GS) 2/3” (8.45x7.07)	3.45x3.45	1146mv with 1/30s 0.15mv with 1/30s	15@2448x2048 51@1224x1024	1x1	0.1ms~60s
E3CMOS05000KMA EM105000A	5.0M/IMX264(M, GS) 2/3” (8.45x7.07)	3.45x3.45	915mv with 1/30s 0.15mv with 1/30s	35@2448x2048 60@1224x1024	1x1, 2x2	0.1ms~60s
E3CMOS03100KPA EP103100A(Suspended)	3.1M/IMX036(C) 1/2.8“ ((5.12x3.84)	2.5x2.5	200mv with 1/30s 0.5mv with 1/30s	28@2048x1536 28@1024x768	1x1, 2x2	0.244ms ~2000ms
E3CMOS03100KPB EP103100B	3.1M/IMX123(C) 1/2.8“ (5.12x3.84)	2.5x2.5	600mv with 1/30s 0.15mv with 1/30s	25@2048x1536 30@1920x1080	1x1	0.244ms~2000ms
E3CMOS03100KMC EM103100C(New)	3.1M/IMX265(M, GS) 1/1.8“ (7.07x5.30)	3.45x3.45	1146mv with 1/30s 0.15mv with 1/30s	53@2048x1536 85@1024x768	1x1 1x1	0.1ms~15s
E3CMOS02300KPA EP102300A	2.3M/IMX185(C) 1/1.9“ (7.20x4.50)	3.75x3.75	1120mv with 1/30s 0.15mv with 1/30s	38@1920x1200 66@960x600	1x1, 2x2	0.244ms ~2000ms
E3CMOS02300KPB EP102300B	2.3M/IMX249(C,GS ) 1/1.2“ (11.25x7.03)	5.86x5.86	1016mv with 1/30s 0.15mv with 1/30s	30@1920x1200	1x1	0.244ms~2000ms
E3CMOS02300KMC EM102300C	2.3M/IMX174(M, GS) 1/1.2” (11.25x7.03)	5.86x5.86	1016mv with 1/30s 0.15mv with 1/30s	120@1920x1200	1x1	0.244ms~2000ms
E3CMOS01500KMA EM101500A(New)	1.5M/IMX273(M, GS) 1/2.9“ (4.968x3.726)	3.45x3.45	1830mv with 1/30s 0.15mv with 1/30s	228@1440x1080 530@720x540	1x1 2x2	0.1ms~60s
E3CMOS01200KPA EP101200A	1.2M/IMX224(C) 1/3”(4.80x3.60)	3.75 x3.75	2040mv with 1/30s 0.15mv with 1/30s	60@1280x960 120@640x480	1x1, 2x2	0.105ms~15s
E3CMOS00400KPA EP100400A(New)	0.4M/IMX287(C，GS) 1/2.9”(4.97x3.73)	6.9x6.9	4584mv with 1/30s 0.15mv with 1/30s	520@720x540	1x1	0.244ms~15s
E3CMOS00400KMA EM100400A(New)	0.4M/IMX287(M,GS) 1/2.9”(4.97x3.73)	6.9x6.9	7469mv with 1/30s 0.15mv with 1/30s	520@720x540	1x1	0.244ms~15s

C: Color; M: Monochrome; GS: Global Shutter

For the suspended models, customer can choose the corresponding models from E3ISPM series with faster frame rate.

Other Specification for E3CMOS Camera
Spectral Range	380-650nm (with IR-cut Filter)
White Balance	ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor
Color Technique	Ultra-FineTM Color Engine/NA for Monochromatic Sensor
Capture/Control API	Native C/C++, C# /VB.Net,, DirectShow, Twain and Labview
Recording System	Still Picture and Movie
Cooling System*	Natural
Operating Environment
Operating Temperature(in Centidegree)	-10~ 50
Storage Temperature(in Centidegree)	-20~ 60
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 5V over PC USB Port
Software Environment
Operating System	Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory: 2GB or More
	USB Port: USB3.0 High-speed Port
	Display: 17” or Larger
	CD-ROM

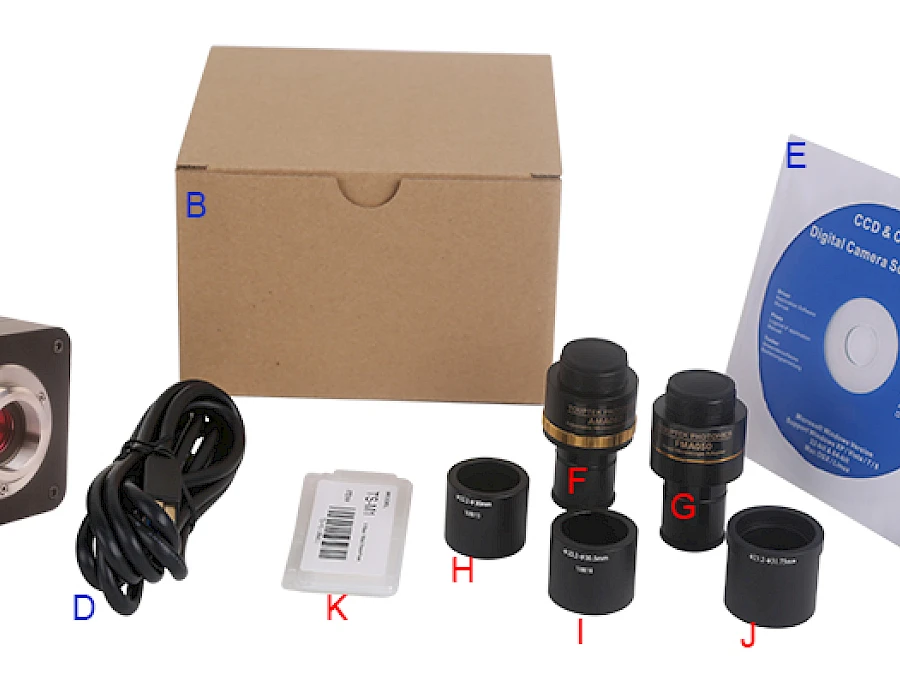

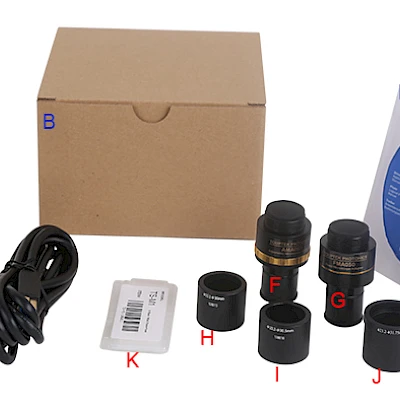

Packing Information for E3CMOS

Standard Camera Packing List
A	Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo
B	Gift box L:15cm W:15cm H:10cm (0.58~0.6Kg/ box)
C	E3CMOS series USB3.0 C-mount CMOS camera
D	High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m
E	CD (Driver & utilities software, Ø12cm)
Optional Accessory
F	Adjustable lens adapter	C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope)	108001/AMA037 108002/AMA050 108003/AMA075 108004/AMA100
F	Adjustable lens adapter	C-mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope)	108008/ATA037 108009/ATA050 108010/ATA075 108011/ATA100
G	Fixed lens Adapter	C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope)	108005/FMA037 108006/FMA050 108007/FMA075 108008/FMA100
	Fixed lens Adapter	C-Mount to Dia.31.75mm Eyepiece Tube (Please choose 1 of them for your telescope)	108011/FTA037 108012/FTA050 108013/FTA075 108014/FTA100
	Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , Jingtong engineer will help you to determine the right microscope or telescope camera adapter for your application;
H	108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube
I	108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube
J	108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube
K	Calibration kit	106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
