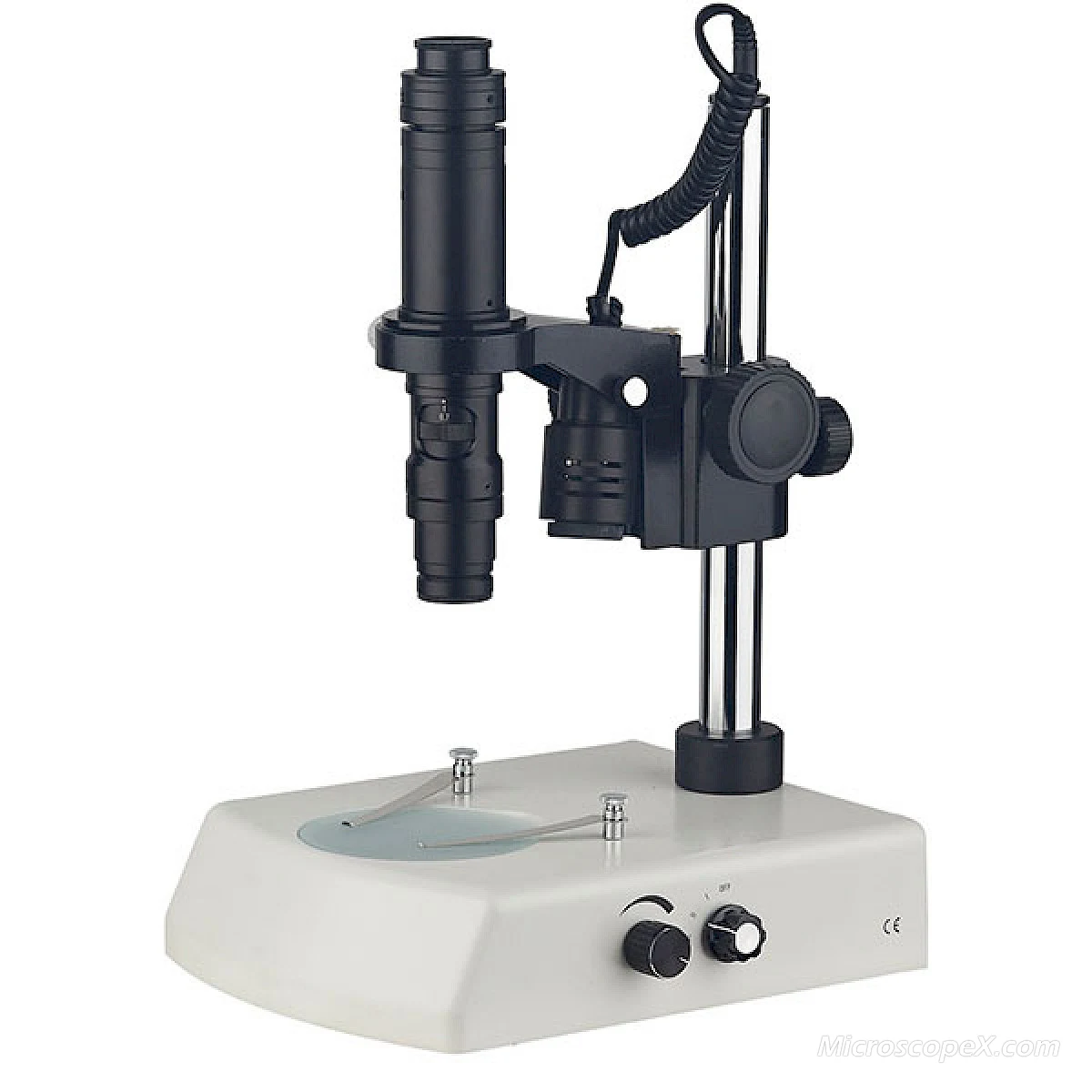

DTN45-PRT Monocular Continuous Zoom Video Digital Microscope with CCD & display

DTN45-PRT

0.35X-2.25X magnification, using with a CCD camera & display, inspection & measurement

Core Features

sharp clear images
0.5X, 1.0X, 2.0X (Aux Lens)
63-180lp/mm resolution
widely used in various fields: electronic industry and agricultural research

Configurations

sharp clear images

63-180lp/mm resolution

micro-object observation

inspection and measurement

DTN45-PRT Monocular Stereo Zoom Video Microscope offers sharp clear images, and it is primarily designed for using with a CCD camera. It is widely used in electronic industry and agricultural research for micro-object observation, inspection and measurement. 63-180lp/mm resolution meets the requirements of conventional imaging machine vision.

DTN45-PRT

Specification for DTN45-PRT
Eyepiece	Standard (1X)		Auxiliary Lens 0.5X		Auxiliary Lens 2.0X
	W.D. 100mm		W.D. 198mm		W.D. 46mm
	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V
0.35X	0.245X	23mm	0.1225X	46mm	0.49X	11.6mm
0.35X	1.575X	3mm	0.7875X	7mm	3.15X	1.7mm
0.5X	0.35X	17.6mm	0.175X	35mm	0.7X	8.8mm
0.5X	2.25X	2.7mm	1.125X	5mm	4.5X	1.3mm
1X	0.7X	9mm	0.35X	17.6mm	1.4X	4mm
1X	4.5X	1.6mm	2.25X	3mm	9X	0.71mm
Magnification	0.35X-2.25X(standard)
Eyepiece	1X(standard)
Optional Eyepiece	0.35X, 0.5X, 1X
Objective	0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1
Aux Lens	0.5X(standard), 1.0X, 2.0X
Focusing Mount	DTB45-C1 focusing mount with vertical working distance 62mm; ID:50mm for lens
Stand	PRT pole stand, for more options, please refer to “ACCESSORIES-MICROSCOPE STAND”
Illumination	Transmitted and reflected 12v/15w halogen, 7w fluorescent, 5v/3w LED illumination
Accessories	Can be connected to the cameras and displays
