Microscope Cameras

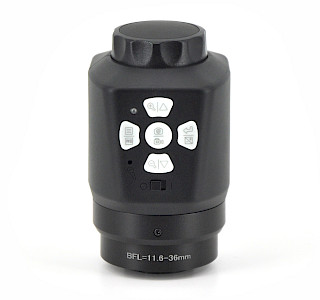

DM350-C HDMI Digital Eyepiece Camera

DM350-C HDMI Digital Eyepiece Camera

practical operation. HDMI 1080i

  • Special manual focus on the top of camera to extend working distance
  • HDMI 1080i 60fps preview 720P 30fps record
  • Multi modes are provided on exposure and white balance
  • User defined crop selected cross line
  • TF card slot Maximum support 64G
  • 4X digital zoom

ICMOS Series Industrial C-mount USB2.0 CMOS Camera

ICMOS Series Industrial C-mount USB2.0 CMOS Camera

high-cost effective, compact & convenient, Industrial camera, USB

  • C-Mount camera with Aptina or OnSemi CMOS sensor
  • Dimensions: 29x29x29 mm excluding lens holder, without optics (metal case)
  • 8-pin Hirose HR25-7TR-8PA GPIO connector for trigger, strobe (Optional)
  • USB 2.0 interface with screw locks for camera control, data, and power
  • With advanced video & image processing application ToupView
  • Providing Windows/Linux/Mac OS multiple platforms SDK
  • Native C/C++, C#/VB.NET, DirectShow, Twain Control API

WUCAM Series C-mount WiFi+USB CMOS Camera

WUCAM Series C-mount WiFi+USB CMOS Camera

simultaneous multiple matches, stable & convenient operation, USB+WiFi

  • C-Mount camera has 25.4 mm or 1 inch diameter with 32 threads per inch
  • Scientific research grade camera with Aptina CMOS sensor
  • Switchable USB+WiFi data intaface
  • Send MJPEG encodec high-resolution images from camera to WiFi-enabled smartphones, computers, and tablets with iOS, Android, and Windows operating systems
  • Streams images to several devices simultaneously
  • Send MJPEG encodec high-resolution images from camera to USB-enabled computer with UVC standard protocal
  • Ultra-Fine color engine with perfect color reproduction capability
  • With advanced video & image processing application ToupView(only support simple video viewing capturing for IOS/ android system)
  • Custom programmable with SDK provided(Windows/Linux/OS)(WiFi)

WCAM Series C-mount WiFi CMOS Camera

WCAM Series C-mount WiFi CMOS Camera

simultaneous multiple matches, stable & convenient operation

  • C-Mount camera has 25.4 mm or 1 inch diameter with 32 threads per inch
  • Scientific research grade camera with Aptina CMOS sensor
  • Sends H.264 encodec high-resolution images from a microscope to WiFi-enabled smartphones, computers, and tablets with iOS, Android, and Windows operating systems
  • Streams images to several devices simultaneously
  • Integrated zinc aluminum alloy housing
  • Ultra-FineTM color engine with perfect color reproduction capability
  • With advanced video & image processing application ToupView(only support simple video viewing capturing for IOS/ android system)
  • Custom programmable with SDK provided(Windows/Linux/OS)

SCMOS Series USB2.0 CMOS Eyepiece Camera

SCMOS Series USB2.0 CMOS Eyepiece Camera

High quality, USB, match for computer, upgrade any microscopes

  • Microscope eyepiece camera with 23.2 diameter and compact size
  • Easy to extend to C or CS- Mount camera with high quality lens(optional)
  • High-quality camera with Aptina CMOS sensor
  • Auto white balance and auto-exposure; Brightness, contrast, chroma, and saturation can be adjusted
  • High-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption
  • With advanced video & image processing application ToupView
  • Providing Windows/Linux/Mac OS multiple platforms SDK
  • Native C/C++, C#/VB.NET, DirectShow, Twain Control API

SPCMOS Series USB2.0 CMOS Eyepiece Camera with Reduction Lens

SPCMOS Series USB2.0 CMOS Eyepiece Camera with Reduction Lens

practical operation, USB, superior functions

  • Microscope eyepiece camera with 23.2 diameter and compact size
  • An extension of SCMOS camera with fixed reduction lens to ensure the full field of view of the microscope from the eyepiece can be imaged to the CMOS sensor
  • High-quality camera with Aptina CMOS sensor
  • Auto white balance and auto-exposure; Brightness, contrast, chroma, and saturation can be adjusted
  • High-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption
  • With advanced video & image processing application ToupView
  • Providing Windows/Linux/Mac OS multiple platforms SDK
  • Native C/C++, C#/VB.NET, DirectShow, Twain Control API

UCMOS Series C-mount USB2.0 CMOS Camera

UCMOS Series C-mount USB2.0 CMOS Camera

excellent performance, intelligent image processing, USB

  • Standard C-Mount with Aptina CMOS sensor
  • With hardware resolution among 0.35M to 14M
  • Integrated zinc aluminum alloy housing
  • USB2.0 interface ensuring high speed data transmission
  • Ultra-FineTM color engine with perfect color reproduction capability

UA Series C-mount USB2.0 CMOS Camera

UA Series C-mount USB2.0 CMOS Camera

professional & advanced image processing, USB

  • Standard C-Mount with Aptina/Panasonic CMOS sensor
  • With hardware resolution among 1.3M to 16M
  • USB2.0 interface ensuring high speed data transmission
  • Ultra-FineTM color engine with perfect color reproduction capability
  • External dedicated on-board buffer to achieve maximum performance of USB2.0
  • Compatible with most of the old and new CPU PC
  • Aluminum alloy CNC housing which is the same as that of UCMOS series

LCMOS Series C-mount USB2.0 CMOS Camera

LCMOS Series C-mount USB2.0 CMOS Camera

stable performance, USB

  • Stand C-Mount camera with Aptina CMOS sensor
  • With hardware resolution among 1.2M to 14M
  • On-board memory for perfect synchronization´╝îhigher frame rate and stable performance
  • High performance cooling structure, ensures low image noise
  • USB2.0 interface ensuring high speed data transmission
  • Ultra-FineTM color engine with perfect color reproduction capability

ECMOS Series C-mount USB2.0 CMOS Camera

ECMOS Series C-mount USB2.0 CMOS Camera

high-speed transmission, USB, excellent color restoration

  • SONY Exmor, Exmor R(Back-illuminated), Exmor RS CMOS sensor with USB2.0 interface
  • Real-time 8/12/14/16bit depth switch(depending on sensor)
  • Super high sensitivity up to 2040mV(IMX224)
  • Ultra low noise and low power dissipation by using column-parallel A/D conversion
  • With hardware resolution among 1.2M to 8.3M
  • Rolling Shutter
  • Standard C-Mount camera
  • CNC aluminum alloy housing
  • USB2.0 interface ensuring high speed data transmission
  • With advanced video & image processing application ToupView
  • Providing Windows/Linux/Mac OS multiple platforms SDK
  • Native C/C++, C#/VB.Net, DirectShow, Twain

S3CMOS Series USB3.0 Eyepiece Camera

S3CMOS Series USB3.0 Eyepiece Camera

compact & convenient, high-speed, USB3.0 auto processing

  • Microscope eyepiece camera with 23.2 diameter and compact size
  • Easy to extend to C or CS- Mount camera with high quality lens(optional)
  • High-quality camera with Aptina CMOS sensor
  • Auto white balance and auto-exposure; Brightness, contrast, chroma, and saturation can be adjusted
  • High-speed USB3.0 interface and high frame rate video display keep the screen smooth without interruption
  • With advanced video & image processing application ToupView
  • Providing Windows/Linux/Mac OS multiple platforms SDK
  • Native C/C++, C#/VB.NET, DirectShow, Twain Control API

U3CMOS Series C-mount USB3.0 CMOS Camera

U3CMOS Series C-mount USB3.0 CMOS Camera

ultra-high performance, high-speed transmission, geometrical measurement, USB3.0, facilitate operation

  • Standard C-Mount camera with Aptina CMOS sensor
  • With hardware resolution among 3.0M to 18M
  • Integrated zinc aluminum alloy housing
  • USB3.0 5 Gbps interface ensuring high frame rate
