VM3500M Trinocular Reflected & Transmitted Illumination Memory System Metallurgical Microscope with Coded Quintuple Nosepiece & Semi-apo Lens
Infinity Semi-apochromatic optical system; Optional 50X~1000X; Coded Nosepiece; Light Brightness Memory Function
Features
- Adopted excellent Infinity Semi-apochromatic optical system
- Standard magnification: 50X~500X, can reach 1000X (with 100X optional lens)
- Transmitted & reflected body system can hold samples up to 40mm in height
- Random limiting device can effectively prevent collisions between the sample and the objective lens
- Coded quintuple nosepiece, automatically adjusts the calibration values recorded in the software
- Brightness memory function, automatically adjust the light intensity
- Condenser system has a larger numerical aperture, higher brightness, and significantly improves the transmittance of light source
- Providing bright field, polarizing observation modes, with polarizer and analyzer, which is more suitable for observe the surfaces of highly reflective sample materials
Tags: Compound MicroscopesMetallurgical MicroscopesIndustrial InspectionSoldering Microscopes
Request a Quote?
Get Quote Live chat Email Phone
SWH10X(Φ23mm)
PL FLN 5X, 10X, 20X, 50X
Fine Focus 1um
216 x 170mm
light 10W
100V~240V
N.A.0.9
VM3500M upright metallurgical microscope is suitable to observe surface of opaque objects or transparent objects. It equipped with excellent infinity optical system and newly integrated T-shaped frame which is made of high-pressure casting, with strong stability. so that ensure the high accuracy and no shaking of the images during measurements.
It also provides observation in reflected or transmitted and mixed illumination, operating bright field observation, polarizing observation, dark field observation (optional). 10W LED light illumination for high brightness, high resolution, and positive color reproduction of images.
It has beautiful sculpt, convenient control and clear image, which is the ideal instrument in research work in biology, metallography, mineralogy, precision engineering, electronics, etc.
By adding the appurtenance such as CCD adapter, digital camera adapter and single-reverse digital camera adapter and etc. It can achieve high clear observation mode of camera and video.

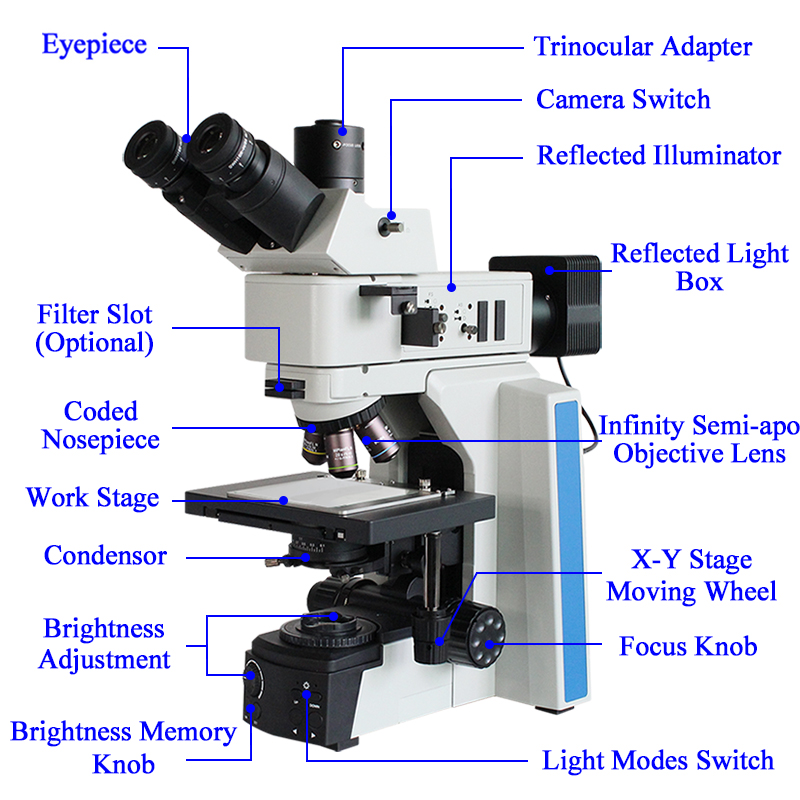

Structure of VM3500M

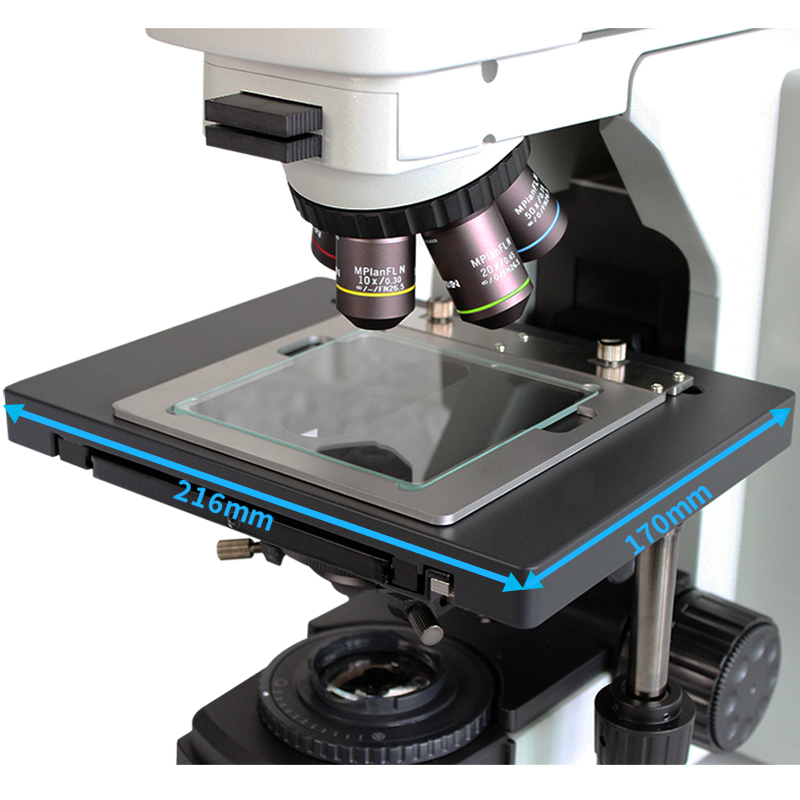

Mechanical Stage of VM3500M

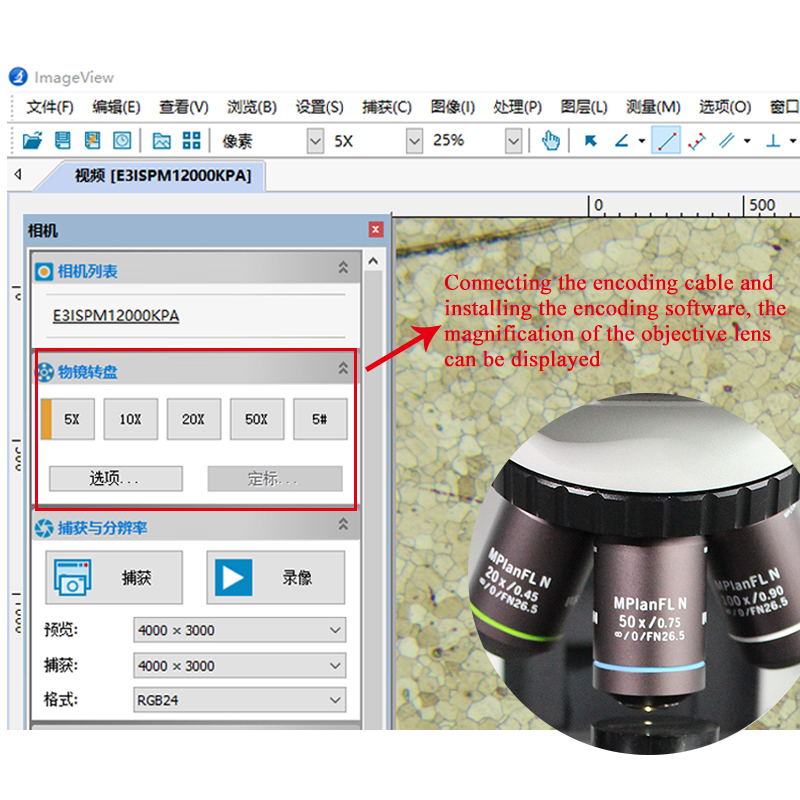

Coded Quintuple Nosepiece of VM3500M

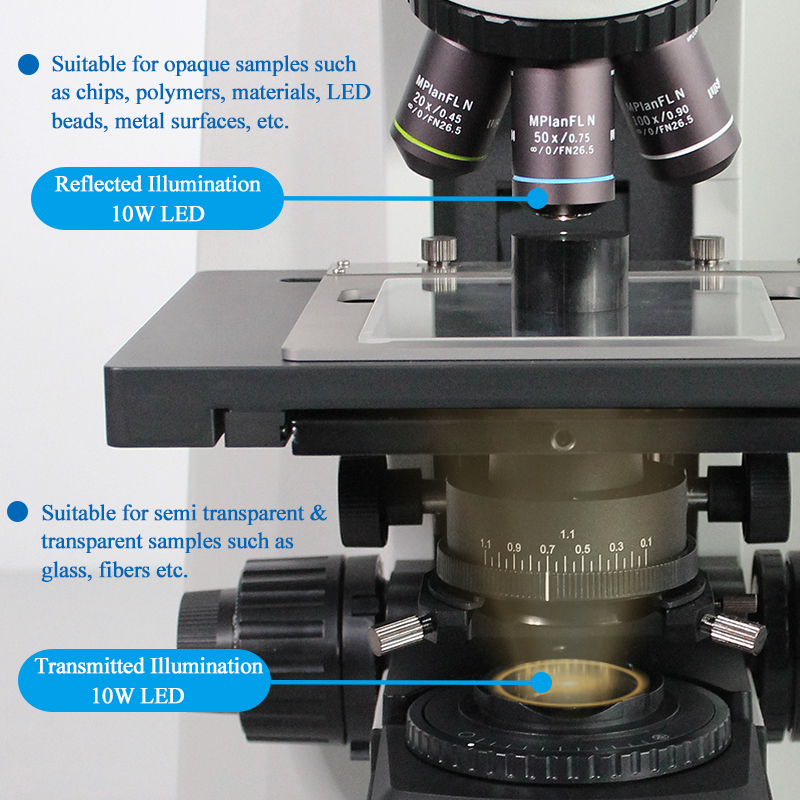

Up & Down Lights of VM3500M

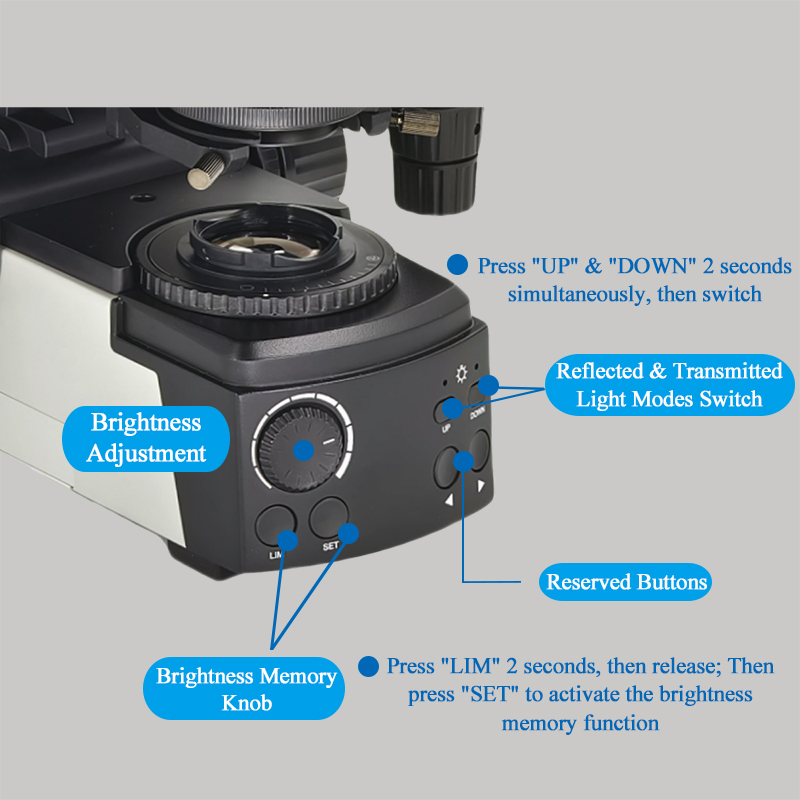

Brightness Memory Function of VM3500M

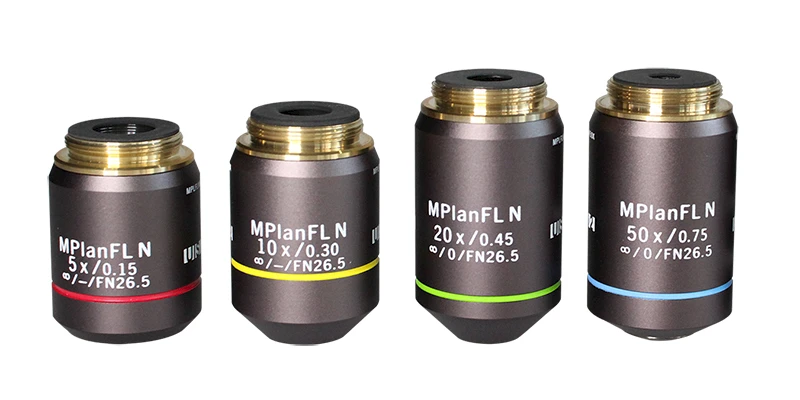

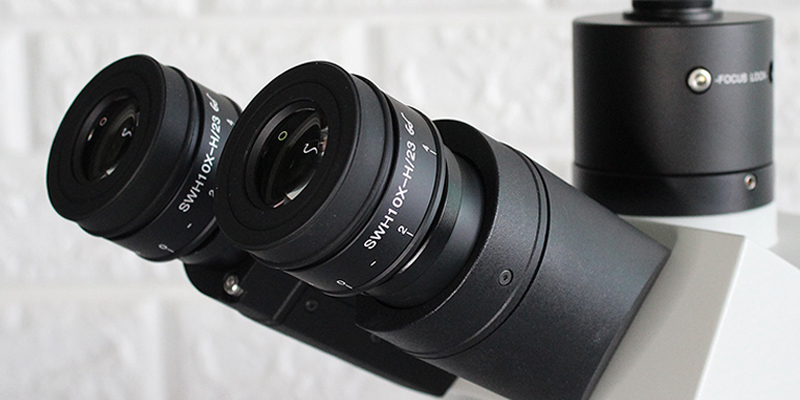

Eyepiece & Objective Lens of VM3500M

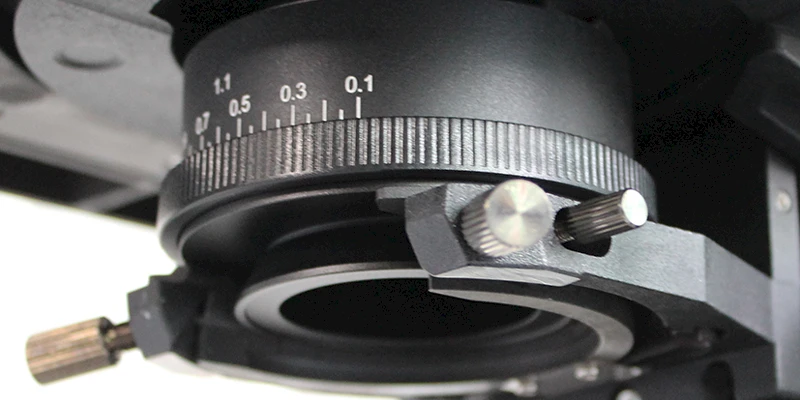

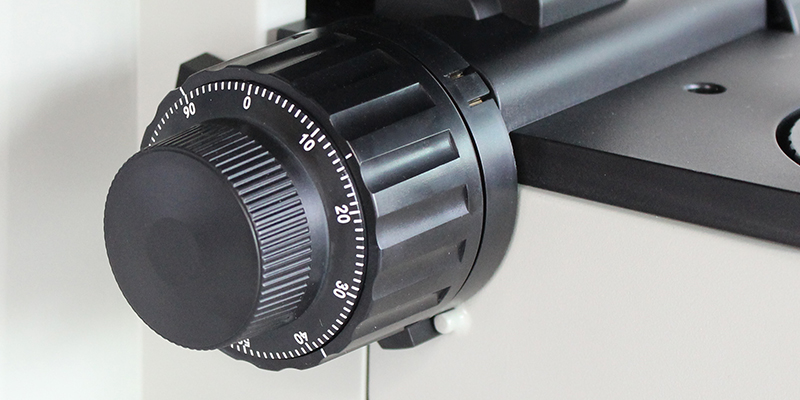

Condenser & Focus Knob of VM3500M

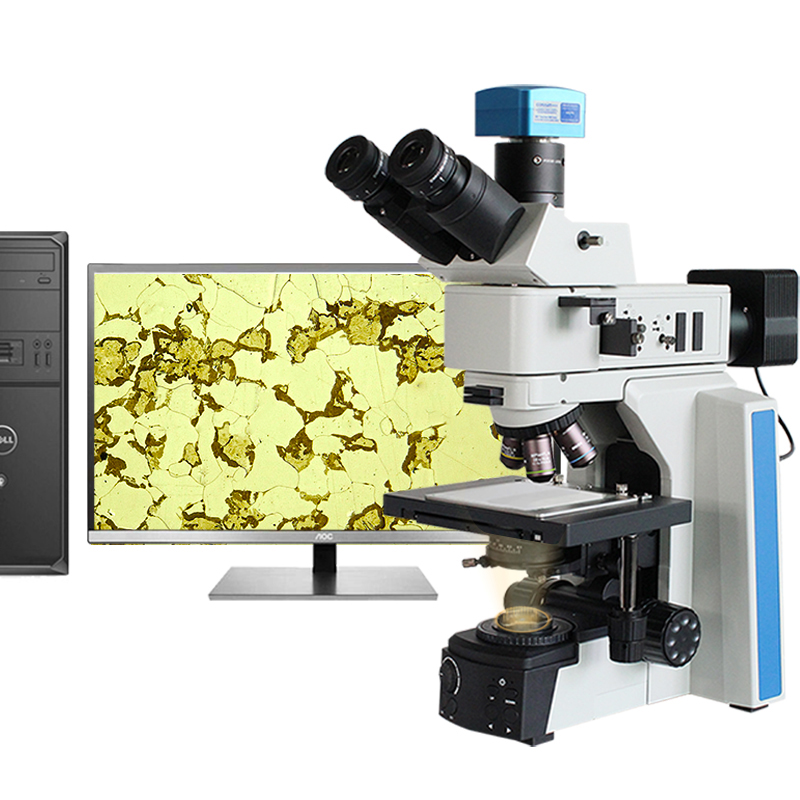

VM3500M with its Connected USB Camera
Specification for VM3500M: | |
|---|---|
Eyepiece | High eyepoint SWH10X(Φ23mm), diopter adjustable |
Eyepiece Tube | Trinocular, inclined 30°, interpupillary distance: 50~75mm; unilateral interpupillary adjustment: -2/+8 diopters; R: T Ratio =100:0 or 50:50 |
Infinity plan semi-apochromatic objective | PL FLN 5X/0.15 (Work distance)：15mm |
PL FLN 10X/0.30 (Work distance)：8.4mm | |
PL FLN 20X/0.45 (Work distance)：8.5mm | |
PL FLN 50X/0.75 (Work distance)：3mm | |
PL FLN 100X/0.90 (Work distance)：1mm (Optional) | |
Magnification | Standard: 50X~500X |
50X~1000X (with100X optional lens) | |
Digital Magnification: 150X~3000X (when connected with 12MP camera, 100X lens, 22inch monitor) | |
Focus System | Low-hand coaxial coarse/fine focus system, with tension adjustable and up stop, Coarse range: 30mm, minimum division of fine focusing: 1μm; Transmitted & reflected body system can hold samples up to 40mm in height |
Coded Nosepiece | Coded quintuple nosepiece, automatically adjusts the calibration values recorded in the software when switching lens magnification with Image analysis software, Which is easy to operate and reducing measurement errors |
Working Stage | Double Layer Mechanical stage area size: 216 x 170mm, work table size: 137x 125mm, glass table size: 101 x 101mm, moving range: 75 x 50mm (Optional: Reflective metal plate / Reflective & Transmitted glass plate) |
Illumination system (Brightness memory function) | Reflected Illumination: 10W LED bulb, Kohler illuminator, brightness adjustable, with field diaphragm & aperture diaphragm, center adjustable; |
Transmitted Illumination: 10W LED bulb | |
Wide voltage: 100V~240V AC 50/60Hz | |
Condenser | Achromatic condenser N.A.0.9, transmitted swing-out type, with adjustable aperture diaphragm, center adjustable |
Digital Adapter | 0.65X CCD adapter |

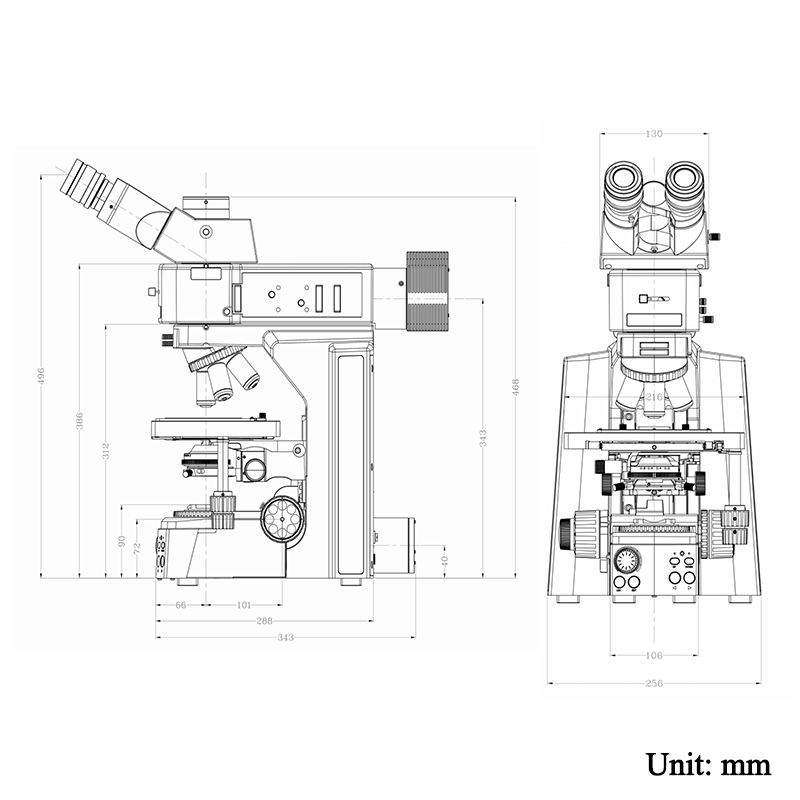

Dimension of VM3500M Metallurgical Microscope
Application of VM3500M Metallurgical Microscope
