Compound Microscopes
VM3500M Trinocular Reflected & Transmitted Illumination Memory System Metallurgical Microscope with Coded Quintuple Nosepiece & Semi-apo Lens
- Adopted excellent Infinity Semi-apochromatic optical system
- Standard magnification: 50X~500X, can reach 1000X (with 100X optional lens)
- Transmitted & reflected body system can hold samples up to 40mm in height
- Random limiting device can effectively prevent collisions between the sample and the objective lens
- Coded quintuple nosepiece, automatically adjusts the calibration values recorded in the software
- Brightness memory function, automatically adjust the light intensity
- Condenser system has a larger numerical aperture, higher brightness, and significantly improves the transmittance of light source
- Providing bright field, polarizing observation modes, with polarizer and analyzer, which is more suitable for observe the surfaces of highly reflective sample materials

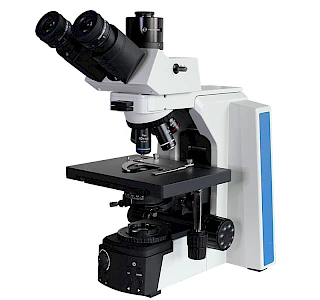

VMB630A Professional Integrated Coding Nosepiece Upright Trinocular Biological Microscope for Medical Operation & Teaching
- Total Mag. 40X~1000X
- Rigid T-shaped design conforms to ergonomic principles, providing comfortable operation, aesthetics, practicality, wear resistance, and durability
- Large field eyepiece and infinite plan achromatic objective, with a flat and clear field of view
- LIM intelligent light intensity management, brightness memory function, panel supports ECO energy-saving
- The inward tilting quintuple coded objective disc and five objectives meet the observation needs of multiple magnifications
- The whole machine adopts anti mold and antibacterial treatment, effectively protecting the lens and extending the service life of the instrument
BL-125 Binocular/Trinocular Microscope Laboratory Clinical Biology Biological Microscope for Lab Live Blood Analysis Use
- 40X~1600X Total Magnification
- Wide field plan eyepiece, with high eye point
- N.A. 1.25 Abbe Condenser, with iris diaphragm, filter
- Kohler Illumination, diaphragm adjustable
VM2400I 50X-1000X Coded Nosepiece Trinocular Inverted Metallurgical Microscope with Brightness Memory Function for Wafer Inspection
- Infinite Objective Lens: 5X, 10X, 20X, 50X, 100X (Optional)
- Trinocular Head, Inclined 45°, Interpupillary Distance 50-75mm
- Double Layer Mechanical Stage: 215mmx165mm with Scale
- Coded Quintuple Nosepiece, to Show lens magnification when switching, adjusts the calibration values recorded
- Brightness Memory Function, remember the lighting brightness when using each objective
CM120BD-AF Electric Coded Nosepiece Metallurgical Microscope with 2.5X Lens & Polarizer, Analyzer
- Equip with infinite Semi-Apo BF/DF optical system
- Working Stage size: 760*430mm, Glass Area: 310*418mm
- Electric light & dark field 5-hole Coded converter (with DIC slot)
- Optional DIC observation system, to get 3D images with relief effect
- Reflective & transmitted illuminator, 10W adjustable LED light, for Transparent & Opaque Materials
- Insert plate polarizer & analyzer, for observing surface of the highly reflective samples
CM120BD Super Large Stage Metallurgical Microscope with 12-inch Stage for Chip, Wafer, Particle Blasting Inspection
- Equip with infinite Semi-Apo BF/DF optical system
- Working Stage size: 760*430mm, Glass Area: 310*418mm
- Reflective & transmitted illuminator, 10W adjustable LED light, for Transparent & Opaque Materials
- Insert plate polarizer & analyzer, for observing surface of the highly reflective samples
- Optional DIC observation system, to get 3D images with relief effect
CM80BD-AF Electric Scientific Metallurgical Microscope with DIC System
- Equip with infinite Semi-Apo BF/DF optical system
- Working Stage size: 525*330mm, including fast moving device
- Electric quintuple nosepiece, with dual control of physical buttons and software, for remote digit adjustment
- Optional DIC observation system, to get 3D images with relief effect
- Reflective & transmitted illuminator, 5W adjustable LED light, for Transparent & Opaque Materials
- Insert plate polarizer & analyzer, for observing surface of the highly reflective samples
CM80BD Scientific Grade Metallurgical Microscope with 8-inch Stage for Polymer Materials
- Equip with infinite Semi-Apo BF/DF optical system
- Working Stage size: 525*330mm, including fast moving device
- Reflective & transmitted illuminator, 5W adjustable LED light, for Transparent & Opaque Materials
- Insert plate polarizer & analyzer, for observing surface of the highly reflective samples
- Optional DIC observation system, to get 3D images with relief effect
CM60BD-AF Electric Nosepiece Metallurgical Microscope with 6-inch Stage for Large-sized Specimen
- Equip with infinite Semi-Apo BF/DF optical system
- Working Stage size: 450*240mm, including fast moving device
- Electric quintuple nosepiece, with dual control of physical buttons and software, for remote digit adjustment
- Optional DIC observation system, to get 3D images with relief effect
- Reflective & transmitted illuminator, 5W adjustable LED light, for Transparent & Opaque Materials
- Insert plate polarizer & analyzer, for observing surface of the highly reflective samples
CM60BD Positive Image Metallurgical Microscope with 6-inch Working Stage & Fast Moving Device
- Equip with infinite Semi-Apo BF/DF optical system
- PL 10X/25mm Eyepiece, showing positive images
- Working Stage size: 450*240mm, including fast moving device
- Optional DIC observation system, to get 3D images with relief effect
- Reflective & transmitted illuminator, 5W adjustable LED light, for Transparent & Opaque Materials
- Insert plate polarizer & analyzer, for observing surface of the highly reflective samples
CM40BD-AF Electric light & BF/DF 5-hole Converter Metallurgical Microscope with 4K Auto-Focus HDMI Camera
- Equip with infinite chromatic aberration correction optical system
- Electric Light & BF/DF Quintuple Nosepiece
- Long Working Distance BD Semi-Apo Objective Lens
- Mechanical Platform Area: 310*240mm, Moving Stroke: 150mmx100mm
- 5W adjustable LED light, for Reflective & Transmitted LED Illuminators
CM40BD Upright Research Grade Metallurgical Microscope for Metallographic Materials Testing
- Equip with infinite chromatic aberration correction optical system
- Optional DIC observation system, to get 3D images with relief effect
- Reflective & transmitted illuminator, 5W adjustable LED light, for Transparent & Opaque Materials
- Insert plate polarizer & analyzer, for observing surface of the highly reflective samples
